Power Liftgate

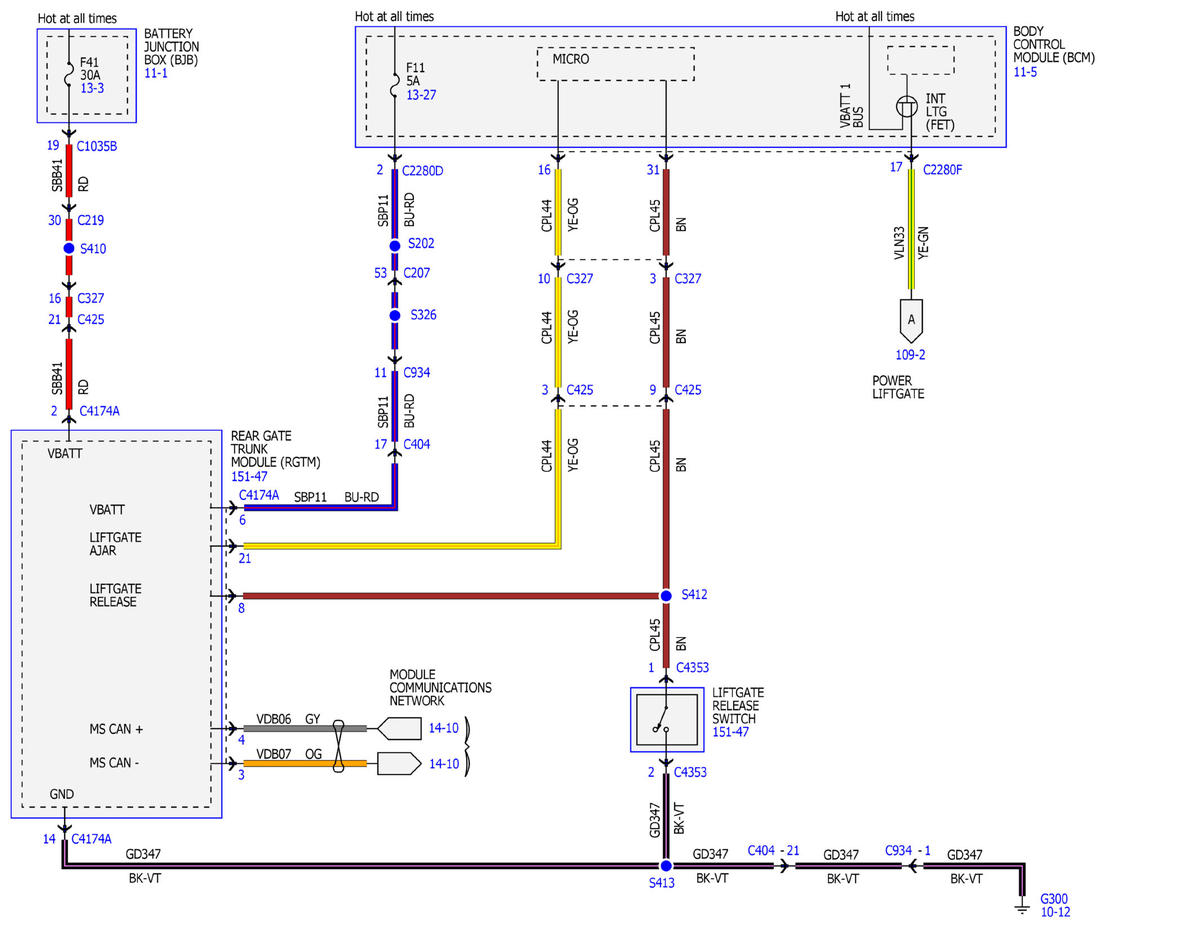

Fig 1: Power Liftgate Wiring Diagram (1 Of 5)
GFDWR137339Courtesy of FORD MOTOR COMPANY

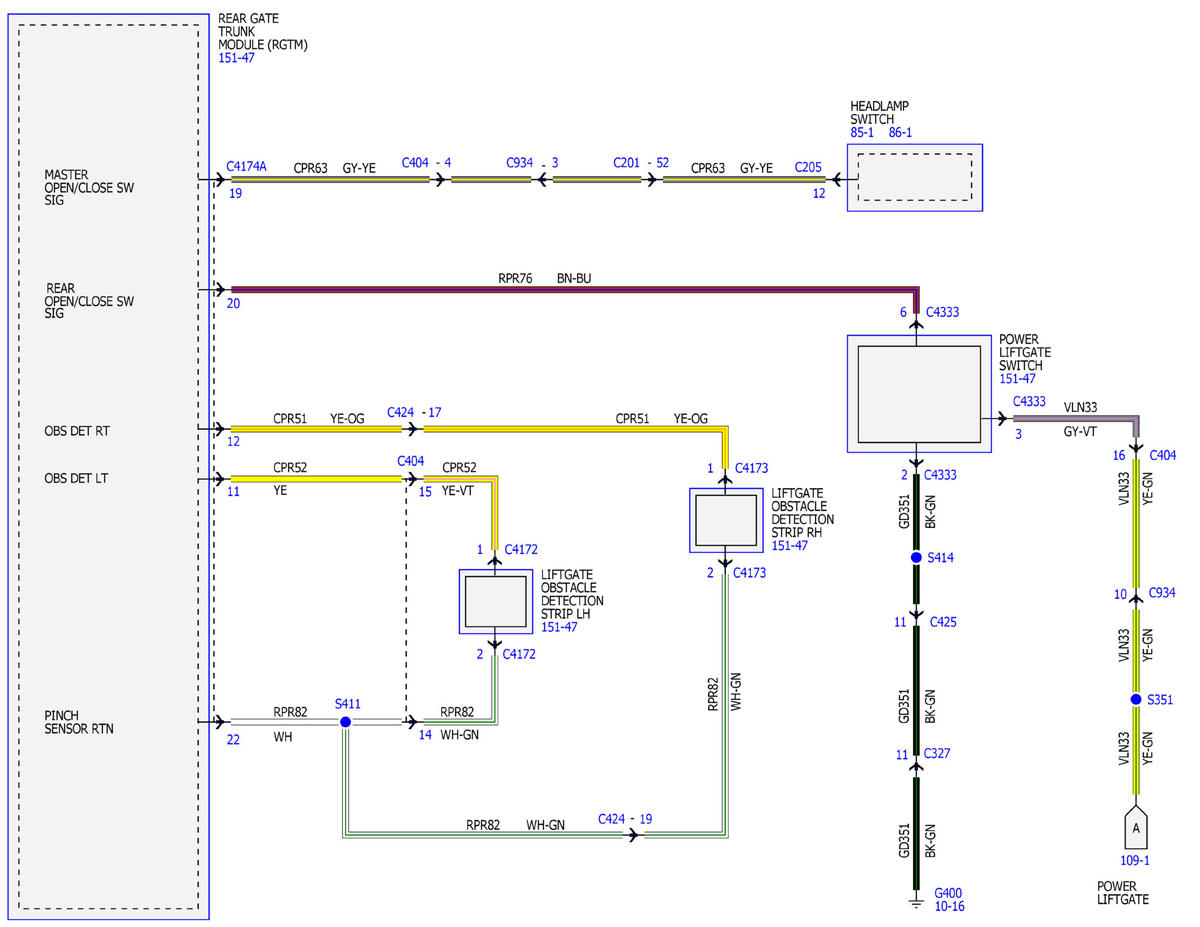

Fig 2: Power Liftgate Wiring Diagram (2 Of 5)
GFDWR137340Courtesy of FORD MOTOR COMPANY

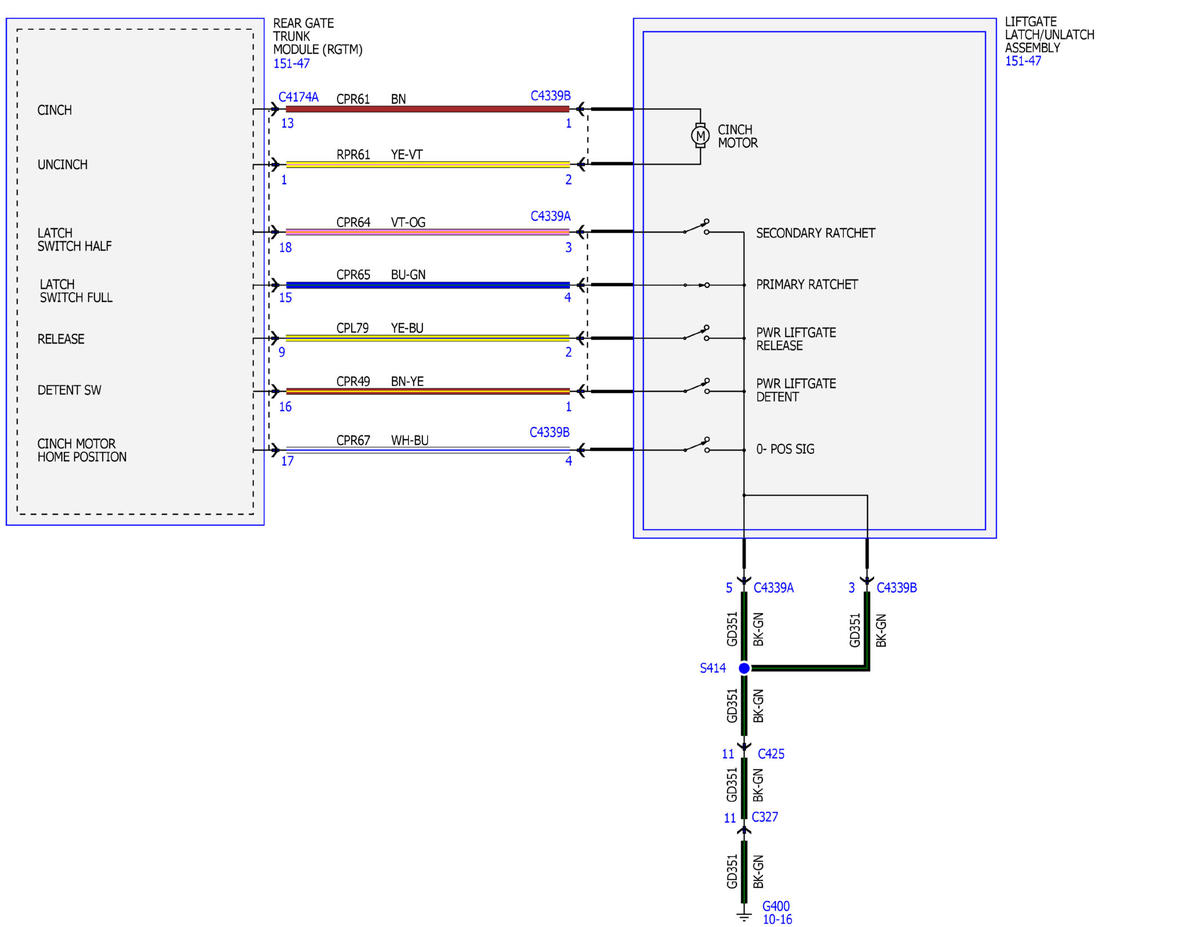

Fig 3: Power Liftgate Wiring Diagram (3 Of 5)
GFDWR137341Courtesy of FORD MOTOR COMPANY

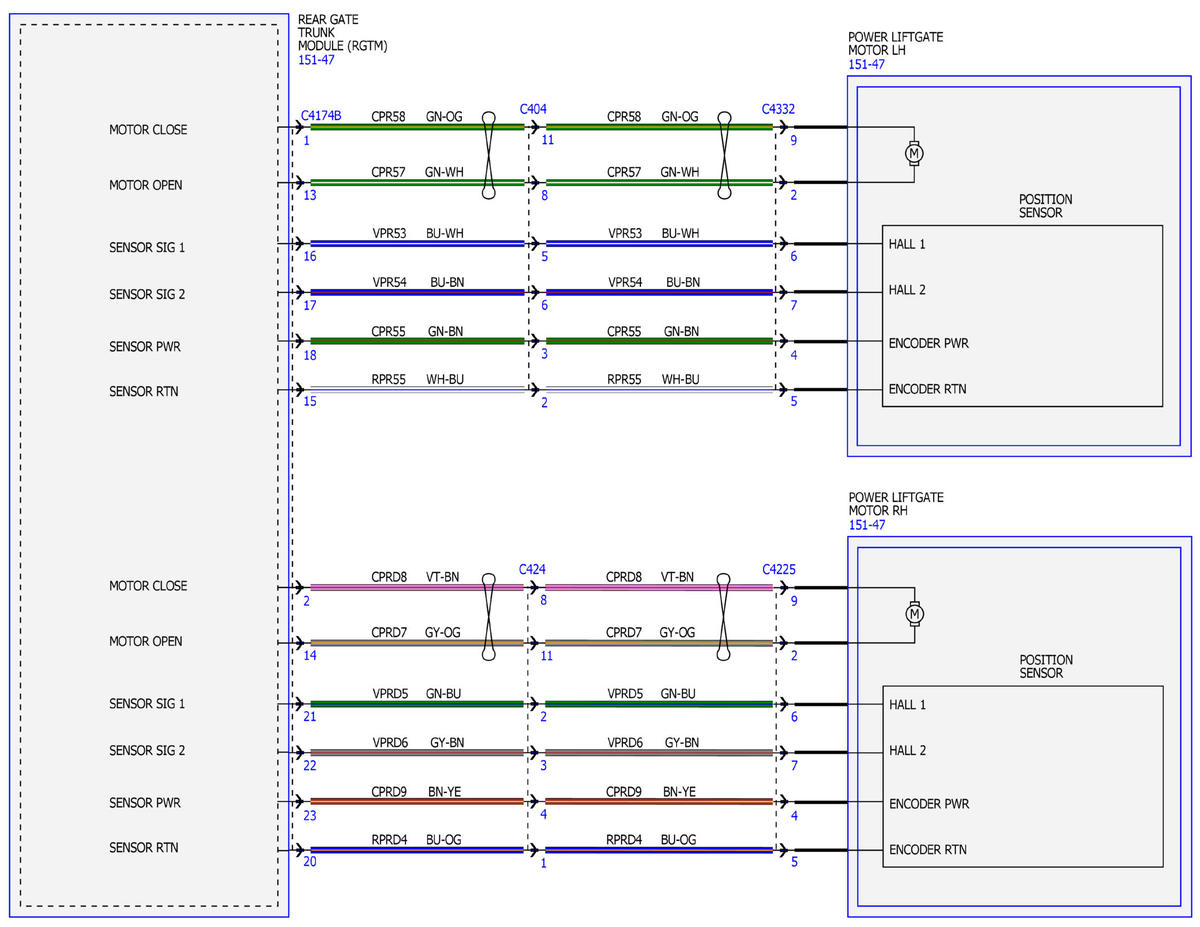

Fig 4: Power Liftgate Wiring Diagram (4 Of 5)
GFDWR137342Courtesy of FORD MOTOR COMPANY
Fig 5: Power Liftgate Wiring Diagram (5 Of 5)
GFDWR137343Courtesy of FORD MOTOR COMPANY
