Electronic Engine Controls - Component Location

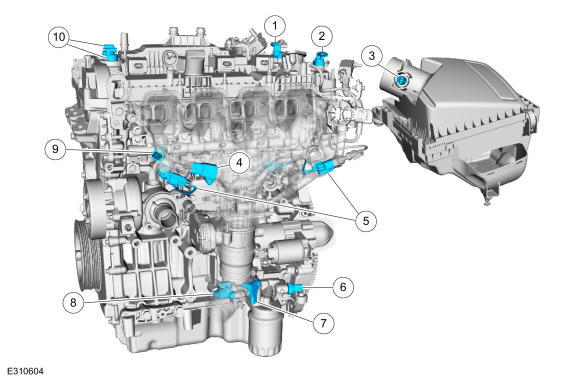

Electronic Engine Controls- Front
| Item | Description |
|---|---|
| 1 | Exhaust CMP sensor |
| 2 | Intake CMP sensor |
| 3 | IAT sensor |
| 4 | MAPT sensor |
| 5 | KS |
| 6 | EOP sensor |
| 7 | Turbocharger Boost Pressure Sensor |
| 8 | Oil pressure control solenoid |
| 9 | FRP sensor |
| 10 | VCT oil control solenoids |

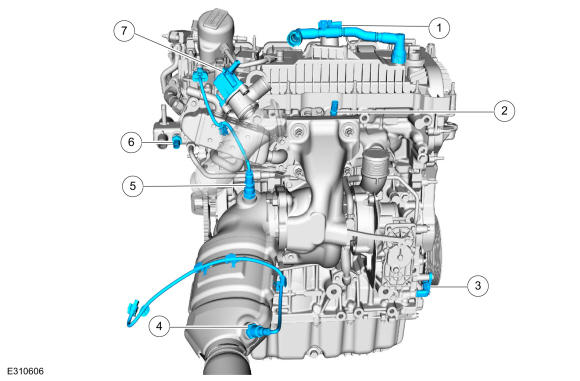

Electronic Engine Controls - Rear
| Item | Description |
|---|---|
| 1 | Crankcase pressure sensor |
| 2 | CHT (CHT2) sensor |
| 3 | CKP sensor |
| 4 | Catalyst monitor sensor |
| 5 | HO2S |
| 6 | ECT sensor |
| 7 | Turbocharger bypass valve |

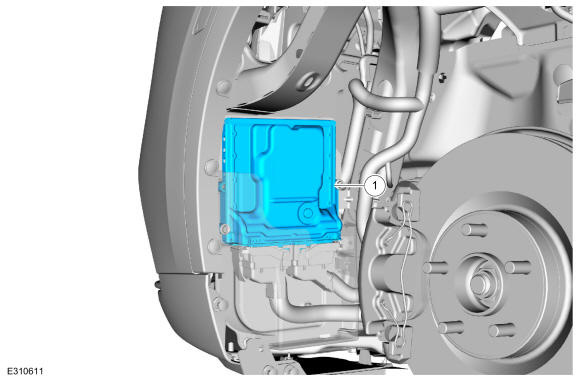

Powertrain Control Module (PCM)
| Item | Description |
|---|---|
| 1 | PCM |
