Fuel Pump Driver Module (FPDM): Removal
NOTE:
The fuel pump driver module is attached to the top of the fuel tank.
- For component location information. Refer to: Fuel Charging and Controls - Component Location .
- Remove the fuel tank. Refer to: Fuel Tank
- Disconnect the fuel pump driver module electrical connector.

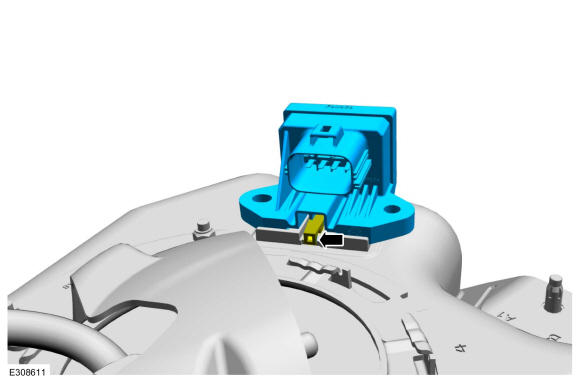

- Release the fuel pump driver module retaining tab, then remove the fuel pump driver module from the bracket.
