Connector End View C2402A - Front Controls Interface Module (FCIM)

Connector: Description Color Harness Base Part # Service Pigtail
C2402A FRONT CONTROLS INTERFACE MODULE (FCIM)   14401/14B079 part# N/A Not Available

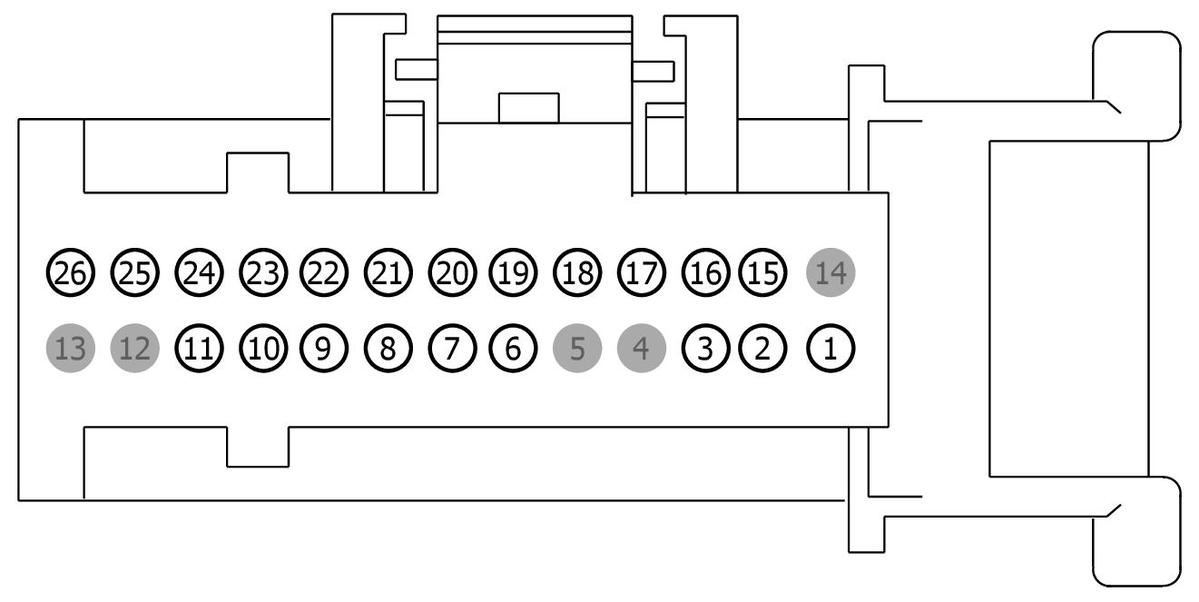

GFDWR134446Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-DB DU2Z-14474-AA 0.64
9U5T-14474-EB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 GD216 (BK-VT) 22 GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT   9U5T-14474-DB
1 GD216 (BK-VT) 18 GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT   9U5T-14474-EB
2 RH111 (GY-BU) 22 CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS   9U5T-14474-DB
3 LH111 (BN-WH) 22 CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS   9U5T-14474-DB
4 * * Not Used   N/A
5 * * Not Used   N/A
6 VH478 (BU-GY) 22 SENSOR - IN-CAR AIR QUALITY   9U5T-14474-DB
7 CRD02 (BN-BU) 22 CTRL MOD. - RELAY HEATER REAR WINDOW   9U5T-14474-DB
8 CH239 (BU-WH) 22 CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 2 / OPEN (IF PLUS)   9U5T-14474-DB
9 CH238 (YE-OG) 22 CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. LEFT COIL 1 / CLOSE (IF PLUS)   9U5T-14474-DB
10 VH440 (BU-BN) 22 SENSOR - DOOR POSITION TEMP. LEFT   9U5T-14474-DB
11 CH123 (VT-GN) 22 CTRL MOD. - BLOWER MOTOR RELAY   9U5T-14474-DB
12 * * Not Used   N/A
13 * * Not Used   N/A
14 * * Not Used   N/A
15 VH451 (WH-GN) 22 SENSOR - AIR QUALITY   9U5T-14474-DB
16 VH438 (GN-VT) 22 SENSOR - DOOR POSITION RECIRC.   9U5T-14474-DB
17 VDB06 (GY-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH   9U5T-14474-DB
18 VDB07 (VT-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW   9U5T-14474-DB
19 VH406 (VT-BN) 22 SENSOR - A/C EVAPORATOR TEMPERATURE (ACET)   9U5T-14474-DB
20 CH202 (BU-GN) 22 CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 1 / FLOOR (IF PLUS)   9U5T-14474-DB
21 CH203 (GN-BN) 22 CTRL MOD. - CLIMATE # DOOR MOTOR PANEL/FLOOR COIL 2 / PANEL (IF PLUS)   9U5T-14474-DB
22 VH436 (YE-VT) 22 SENSOR - DOOR POSITION DEFROST   9U5T-14474-DB
23 VH101 (WH-VT) 22 CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL   9U5T-14474-DB
24 CH208 (GN-OG) 22 CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS)   9U5T-14474-DB
25 CH207 (BU-GY) 22 CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS)   9U5T-14474-DB
26 SBP13 (GY-RD) 18 FUSE - 13 OR CIRCUIT BREAKER   9U5T-14474-EB
