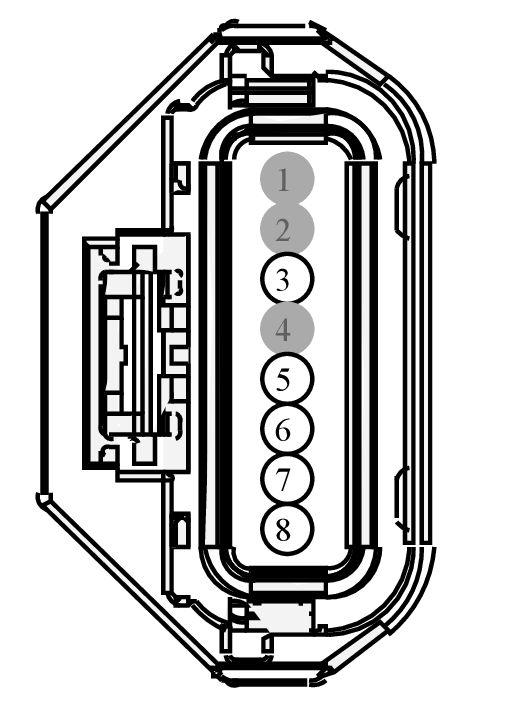

Connector End View C4370 - Side Obstacle Detection Control Module RH (SOD-R)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4370	SIDE OBSTACLE DETECTION CONTROL MODULE RH (SOD-R)		13A409	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	*	*	Not Used		N/A
2	*	*	Not Used		N/A
3	GD348 (BK-YE)	20	GROUND - PILLAR C OR QUARTER PANEL RIGHT		8U5T-14474-BB
4	*	*	Not Used		N/A
5	CDC82 (GN-VT)	22	CTRL MOD. - VOLTAGE QUALITY # RUN/START OUT		8U5T-14474-BB
6	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH		8U5T-14474-BB
7	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW		8U5T-14474-BB
8	GD348 (BK-YE)	20	GROUND - PILLAR C OR QUARTER PANEL RIGHT		8U5T-14474-BB

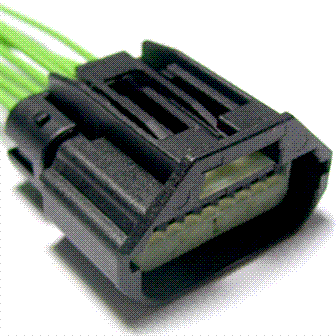

Available Pigtail Kits

Pigtail Kit Part Number WPT-1434

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ADA

Gauge:

20

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Sensor - Blind Spot Detection

Pigtail Kit Part Number WPT-1545

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ADB

Gauge:

20

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Module - Audio Control
• Module - Side Obstacle Detection
• Sensor - Blind Spot Detection
