Third Row Seat Control Switch: Removal
NOTE:
LH shown in illustration, RH similar.

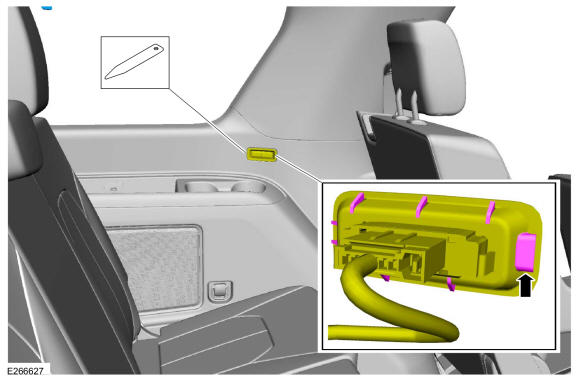

- Release the tab and position the third row seat control switch and bezel away from the loadspace trim panel. Use the General Equipment: Interior Trim Remover
 Courtesy of FORD MOTOR COMPANY
|

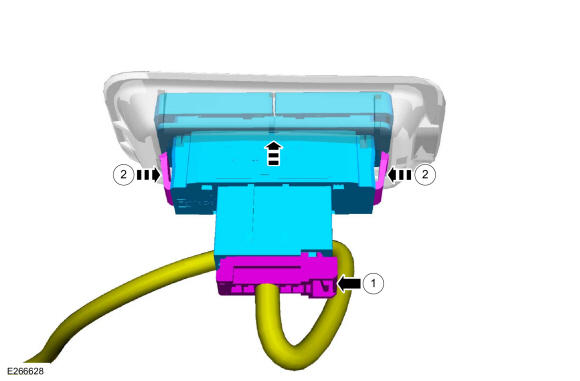

- Remove the third row seat control switch.
- Disconnect the electrical connector.
- Release the tabs.
 Courtesy of FORD MOTOR COMPANY
|
