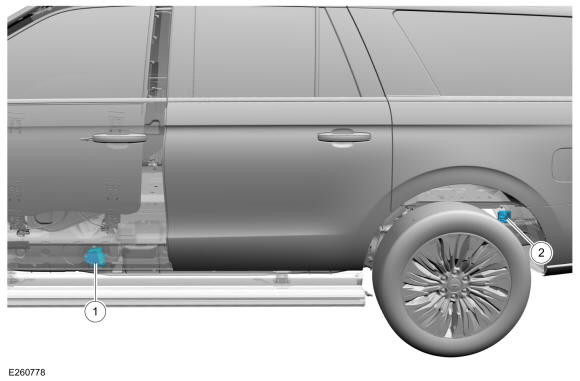

Fuel Pump Driver Module
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Side frame mounted fuel pump driver module.
2
Top frame mounted fuel pump driver module.
