Fuel Pump Driver Module (FPDM): Installation

Side Frame Mounted Fuel Pump Driver Module

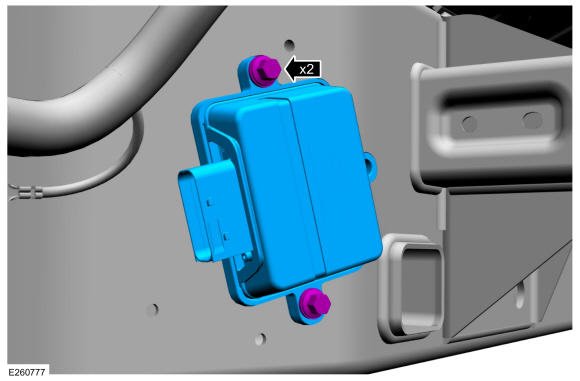

1. Install the fuel pump driver module, then install and tighten the fuel pump driver module bolts.

   Torque

   : 133 lb.in (15 Nm)

   Courtesy of FORD MOTOR COMPANY

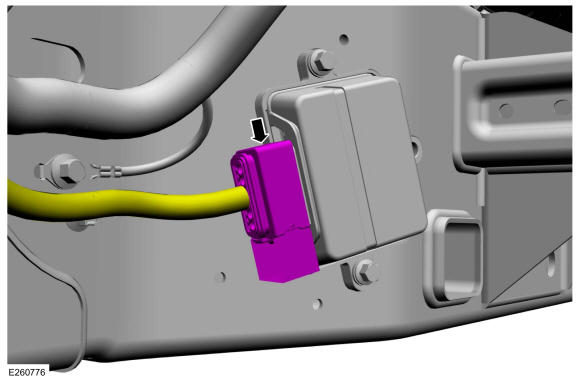

2. Connect the fuel pump driver module electrical connector.

   Courtesy of FORD MOTOR COMPANY

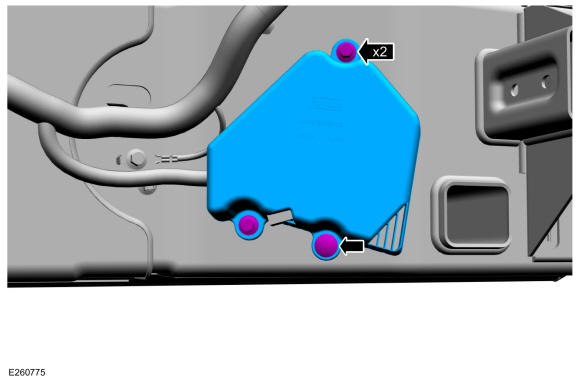

3. Install the fuel pump driver module cover, then install and tighten the fuel pump driver module cover retainers.

   Torque

   : 133 lb.in (15 Nm)

   Courtesy of FORD MOTOR COMPANY

   Top Frame Mounted Fuel Pump Driver Module

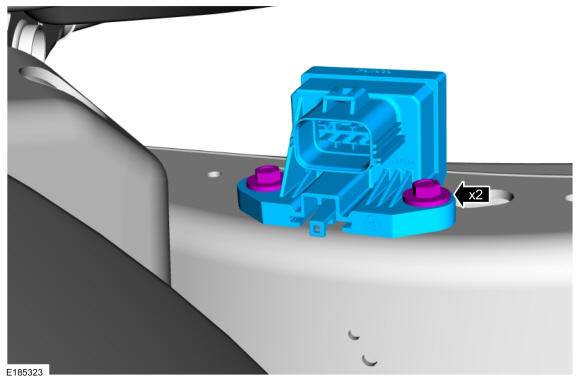

4. Install the fuel pump driver module, then install and tighten the fuel pump driver module bolts.

   Torque

   : 133 lb.in (15 Nm)

   Courtesy of FORD MOTOR COMPANY

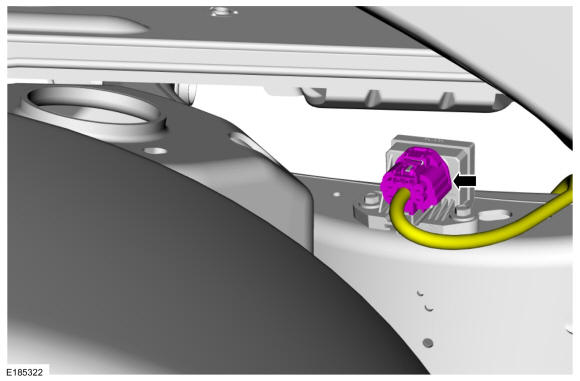

5. Connect the fuel pump driver module electrical connector.

   Courtesy of FORD MOTOR COMPANY

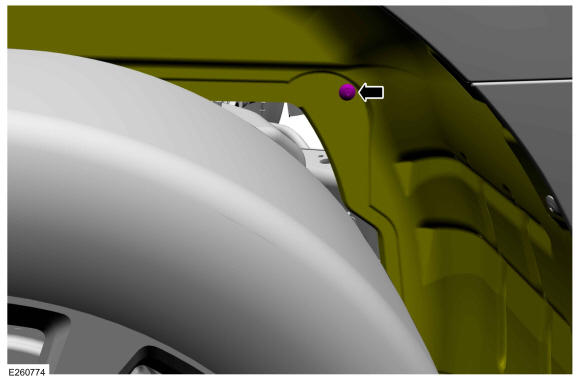

6. Install the left rear splash shield, then install the left rear splash shield retainer.

Courtesy of FORD MOTOR COMPANY
