Connector Repair Procedures

WARNING: This page is about a different car, the 2019 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

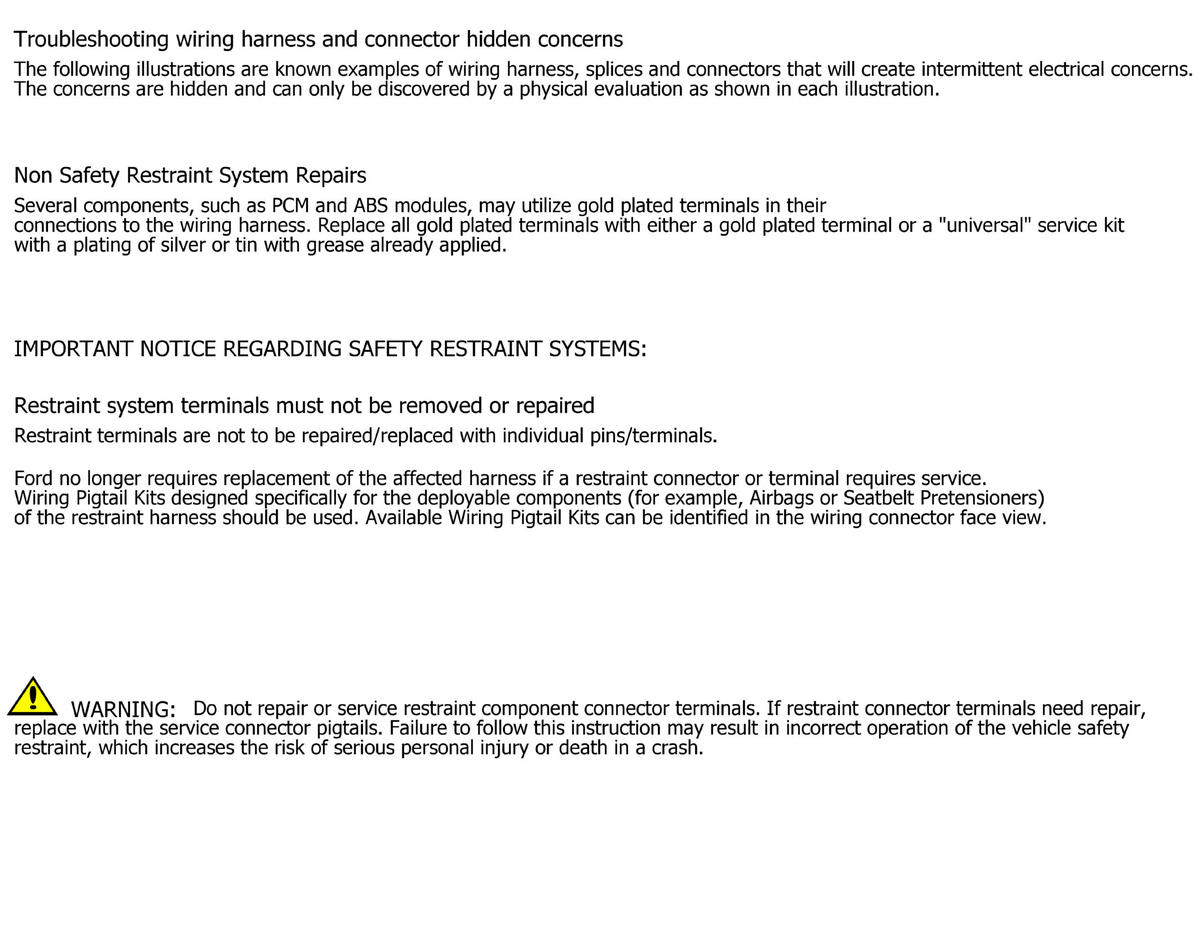

GFDWR68600Courtesy of FORD MOTOR COMPANY

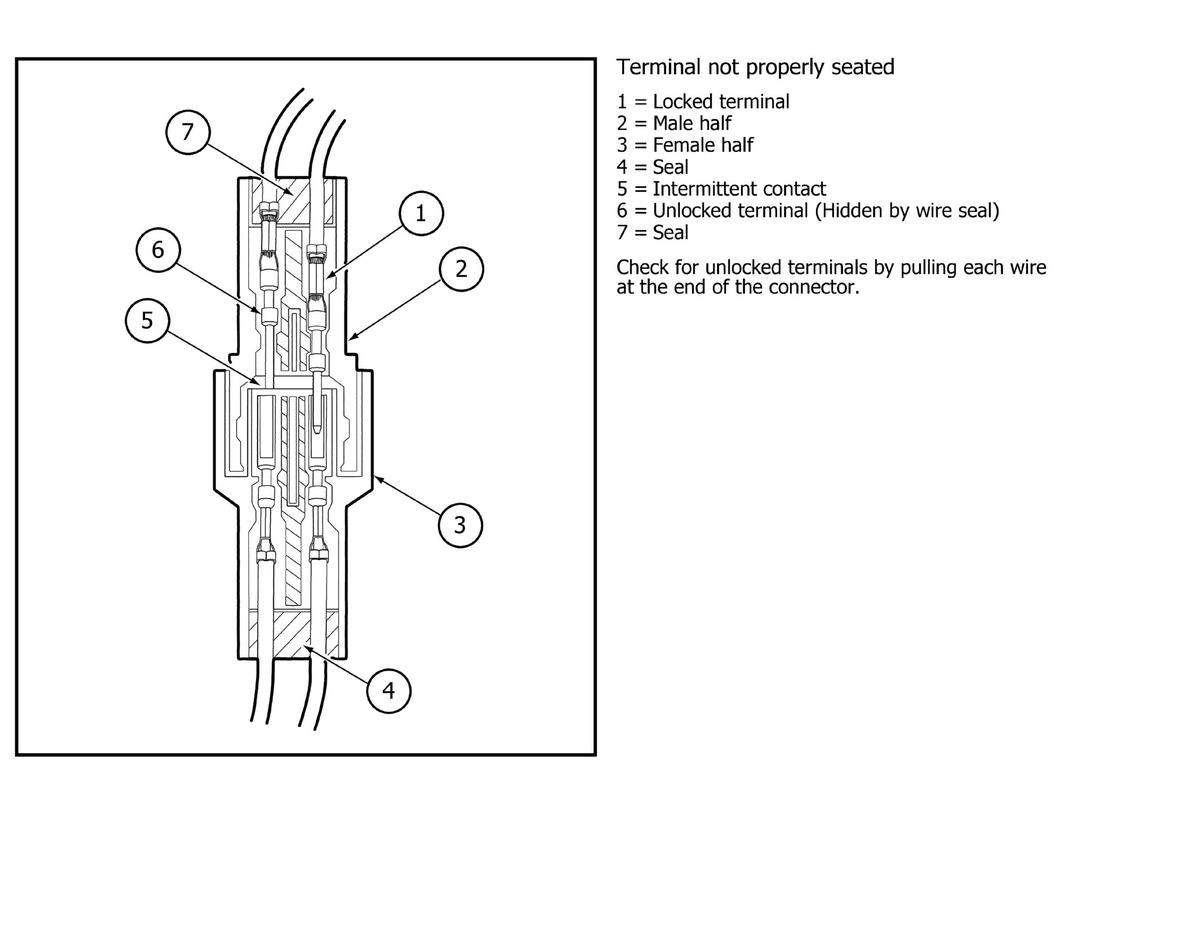

GFDWR68594Courtesy of FORD MOTOR COMPANY

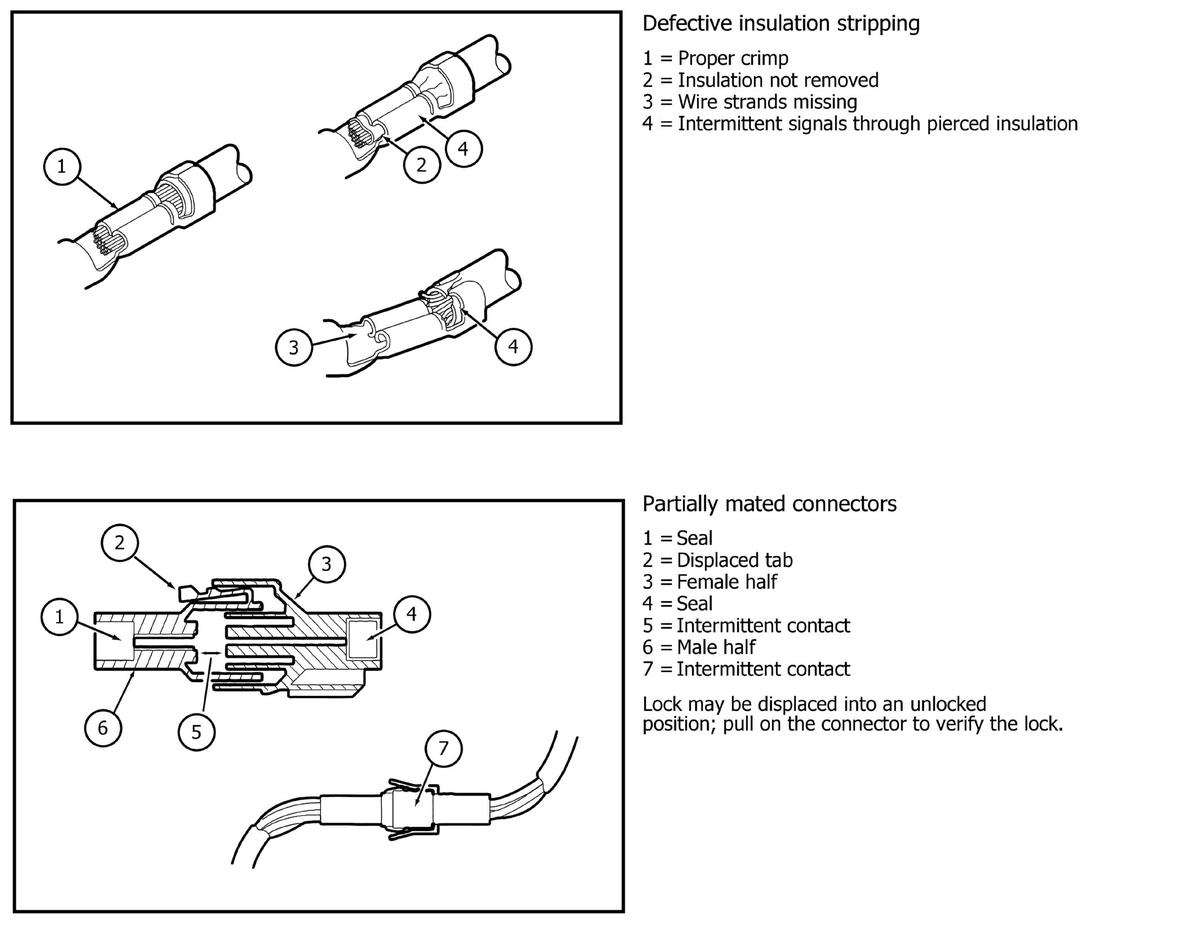

GFDWR68598Courtesy of FORD MOTOR COMPANY

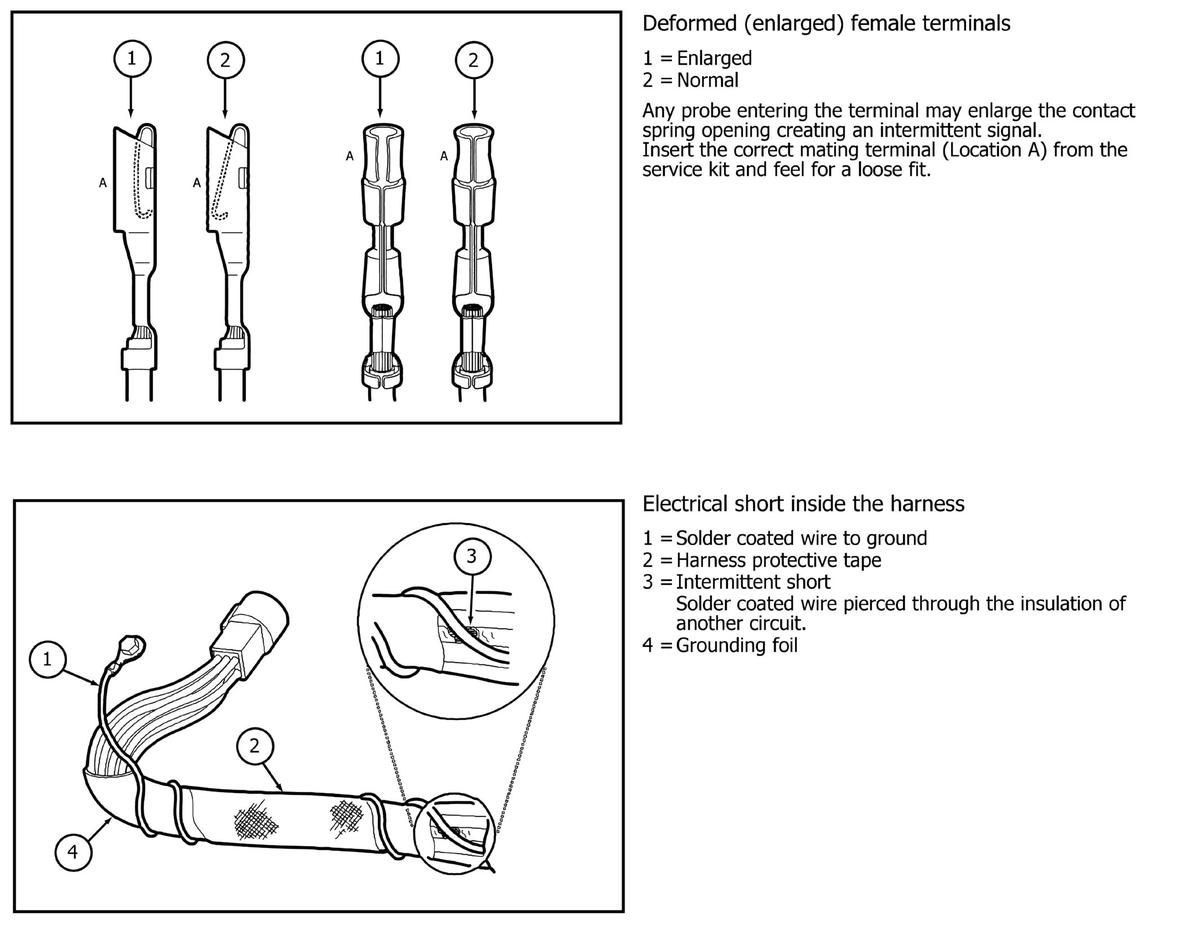

GFDWR68601Courtesy of FORD MOTOR COMPANY

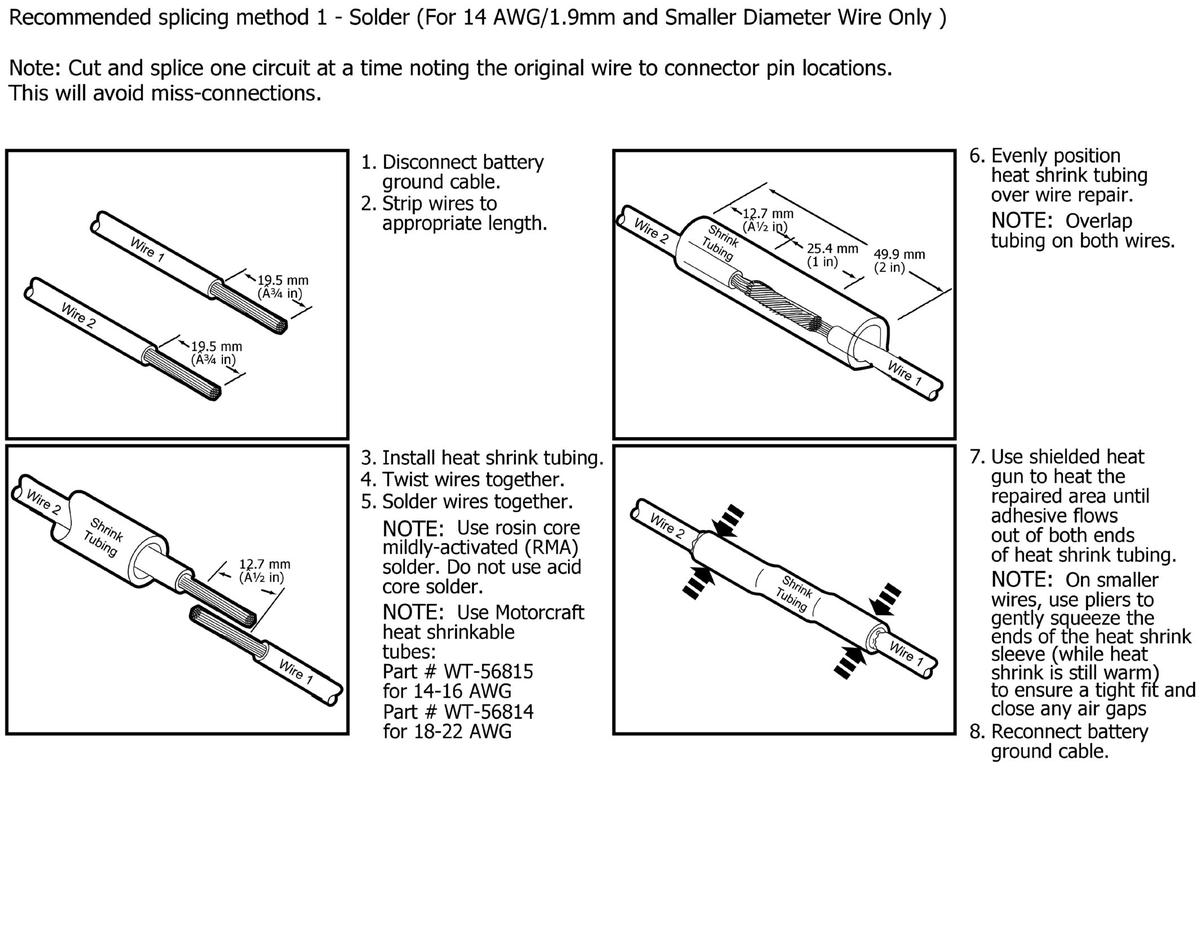

GFDWR68602Courtesy of FORD MOTOR COMPANY

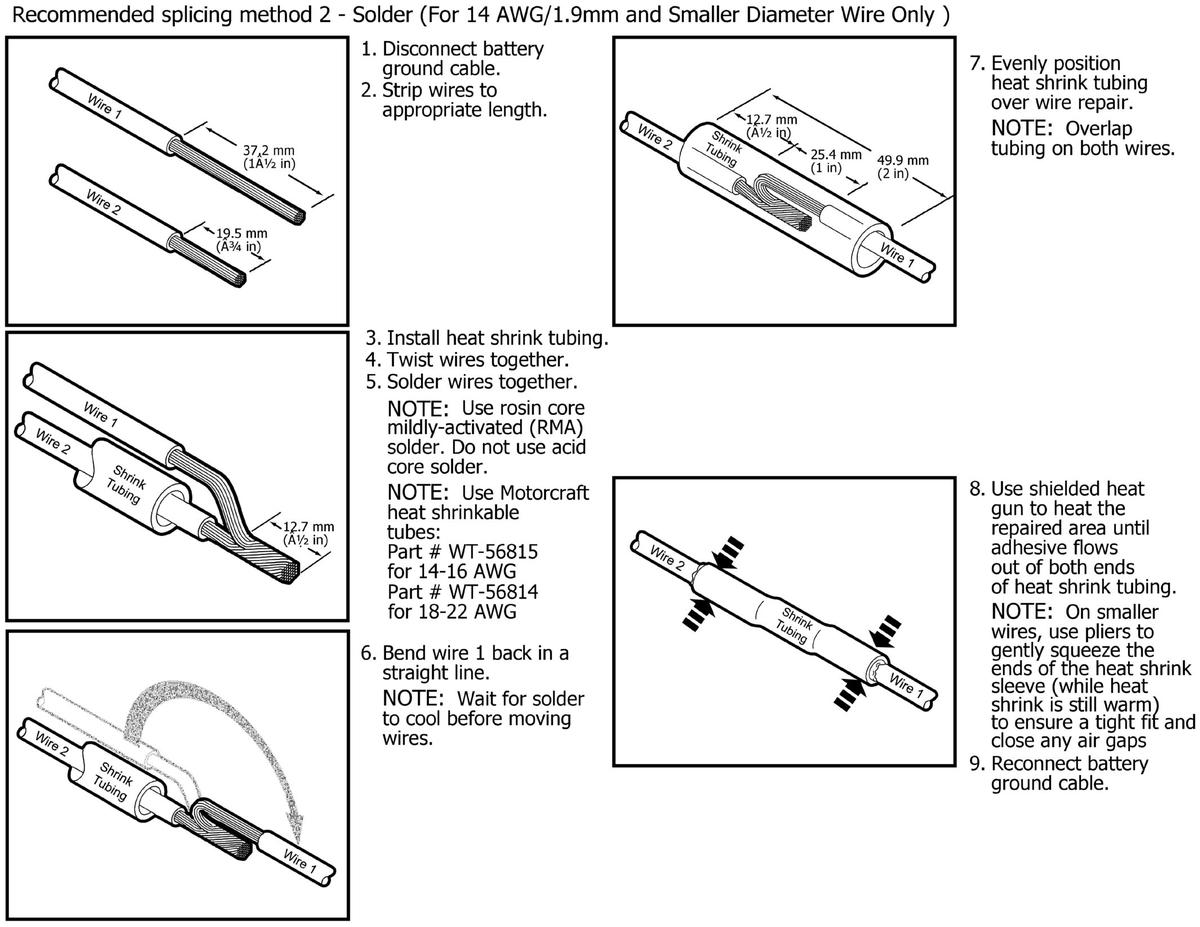

GFDWR68599Courtesy of FORD MOTOR COMPANY

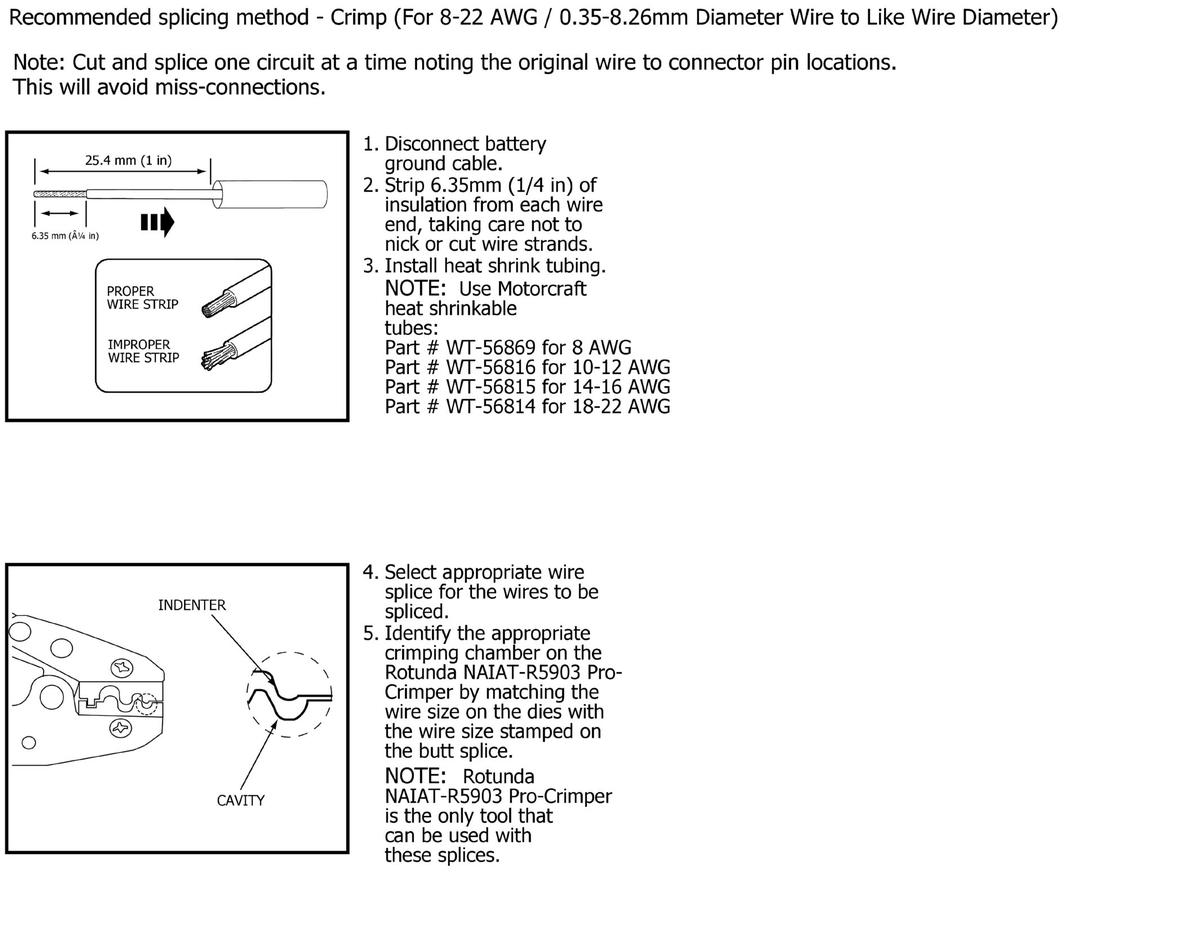

GFDWR68597Courtesy of FORD MOTOR COMPANY

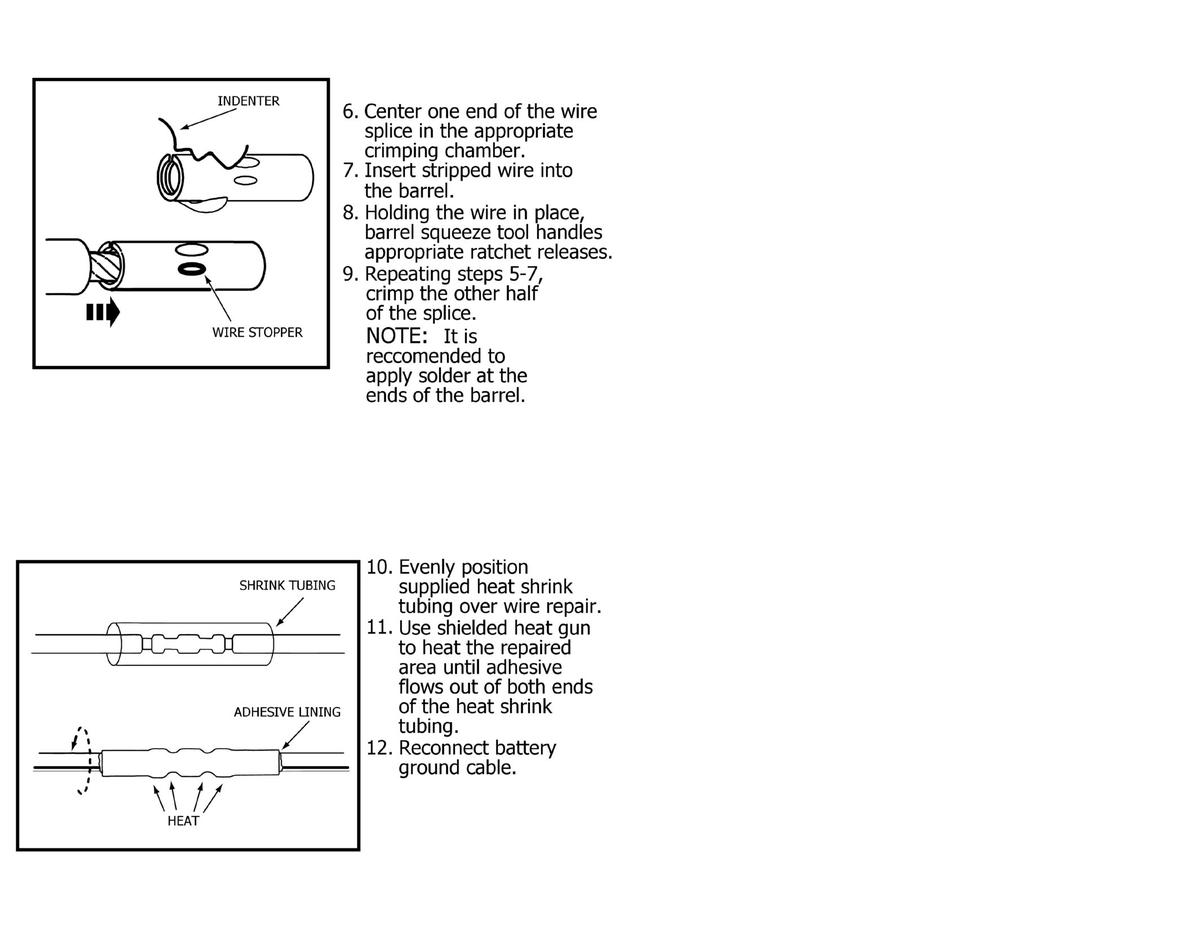

GFDWR68596Courtesy of FORD MOTOR COMPANY
GFDWR68595Courtesy of FORD MOTOR COMPANY
