Front Strut and Spring Assembly: Assembly

WARNING: This page is about a different car, the 2021 Lincoln Nautilus. However, it is still accessible from the selected car via links, so may be relevant.

To assemble, reverse the disassembly procedure.

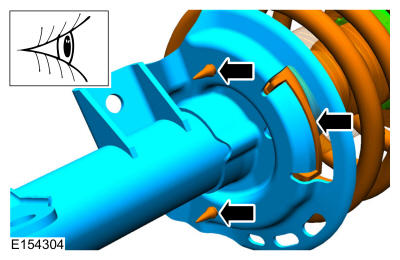

Make sure that the lower spring seat is properly installed.

Courtesy of FORD MOTOR COMPANY

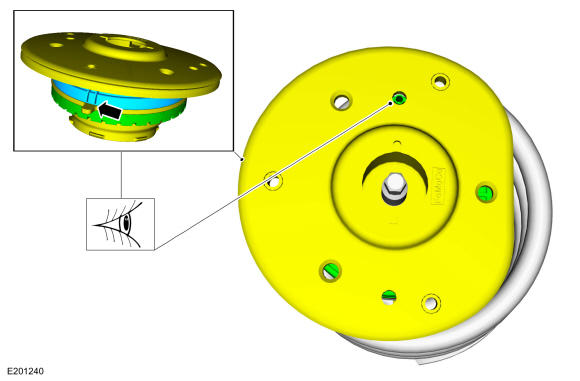

NOTE: Make sure the strut bearing tabs are aligned before compressing the spring.

Align the strut bearing tabs.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care not to damage the spring coating.

NOTE: Typical strut and spring assembly shown in illustration.

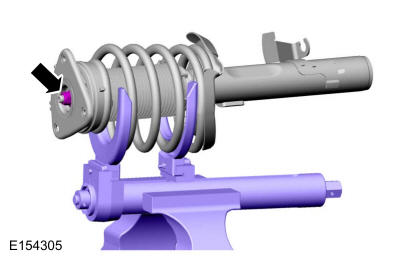

Install the new strut rod nut.

Use the General Equipment: Spring Compressor

Use the General Equipment: Vise

Torque

: 98 lb.ft (133 Nm)

Courtesy of FORD MOTOR COMPANY
