Component Location Views

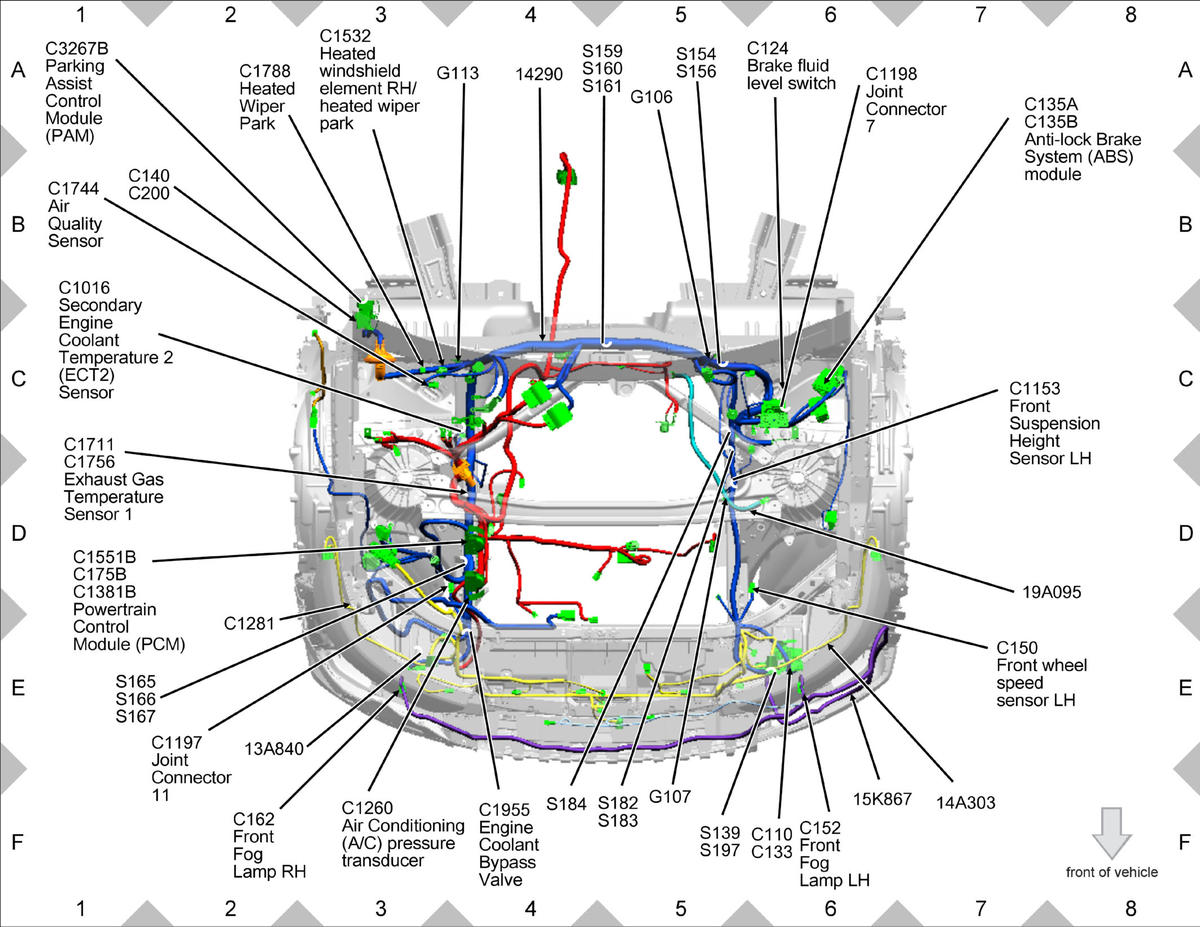

GFDWR93323Courtesy of FORD MOTOR COMPANY

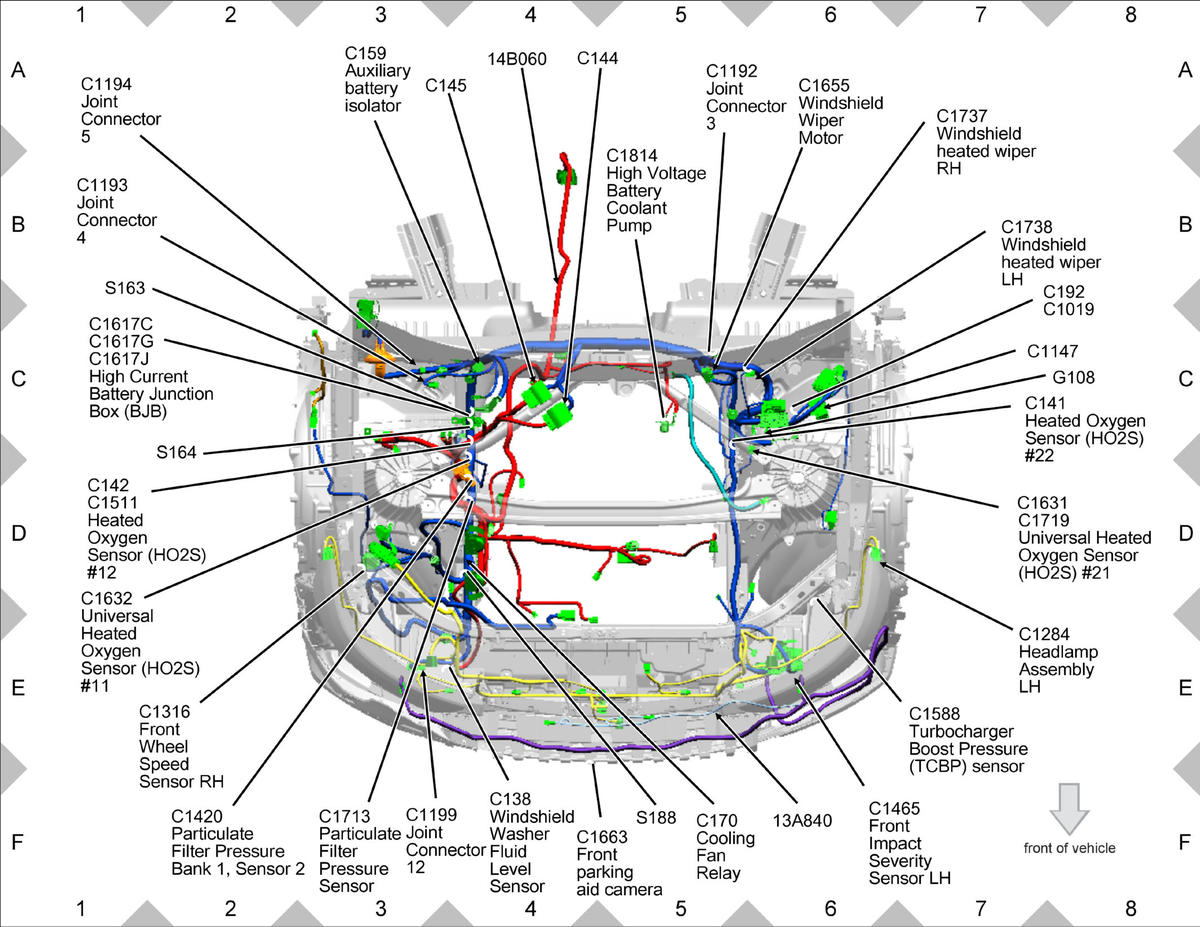

GFDWR93289Courtesy of FORD MOTOR COMPANY

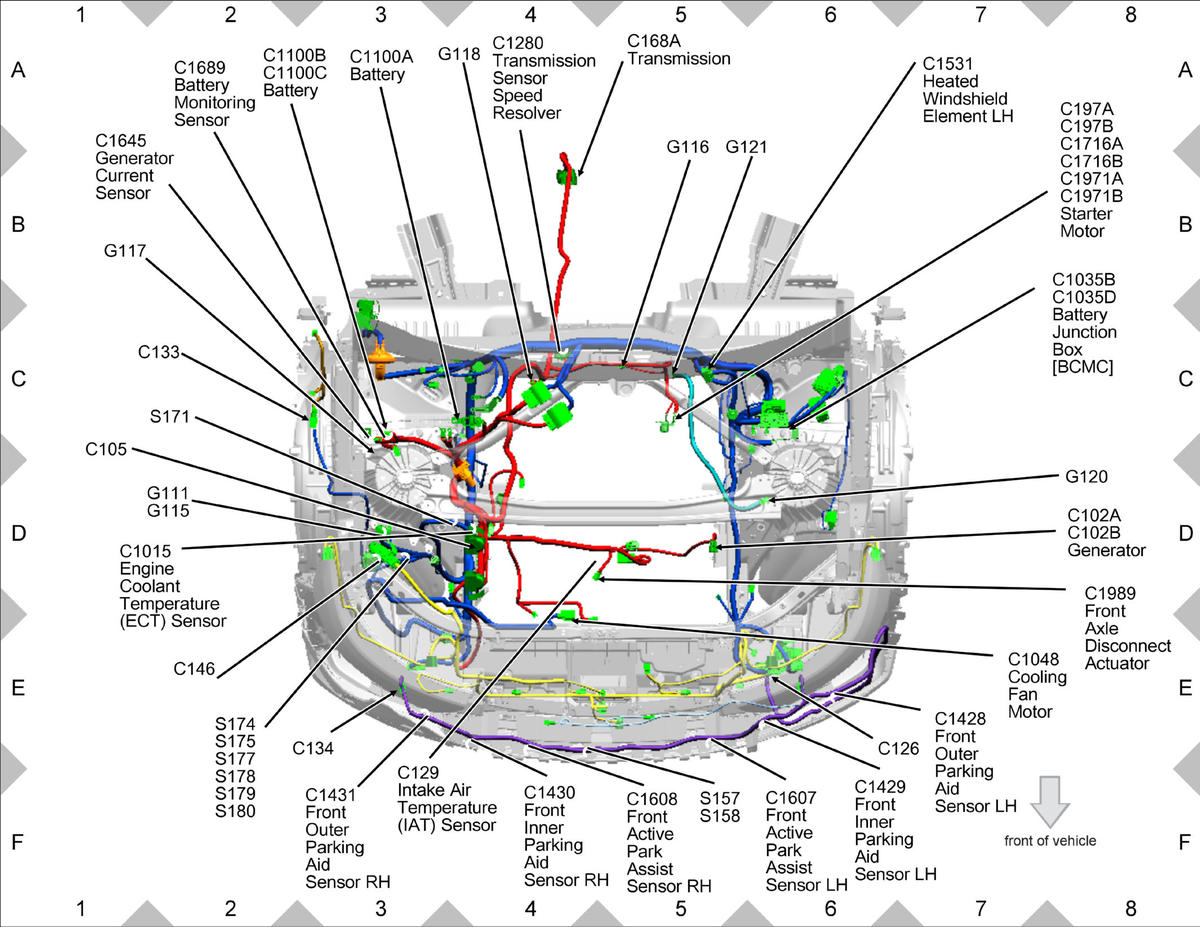

GFDWR93318Courtesy of FORD MOTOR COMPANY

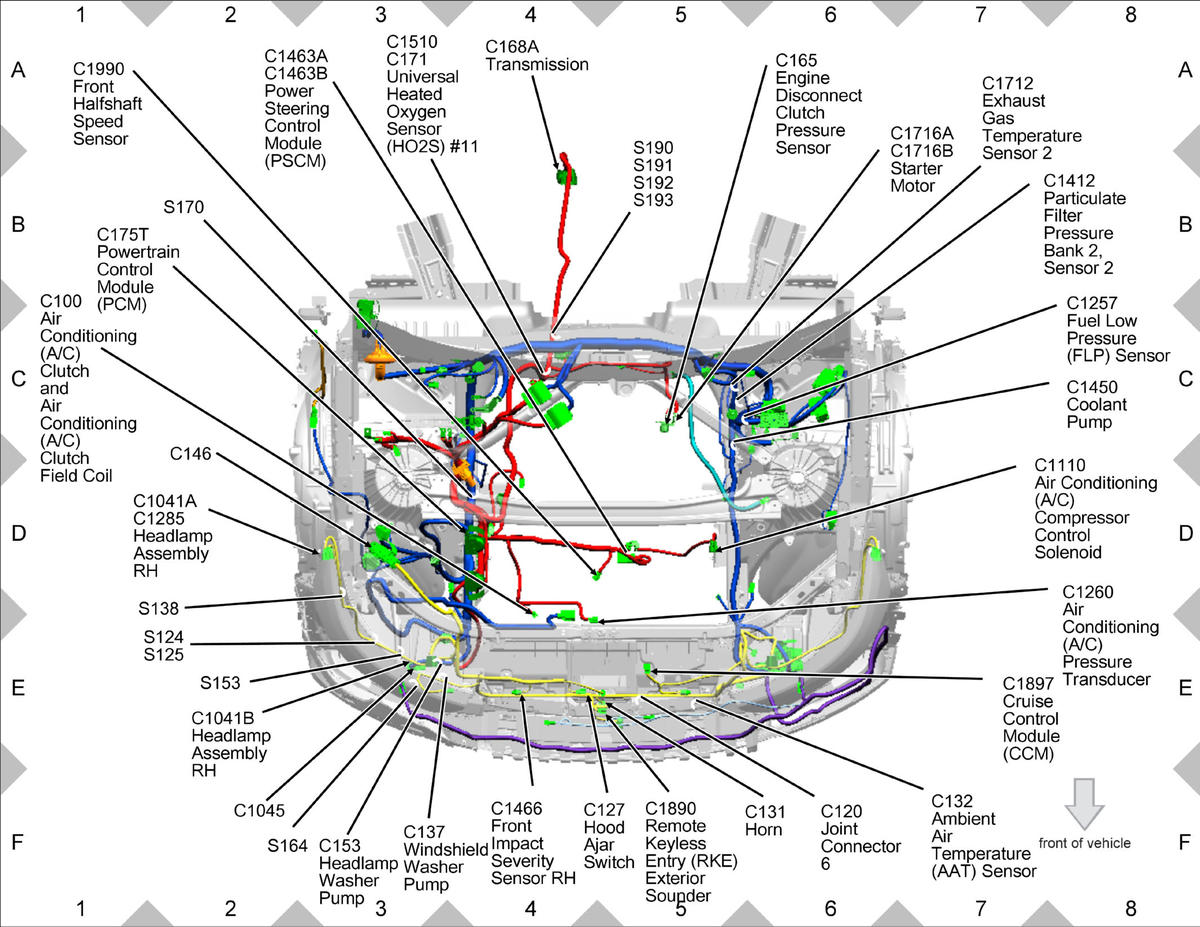

GFDWR93331Courtesy of FORD MOTOR COMPANY

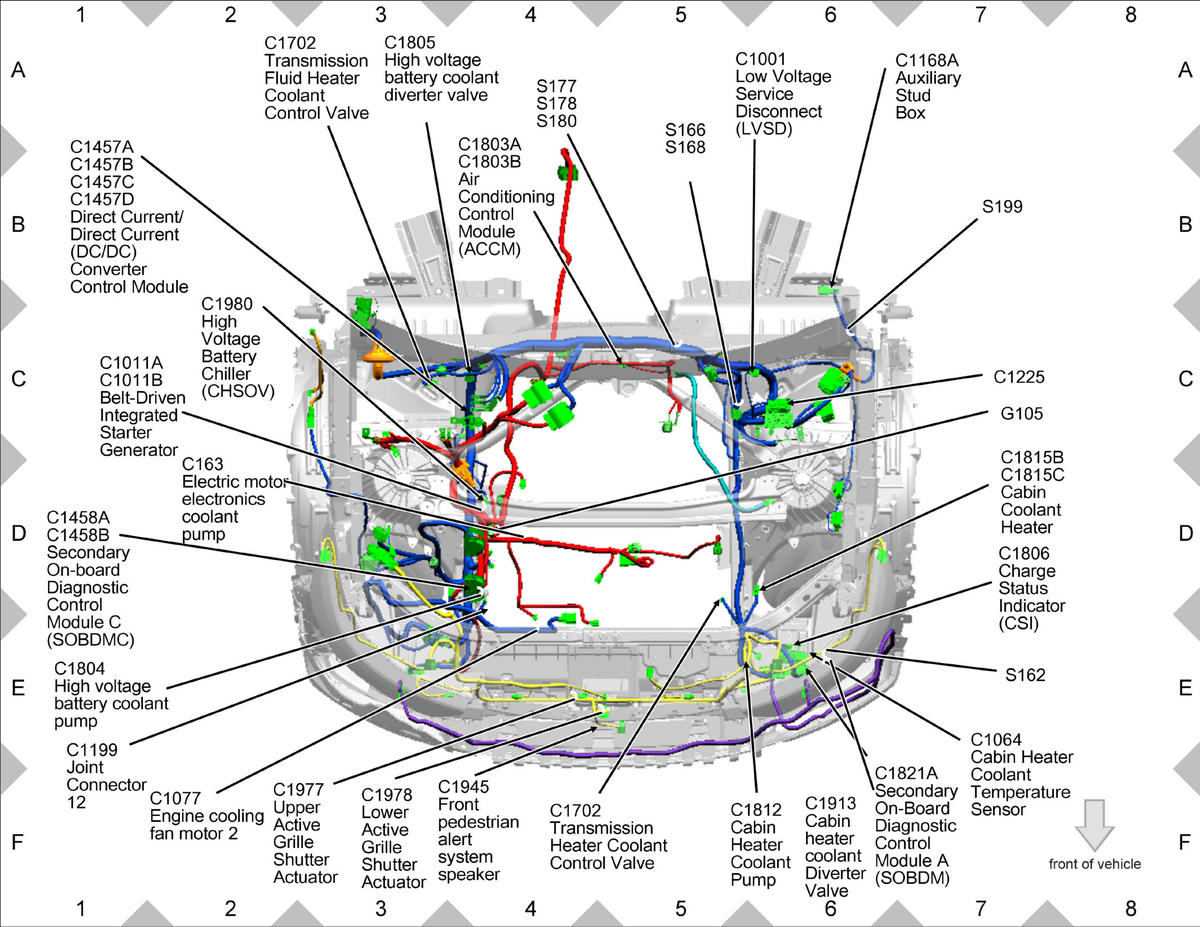

GFDWR93349Courtesy of FORD MOTOR COMPANY

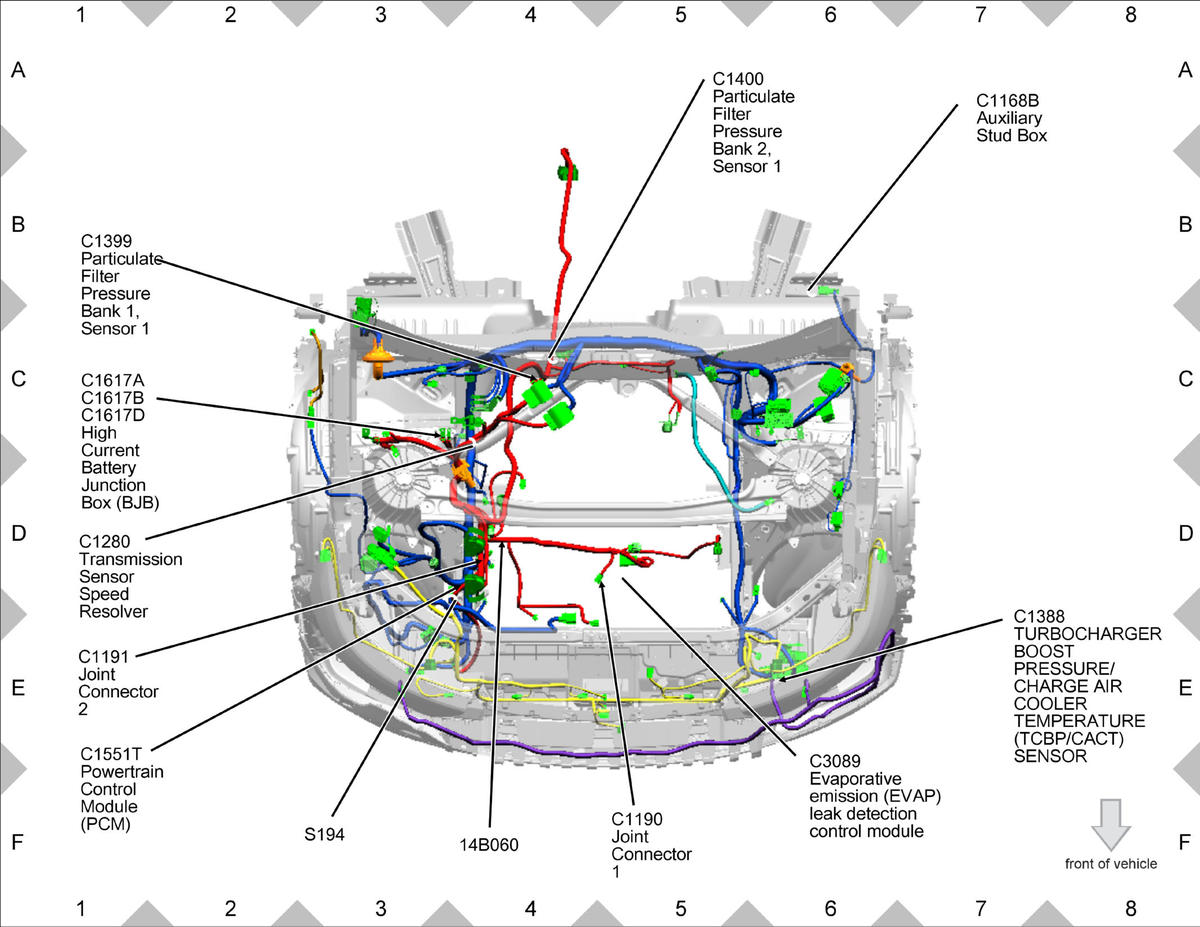

GFDWR93321Courtesy of FORD MOTOR COMPANY

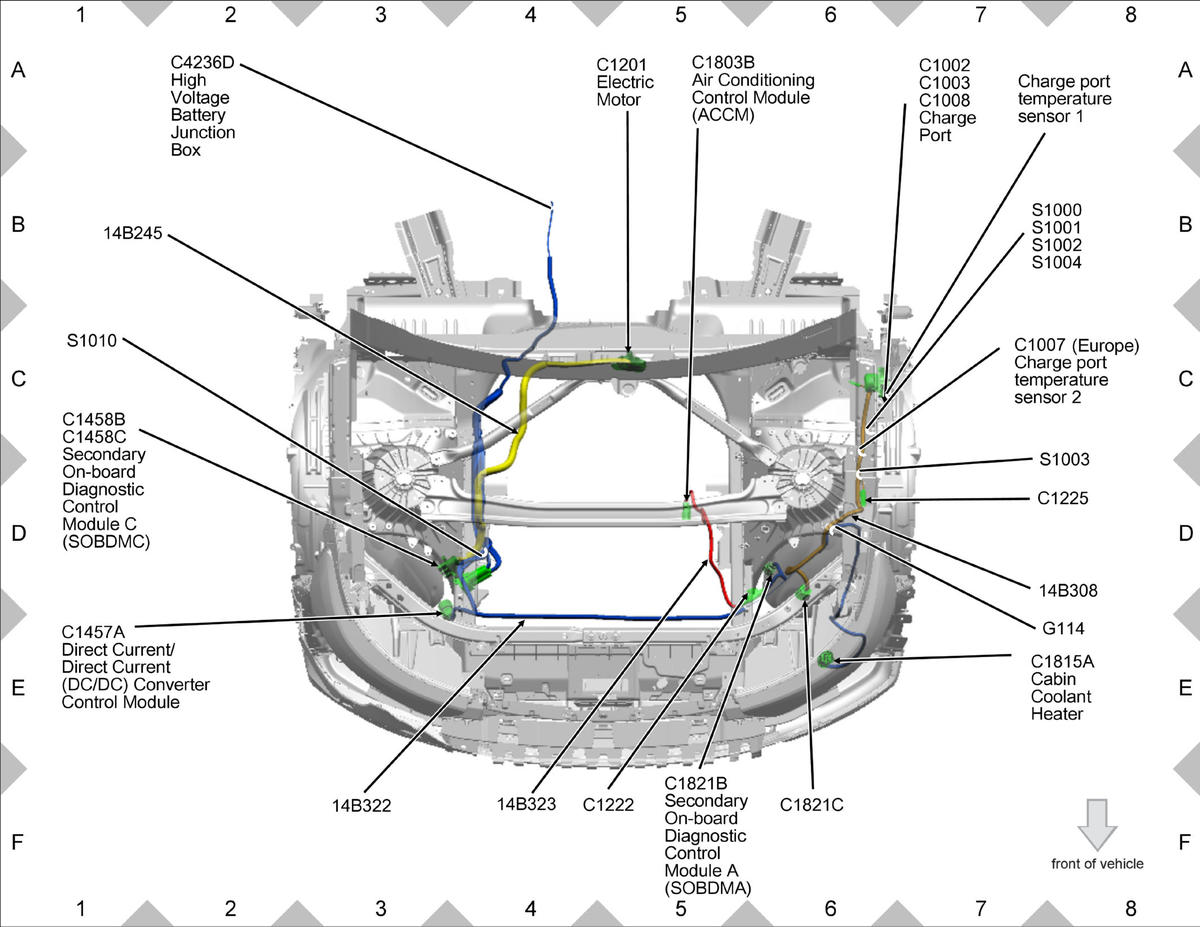

GFDWR93309Courtesy of FORD MOTOR COMPANY

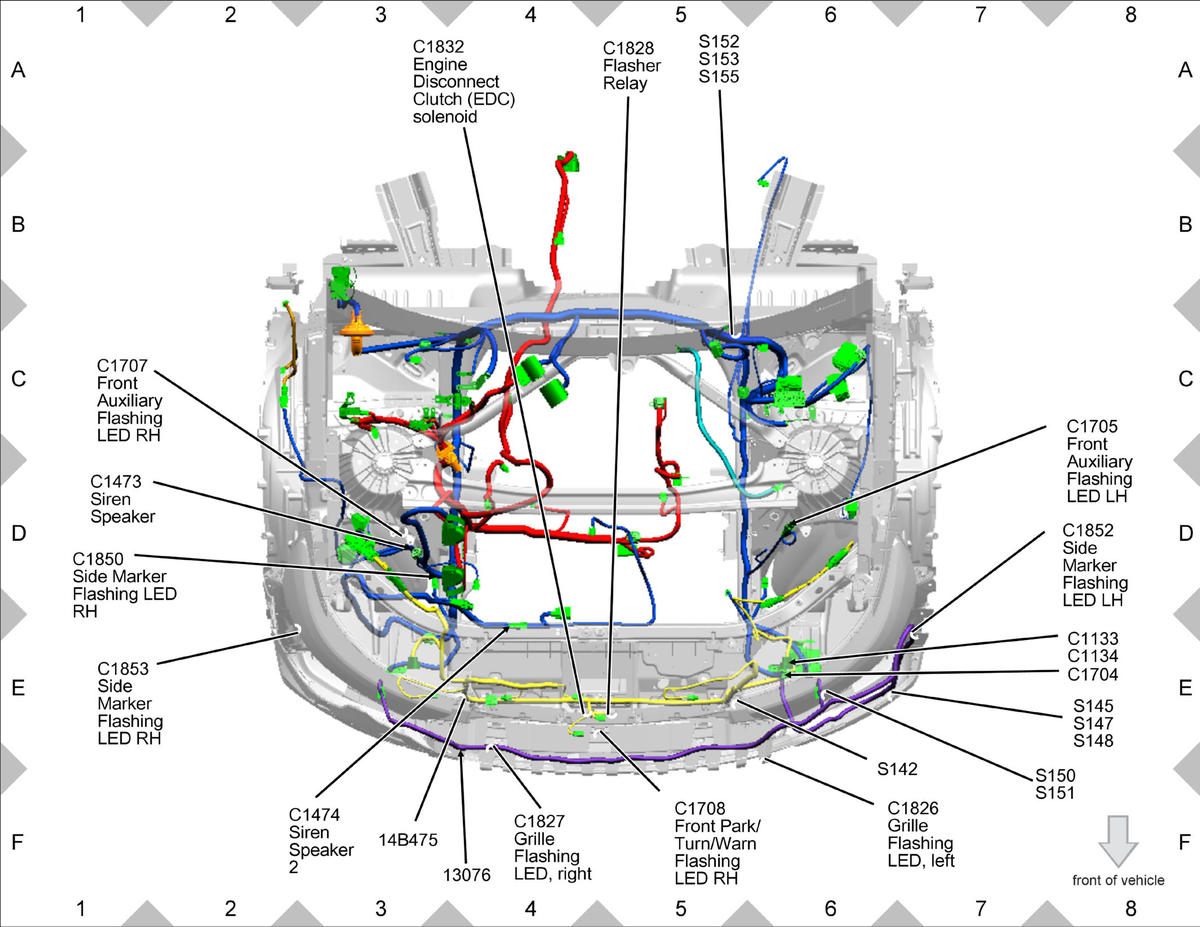

GFDWR93304Courtesy of FORD MOTOR COMPANY

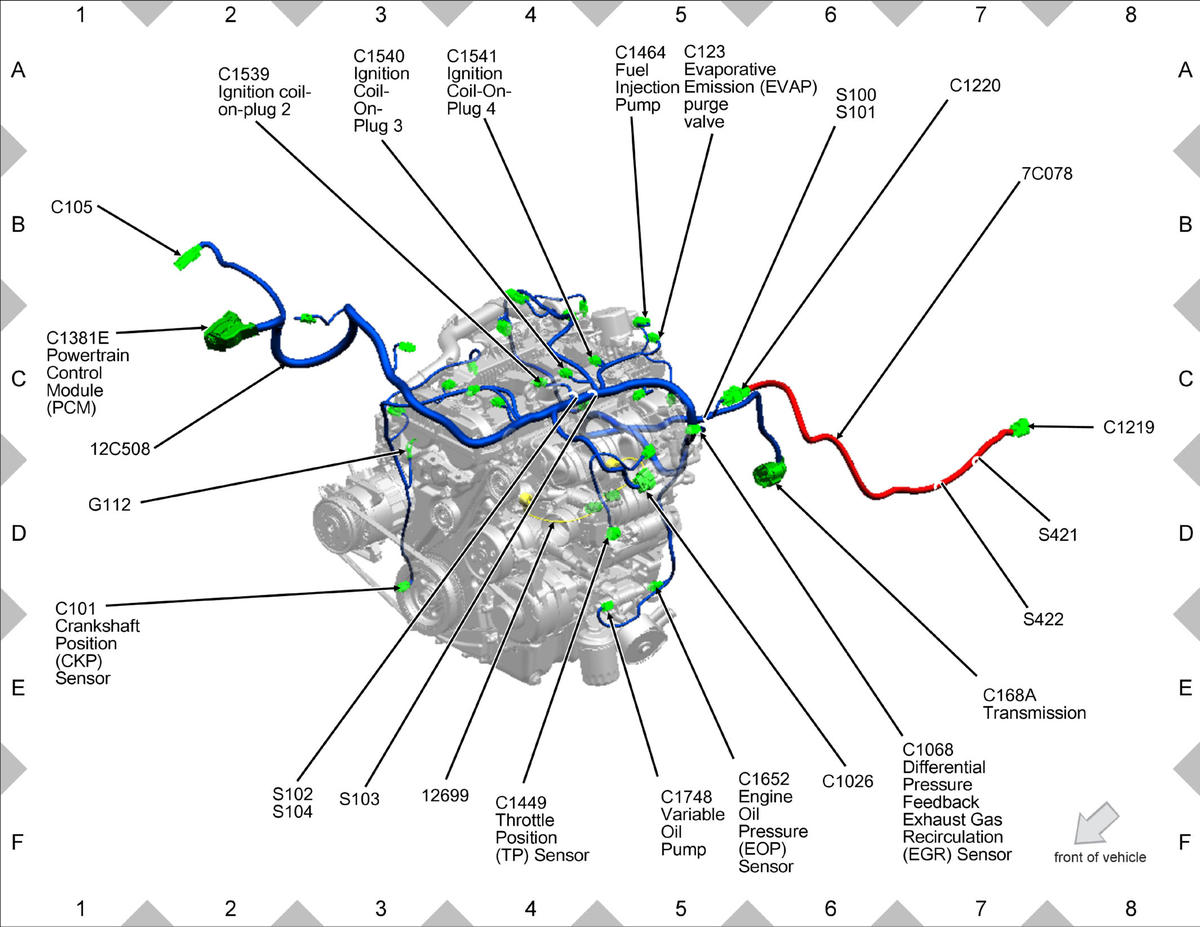

GFDWR93300Courtesy of FORD MOTOR COMPANY

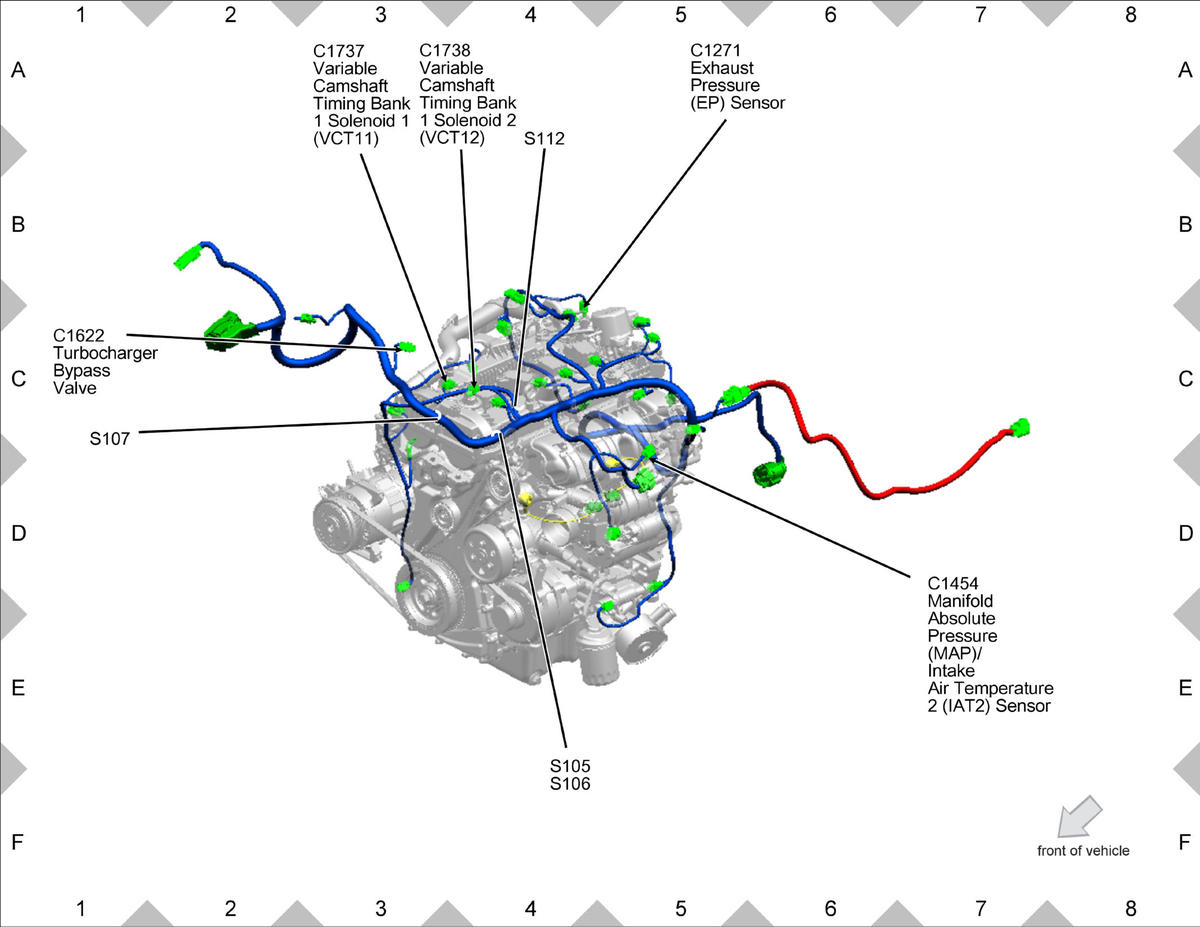

GFDWR93352Courtesy of FORD MOTOR COMPANY

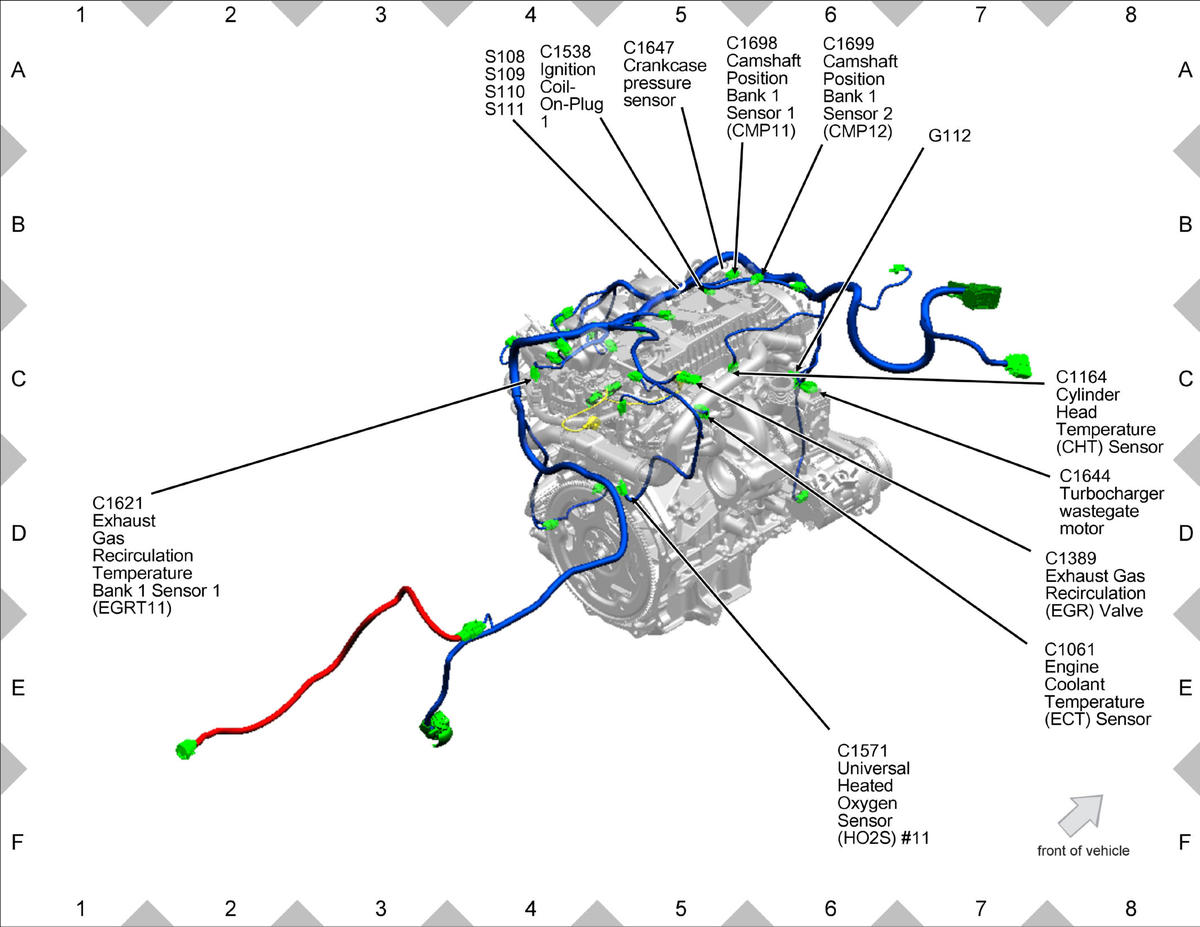

GFDWR93333Courtesy of FORD MOTOR COMPANY

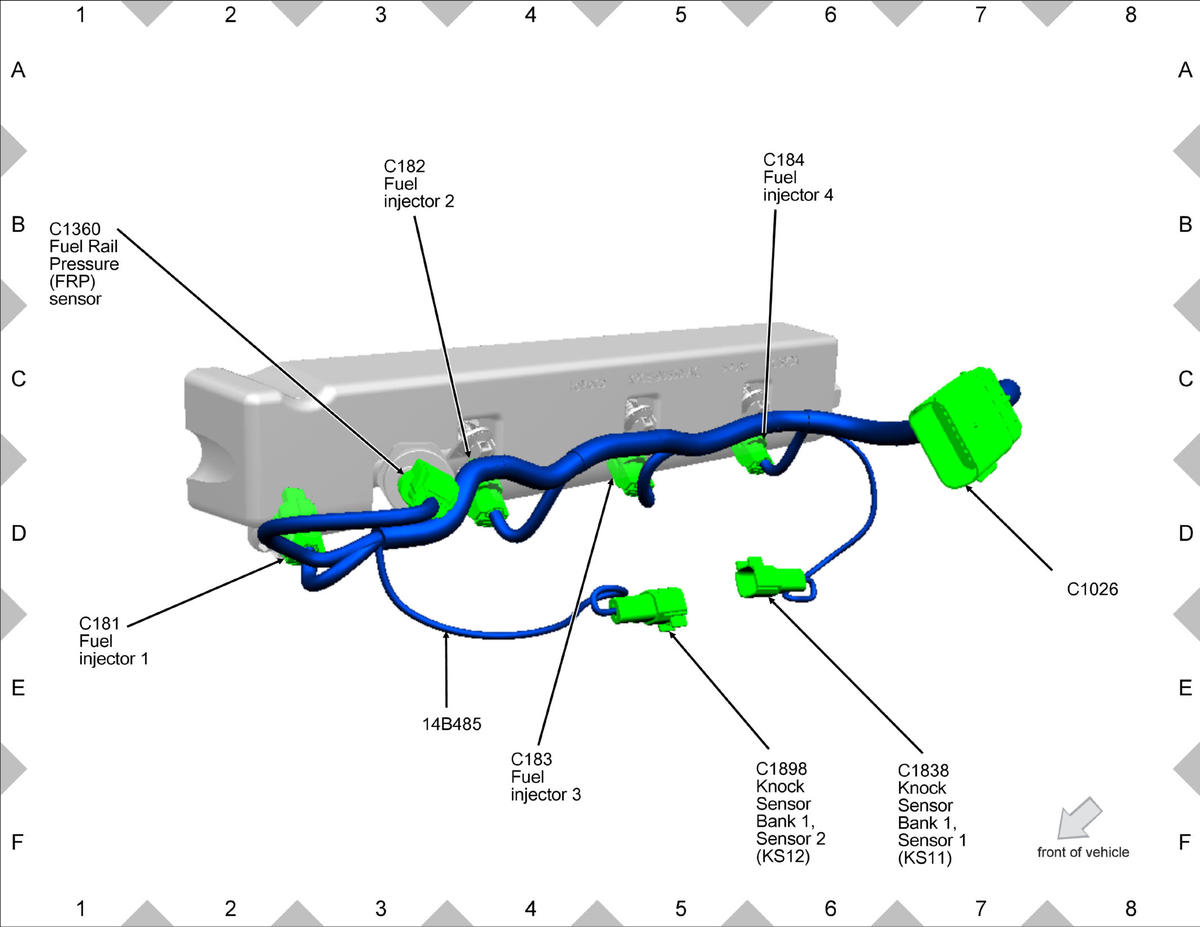

GFDWR93306Courtesy of FORD MOTOR COMPANY

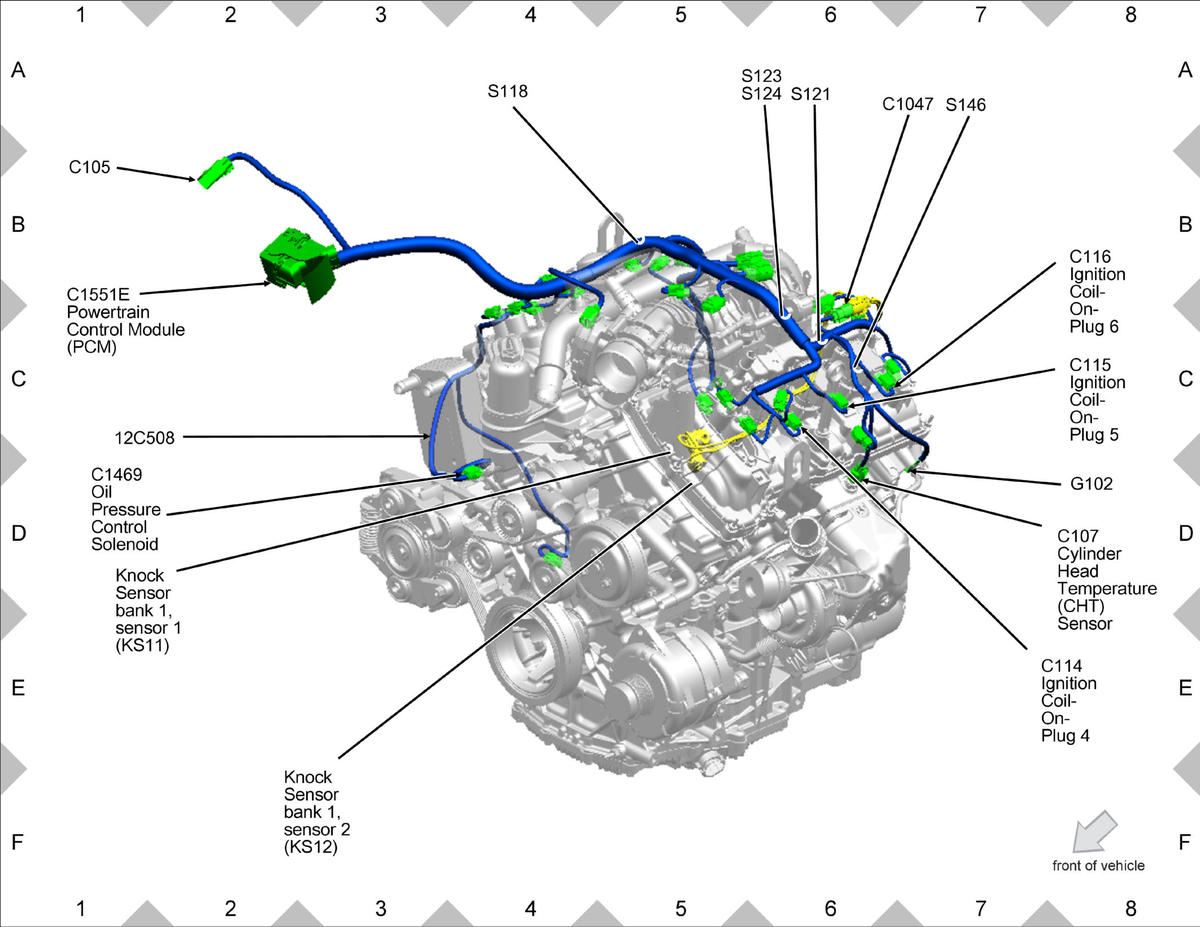

GFDWR93298Courtesy of FORD MOTOR COMPANY

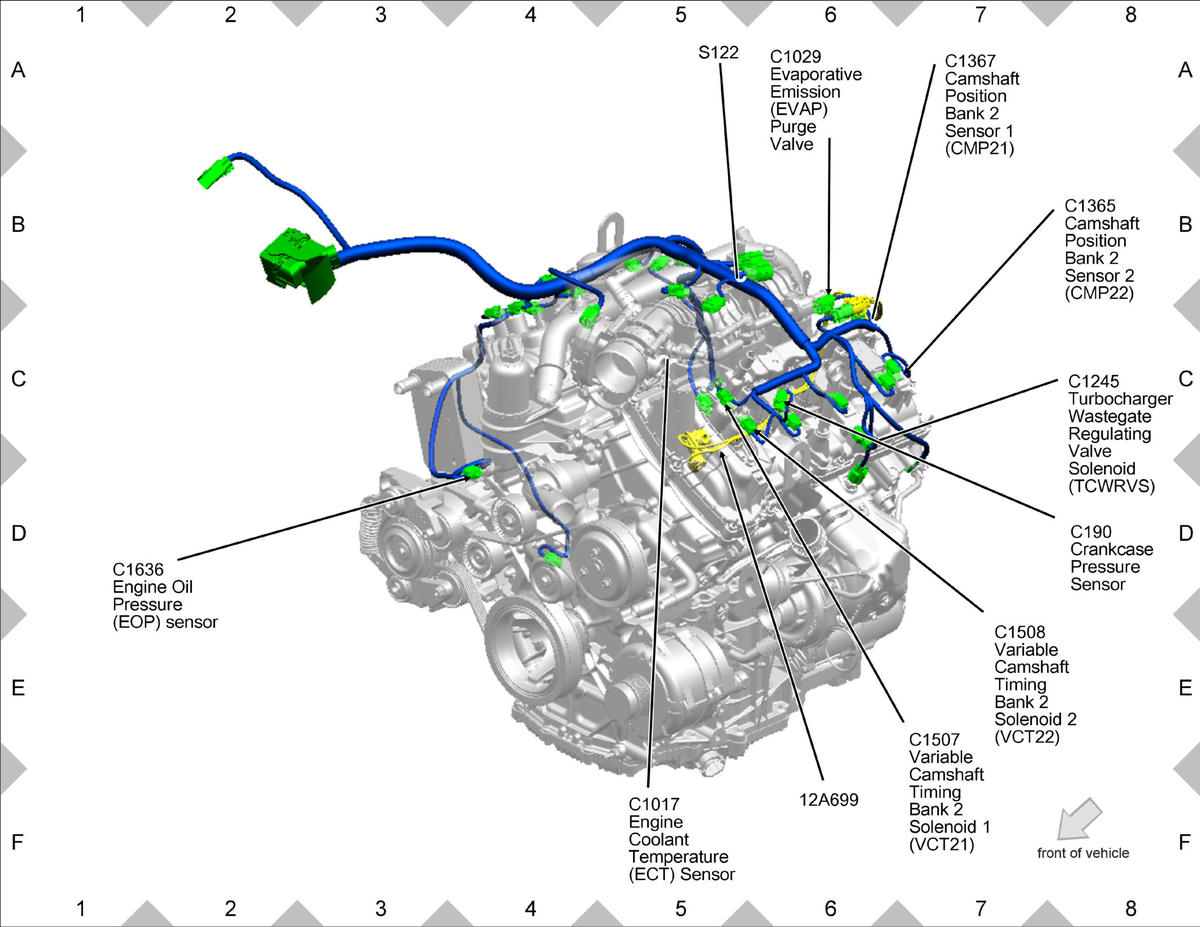

GFDWR93345Courtesy of FORD MOTOR COMPANY

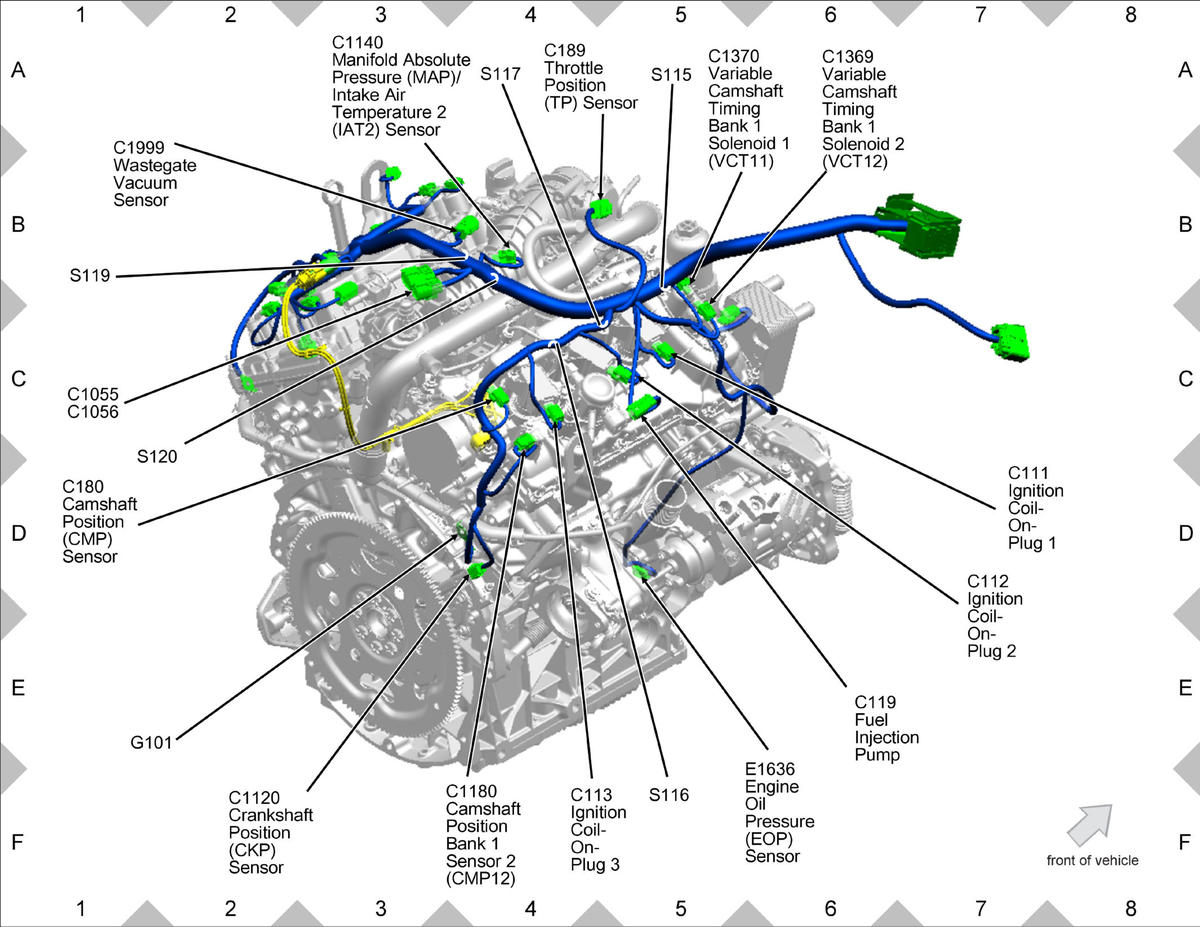

GFDWR93322Courtesy of FORD MOTOR COMPANY

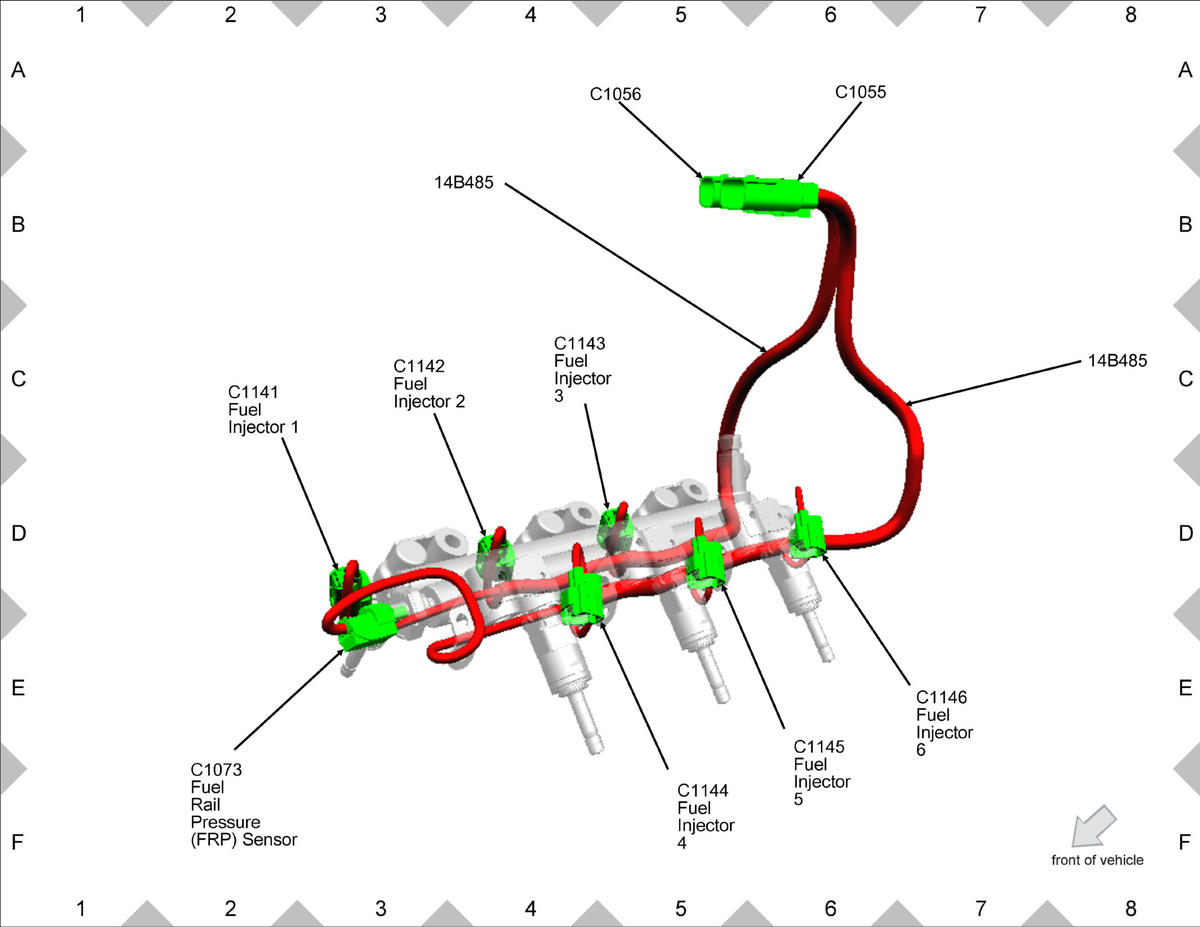

GFDWR93301Courtesy of FORD MOTOR COMPANY

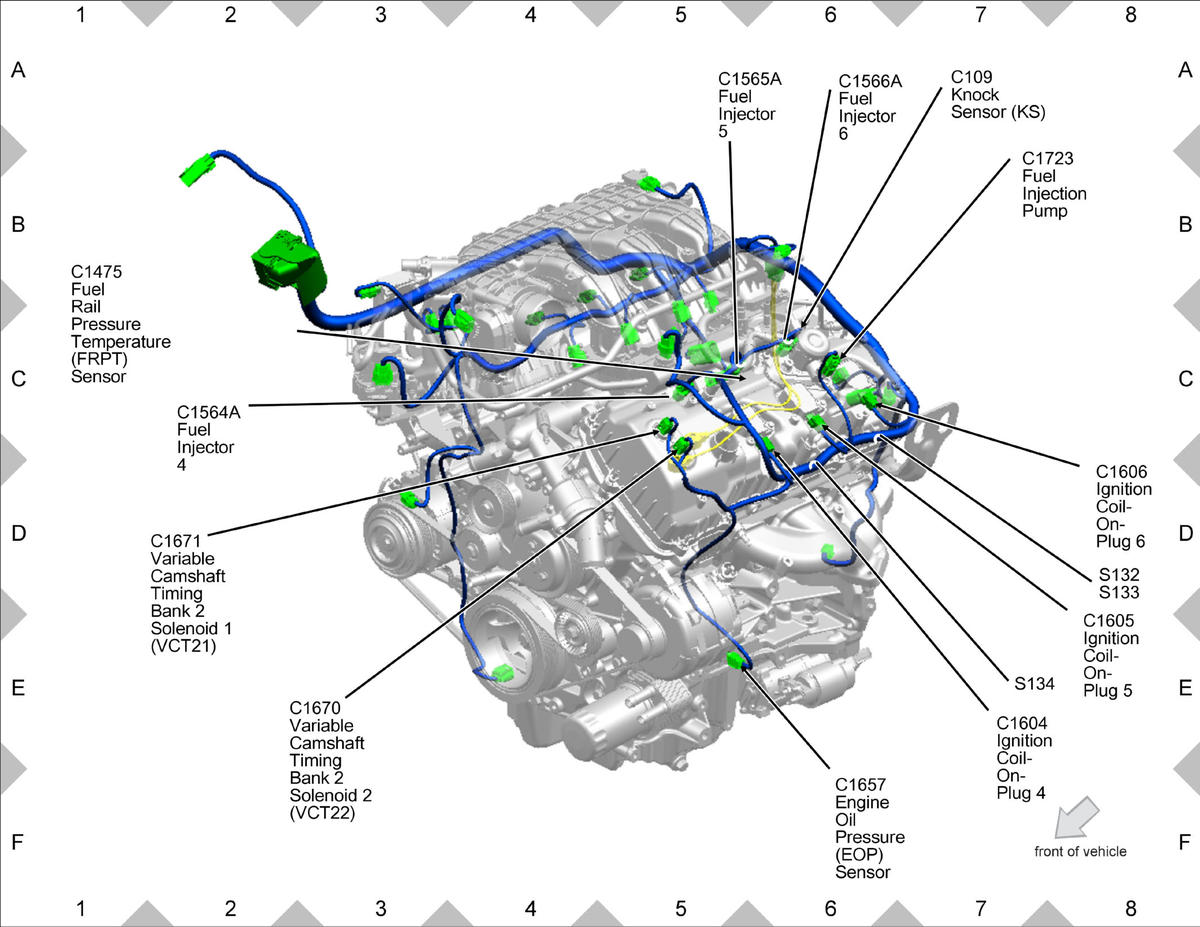

GFDWR93332Courtesy of FORD MOTOR COMPANY

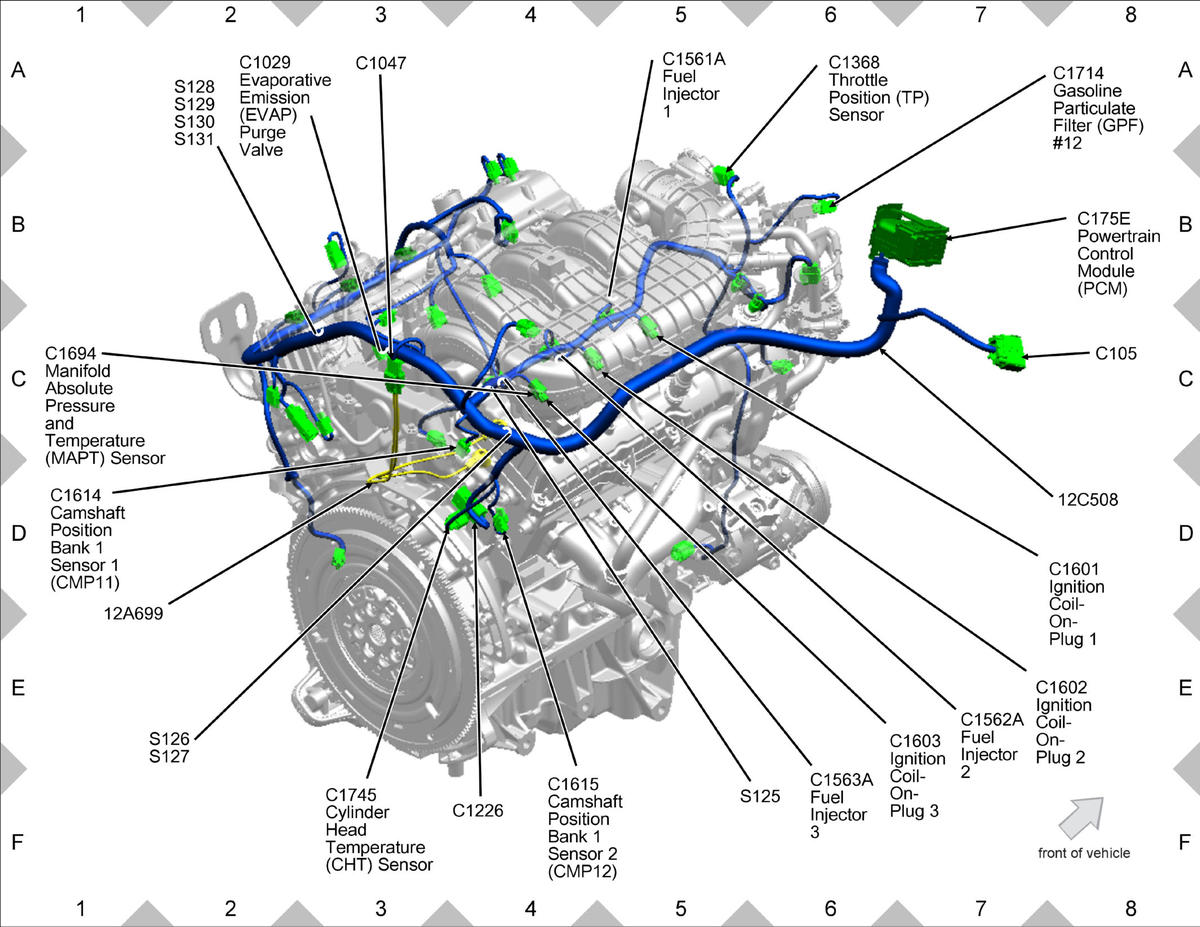

GFDWR93337Courtesy of FORD MOTOR COMPANY

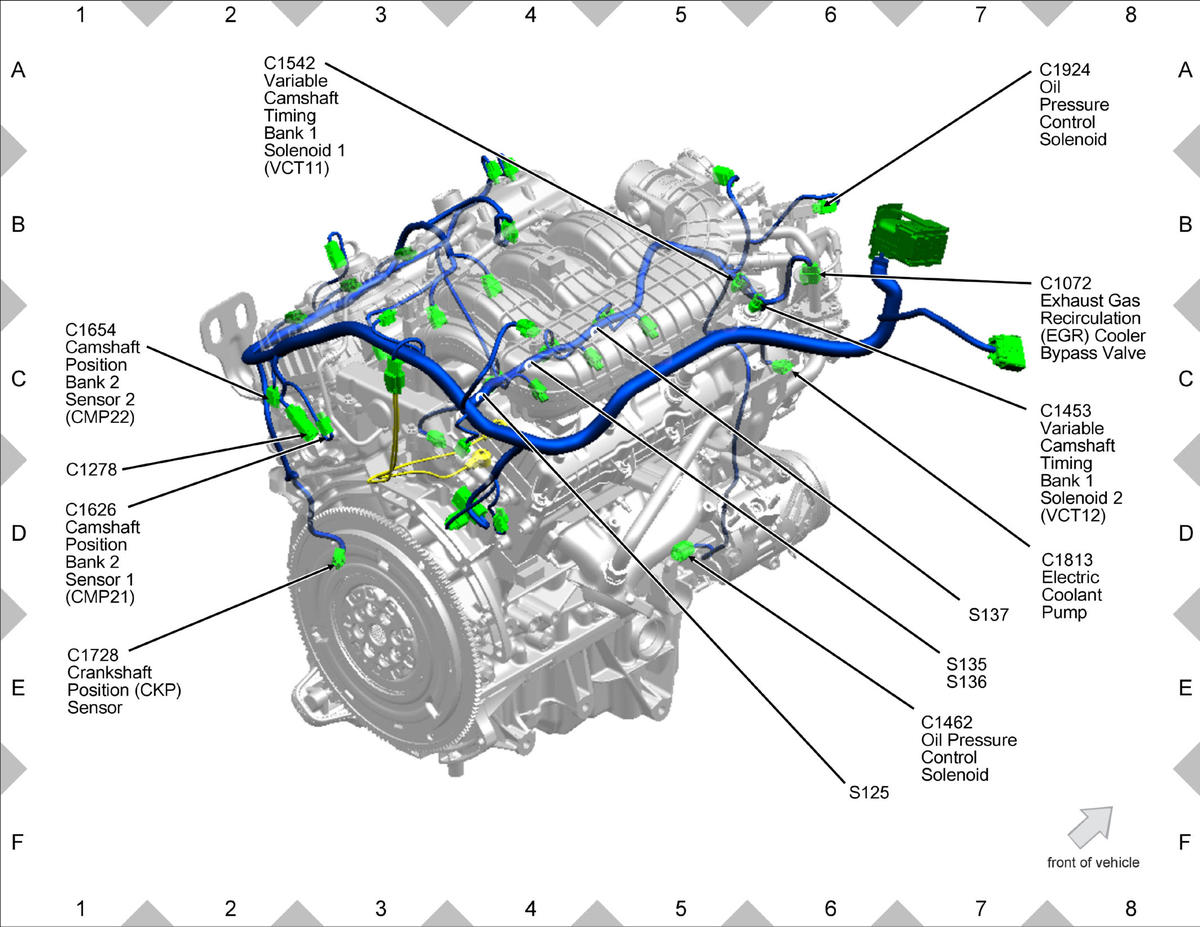

GFDWR93307Courtesy of FORD MOTOR COMPANY

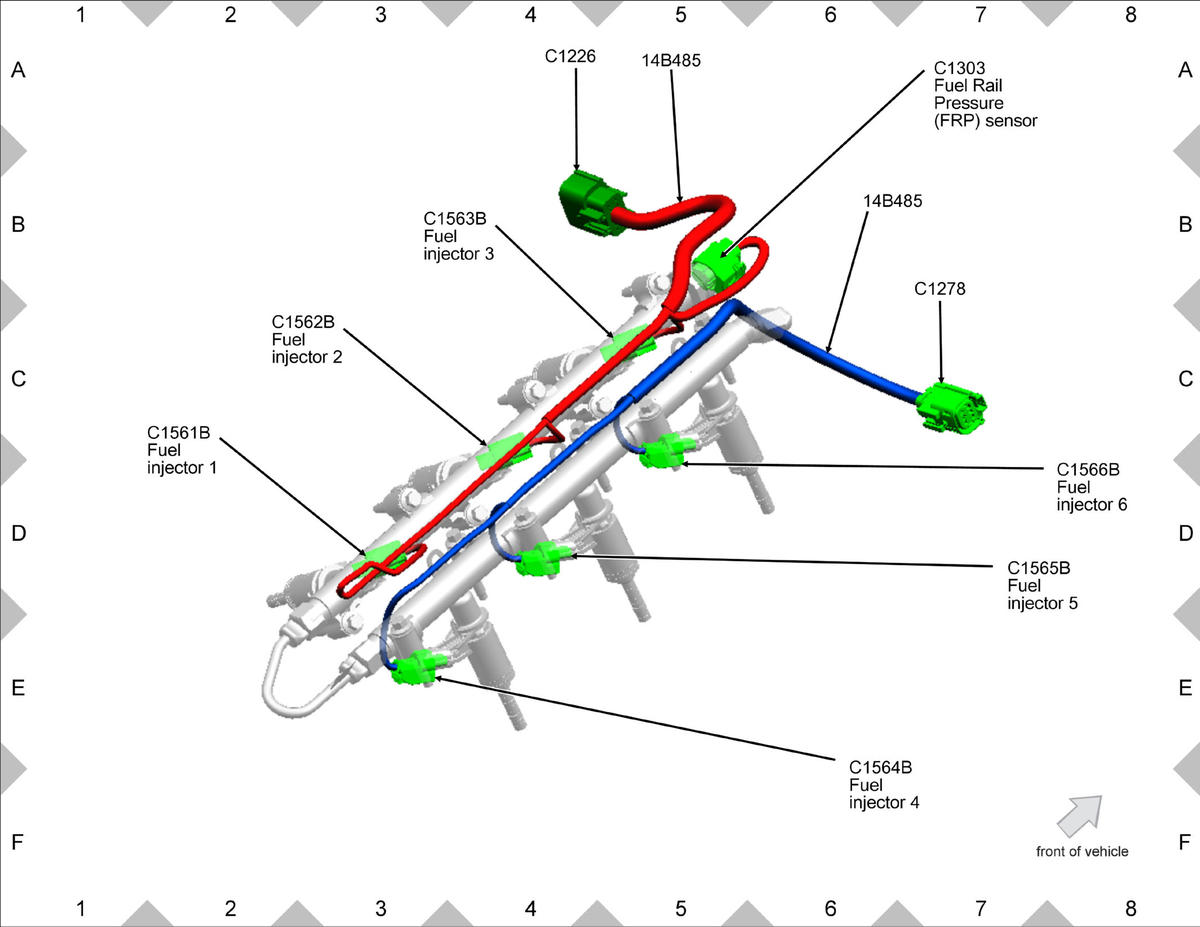

GFDWR93311Courtesy of FORD MOTOR COMPANY

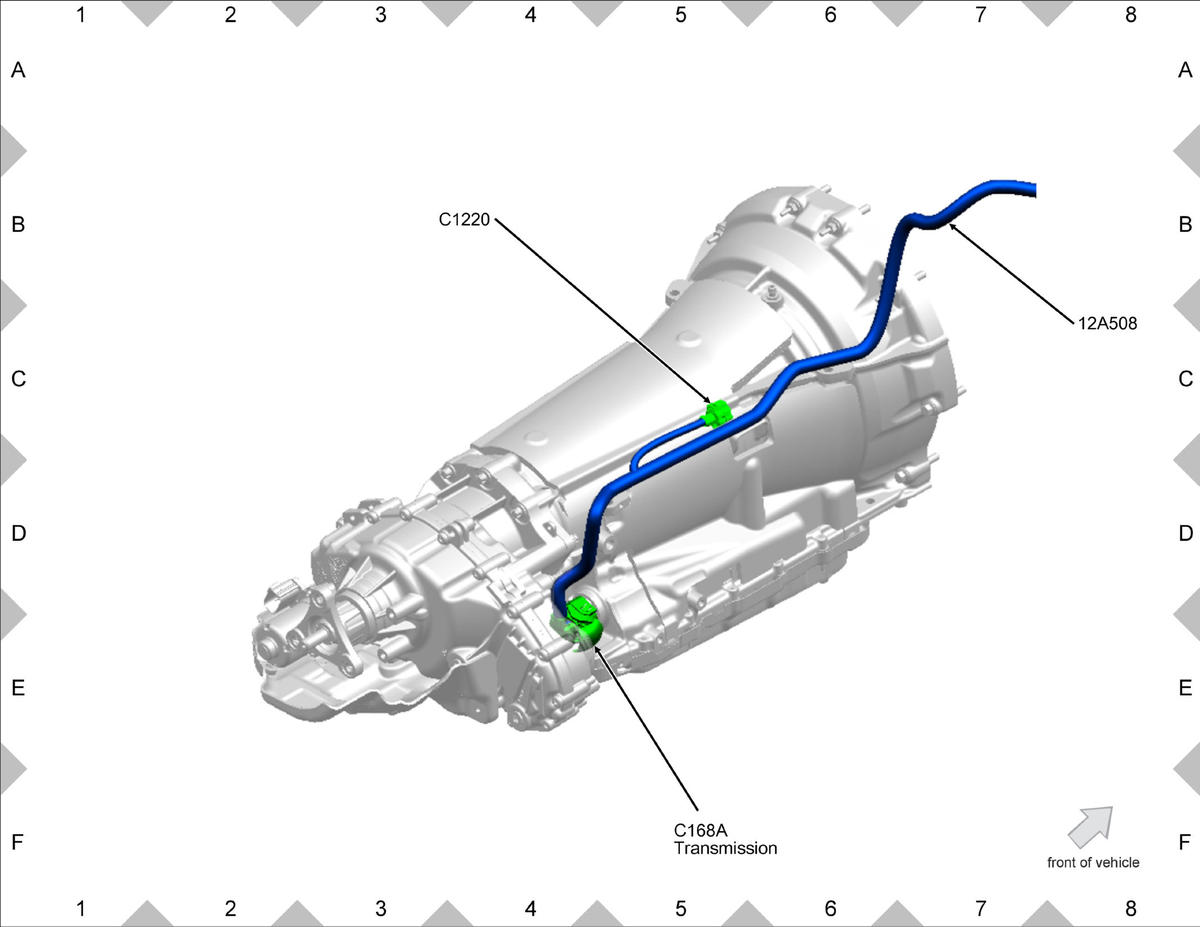

GFDWR93295Courtesy of FORD MOTOR COMPANY
GFDWR93325Courtesy of FORD MOTOR COMPANY

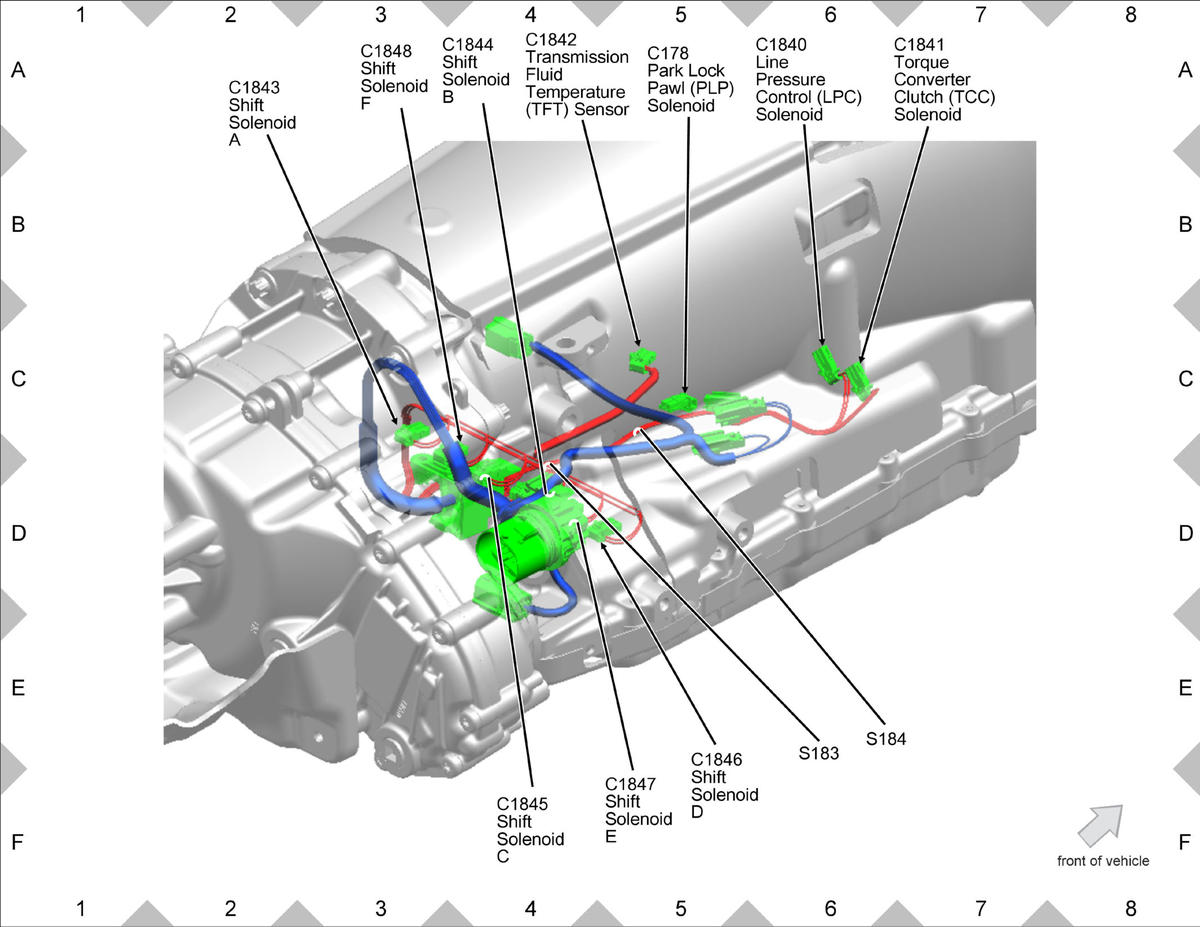

GFDWR93293Courtesy of FORD MOTOR COMPANY

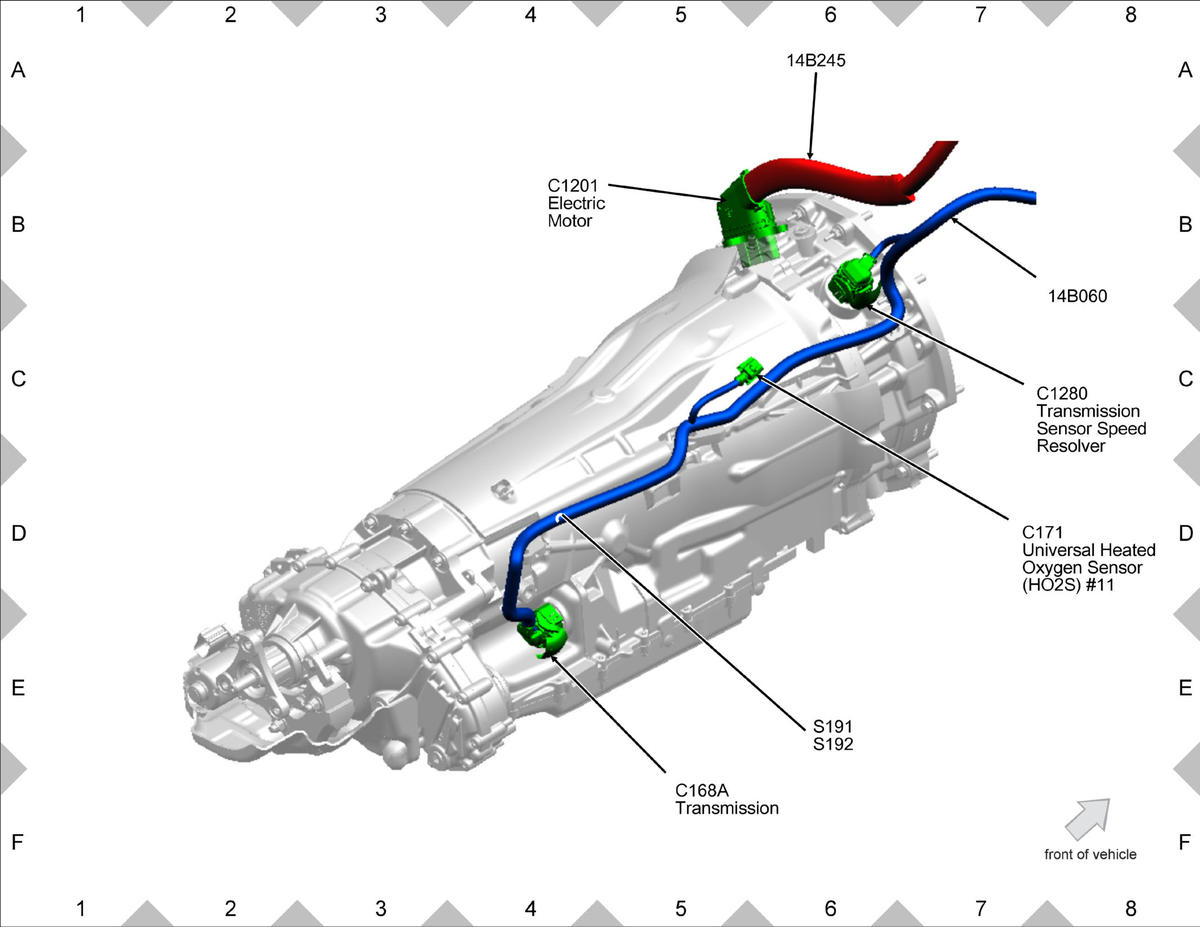

GFDWR93347Courtesy of FORD MOTOR COMPANY

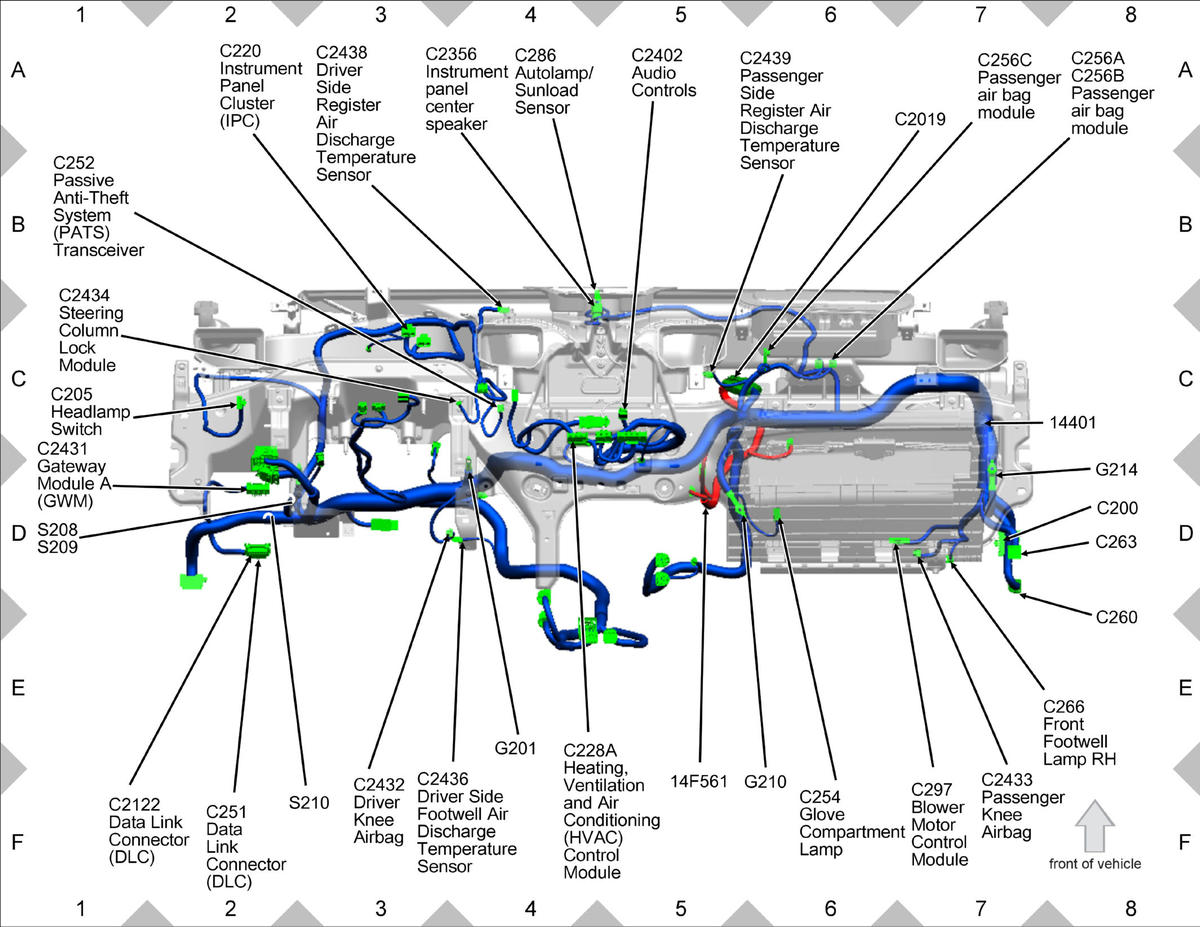

GFDWR93314Courtesy of FORD MOTOR COMPANY

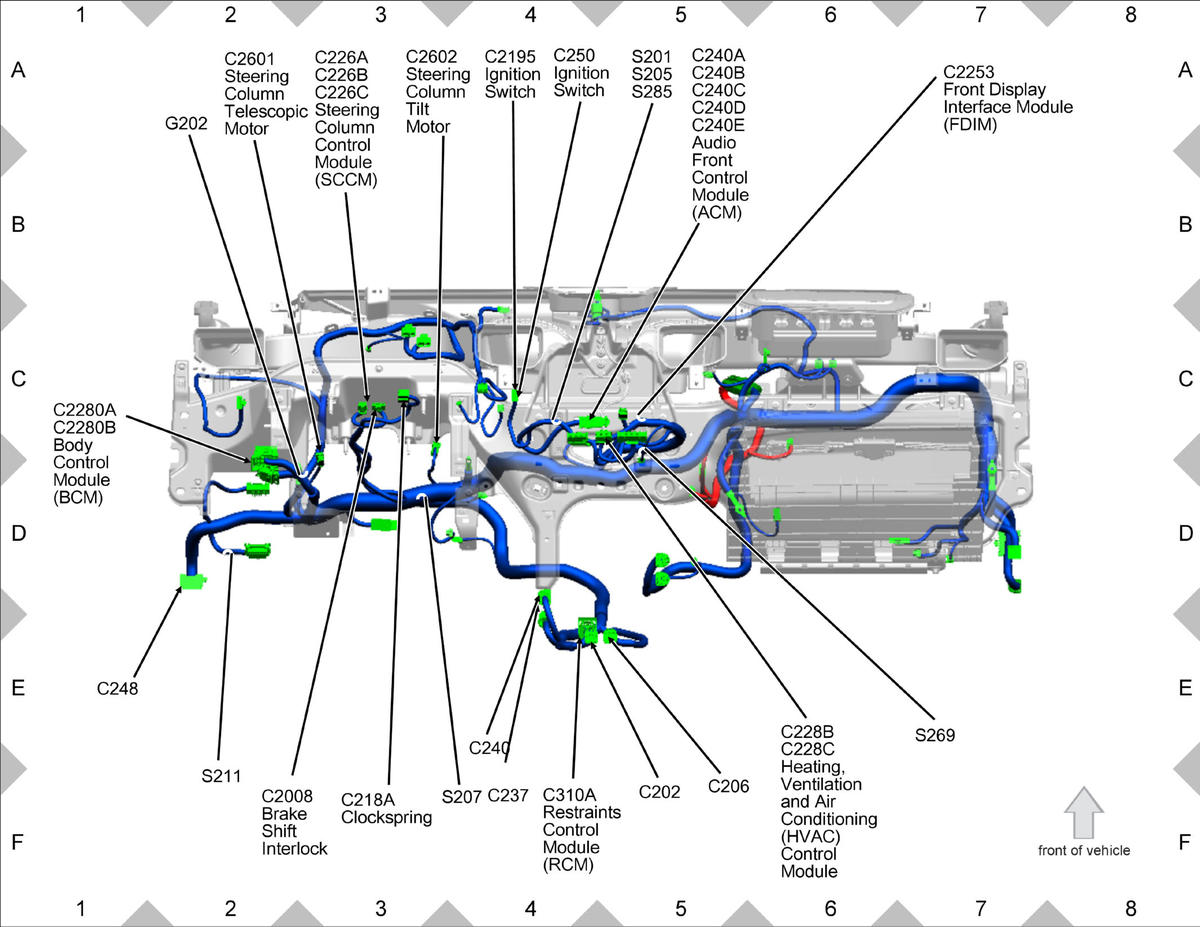

GFDWR93326Courtesy of FORD MOTOR COMPANY

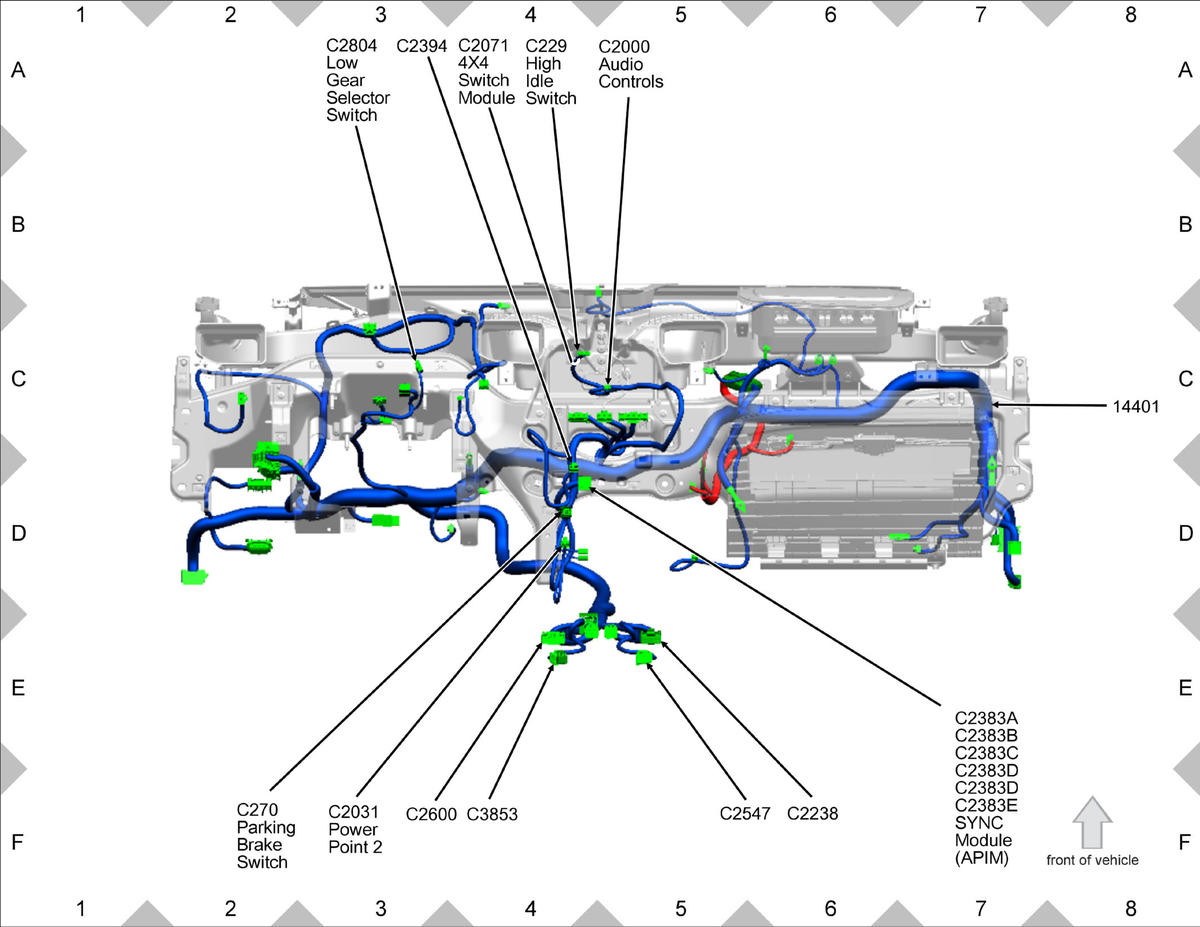

GFDWR93342Courtesy of FORD MOTOR COMPANY

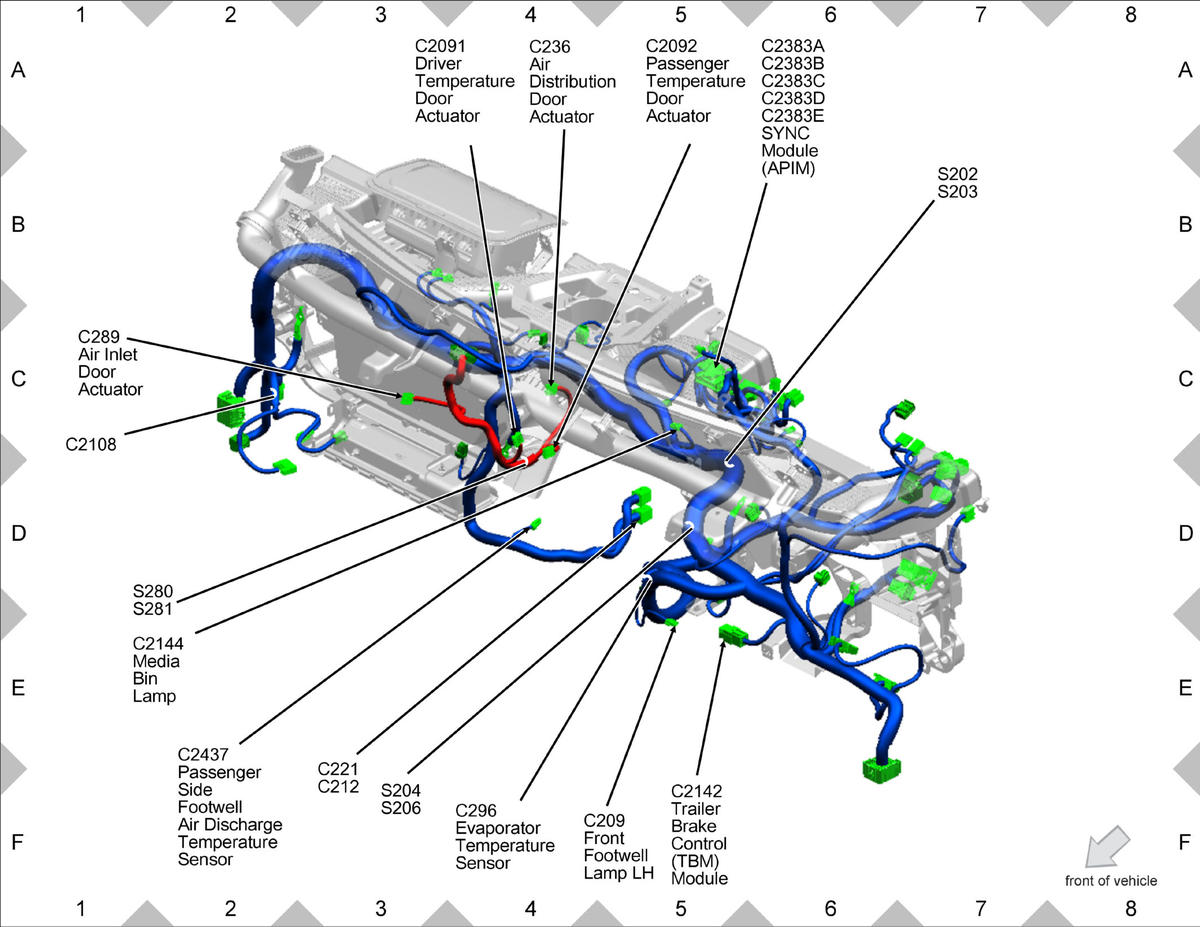

GFDWR93317Courtesy of FORD MOTOR COMPANY

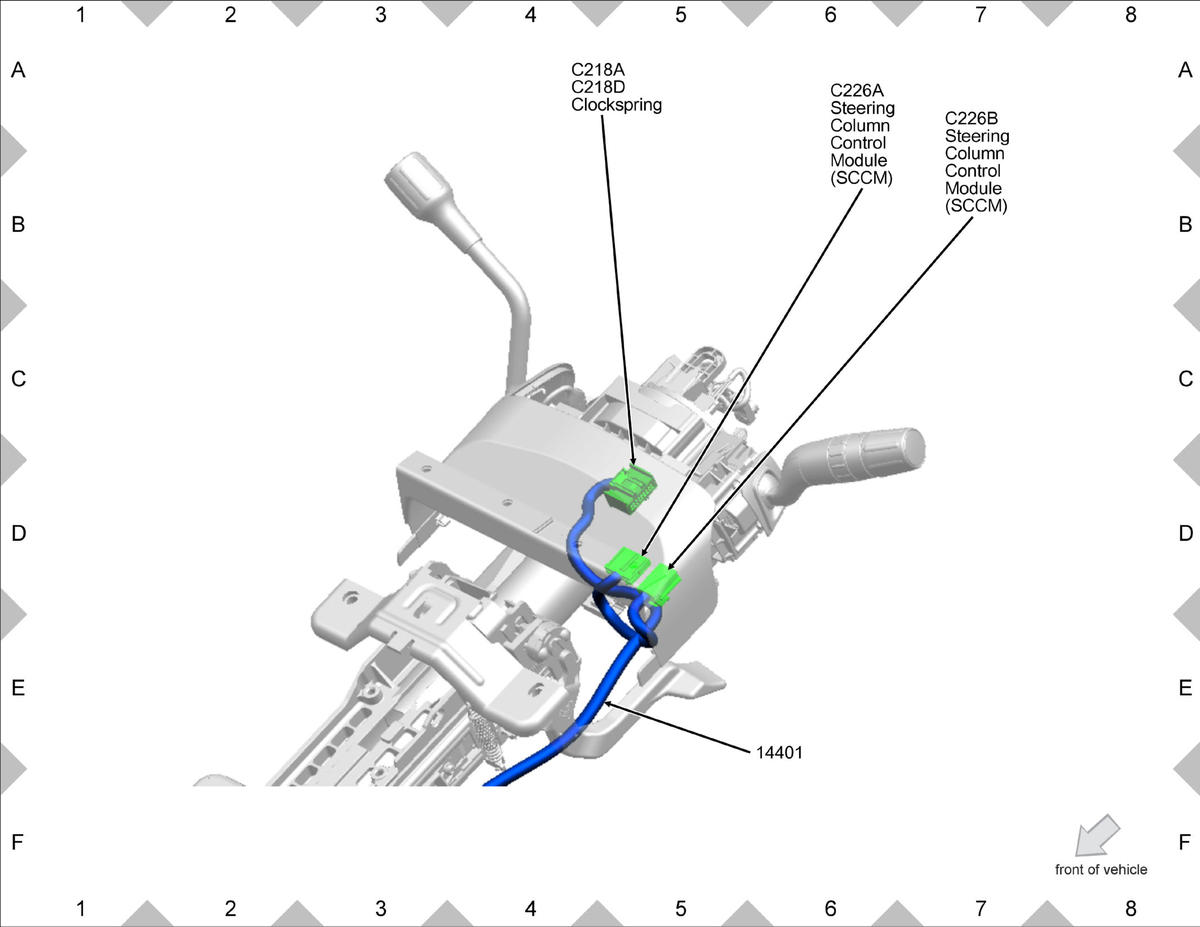

GFDWR93344Courtesy of FORD MOTOR COMPANY

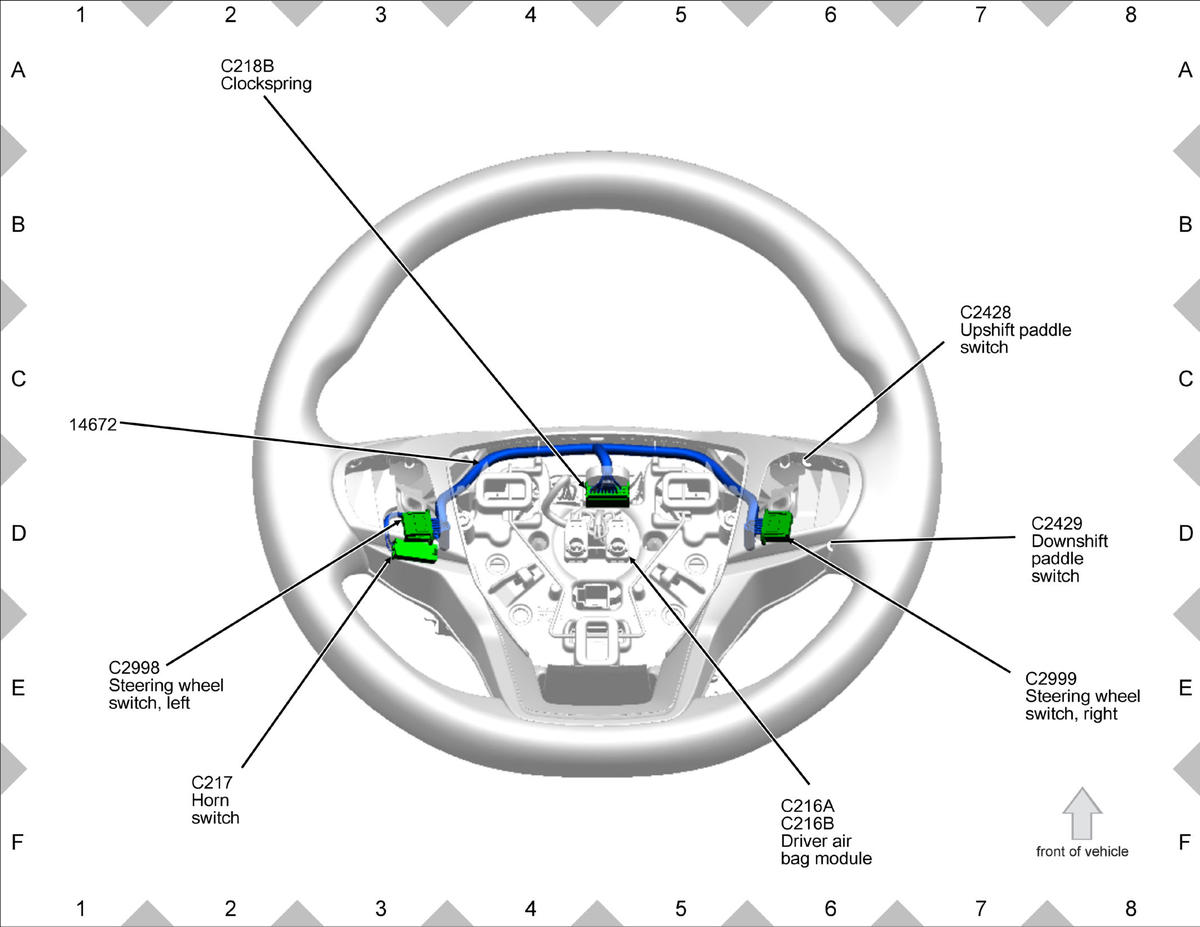

GFDWR93308Courtesy of FORD MOTOR COMPANY

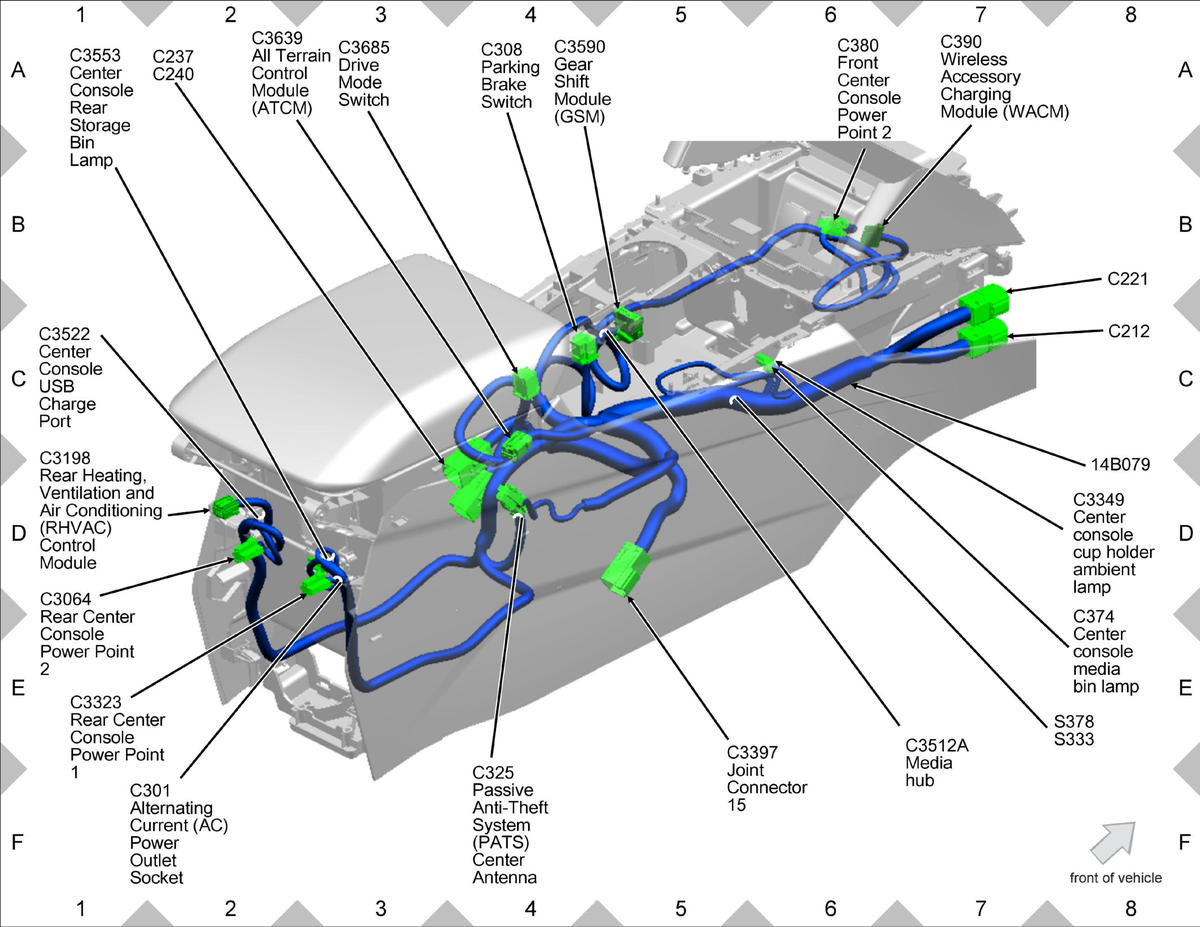

GFDWR93339Courtesy of FORD MOTOR COMPANY

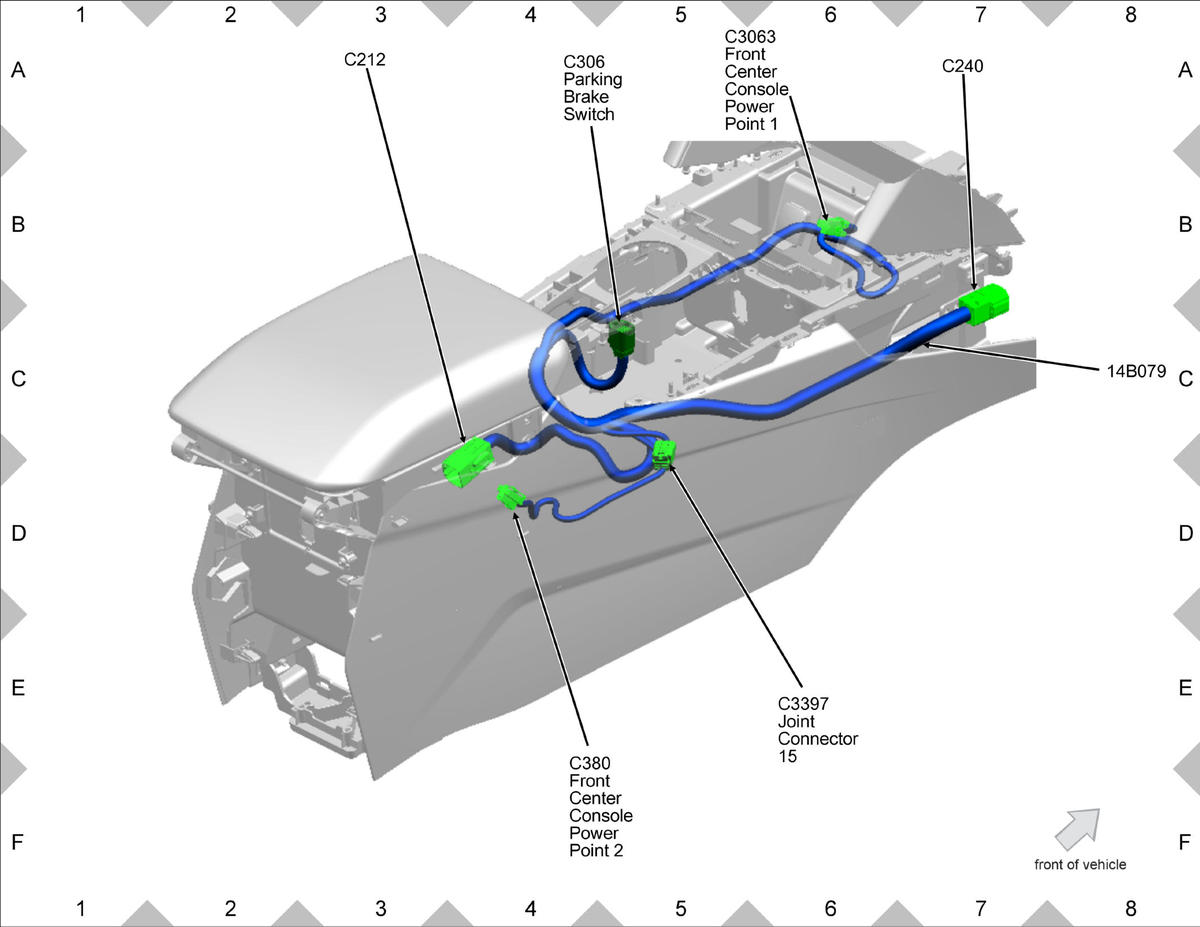

GFDWR93288Courtesy of FORD MOTOR COMPANY

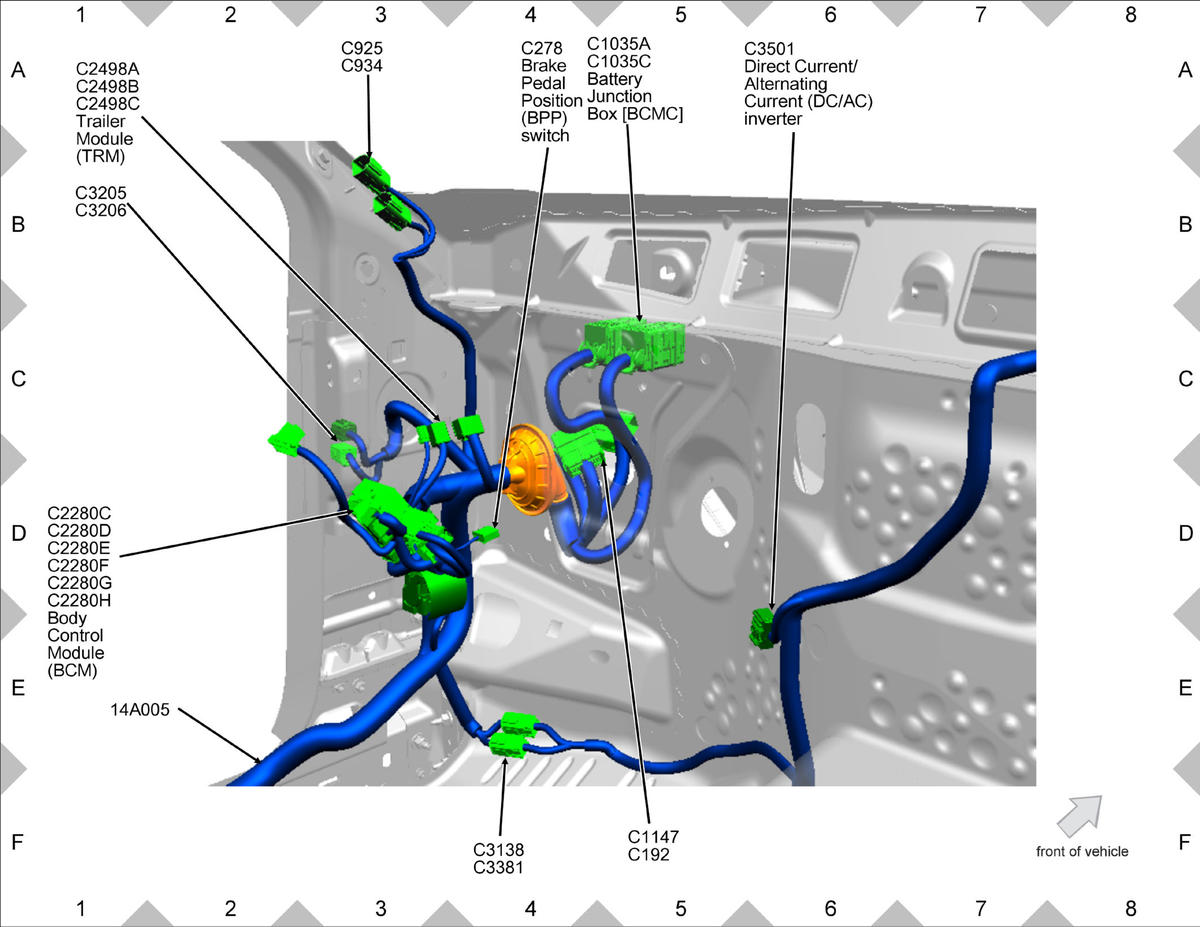

GFDWR93290Courtesy of FORD MOTOR COMPANY

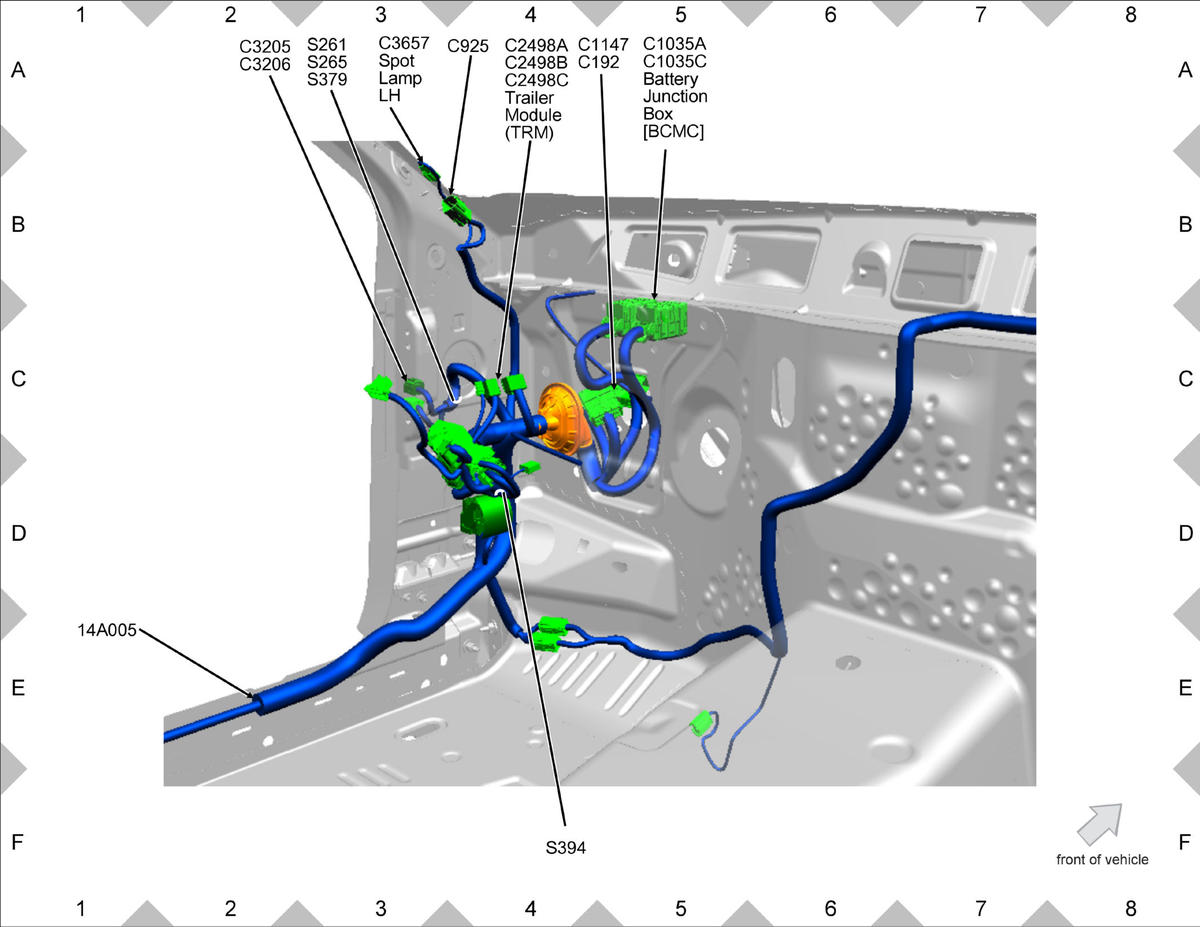

GFDWR93299Courtesy of FORD MOTOR COMPANY

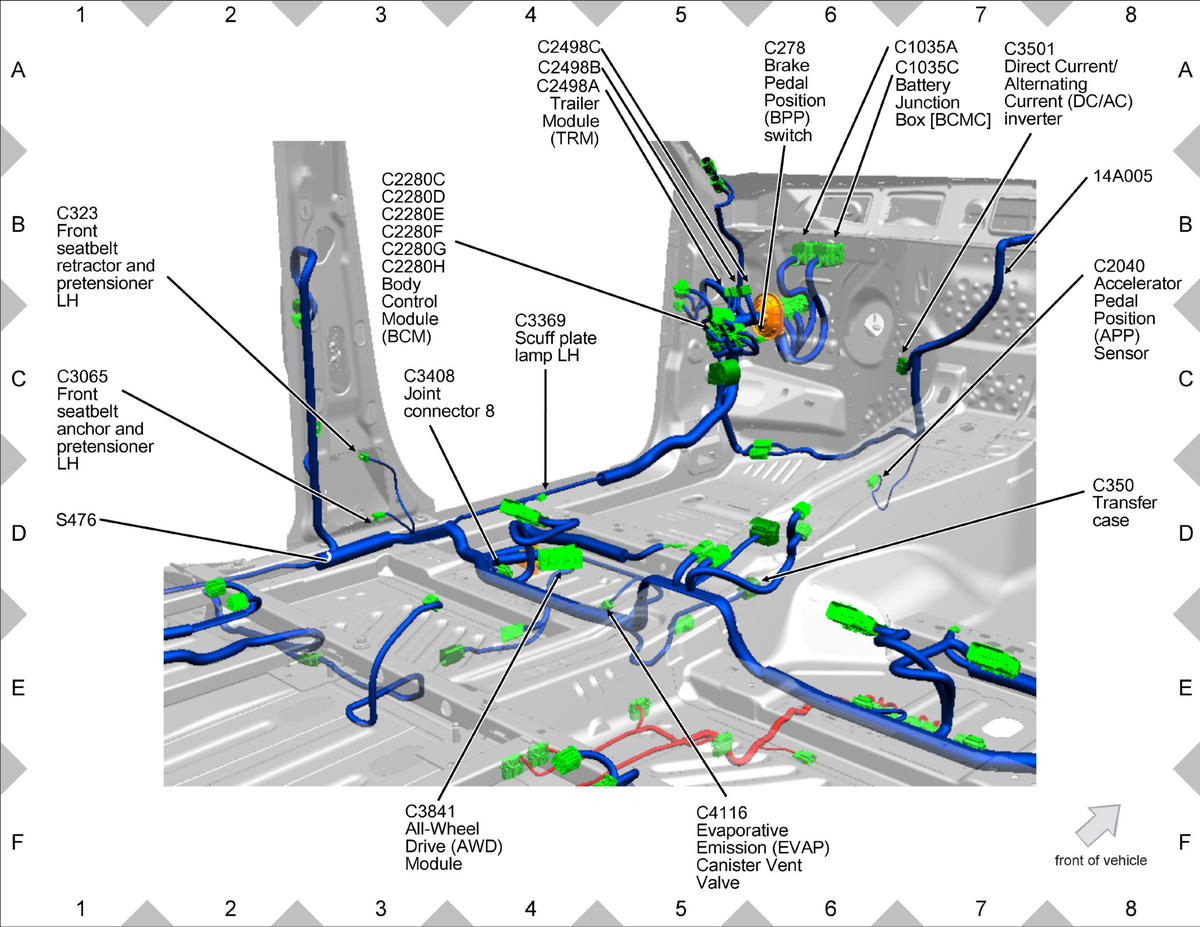

GFDWR93335Courtesy of FORD MOTOR COMPANY

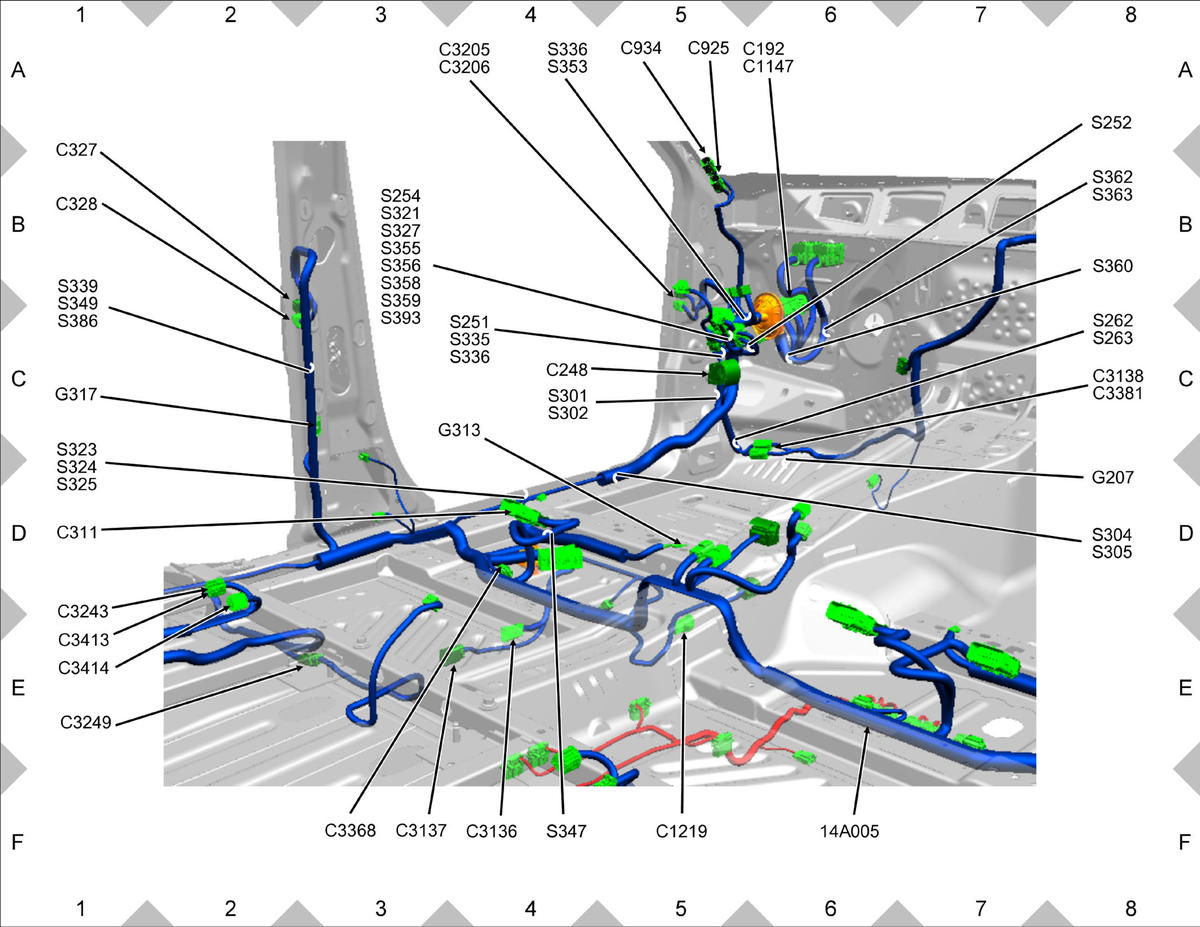

GFDWR93319Courtesy of FORD MOTOR COMPANY
GFDWR93341Courtesy of FORD MOTOR COMPANY

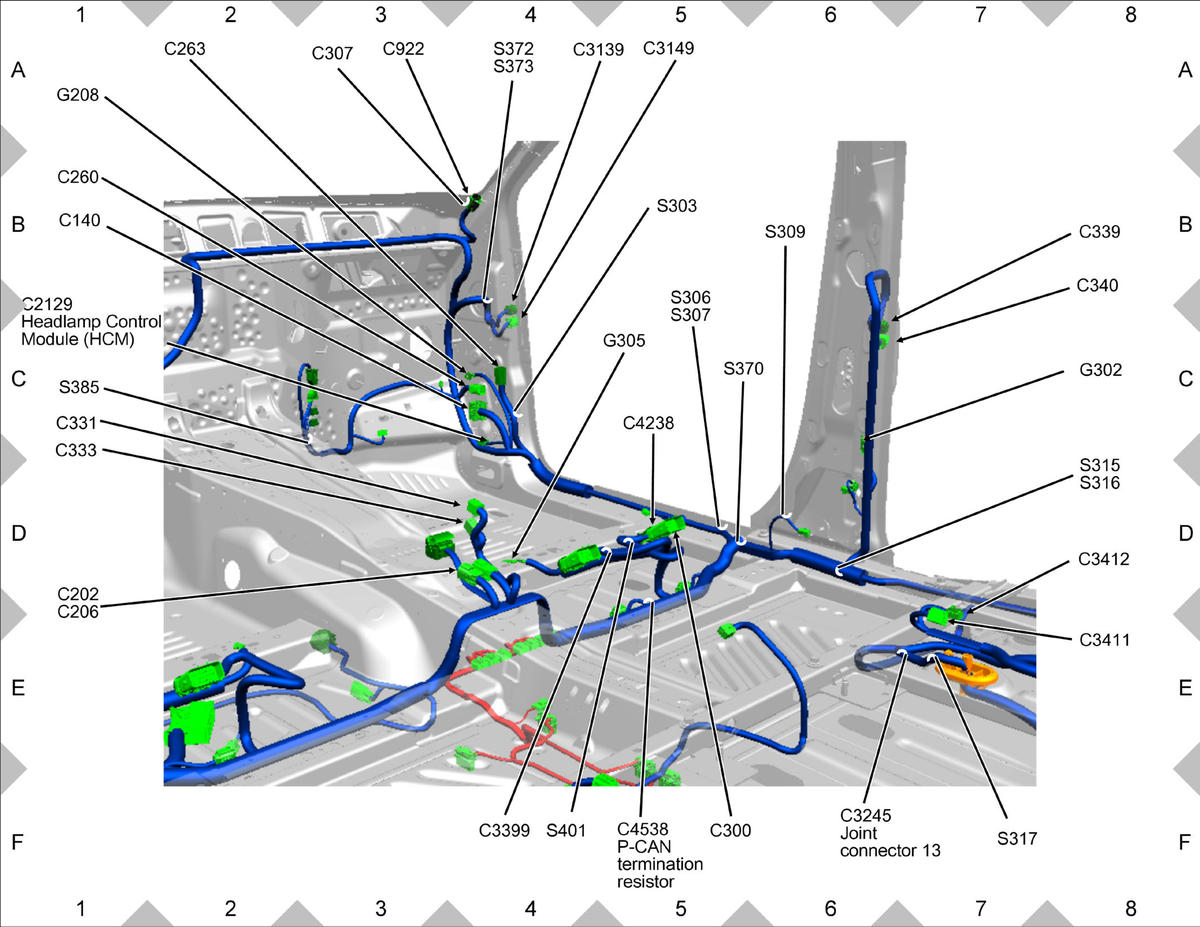

GFDWR93334Courtesy of FORD MOTOR COMPANY

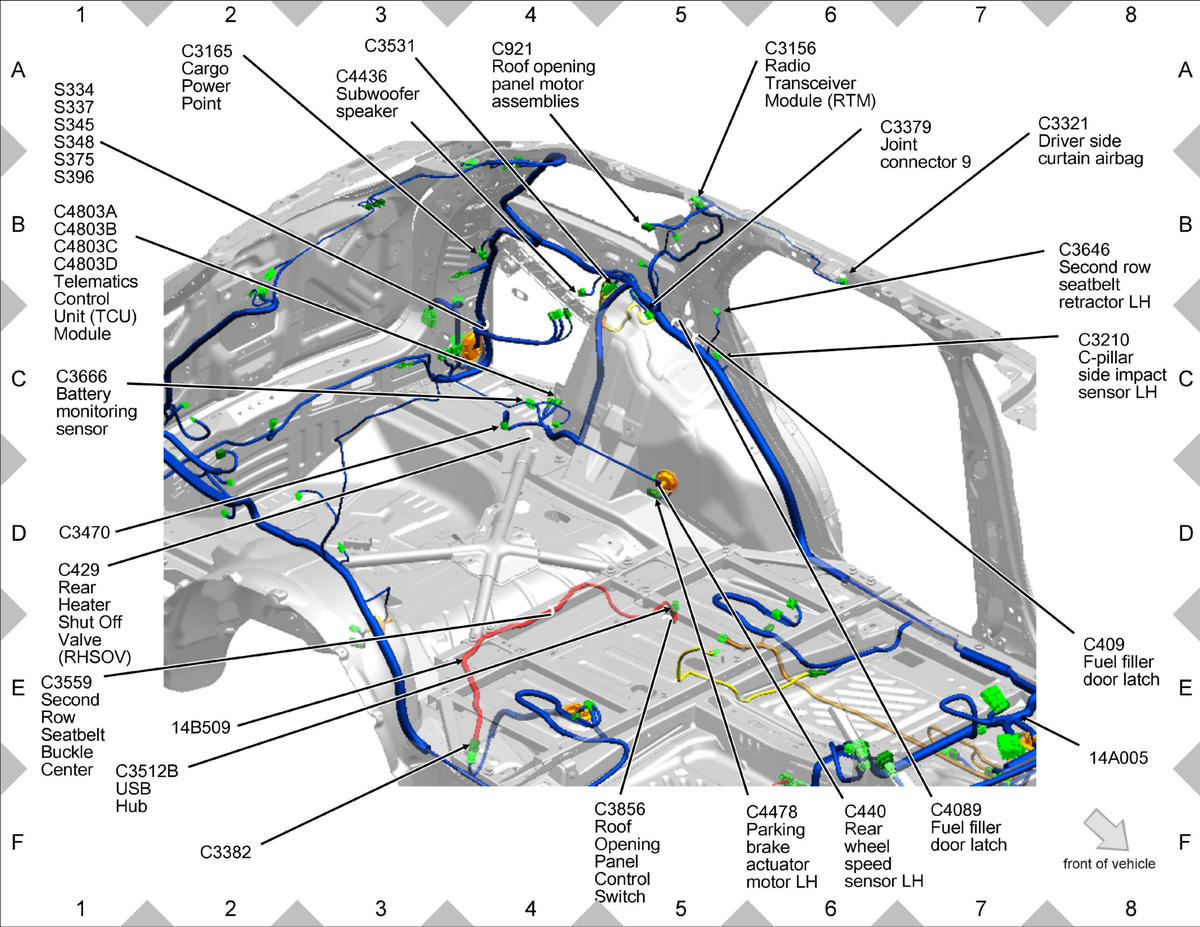

GFDWR93324Courtesy of FORD MOTOR COMPANY

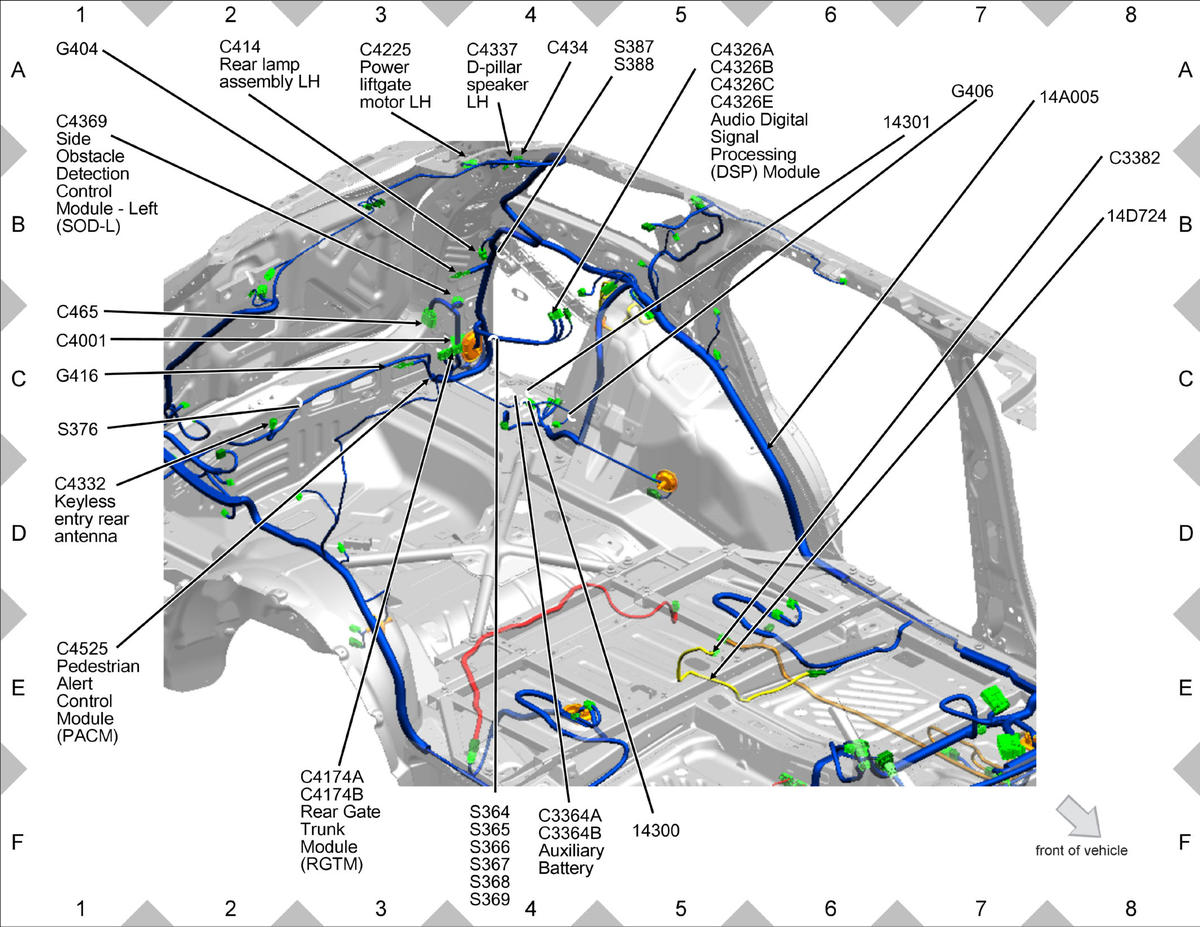

GFDWR93296Courtesy of FORD MOTOR COMPANY

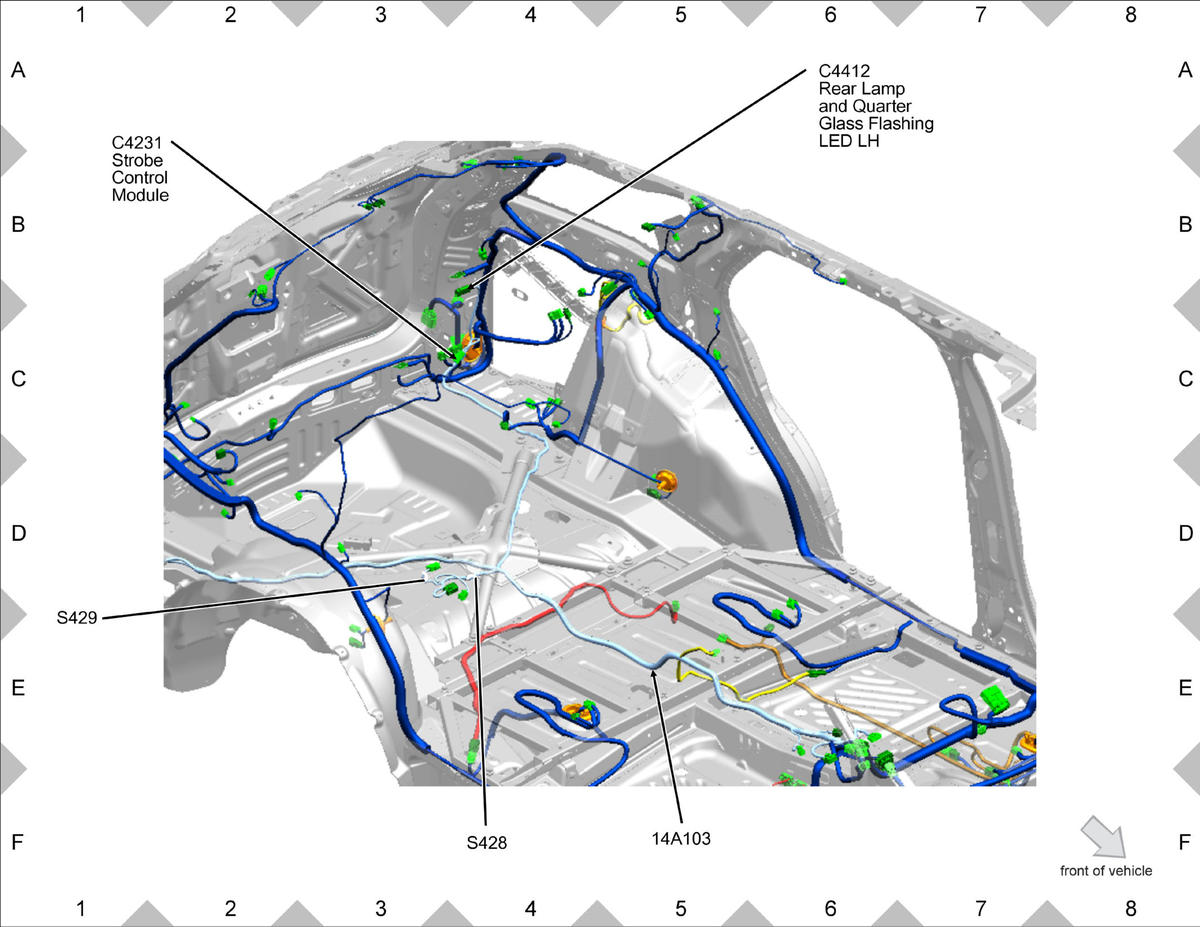

GFDWR93316Courtesy of FORD MOTOR COMPANY

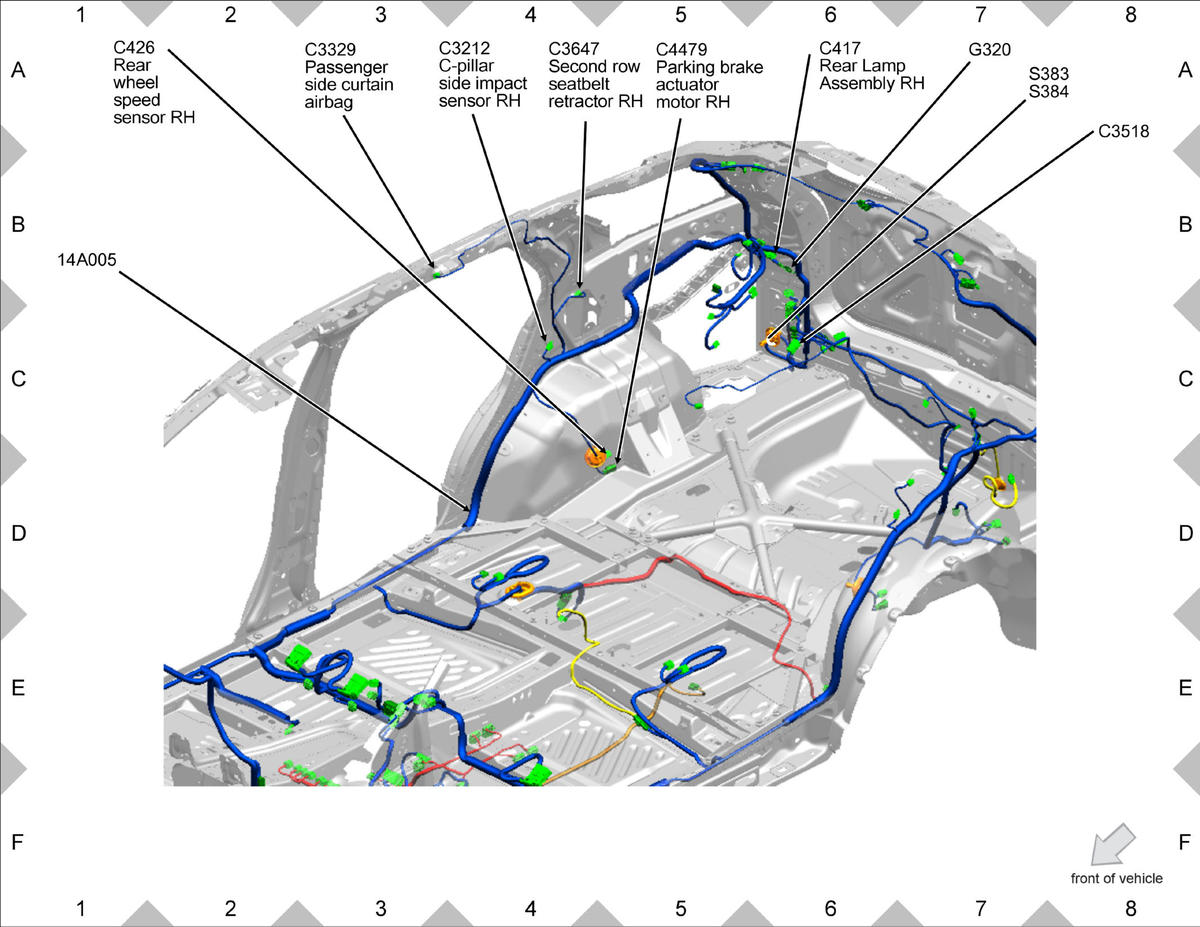

GFDWR93328Courtesy of FORD MOTOR COMPANY

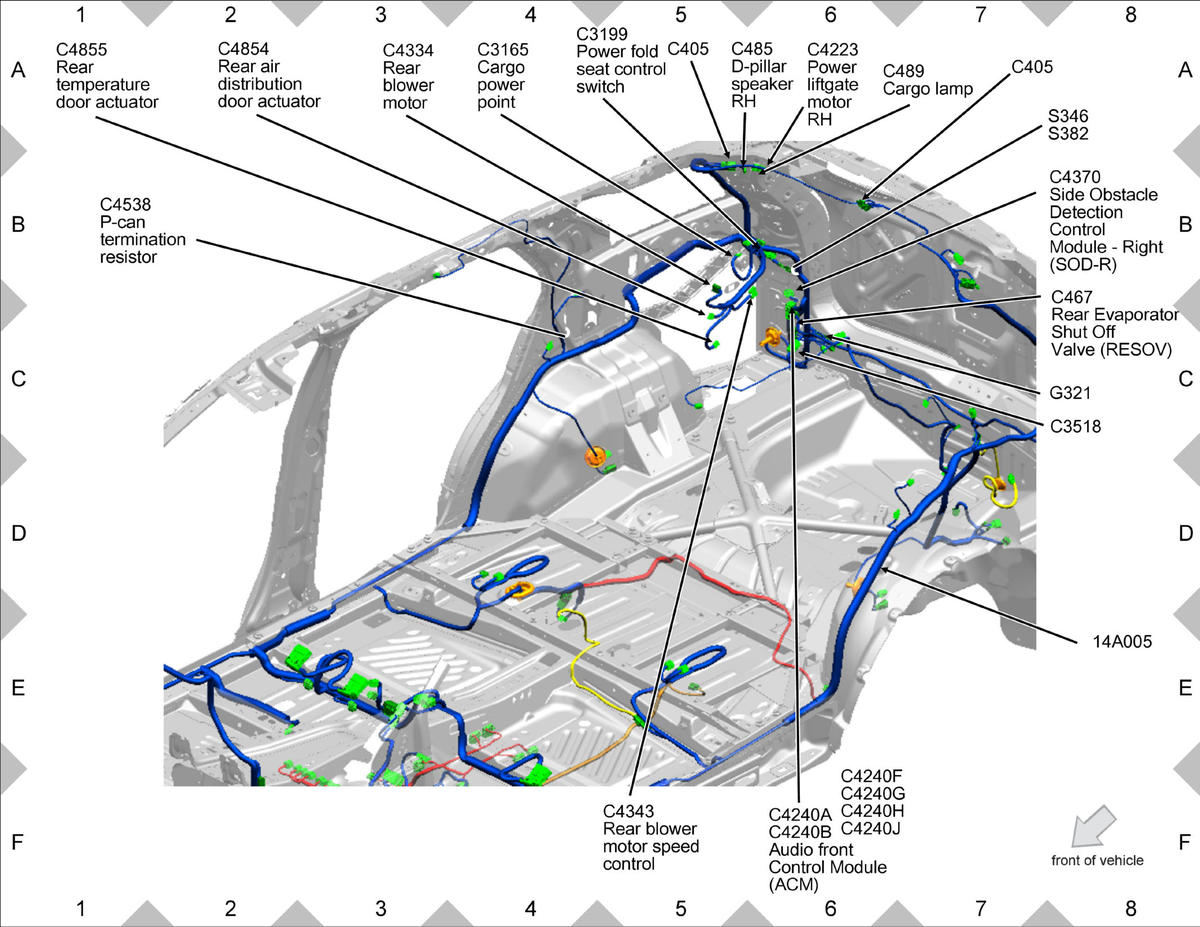

GFDWR93348Courtesy of FORD MOTOR COMPANY

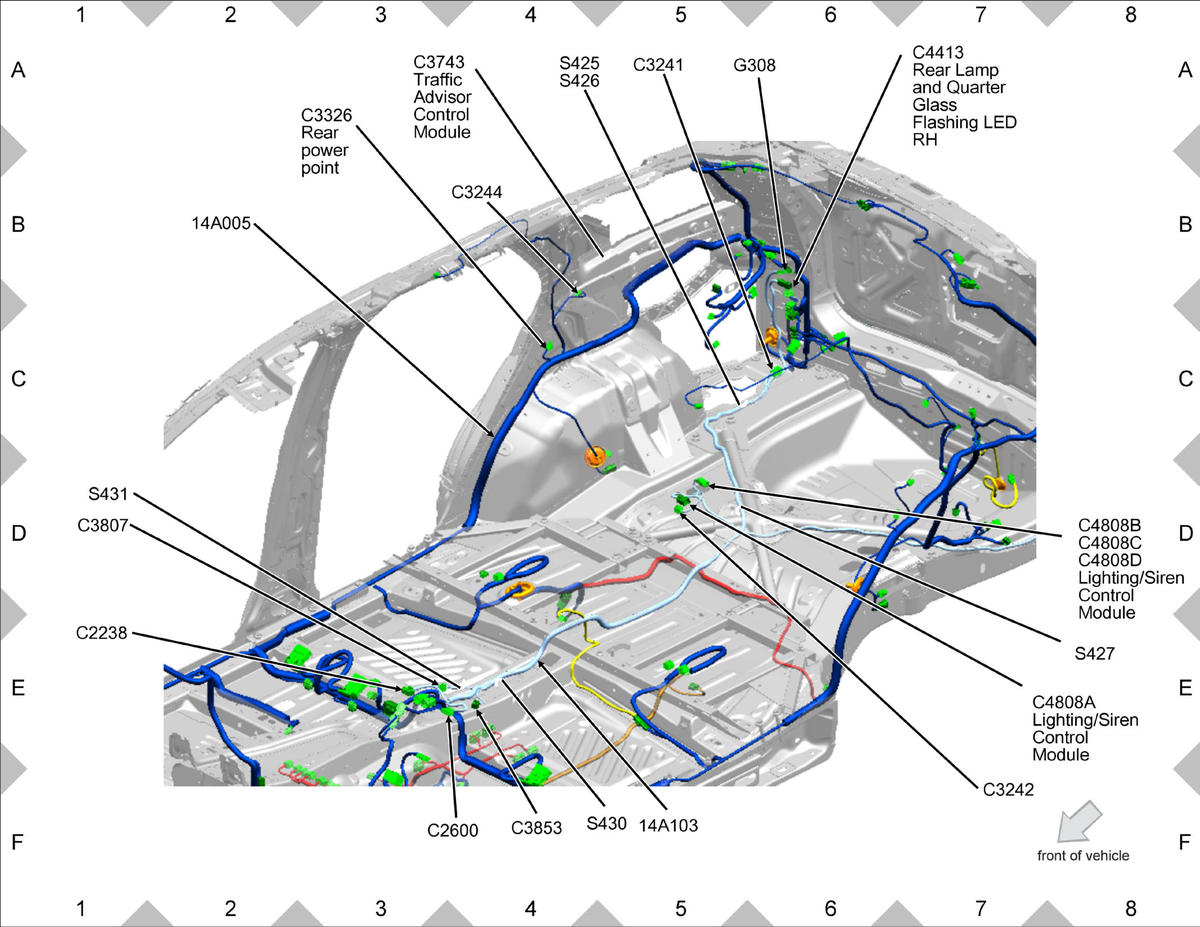

GFDWR93320Courtesy of FORD MOTOR COMPANY

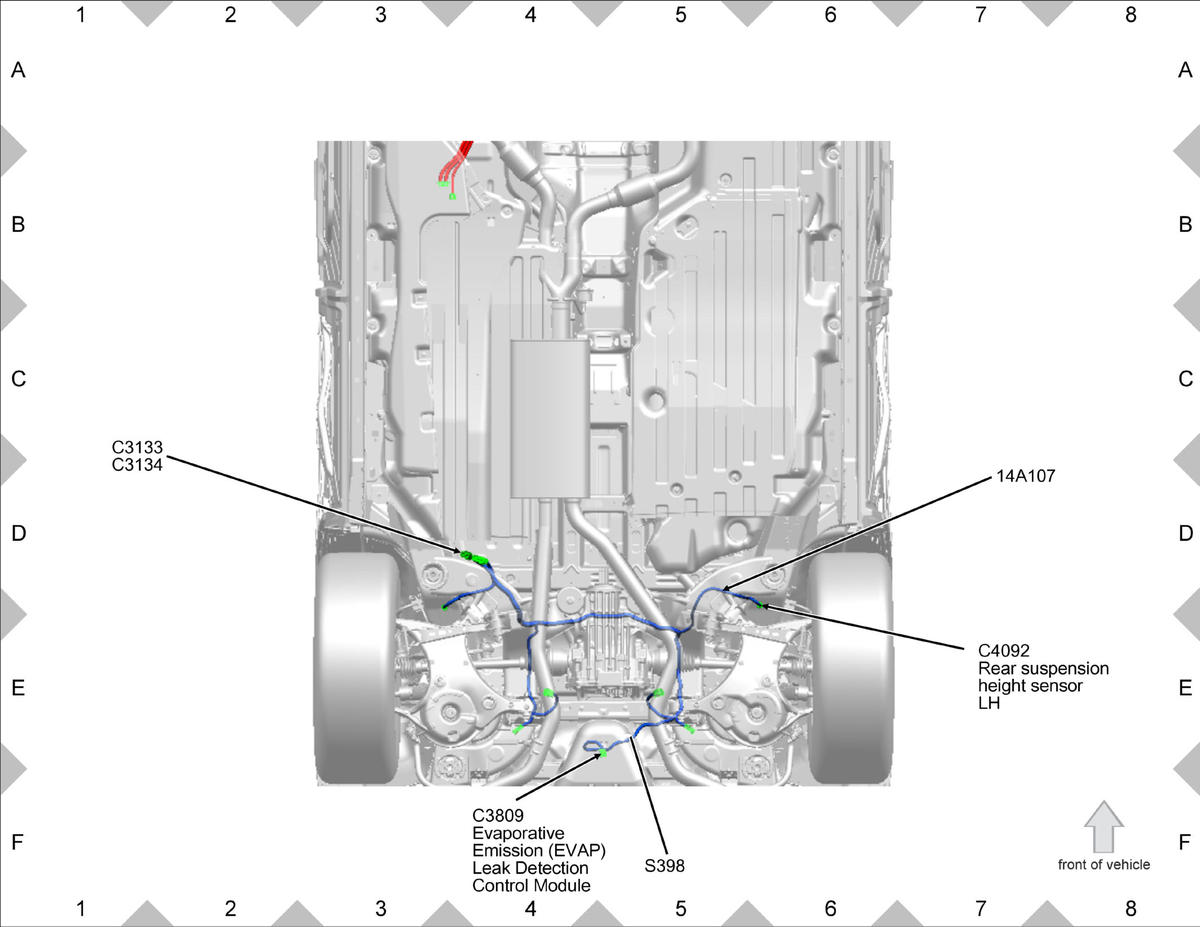

GFDWR93305Courtesy of FORD MOTOR COMPANY

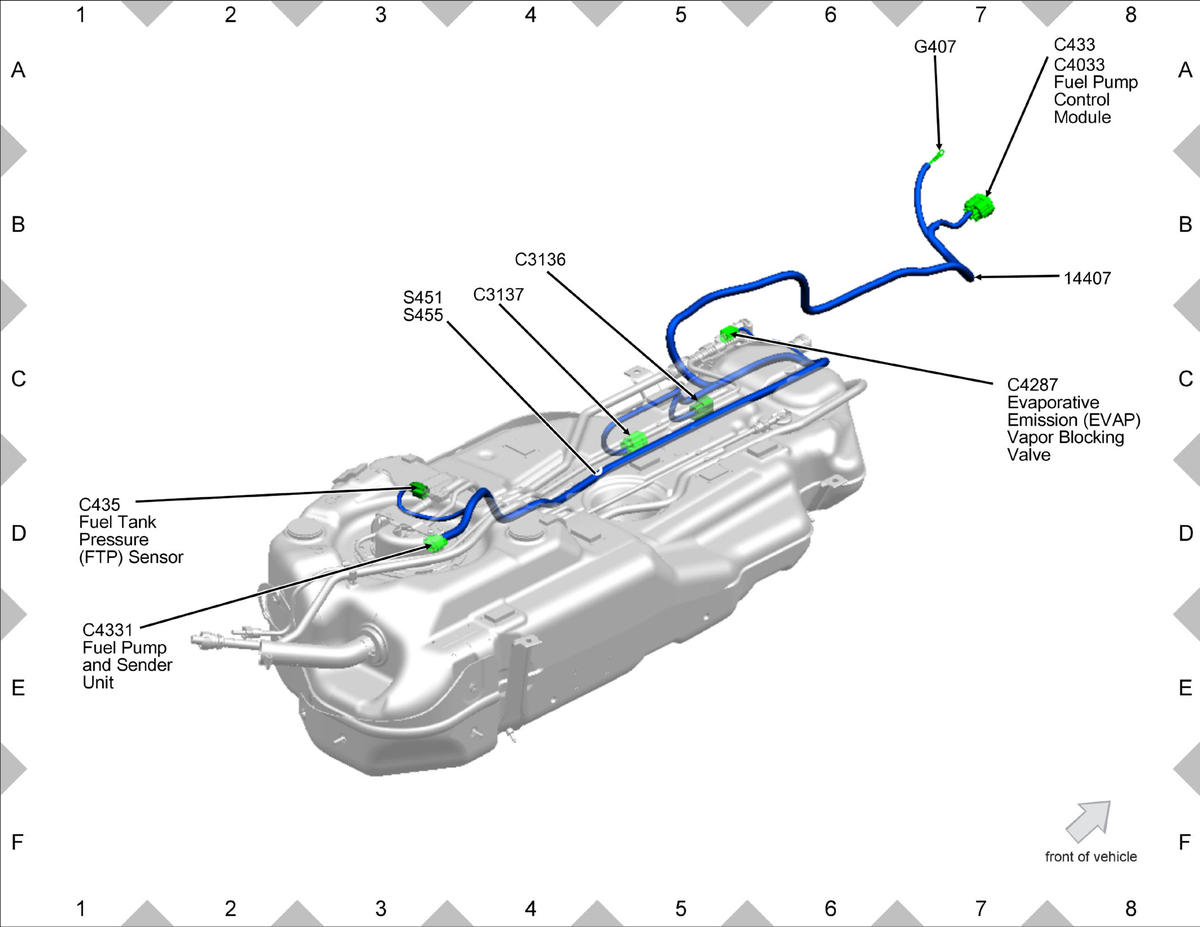

GFDWR93343Courtesy of FORD MOTOR COMPANY

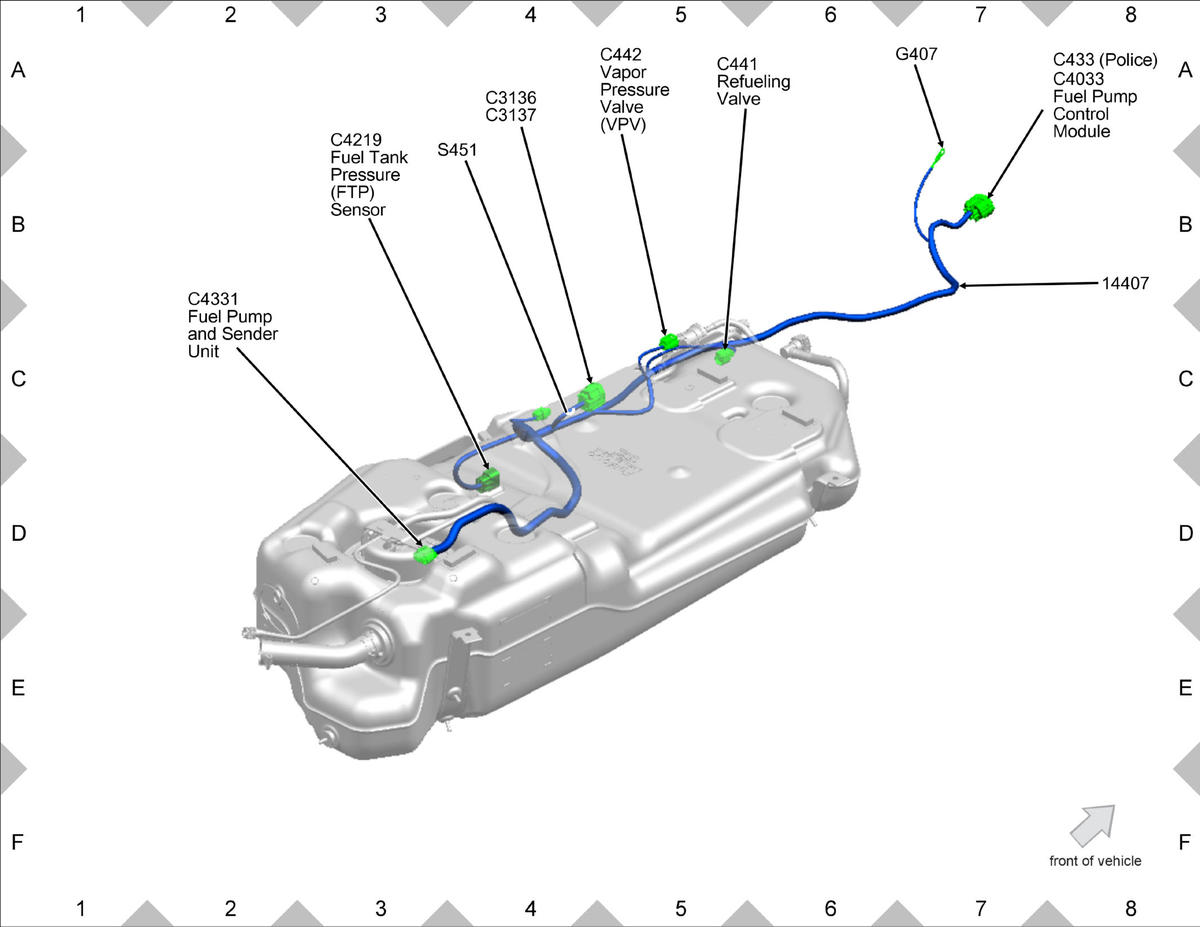

GFDWR93291Courtesy of FORD MOTOR COMPANY

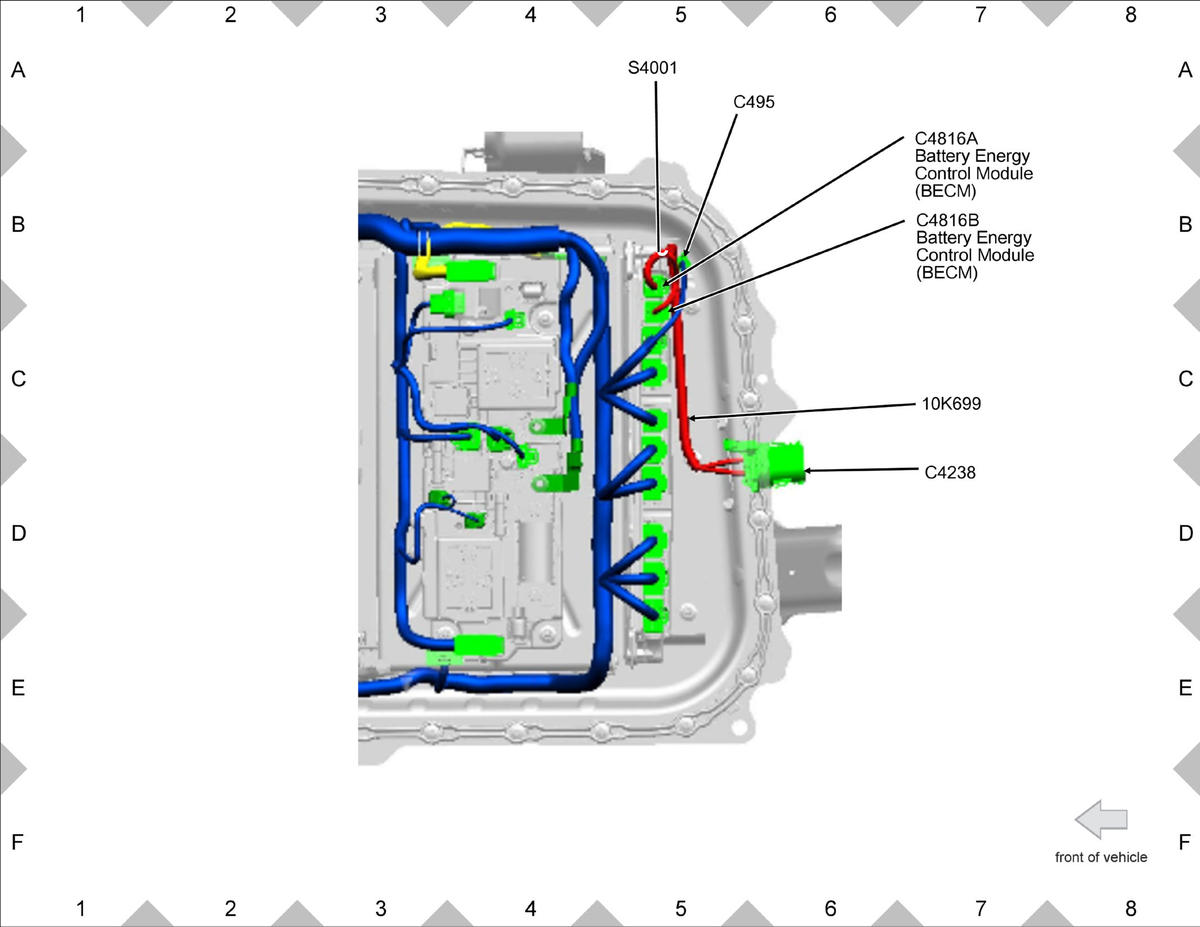

GFDWR93297Courtesy of FORD MOTOR COMPANY

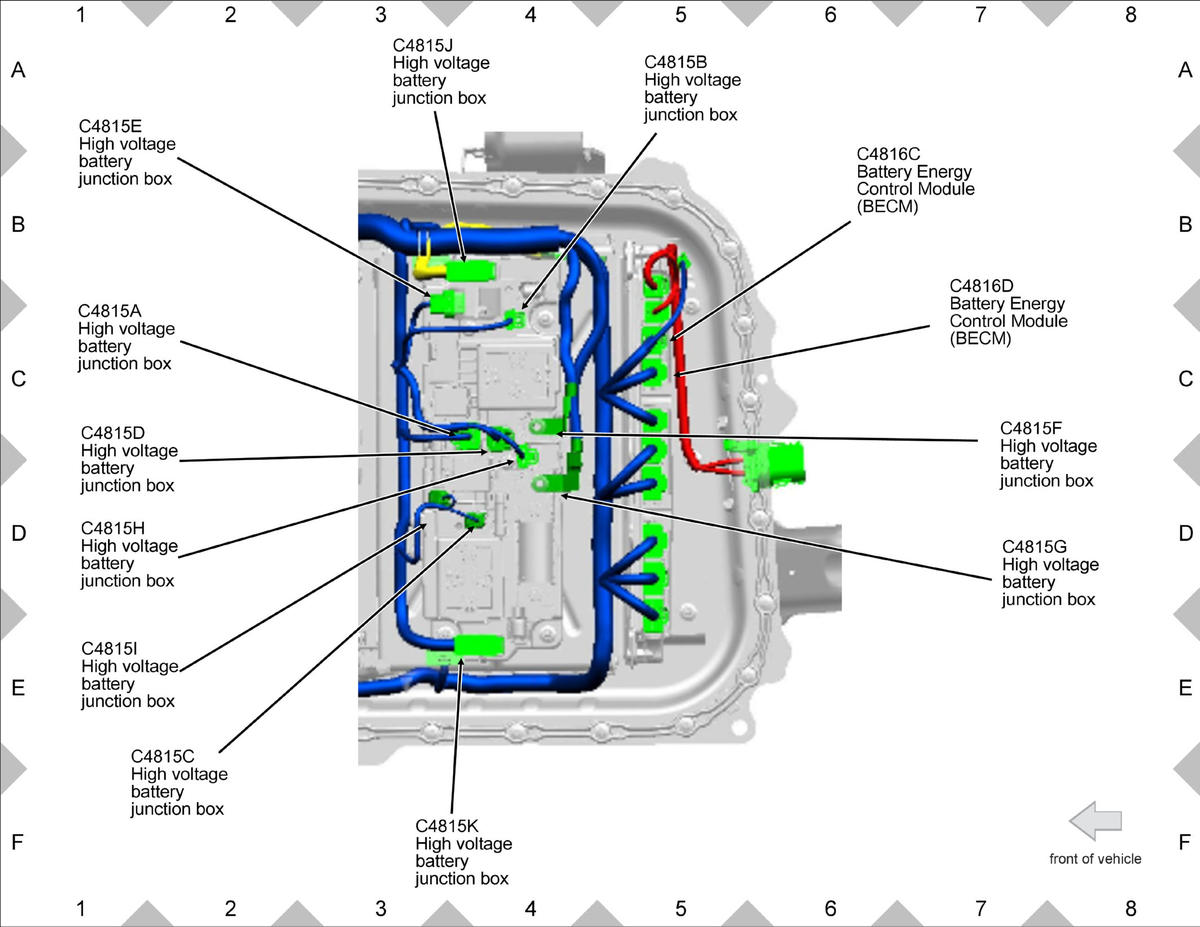

GFDWR93302Courtesy of FORD MOTOR COMPANY

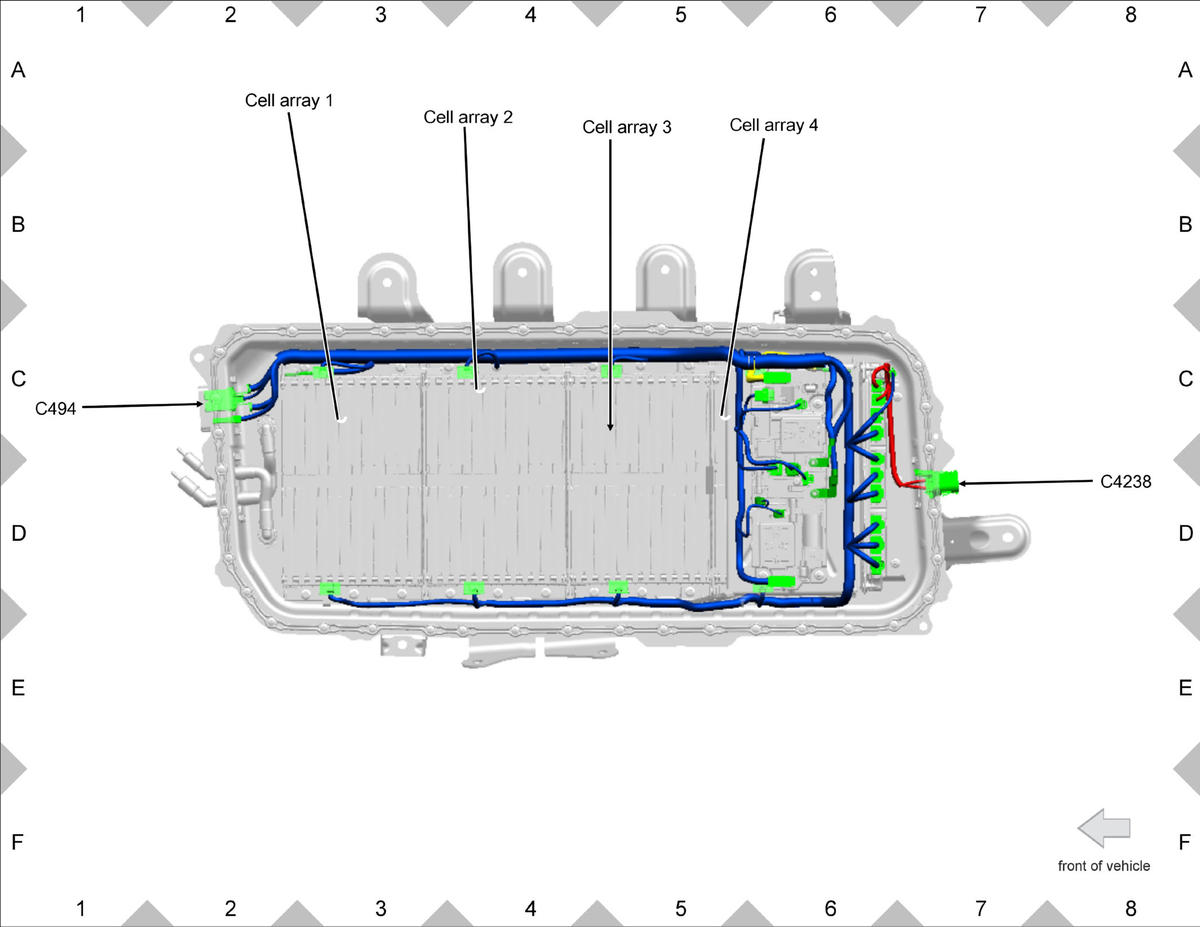

GFDWR93312Courtesy of FORD MOTOR COMPANY

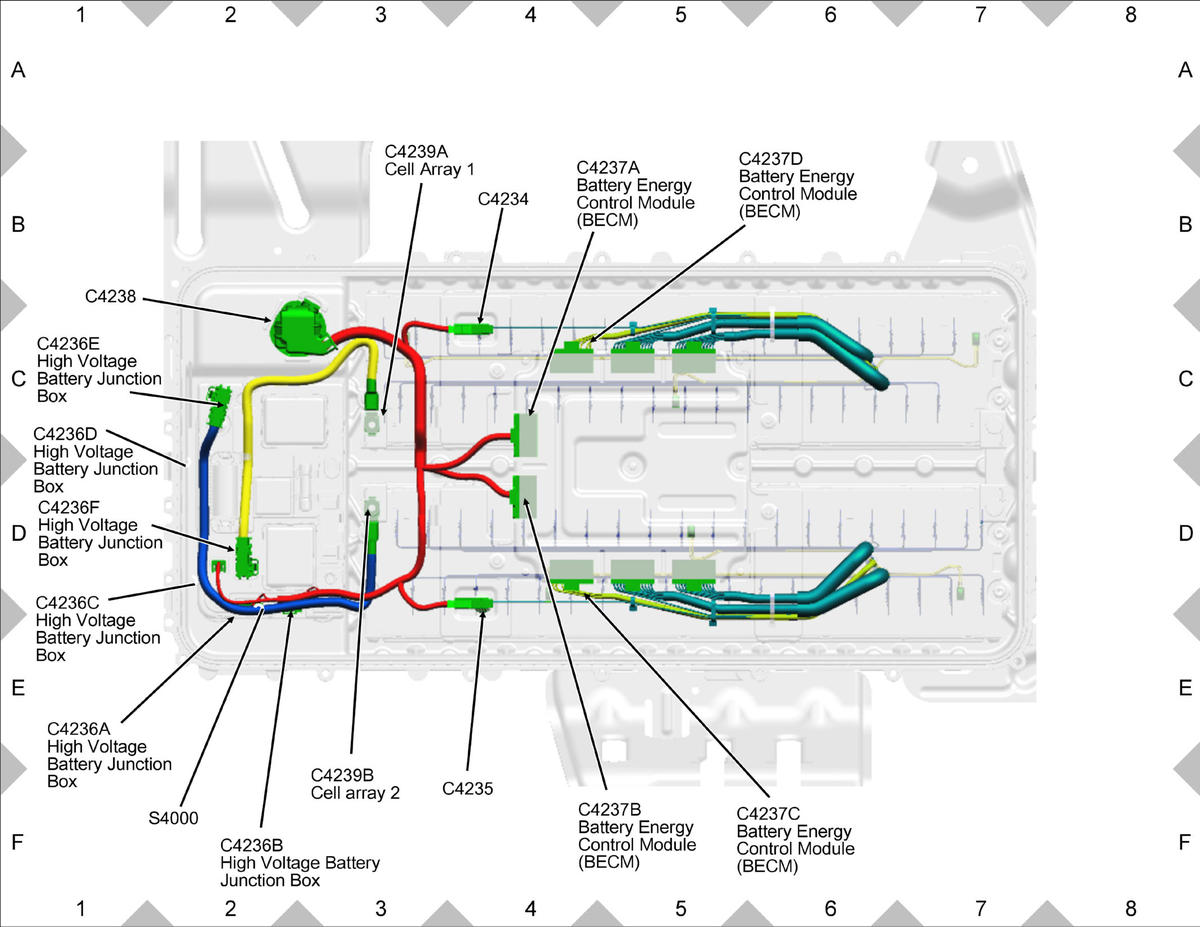

GFDWR93313Courtesy of FORD MOTOR COMPANY

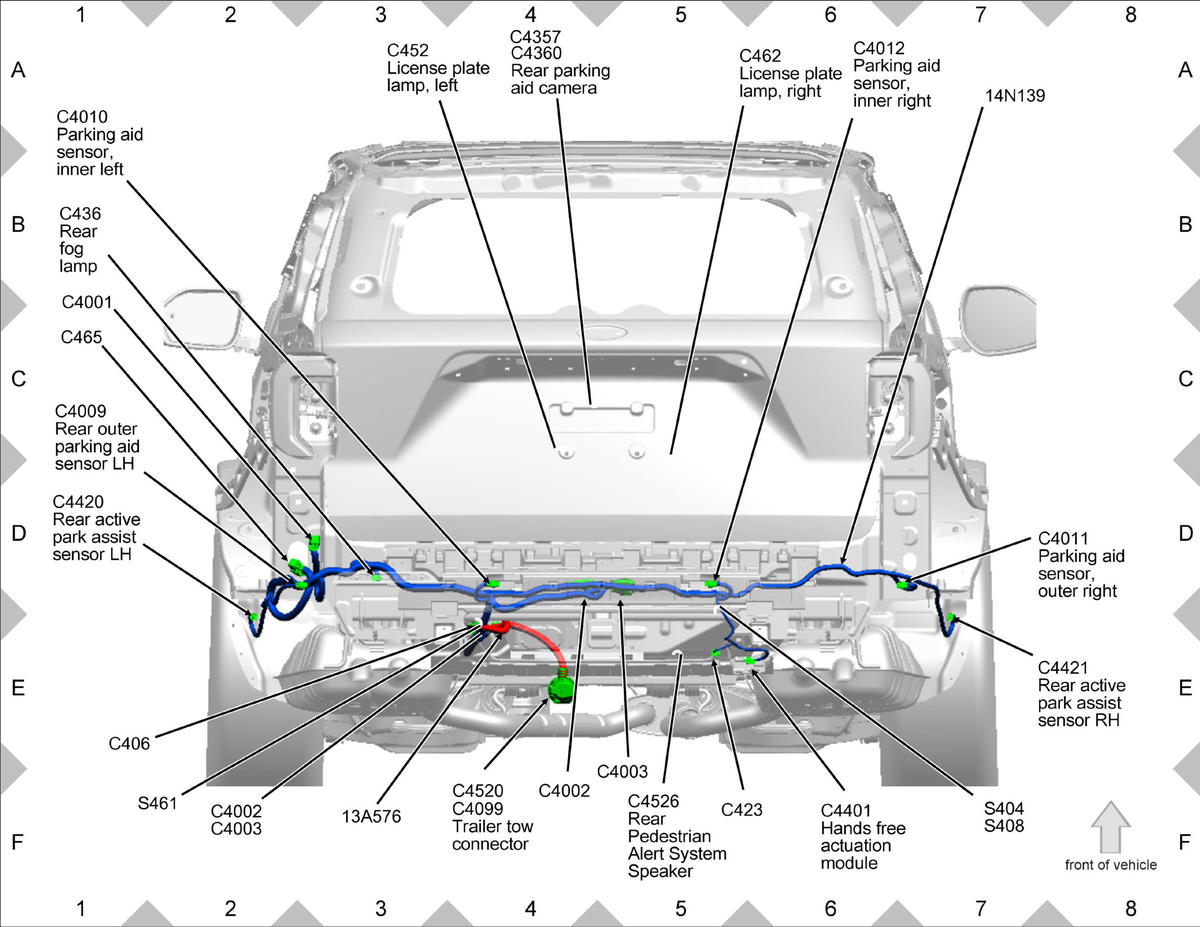

GFDWR93294Courtesy of FORD MOTOR COMPANY

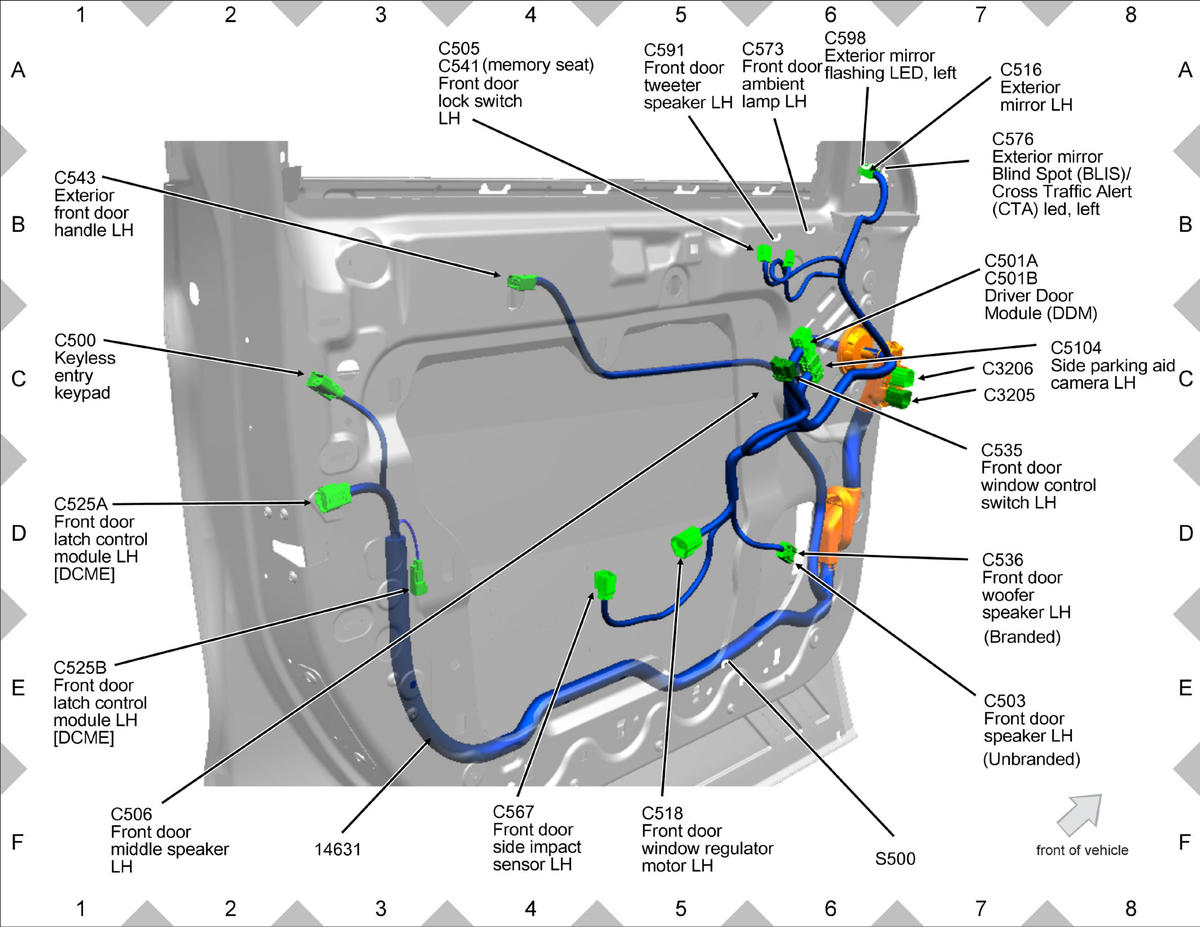

GFDWR93315Courtesy of FORD MOTOR COMPANY

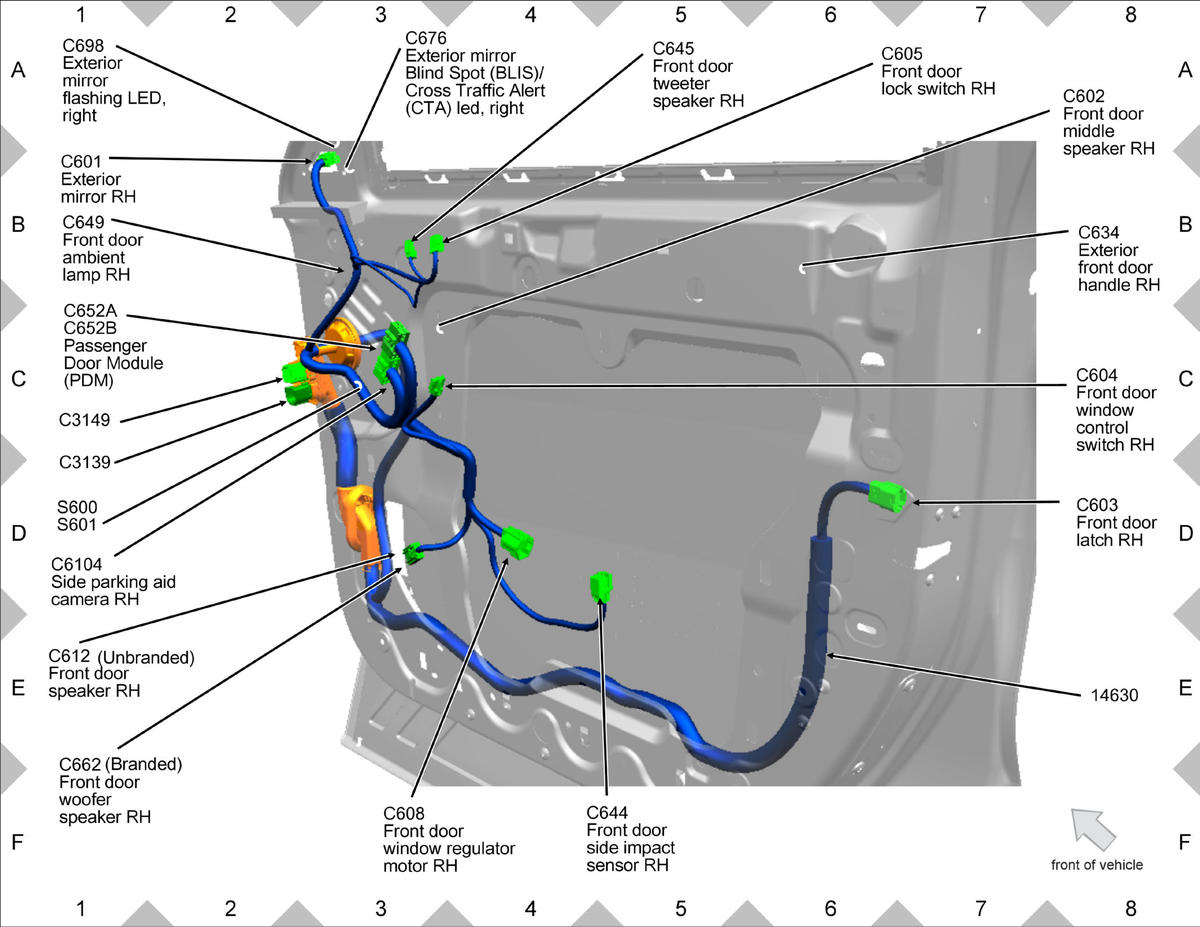

GFDWR93350Courtesy of FORD MOTOR COMPANY

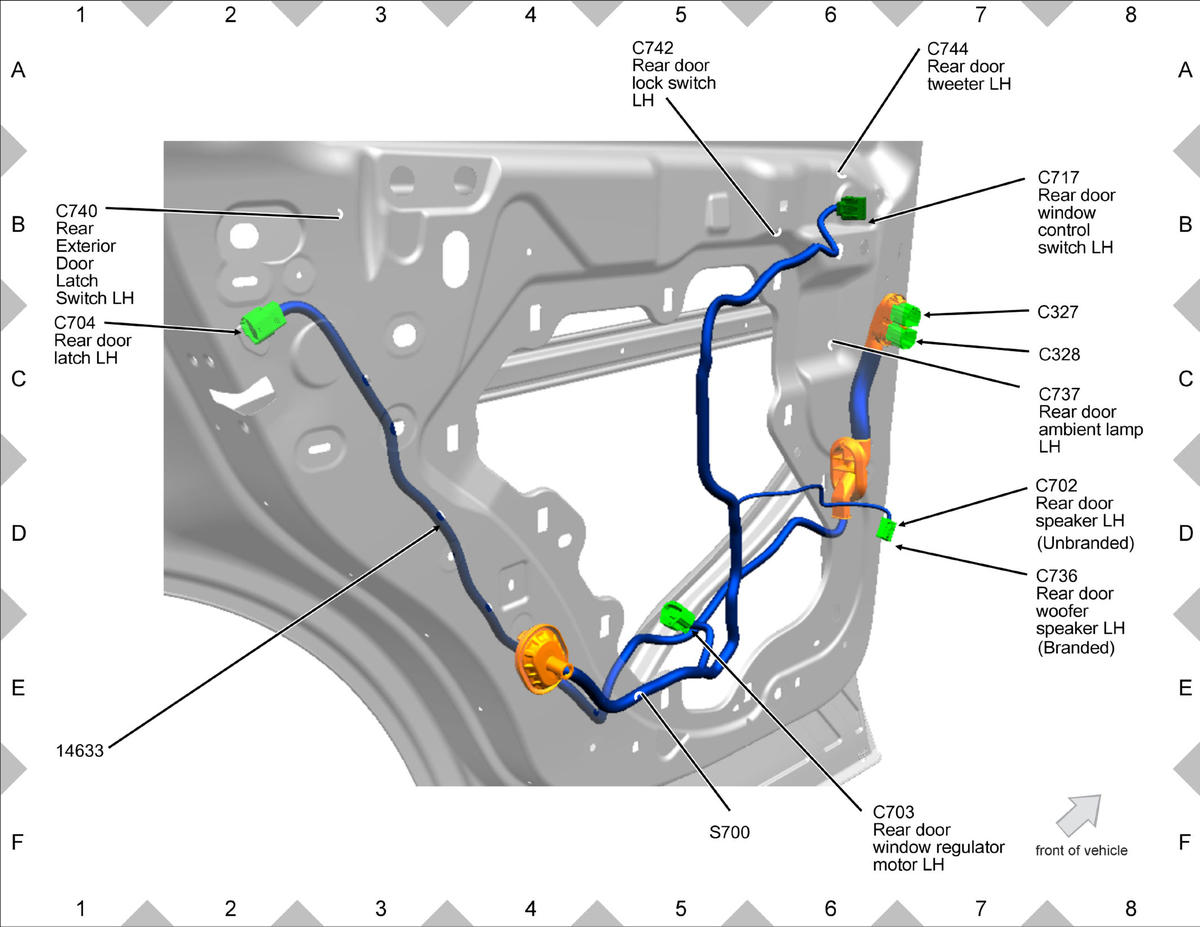

GFDWR93329Courtesy of FORD MOTOR COMPANY

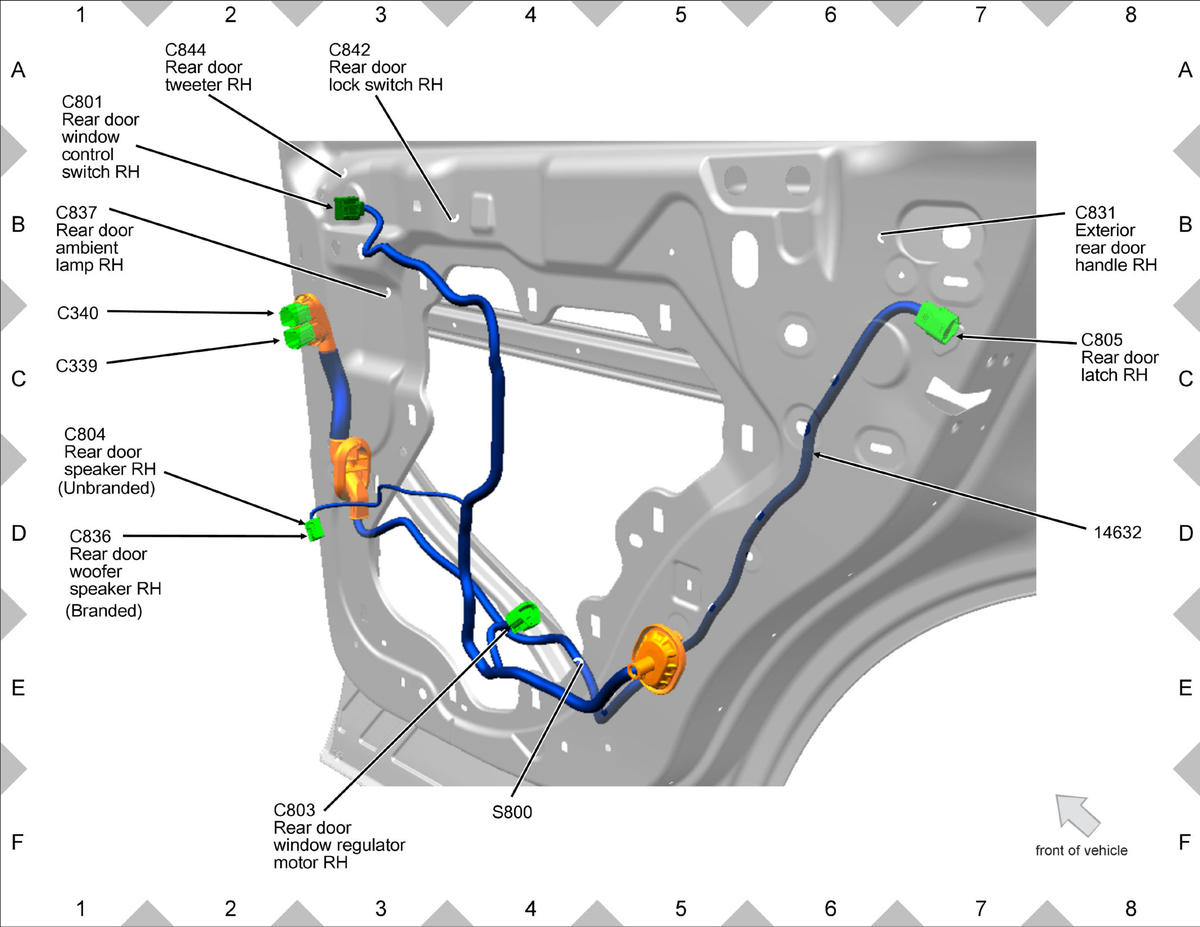

GFDWR93327Courtesy of FORD MOTOR COMPANY

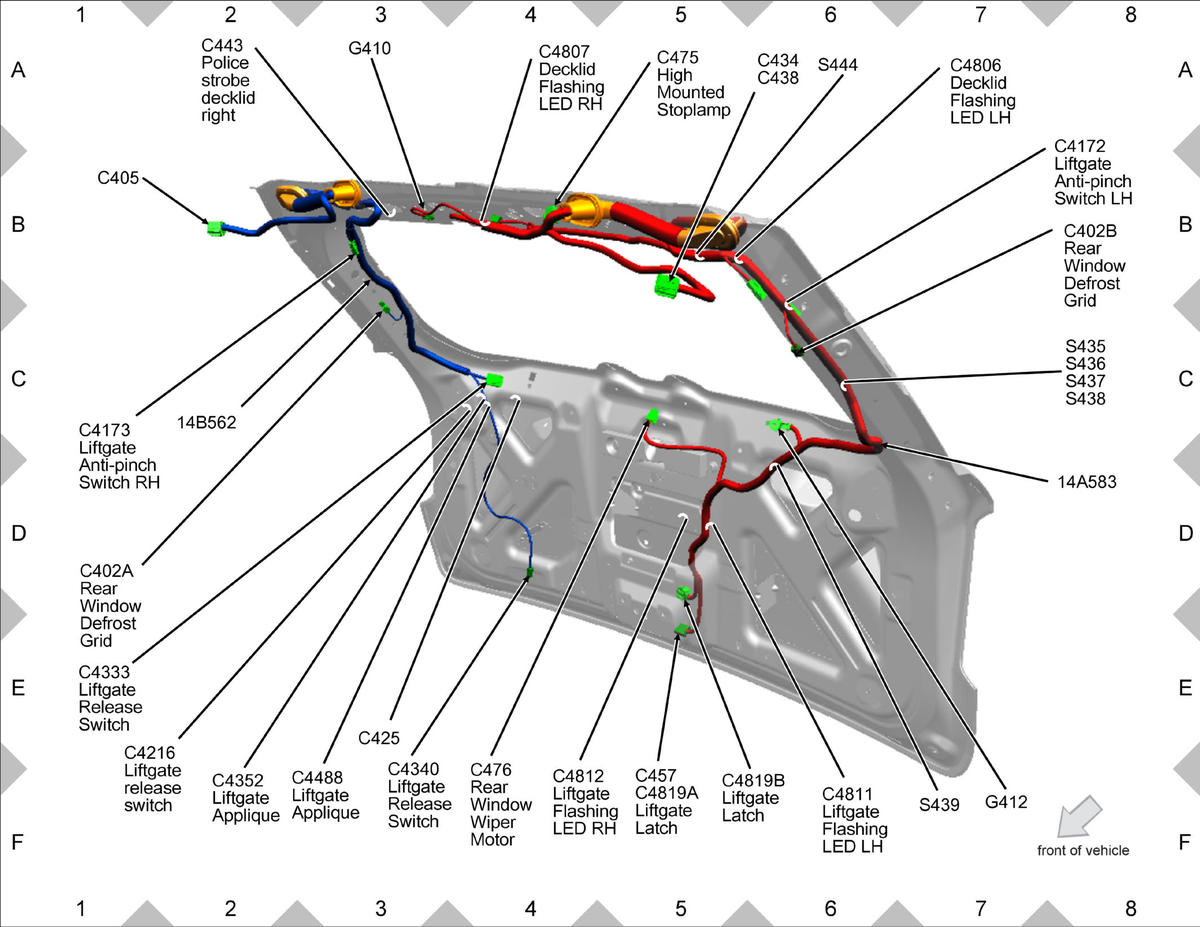

GFDWR93292Courtesy of FORD MOTOR COMPANY

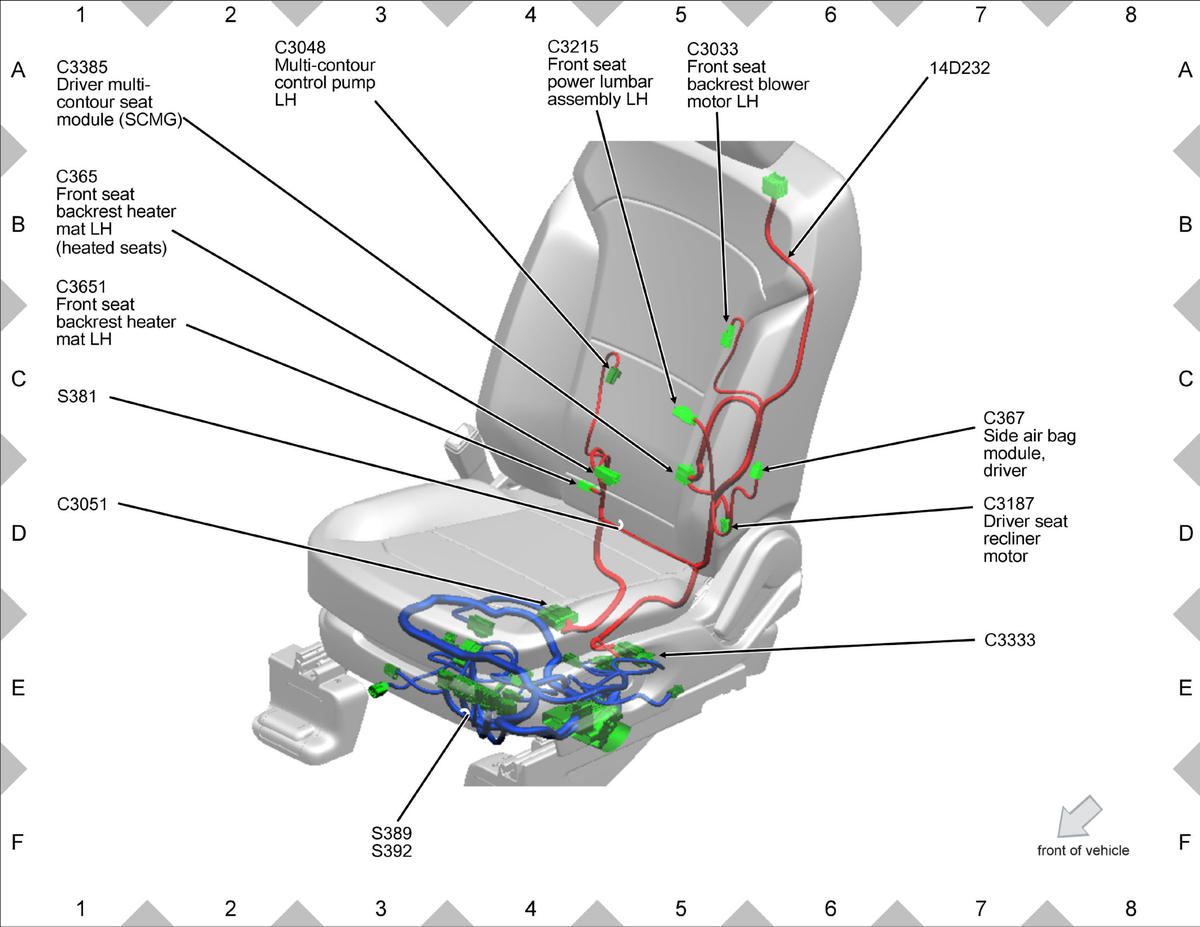

GFDWR93338Courtesy of FORD MOTOR COMPANY

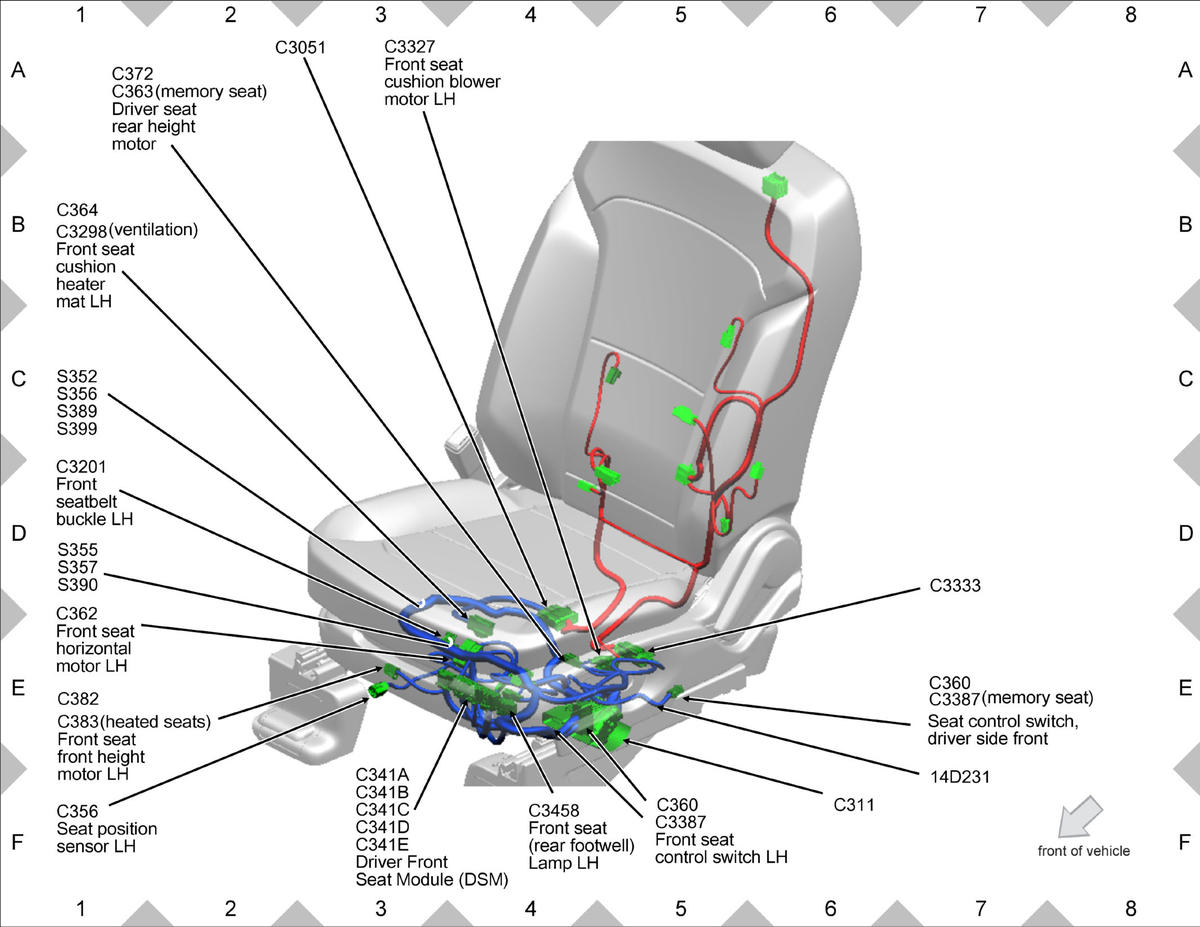

GFDWR93310Courtesy of FORD MOTOR COMPANY

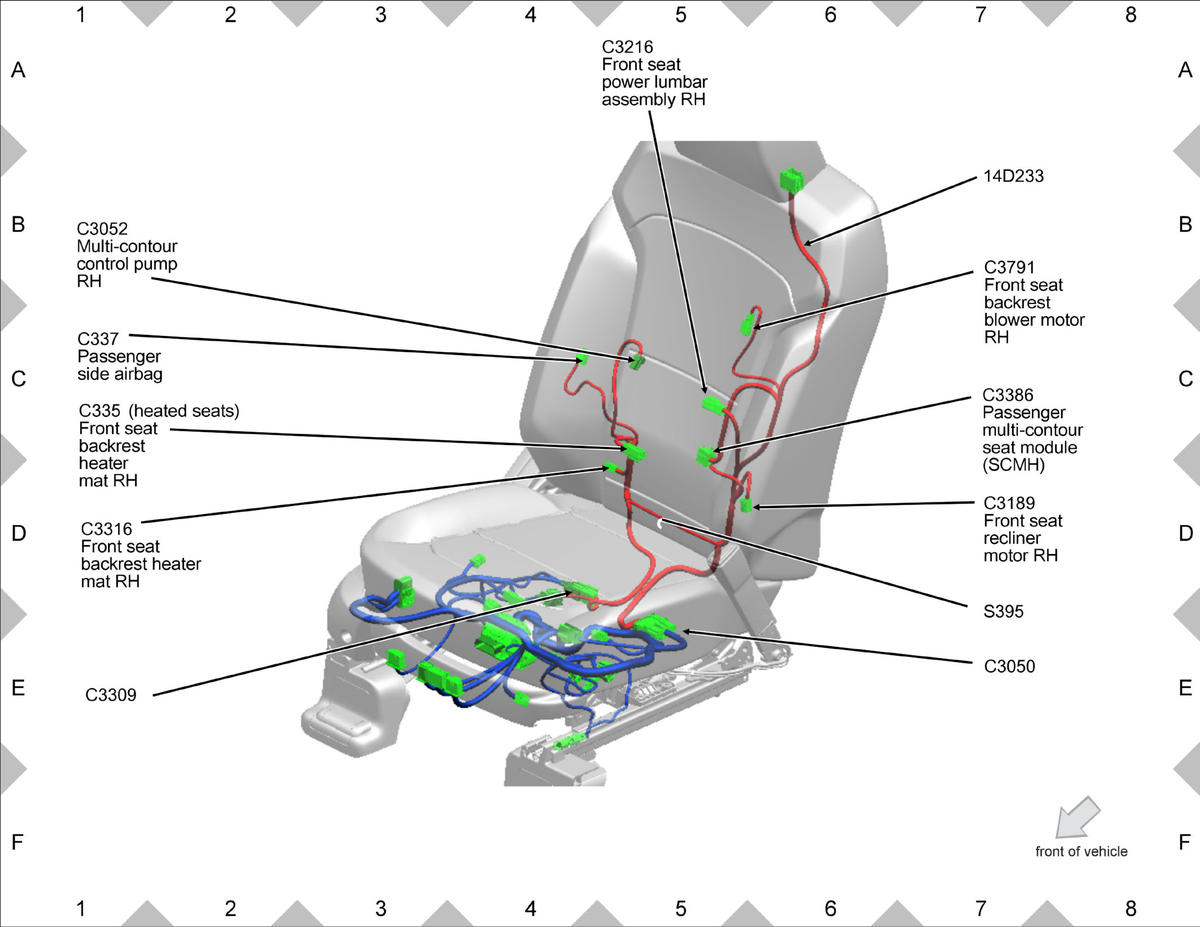

GFDWR93346Courtesy of FORD MOTOR COMPANY

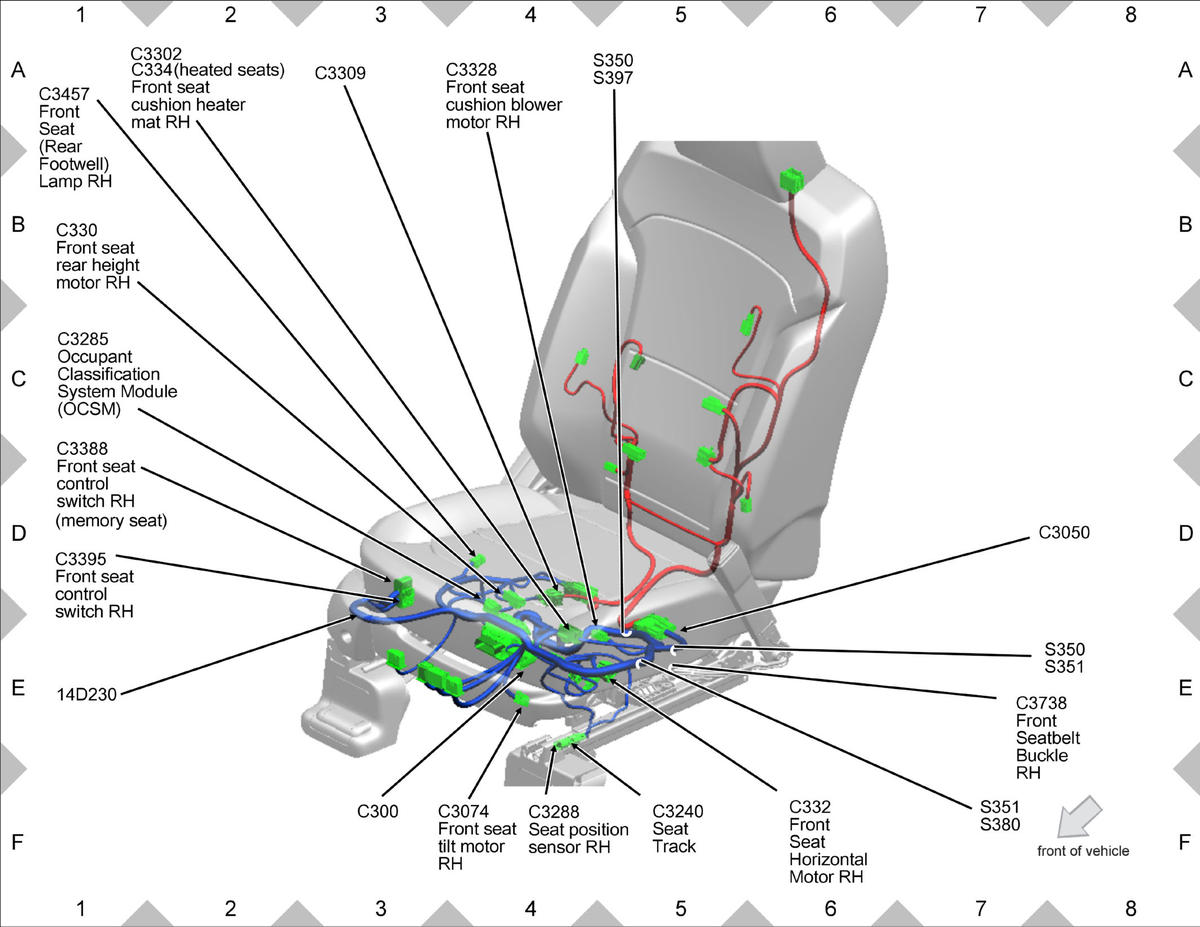

GFDWR93351Courtesy of FORD MOTOR COMPANY

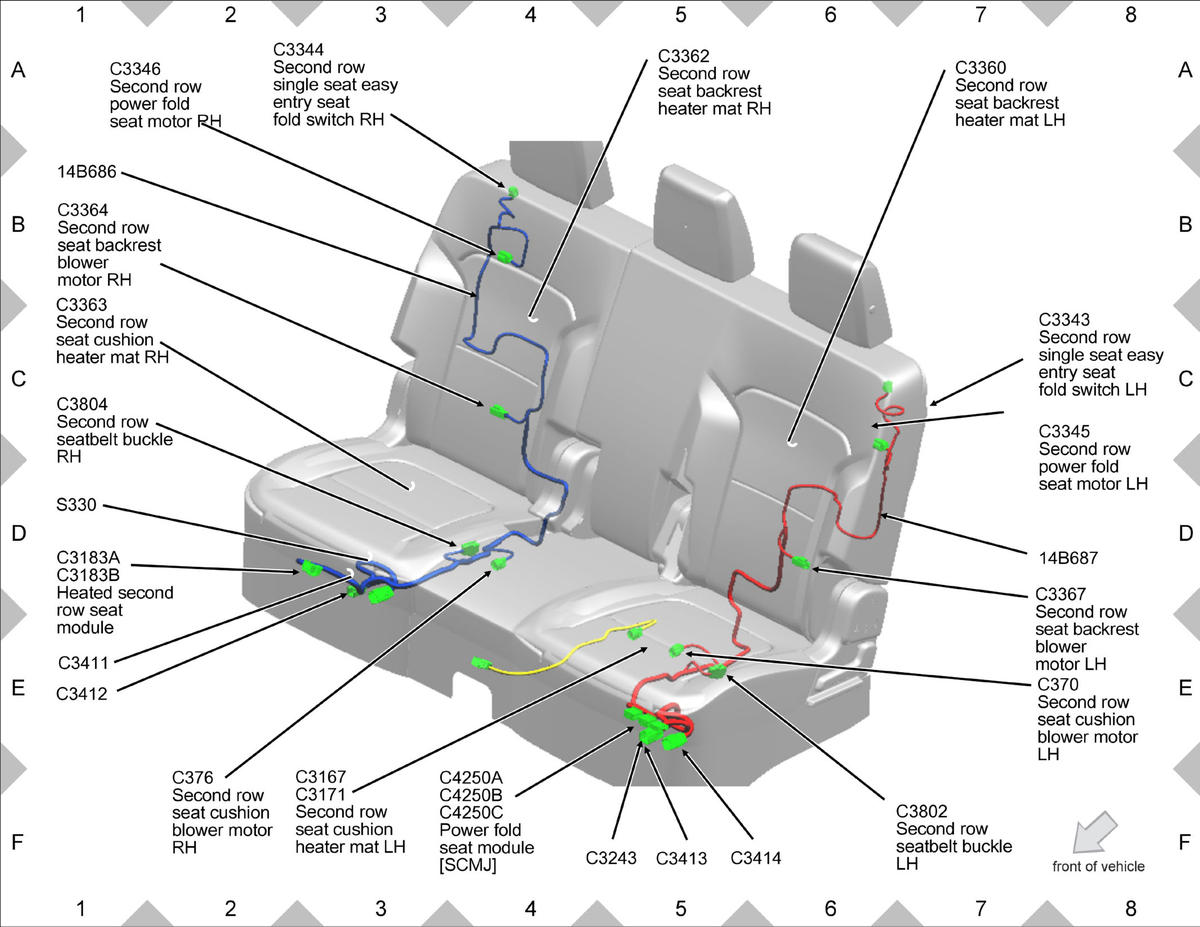

GFDWR93330Courtesy of FORD MOTOR COMPANY

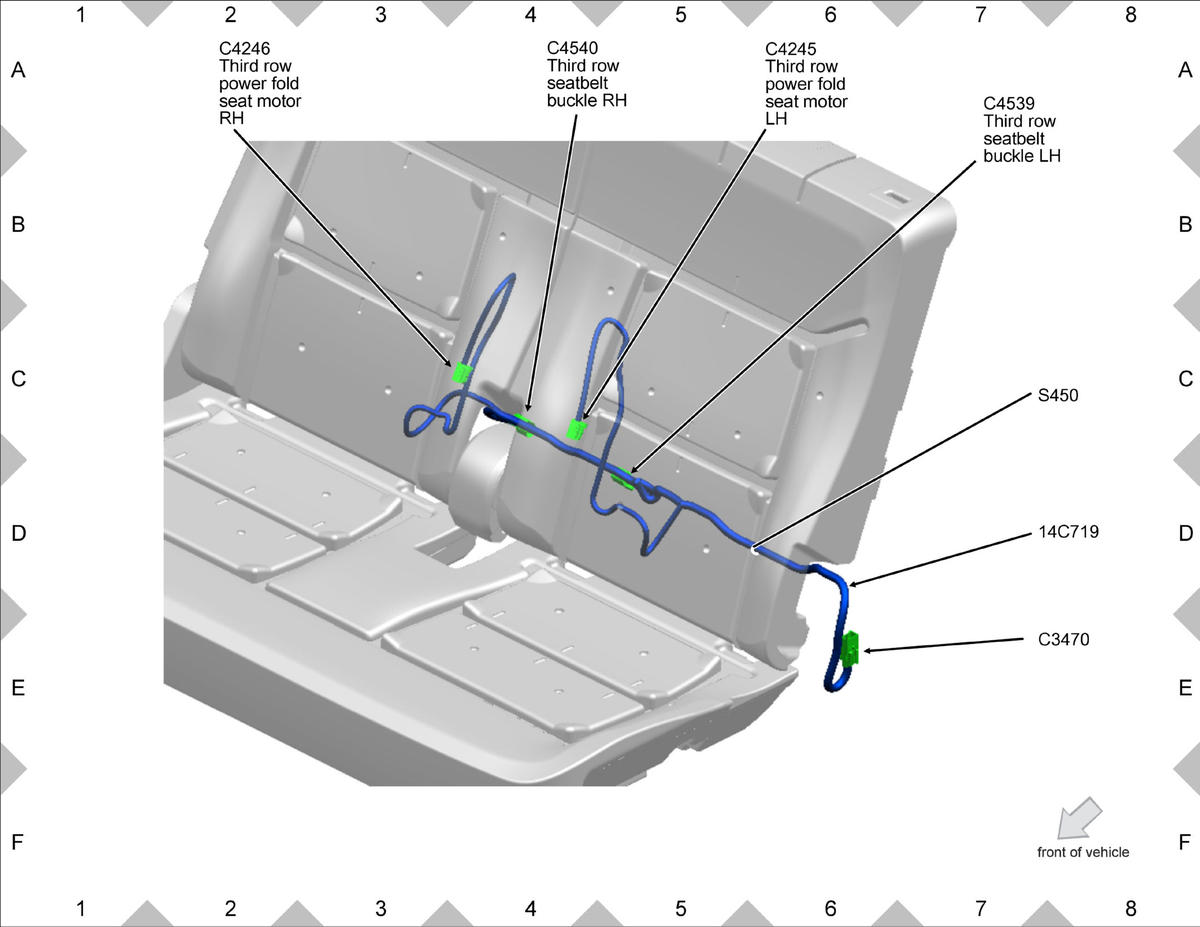

GFDWR93336Courtesy of FORD MOTOR COMPANY

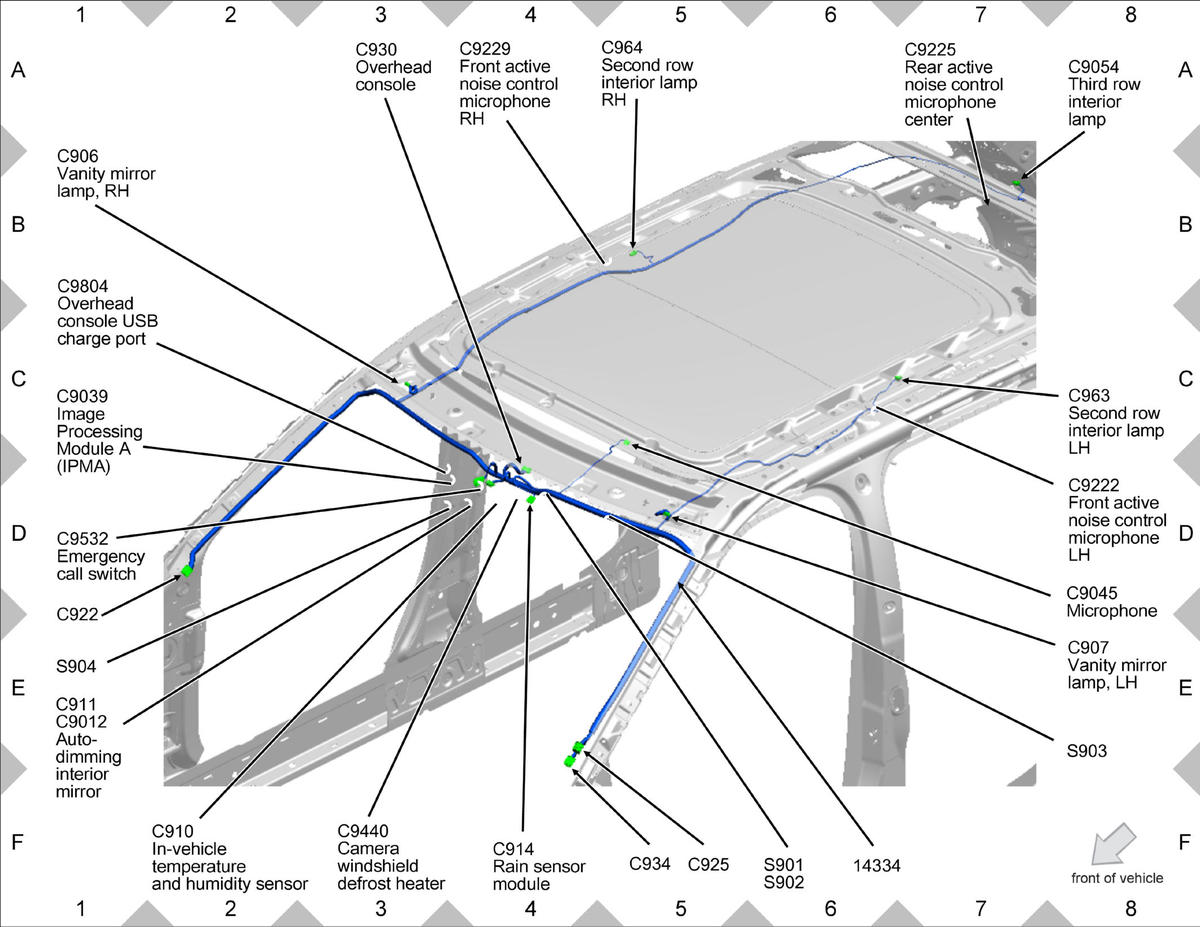

GFDWR93303Courtesy of FORD MOTOR COMPANY

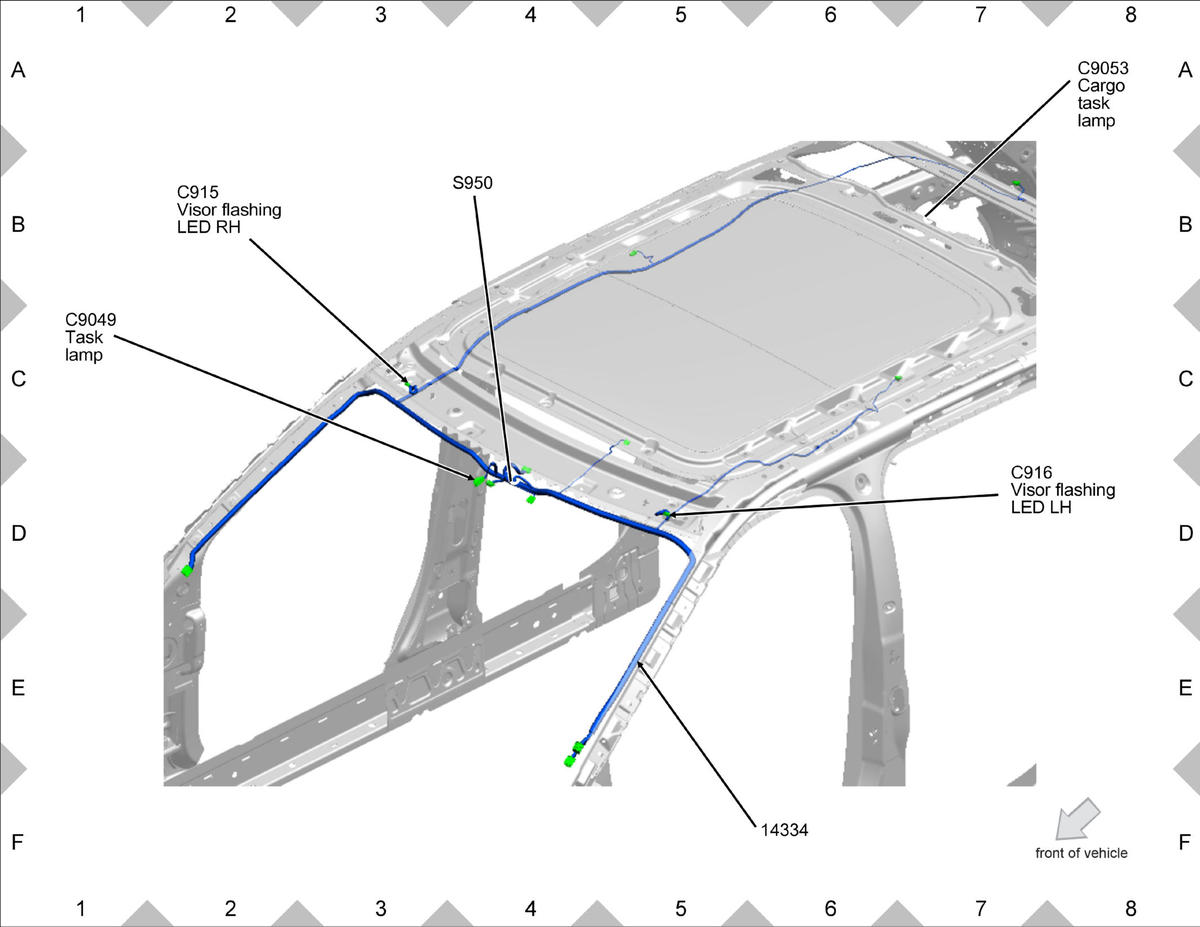

GFDWR93340Courtesy of FORD MOTOR COMPANY
