Charging System

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

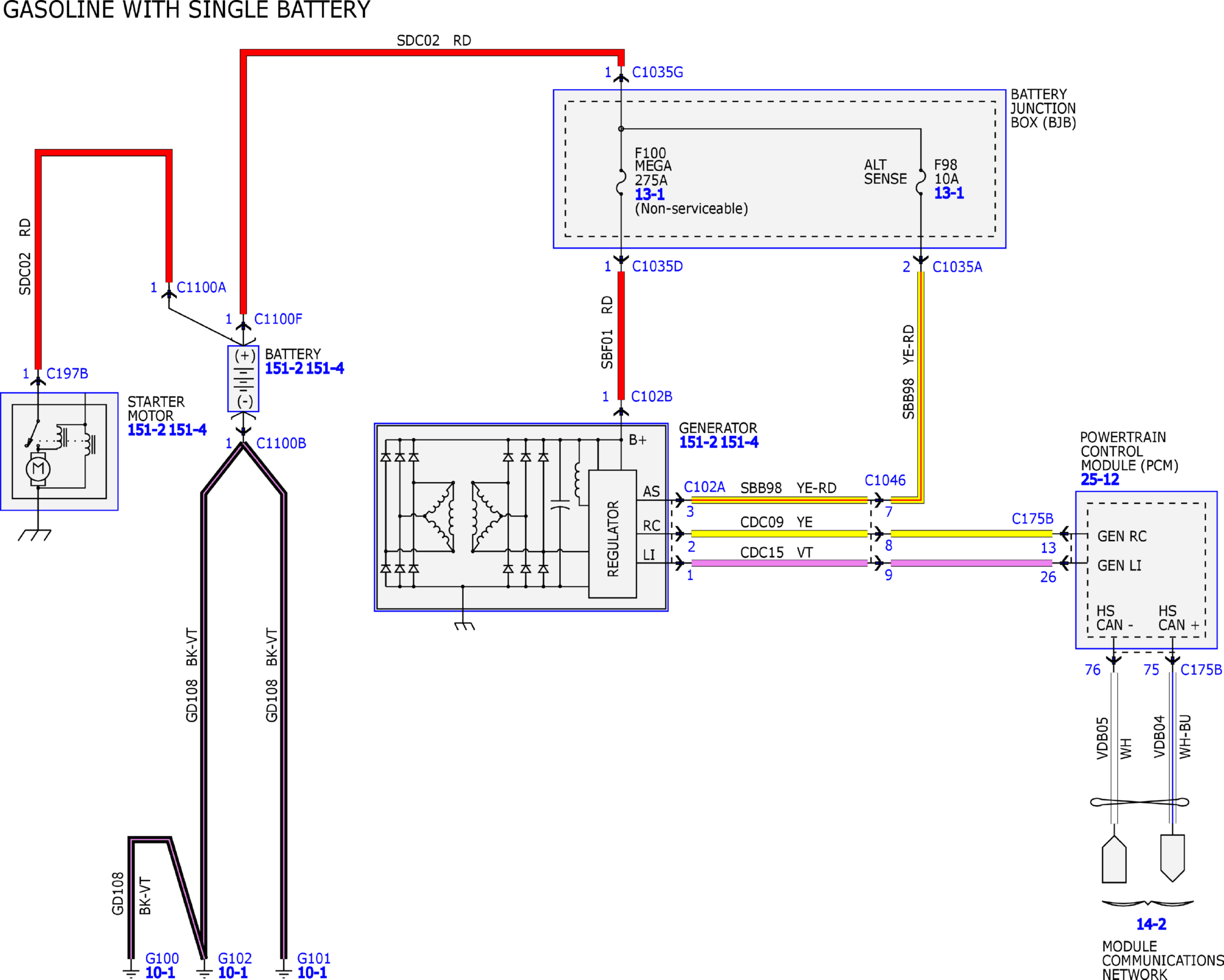

Fig 1: Charging System Wiring Diagram (1 of 4)
GFDW83260Courtesy of FORD MOTOR COMPANY

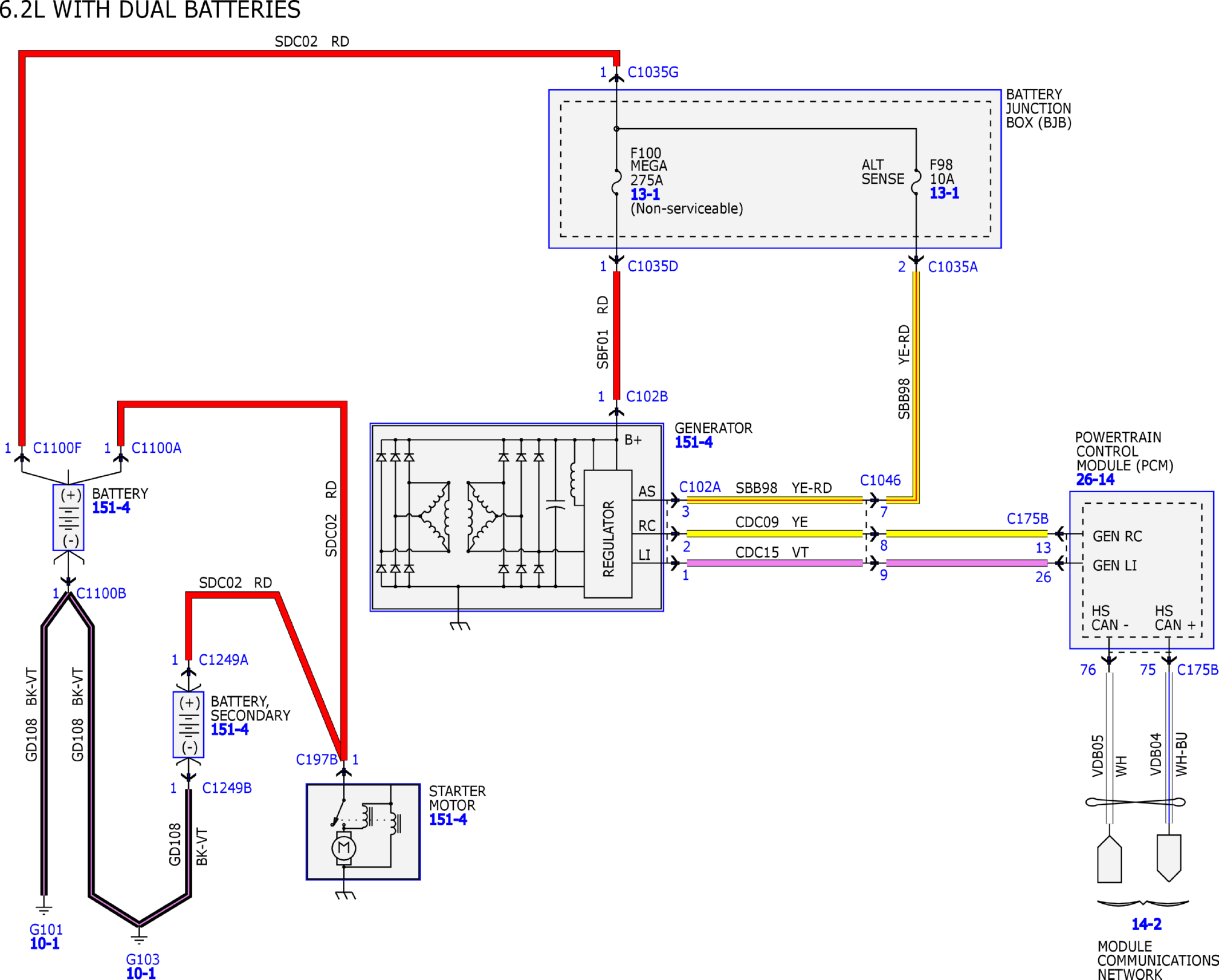

Fig 2: Charging System Wiring Diagram (2 of 4)
GFDW83261Courtesy of FORD MOTOR COMPANY

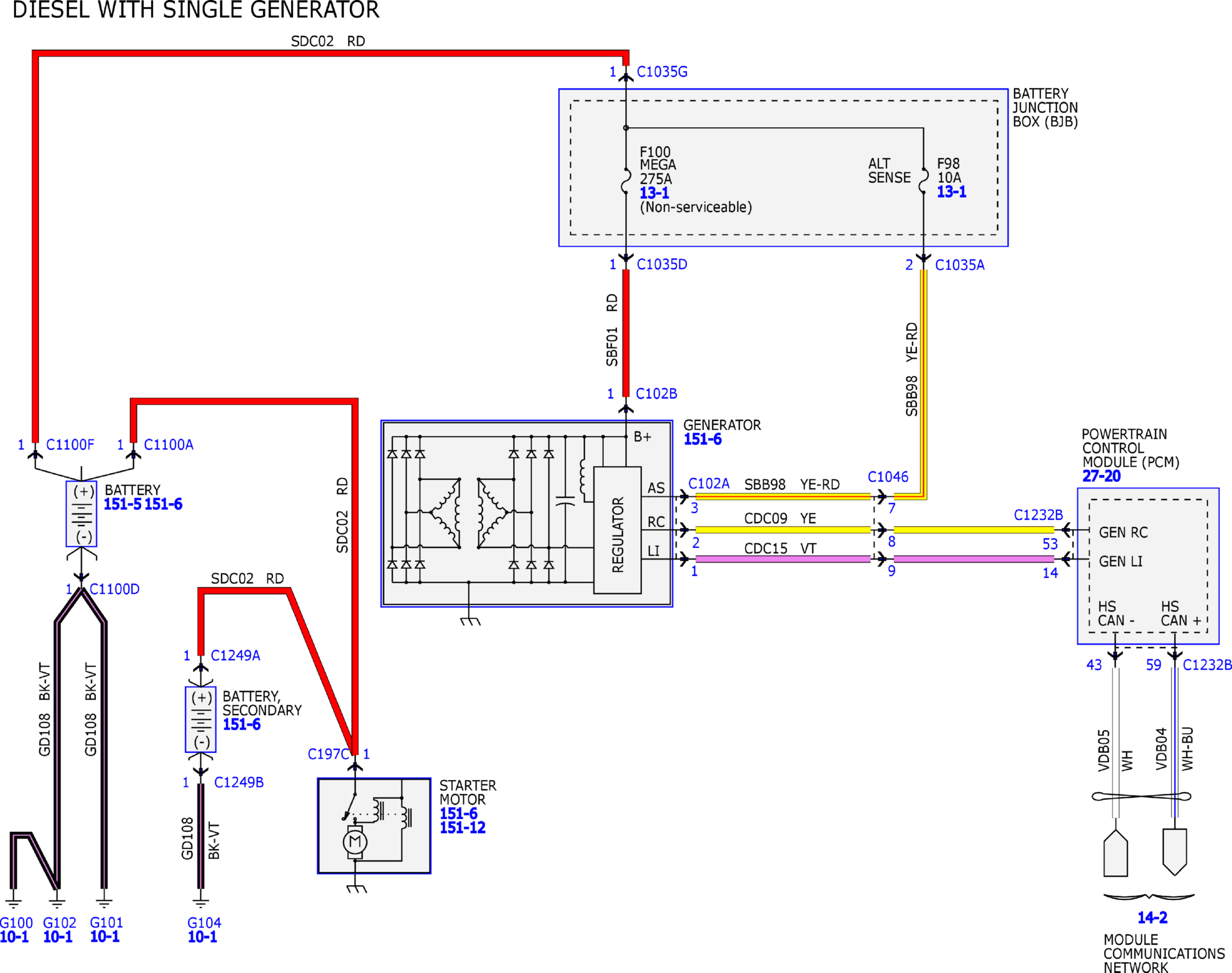

Fig 3: Charging System Wiring Diagram (3 of 4)
GFDW83262Courtesy of FORD MOTOR COMPANY

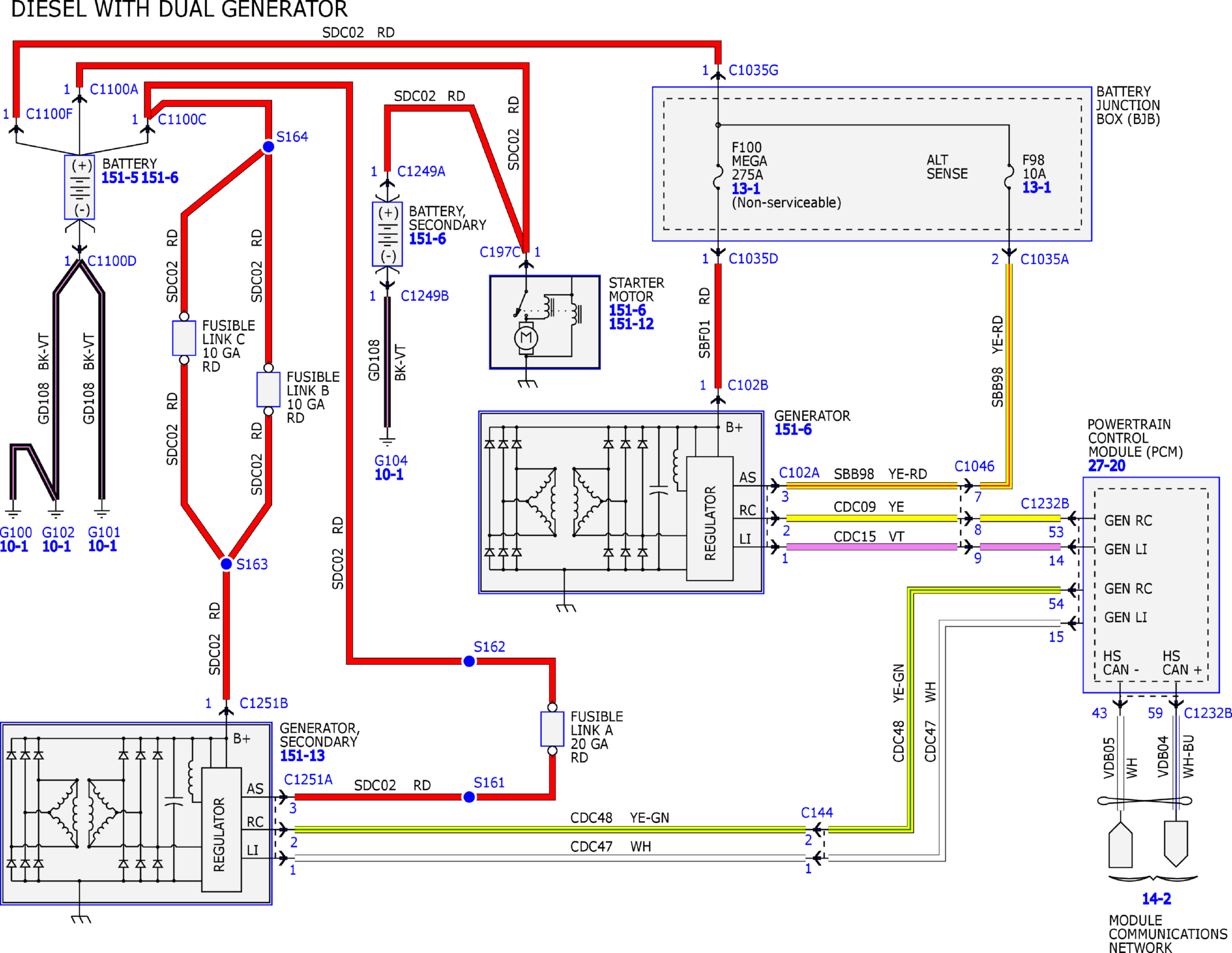

Fig 4: Charging System Wiring Diagram (4 of 4)
GFDW83263Courtesy of FORD MOTOR COMPANY
