Side Obstacle Detection Control Module C (SODCMC): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

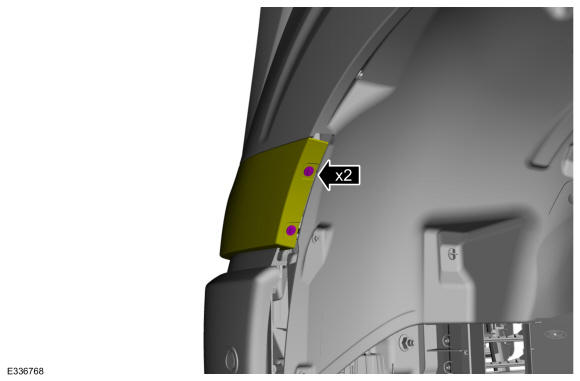

On both sides. Remove the 2 screws.
Torque

: 15 lb.in (1.7 Nm)

Courtesy of FORD MOTOR COMPANY

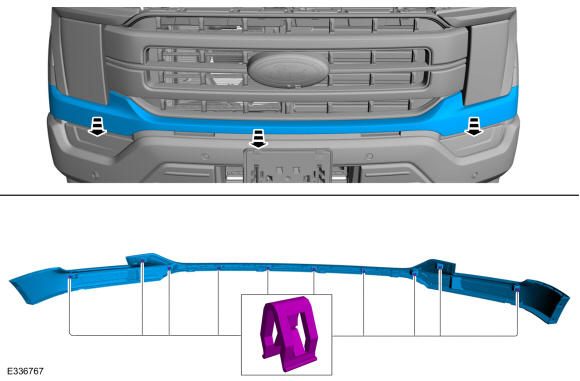

Remove the front bumper upper cover trim panel. Using a flat-blade screwdriver release the locking tabs Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY

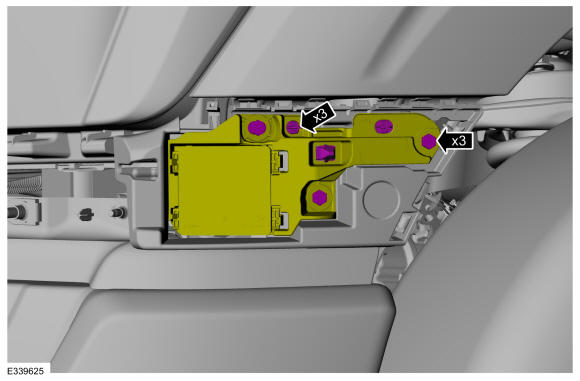

Remove the screws, release the retainers and position the SODCMC bracket aside.
Torque

: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

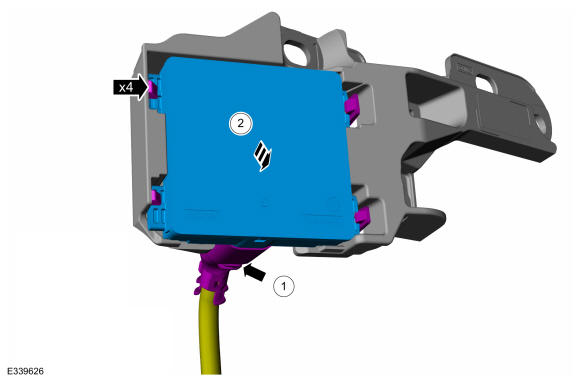

- Disconnect the electrical connector.
- Release the tabs and remove the SODCMC.

Courtesy of FORD MOTOR COMPANY
