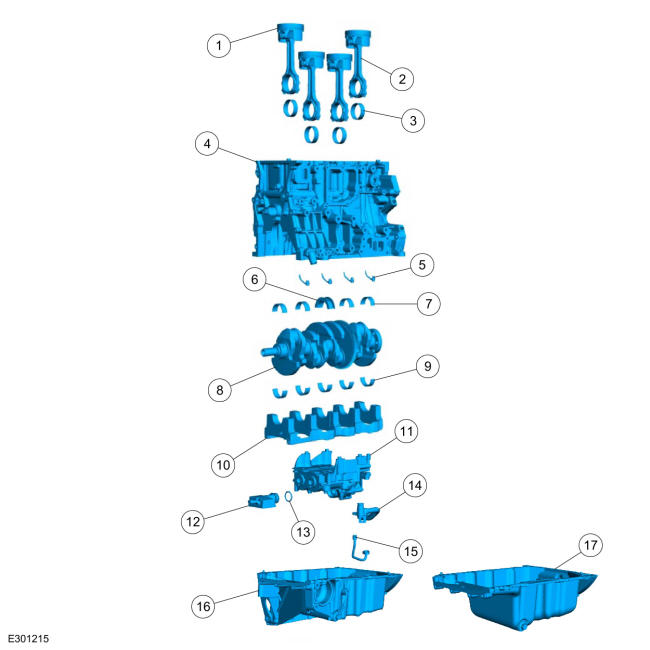

Exploded View Of Engine -- Lower Block Components
WARNING: This page is about a different variant/trim than selected.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6110 | Piston (4 required) |
| 2 | 6200 | Connecting rod (4 required) |
| 3 | 6211 | Connecting rod bearing (8 required) |
| 4 | 6010 | Cylinder block |
| 5 | 6K868 | Piston oil cooler valve (4 required) |
| 6 | 6337 | Cylinder block crankshaft main thrust bearing |
| 7 | 6333 | Cylinder block crankshaft main bearing (4 required) |
| 8 | 6300 | Crankshaft assembly |
| 9 | 6A338 | Crankshaft main bearing beam bearing (5 required) |
| 10 | -- | Main bearing beam (part of 6010) |
| 11 | 6K360 | Balance shaft and oil pump assembly |
| 12 | 6622 | Oil pump screen and cover assembly |
| 13 | 6625 | Oil pump screen and cover assembly O-ring |
| 14 | 6716 | Oil filter inlet tube |
| 15 | 6718 | Oil filter outlet tube |
| 16 | 6675 | Oil pan (AWD) |
| 17 | 6675 | Oil pan (RWD) |
