Disassembly And Assembly Of Subassemblies: Piston: Disassembly

WARNING: This page is about a different variant/trim than selected.

NOTE: If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod reassembly.

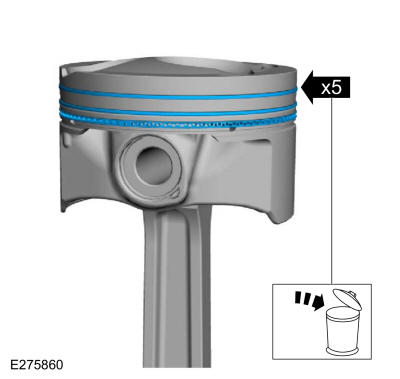

Remove the piston rings and discard.

Courtesy of FORD MOTOR COMPANY

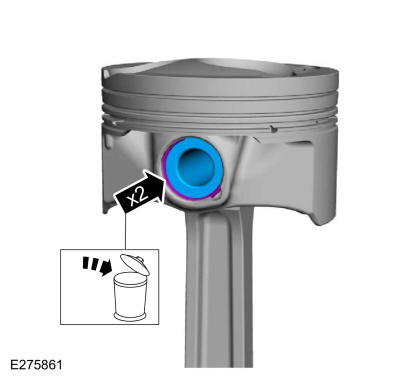

- Remove the piston pin retainers and discard.
- Remove the piston pin.
Courtesy of FORD MOTOR COMPANY
NOTE: If the piston and connecting rod are to be reinstalled, they must be assembled in the same orientation. Mark the piston orientation to the connecting rod for reassembly.
- Remove the piston from the connecting rod.
- Inspect the piston. Refer to: Piston Inspection .

Courtesy of FORD MOTOR COMPANY
