Module Communications Network

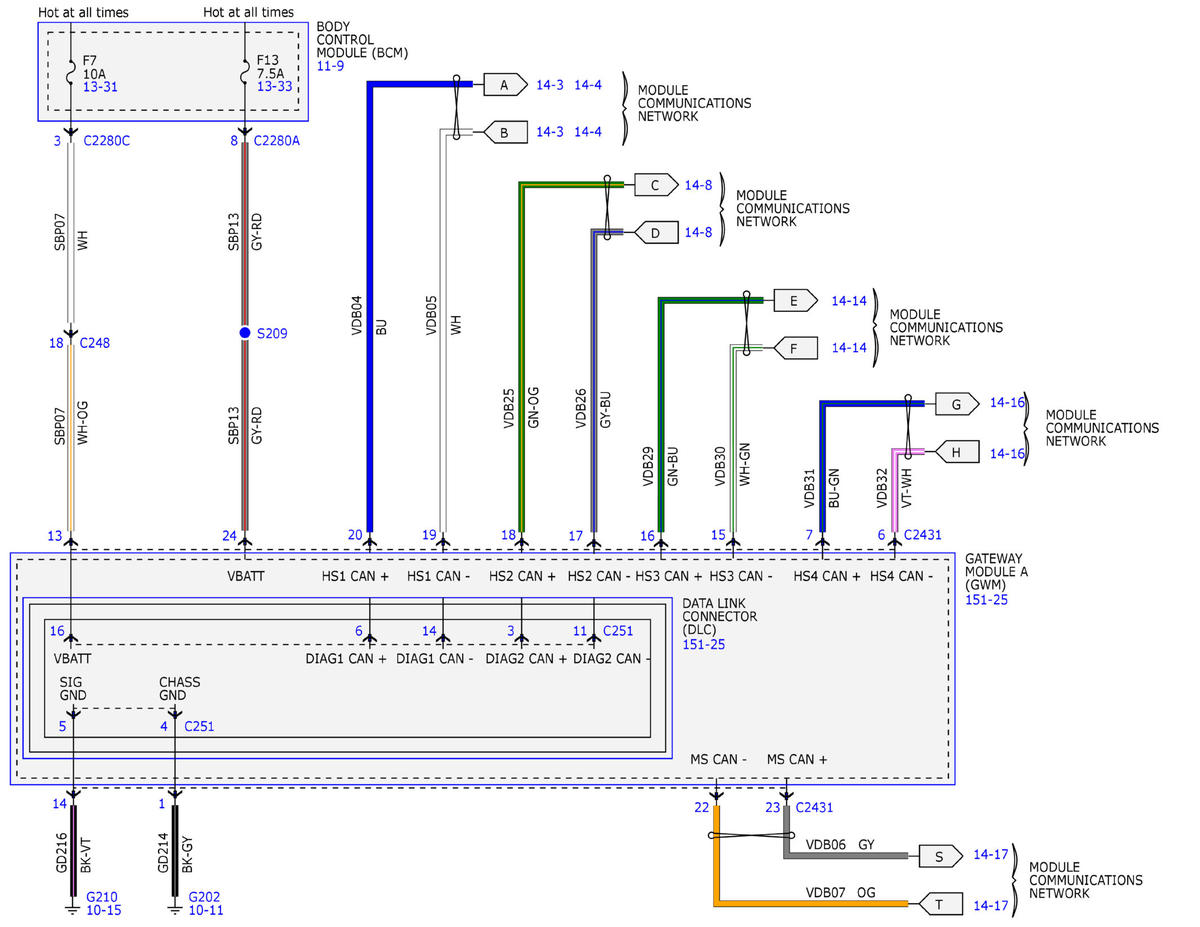

Fig 1: Module Communications Network System Wiring Diagrams (1 Of 26)

GFDWR94537

Courtesy of FORD MOTOR COMPANY

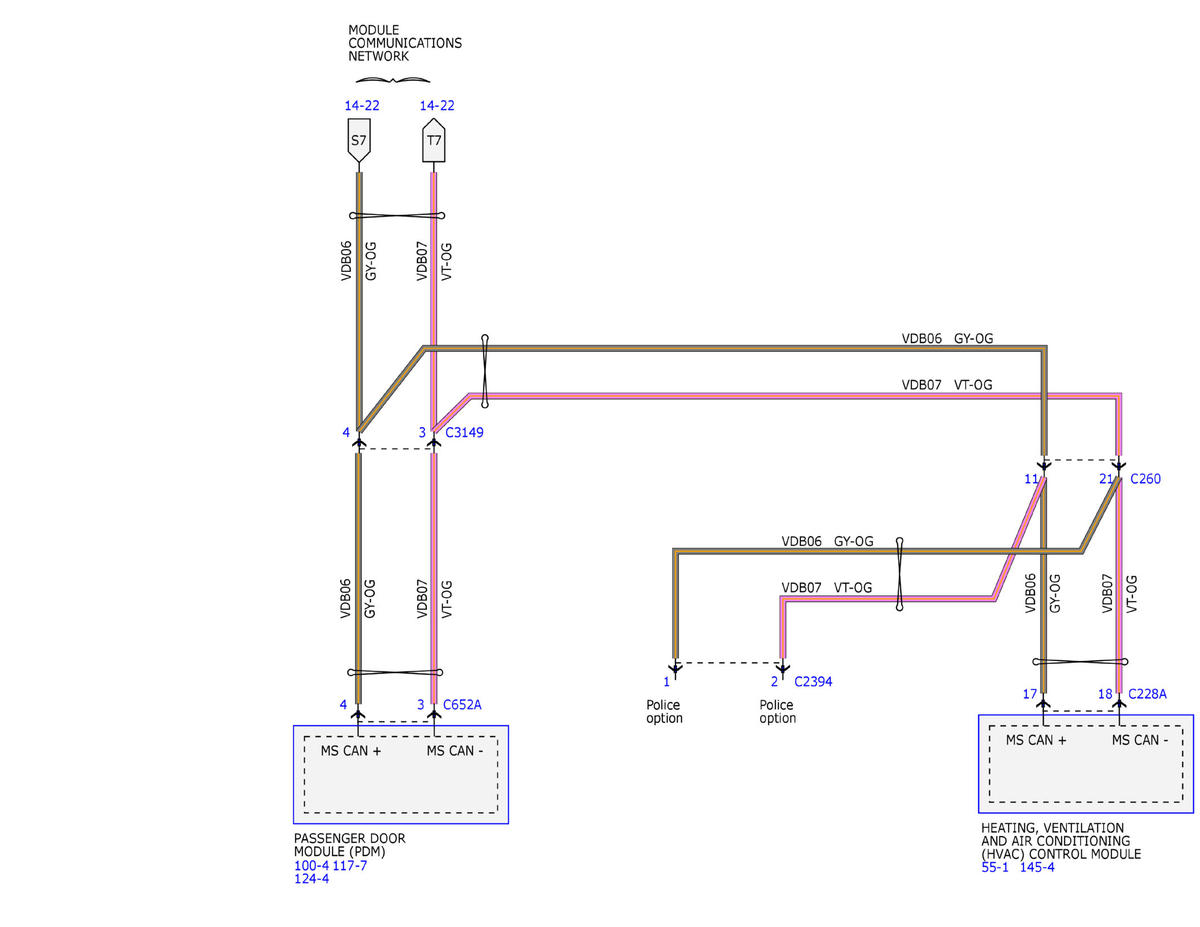

Fig 2: Module Communications Network System Wiring Diagrams (2 Of 26)

GFDWR94538

Courtesy of FORD MOTOR COMPANY

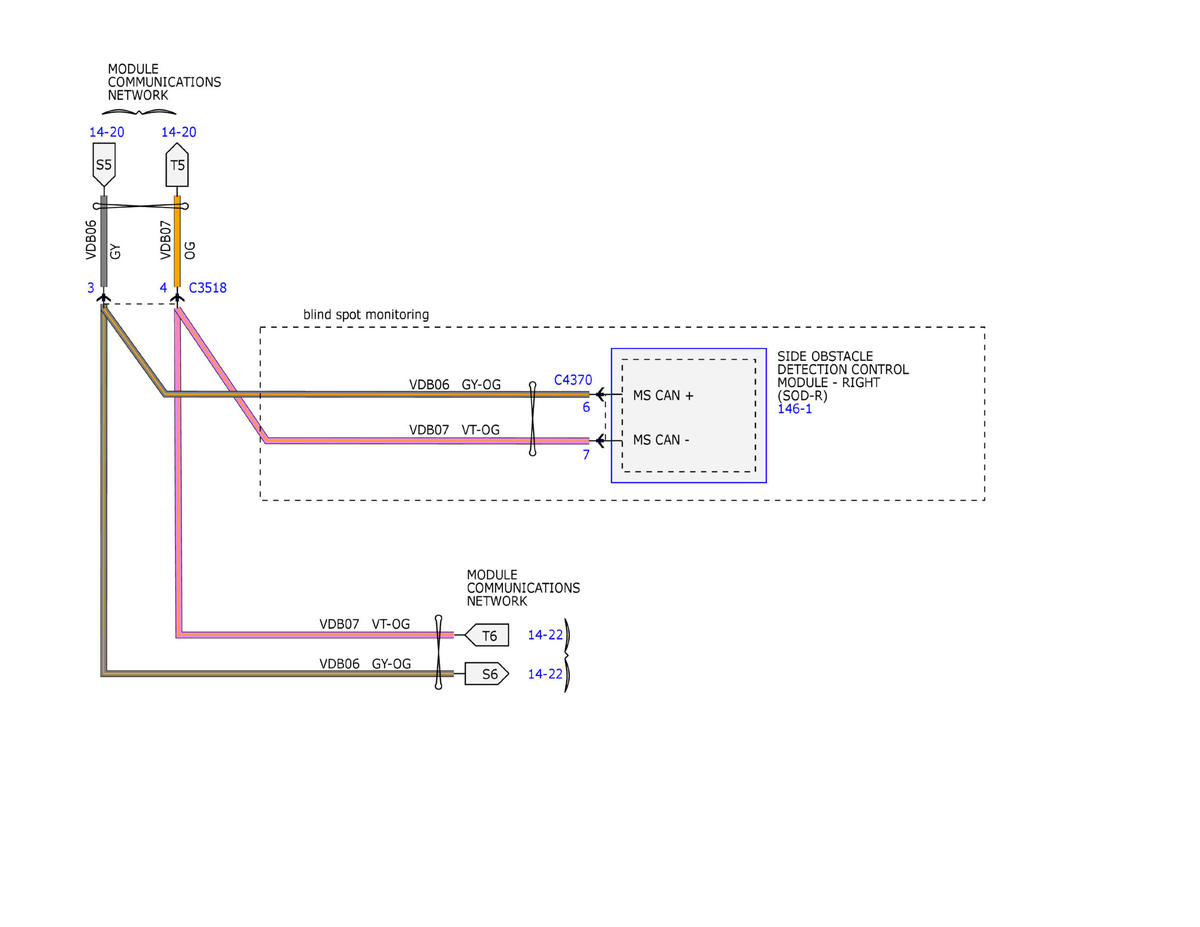

Fig 3: Module Communications Network System Wiring Diagrams (3 Of 26)

GFDWR94539

Courtesy of FORD MOTOR COMPANY

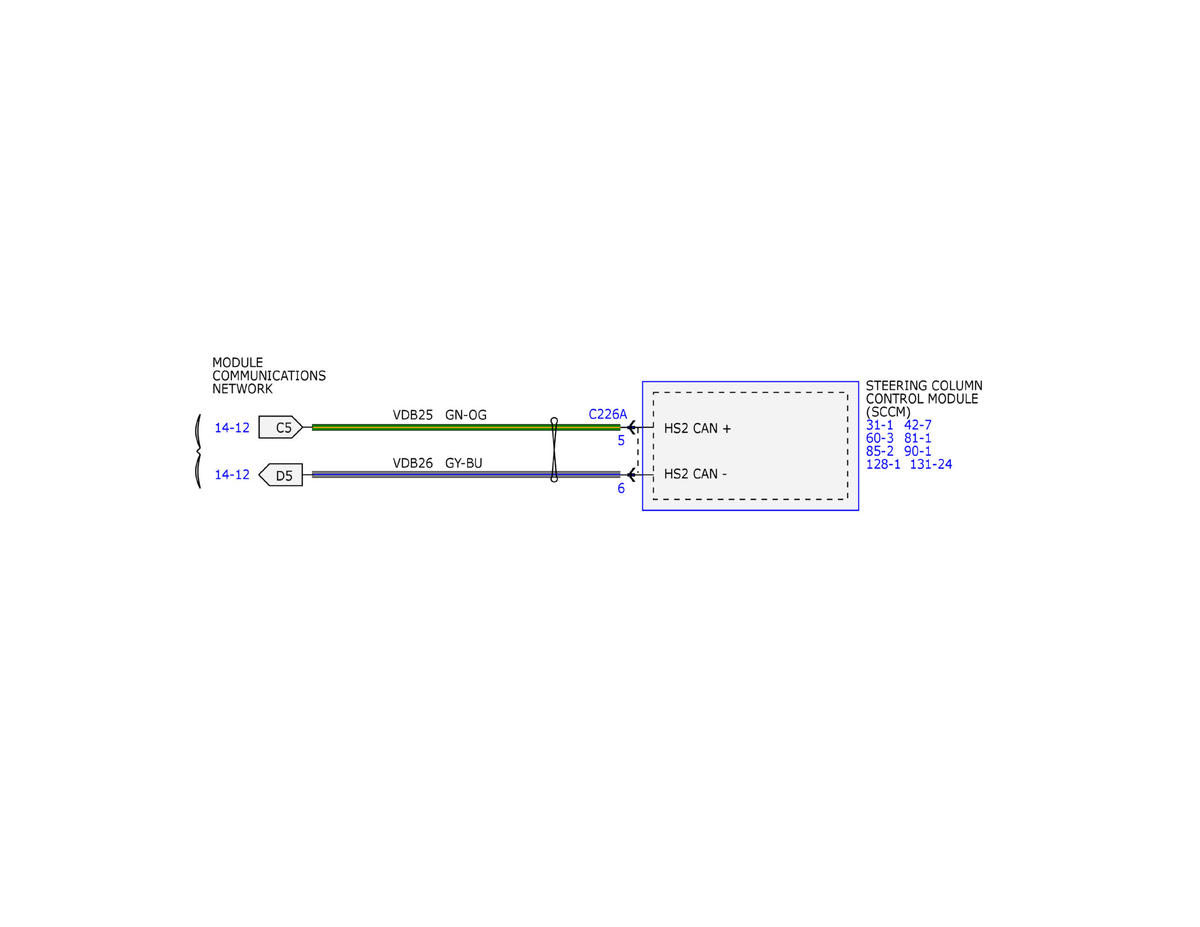

Fig 4: Module Communications Network System Wiring Diagrams (4 Of 26)

GFDWR94540

Courtesy of FORD MOTOR COMPANY

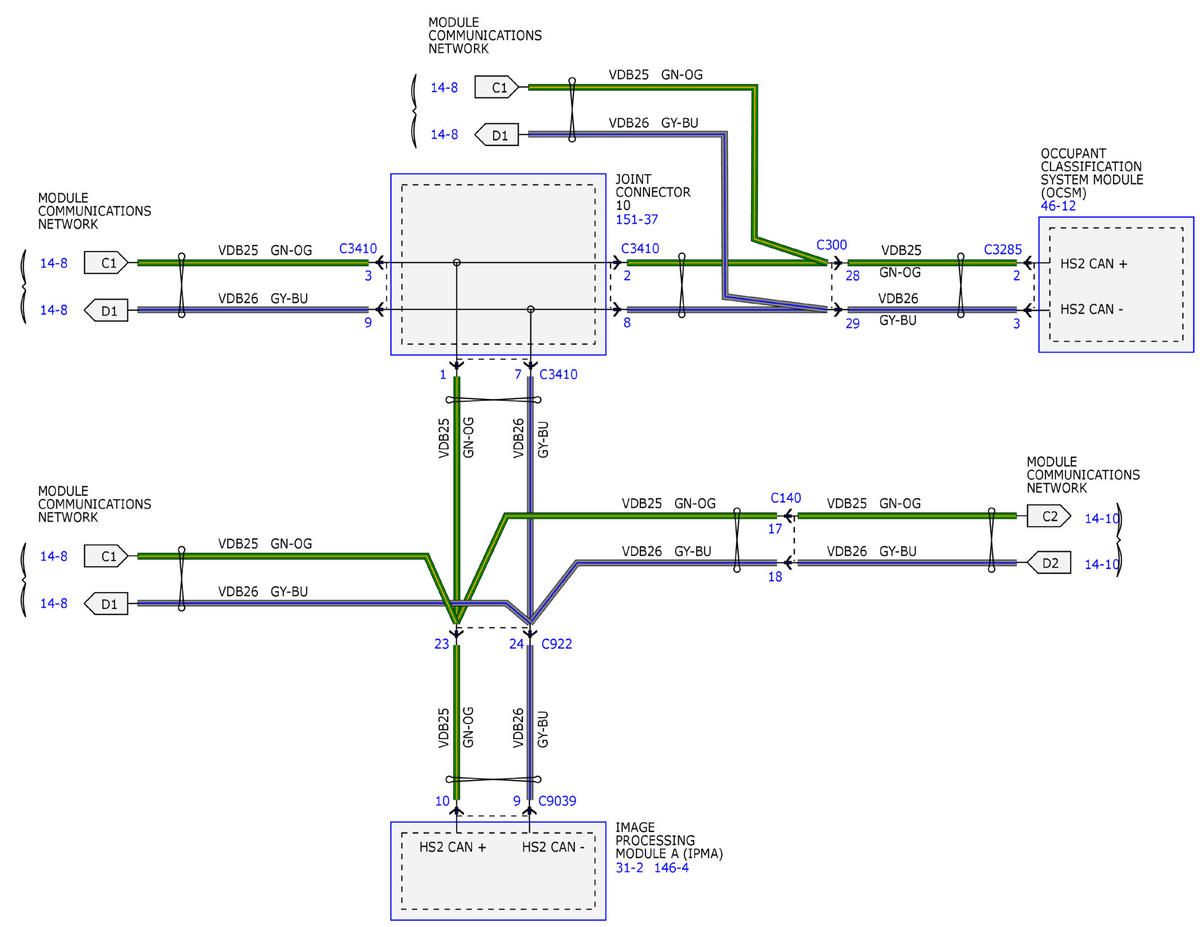

Fig 5: Module Communications Network System Wiring Diagrams (5 Of 26)

GFDWR94541

Courtesy of FORD MOTOR COMPANY

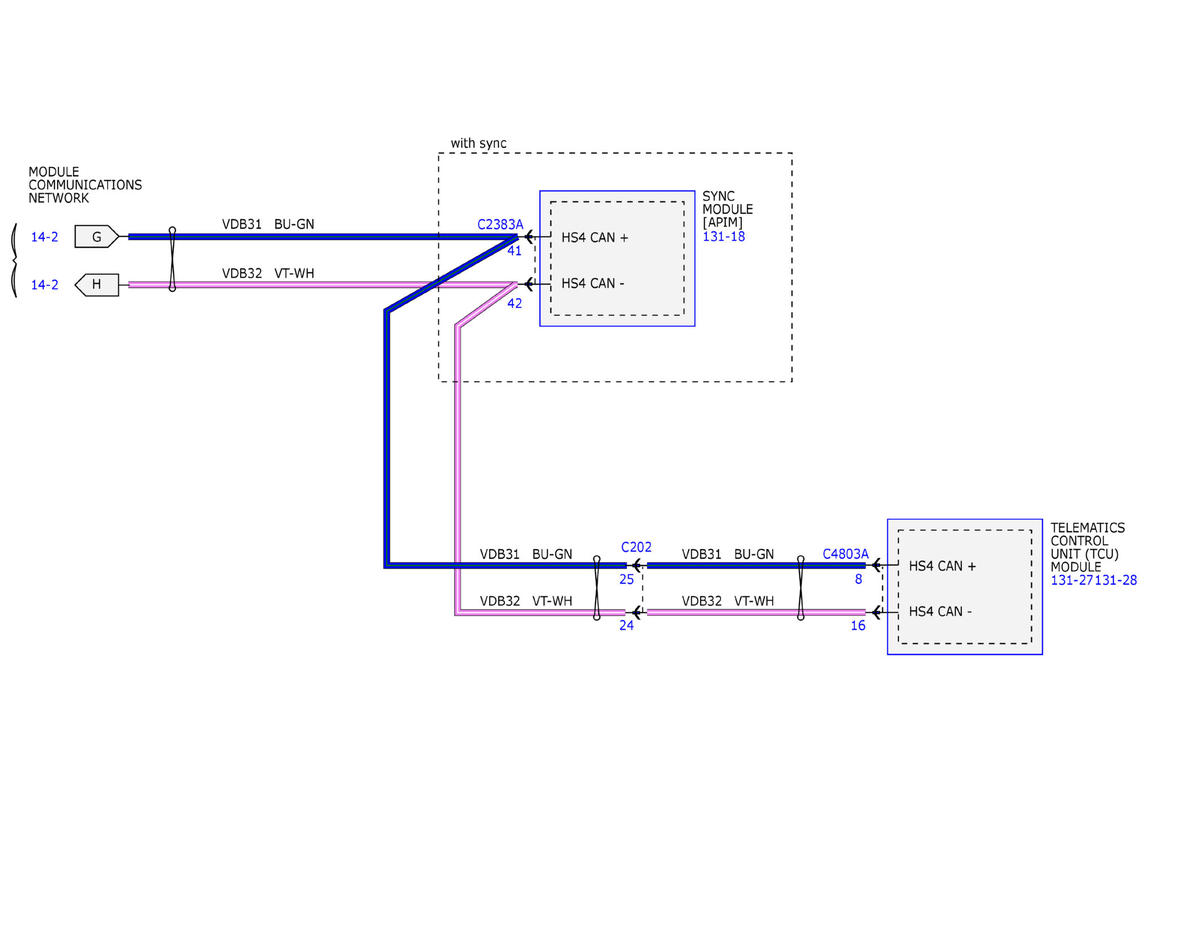

Fig 6: Module Communications Network System Wiring Diagrams (6 Of 26)

GFDWR94542

Courtesy of FORD MOTOR COMPANY

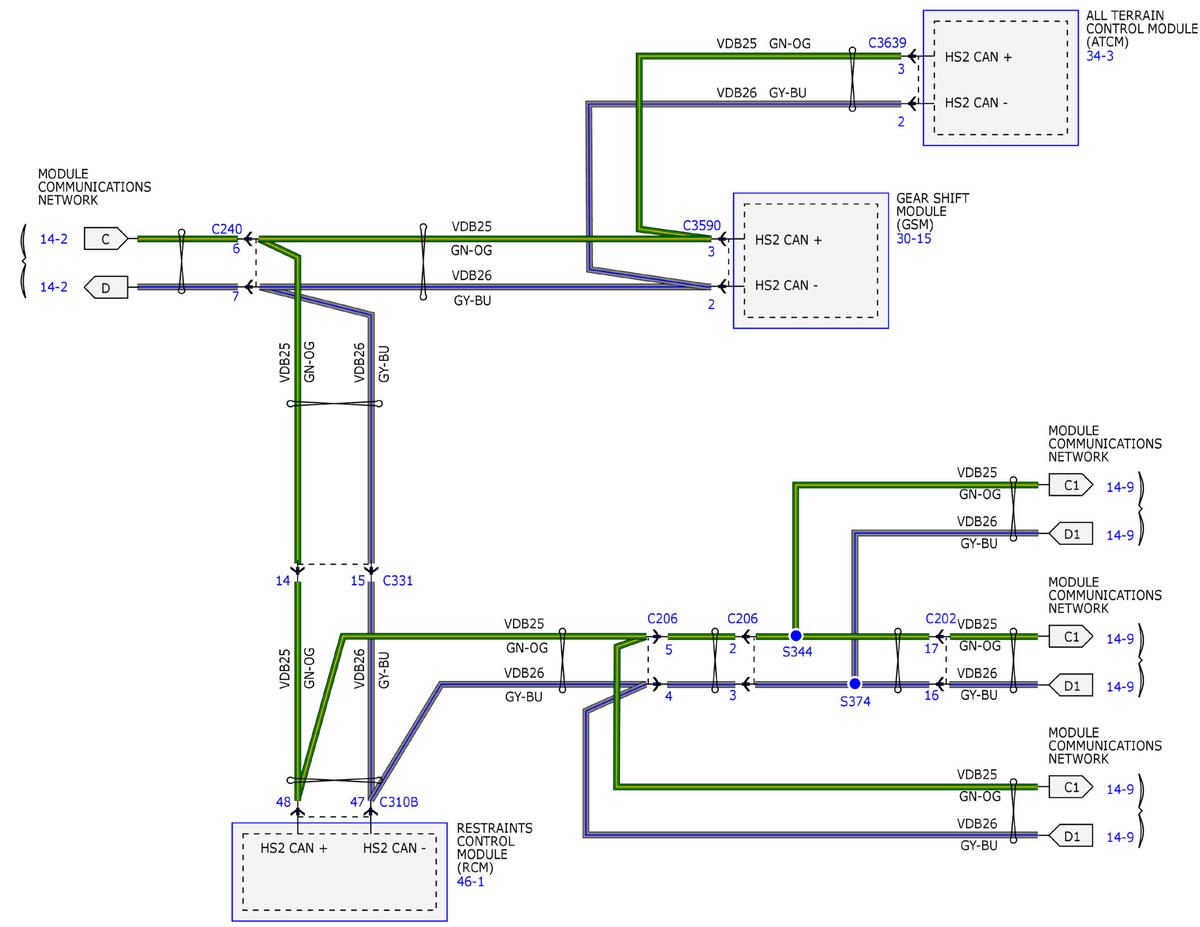

Fig 7: Module Communications Network System Wiring Diagrams (7 Of 26)

GFDWR94543

Courtesy of FORD MOTOR COMPANY

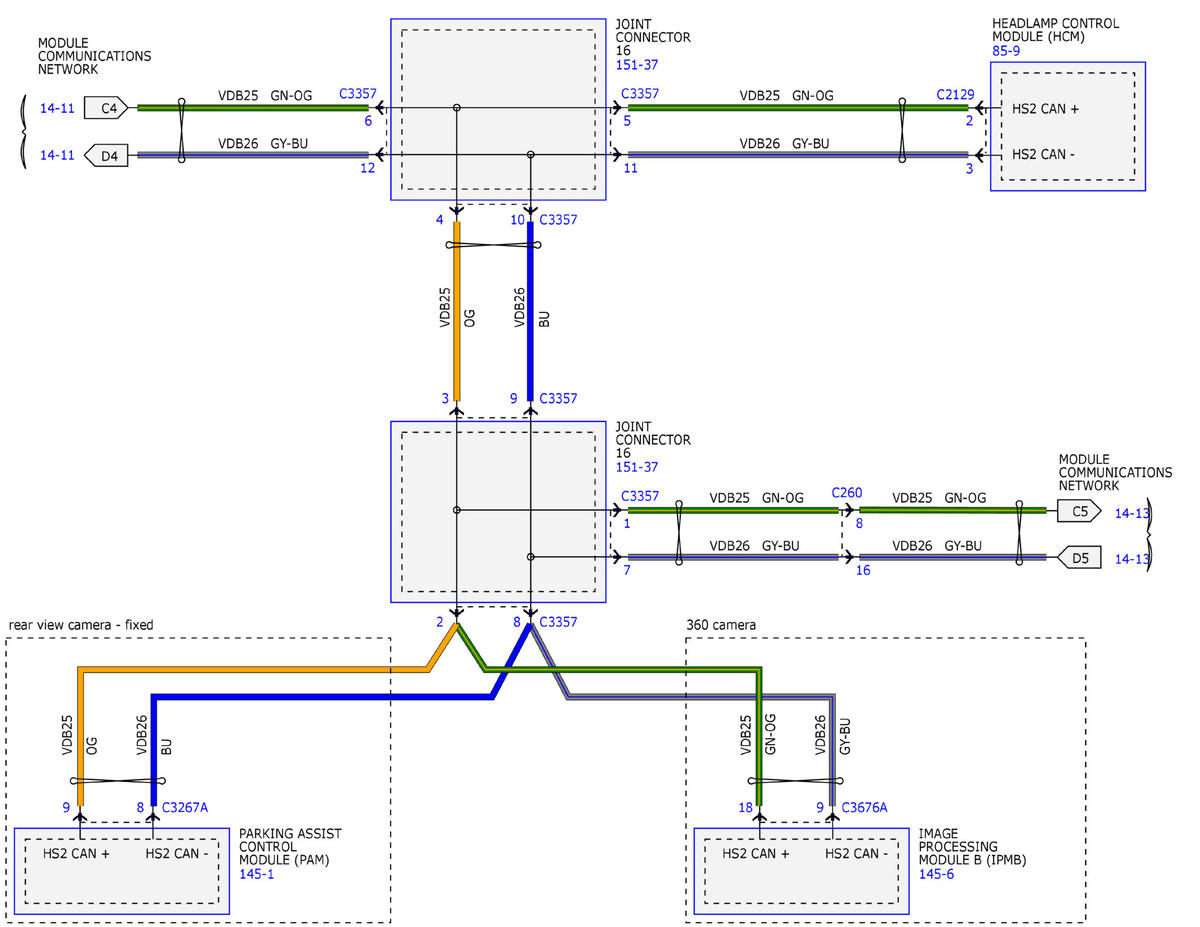

Fig 8: Module Communications Network System Wiring Diagrams (8 Of 26)

GFDWR94544

Courtesy of FORD MOTOR COMPANY

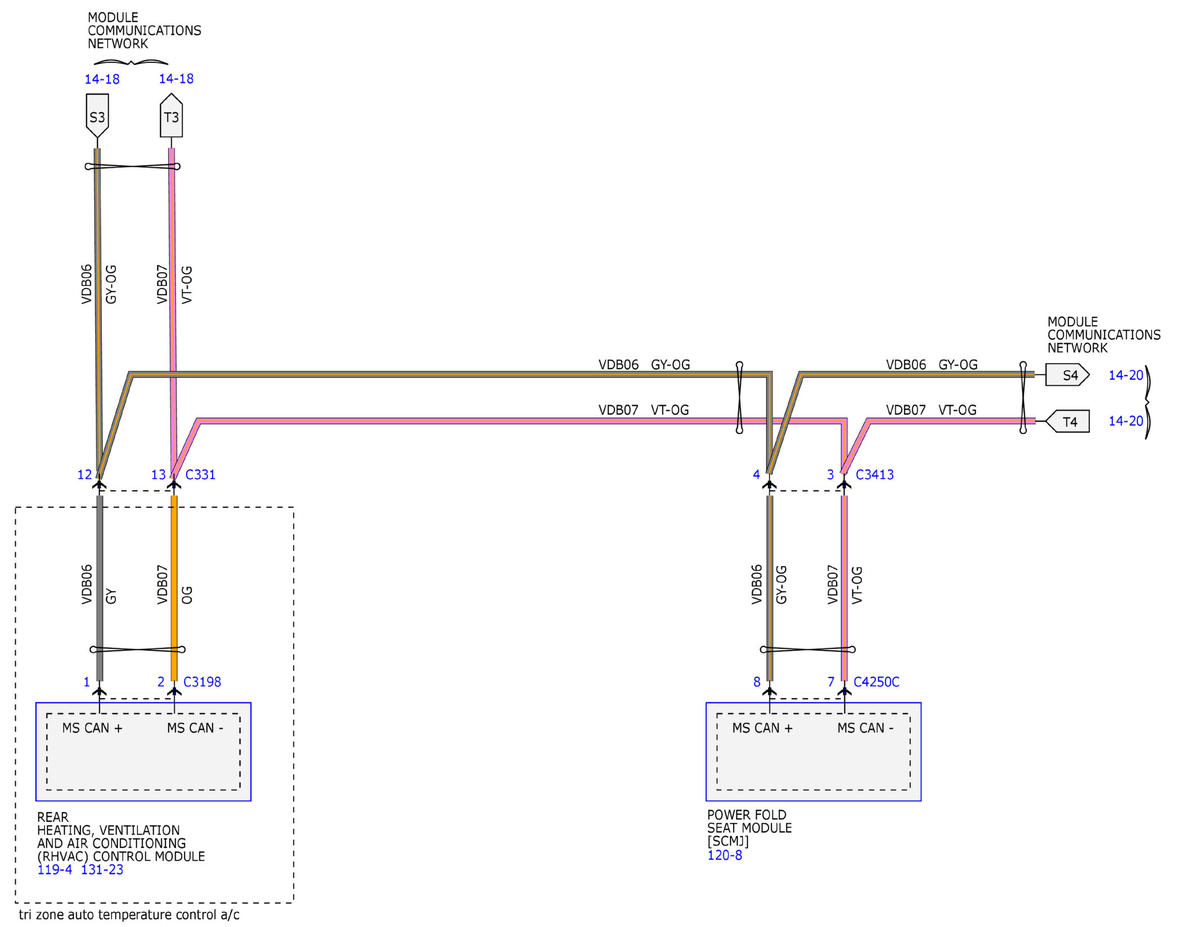

Fig 9: Module Communications Network System Wiring Diagrams (9 Of 26)

GFDWR94545

Courtesy of FORD MOTOR COMPANY

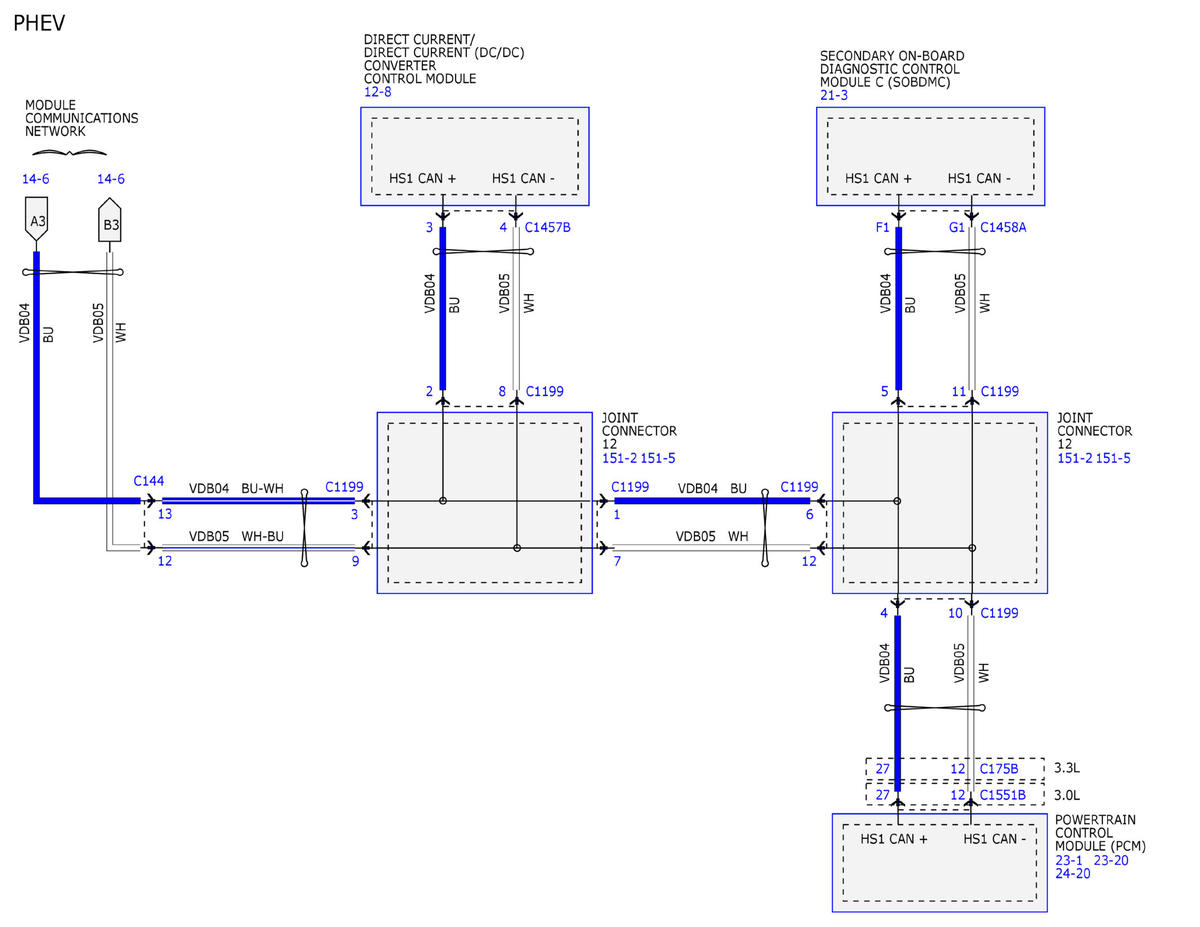

Fig 10: Module Communications Network System Wiring Diagrams (10 Of 26)

GFDWR94546

Courtesy of FORD MOTOR COMPANY

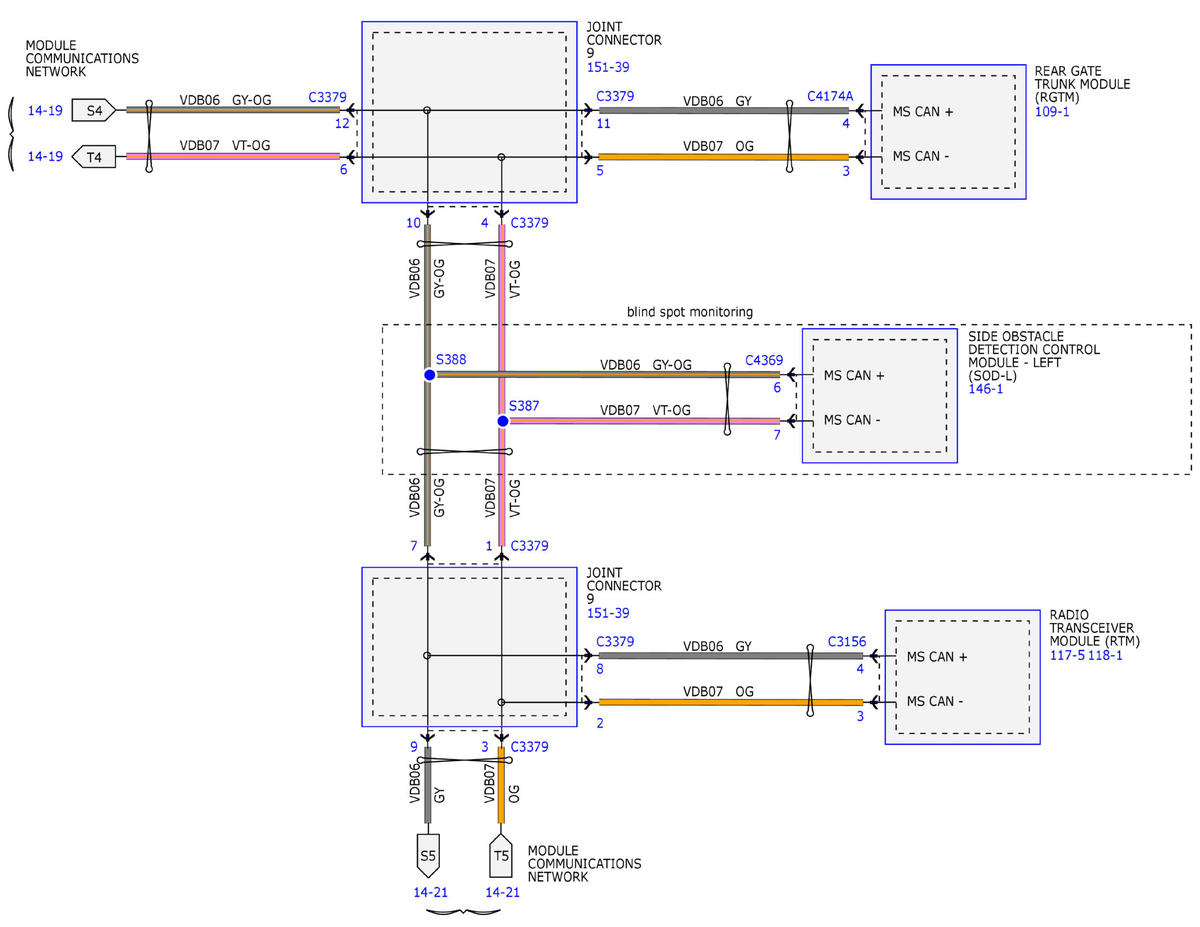

Fig 11: Module Communications Network System Wiring Diagrams (11 Of 26)

GFDWR94547

Courtesy of FORD MOTOR COMPANY

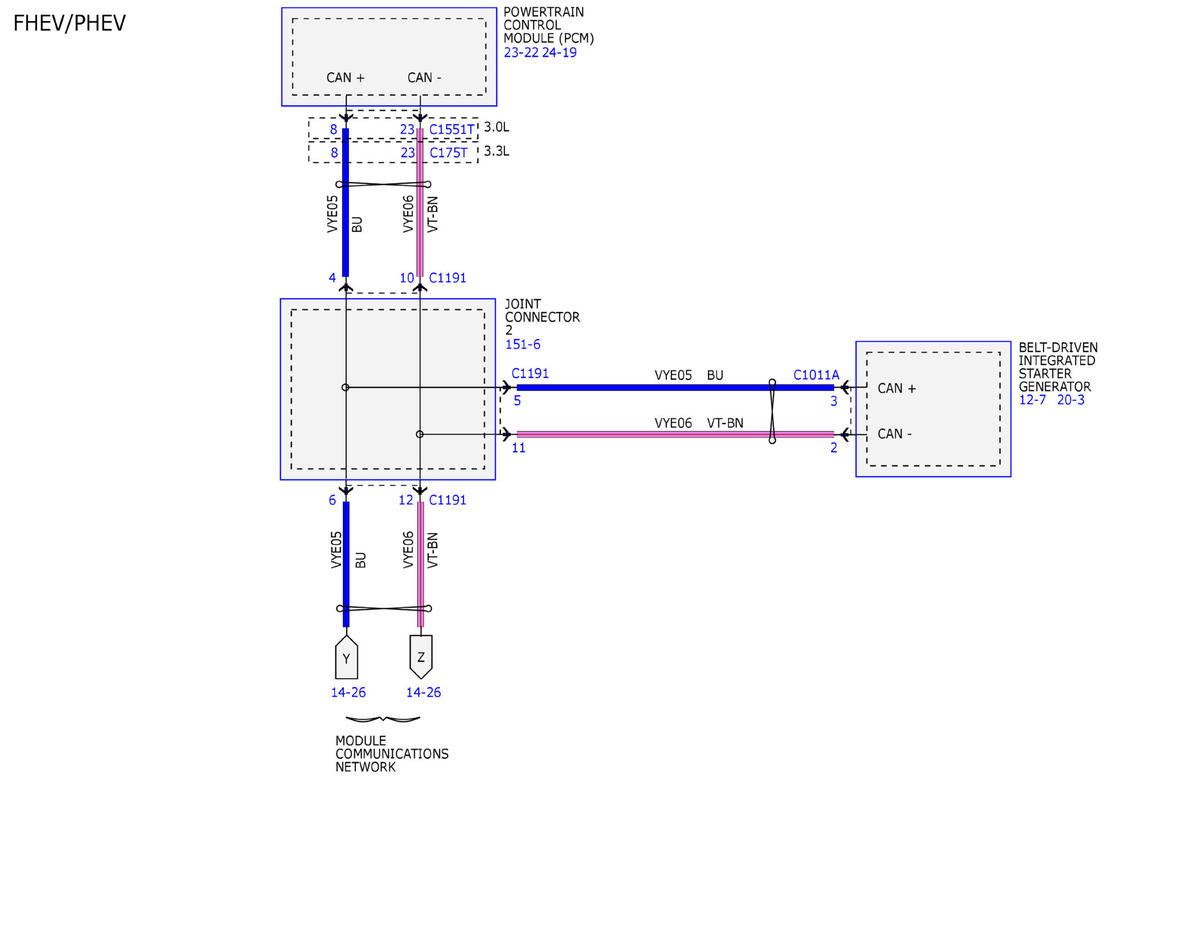

Fig 12: Module Communications Network System Wiring Diagrams (12 Of 26)

GFDWR94548

Courtesy of FORD MOTOR COMPANY

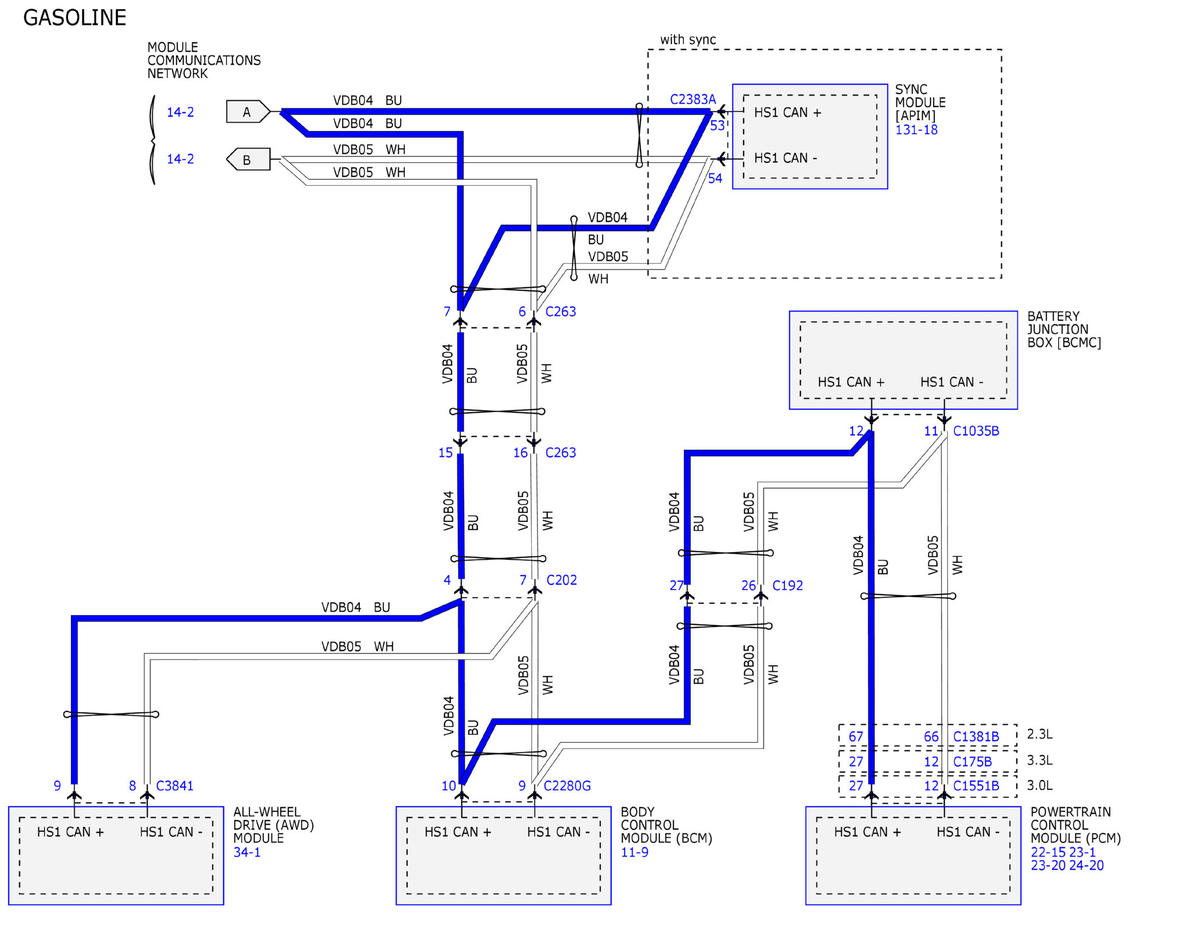

Fig 13: Module Communications Network System Wiring Diagrams (13 Of 26)

GFDWR94549

Courtesy of FORD MOTOR COMPANY

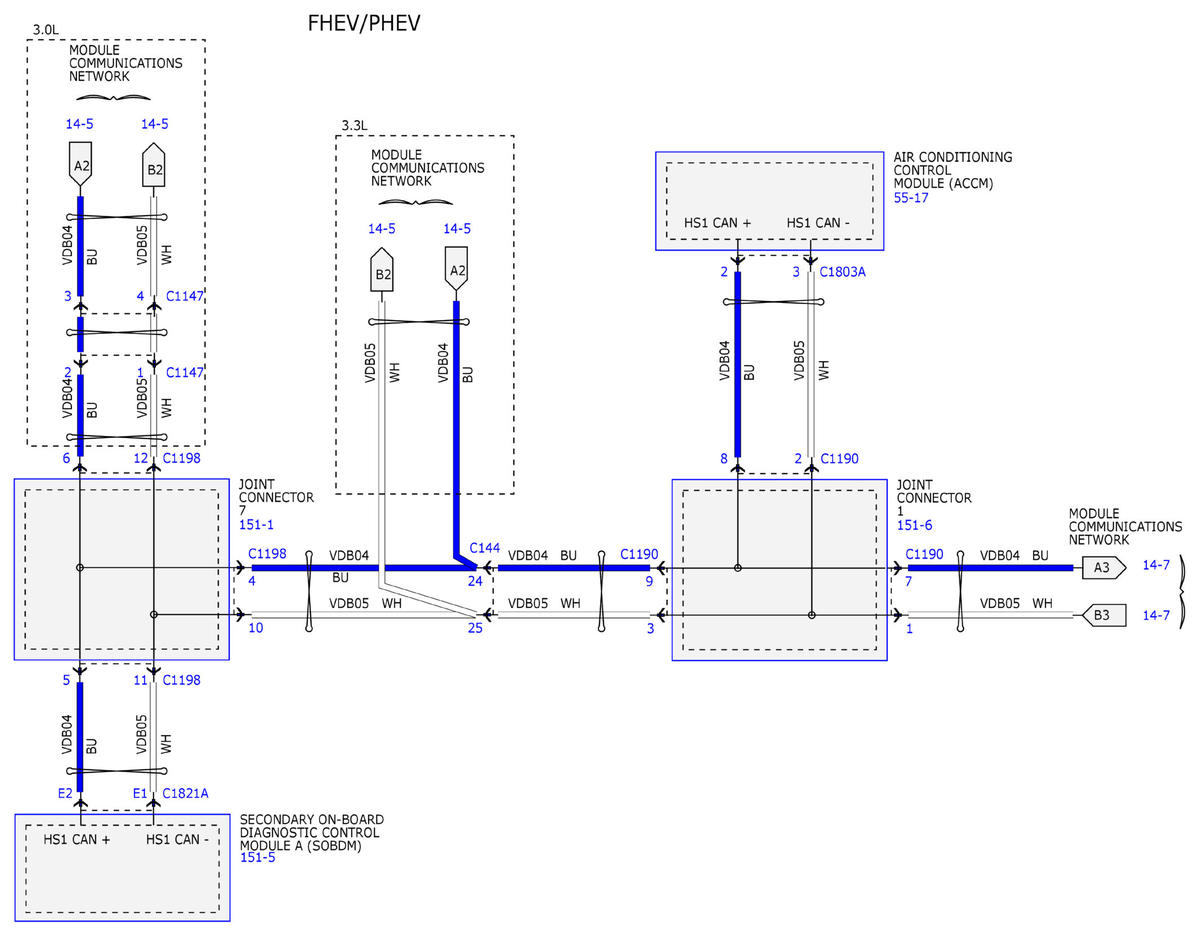

Fig 14: Module Communications Network System Wiring Diagrams (14 Of 26)

GFDWR94550

Courtesy of FORD MOTOR COMPANY

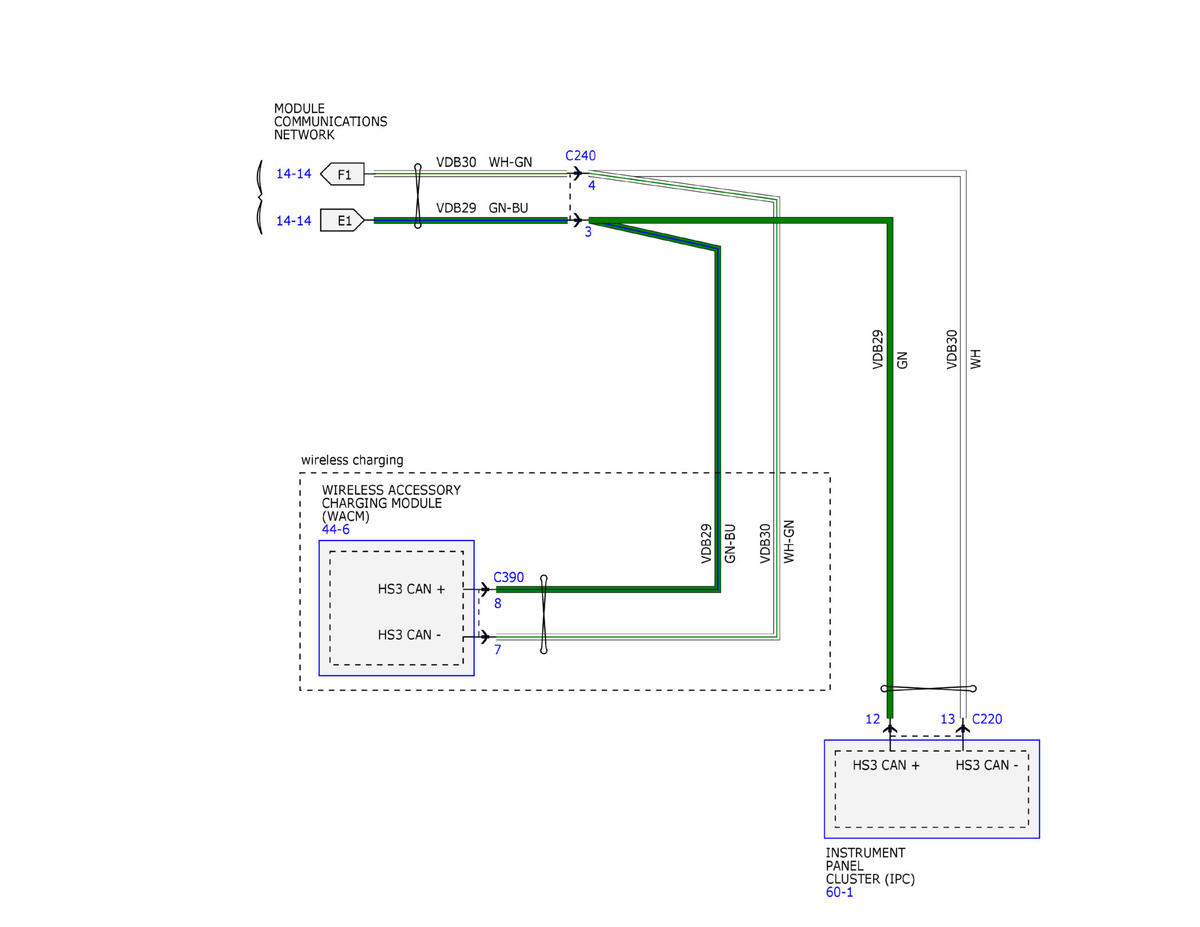

Fig 15: Module Communications Network System Wiring Diagrams (15 Of 26)

GFDWR94551

Courtesy of FORD MOTOR COMPANY

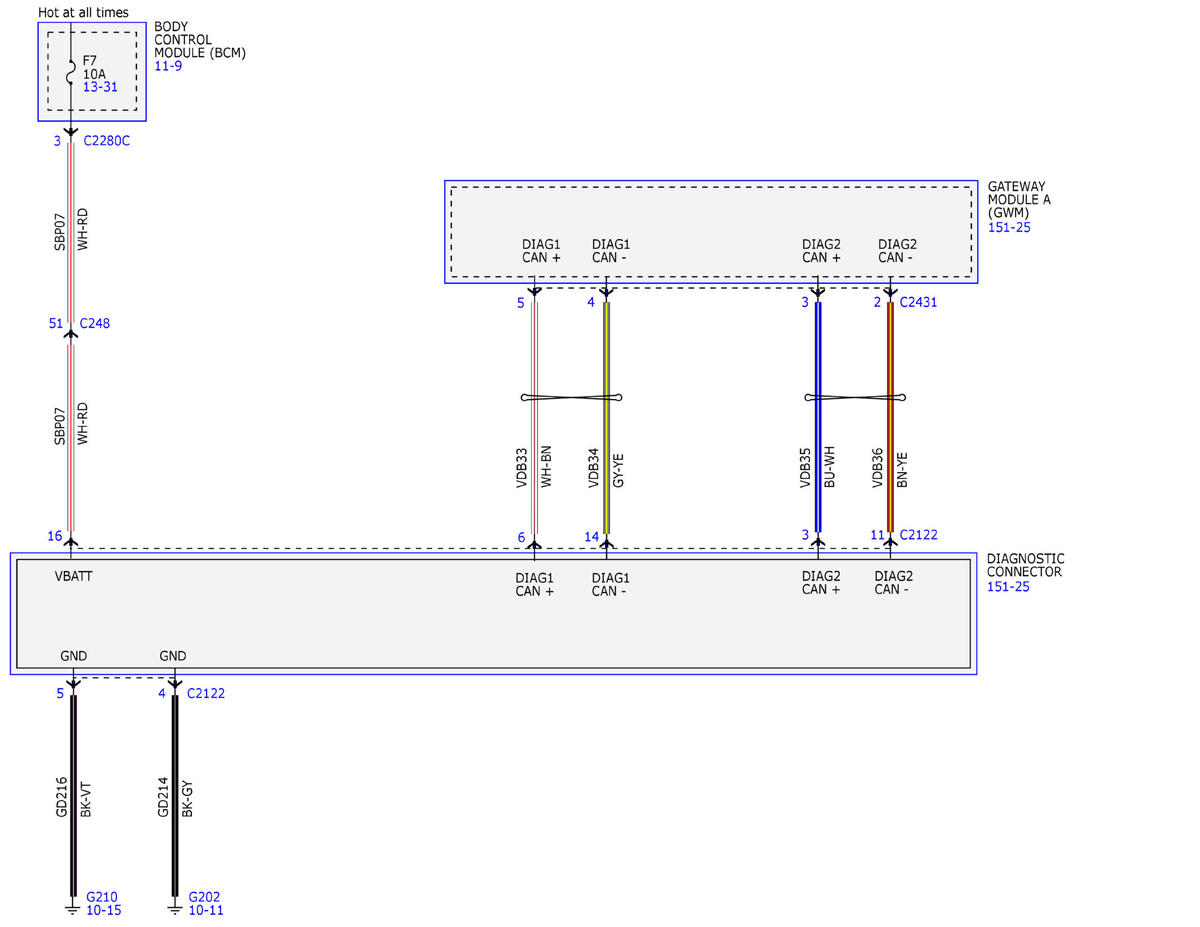

Fig 16: Module Communications Network System Wiring Diagrams (16 Of 26)

GFDWR94552

Courtesy of FORD MOTOR COMPANY

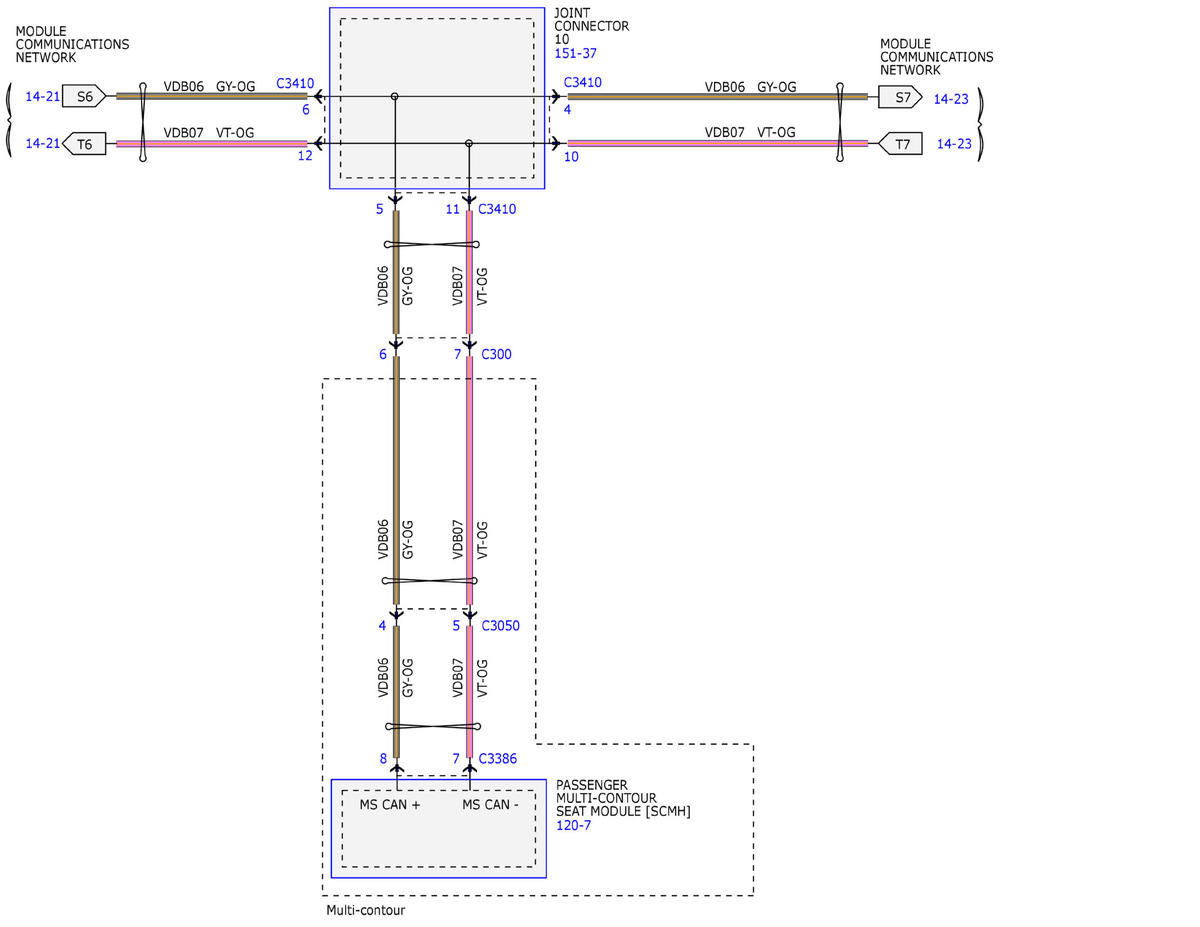

Fig 17: Module Communications Network System Wiring Diagrams (17 Of 26)

GFDWR94553

Courtesy of FORD MOTOR COMPANY

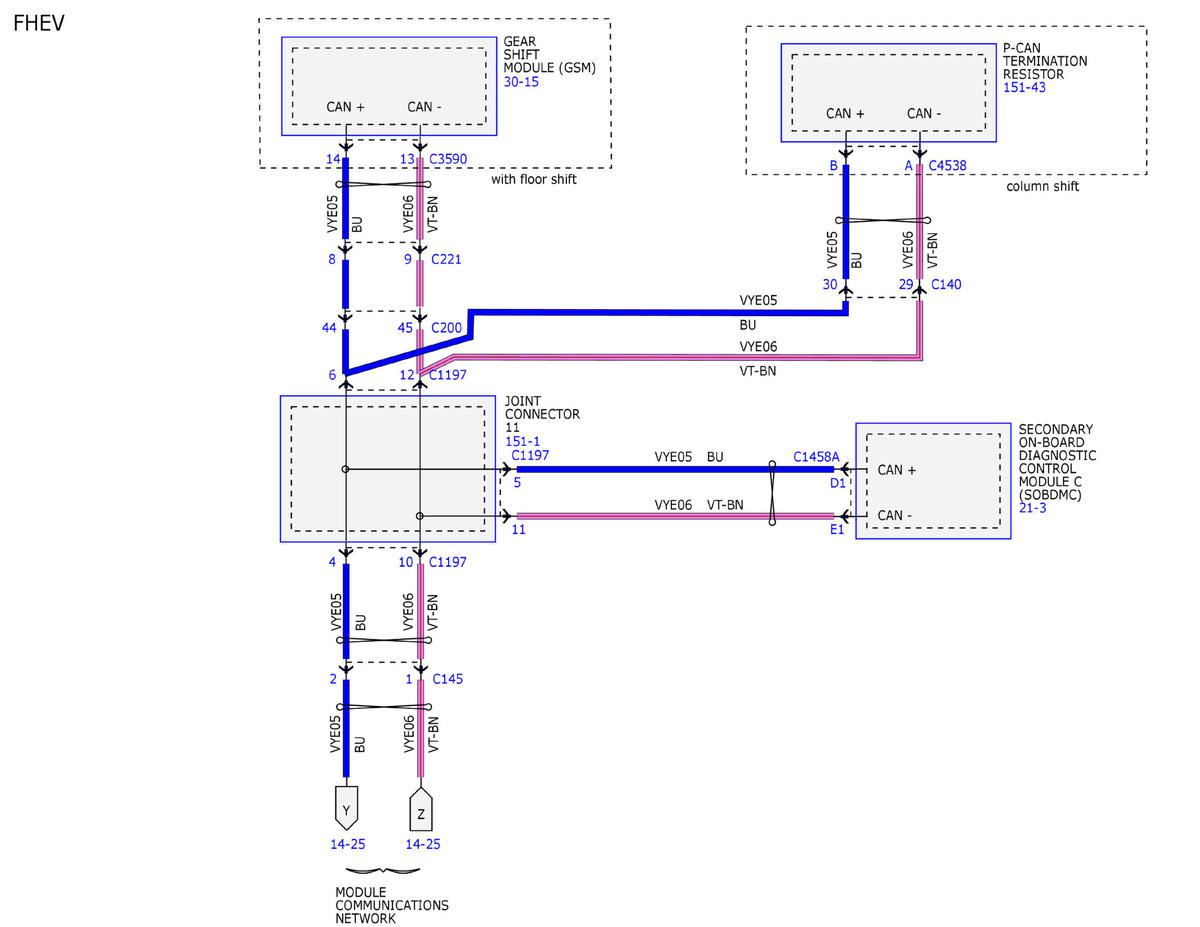

Fig 18: Module Communications Network System Wiring Diagrams (18 Of 26)

GFDWR94554

Courtesy of FORD MOTOR COMPANY

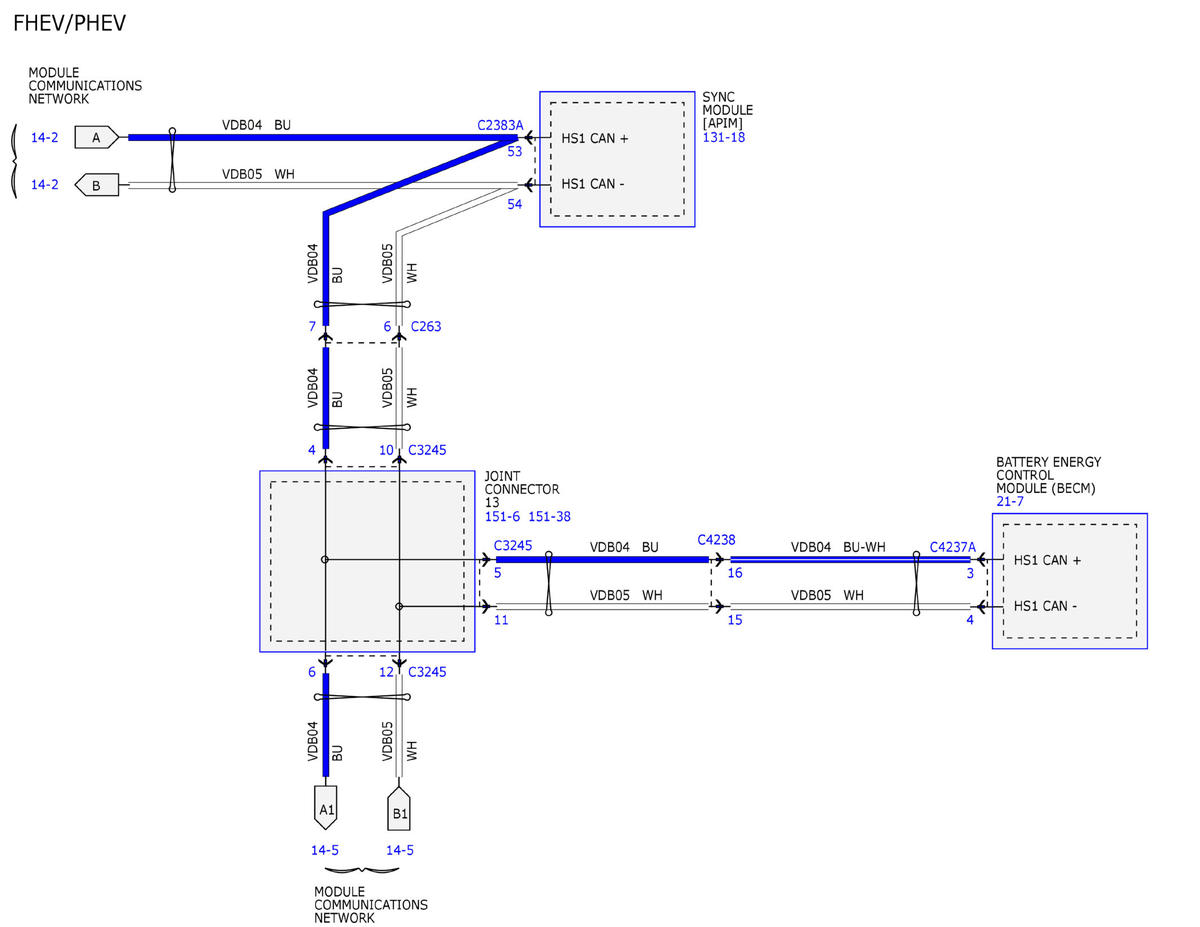

Fig 19: Module Communications Network System Wiring Diagrams (19 Of 26)

GFDWR94555

Courtesy of FORD MOTOR COMPANY

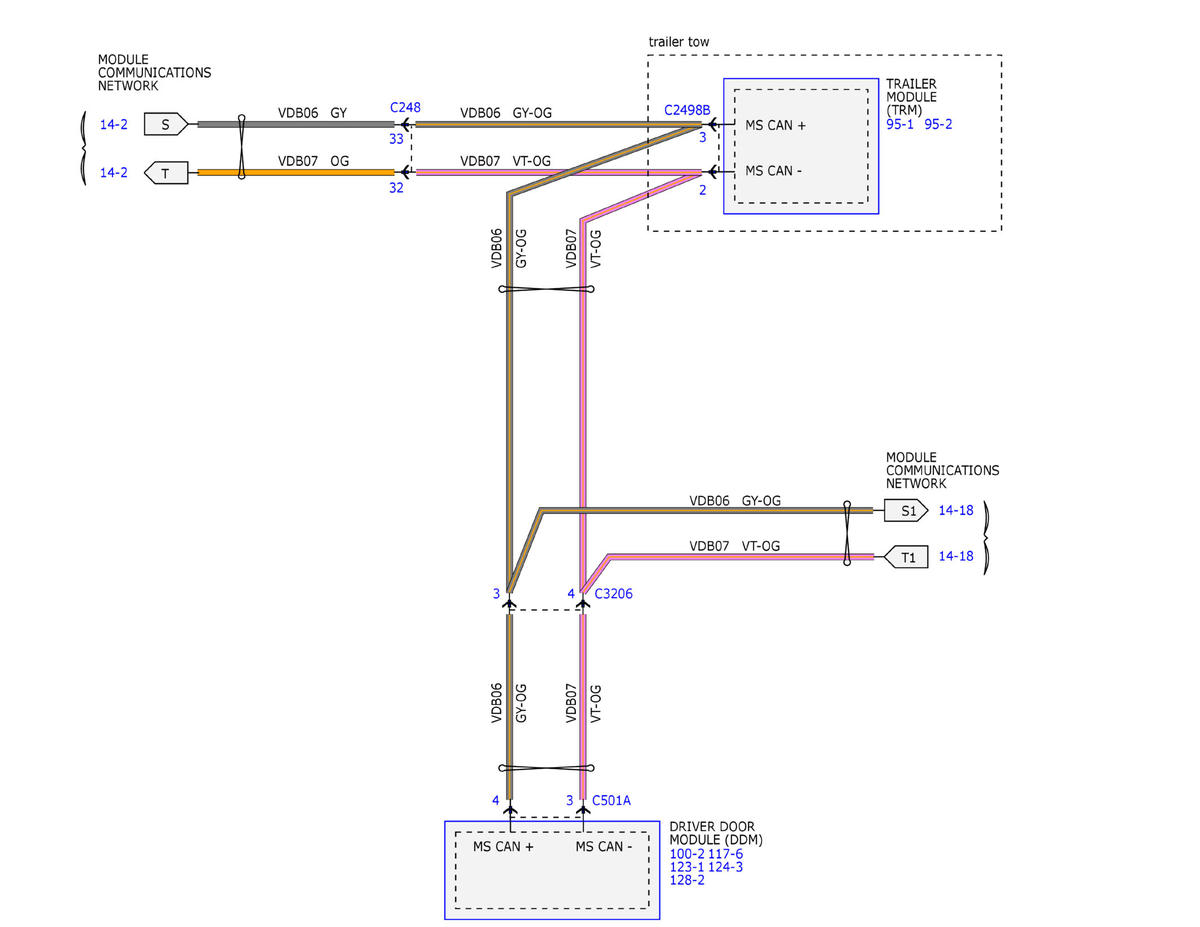

Fig 20: Module Communications Network System Wiring Diagrams (20 Of 26)

GFDWR94556

Courtesy of FORD MOTOR COMPANY

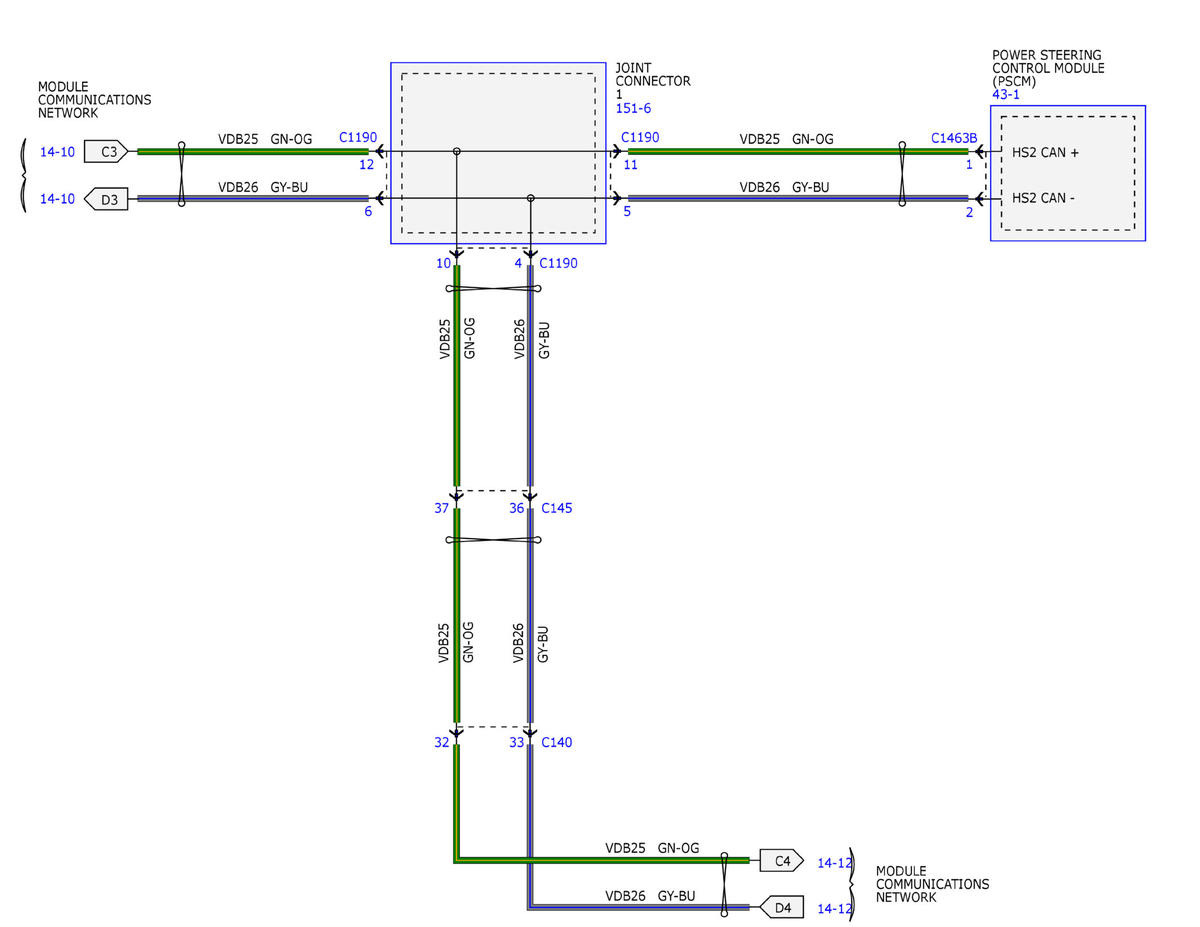

Fig 21: Module Communications Network System Wiring Diagrams (21 Of 26)

GFDWR94557

Courtesy of FORD MOTOR COMPANY

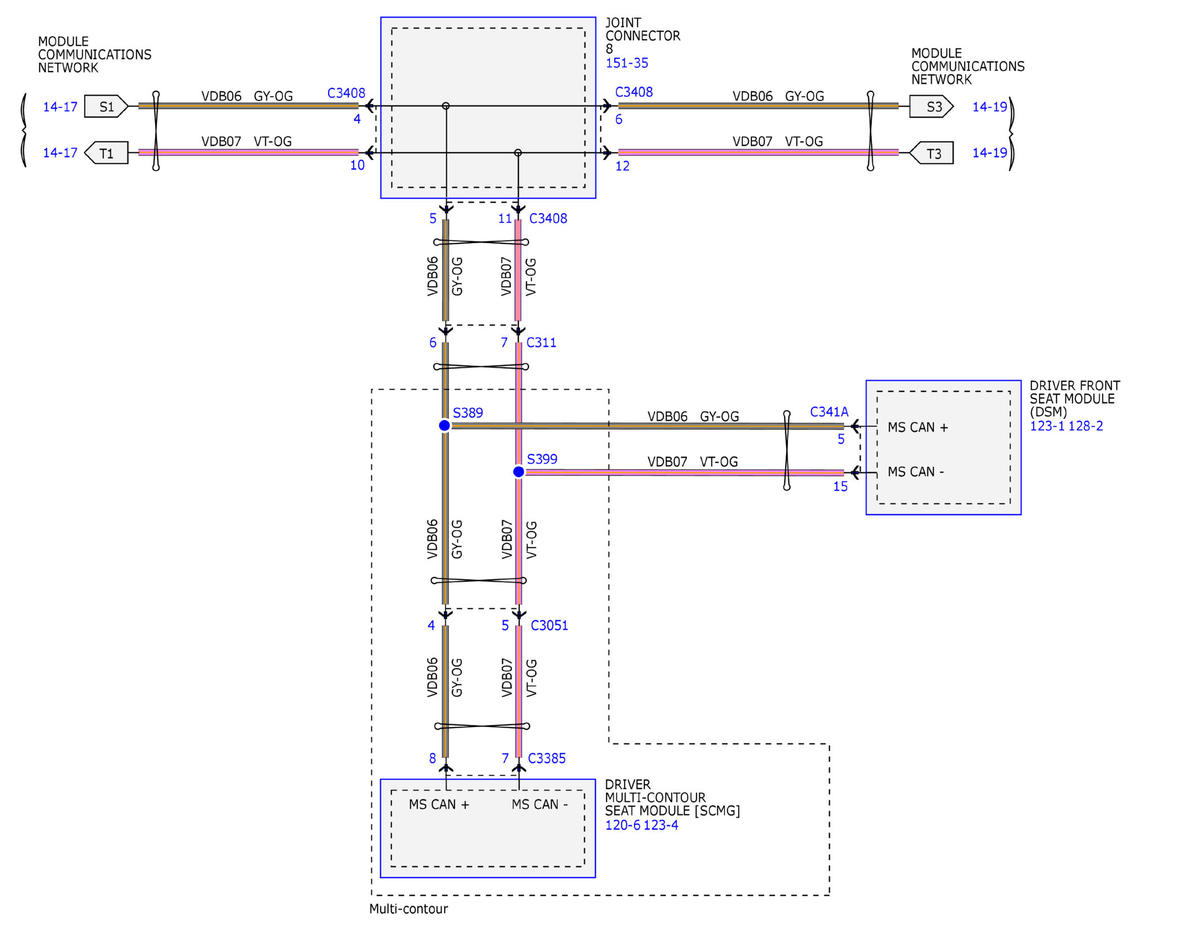

Fig 22: Module Communications Network System Wiring Diagrams (22 Of 26)

GFDWR94558

Courtesy of FORD MOTOR COMPANY

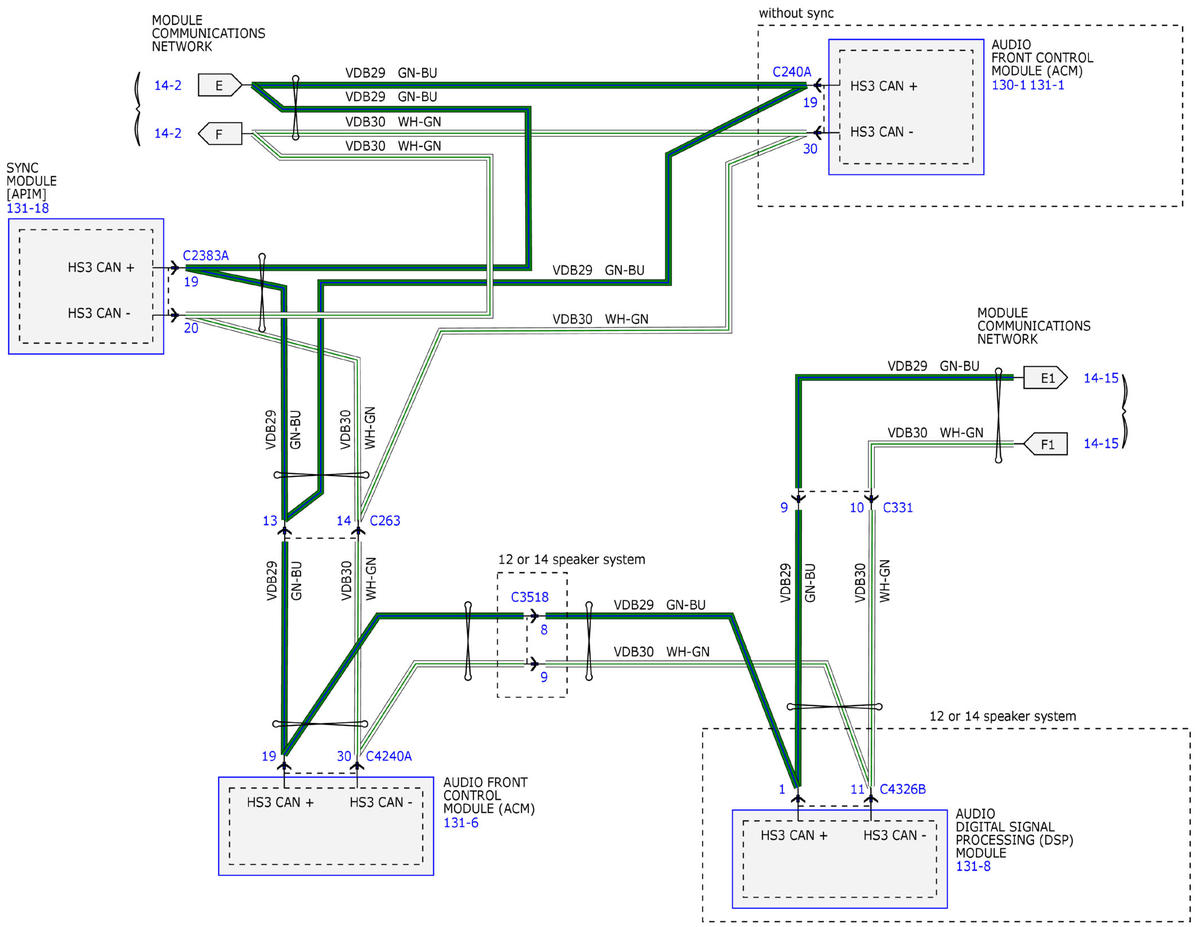

Fig 23: Module Communications Network System Wiring Diagrams (23 Of 26)

GFDWR94559

Courtesy of FORD MOTOR COMPANY

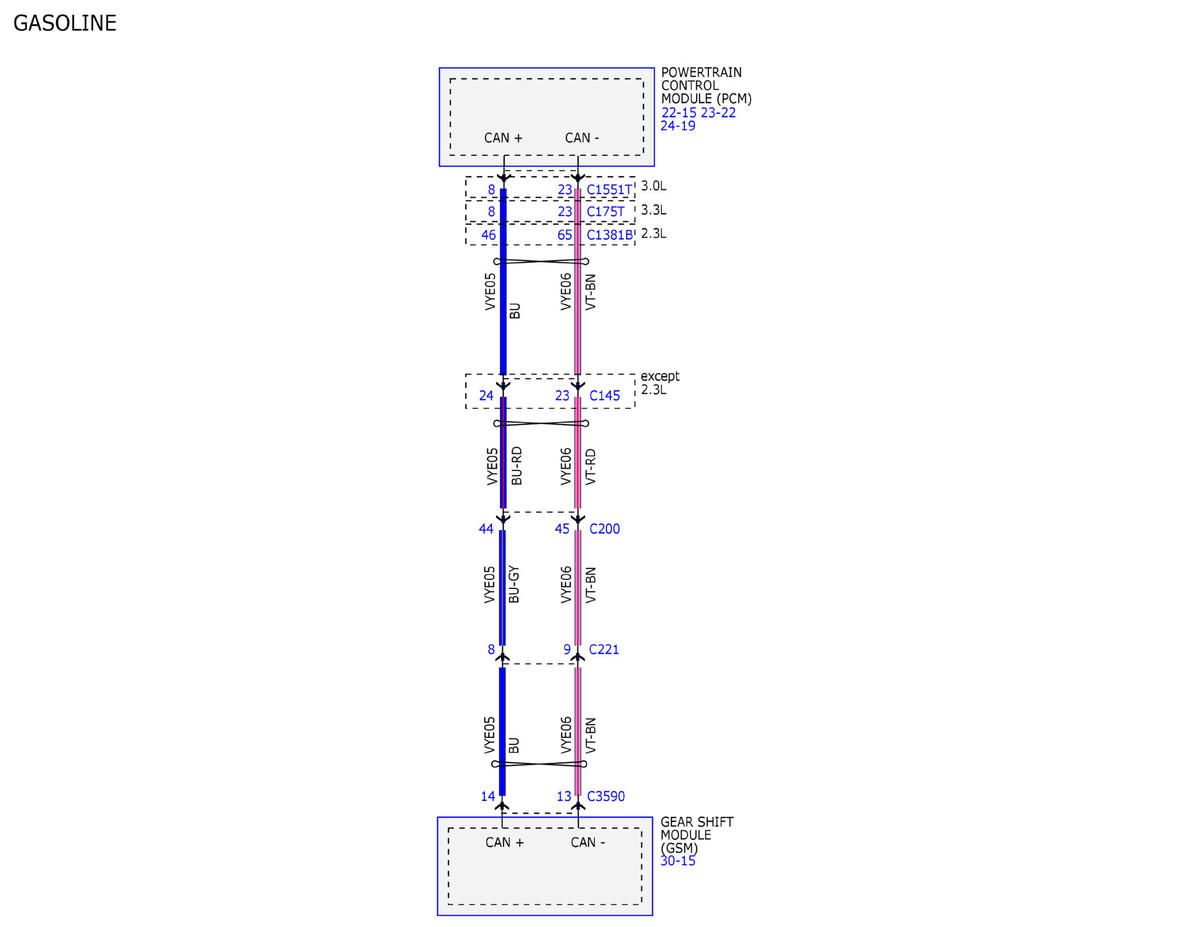

Fig 24: Module Communications Network System Wiring Diagrams (24 Of 26)

GFDWR94560

Courtesy of FORD MOTOR COMPANY

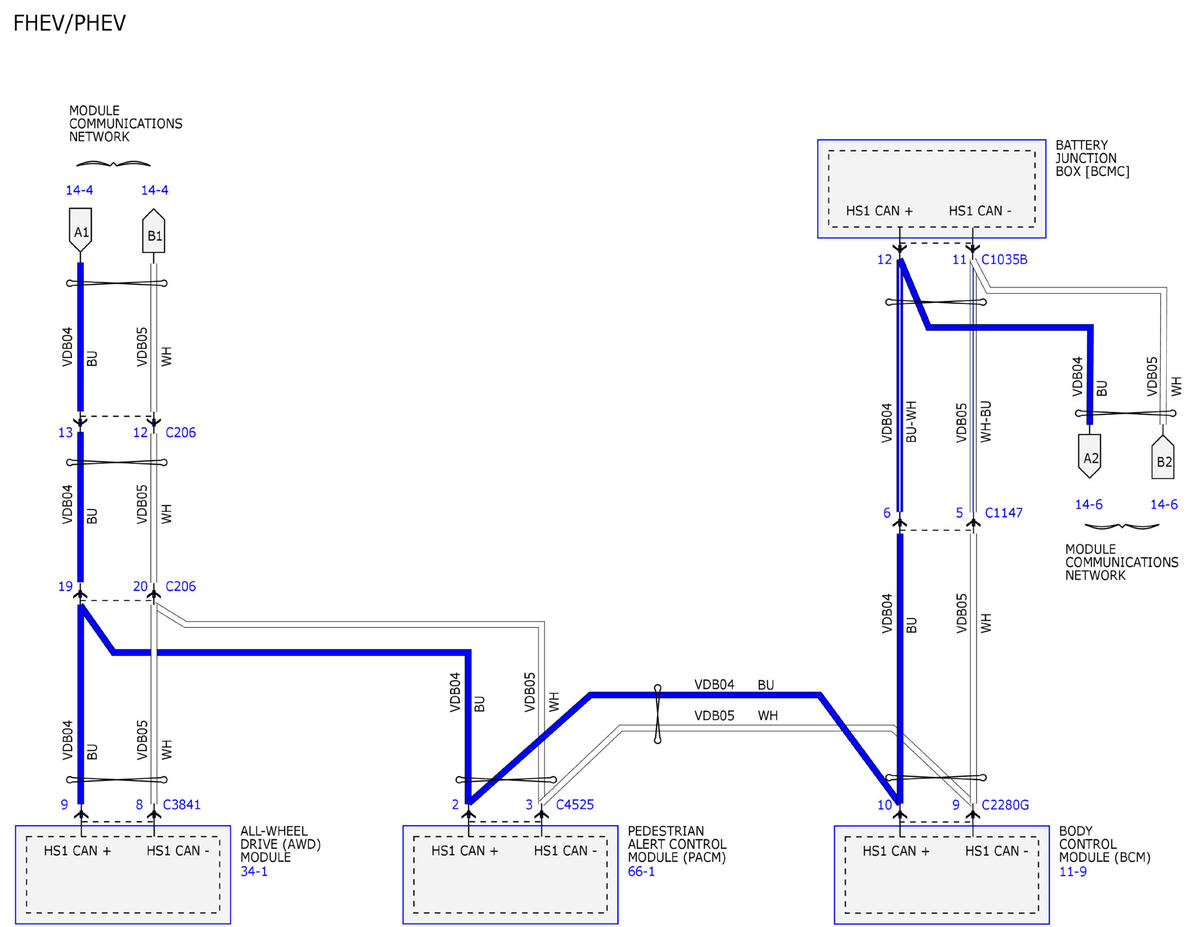

Fig 25: Module Communications Network System Wiring Diagrams (25 Of 26)

GFDWR94561

Courtesy of FORD MOTOR COMPANY

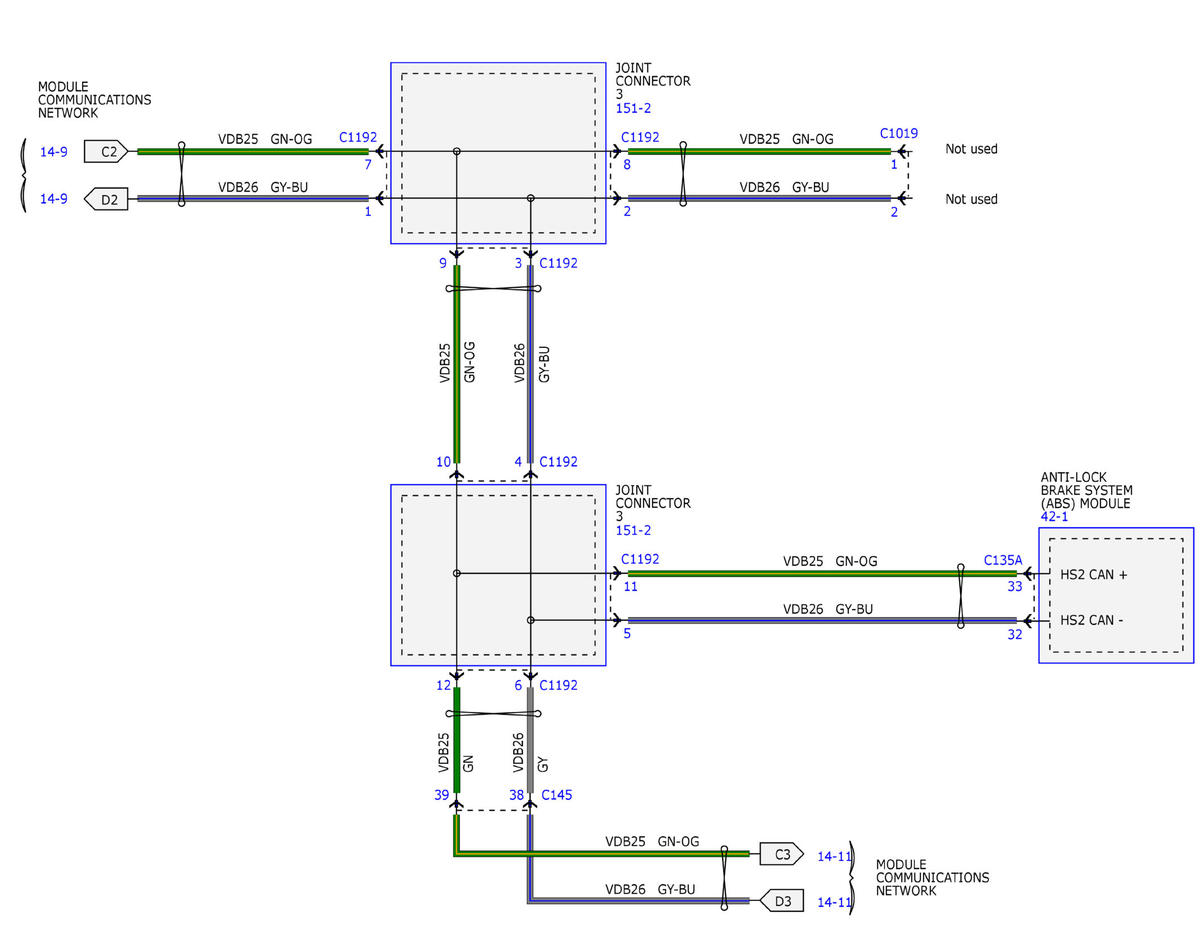

Fig 26: Module Communications Network System Wiring Diagrams (26 Of 26)

GFDWR94562

Courtesy of FORD MOTOR COMPANY
