Powertrain Control Module (PCM): Removal

  1. NOTE: Removal steps in this procedure may contain installation details.
    NOTE: This step is only necessary when installing a new component.

    Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Programming . Use the General Equipment: Ford Diagnostic Equipment

  2. Disconnect the PCM electrical connectors. Release the harness retainers from the lower PCM cover to position aside the harnesses.

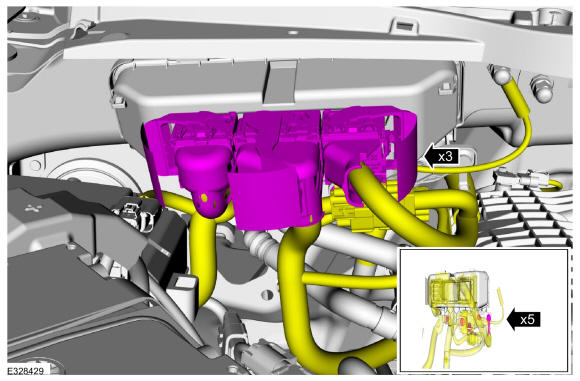

    GFD558281Courtesy of FORD MOTOR COMPANY
  3. Release the retaining clips and remove the PCM cover.

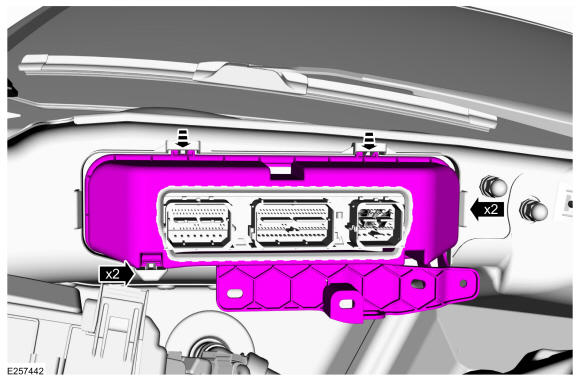

    GFD558282Courtesy of FORD MOTOR COMPANY
  4. Release the retainer clips and remove the PCM.

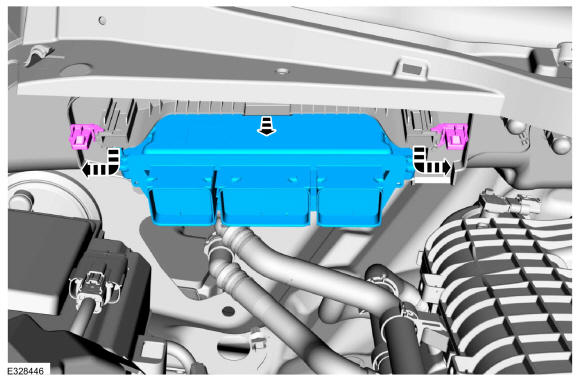

GFD558283Courtesy of FORD MOTOR COMPANY
