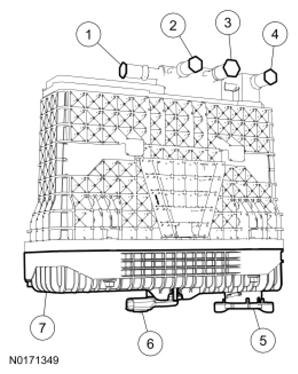

Typical Fuel Conditioning Module (All Others)
| Item | Number | Description |
|---|---|---|
| 1 | mdash | Fuel Return Line From The Secondary Fuel Filter |
| 2 | mdash | Thermostat Bypass Fuel Return Line To The Fuel Tank |
| 3 | mdash | Unfiltered Fuel Supply Line From The Fuel Tank |
| 4 | mdash | Filtered Fuel Return Line To The FP Assembly |
| 5 | mdash | Fuel Drain Valve |
| 6 | mdash | Water In Fuel (WIF) Sensor |
| 7 | mdash | Fuel Filter Cover |
