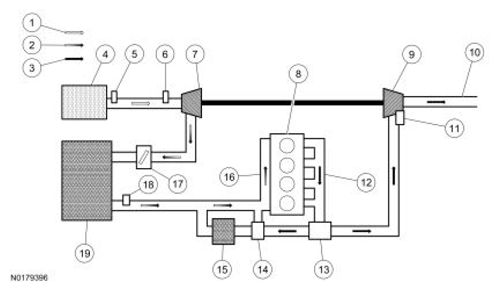

| 1 |
- |
Intake Air |
| 2 |
- |
Compressed Air |
| 3 |
- |
Exhaust Air |
| 4 |
- |
Air Filter |
| 5 |
- |
Mass Airflow/Intake Air Temperature (MAF/IAT) Sensor |
| 6 |
- |
Crankcase Ventilation Heater |
| 7 |
- |
Turbocharger Intake Compressor |
| 8 |
- |
Cylinder Head |
| 9 |
- |
Turbocharger Exhaust Turbine |
| 10 |
- |
Outlet To Exhaust System |
| 11 |
- |
Variable Geometry Turbocharger Actuator |
| 12 |
- |
Exhaust Manifold |
| 13 |
- |
Exhaust Gas Recirculation (EGR) Valve |
| 14 |
- |
Exhaust Gas Recirculation (EGR) Cooler Bypass Valve |
| 15 |
- |
Exhaust Gas Recirculation (EGR) Cooler |
| 16 |
- |
Intake Manifold |
| 17 |
- |
Intake Throttle Assembly |
| 18 |
- |
Manifold Absolute Pressure (MAP) Sensor |
| 19 |
- |
Charge Air Cooler (CAC) |
