Removal And Installation: Radiator: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the cooling module. Refer to: Cooling Module  .

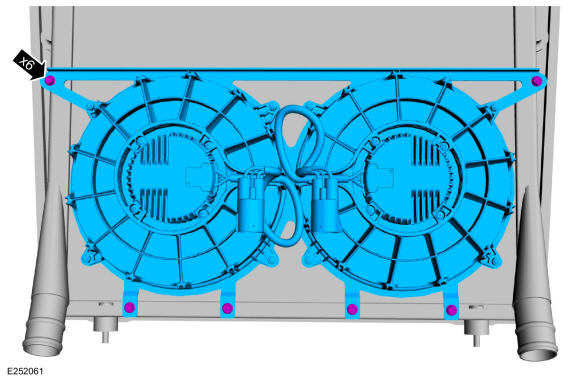

  2. Remove the bolts and the cooling fan assembly.

    Torque: 97 lb.in (11 Nm)

    GFD345032Courtesy of FORD MOTOR COMPANY

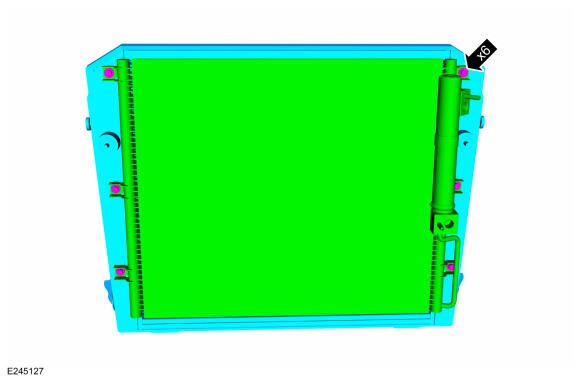

  3. Remove the bolts, separate the A/C condenser and the radiator.

    Torque: 97 lb.in (11 Nm)

GFD345033Courtesy of FORD MOTOR COMPANY
