Module Controlled Functions - Component Location

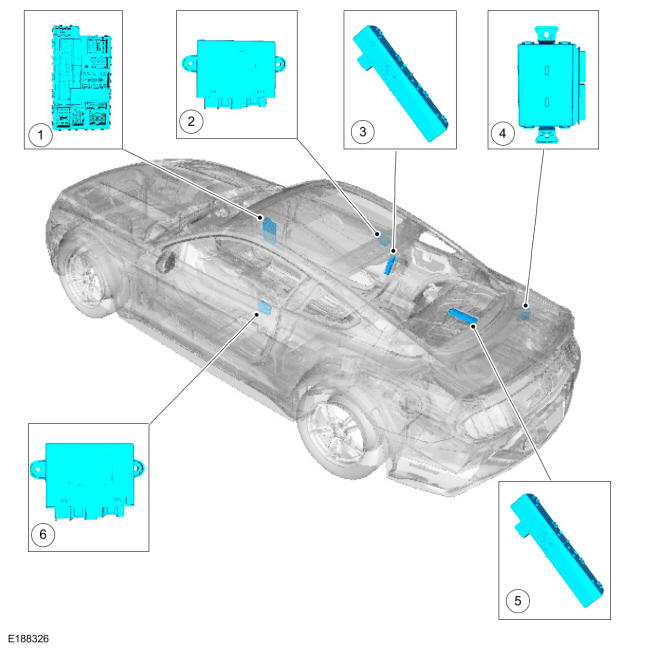

GFD604963Courtesy of FORD MOTOR COMPANY
Item Description
1 BCM
2 PDM
3 RTM (Convertible)
4 Body Control Module B (BCM-B)
5 RTM (Coupe)
6 DDM
