Image Processing Module A (IPMA) Camera Heated Windshield Element: Installation

NOTE: Use an alcohol pad to remove the residual adhesive. If required, a plastic scraper may be used.

Clean and remove any residual adhesive from the windshield.

Courtesy of FORD MOTOR COMPANY

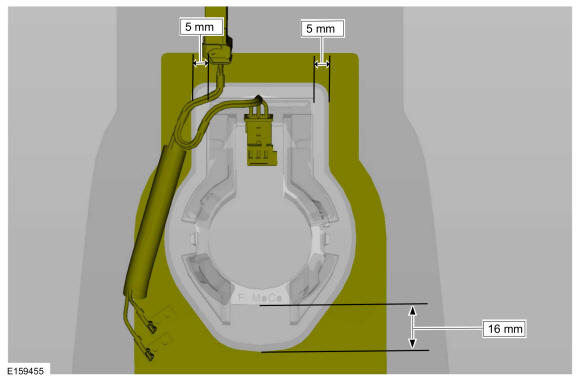

Remove the protective covering from the new camera windshield defrost heater and align the camera windshield defrost heater.

Courtesy of FORD MOTOR COMPANY

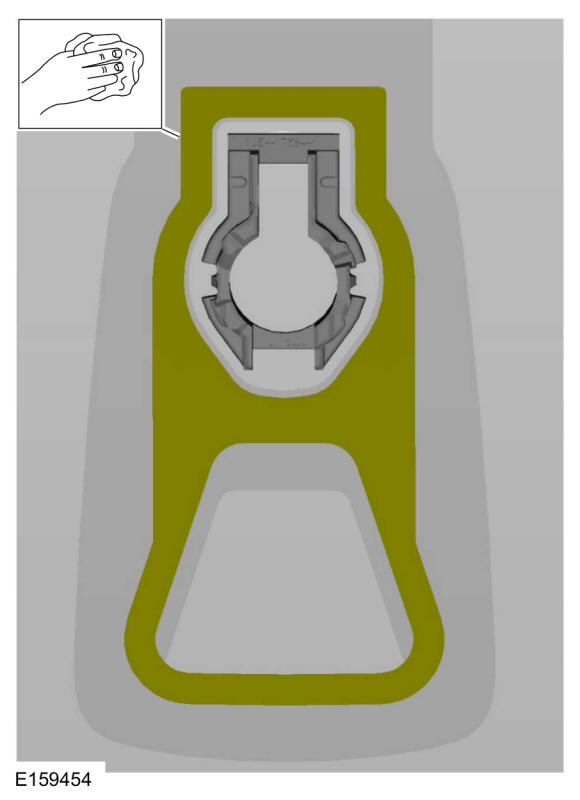

NOTE: Apply even pressure to adhere the camera windshield defrost heater to the windshield.

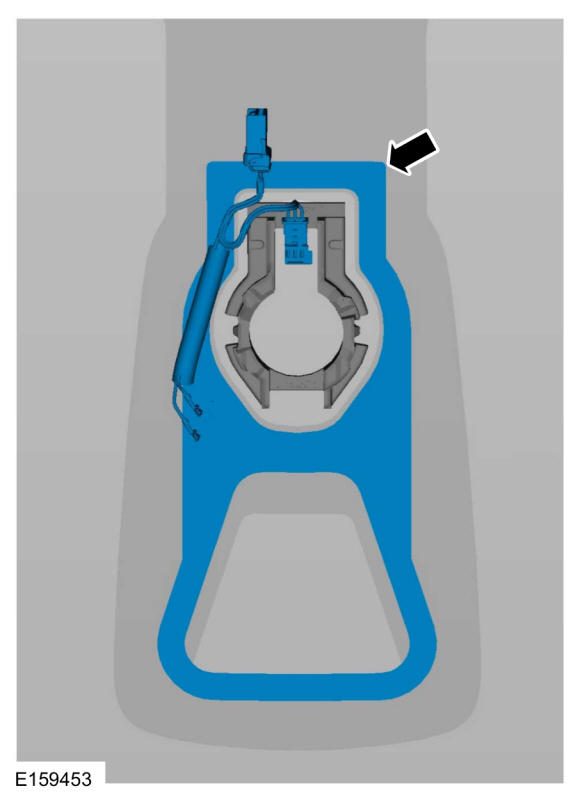

Install the IPMA camera heated windshield element.

Courtesy of FORD MOTOR COMPANY
Install the interior rear view mirror. Refer to: Interior Rear View Mirror
