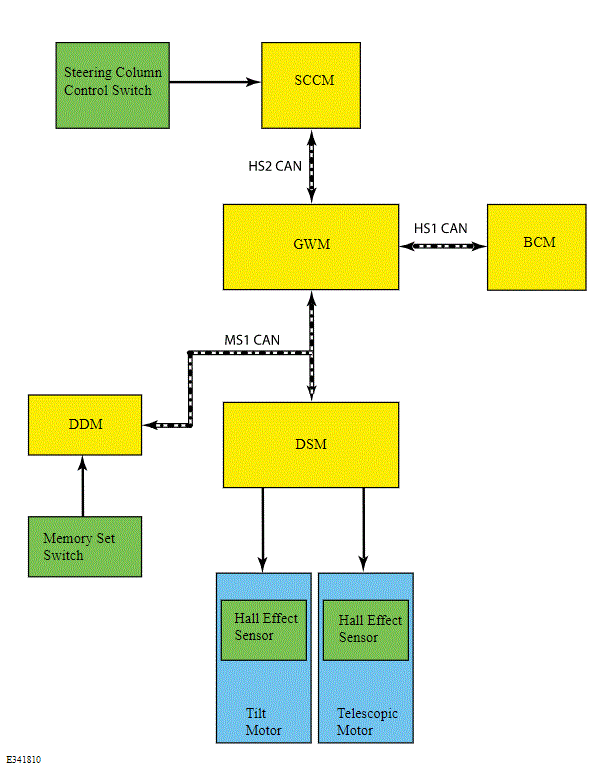

System Diagram
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Steering Column Control Switch |
| 2 |
SCCM |
| 3 |
GWM |
| 4 |
BCM |
| 5 |
DSM |
| 6 |
DDM |
| 7 |
Memory Set Switch |
| 8 |
Tilt Motor |
| 9 |
Telescopic Motor |
| 10 |
Hall Effect Sensor |
| 11 |
Hall Effect Sensor |
