Head Up Display (HUD) Module: Removal
WARNING: This page is about a different car, the 2021 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
NOTE:
Removal steps in this procedure may contain installation details.

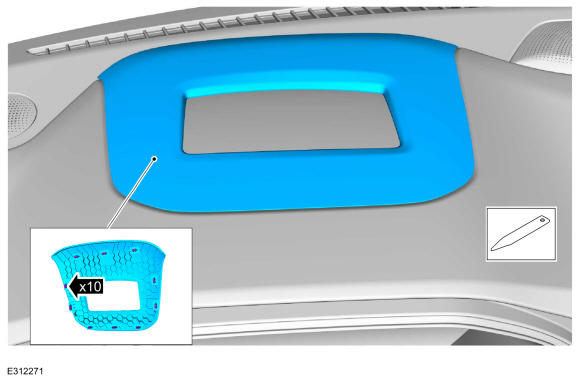

- Remove the HUD combiner module bezel. Use the General Equipment: Interior Trim Remover
Head Up Display (HUD) combiner module screen

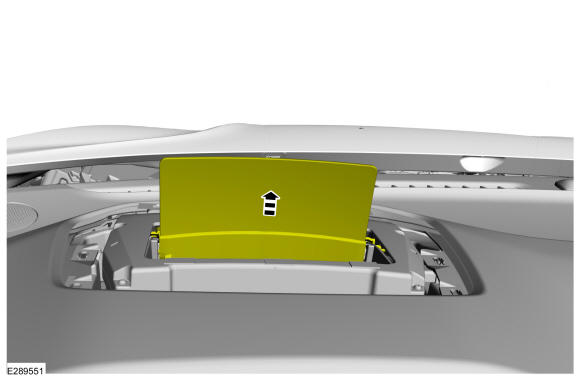

- Using a diagnostic scan tool, move the HUD combiner module screen into the service position.
-

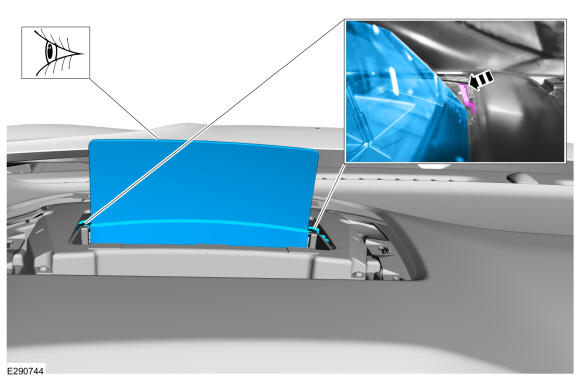

- Release the HUD combiner module screen clips.

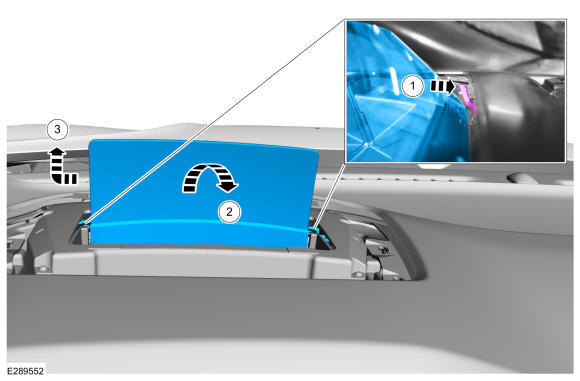

- Position the top of the HUD combiner module screen down.
- Remove the HUD combiner module screen.
-
NOTE: If installing a new screen, remove the Head Up Display (HUD) combiner screen foil before installation.
Make sure the HUD combiner module screen is correctly installed.
Head Up Display (HUD) combiner module
- Head Up Display (HUD) combiner module Remove the IPC. Refer to: Instrument Panel Cluster (IPC)

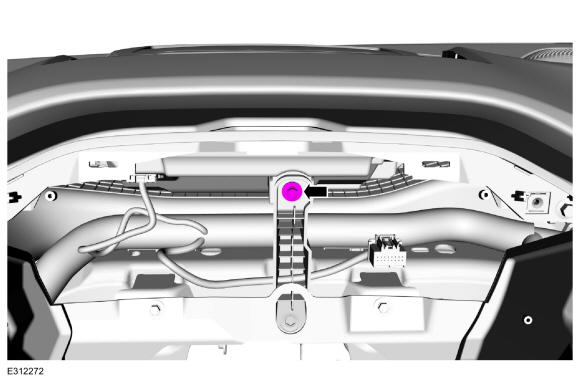

- Remove the lower HUD combiner module bolt.
Torque: 33 lb.in (3.7 Nm)

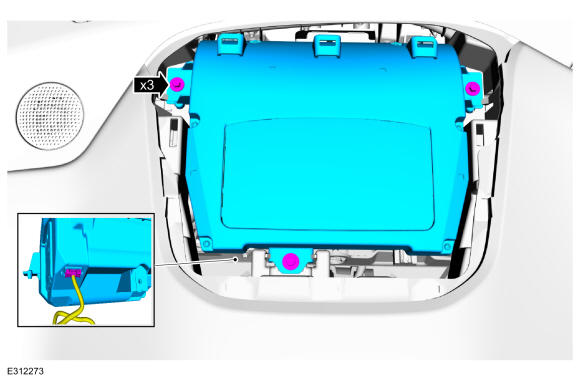

- Remove the bolts and disconnect the HUD combiner electrical connector. Remove the HUD combiner module.
Torque: 33 lb.in (3.7 Nm)
