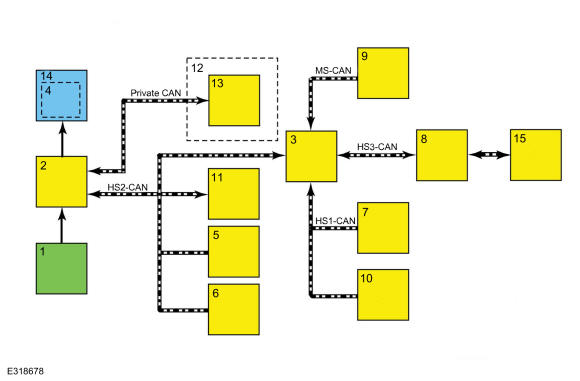

Lane Keeping Alert and Lane Keeping Aid
WARNING: This page is about a different car, the 2021 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Lane Keeping System Switch |
| 2 |
IPMA |
| 3 |
GWM |
| 4 |
Camera Windshield Defrost Heater |
| 5 |
RCM |
| 6 |
SCCM |
| 7 |
PCM |
| 8 |
IPC |
| 9 |
TRM |
| 10 |
BCM |
| 11 |
PSCM |
| 12 |
with active cruise control |
| 13 |
CCM |
| 14 |
Windshield |
| 15 |
APIM |
