OEM Ground Distribution: Grounds

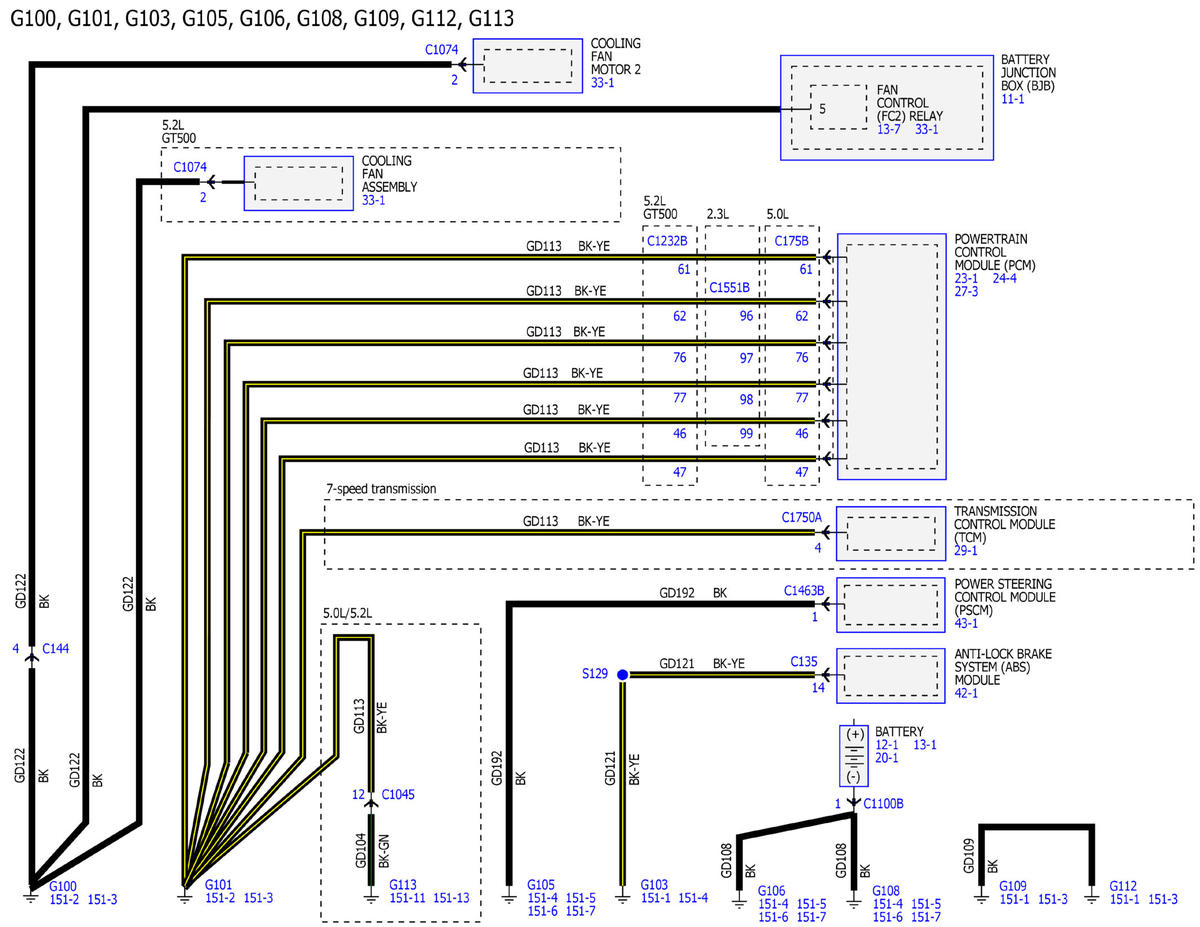

GFDWR141555Courtesy of FORD MOTOR COMPANY

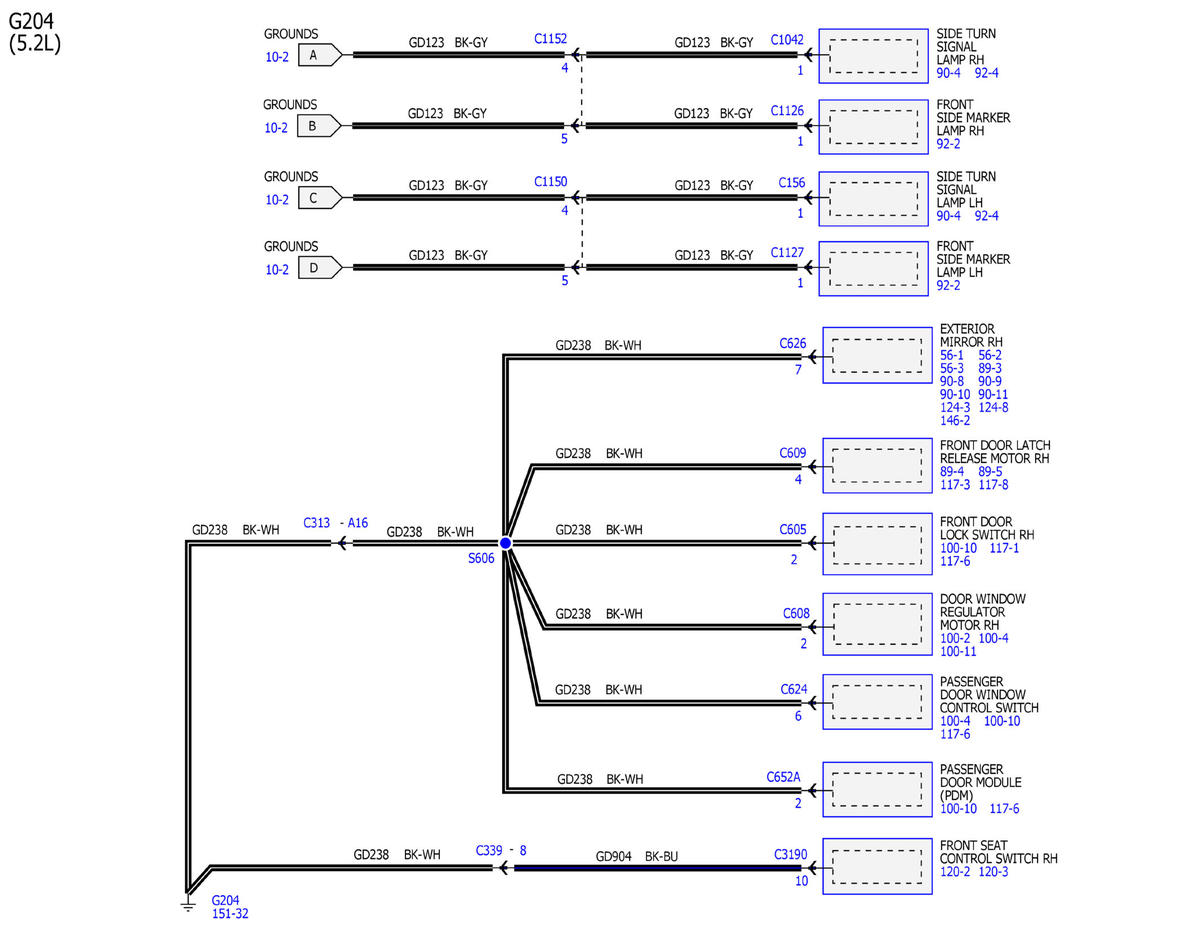

GFDWR141556Courtesy of FORD MOTOR COMPANY

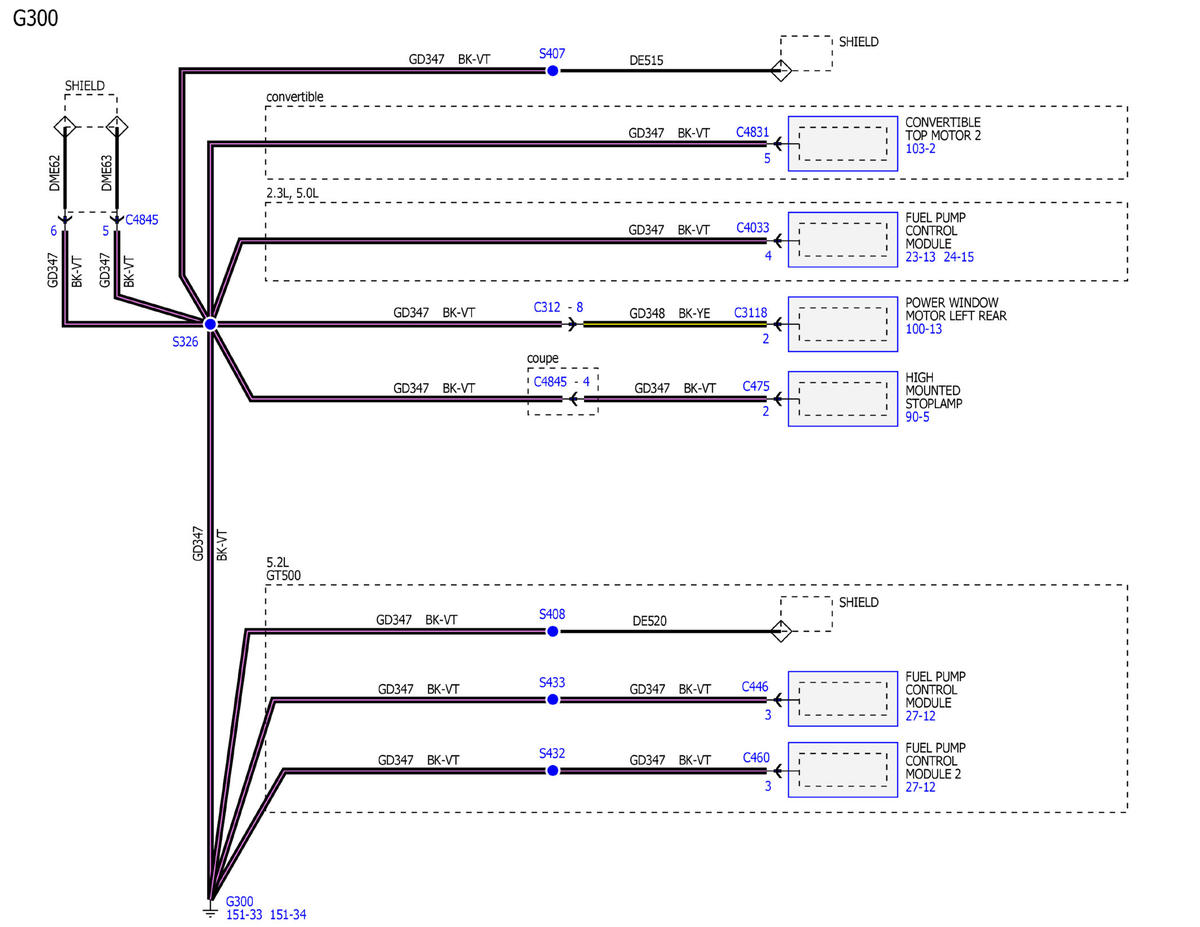

GFDWR141557Courtesy of FORD MOTOR COMPANY

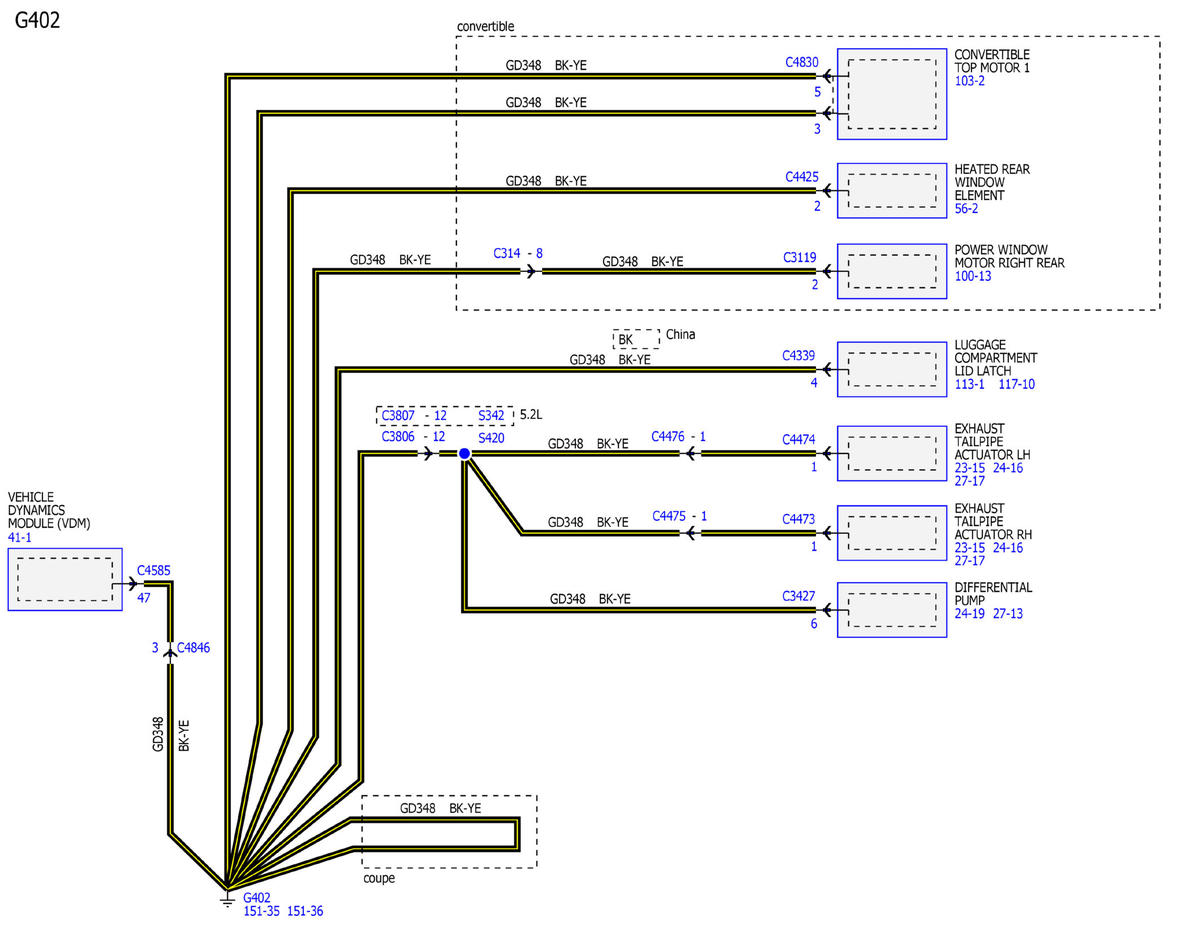

GFDWR141558Courtesy of FORD MOTOR COMPANY

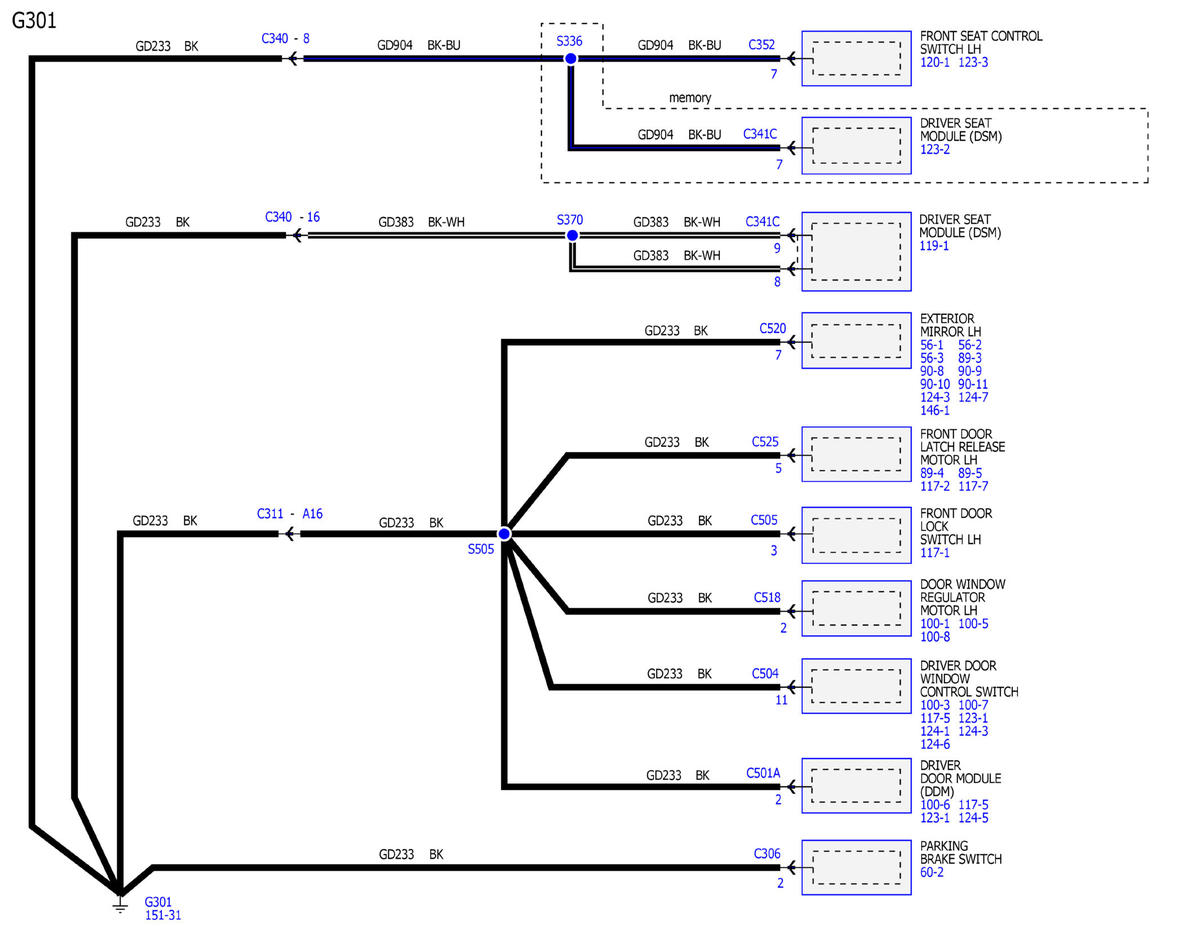

GFDWR141559Courtesy of FORD MOTOR COMPANY

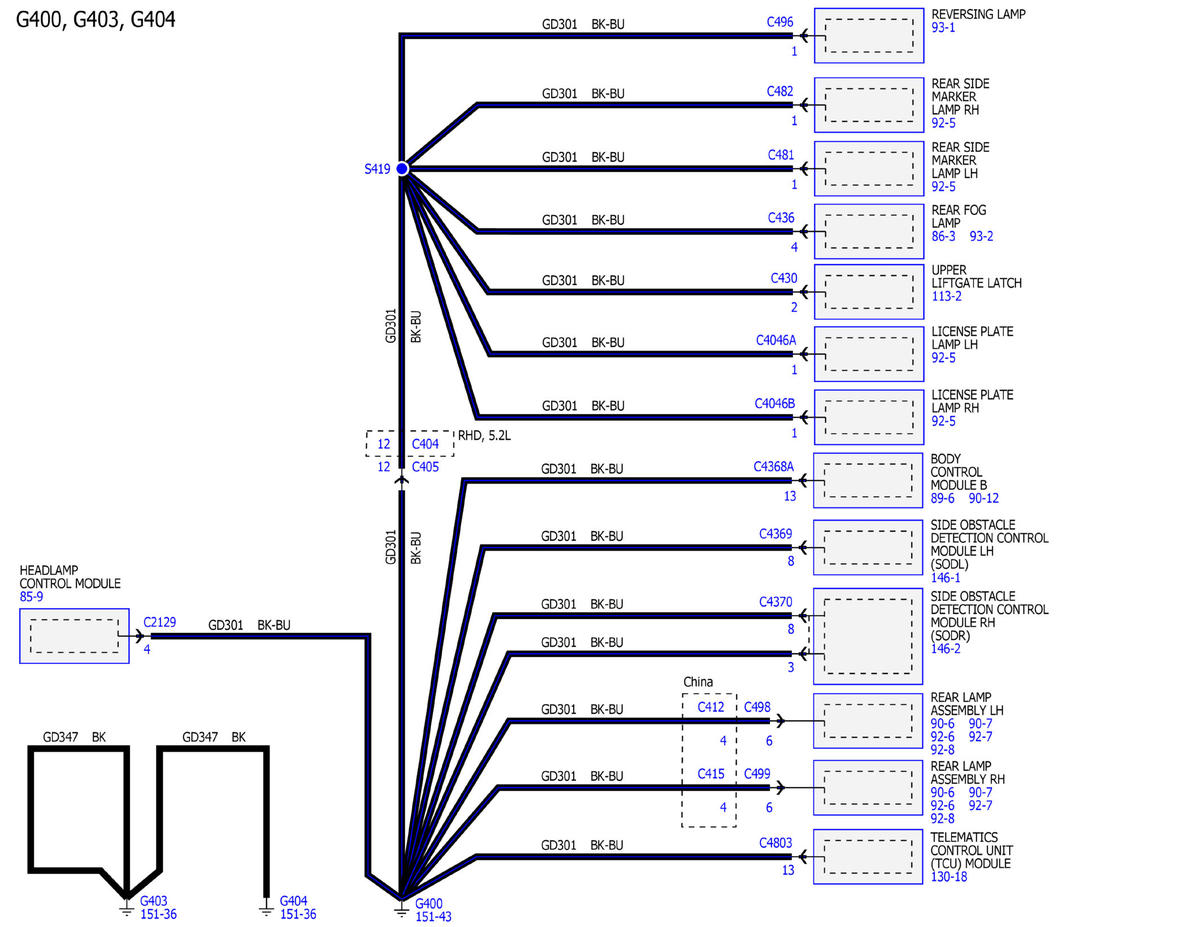

GFDWR141560Courtesy of FORD MOTOR COMPANY

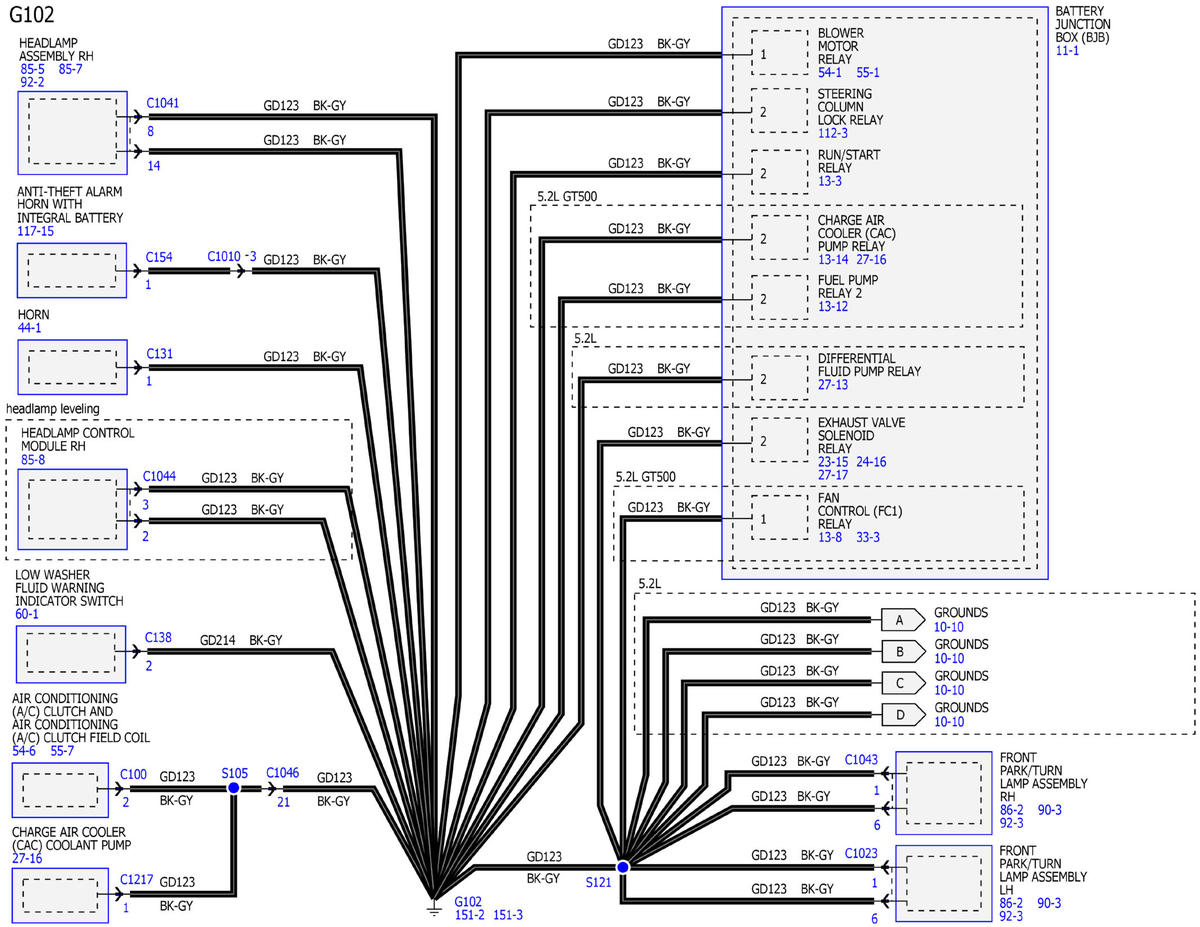

GFDWR141561Courtesy of FORD MOTOR COMPANY

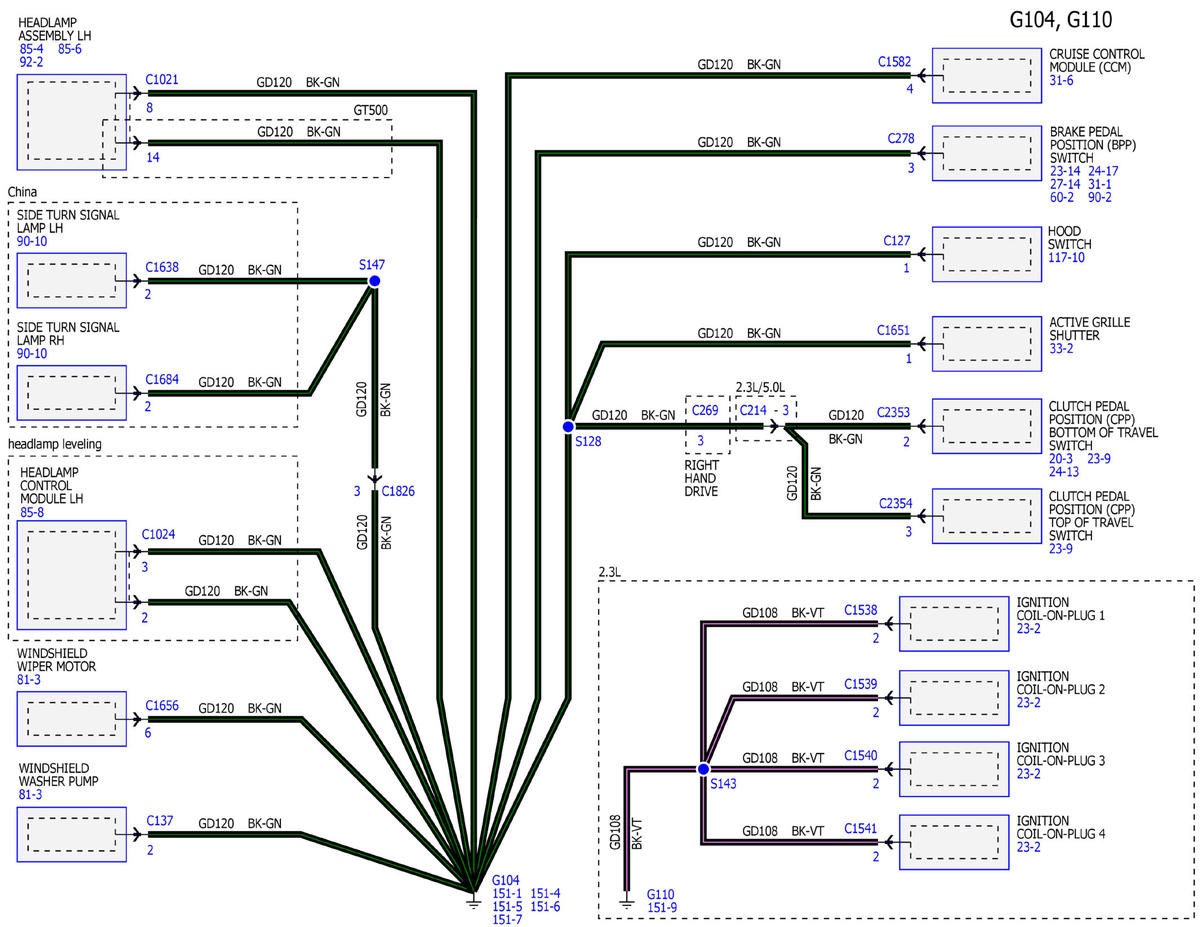

GFDWR141562Courtesy of FORD MOTOR COMPANY

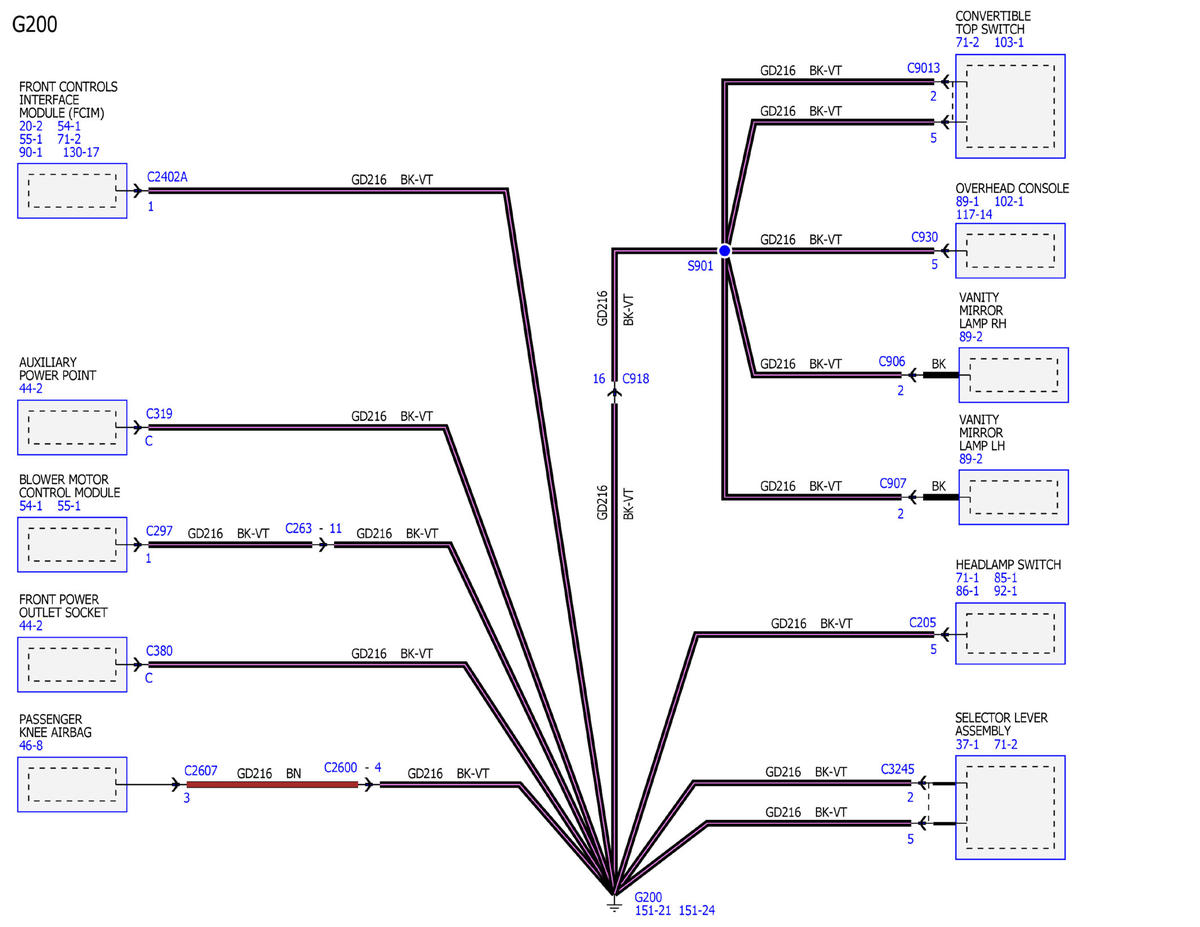

GFDWR141563Courtesy of FORD MOTOR COMPANY

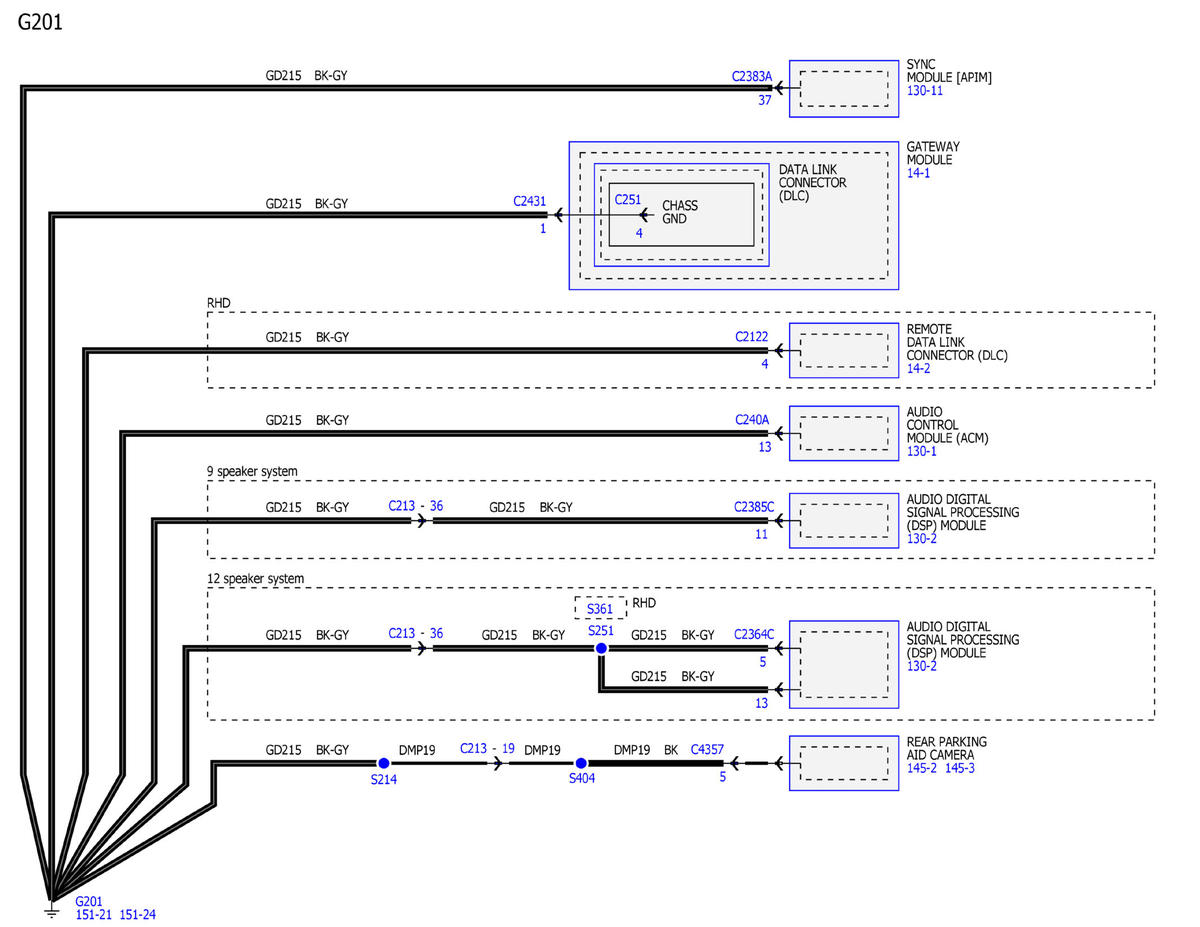

GFDWR141564Courtesy of FORD MOTOR COMPANY

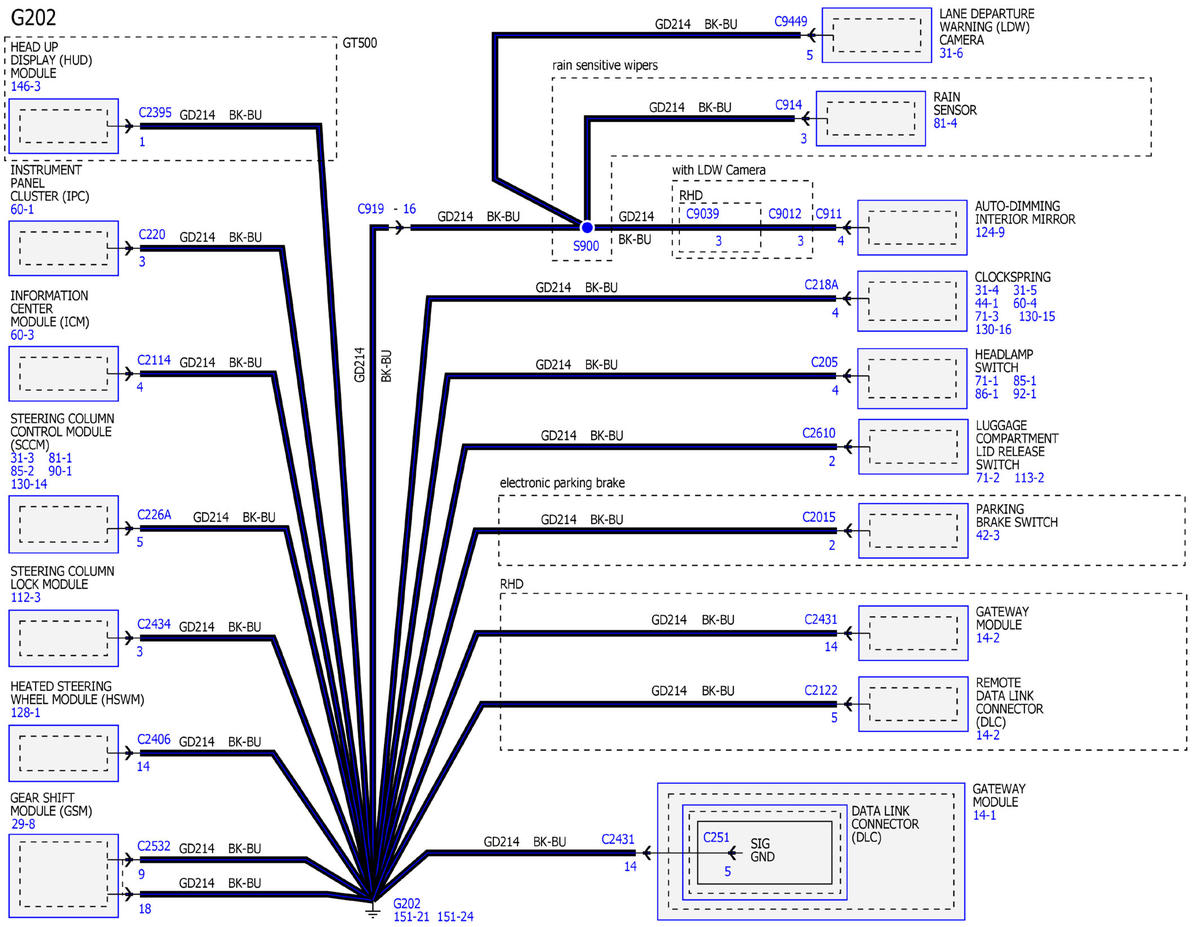

GFDWR141565Courtesy of FORD MOTOR COMPANY

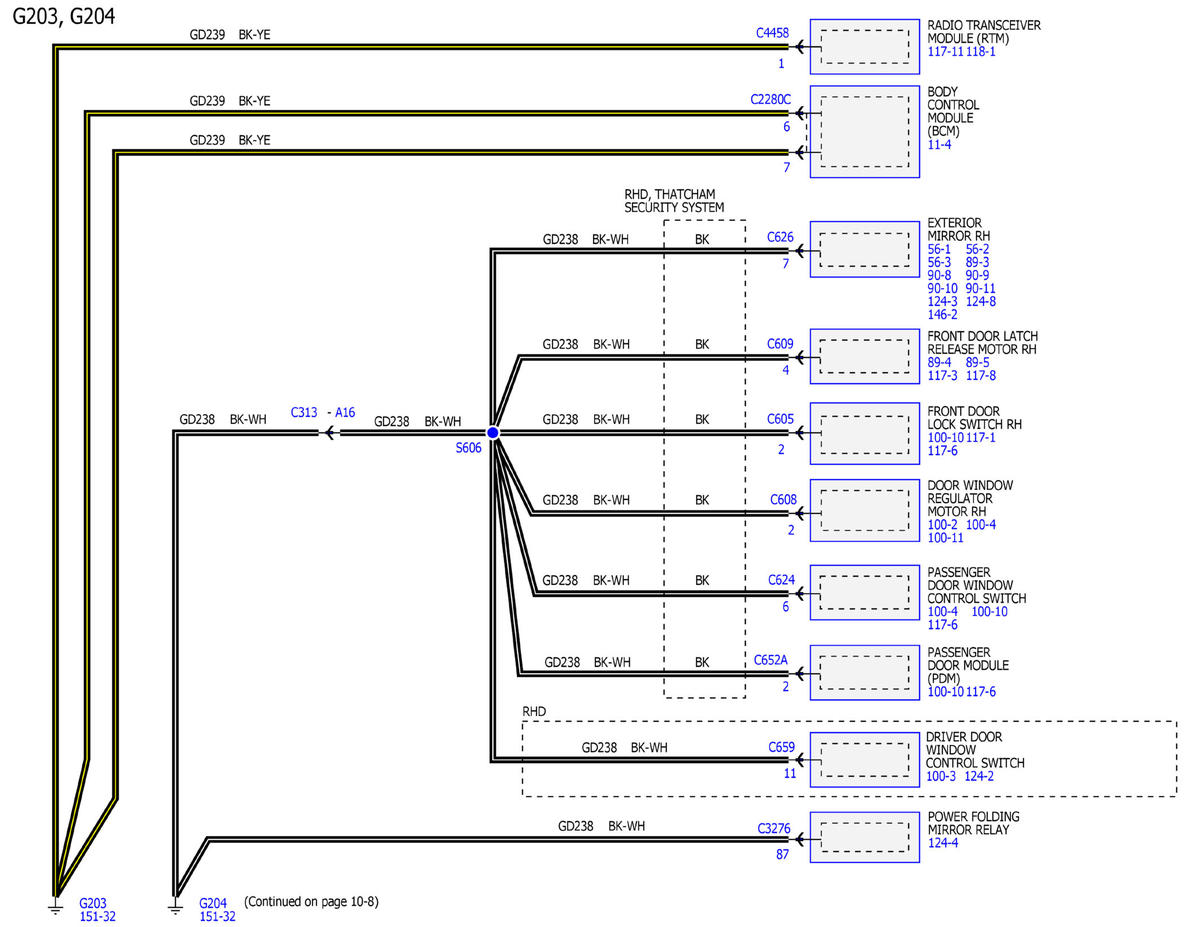

GFDWR141566Courtesy of FORD MOTOR COMPANY

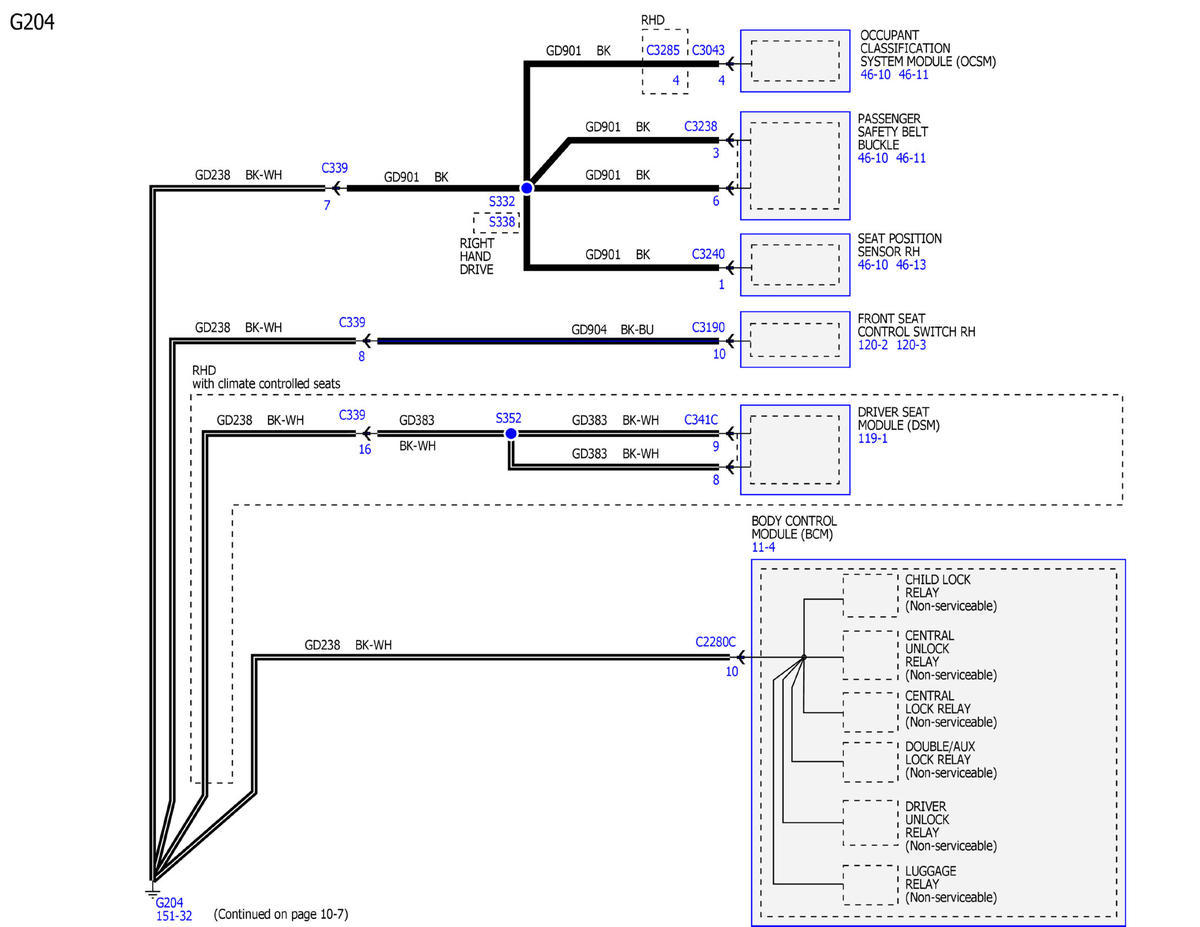

GFDWR141567Courtesy of FORD MOTOR COMPANY

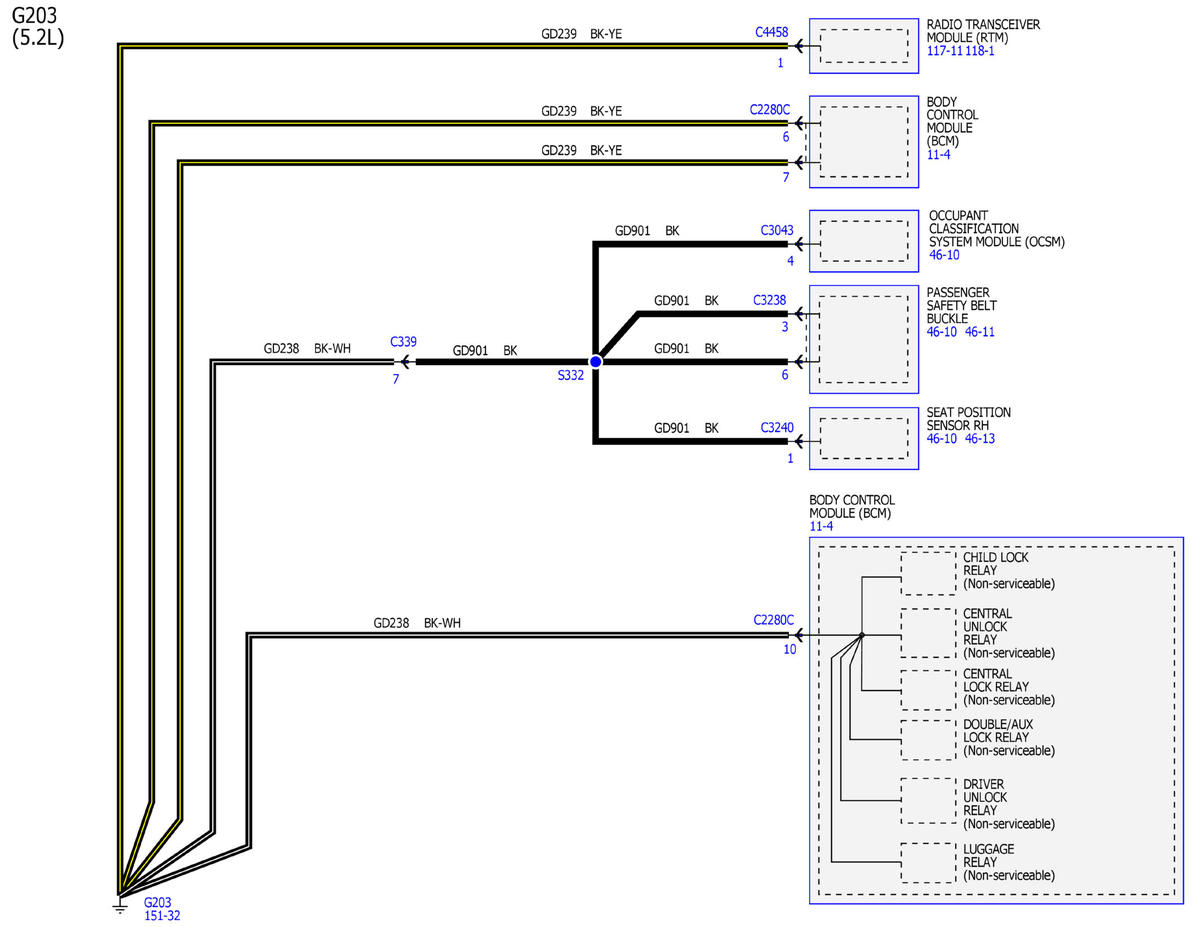

GFDWR141568Courtesy of FORD MOTOR COMPANY
