Component Testing

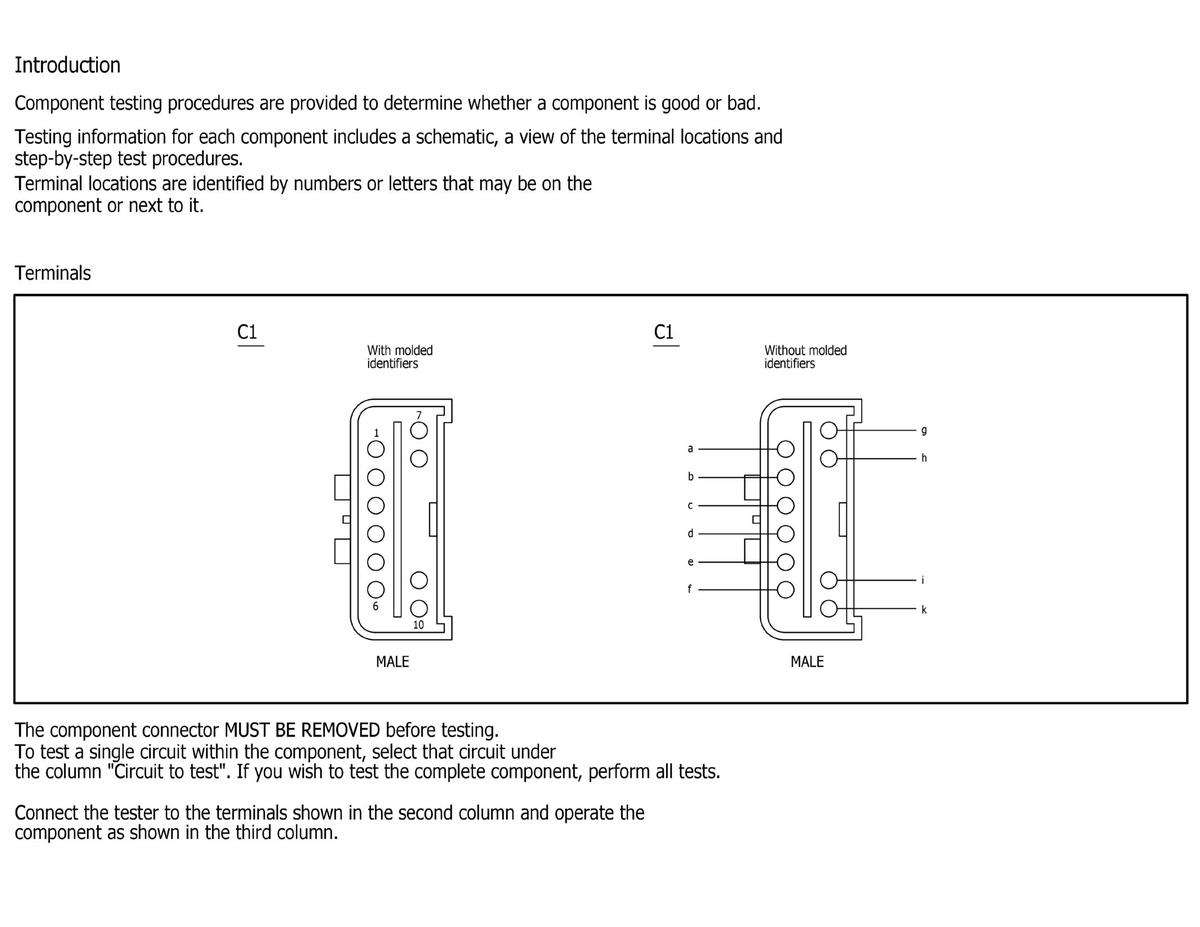

Fig 1: Component Testing Introduction
GFDWR141897Courtesy of FORD MOTOR COMPANY

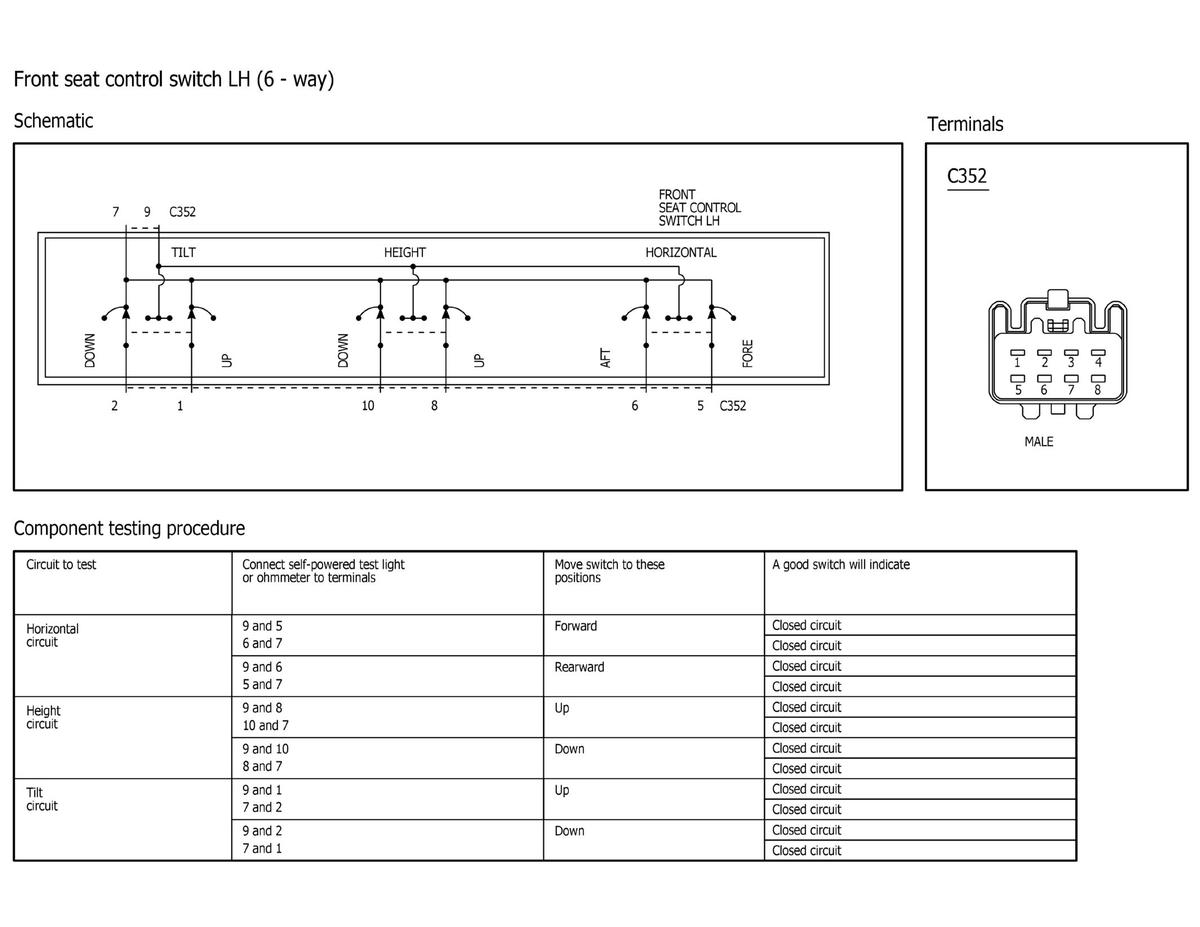

Fig 2: Front Seat Control Switch LH (6-Way) Component Testing
GFDWR141901Courtesy of FORD MOTOR COMPANY

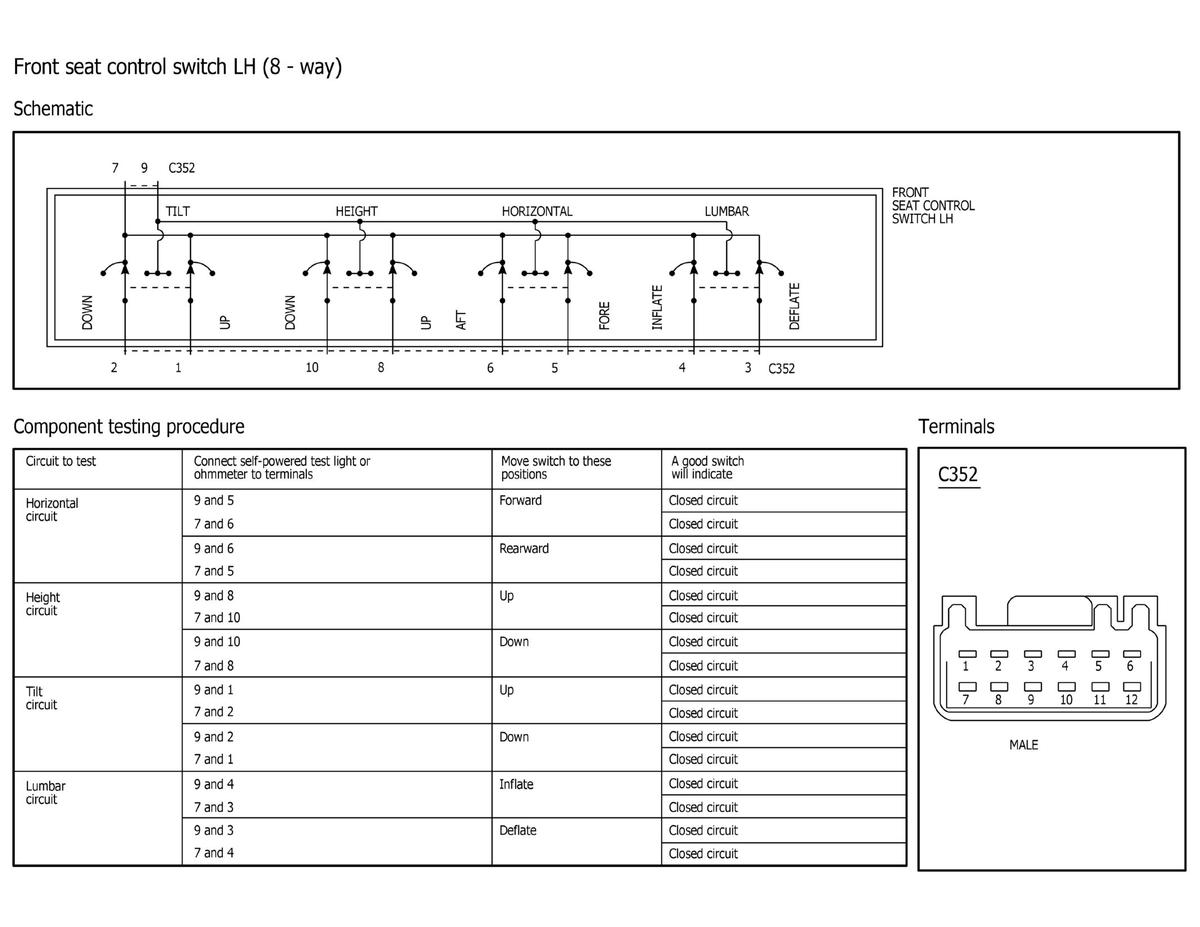

Fig 3: Front Seat Control Switch LH (8-Way) Component Testing
GFDWR141902Courtesy of FORD MOTOR COMPANY

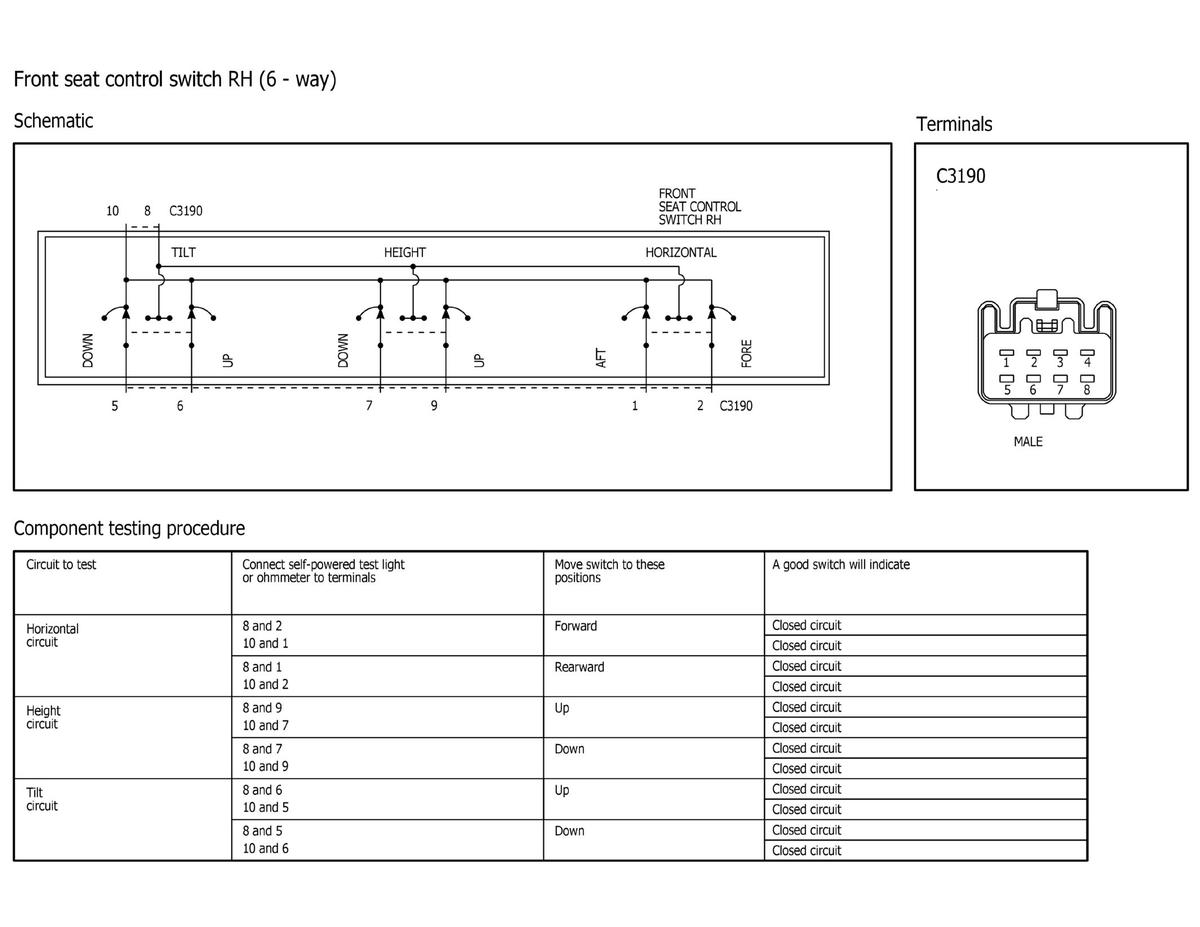

Fig 4: Front Seat Control Switch RH (6-Way) Component Testing
GFDWR141903Courtesy of FORD MOTOR COMPANY

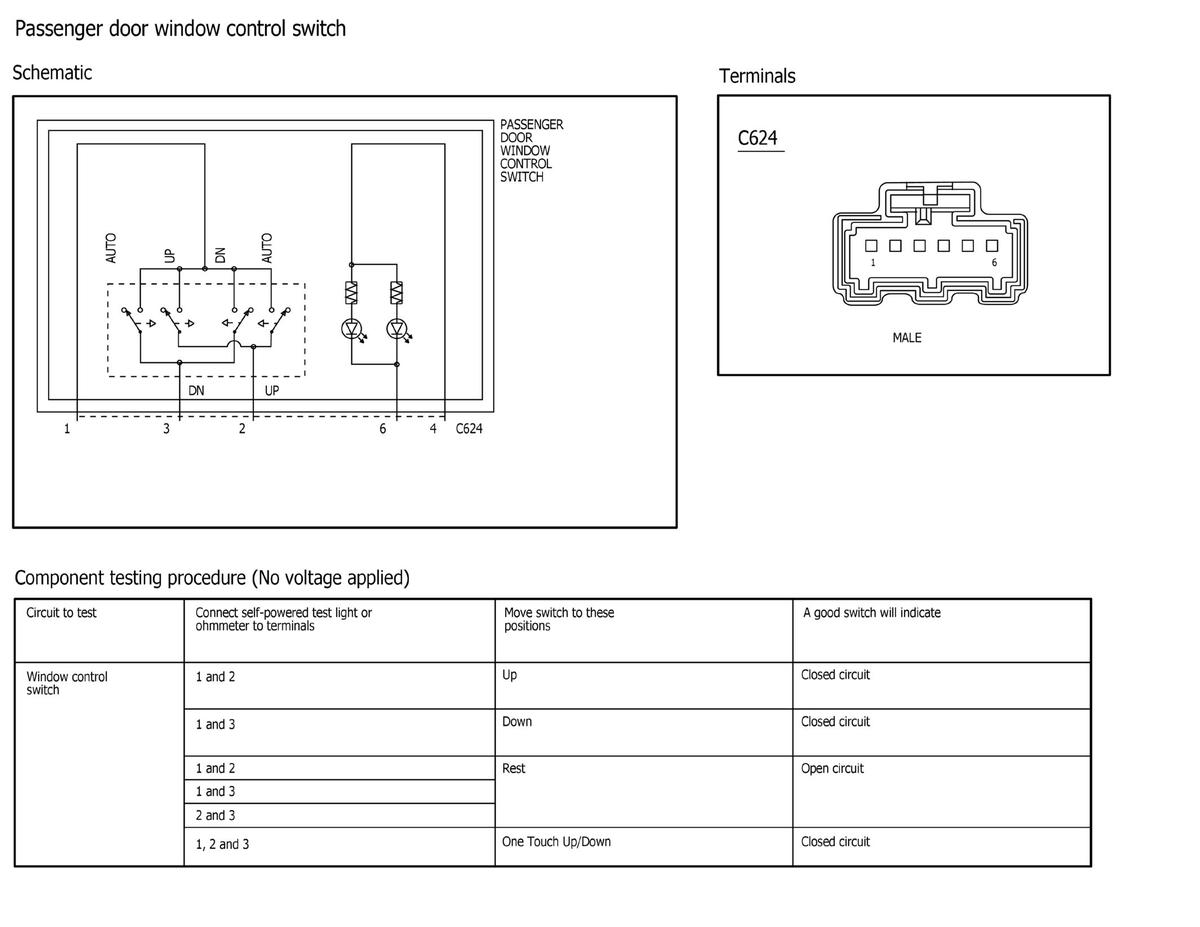

Fig 5: Passenger Door Window Control Switch Component Testing
GFDWR141904Courtesy of FORD MOTOR COMPANY

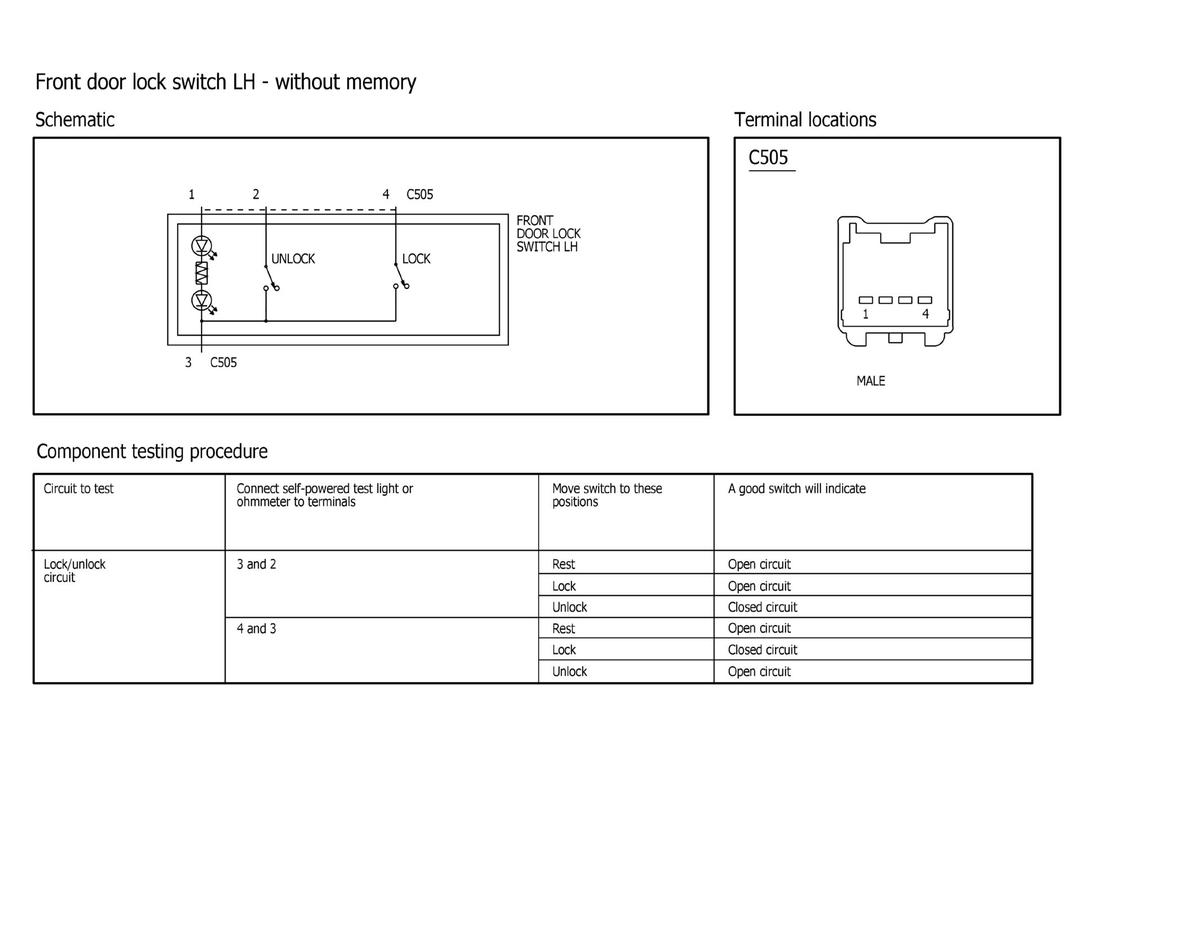

Fig 6: Front Door Lock Switch LH - Without Memory Component Testing
GFDWR141905Courtesy of FORD MOTOR COMPANY

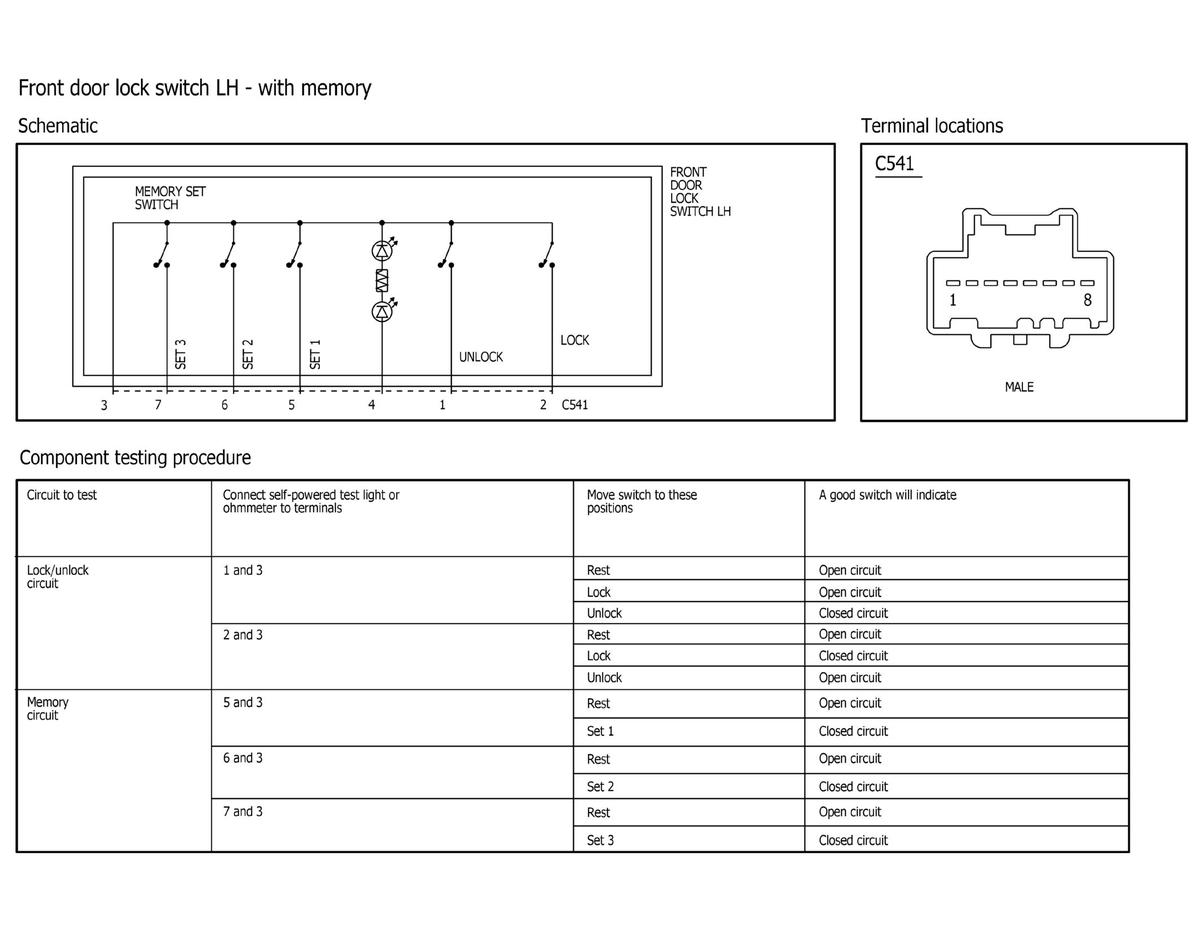

Fig 7: Front Door Lock Switch LH - With Memory Component Testing
GFDWR141906Courtesy of FORD MOTOR COMPANY

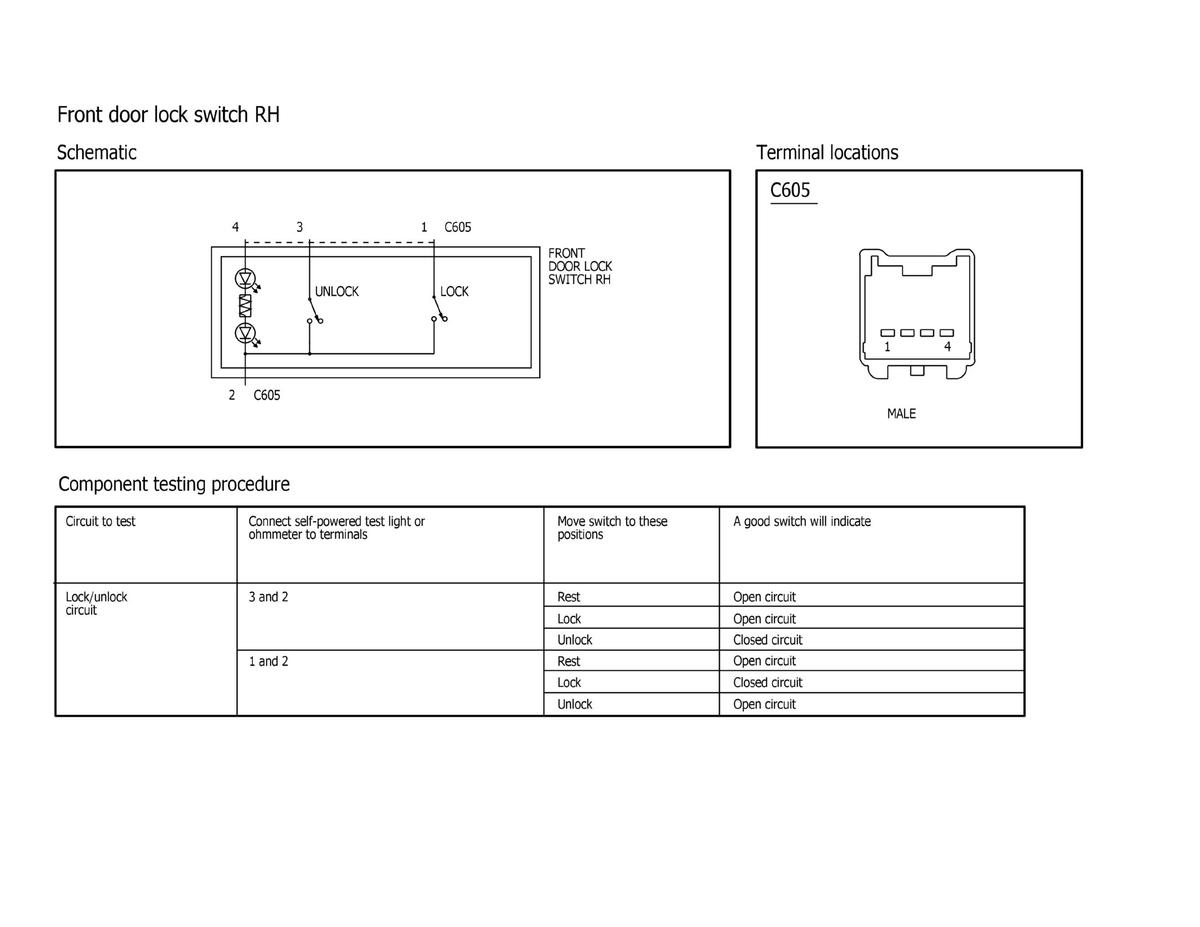

Fig 8: Front Door Lock Switch RH Component Testing
GFDWR141907Courtesy of FORD MOTOR COMPANY

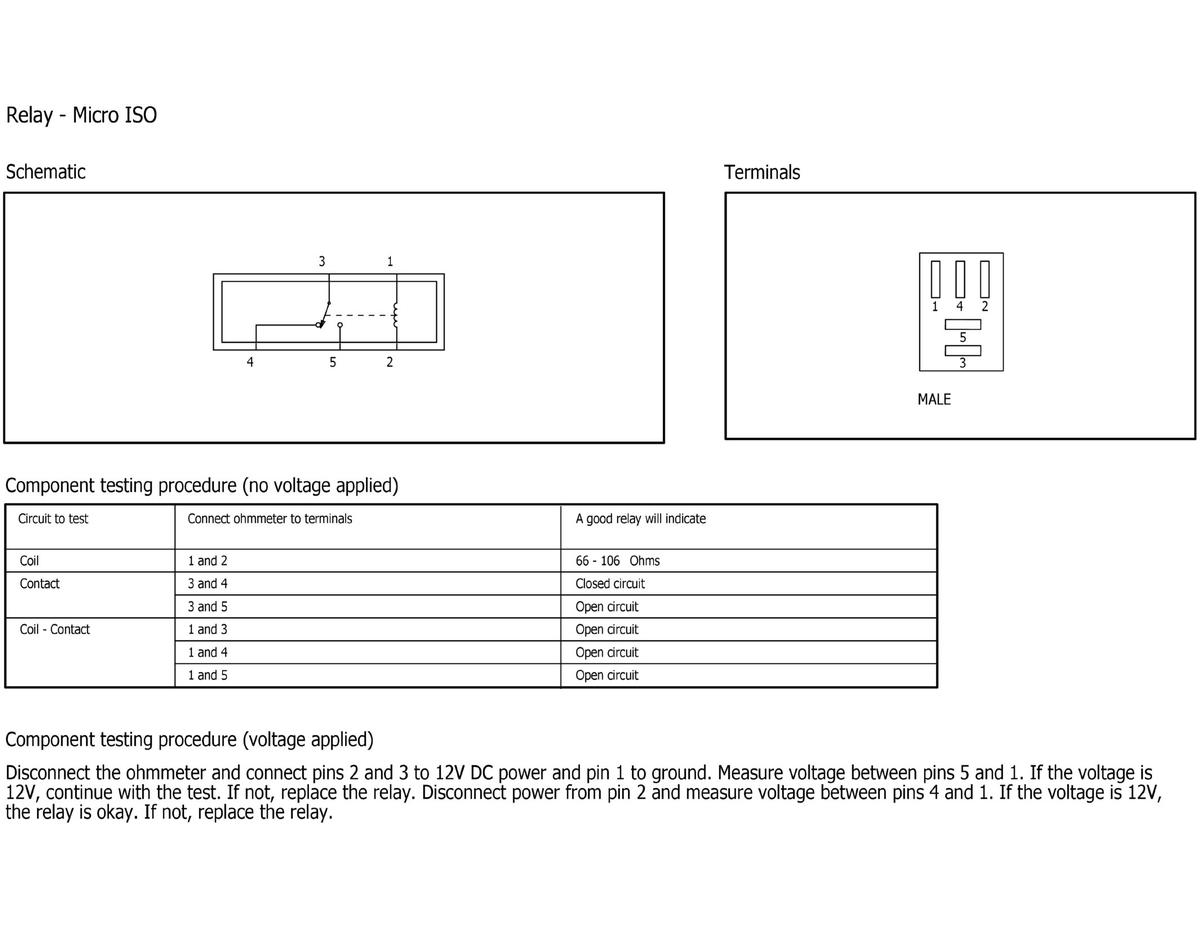

Fig 9: Relay - Micro ISO Component Testing
GFDWR141908Courtesy of FORD MOTOR COMPANY

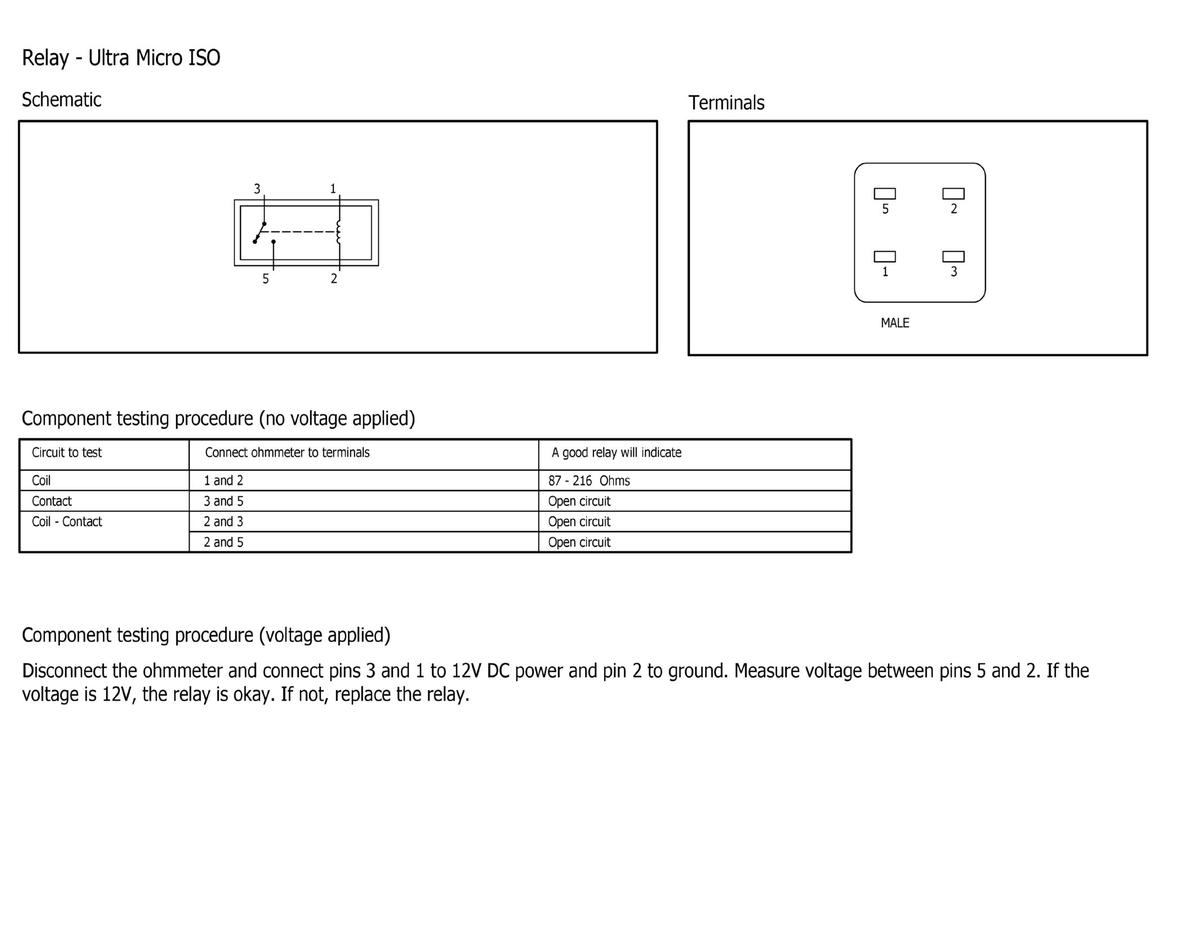

Fig 10: Relay - Ultra Micro ISO Component Testing
GFDWR141898Courtesy of FORD MOTOR COMPANY

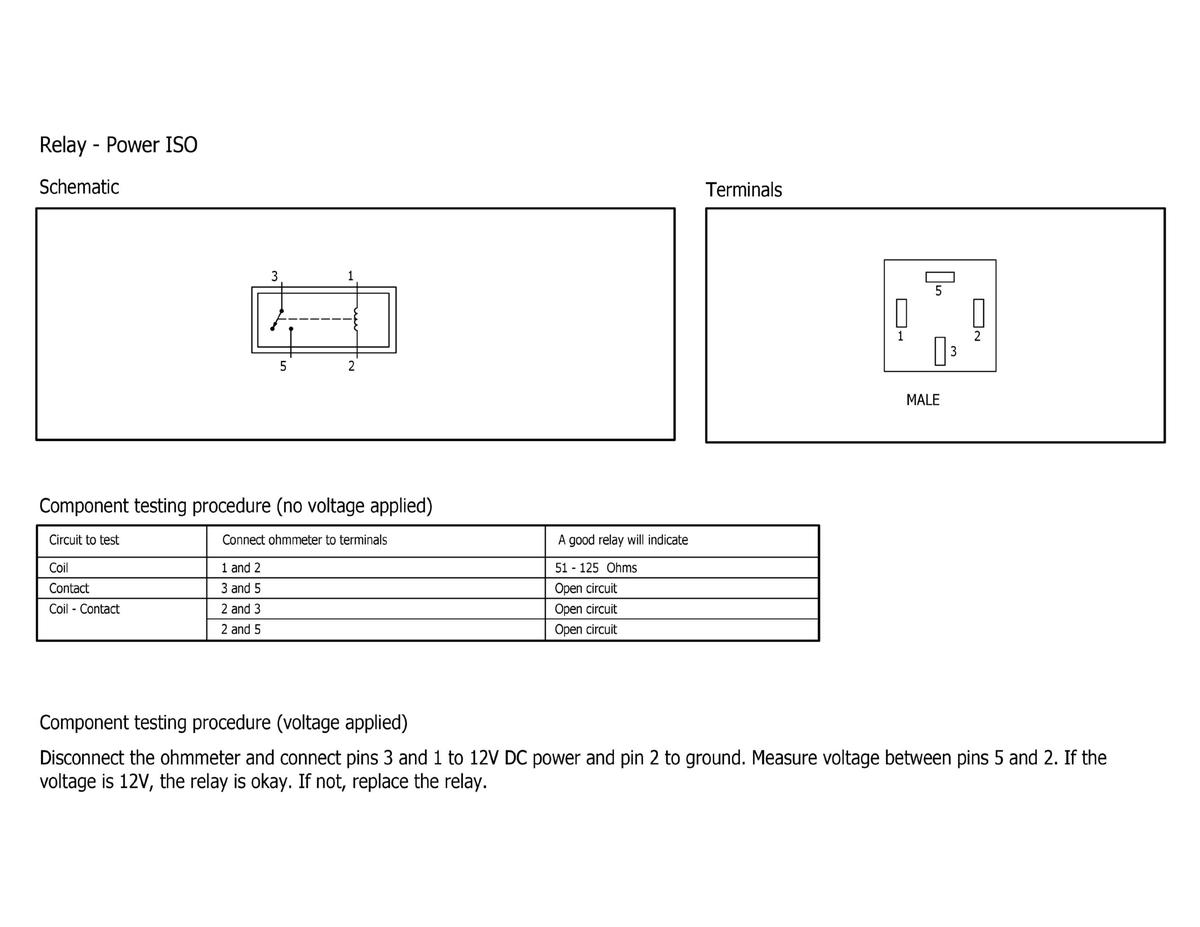

Fig 11: Relay - Power ISO Component Testing
GFDWR141899Courtesy of FORD MOTOR COMPANY

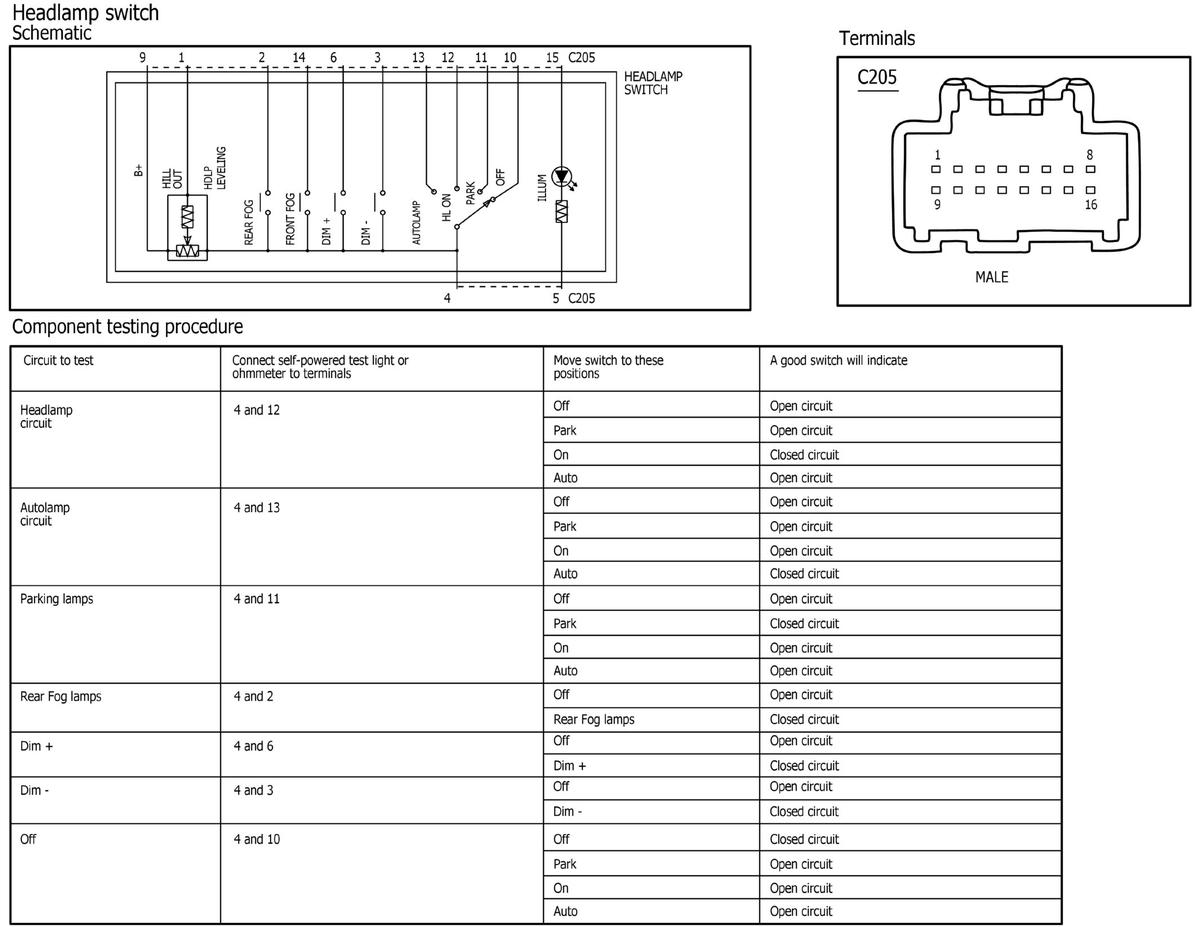

Fig 12: Headlamp Switch Schematic Component Testing
GFDWR141900Courtesy of FORD MOTOR COMPANY
Fig 13: Relay - Micro ISO Component Testing
GFDWR141908Courtesy of FORD MOTOR COMPANY
