Transfer Case - Vehicles With: Manual Shift Transfer Case: Assembly
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles except vehicles equipped with a 6R100 transmission built on or after 31-03-2017
NOTE:
Lubricate all internal components with the recommended transfer case lubricant during reassembly.
- Using the special tools, install the center support bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-344 (T95P-7H150-A) Installer, Driven Sprocket Wheel.
All vehicles
- Using the special tools, install the front planet carrier bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 308-410 Installer, Output Shaft Front Bearing.
- Using the special tools, install the front output shaft bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-626 Installer, Differential Seal.
- Using the special tools, install the front output shaft support bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-626 Installer, Differential Seal.
- Using the special tools, install the rear output shaft bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 308-410 Installer, Output Shaft Front Bearing.

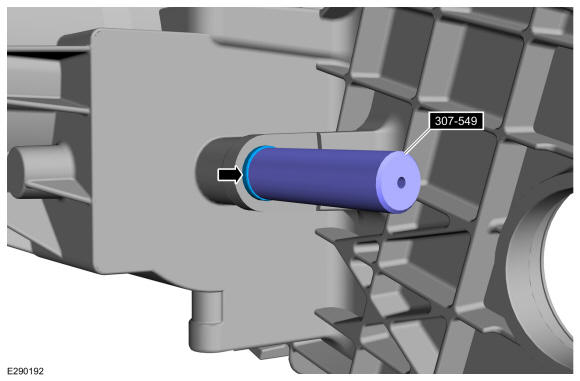

- Using the special tools, install the shift shaft seal. Install Special Service Tool: 307-549 Installer, Shift Shaft Fluid Seal.
- Using the special tools, install the input shaft seal. Use Special Service Tool: 205-1018 Installation Tube., 308-943 Installer, Input Seal.
- Using the special tools, install the front output shaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 308-944 Installer, Front Output Seal.
-
NOTE: Do not let the front output shaft fall while removing the snap ring or damage to the component may occur.

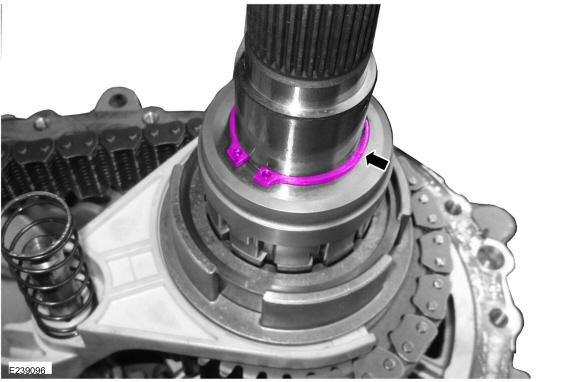

Install the output shaft and the out put shaft circlip.
- Install the manual shift assembly.

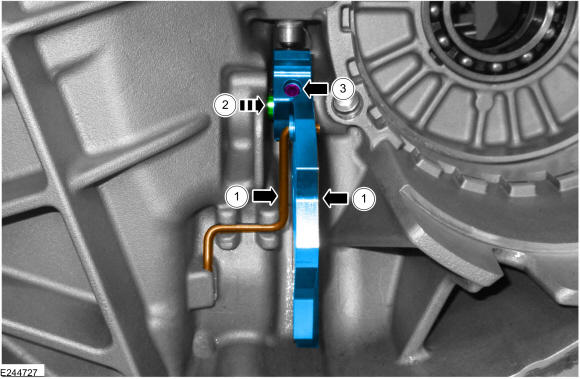

- Install the shift guide plate and guide plate spring arm.
- Install the shift lever.
- Tighten the shift lever set screw.
- Install the ring gear and the ring gear circlip.

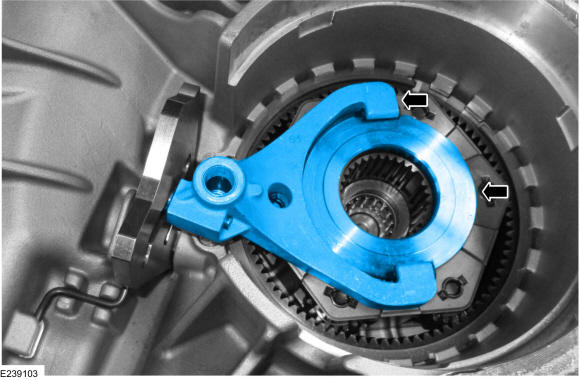

- Install the planet carrier and the front planet carrier thrust bearing.
- Install the shift fork assembly.

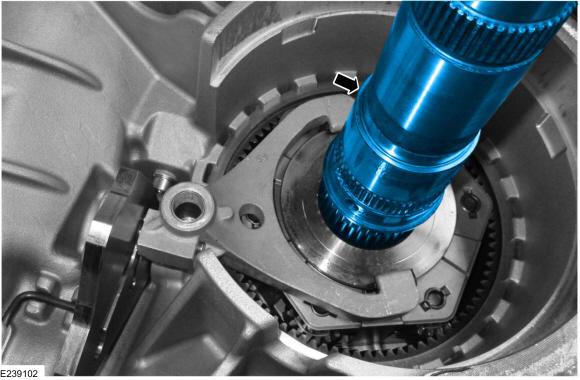

- Install the output shaft.
-
NOTE: The pump assembly is not repairable.

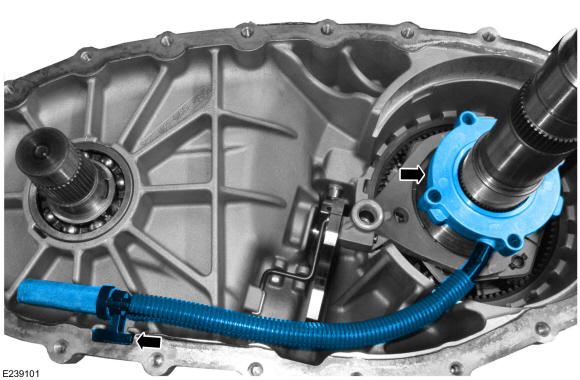

Install the magnet and oil pump assembly.
All vehicles except vehicles equipped with a 6R100 transmission built on or after 31-03-2017
- Install the center bearing support assembly.
Vehicles equipped with a 6R100 transmission built on or after 31-03-2017
- Install the center support assembly.
All vehicles

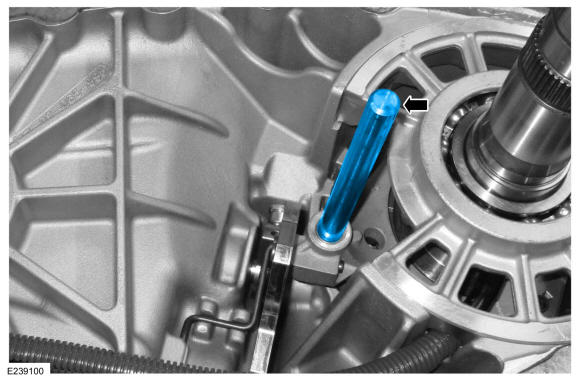

- Install the shift rail.

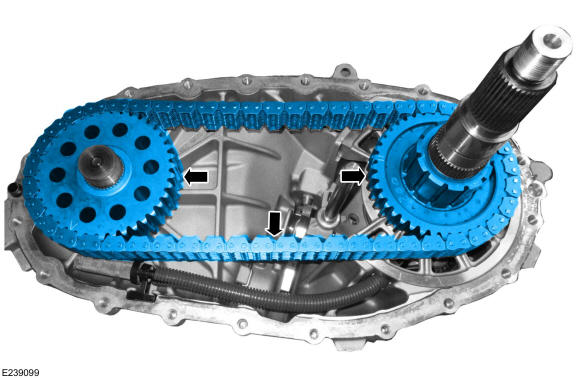

- Install the drive chain and the sprockets as an assembly.
- Install the lock hub shift fork assembly.

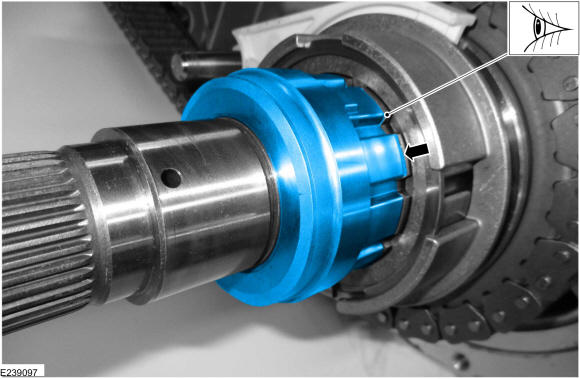

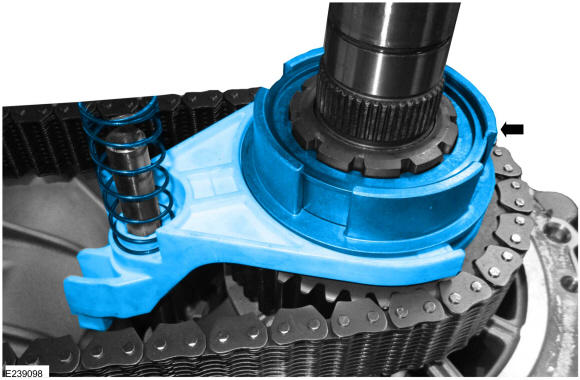

- Install the shift fork lock hub and align shift fork slide grooves.
- Install the shift lock hub snap ring.
-
NOTE: Only apply enough silicone sealant to seal the transfer case halves together.
Apply a small bead of silicone sealant to the mating surface of the case half.
Material: Motorcraft® Ultra Silicone Sealant / TA-29

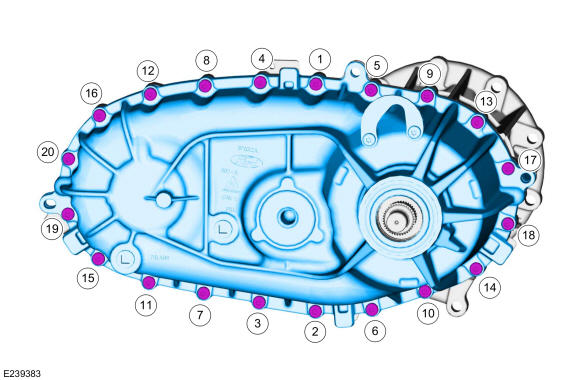

- Position the transfer case halves and tighten the bolts in the sequence shown.
Torque: 23 lb.ft (31 Nm)
- Install the transfer case rear seal. Refer to: Transfer Case Rear Seal - Vehicles With: Flanged Yoke .
- Remove the transfer case from the transmission adjustable mounting arms. Use the General Equipment: Adjustable Mounting Arm
