Module Controlled Functions - Component Location

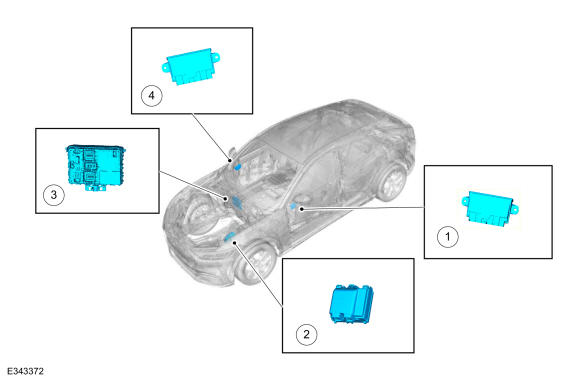

NOTE: Left hand drive (LHD) shown, right hand drive (RHD) similar.
GFD610249Courtesy of FORD MOTOR COMPANY
Item Description
1 DDM
2 BCMC
3 BCM
4 PDM
