OEM Ground Distribution: Grounds

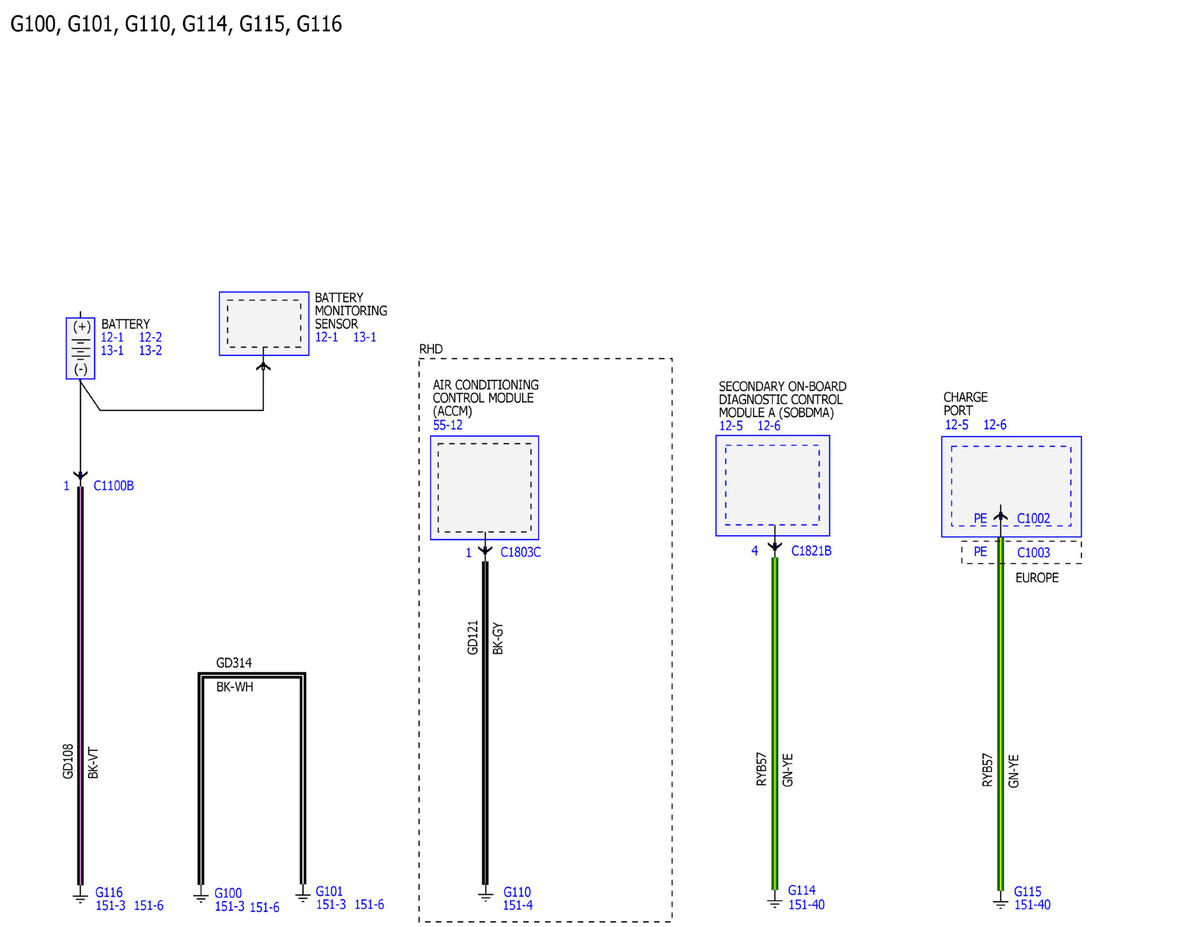

GFDWR145150Courtesy of FORD MOTOR COMPANY

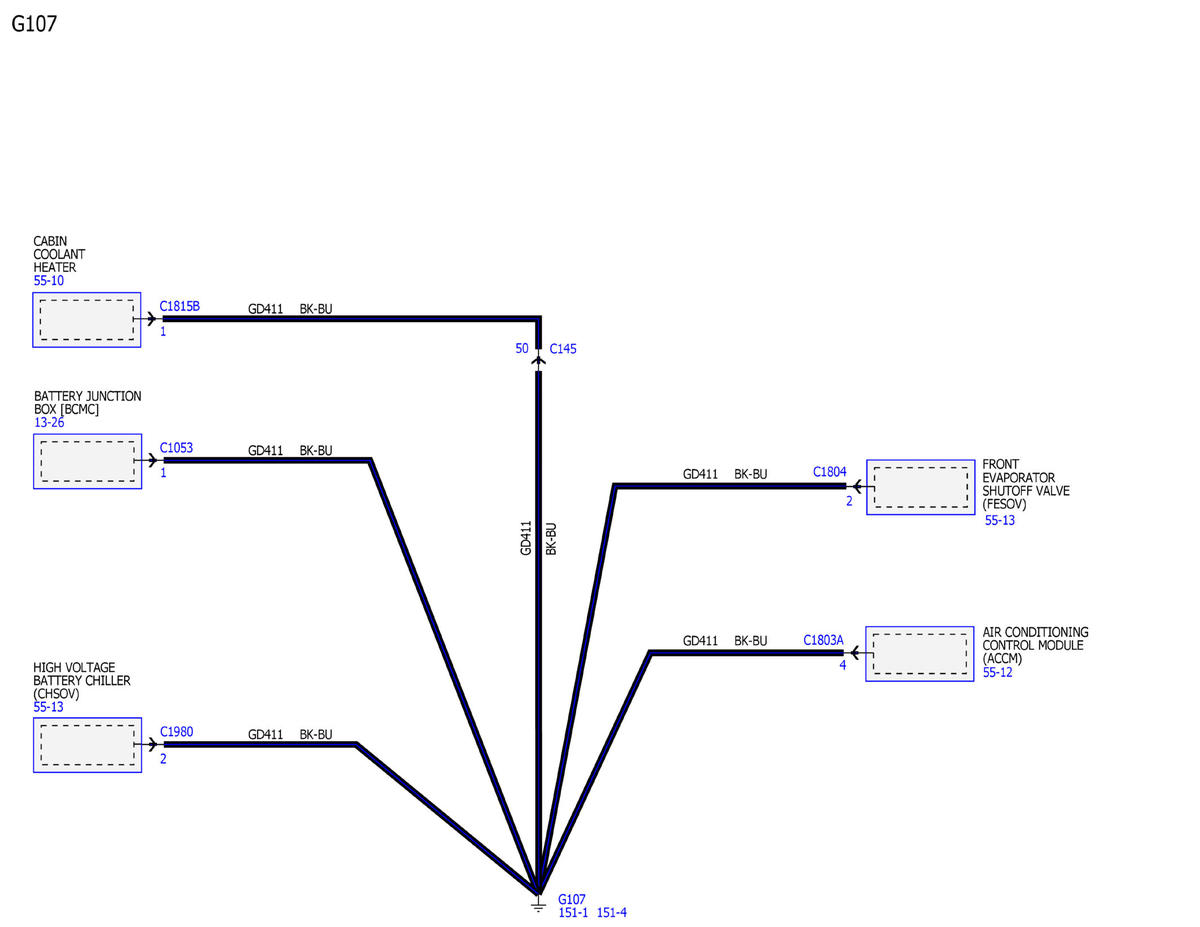

GFDWR145161Courtesy of FORD MOTOR COMPANY

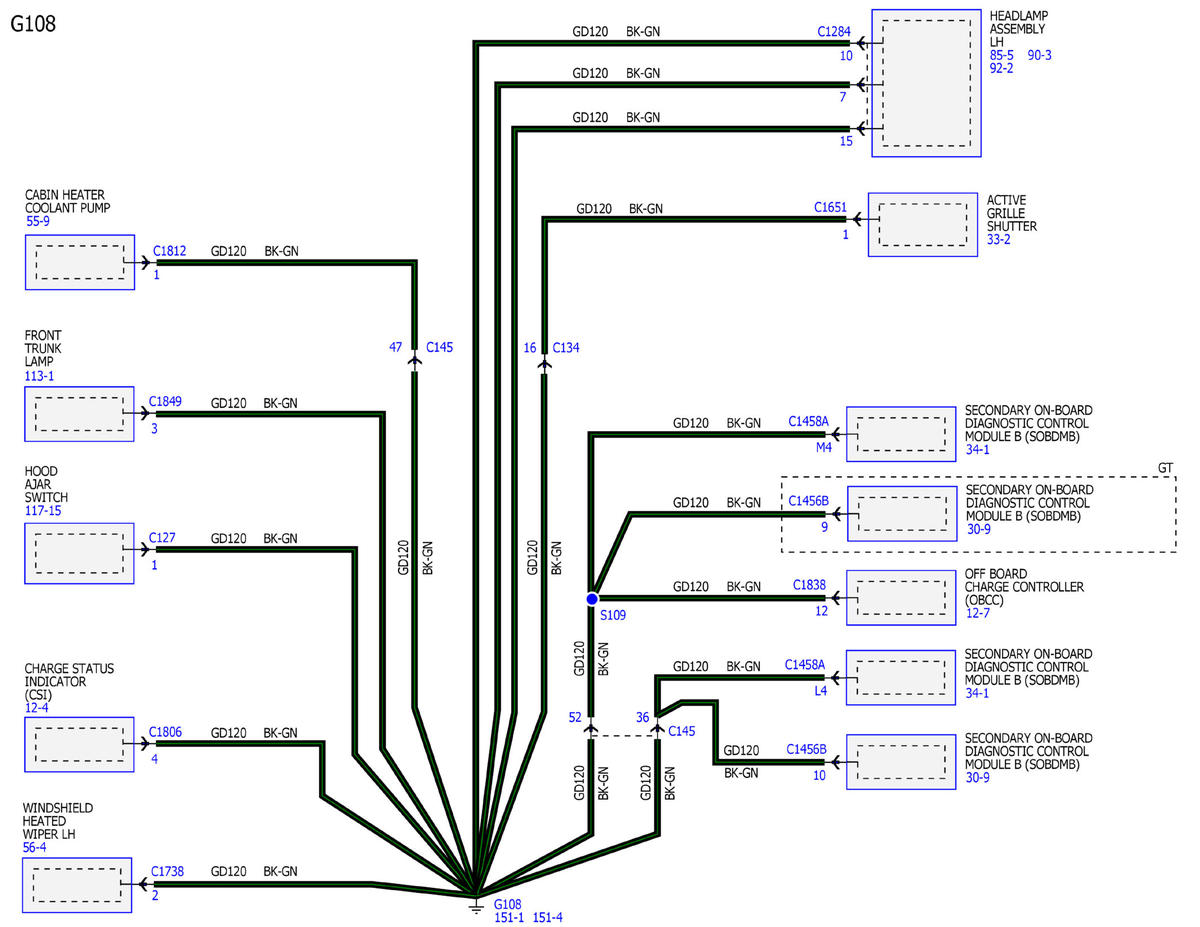

GFDWR145171Courtesy of FORD MOTOR COMPANY

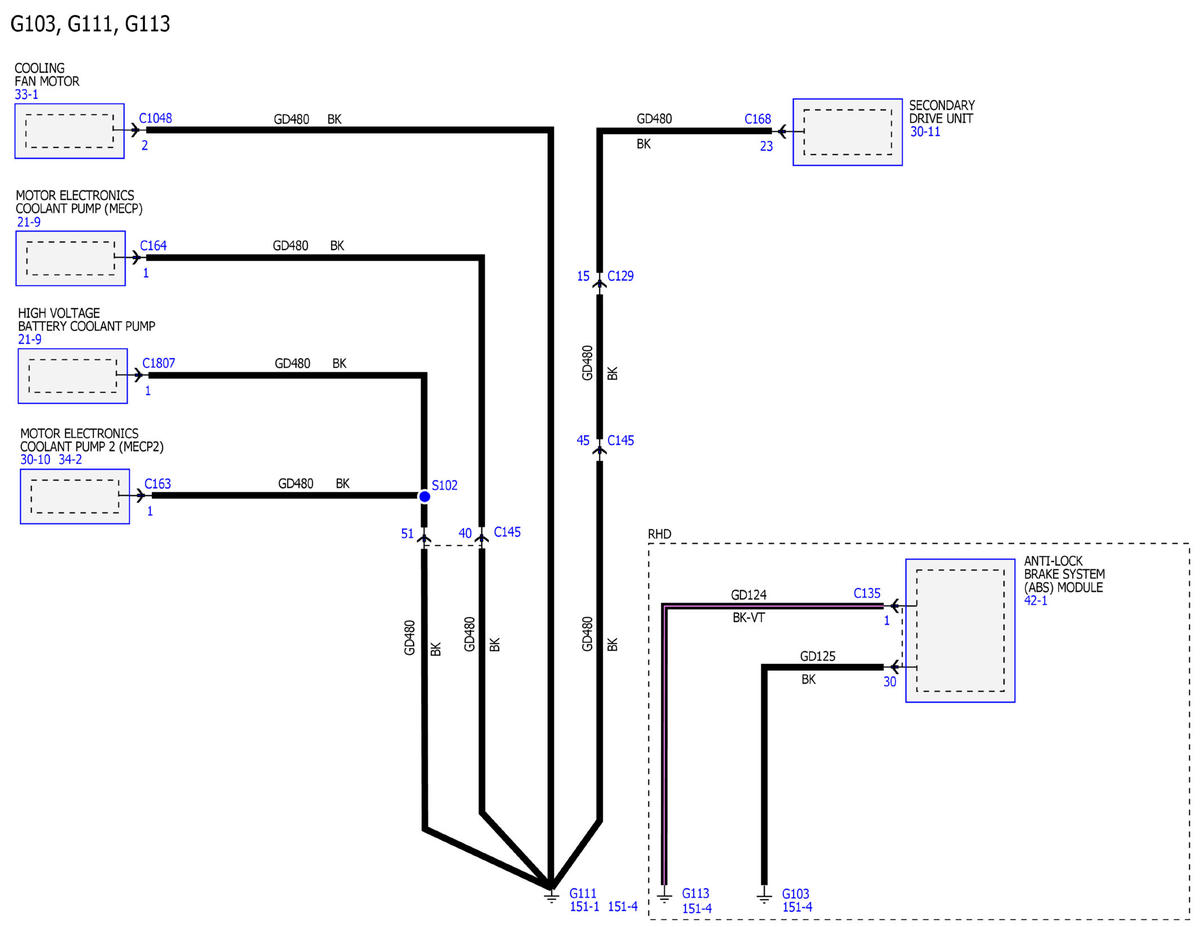

GFDWR145172Courtesy of FORD MOTOR COMPANY

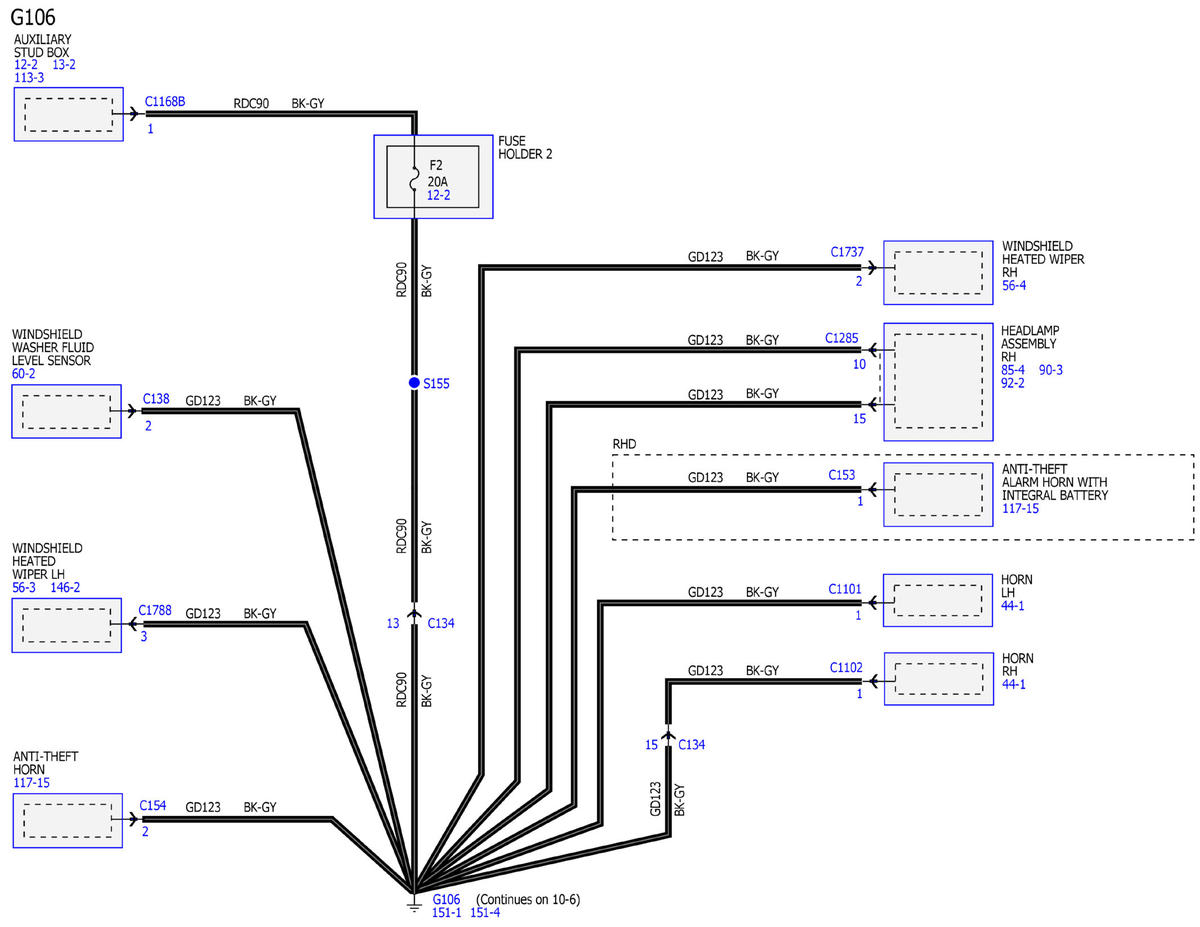

GFDWR145173Courtesy of FORD MOTOR COMPANY

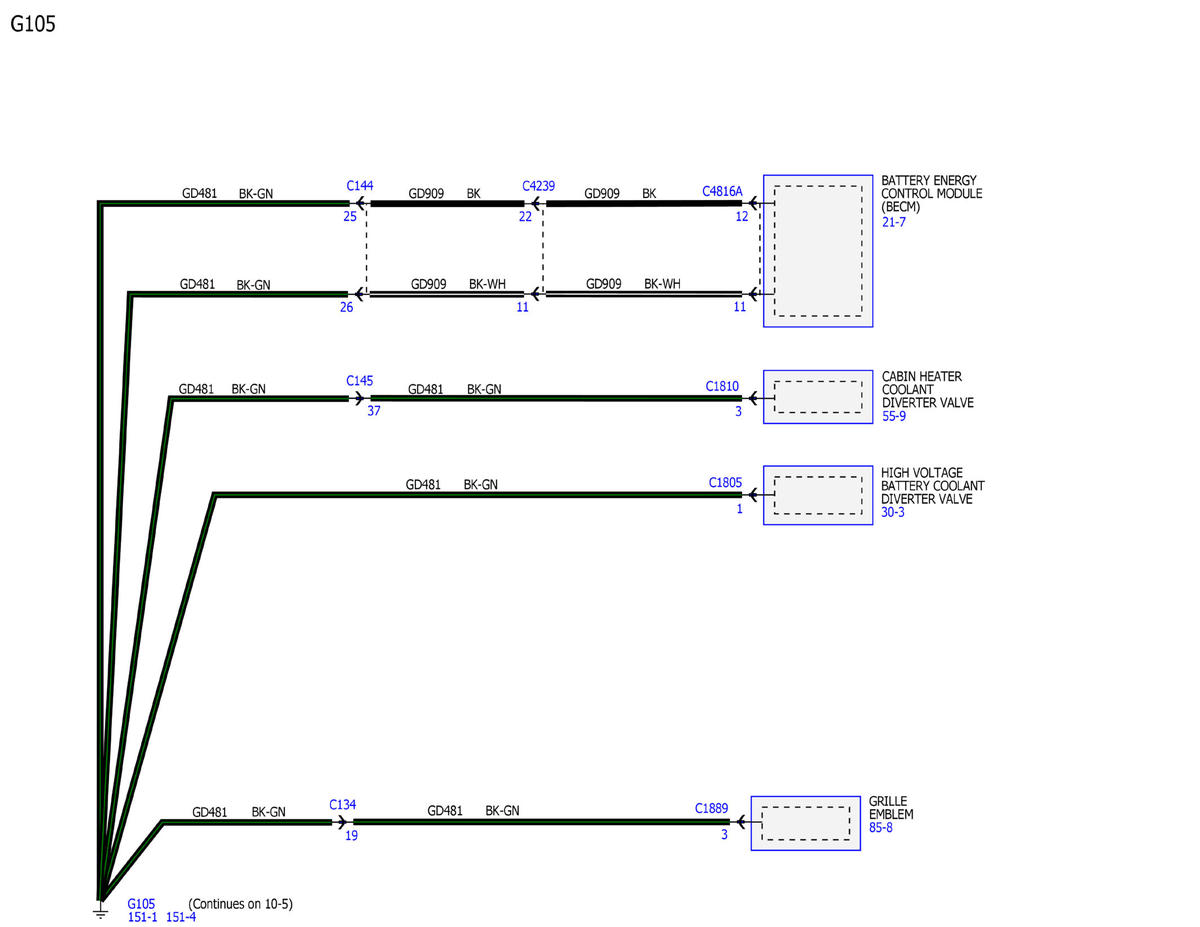

GFDWR145174Courtesy of FORD MOTOR COMPANY

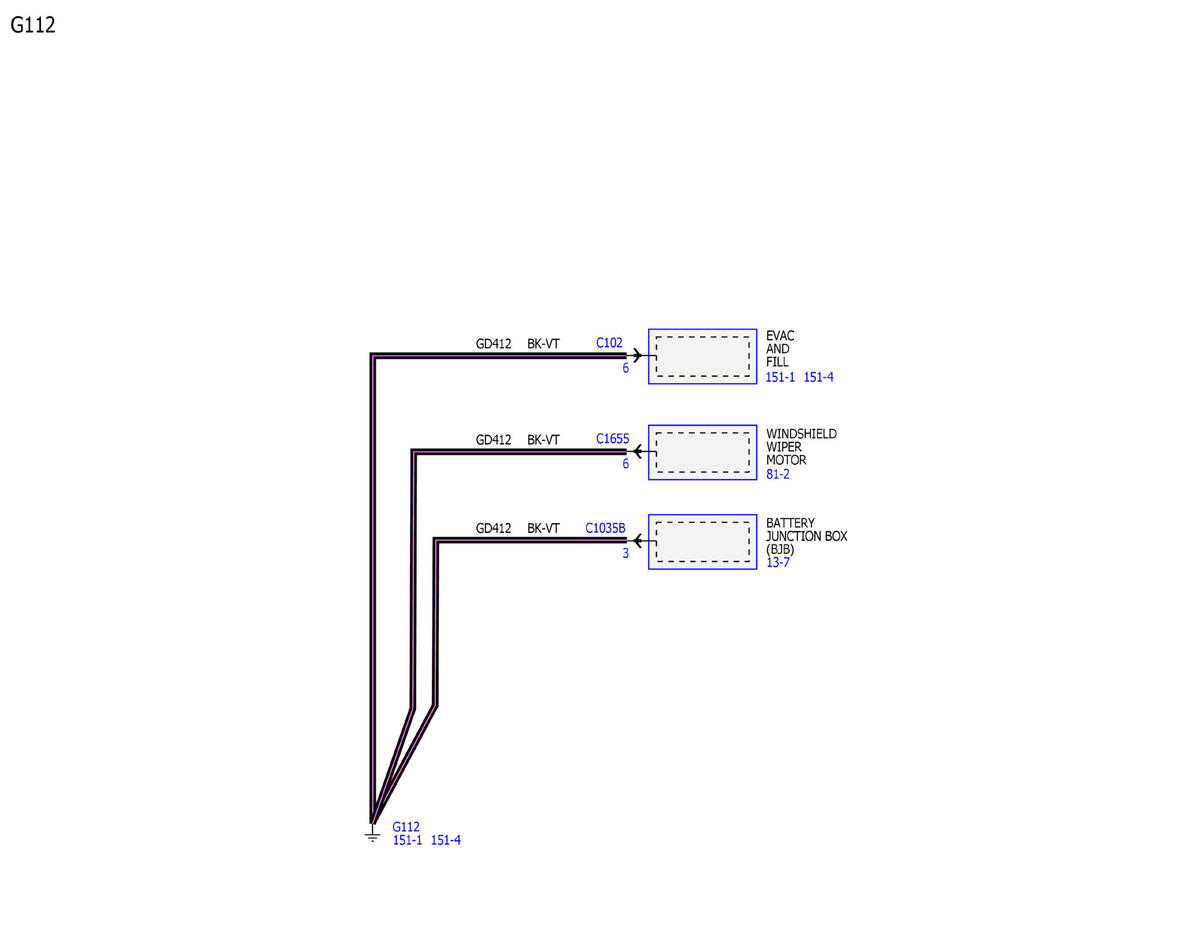

GFDWR145175Courtesy of FORD MOTOR COMPANY

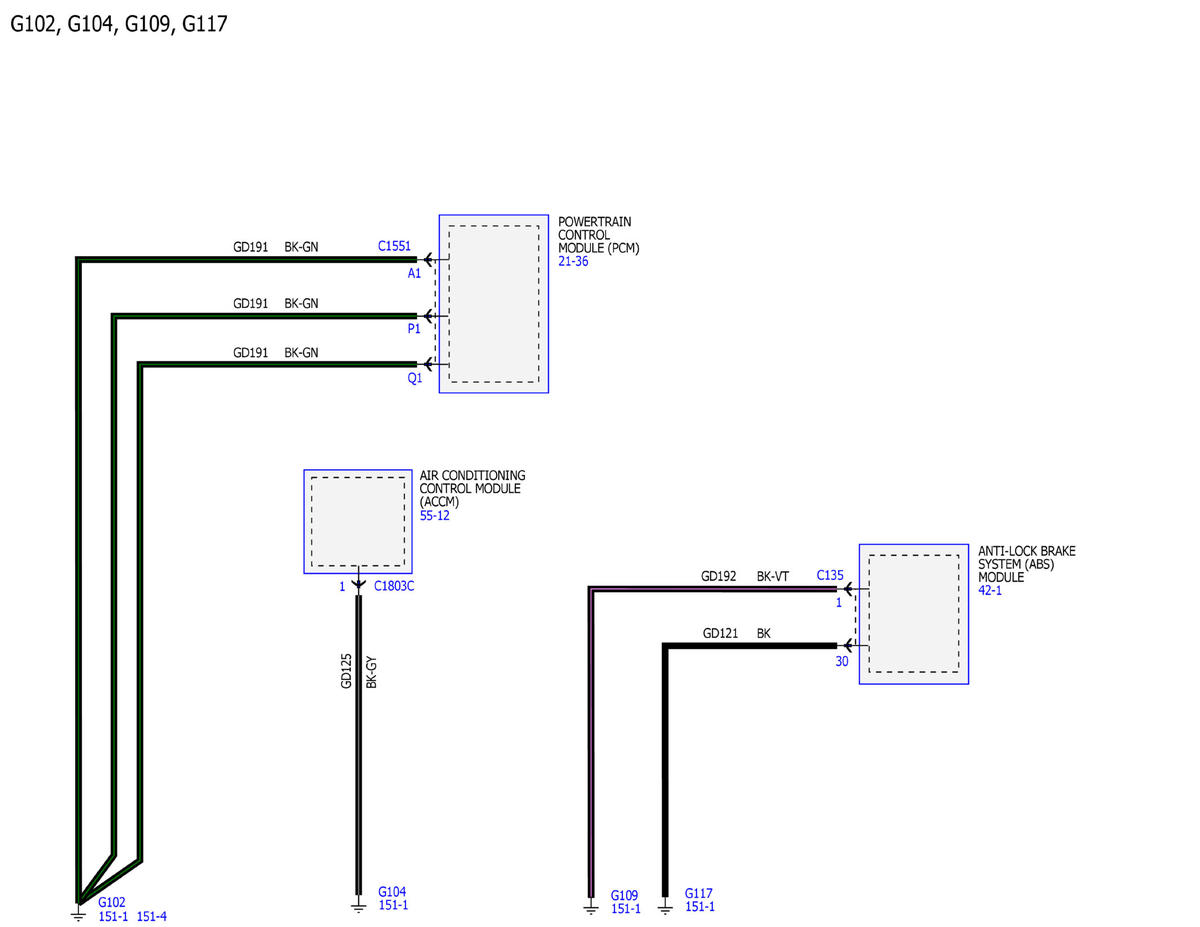

GFDWR145176Courtesy of FORD MOTOR COMPANY

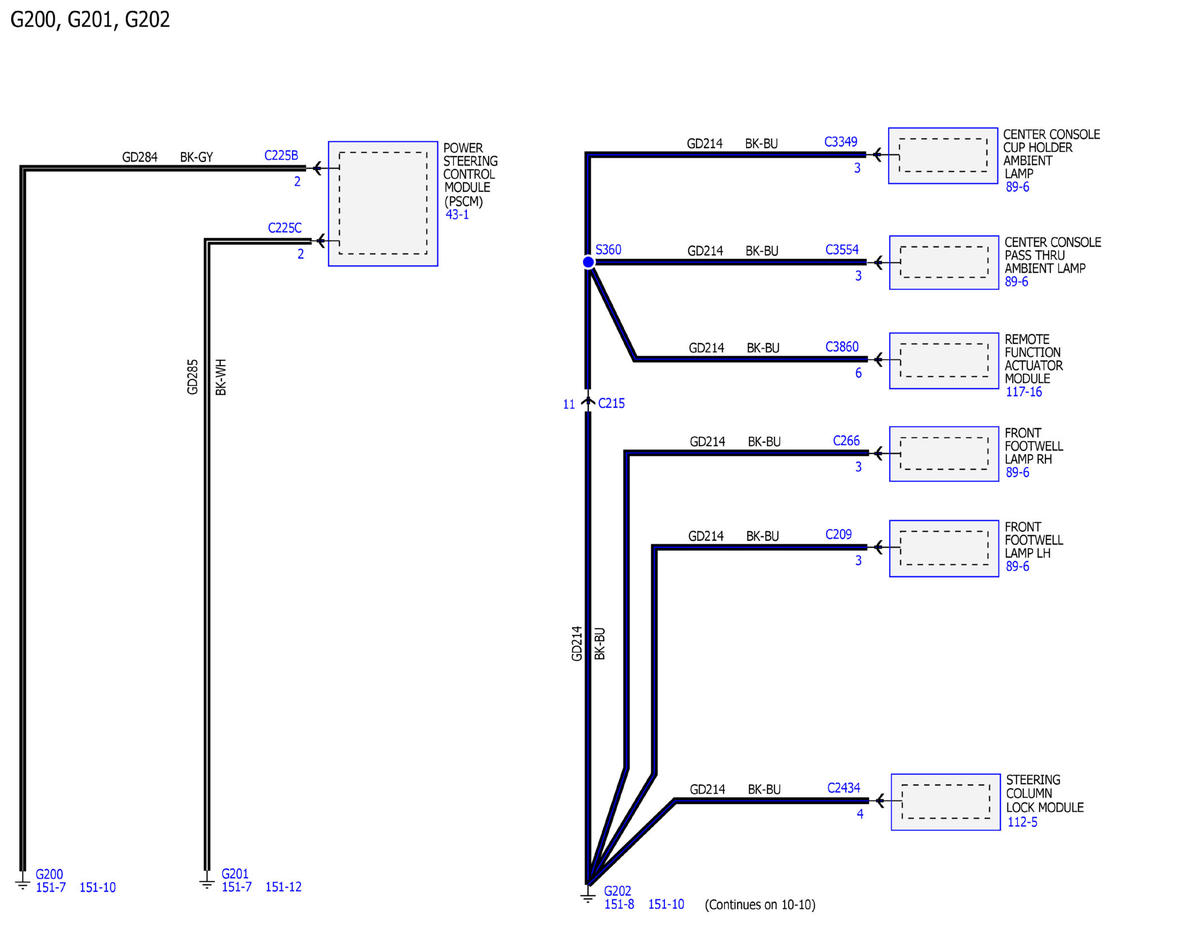

GFDWR145177Courtesy of FORD MOTOR COMPANY

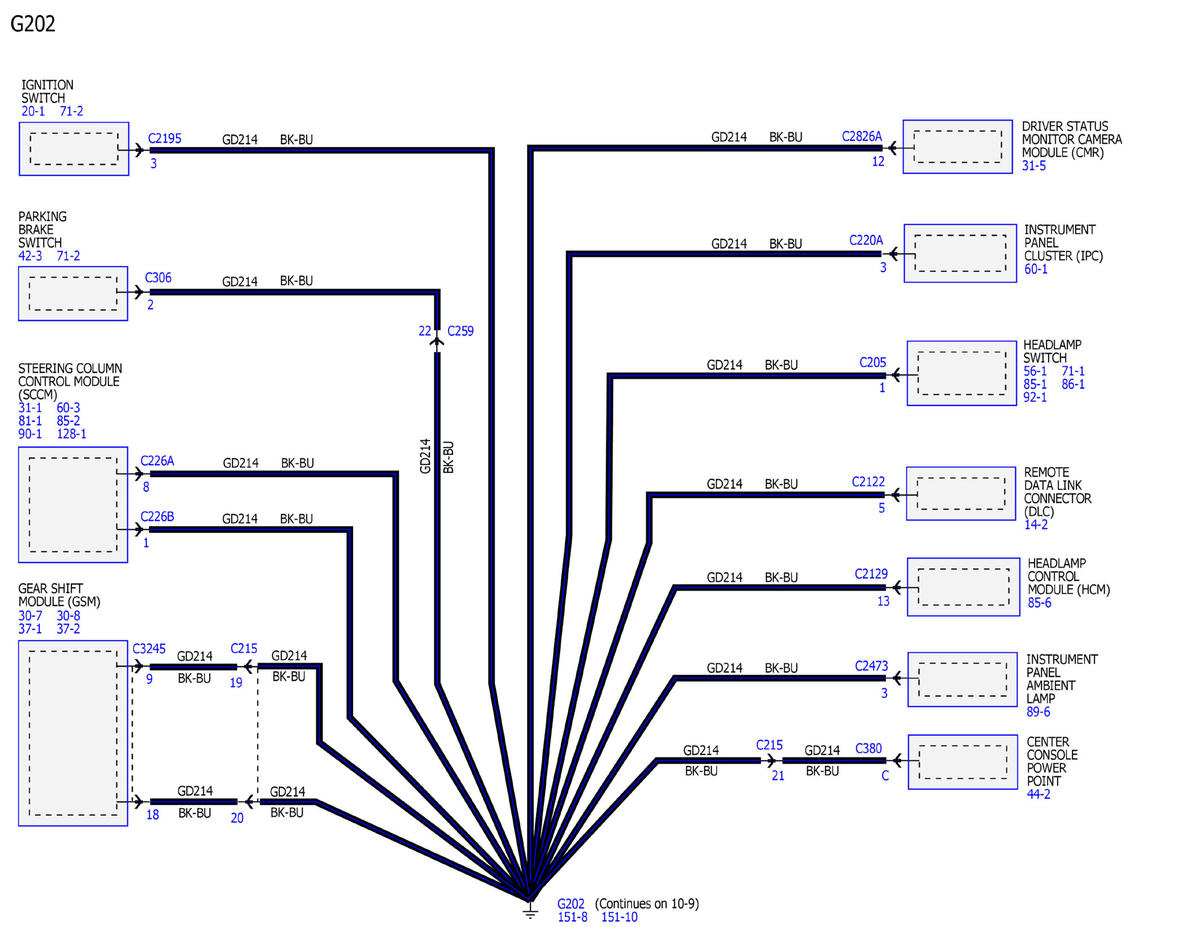

GFDWR145151Courtesy of FORD MOTOR COMPANY

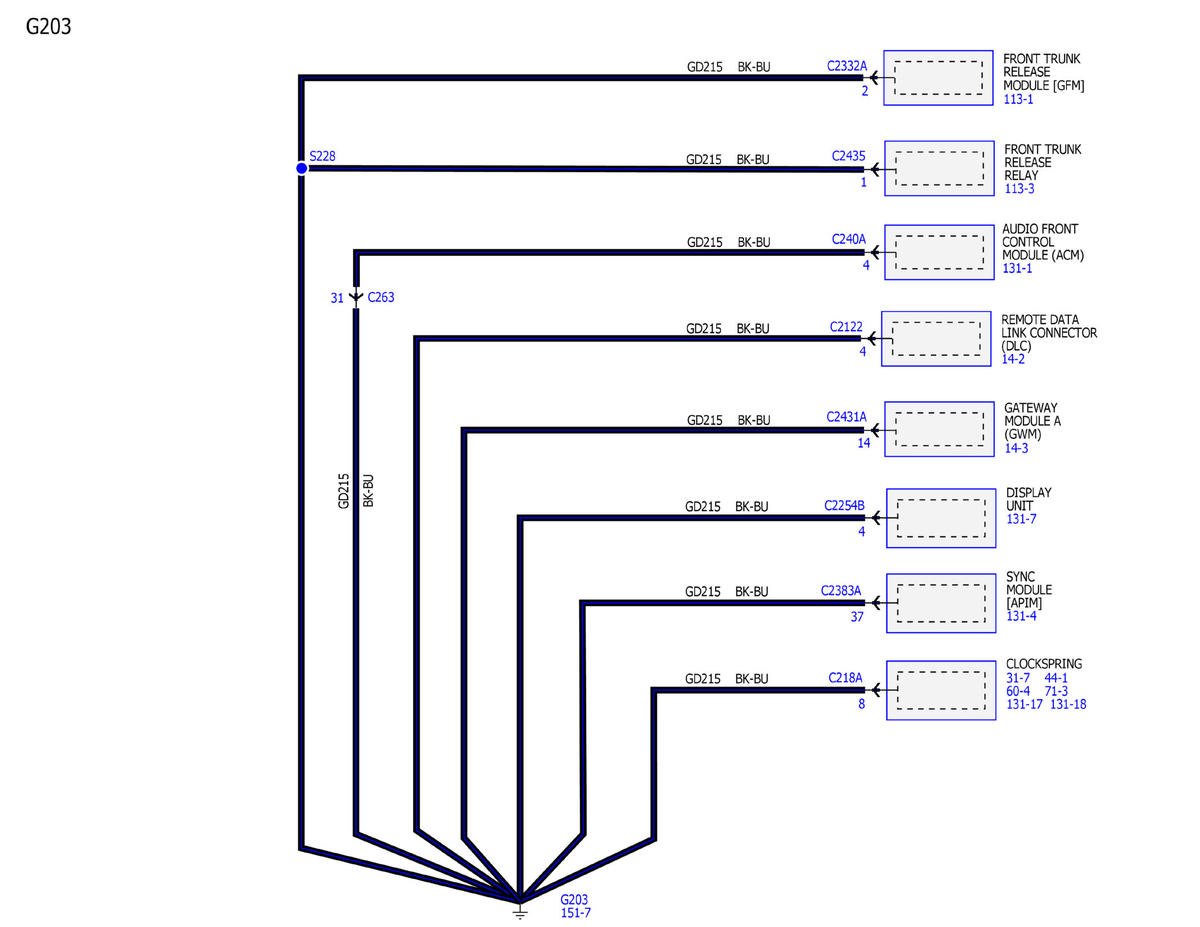

GFDWR145152Courtesy of FORD MOTOR COMPANY

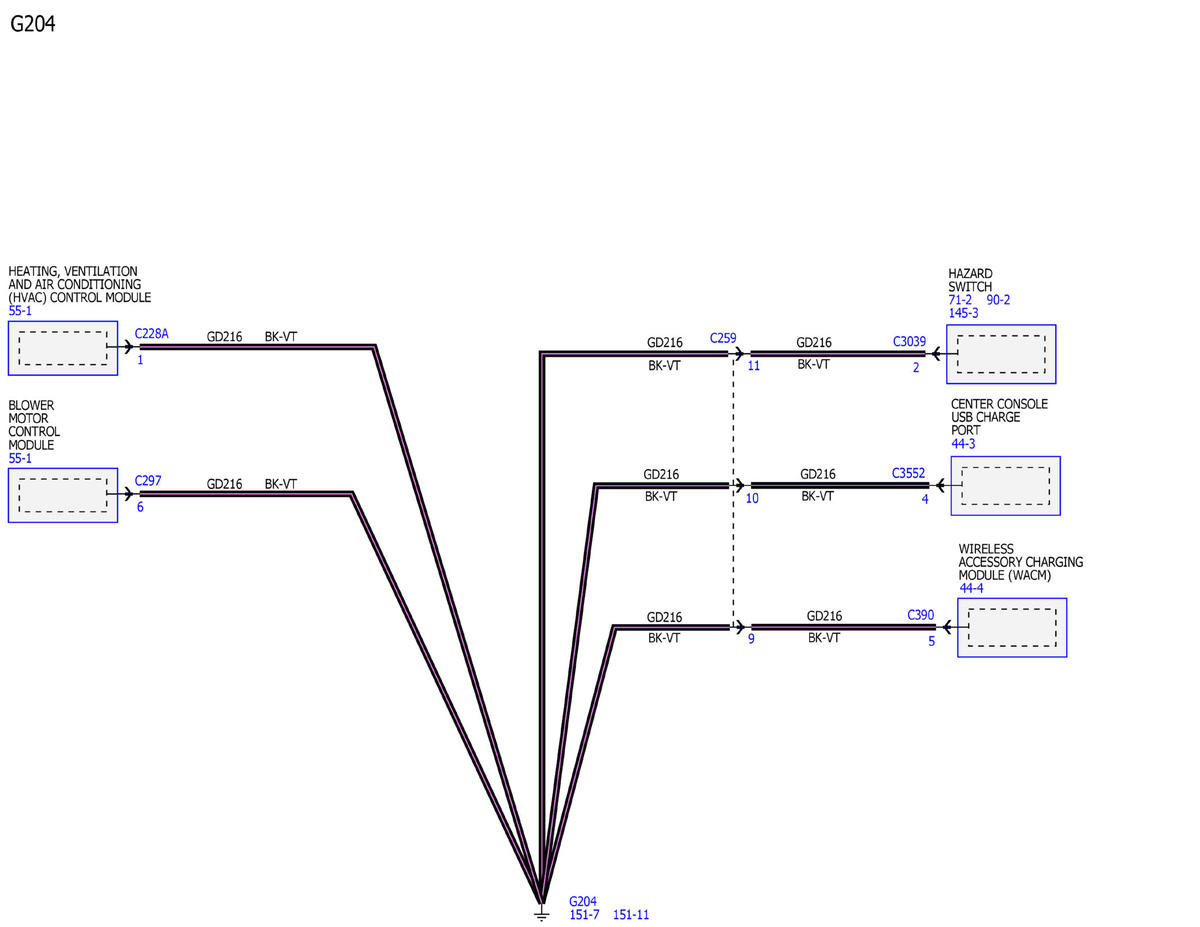

GFDWR145153Courtesy of FORD MOTOR COMPANY

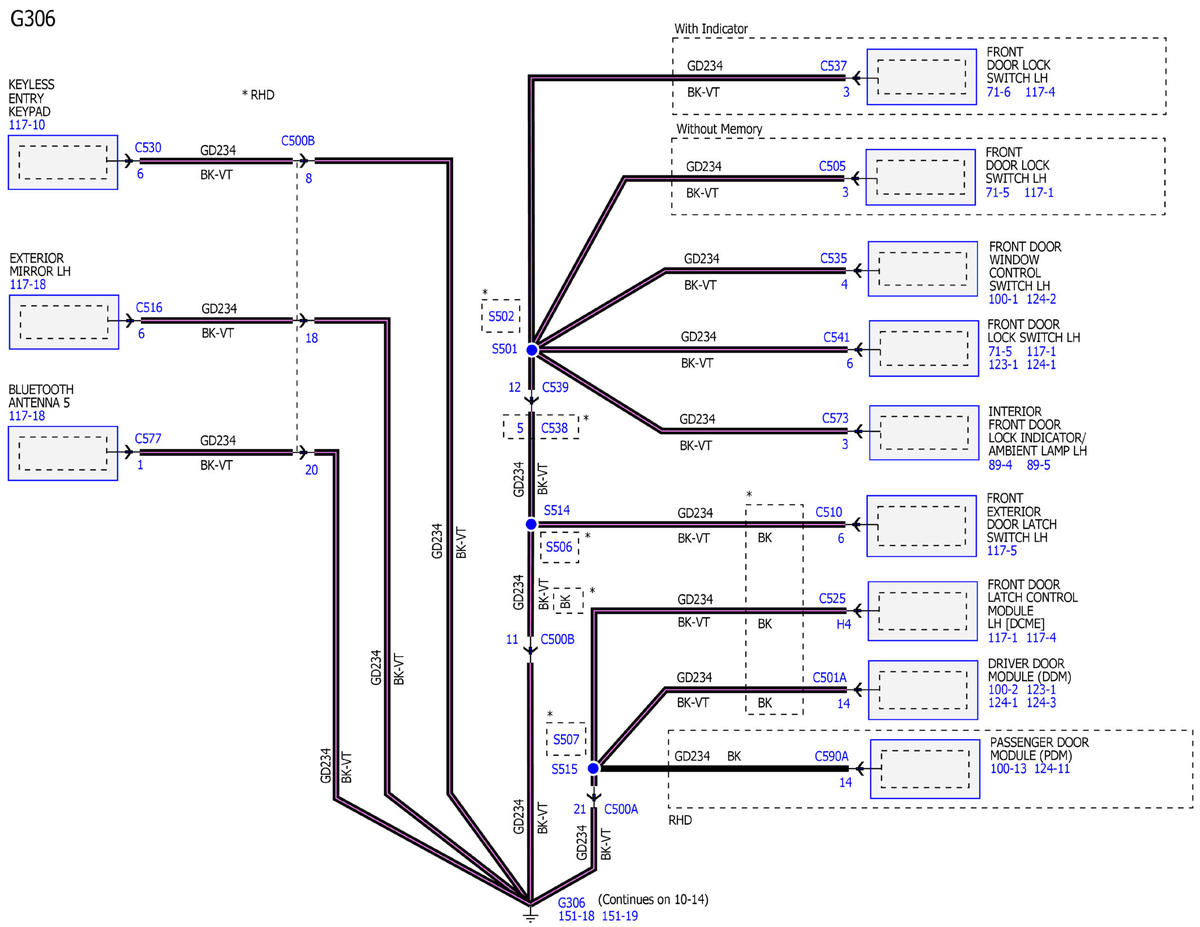

GFDWR145154Courtesy of FORD MOTOR COMPANY

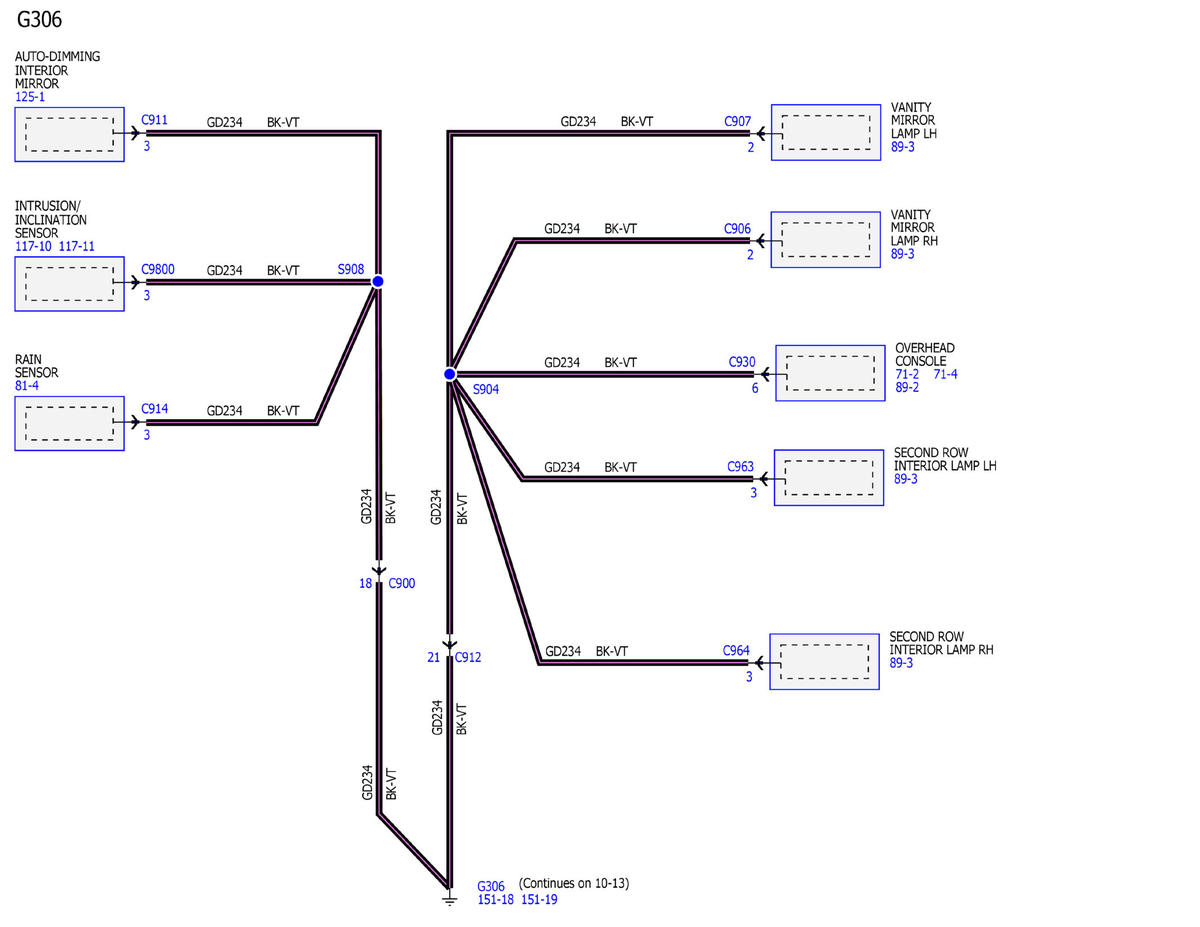

GFDWR145155Courtesy of FORD MOTOR COMPANY

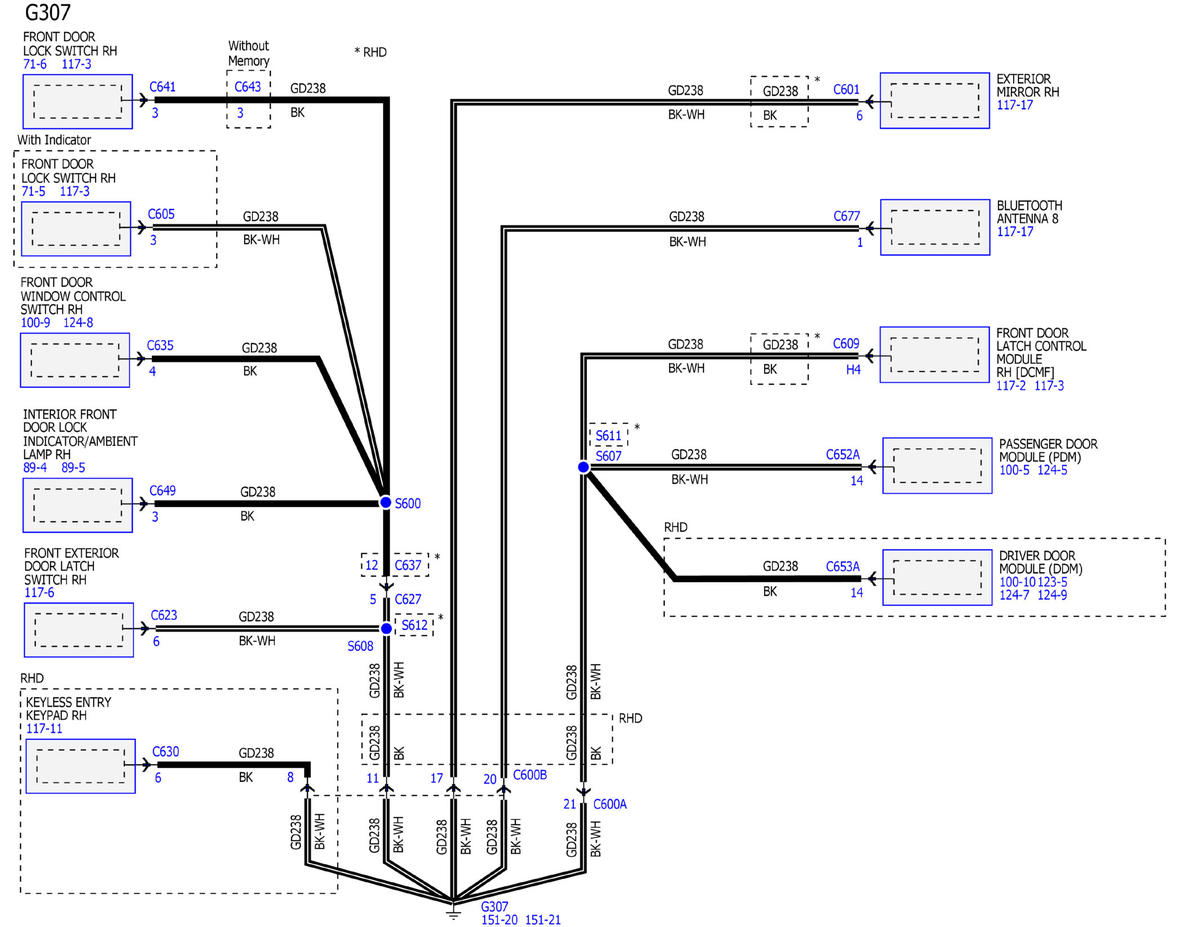

GFDWR145156Courtesy of FORD MOTOR COMPANY

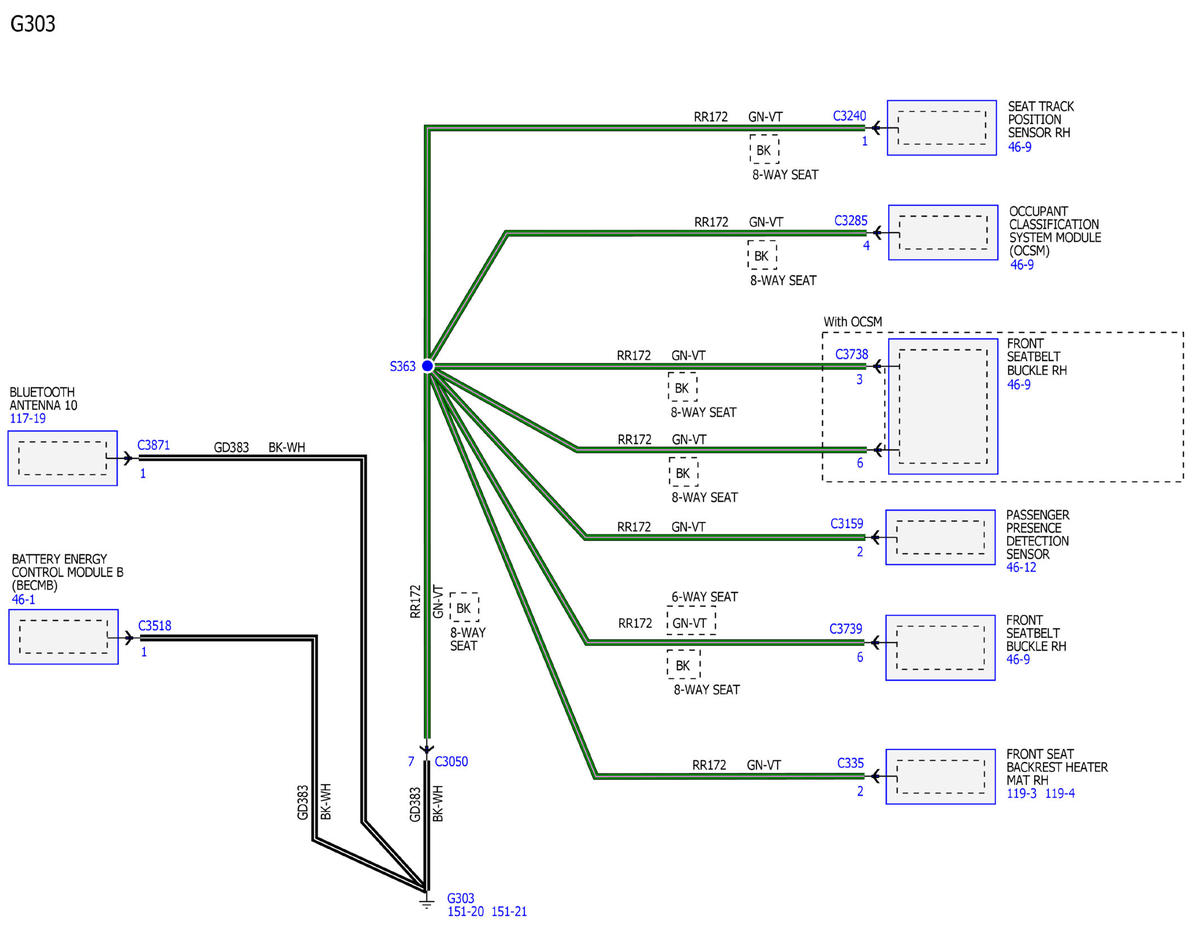

GFDWR145157Courtesy of FORD MOTOR COMPANY

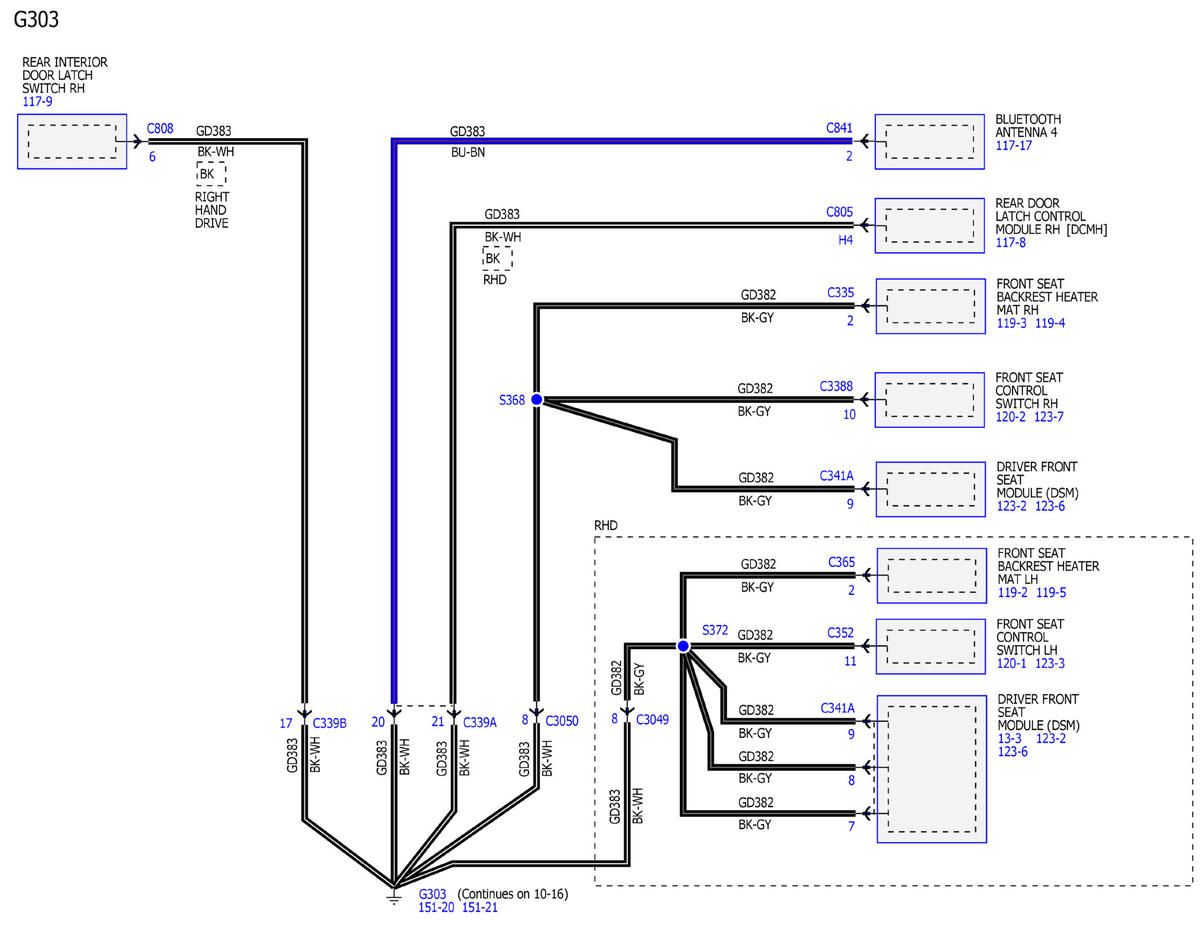

GFDWR145158Courtesy of FORD MOTOR COMPANY

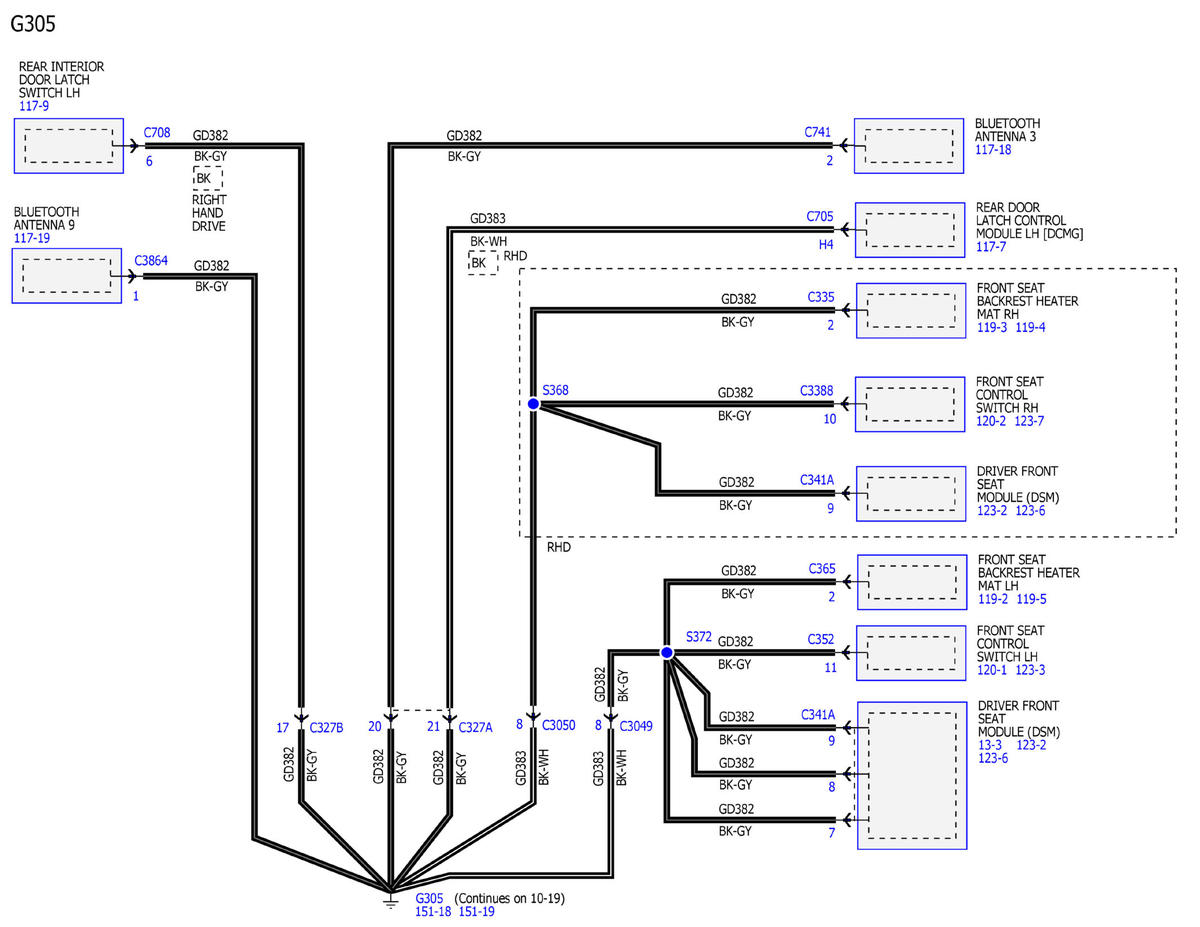

GFDWR145159Courtesy of FORD MOTOR COMPANY

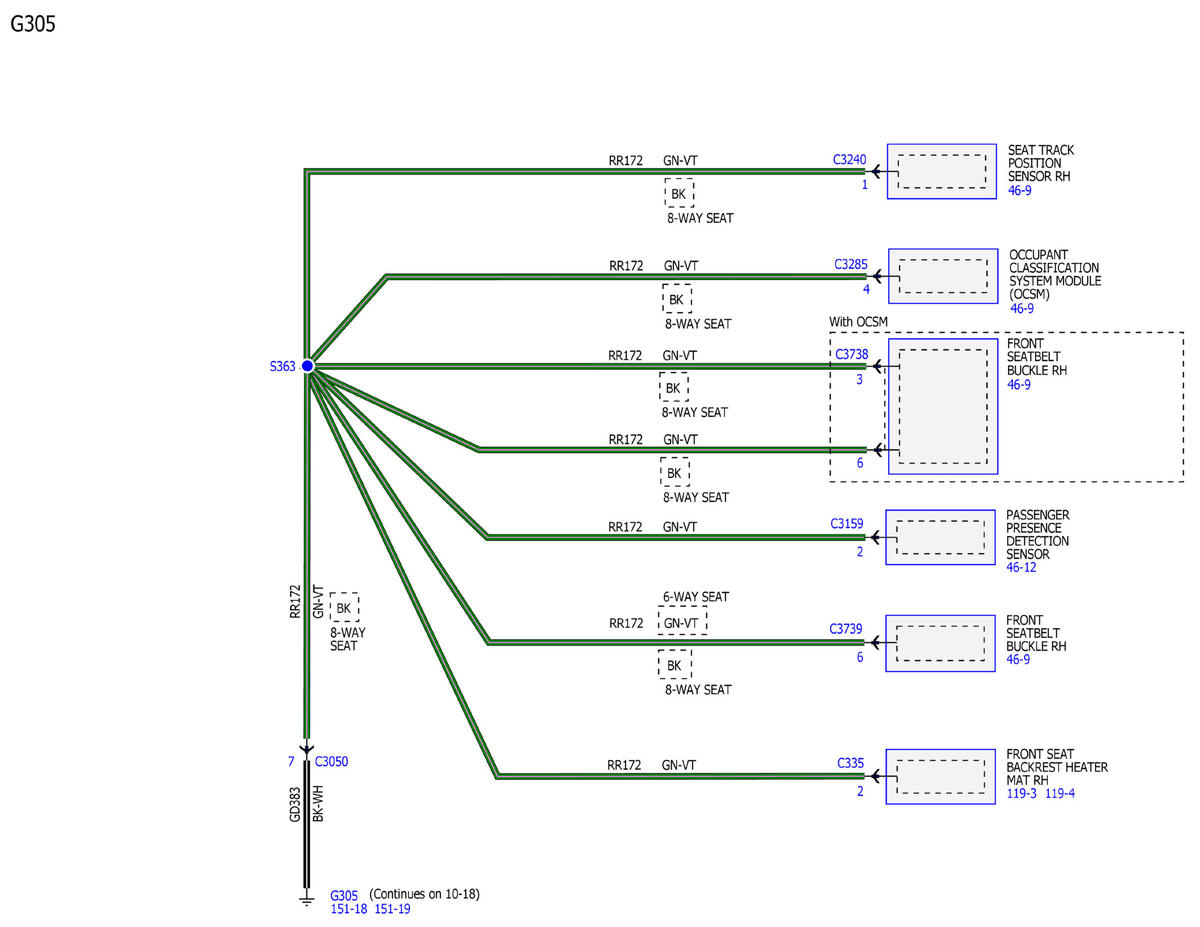

GFDWR145160Courtesy of FORD MOTOR COMPANY

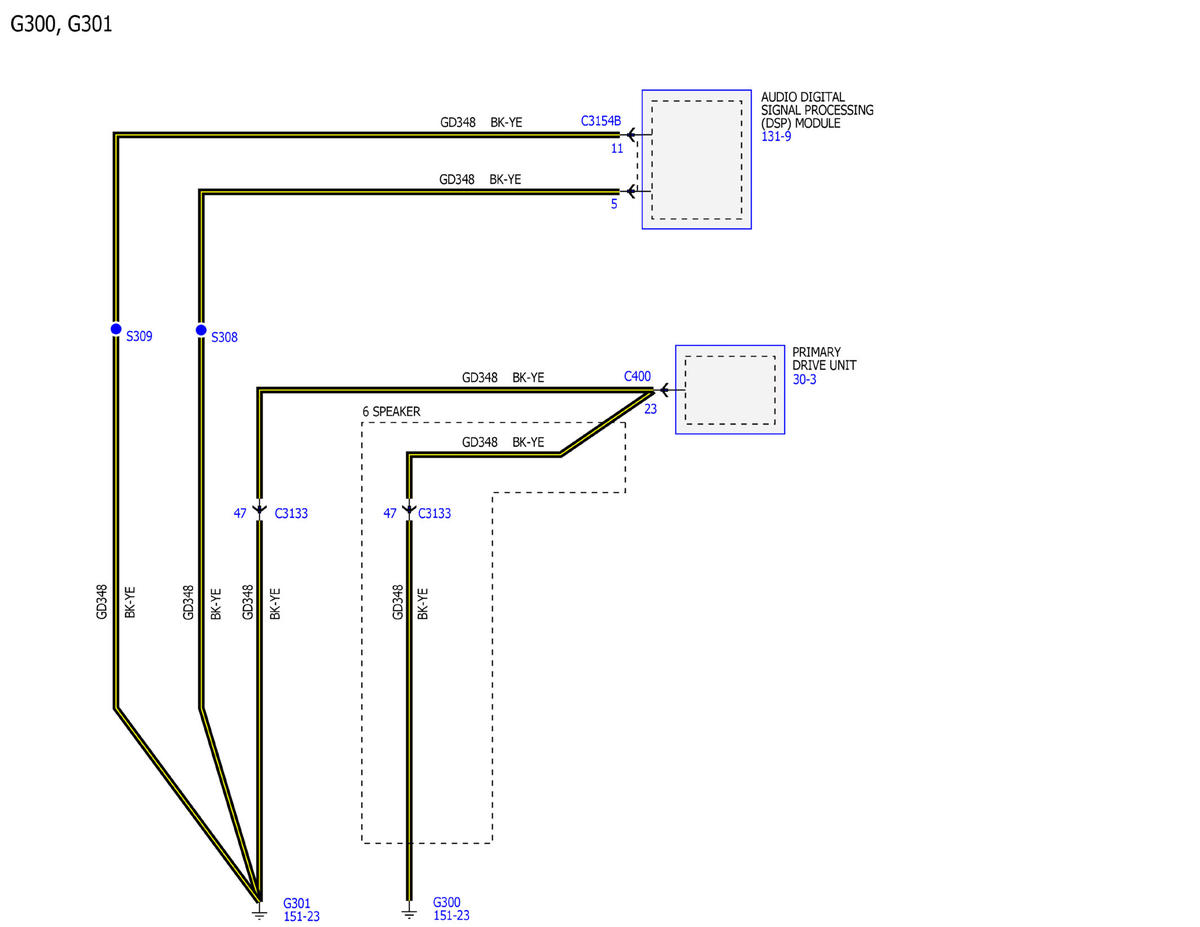

GFDWR145162Courtesy of FORD MOTOR COMPANY

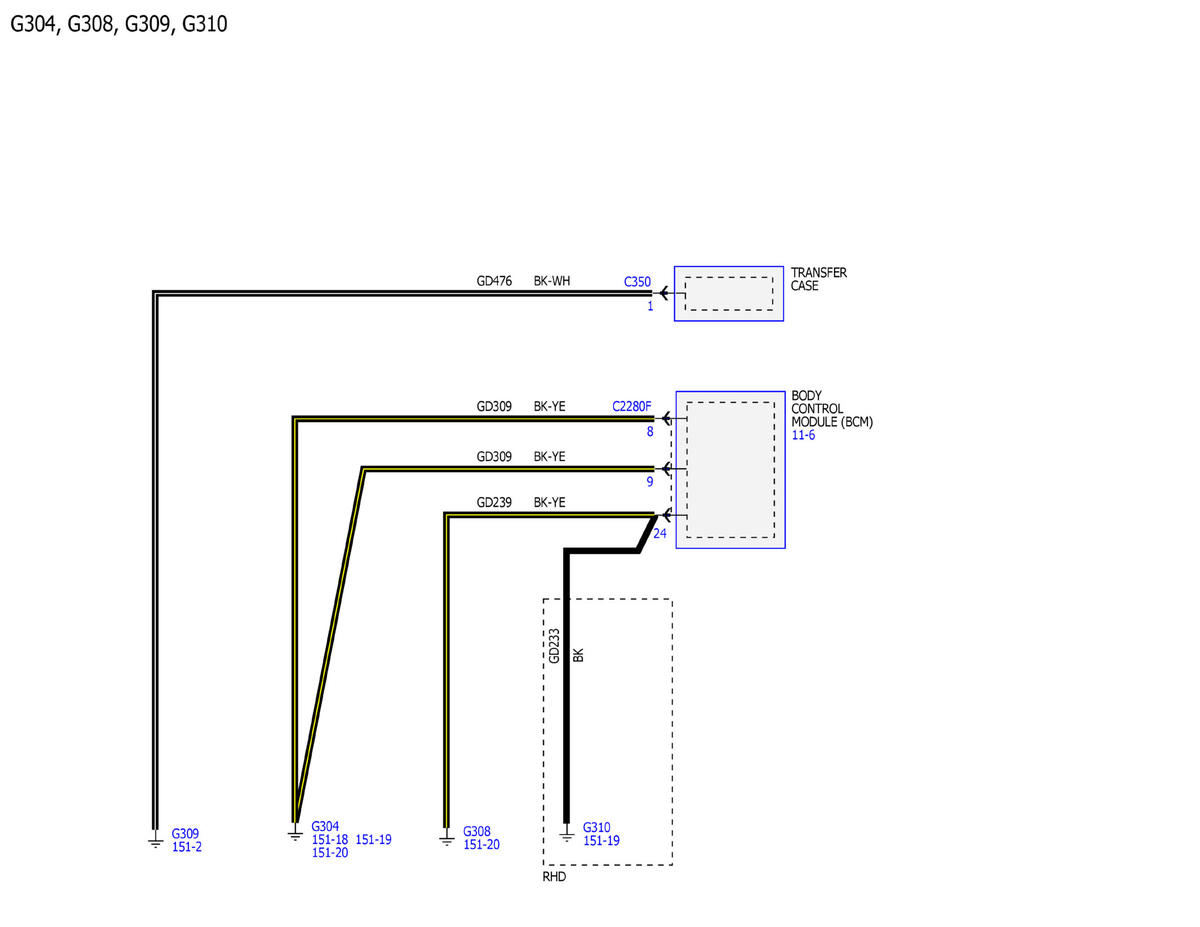

GFDWR145163Courtesy of FORD MOTOR COMPANY
GFDWR145164Courtesy of FORD MOTOR COMPANY

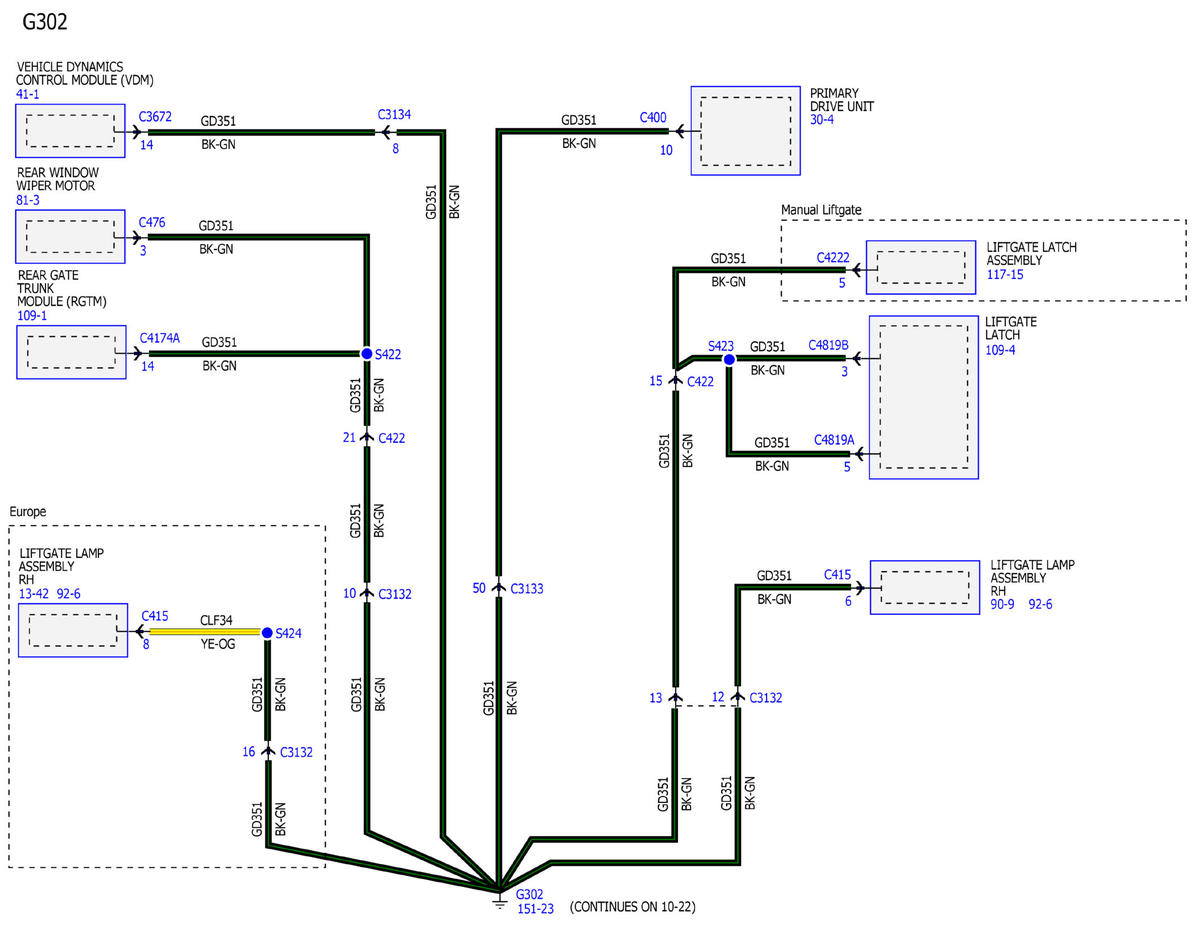

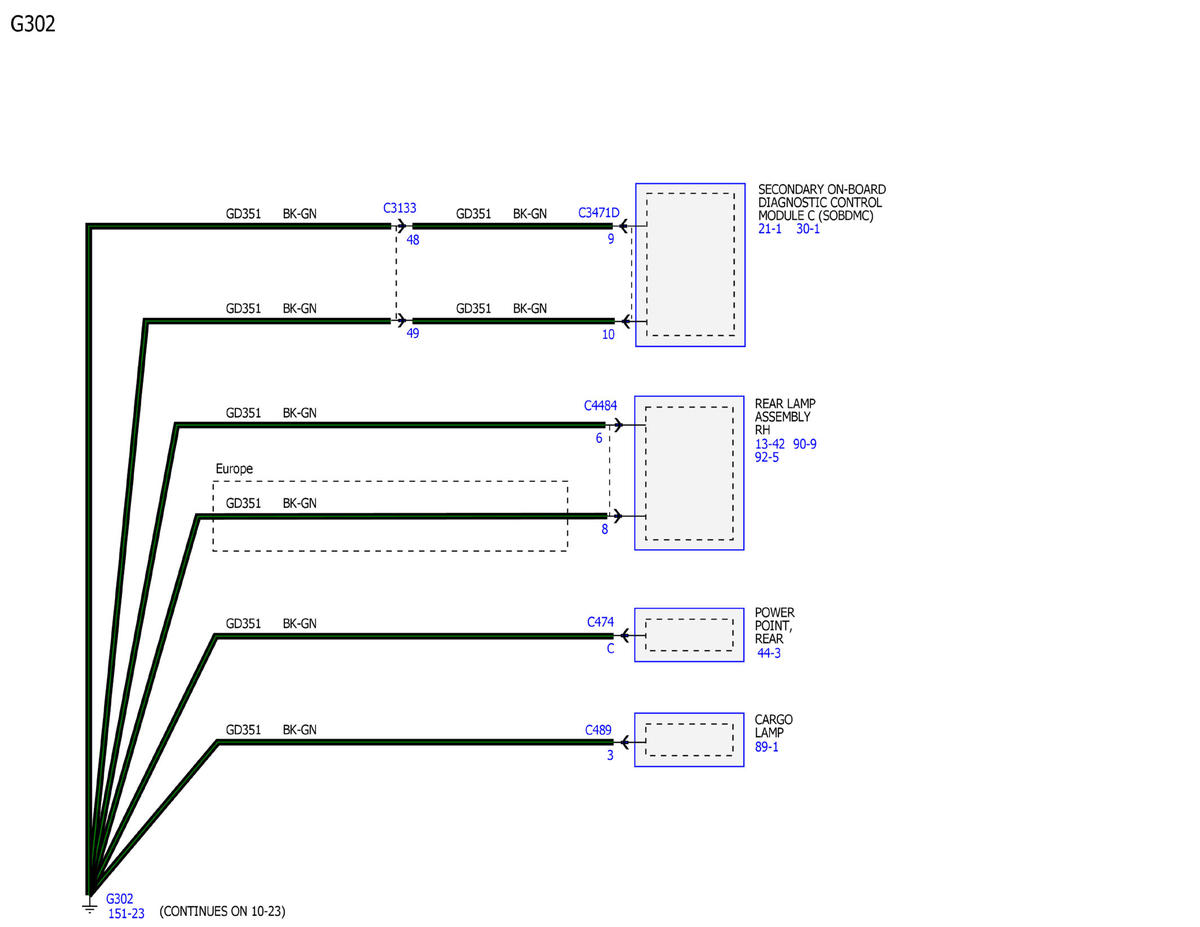

GFDWR145165Courtesy of FORD MOTOR COMPANY

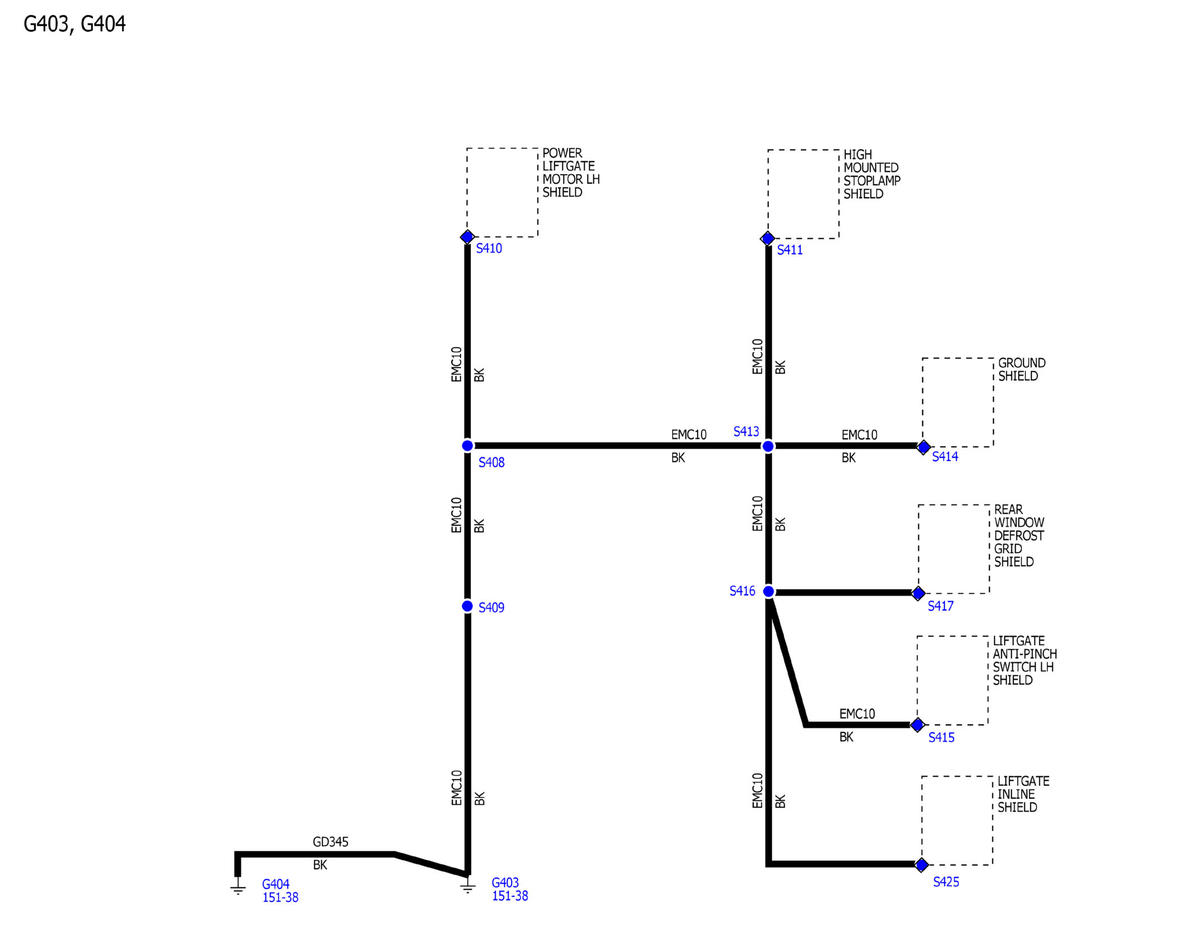

GFDWR145166Courtesy of FORD MOTOR COMPANY

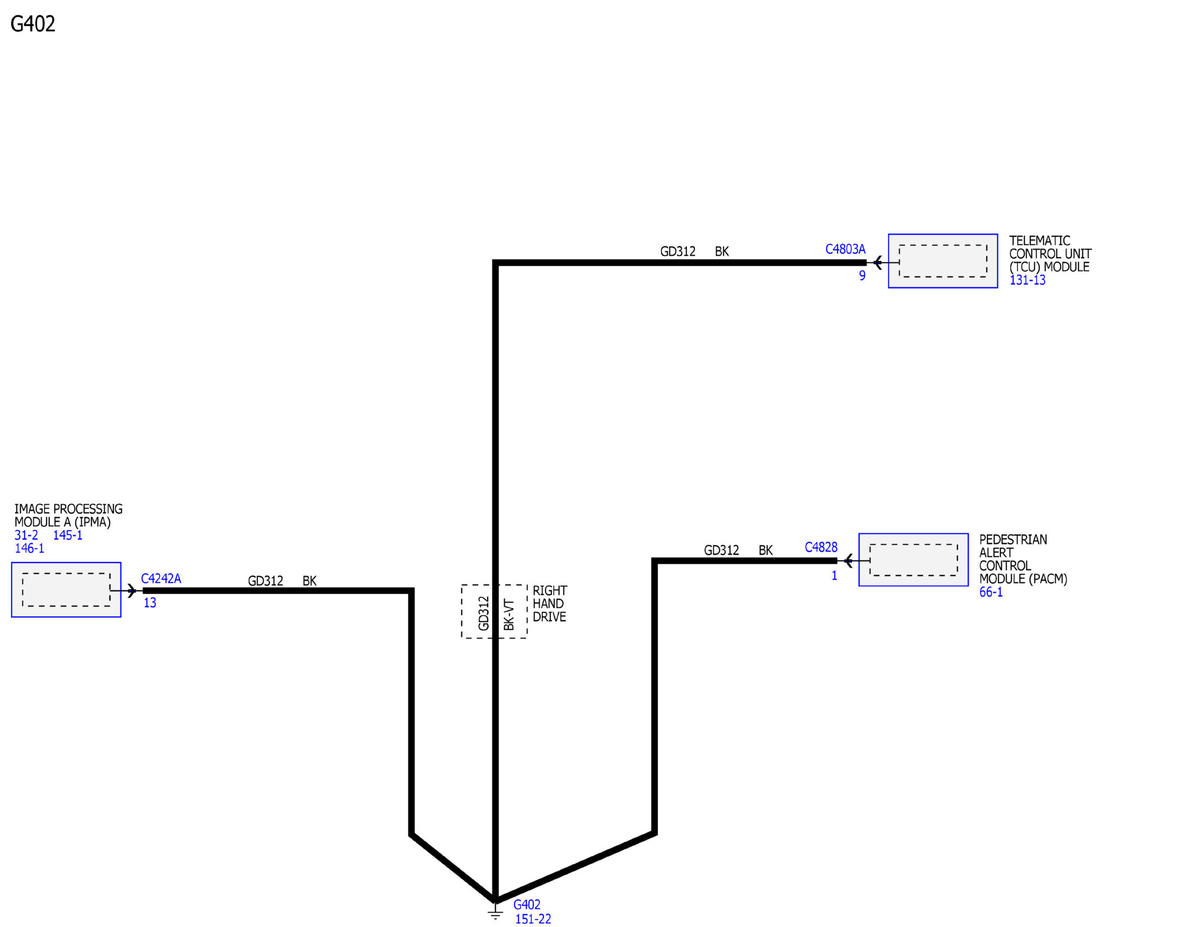

GFDWR145167Courtesy of FORD MOTOR COMPANY

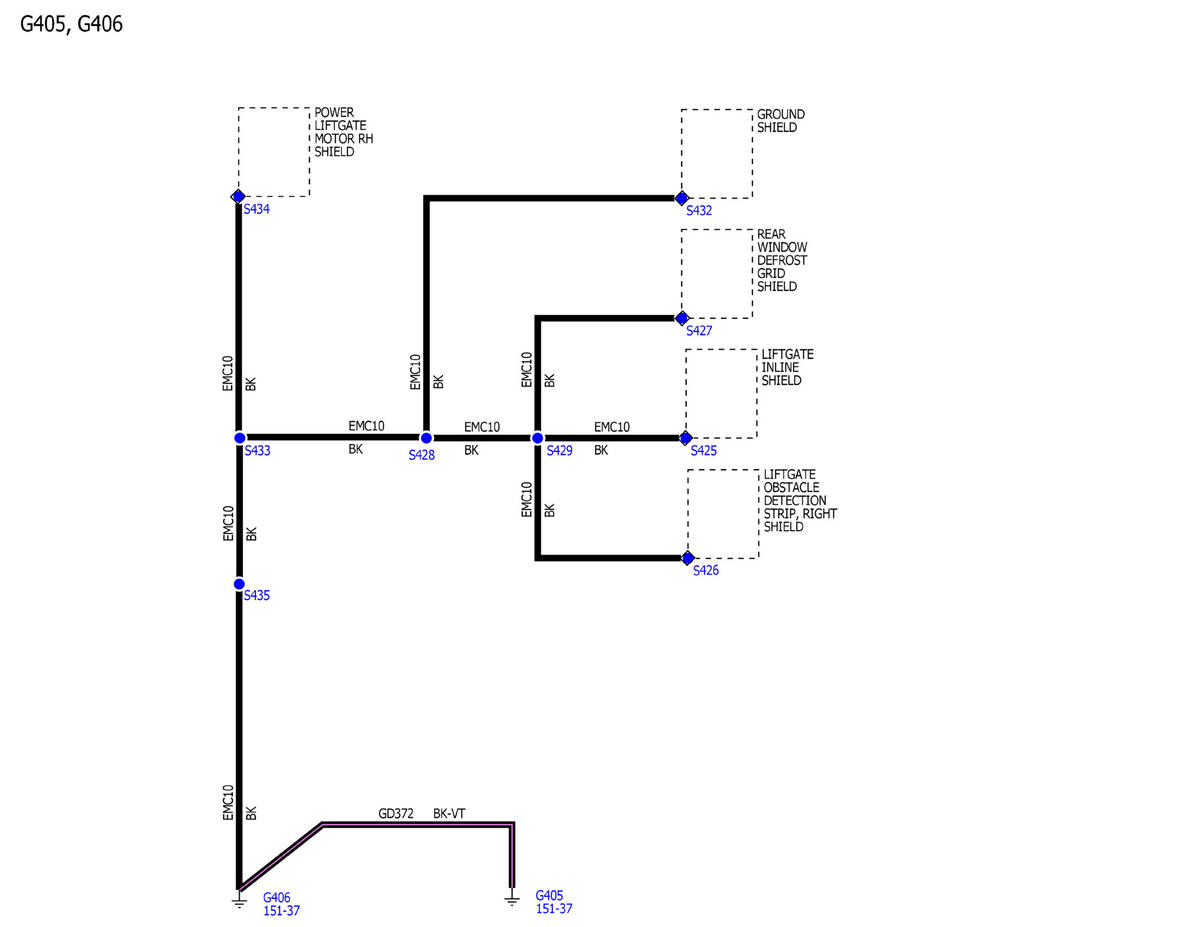

GFDWR145168Courtesy of FORD MOTOR COMPANY

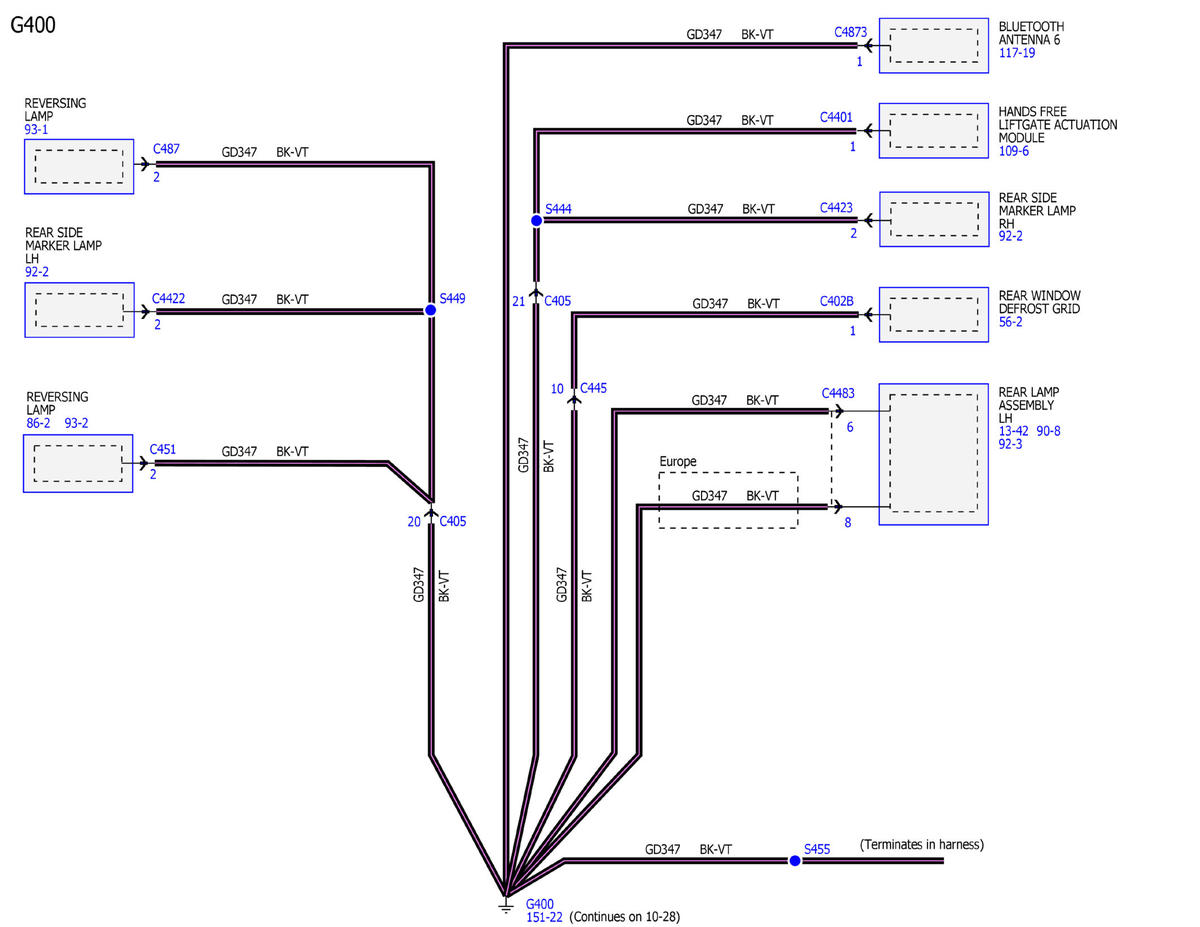

GFDWR145169Courtesy of FORD MOTOR COMPANY

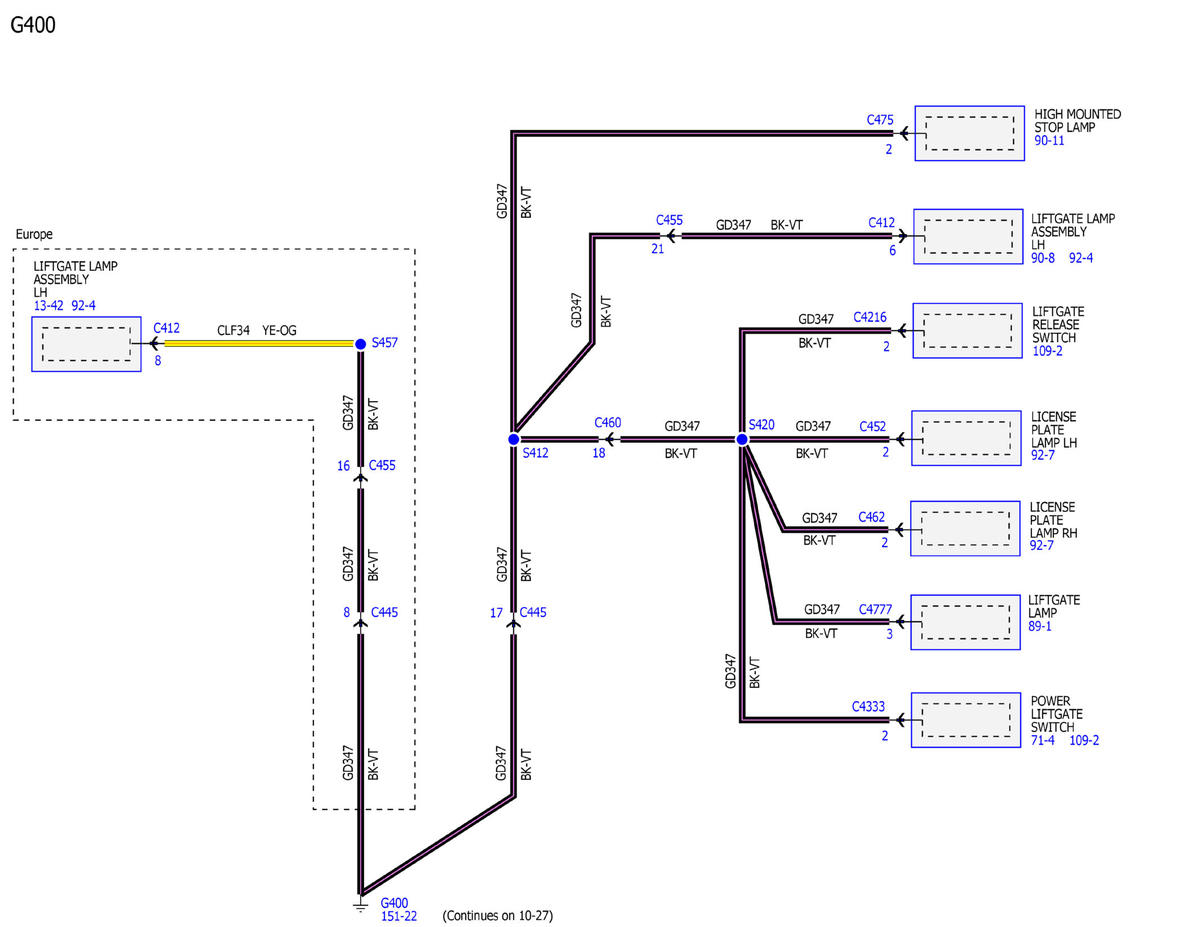

GFDWR145170Courtesy of FORD MOTOR COMPANY
