Image Processing Module A (IPMA) Camera: Removal

NOTE: Removal steps in this procedure may contain installation details.

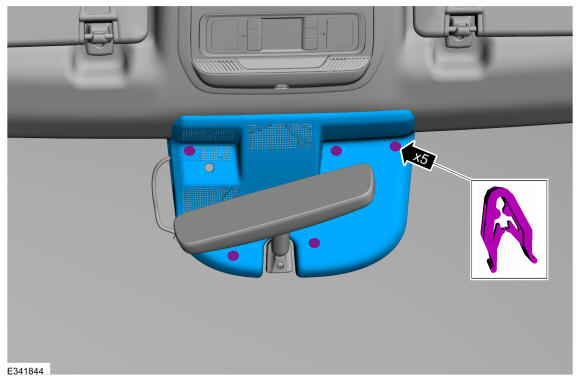

  1. Remove the rain sensor cover.
    GFD610246Courtesy of FORD MOTOR COMPANY

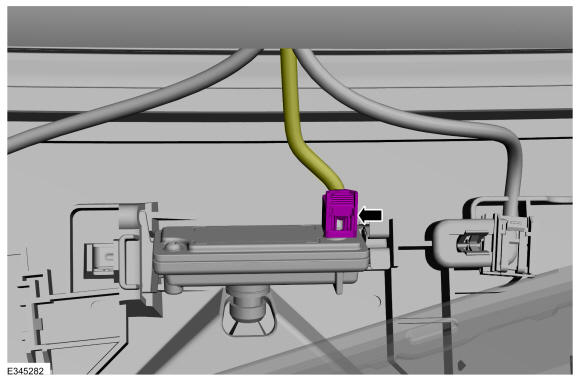

  2. Disconnect the IPMA camera electrical connector.
    GFD610247Courtesy of FORD MOTOR COMPANY

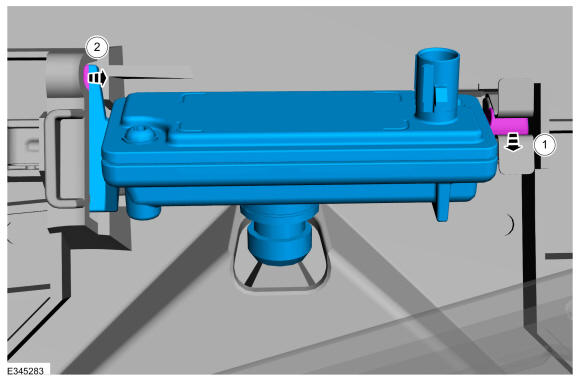

    1. Release the tab.
    2. Release the tab and remove the IPMA camera.
GFD610248Courtesy of FORD MOTOR COMPANY
