Climate Control System - Vehicles With: Electronic Manual Temperature Control (EMTC) - Component Location
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description |
|---|---|

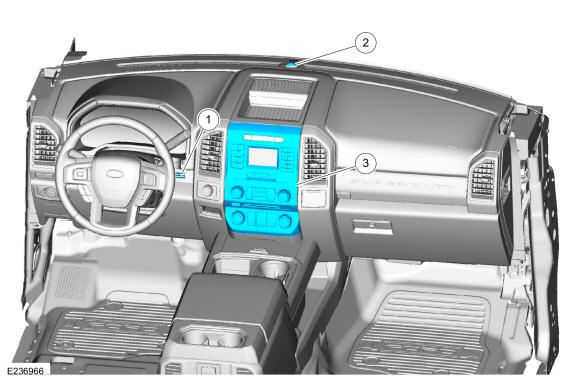

| 1 | In-Vehicle Temperature & Humidity Sensor |
| 2 | Auto Lamp & Sunload Sensor |
| 3 | FCIM & HVAC Module |
| Item | Description |
|---|---|

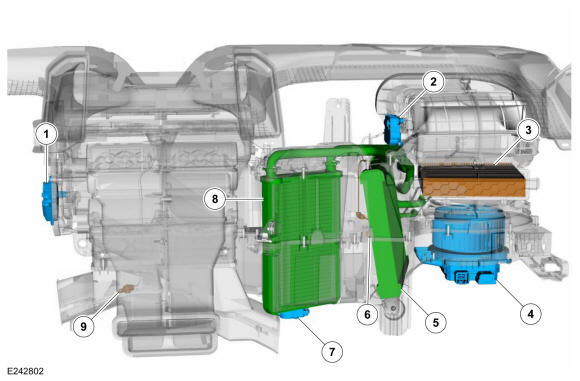

| 1 | Air Distribution Door Actuator |
| 2 | Air Inlet Door Actuator |
| 3 | Cabin Air Filter |
| 4 | Blower Motor Control Module |
| 5 | Evaporator |
| 6 | Evaporator Temperature Sensor |
| 7 | Driver Side Temperature Door Actuator |
| 8 | Heater Core |
| 9 | Driver Side Footwell Air Discharge Temperature Sensor |
6.2L shown, all other engines similar
| Item | Description |
|---|---|

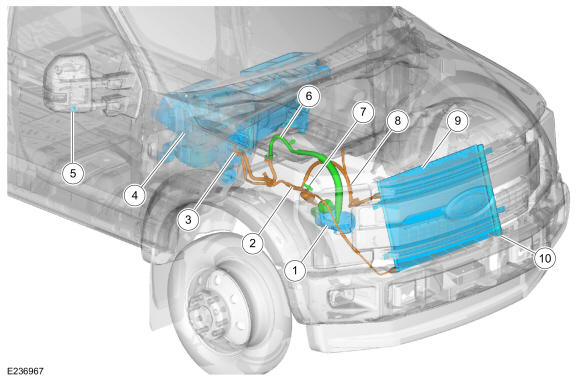

| 1 | A/C Compressor |
| 2 | Evaporator Inlet & Outlet Manifold |
| 3 | Thermostatic Expansion Valve |
| 4 | Climate Control Housing |
| 5 | Ambient Air Temperature Sensor |
| 6 | A/C Compressor Inlet Line |
| 7 | A/C Pressure Transducer |
| 8 | A/C Compressor Outlet Line |
| 9 | Condenser |
| 10 | Desiccant Bag |
