Transfer Case - Vehicles With: Manual Shift Transfer Case: Assembly

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate all internal components with the recommended transfer case lubricant during reassembly.

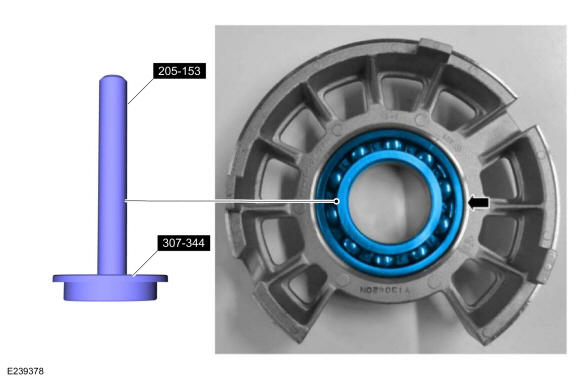

Using the special tools, install the center support bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-344 (T95P-7H150-A) Installer, Driven Sprocket Wheel.

Courtesy of FORD MOTOR COMPANY

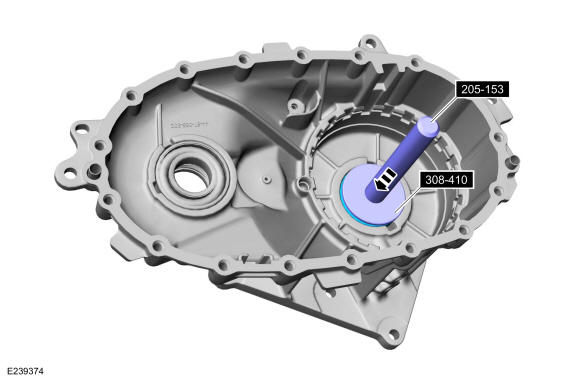

Using the special tools, install the front planet carrier bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 308-410 Installer, Output Shaft Front Bearing.

Courtesy of FORD MOTOR COMPANY

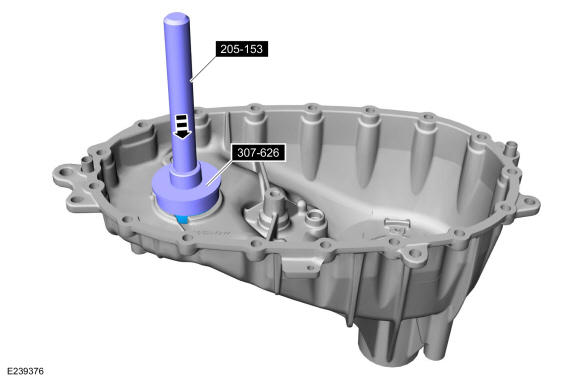

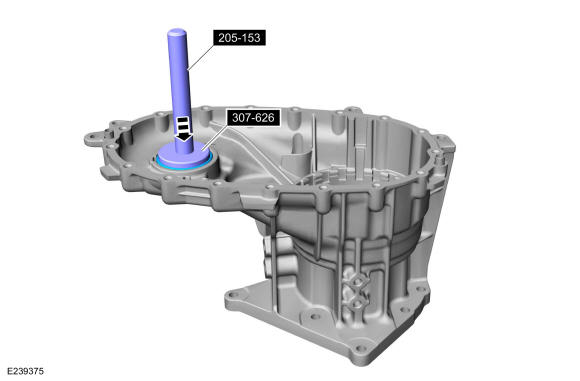

Using the special tools, install the front output shaft bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-626 Installer, Differential Seal.

Courtesy of FORD MOTOR COMPANY
Using the special tools, install the front output shaft support bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 307-626 Installer, Differential Seal.

Courtesy of FORD MOTOR COMPANY
Using the special tools, install the rear output shaft bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 308-410 Installer, Output Shaft Front Bearing.

Courtesy of FORD MOTOR COMPANY

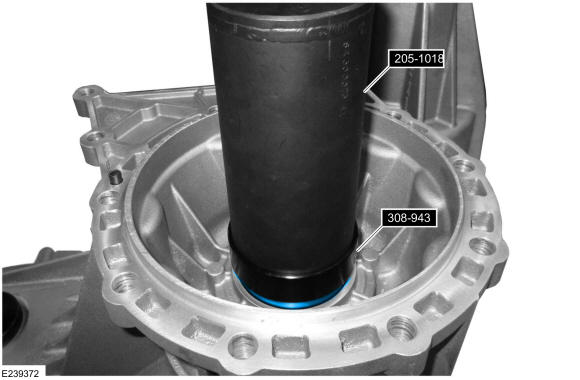

Using the special tools, install the input shaft seal. Use Special Service Tool: 205-1018 Installation Tube., 308-943 Installer, Input Seal.

Courtesy of FORD MOTOR COMPANY

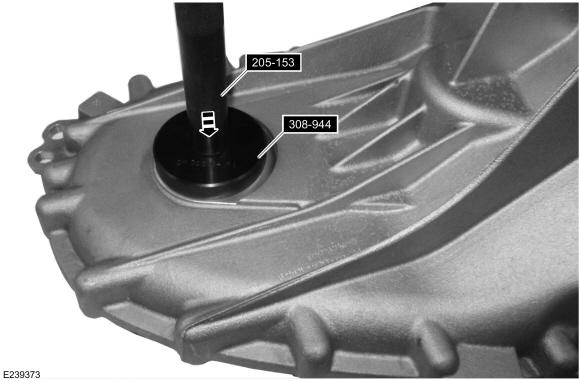

Using the special tools, install the front output shaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 308-944 Installer, Front Output Seal.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not let the front output shaft fall while removing the snap ring or damage to the component may occur.

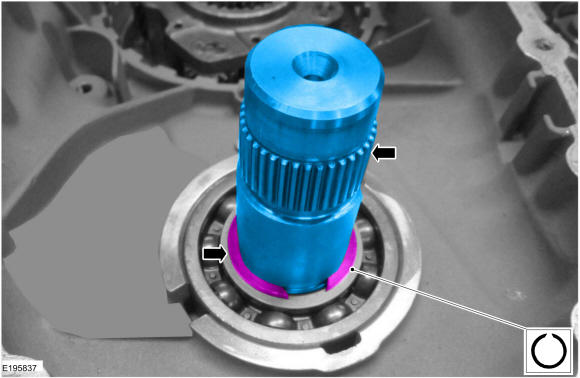

Install the output shaft and the out put shaft circlip.

Courtesy of FORD MOTOR COMPANY

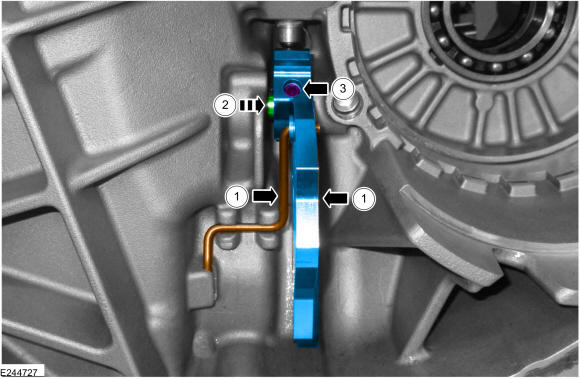

Install the manual shift assembly.
- Install the shift guide plate and guide plate spring arm.
- Install the shift lever.
- Tighten the shift lever set screw.
Courtesy of FORD MOTOR COMPANY

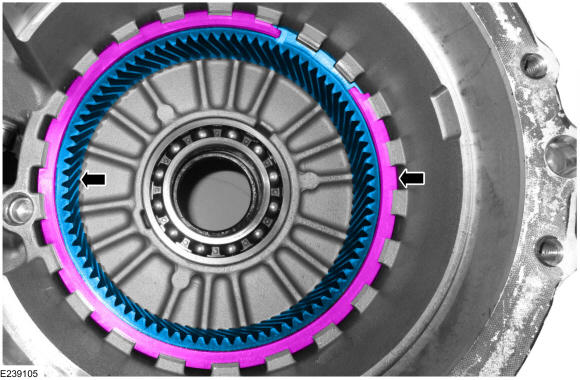

Install the ring gear and the ring gear circlip.

Courtesy of FORD MOTOR COMPANY

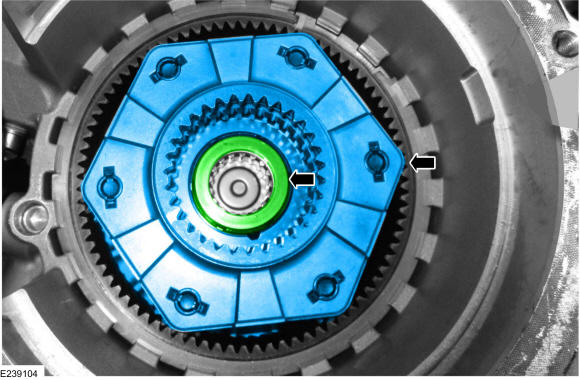

Install the planet carrier and the front planet carrier thrust bearing.

Courtesy of FORD MOTOR COMPANY

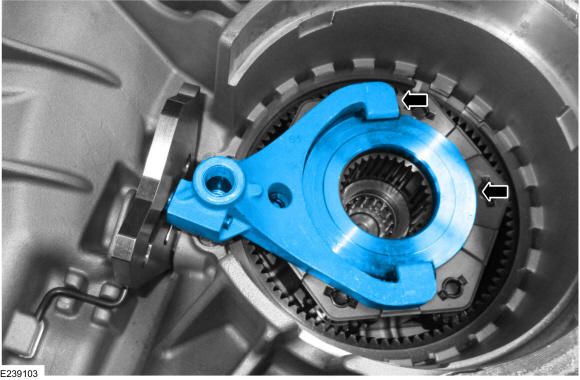

Install the shift fork assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: The pump assembly is not repairable.

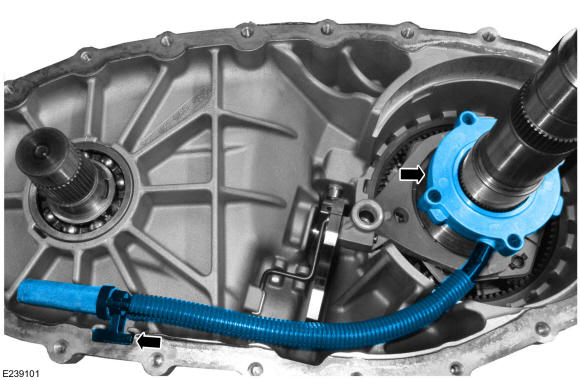

Install the magnet and oil pump assembly.

Courtesy of FORD MOTOR COMPANY
Install the output shaft.

Courtesy of FORD MOTOR COMPANY

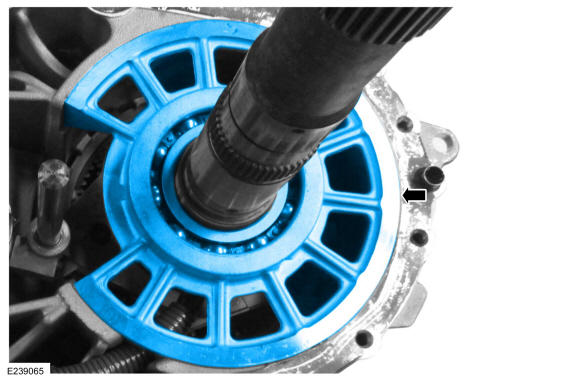

Install the center bearing support assembly.

Courtesy of FORD MOTOR COMPANY

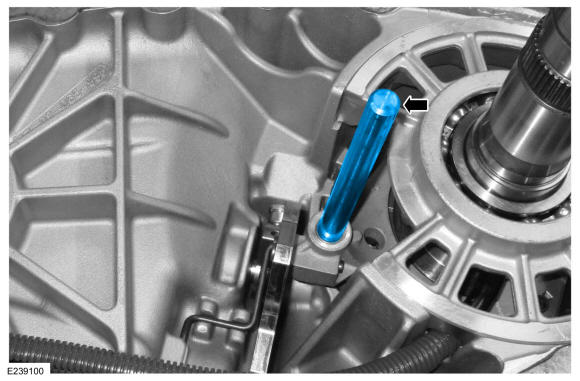

Install the shift rail.

Courtesy of FORD MOTOR COMPANY

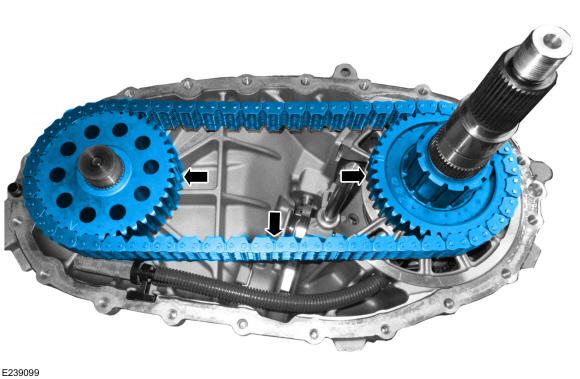

Install the drive chain and the sprockets as an assembly.

Courtesy of FORD MOTOR COMPANY
Install the lock hub shift fork assembly.

Courtesy of FORD MOTOR COMPANY

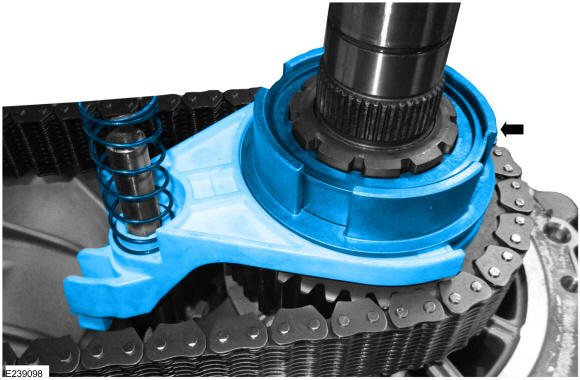

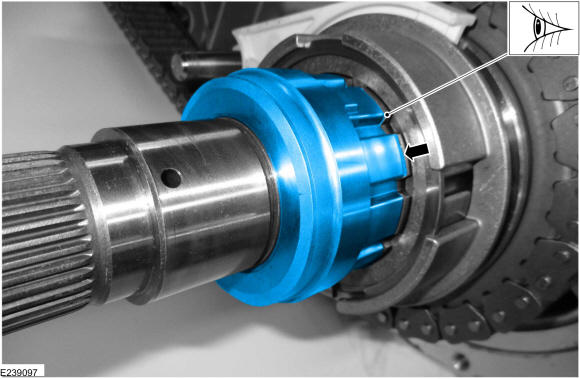

Install the shift fork lock hub and align shift fork slide grooves.

Courtesy of FORD MOTOR COMPANY

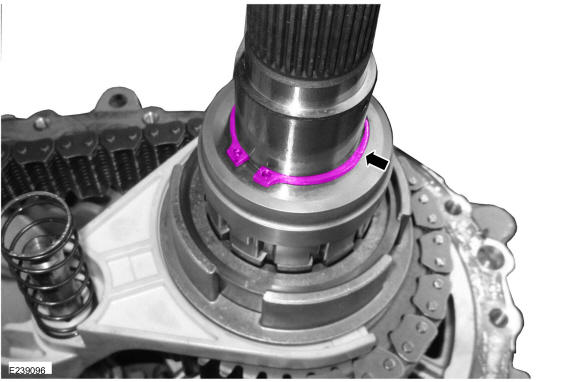

Install the shift lock hub snap ring.

Courtesy of FORD MOTOR COMPANY
NOTE: Only apply enough silicone sealant to seal the transfer case halves together.

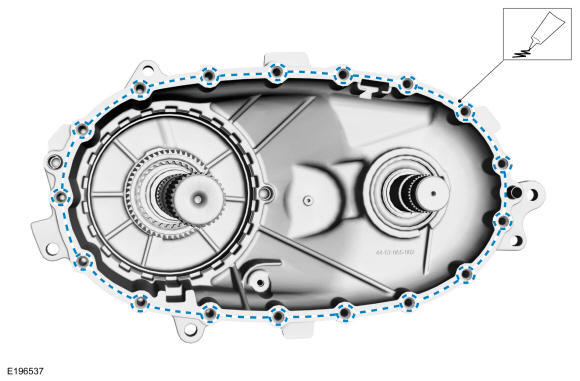

Apply a small bead of silicone sealant to the mating surface of the case half.

Material: Motorcraft ® Ultra Silicone Sealant / TA-29

Courtesy of FORD MOTOR COMPANY

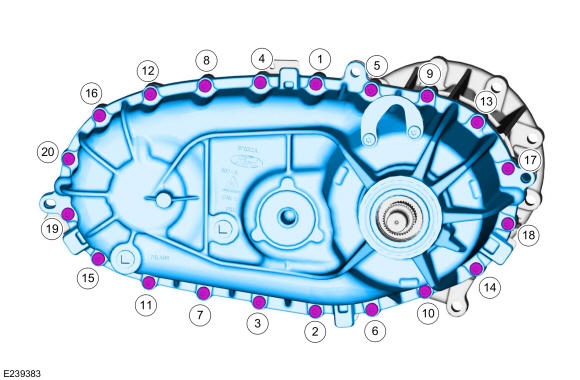

Position the transfer case halves and tighten the bolts in the sequence shown.
Torque: 23 lb.ft (31 Nm)

Fig 1: Transfer Case Tightening Sequence (Manual Shift Transfer Case)
Courtesy of FORD MOTOR COMPANY
Install the transfer case rear seal. Refer to: Transfer Case Rear Seal .

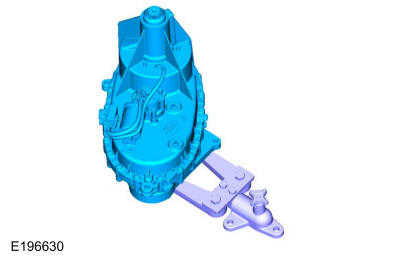

Remove the transfer case from the transmission adjustable mounting arms. Use the General Equipment: Adjustable Mounting Arm

GFD205317

Courtesy of FORD MOTOR COMPANY
