Transfer Case - Vehicles With: Electronic Shift Transfer Case: Assembly

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

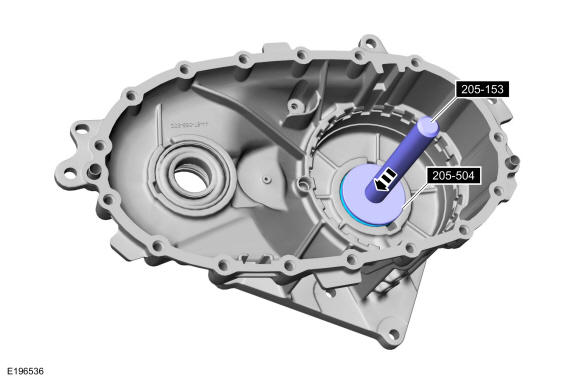

  1. Using the special tools, install the front planet carrier bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 205-504 Installer, Halfshaft Pilot Bearing.
    GFD464894Courtesy of FORD MOTOR COMPANY

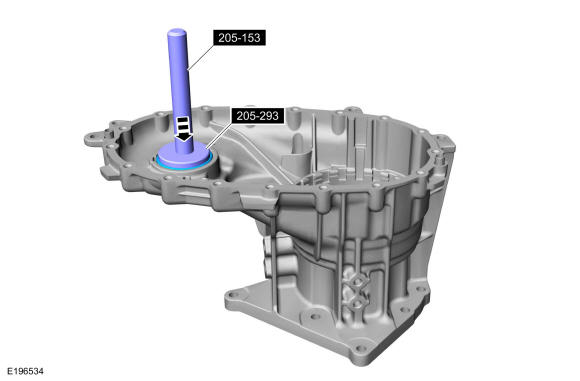

  2. Using the special tools, install the front output shaft bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 205-293 (T89P-4850-A) Installer, Differential Oil Seal.
    GFD464860Courtesy of FORD MOTOR COMPANY

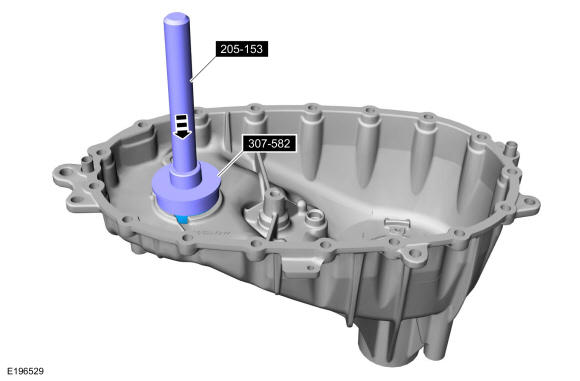

  3. Using the special tool, install the front output shaft support bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 307-582A Cover Axle Seal Installer.
    GFD464895Courtesy of FORD MOTOR COMPANY

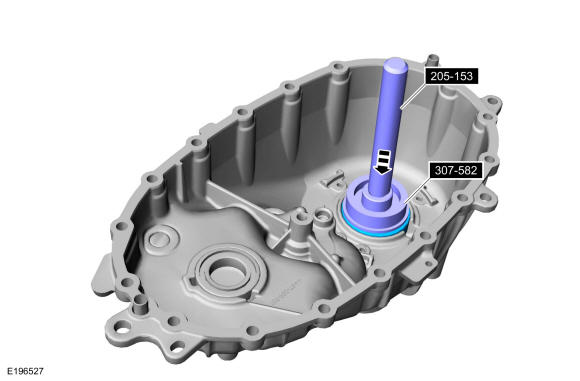

  4. Using the special tool, install the rear output shaft bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 307-582A Cover Axle Seal Installer.
    GFD464896Courtesy of FORD MOTOR COMPANY

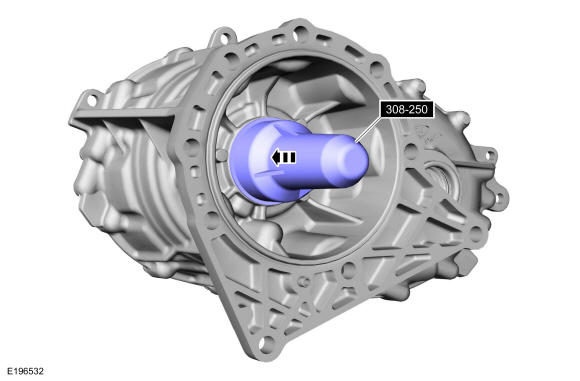

  5. Using the special tool, install the input shaft seal. Use Special Service Tool: 308-250 (T96T-7127-B) Installer, Output Shaft Oil Seal.
    GFD464897Courtesy of FORD MOTOR COMPANY

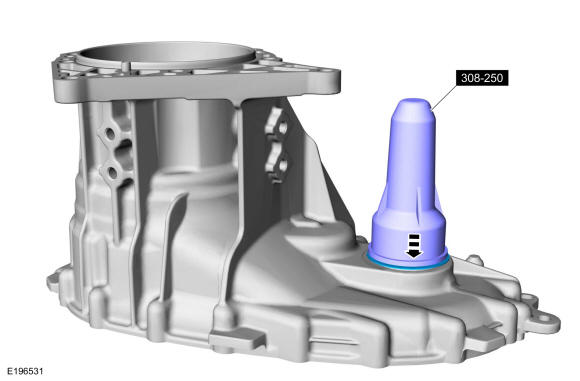

  6. Using the special tool, install the front output shaft seal. Use Special Service Tool: 308-250 (T96T-7127-B) Installer, Output Shaft Oil Seal.
    GFD464845Courtesy of FORD MOTOR COMPANY
  7. NOTE: Do not let the front output shaft fall while removing the snap ring or damage to the component may occur.

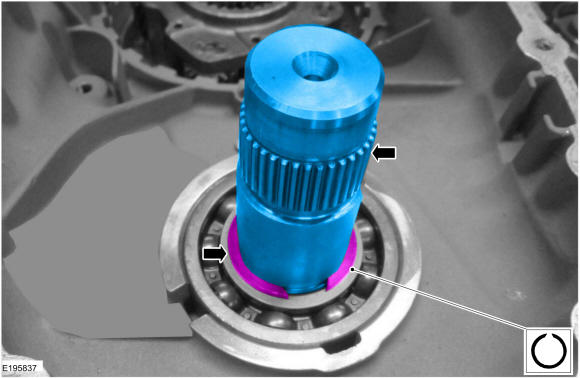

    Install the output shaft and the out put shaft circlip.

    GFD464841Courtesy of FORD MOTOR COMPANY

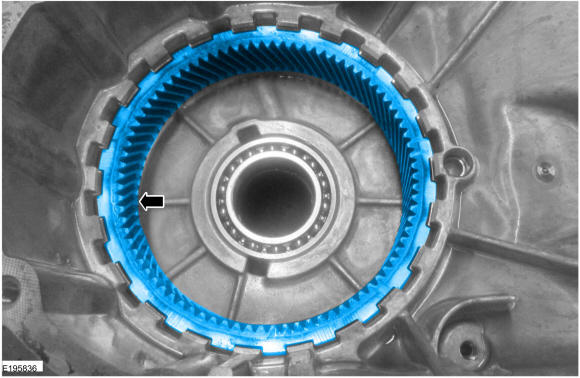

  8. Install the ring gear.
    GFD464889Courtesy of FORD MOTOR COMPANY
  9. If removed, using a press and the special tool, install the needle bearing into the front planet carrier. Use Special Service Tool: 308-085 (T83T-7025-C) Installer, Input Shaft Bearing.
  10. NOTE: Replace the inner planet carrier needle bearing if necessary.

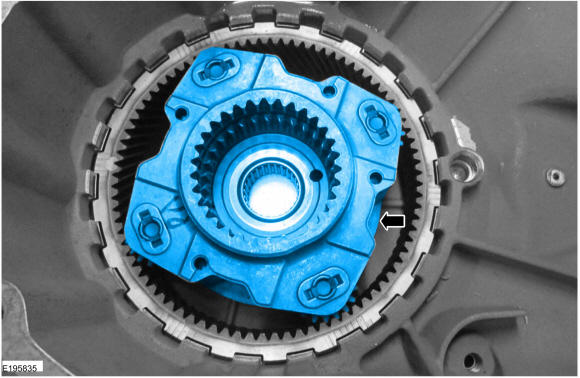

    Install the front planet carrier.

    GFD464888Courtesy of FORD MOTOR COMPANY

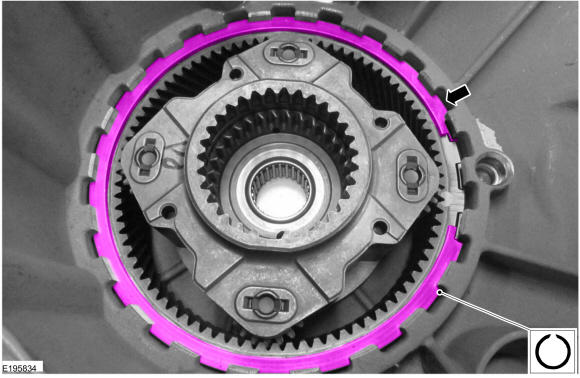

  11. Install the ring gear circlip.
    GFD464887Courtesy of FORD MOTOR COMPANY

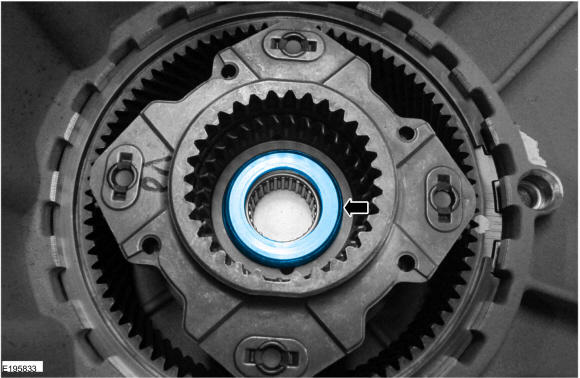

  12. Install the planet carrier thrust bearing.
    GFD464886Courtesy of FORD MOTOR COMPANY

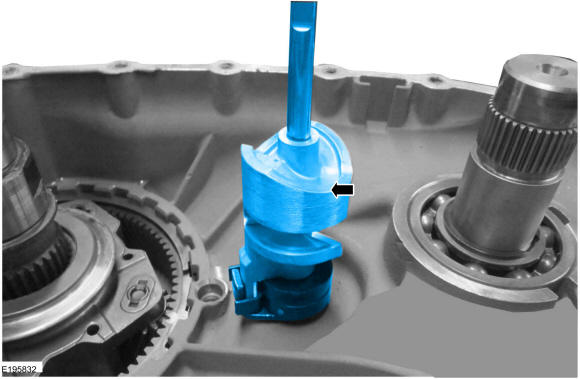

  13. Install the electric shift cam assembly.
    GFD464885Courtesy of FORD MOTOR COMPANY

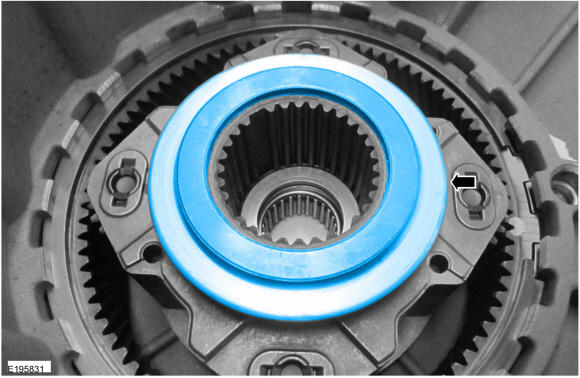

  14. Install the reduction hub.
    GFD464884Courtesy of FORD MOTOR COMPANY

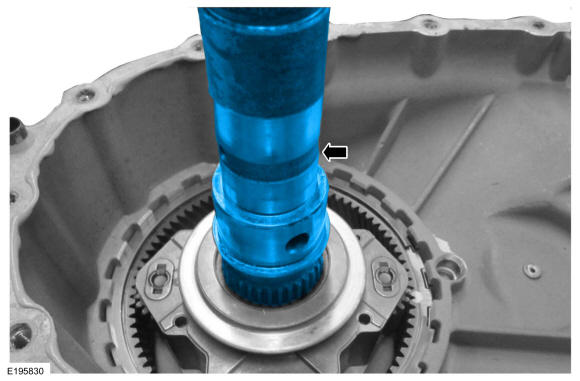

  15. Install the output shaft.
    GFD464883Courtesy of FORD MOTOR COMPANY

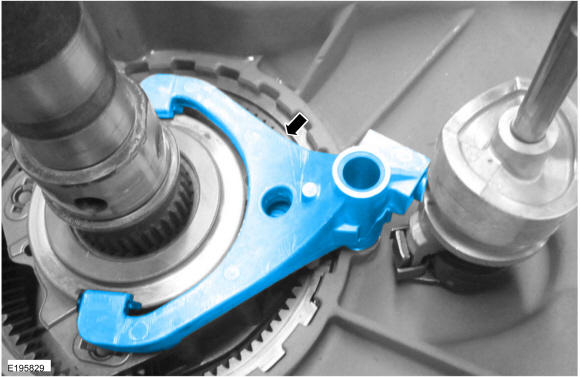

  16. Install the shift fork.
    GFD464882Courtesy of FORD MOTOR COMPANY

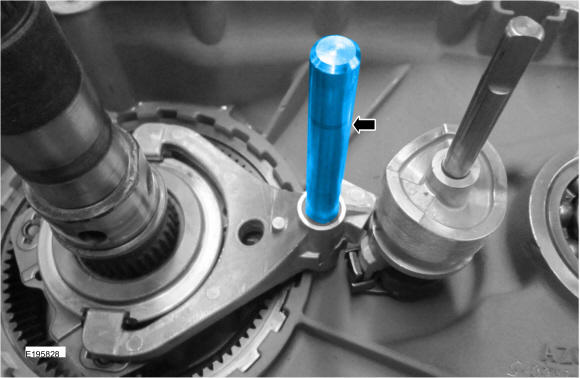

  17. Install the shift rail.
    GFD464881Courtesy of FORD MOTOR COMPANY

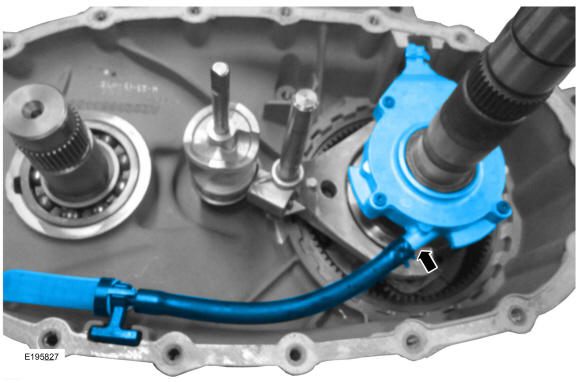

  18. Install the oil pump assembly.
    GFD464880Courtesy of FORD MOTOR COMPANY

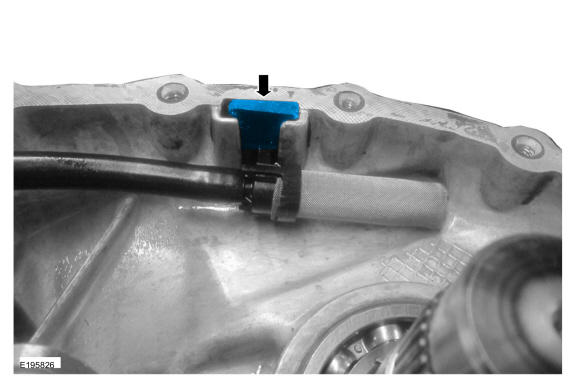

  19. Install the magnet into its slot in the case.
    GFD464879Courtesy of FORD MOTOR COMPANY

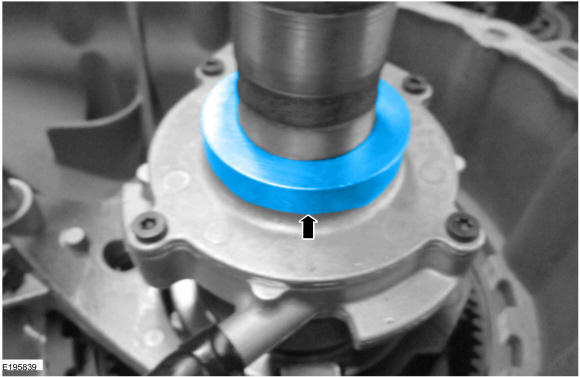

  20. Install the sprocket thrust washer.
    GFD464912Courtesy of FORD MOTOR COMPANY
  21. NOTE: Install the drive chain and sprockets as an assembly.

    Install the drive chain and sprockets.

    GFD464858Courtesy of FORD MOTOR COMPANY

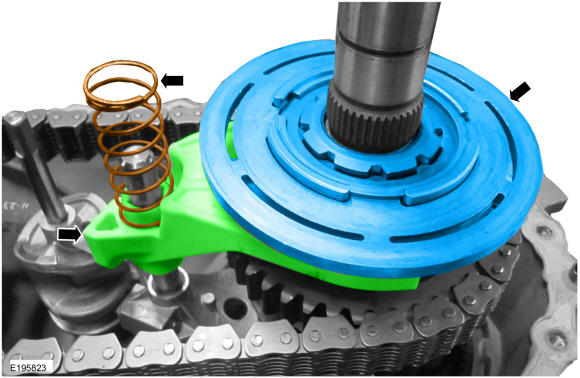

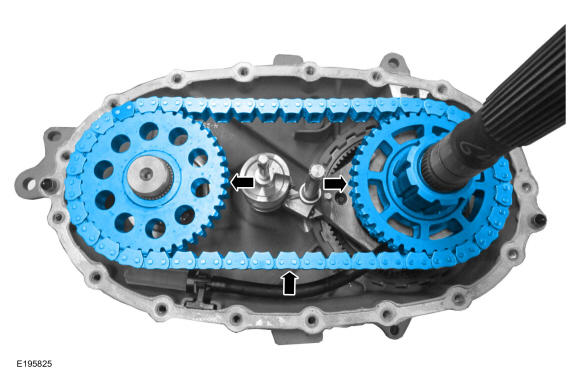

  22. Install the lock up hub, shift fork and shift fork spring.
    GFD464857Courtesy of FORD MOTOR COMPANY

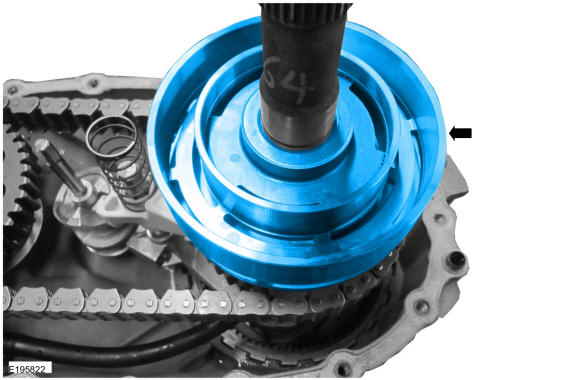

  23. Install the field coil housing.
    GFD464856Courtesy of FORD MOTOR COMPANY

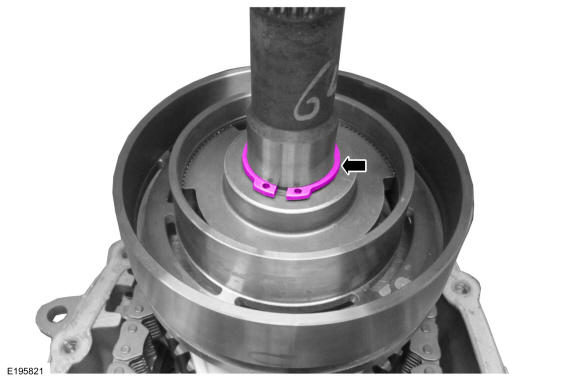

  24. Install the field coil housing snap ring.
    GFD464855Courtesy of FORD MOTOR COMPANY

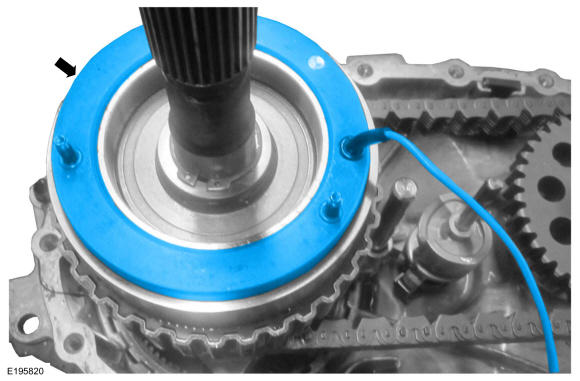

  25. Install the transfer case field coil.
    GFD464854Courtesy of FORD MOTOR COMPANY

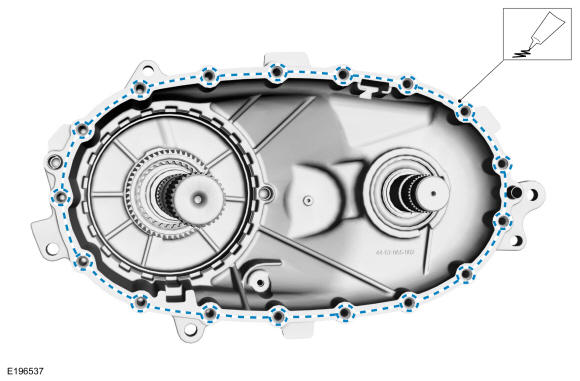

  26. NOTE: Only apply enough silicone sealant to seal the transfer case halves together.

    Apply a small bead of silicone sealant to the mating surface of the case half.

    Material: Motorcraft® Ultra Silicone Sealant / TA-29

    GFD464846Courtesy of FORD MOTOR COMPANY

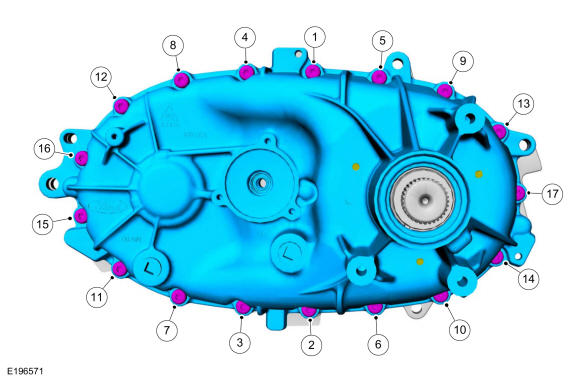

  27. NOTE: Position the field coil bolts to align with the field coil bolt holes in the rear case. Position field coil wire through the field coil wire through hole in the case.

    Position the transfer case halves and tighten the bolts in the sequence shown.

    Torque: 18 lb.ft (24 Nm)

    Fig 1: Transfer Case Tightening Sequence (Vehicles With: Electronic Shift Transfer Case)
    GFD464847Courtesy of FORD MOTOR COMPANY

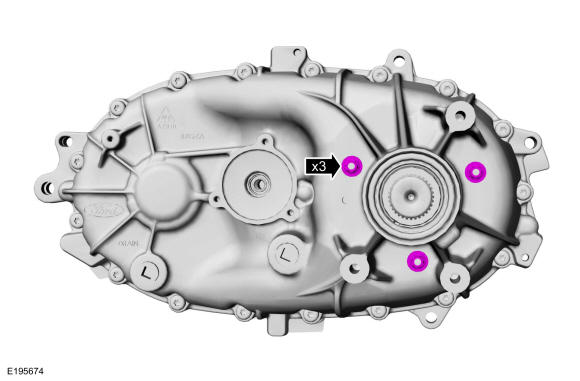

  28. Install the transfer case field coil washers and the nuts.

    Torque: 89 lb.in (10 Nm)

    GFD464828Courtesy of FORD MOTOR COMPANY
  29. Install the transfer case rear seal. Refer to: Transfer Case Rear Seal .

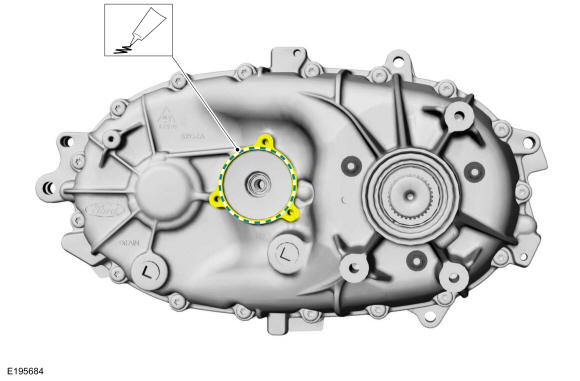

  30. Apply a small bead of silicone sealant to the transfer case shift motor mating surface.

    Material: Motorcraft® Ultra Silicone Sealant / TA-29

    GFD464848Courtesy of FORD MOTOR COMPANY

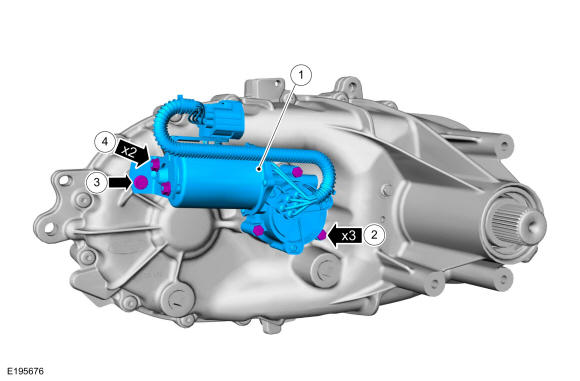

  31. NOTE: When installing the shift motor, tighten the bracket nuts last. Failure to follow the steps in the correct order may result in damage to the component.

    1. Install the transfer case shift motor.
    2. Install the transfer case shift motor bolts.

      Torque: 89 lb.in (10 Nm)

    3. Install the transfer case shift motor bracket bolt.

      Torque: 89 lb.in (10 Nm)

    4. Tighten the transfer case shift motor bracket nuts.

      Torque: 27 lb.in (3 Nm)

    GFD464849Courtesy of FORD MOTOR COMPANY

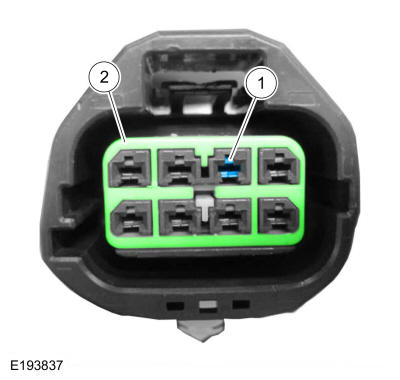

  32. NOTE: After the coil wire is inserted into the connector, gently pull the wire back to verify the pin is locked inside the connector.

    Install the coil wire pin in the electrical connector.

    1. Insert the coil wire pin in the electrical connector.
    2. Install the inner connector retainer.

    GFD464850Courtesy of FORD MOTOR COMPANY

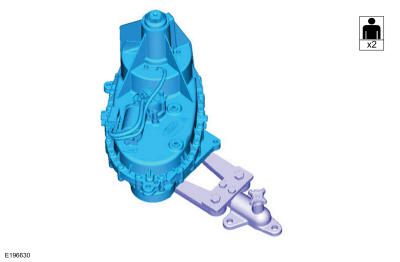

  33. Remove the transfer case from the transmission adjustable mounting arms. Use the General Equipment: Adjustable Mounting Arm
GFD464824Courtesy of FORD MOTOR COMPANY
