Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this information, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
NOTE: Powertrain Control Module (PCM) installation DOES NOT require new keys or programming of keys, only a Parameter Reset of the PATS.

NOTE: This step is only necessary when installing a new component.

Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation (PMI) procedure. Refer to: Module Configuration - System Operation and Component Description . Use the General Equipment: Ford Diagnostic Equipment
Remove the LHF fender splash shield. Refer to: Fender Splash Shield .

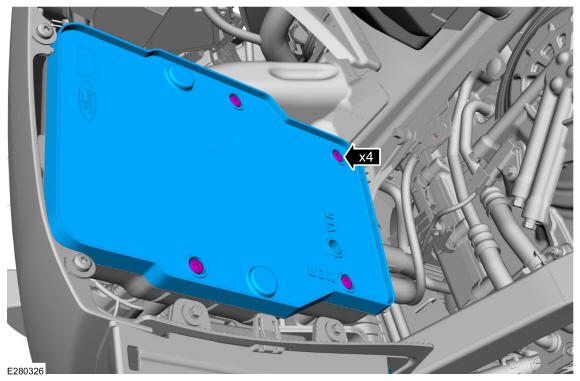

Remove the retainers and the PCM cover.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

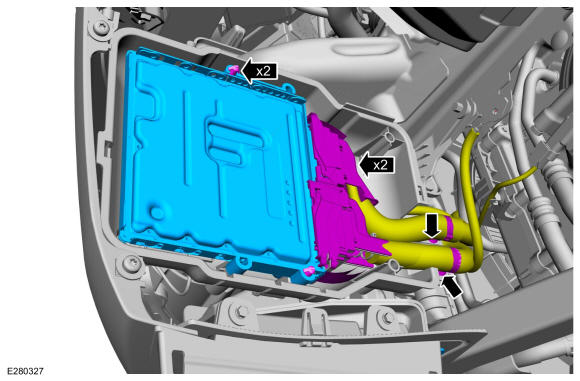

- Disconnect the PCM electrical connectors.
- Remove the retainers and the PCM.

Courtesy of FORD MOTOR COMPANY
