Component Testing

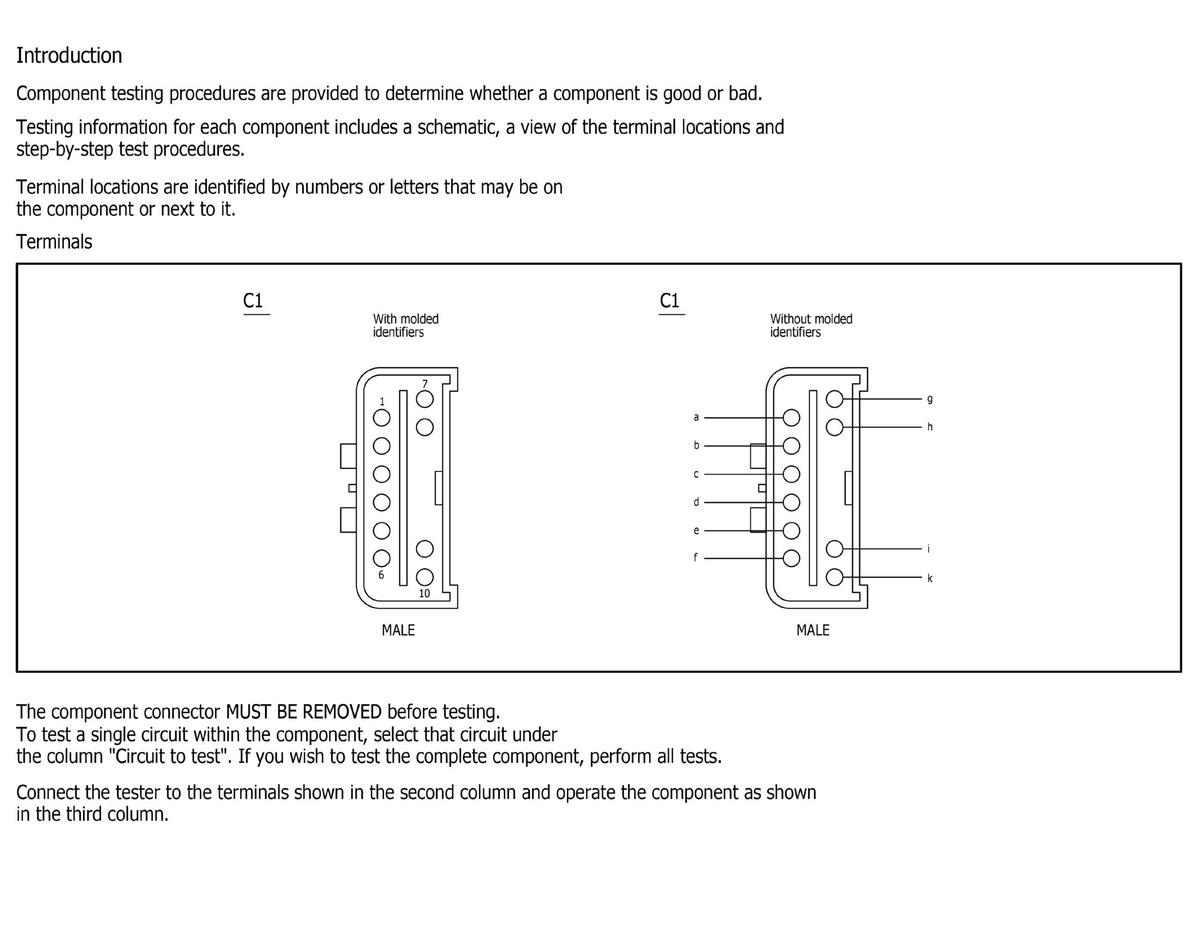

Fig 1: Component Testing Introduction

Courtesy of FORD MOTOR COMPANY

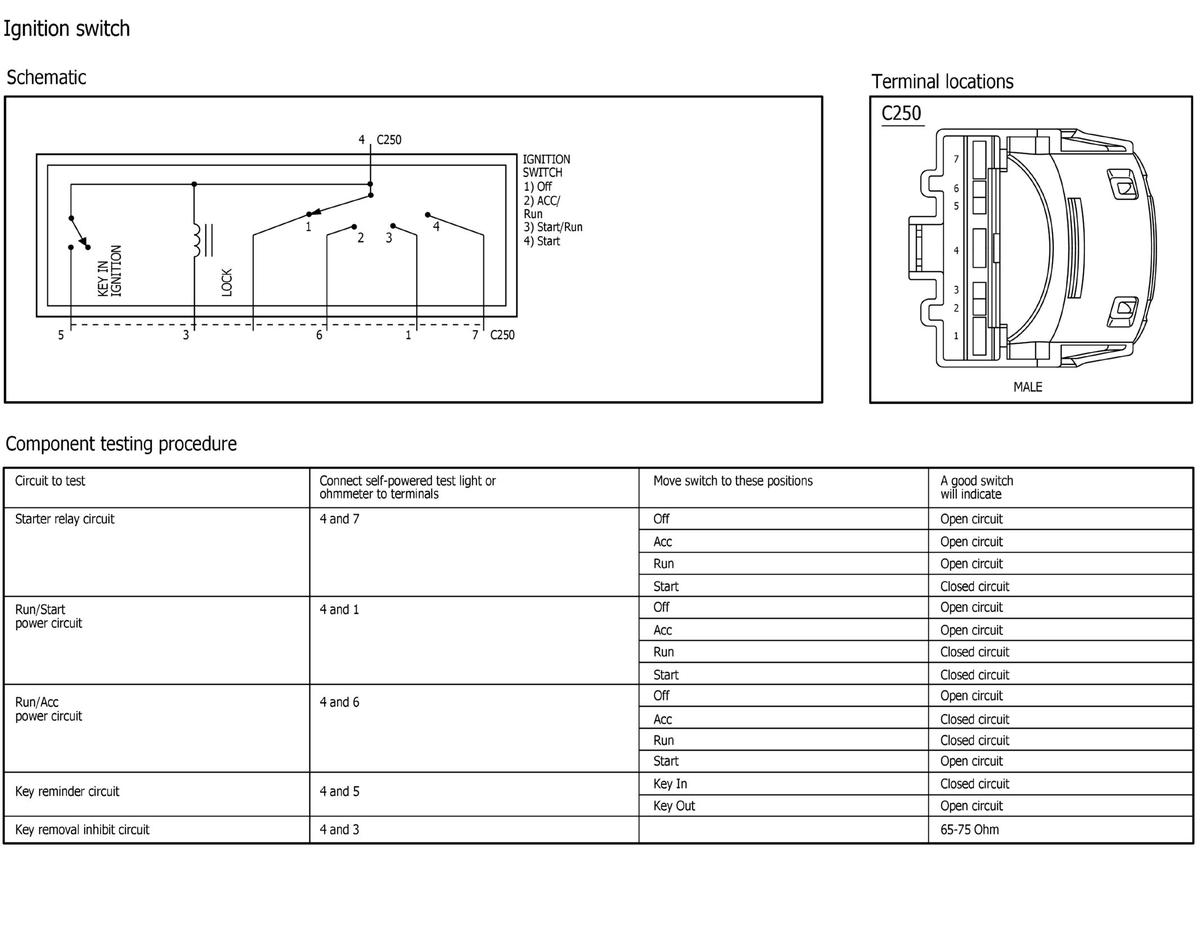

Fig 2: Ignition Switch Component Testing

Courtesy of FORD MOTOR COMPANY

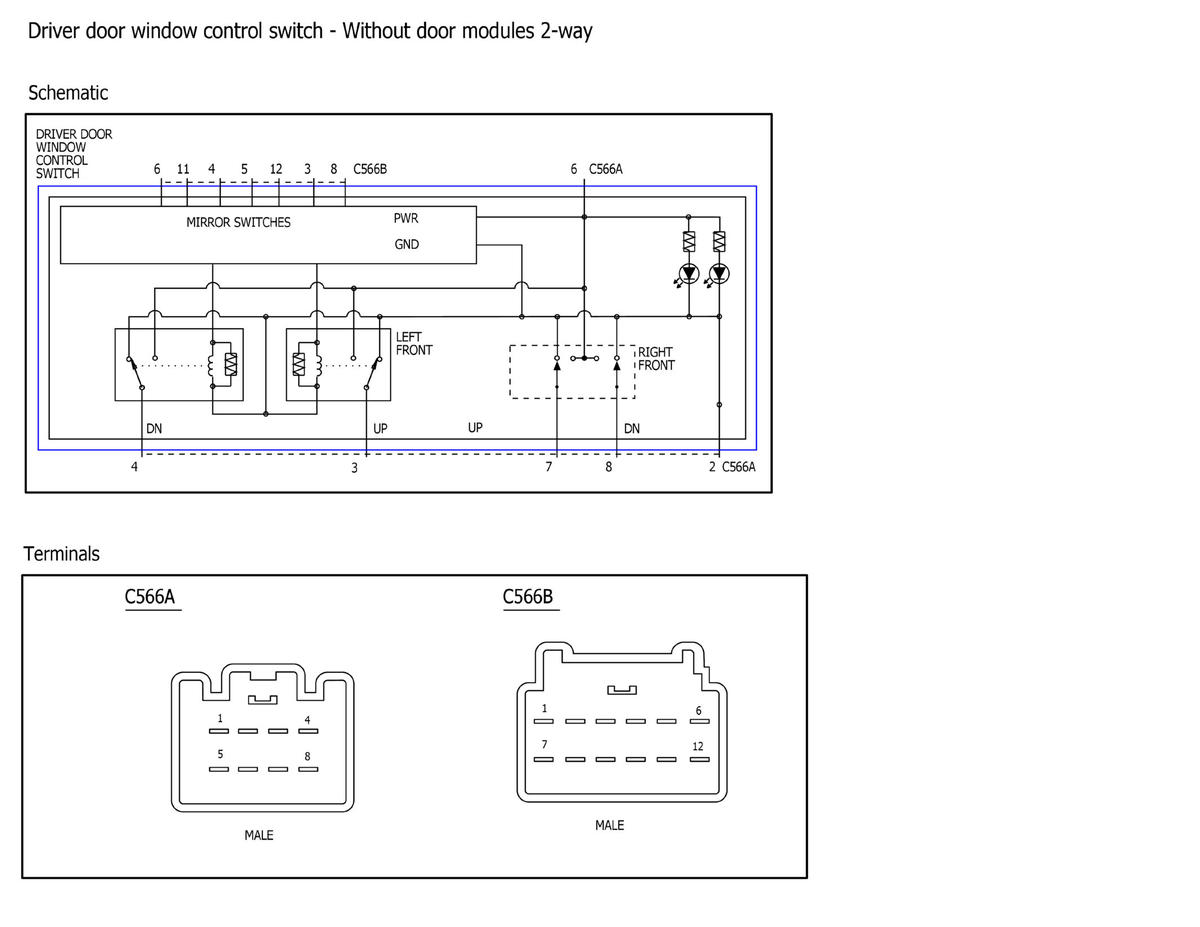

Fig 3: Driver Door Window Control Switch - Without Door Module 2-Way Component Testing (1 of 2)

Courtesy of FORD MOTOR COMPANY

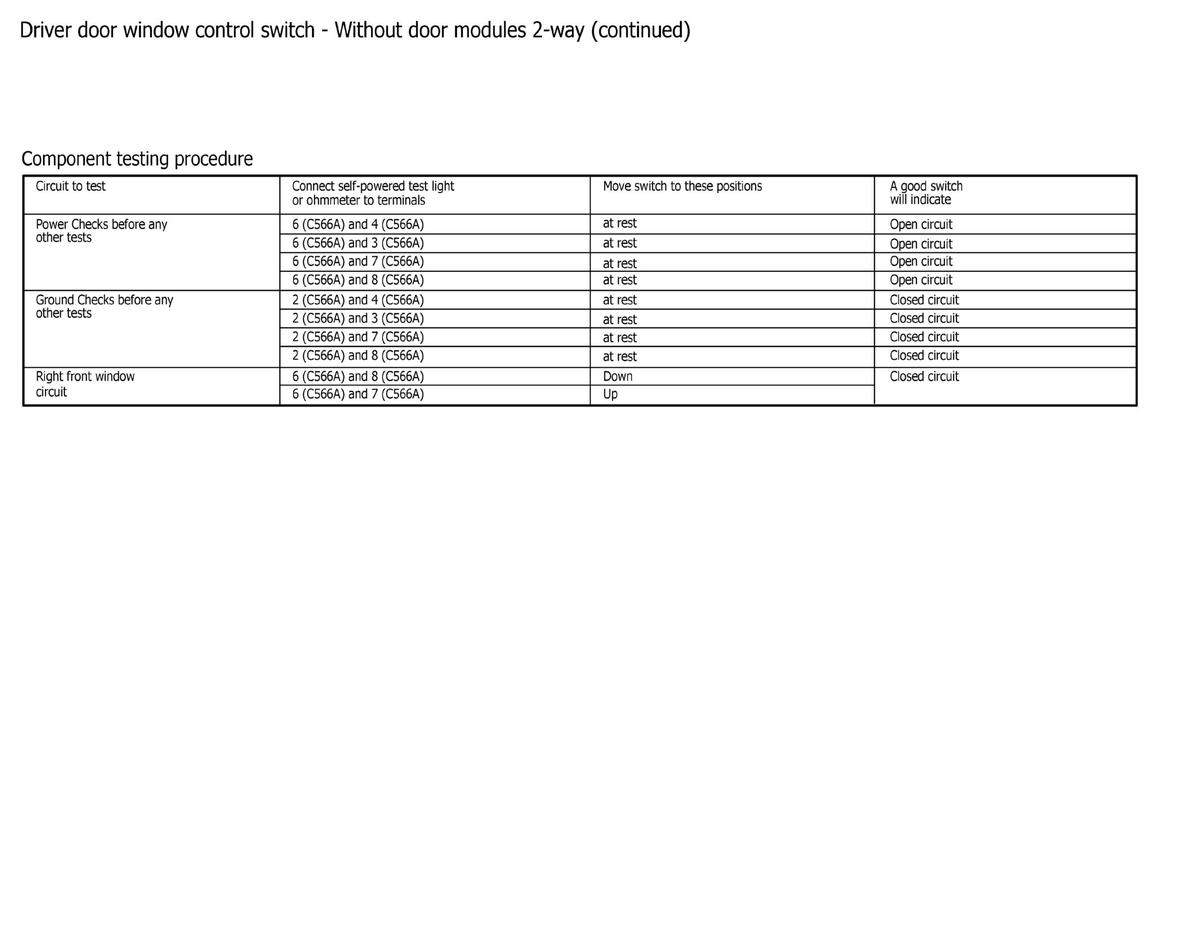

Fig 4: Driver Door Window Control Switch - Without Door Module 2-Way Component Testing (2 of 2)

Courtesy of FORD MOTOR COMPANY

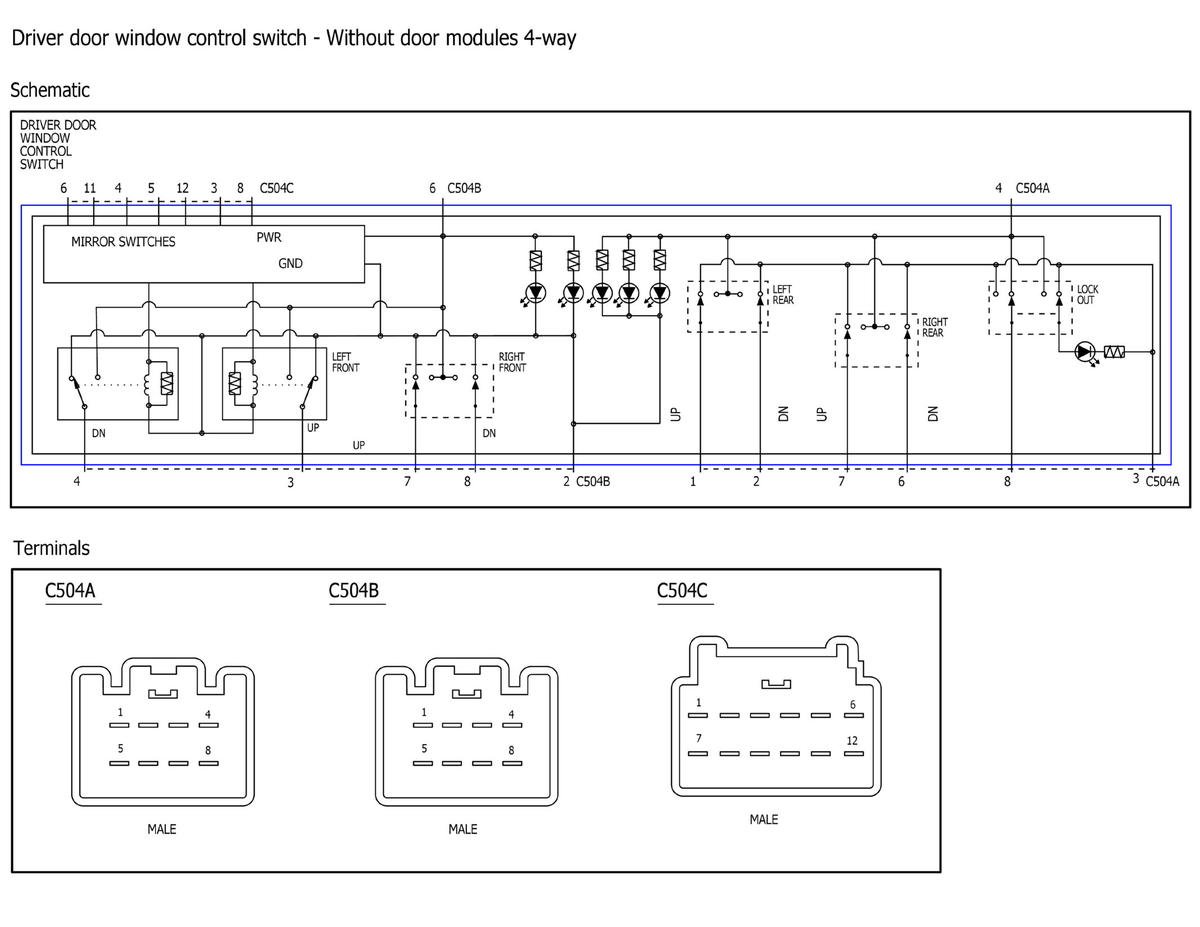

Fig 5: Driver Door Window Control Switch - Without Door Module 4-Way Component Testing (1 of 2)

Courtesy of FORD MOTOR COMPANY

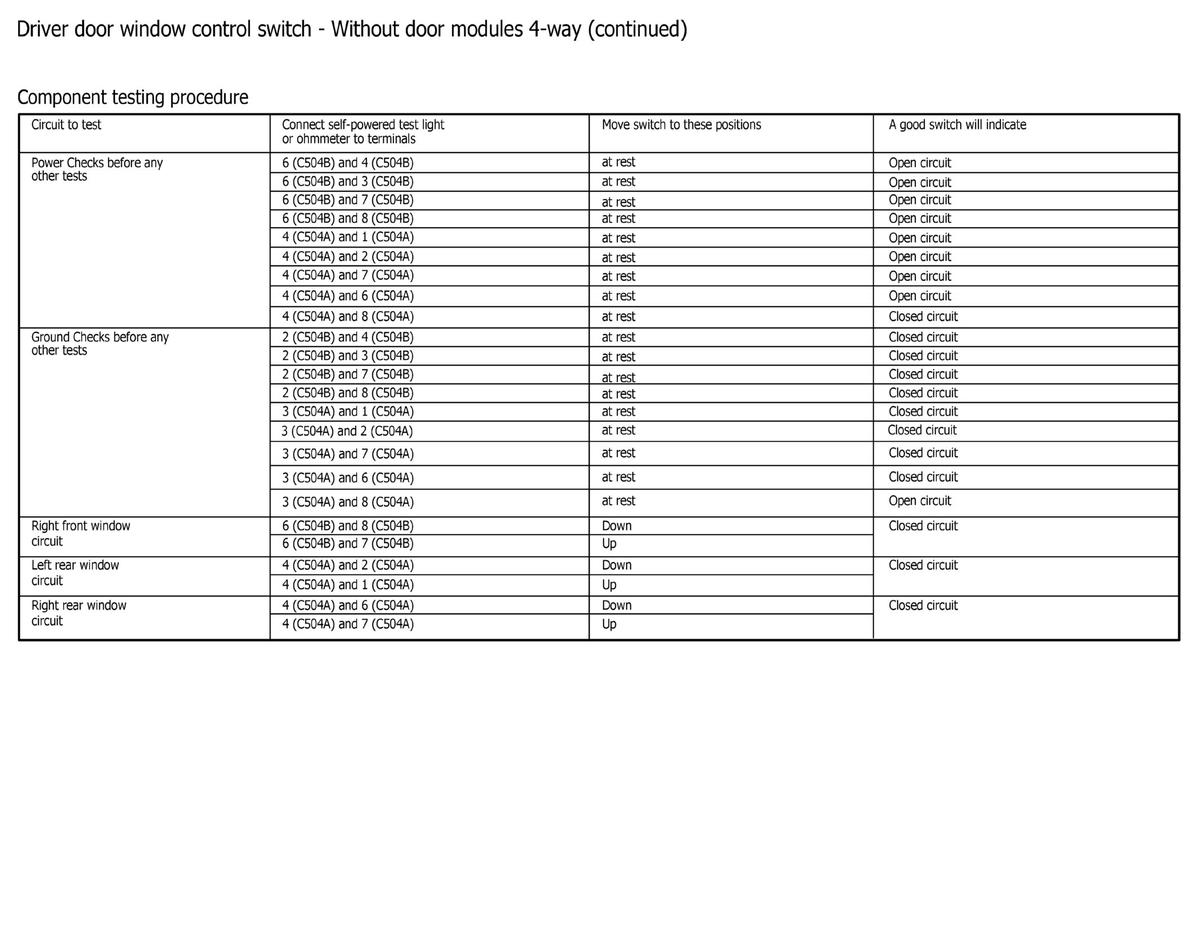

Fig 6: Driver Door Window Control Switch - Without Door Module 4-Way Component Testing (2 of 2)

Courtesy of FORD MOTOR COMPANY

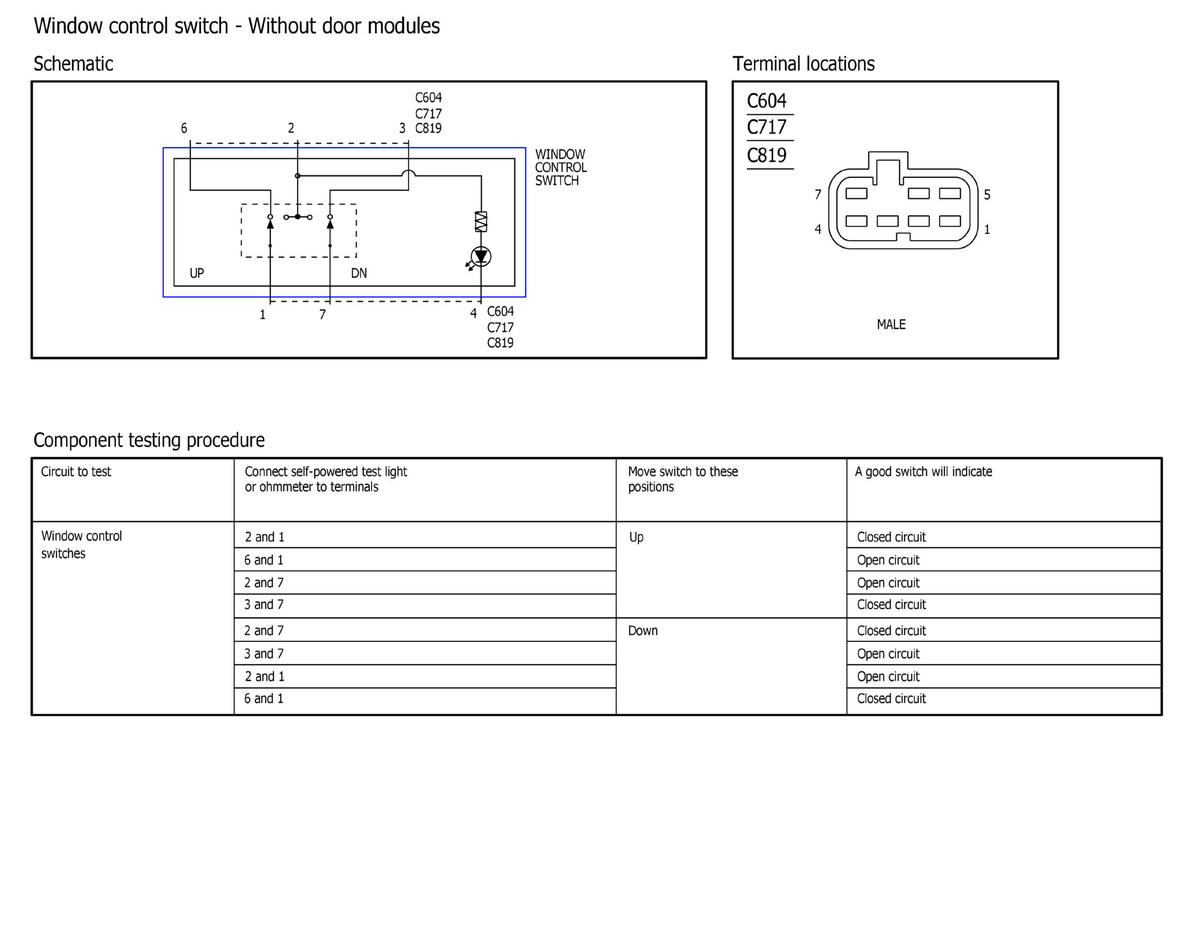

Fig 7: Window Control Switch - Without Door Modules Component Testing

Courtesy of FORD MOTOR COMPANY

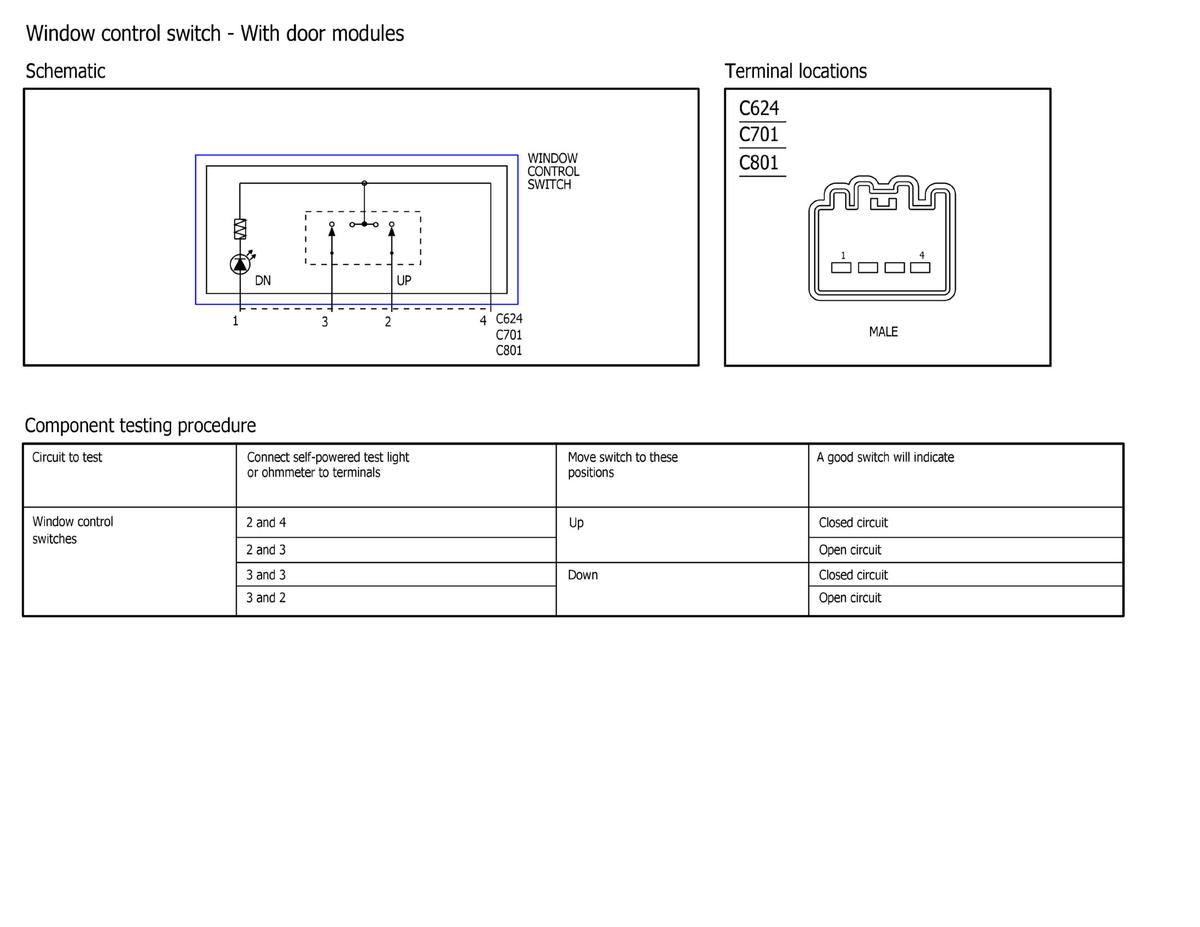

Fig 8: Window Control Switch - With Door Modules Component Testing

Courtesy of FORD MOTOR COMPANY

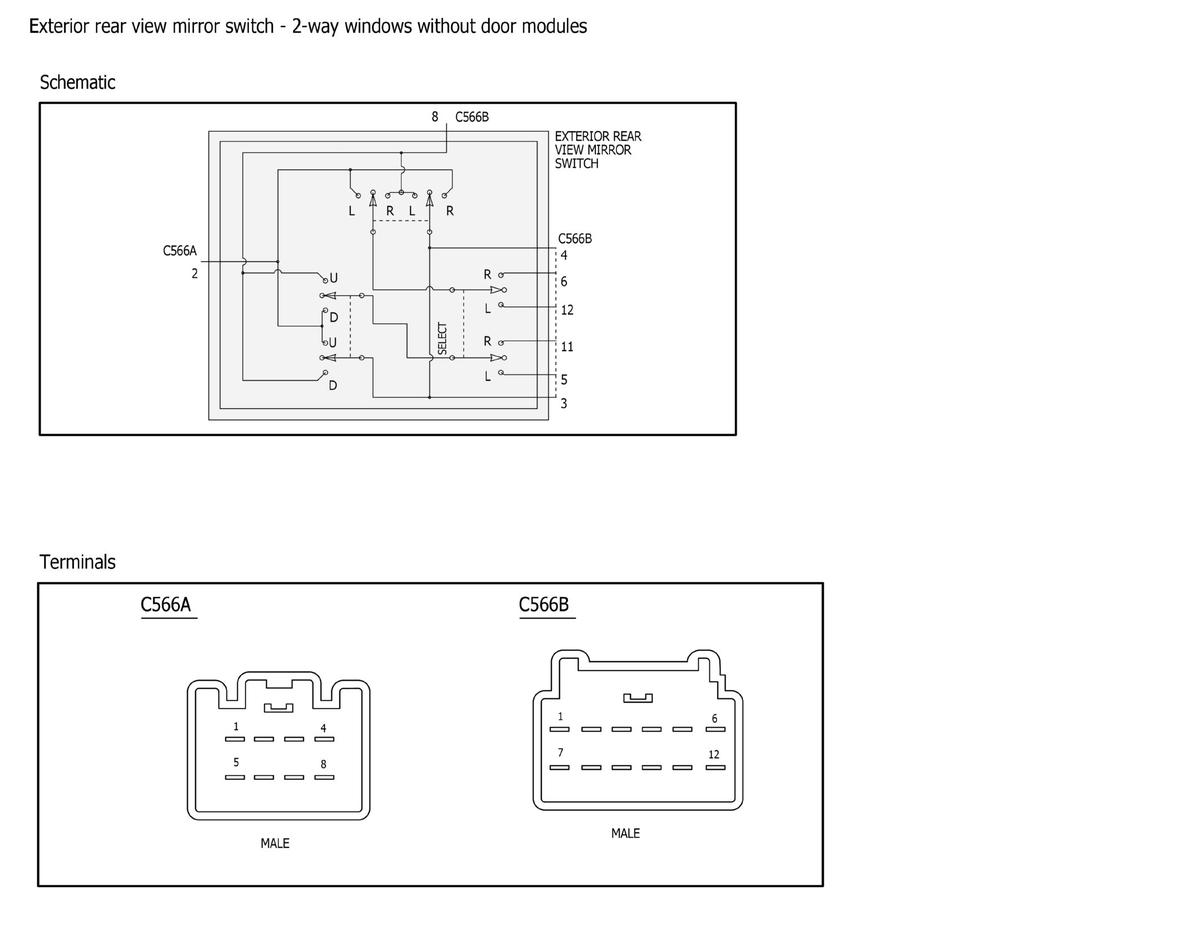

Fig 9: Exterior Rear View Mirror Switch - 2-Way Windows Without Door Modules Component Testing (1 Of 2)

Courtesy of FORD MOTOR COMPANY

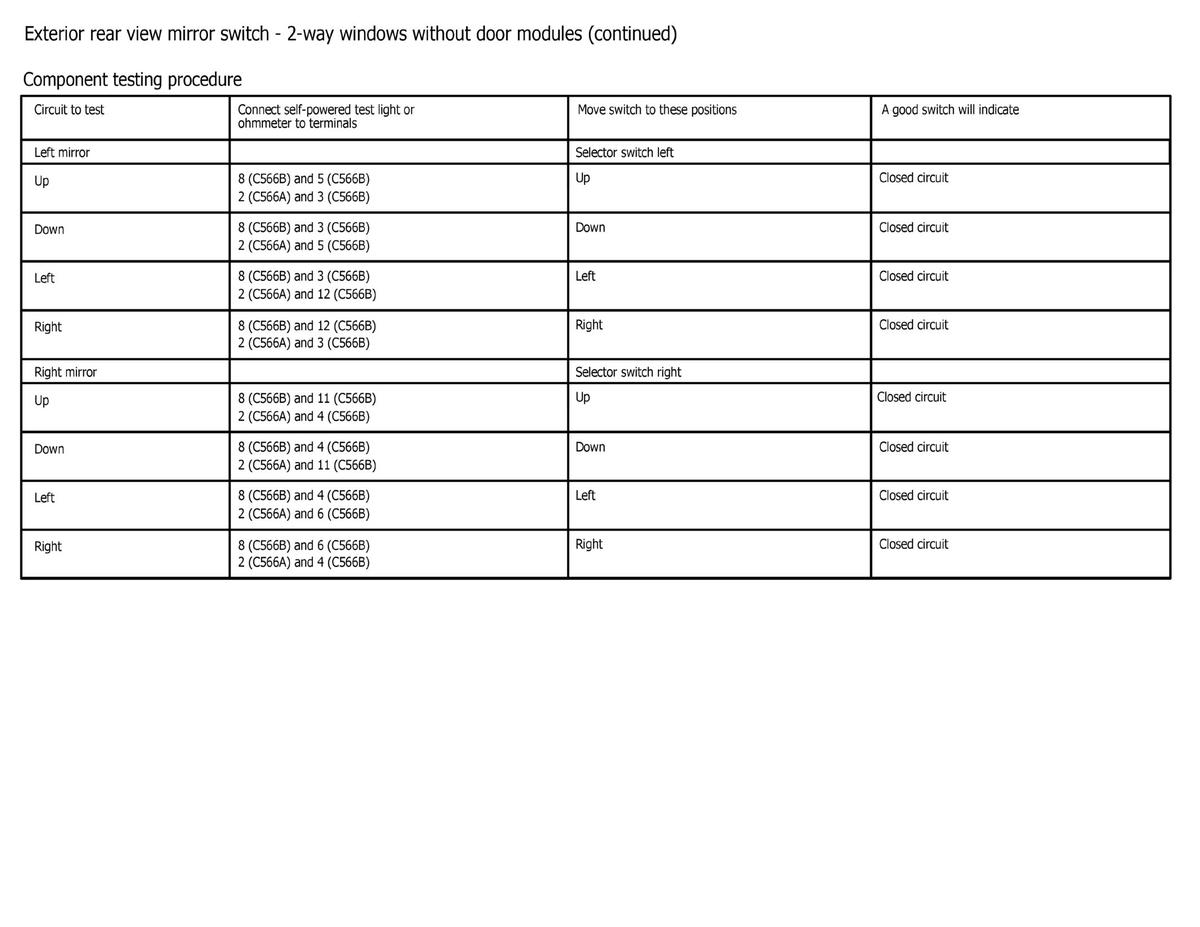

Fig 10: Exterior Rear View Mirror Switch - 2-Way Windows Without Door Modules Component Testing (2 Of 2)

Courtesy of FORD MOTOR COMPANY

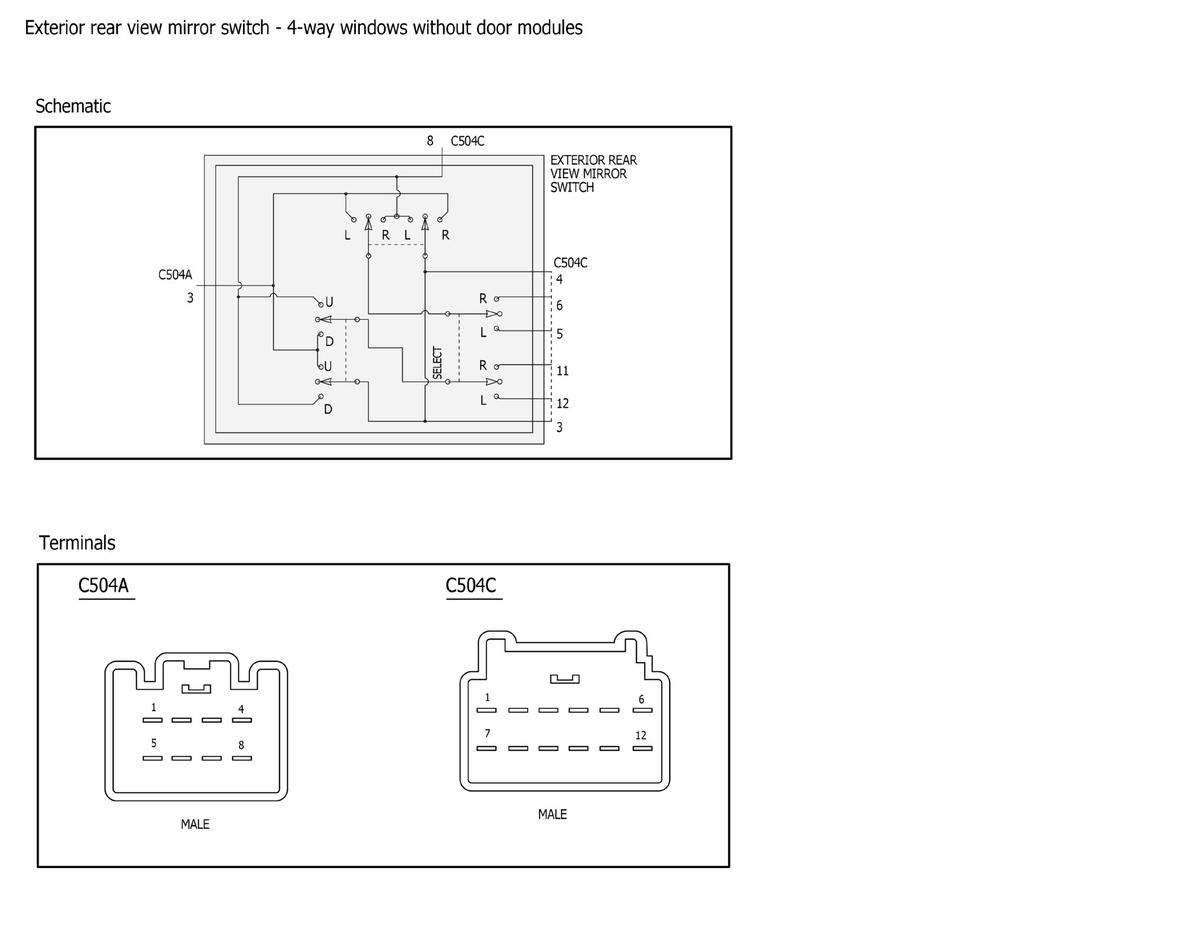

Fig 11: Exterior Rear View Mirror Switch - 4-Way Windows Without Door Modules Component Testing (1 Of 2)

Courtesy of FORD MOTOR COMPANY

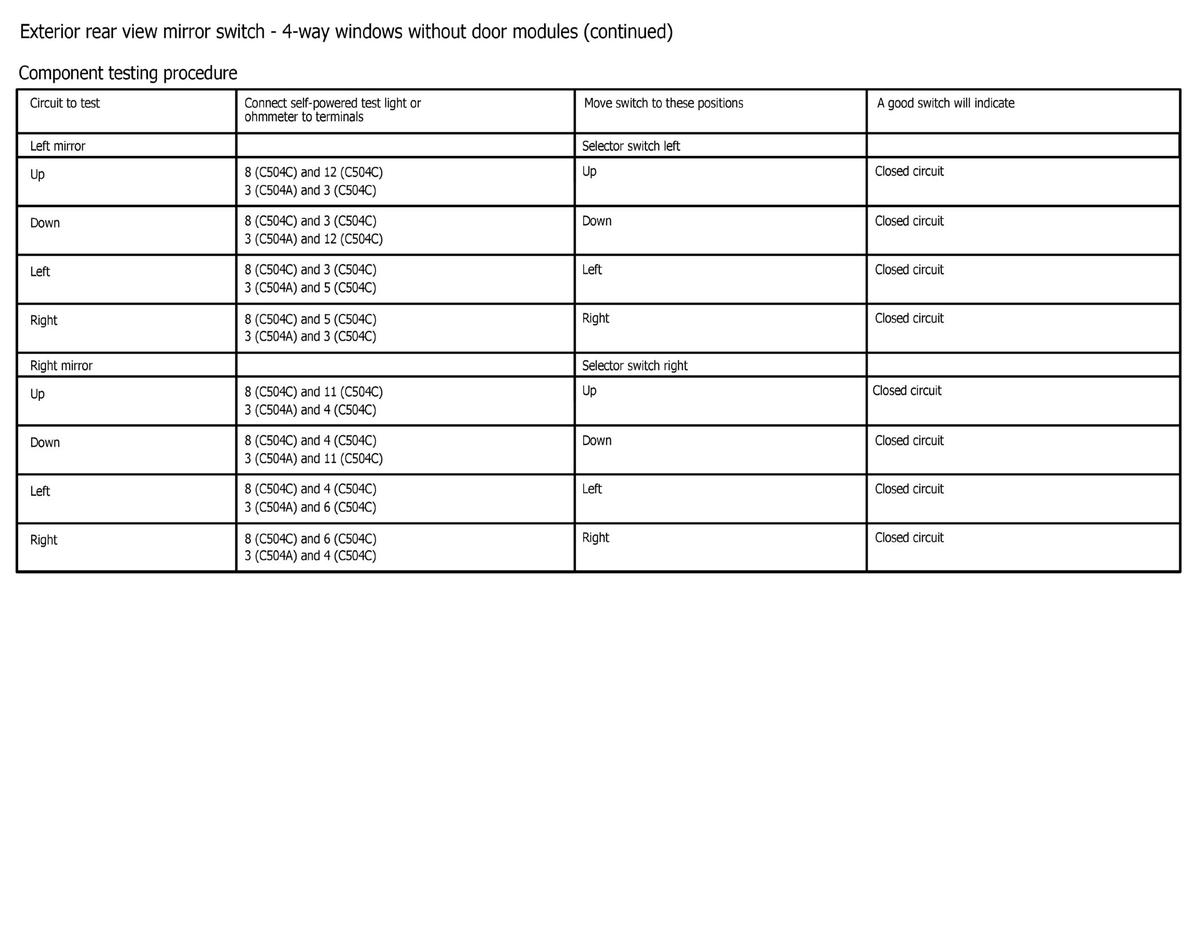

Fig 12: Exterior Rear View Mirror Switch - 4-Way Windows Without Door Modules Component Testing (2 Of 2))

Courtesy of FORD MOTOR COMPANY

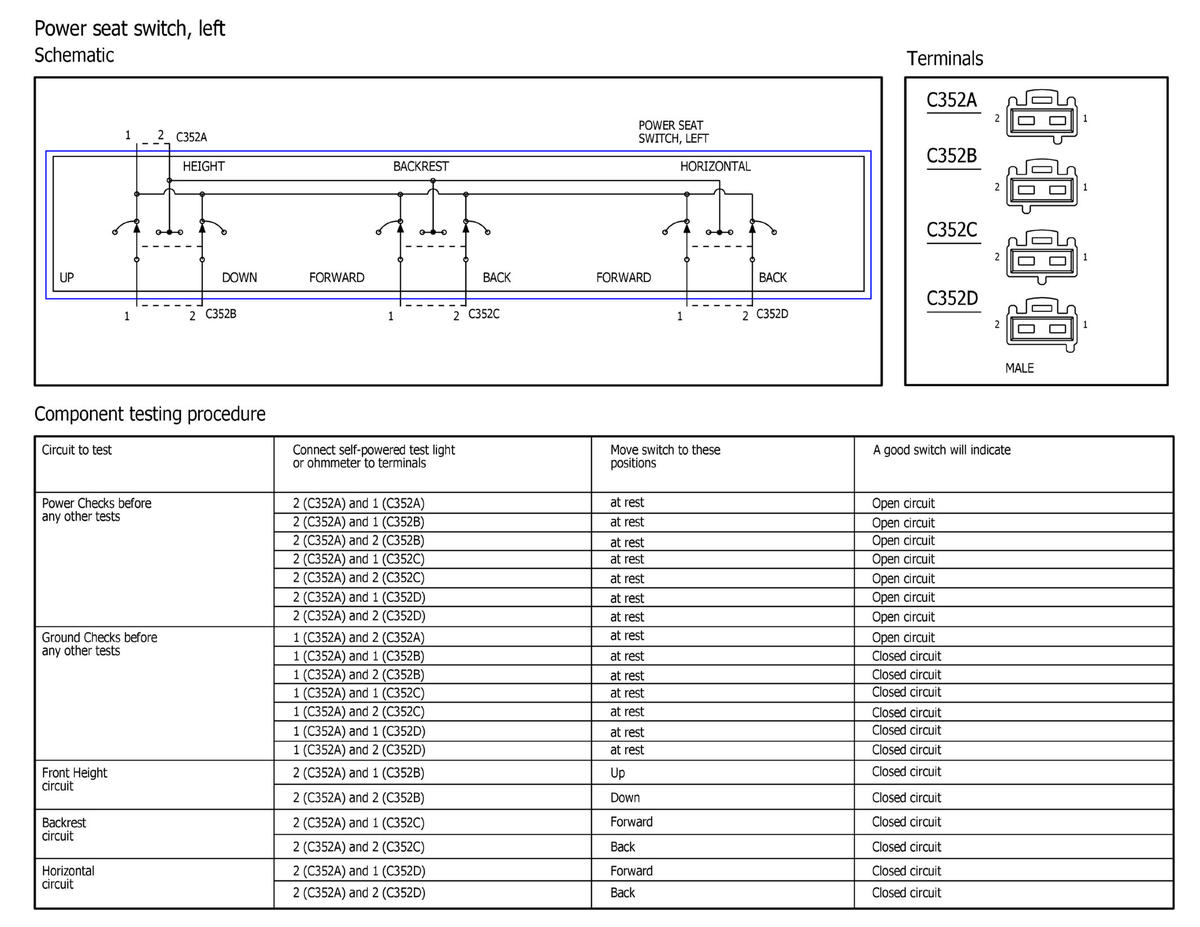

Fig 13: Power Seat Switch, Left Component Testing

Courtesy of FORD MOTOR COMPANY

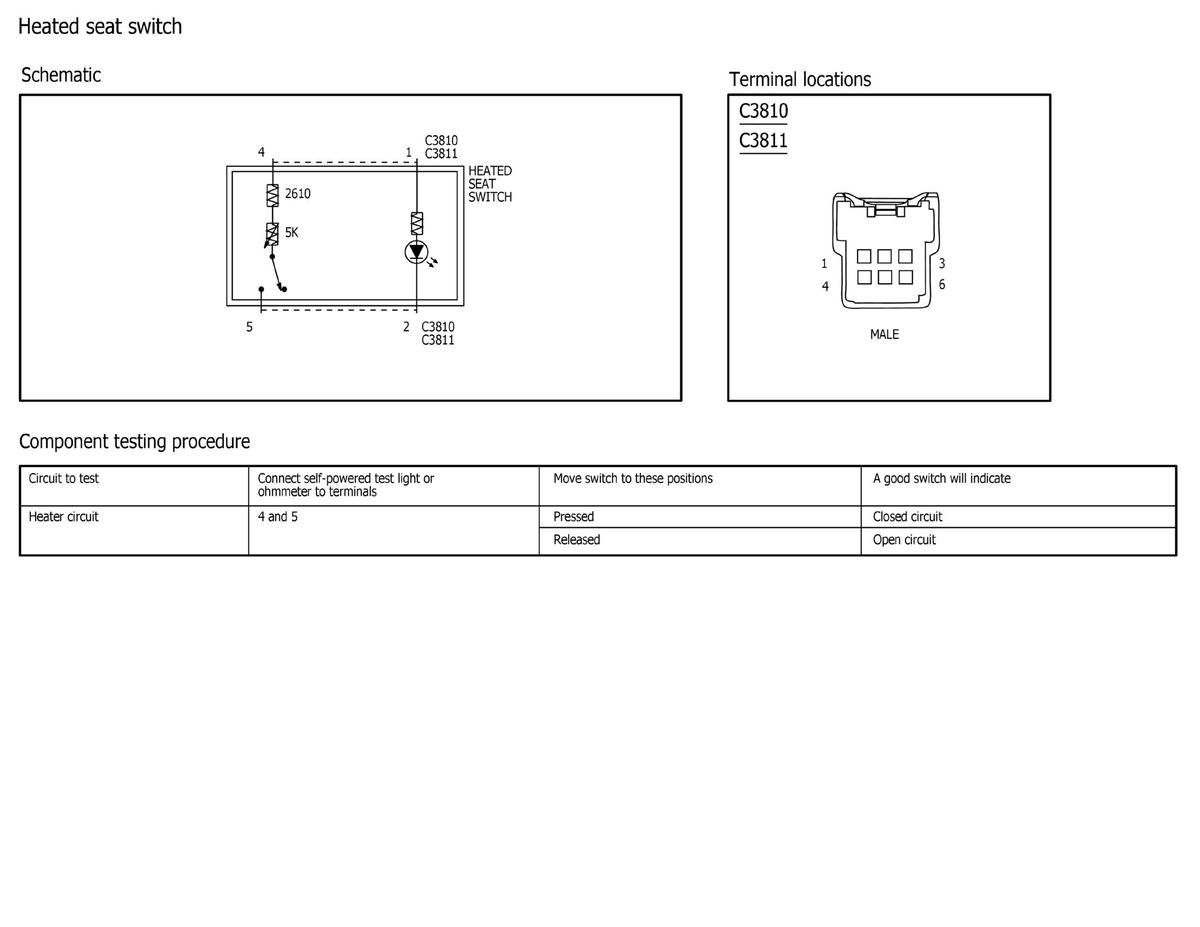

Fig 14: Heated Seat Switch Component Testing

Courtesy of FORD MOTOR COMPANY

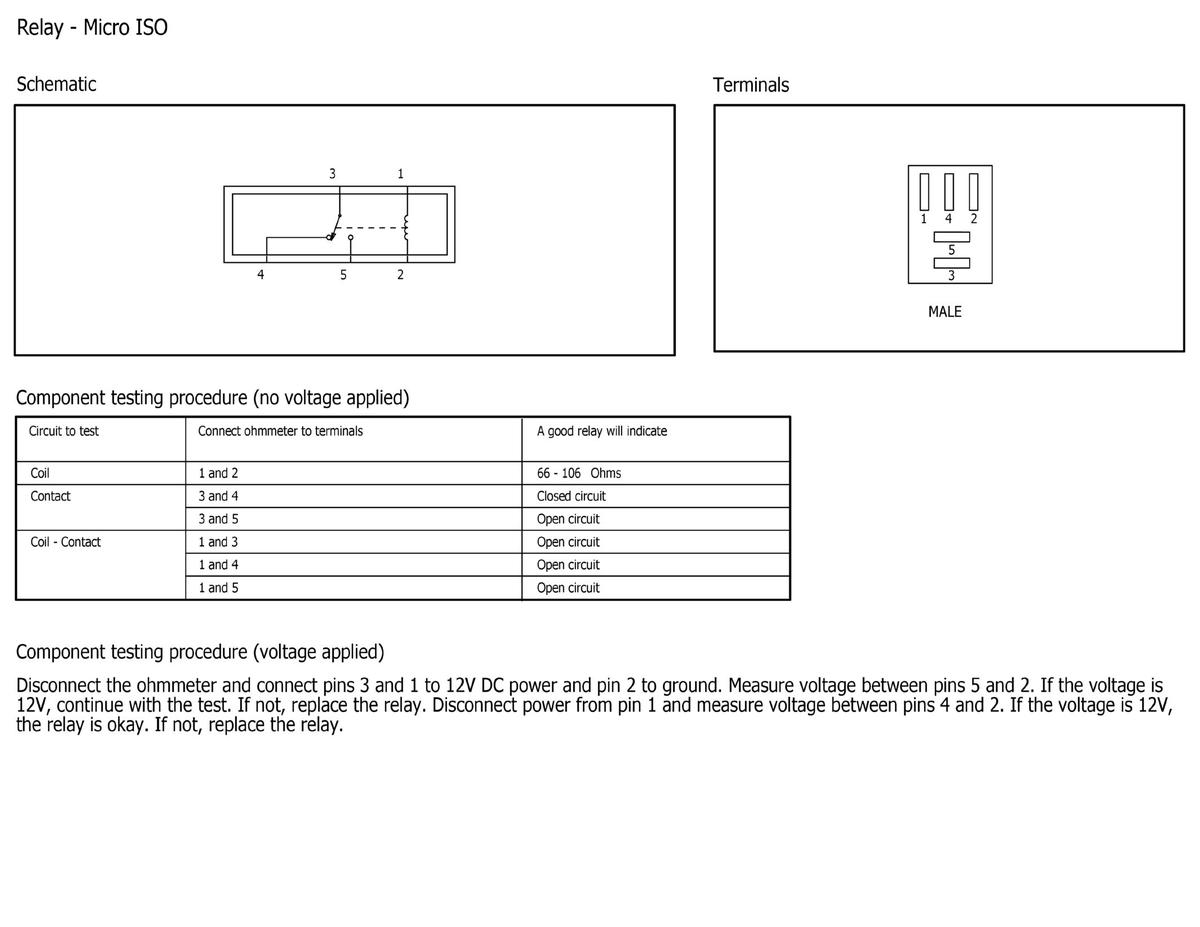

Fig 15: Relay - Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

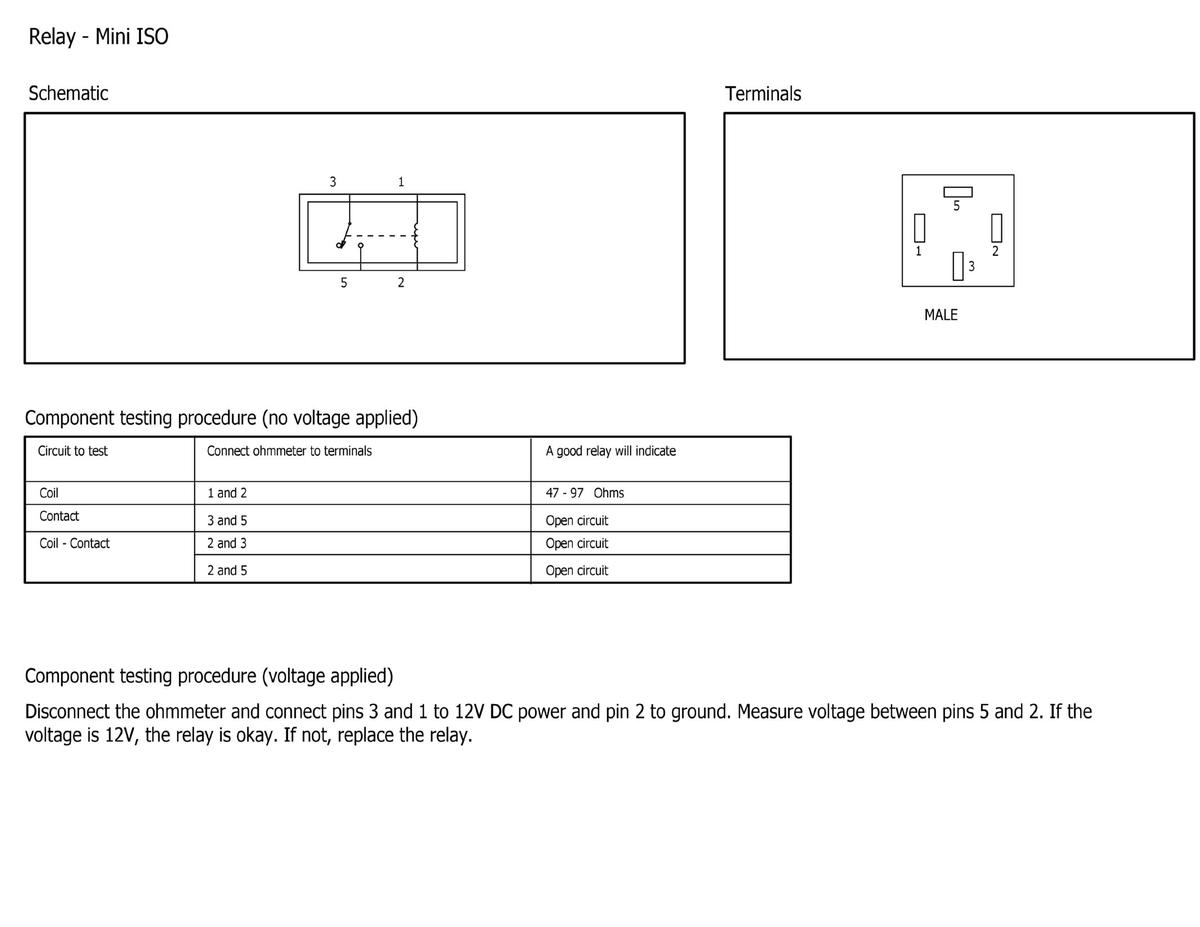

Fig 16: Relay - Mini ISO Component Testing

Courtesy of FORD MOTOR COMPANY

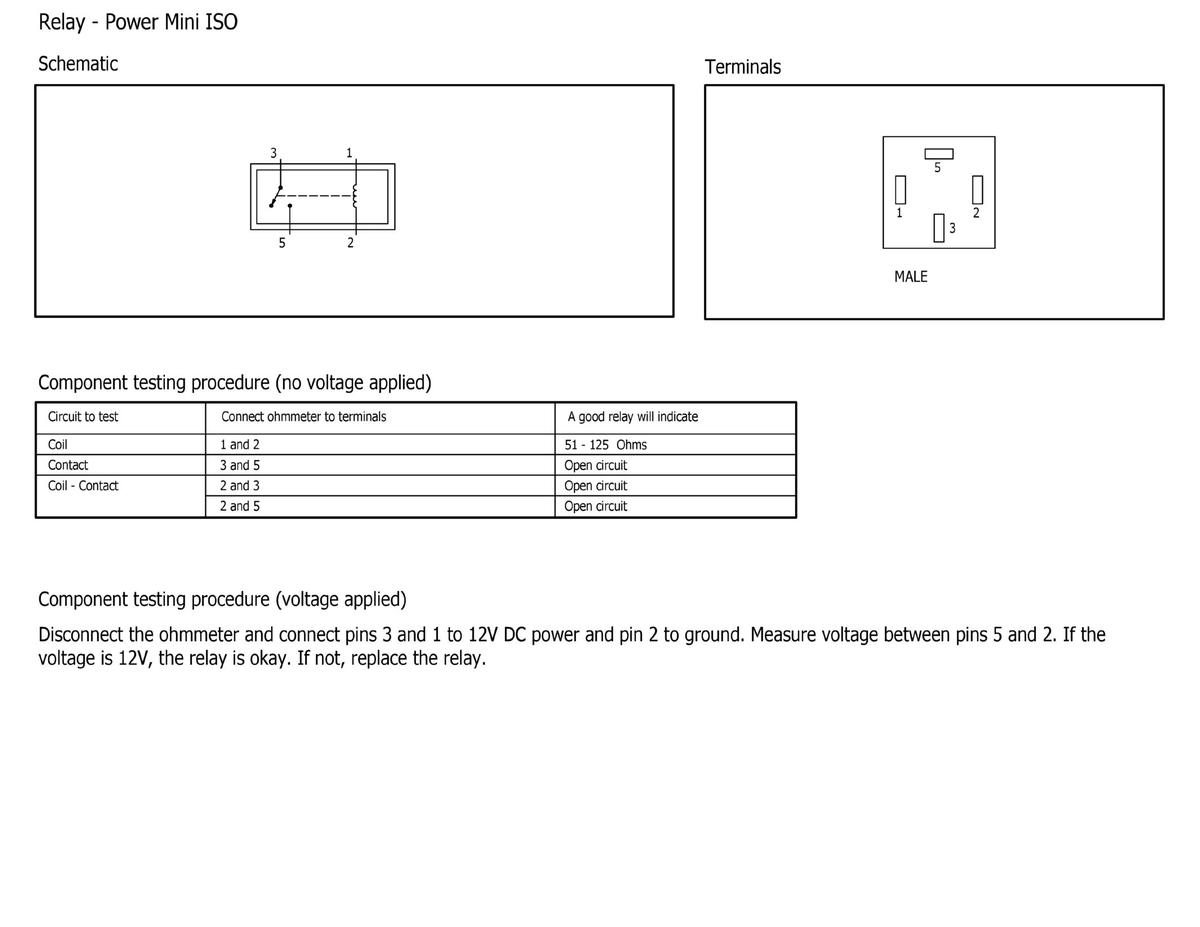

Fig 17: Relay - Power Mini ISO Component Testing

Courtesy of FORD MOTOR COMPANY
