Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Refer to: Module Programming

Use the General Equipment: Ford Diagnostic Equipment

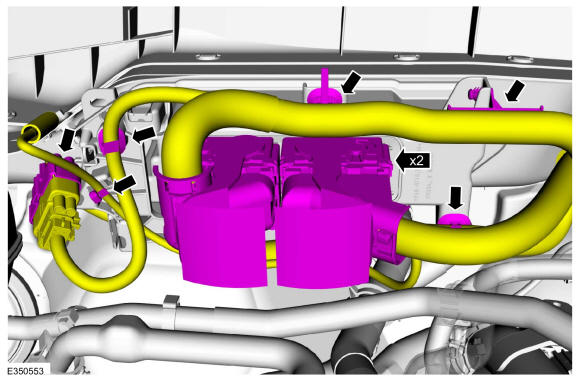

Disconnect the electrical connectors and harness retainers.

Courtesy of FORD MOTOR COMPANY

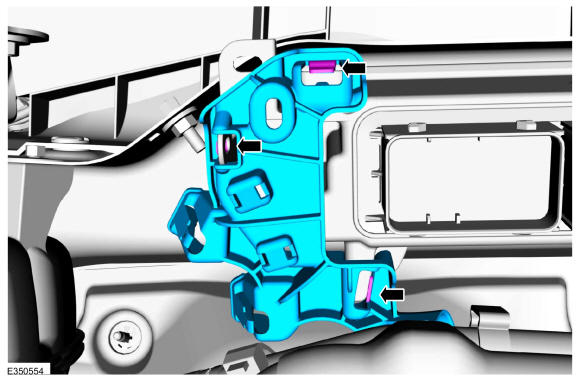

Remove the harness routing bracket.

Courtesy of FORD MOTOR COMPANY

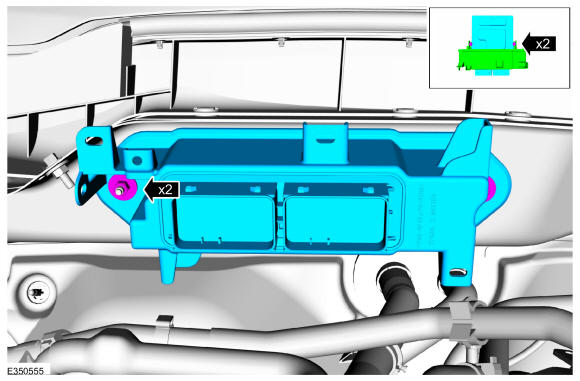

Remove the nuts and the PCM. Remove the PCM from the bracket.
Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
