Anti-Lock Brake System (ABS) Module: Installation

To install, reverse the removal procedure.
Torque the module screws in stages.
Torque: Stage 1: 18 lb.in (2 Nm) | Stage 2: 27 lb.in (3 Nm)

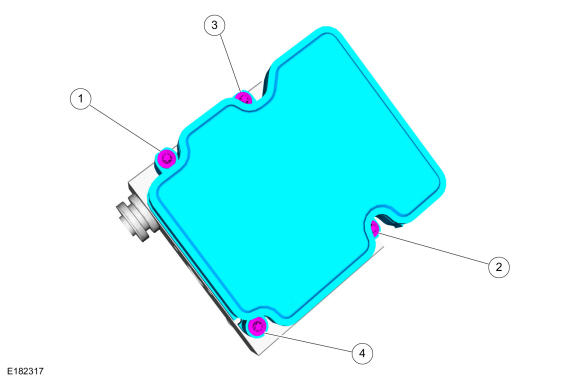

Fig 1: ABS Module Tightening Sequence
Courtesy of FORD MOTOR COMPANY
