Connector Repair Procedures

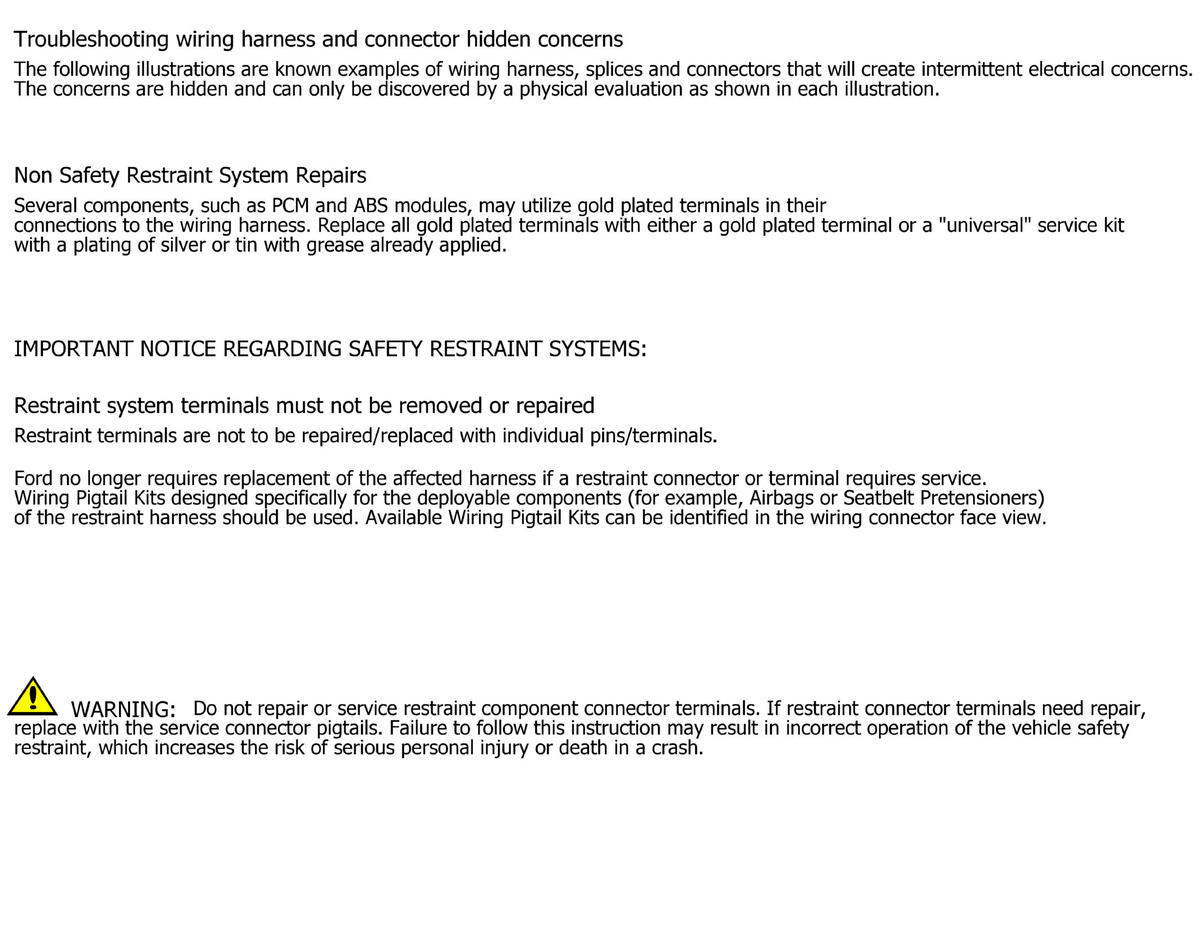

GFDWR157224Courtesy of FORD MOTOR COMPANY

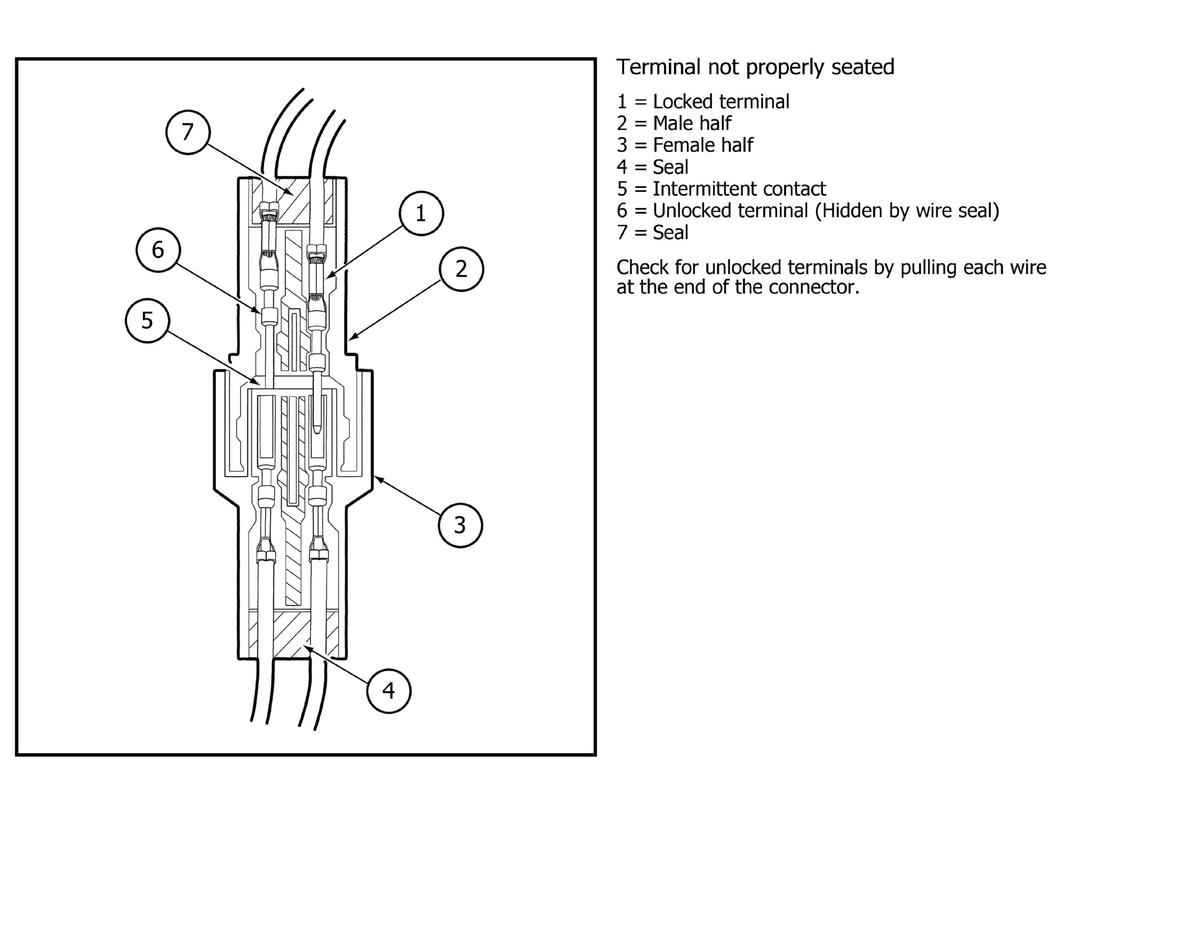

GFDWR157225Courtesy of FORD MOTOR COMPANY

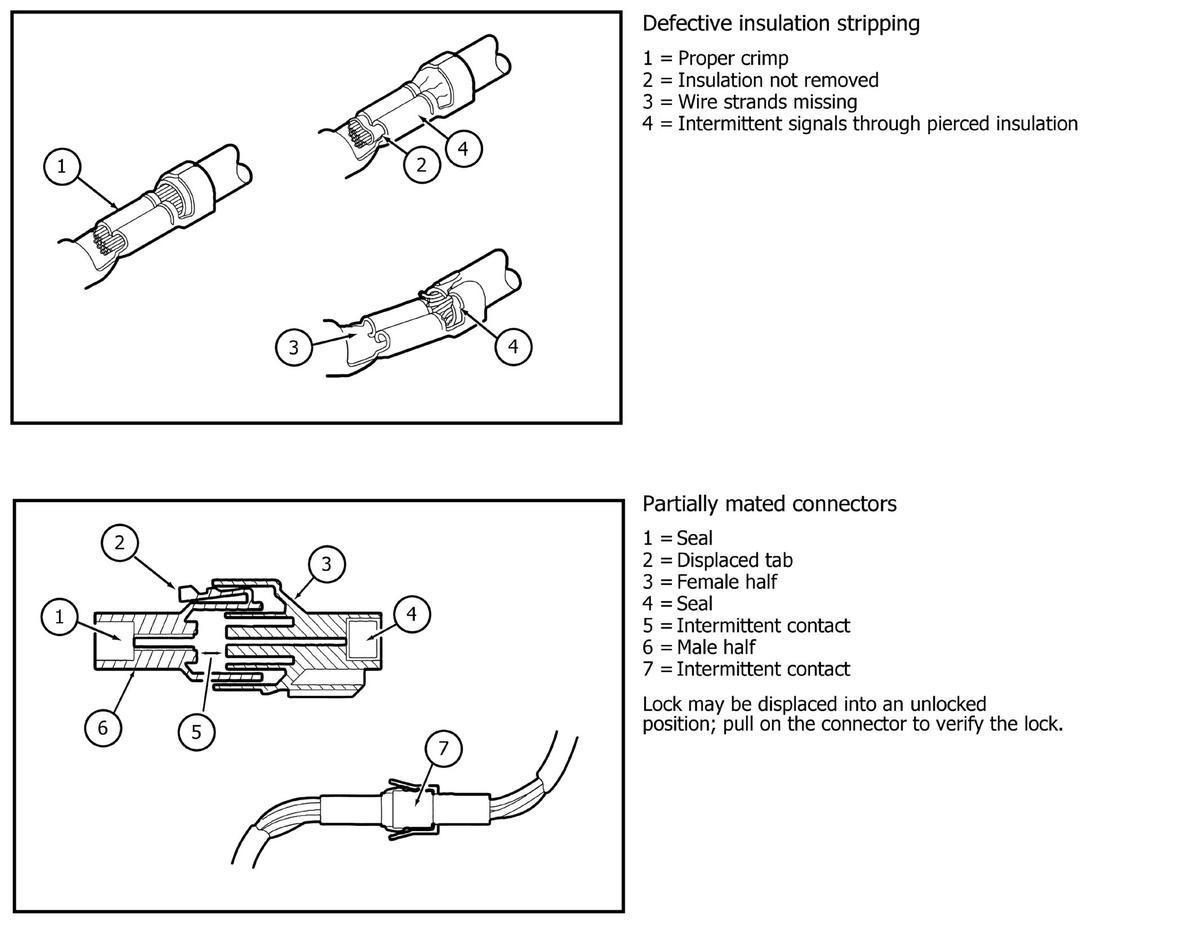

GFDWR157226Courtesy of FORD MOTOR COMPANY

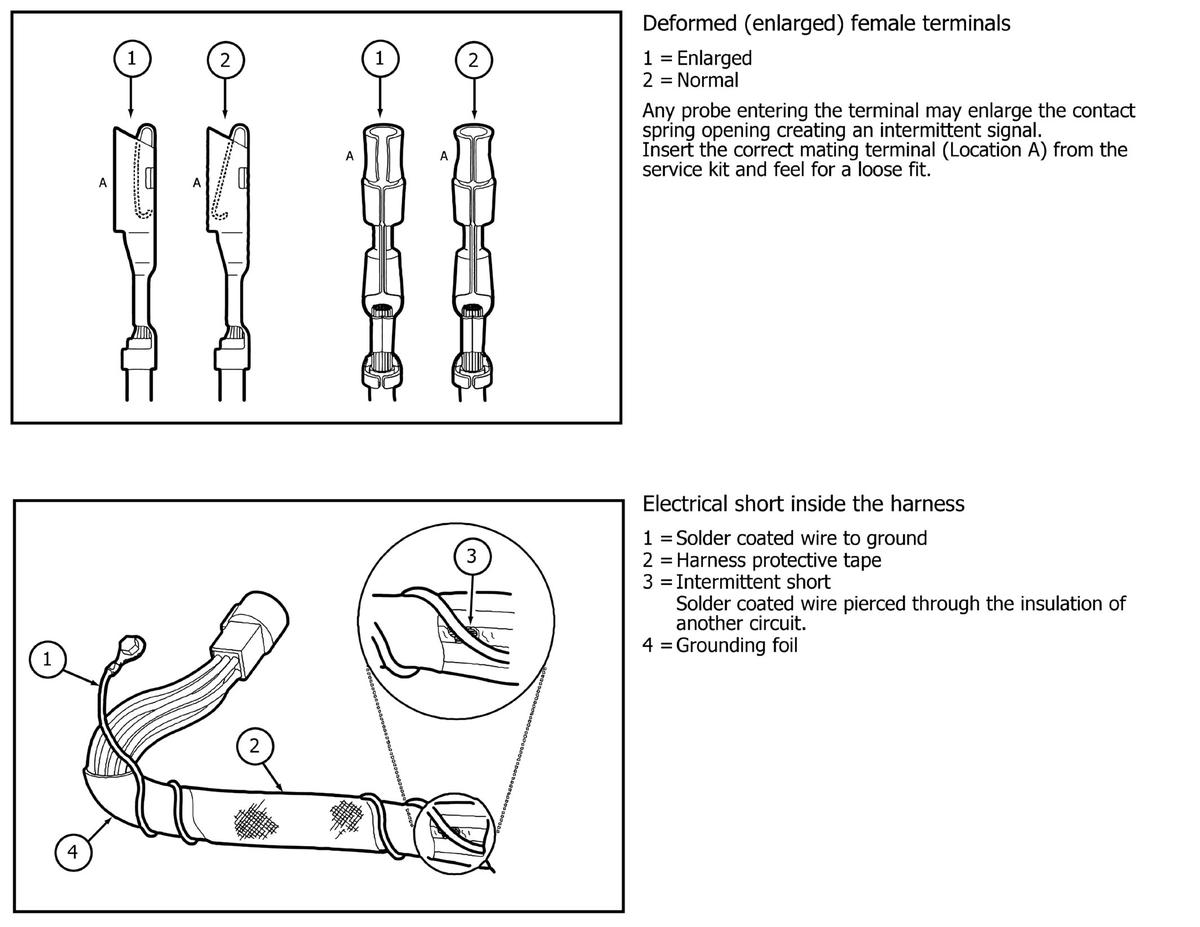

GFDWR157227Courtesy of FORD MOTOR COMPANY

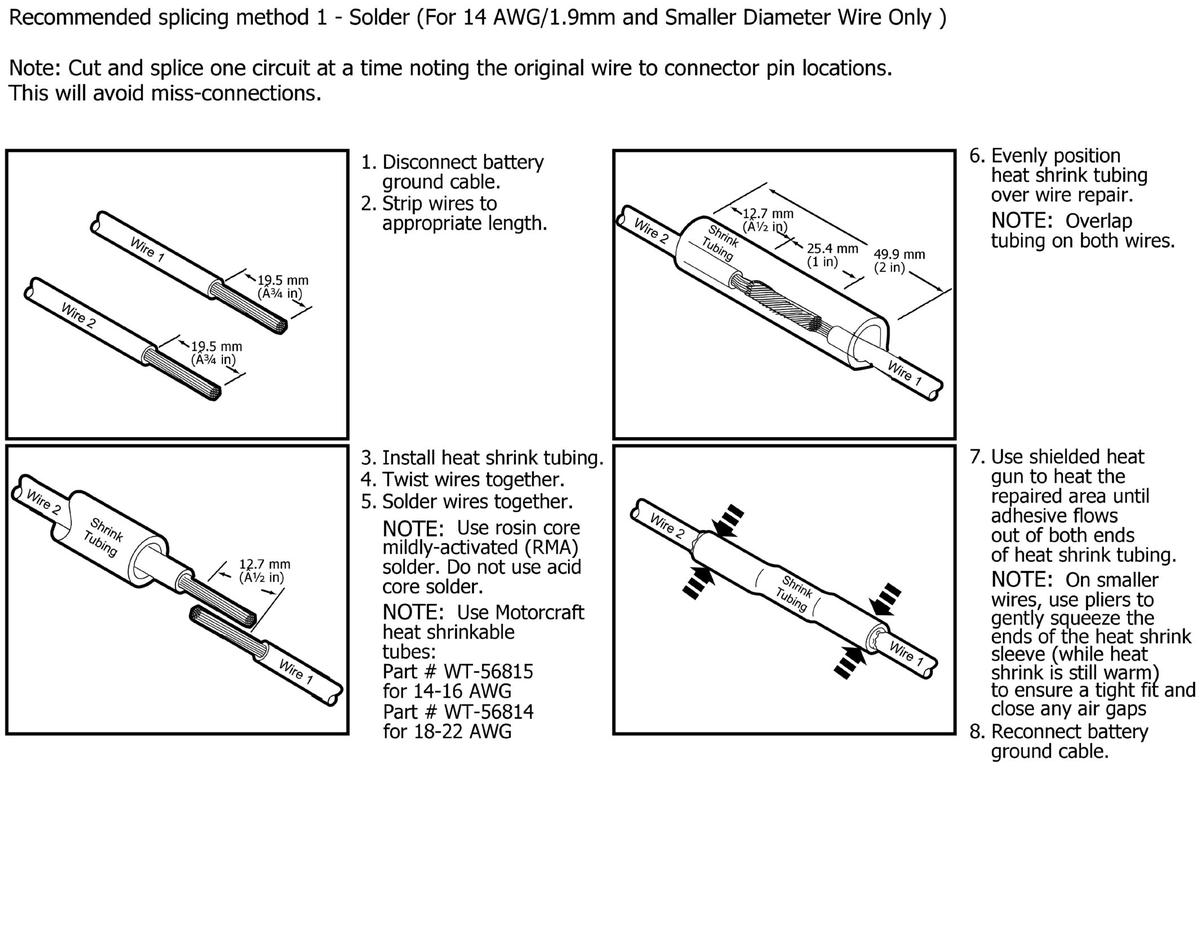

GFDWR157228Courtesy of FORD MOTOR COMPANY

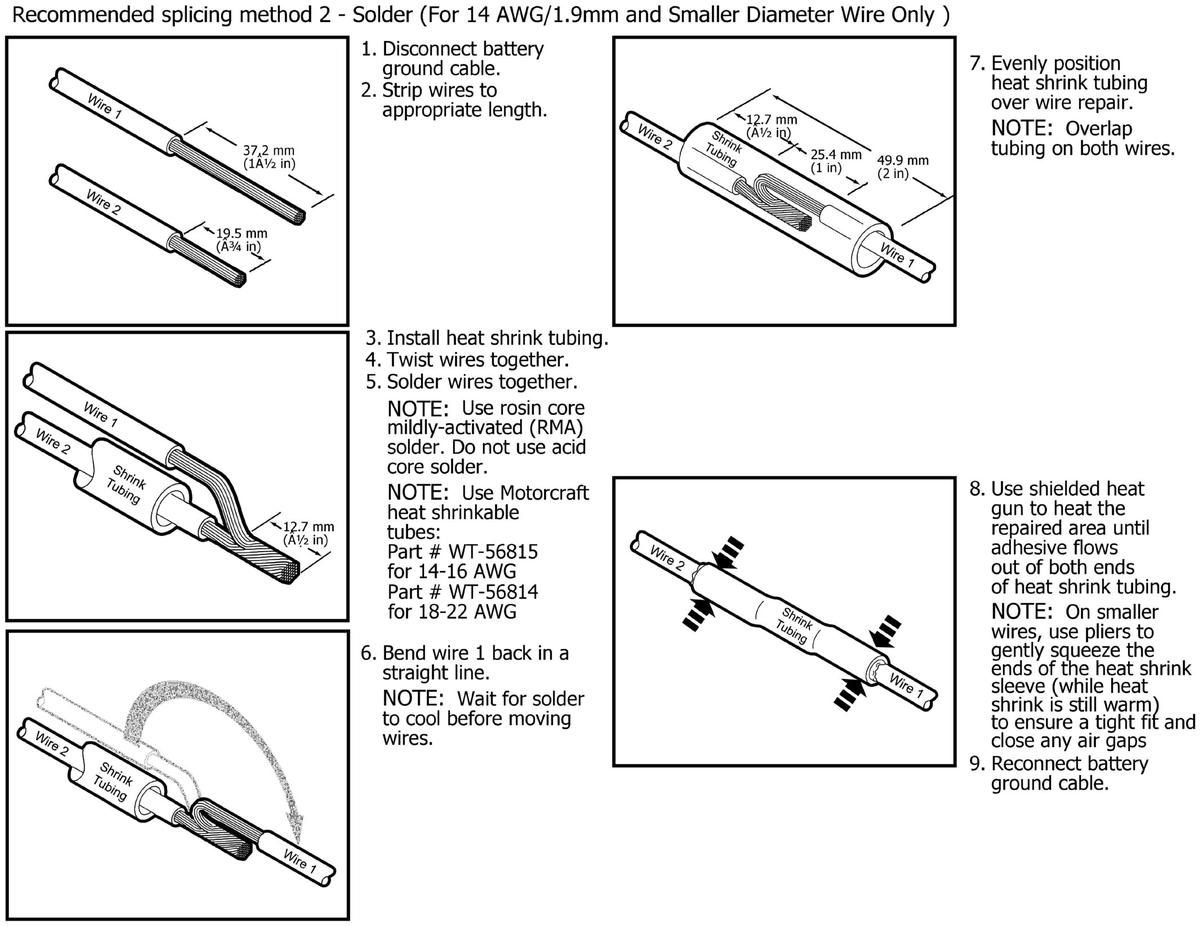

GFDWR157229Courtesy of FORD MOTOR COMPANY

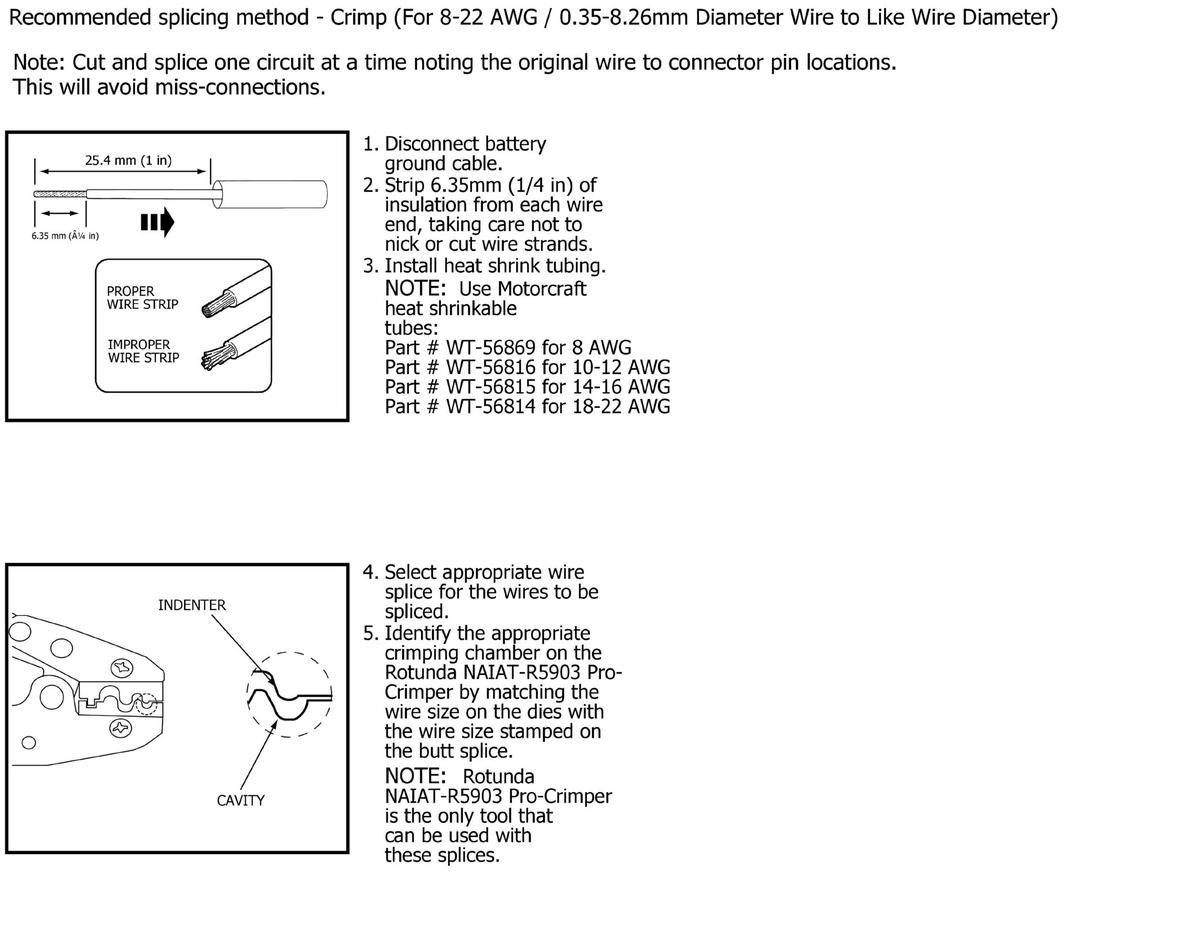

GFDWR157230Courtesy of FORD MOTOR COMPANY

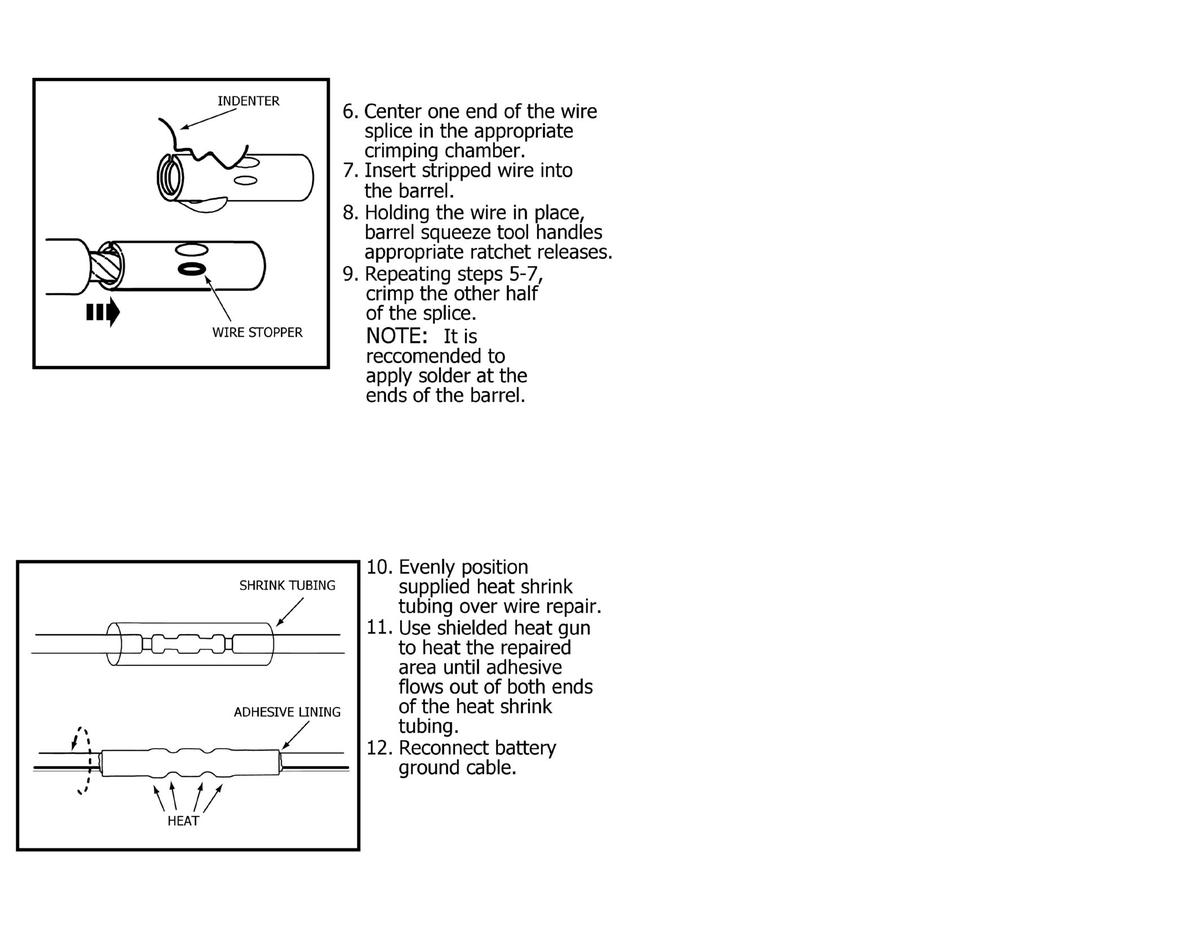

GFDWR157231Courtesy of FORD MOTOR COMPANY

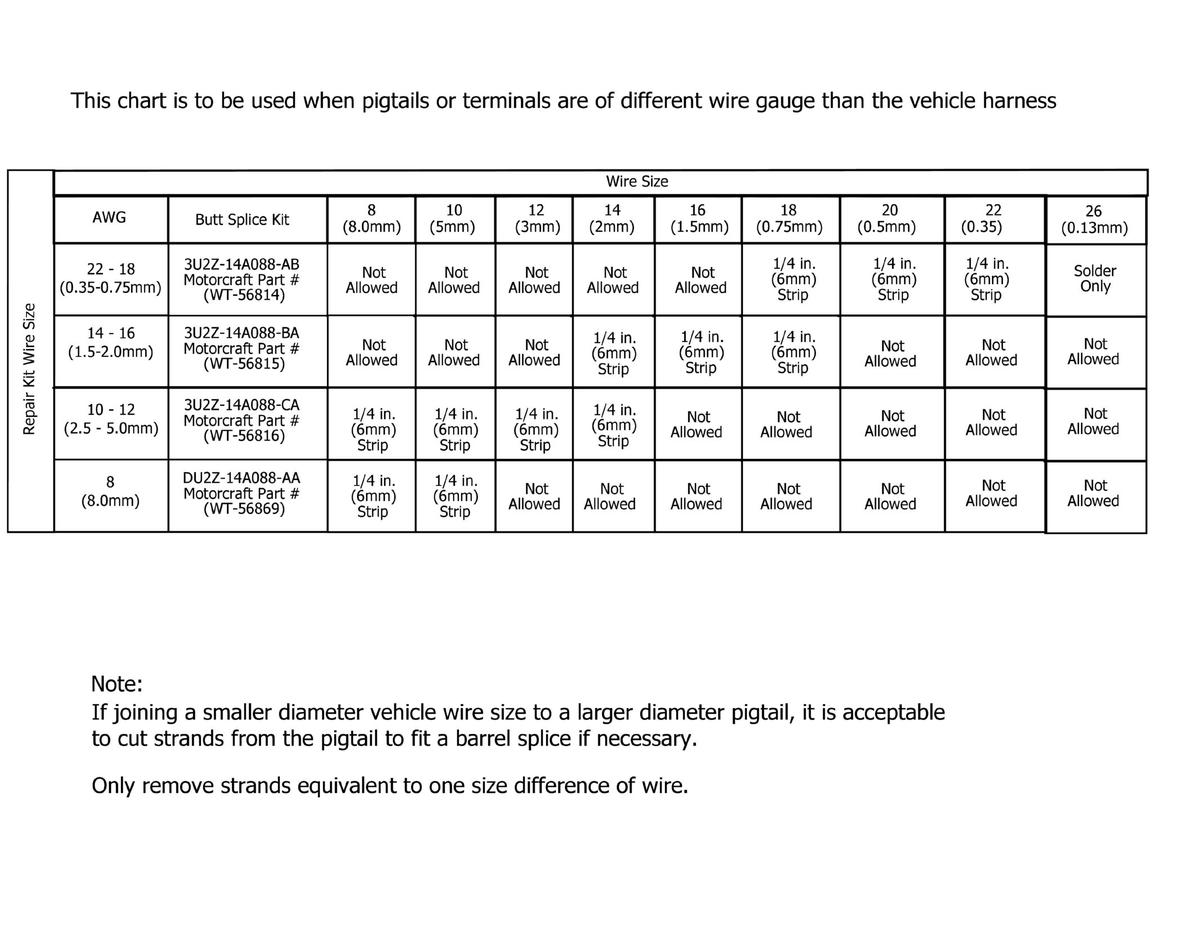

GFDWR157232Courtesy of FORD MOTOR COMPANY
