Component Testing

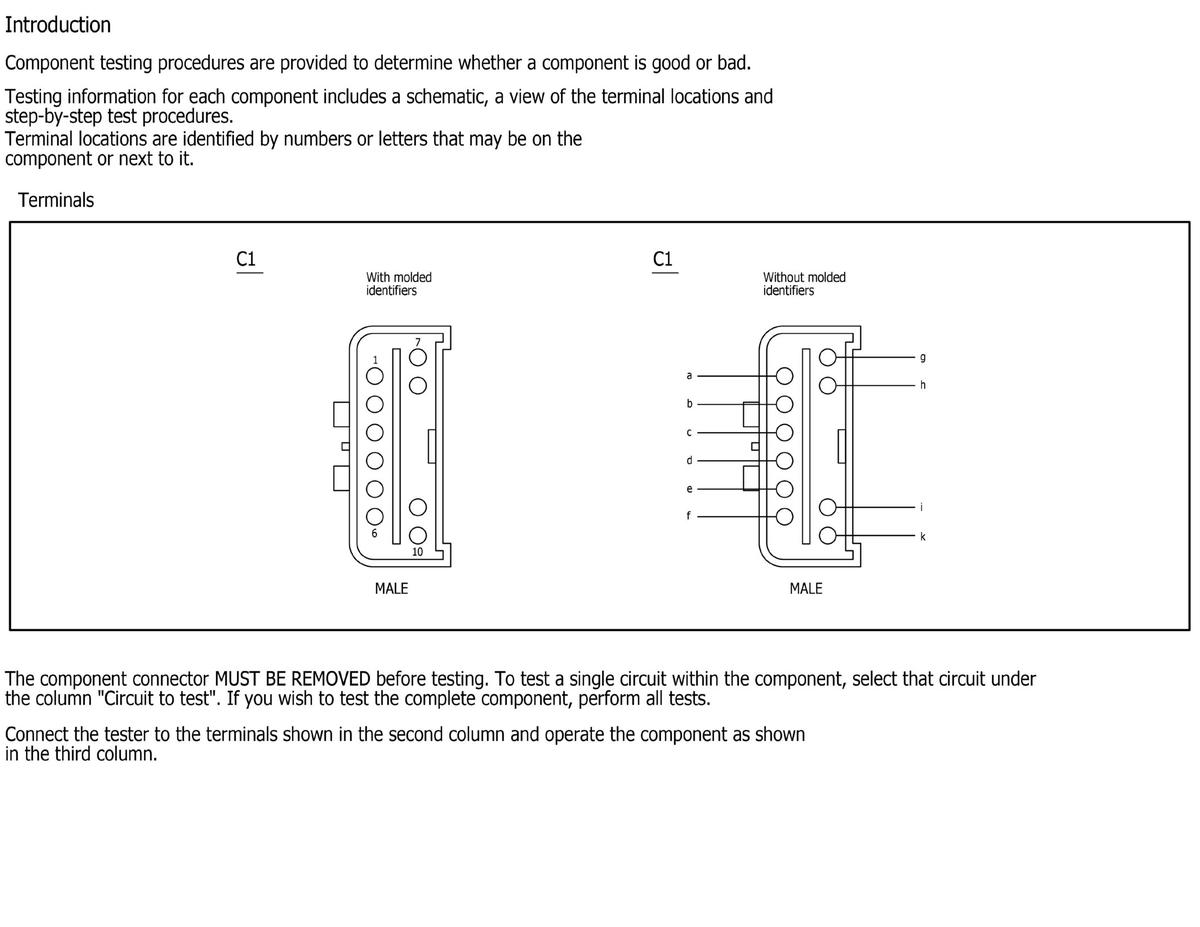

Fig 1: Component Testing Introduction
GFDWR163899Courtesy of FORD MOTOR COMPANY

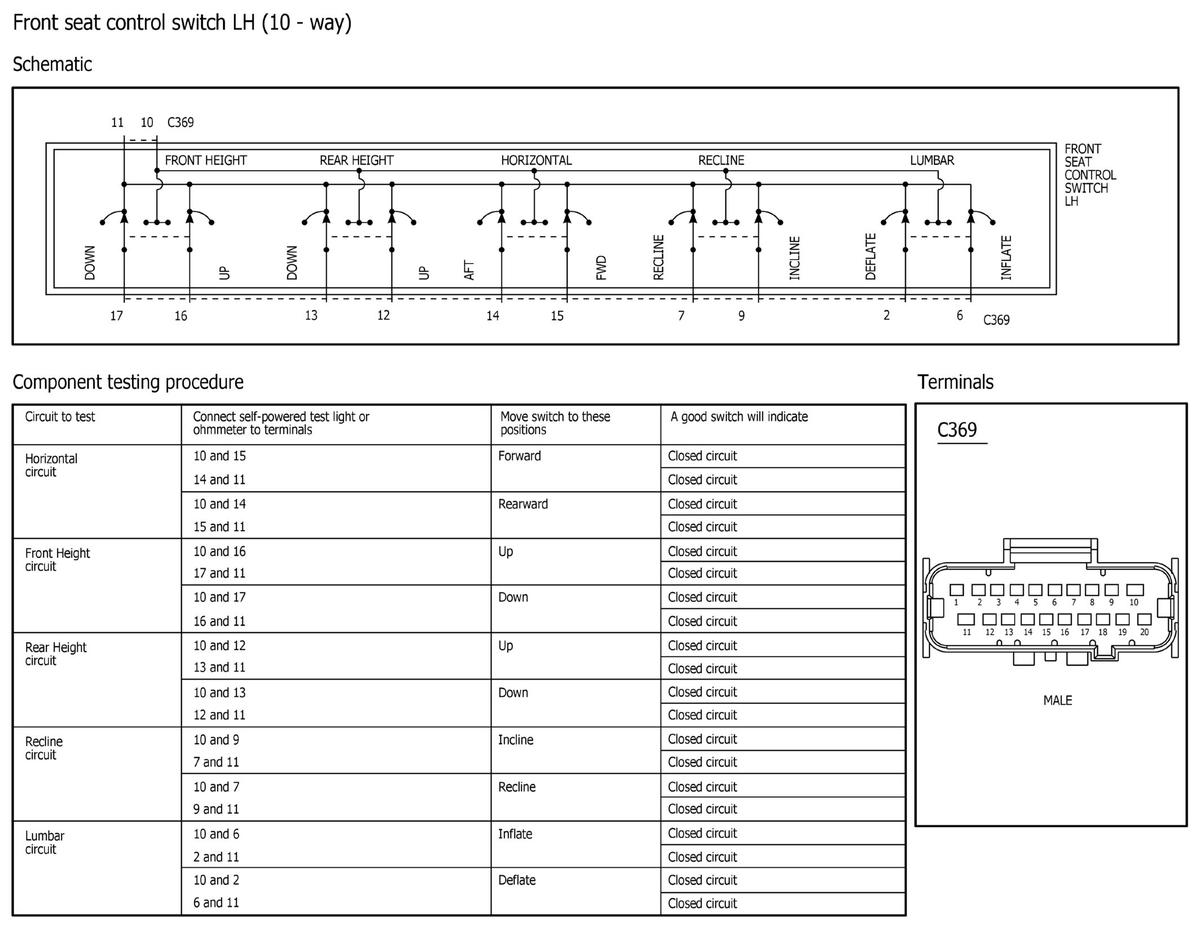

Fig 2: Front Seat Control Switch LH (10-Way) Component Testing
GFDWR163905Courtesy of FORD MOTOR COMPANY

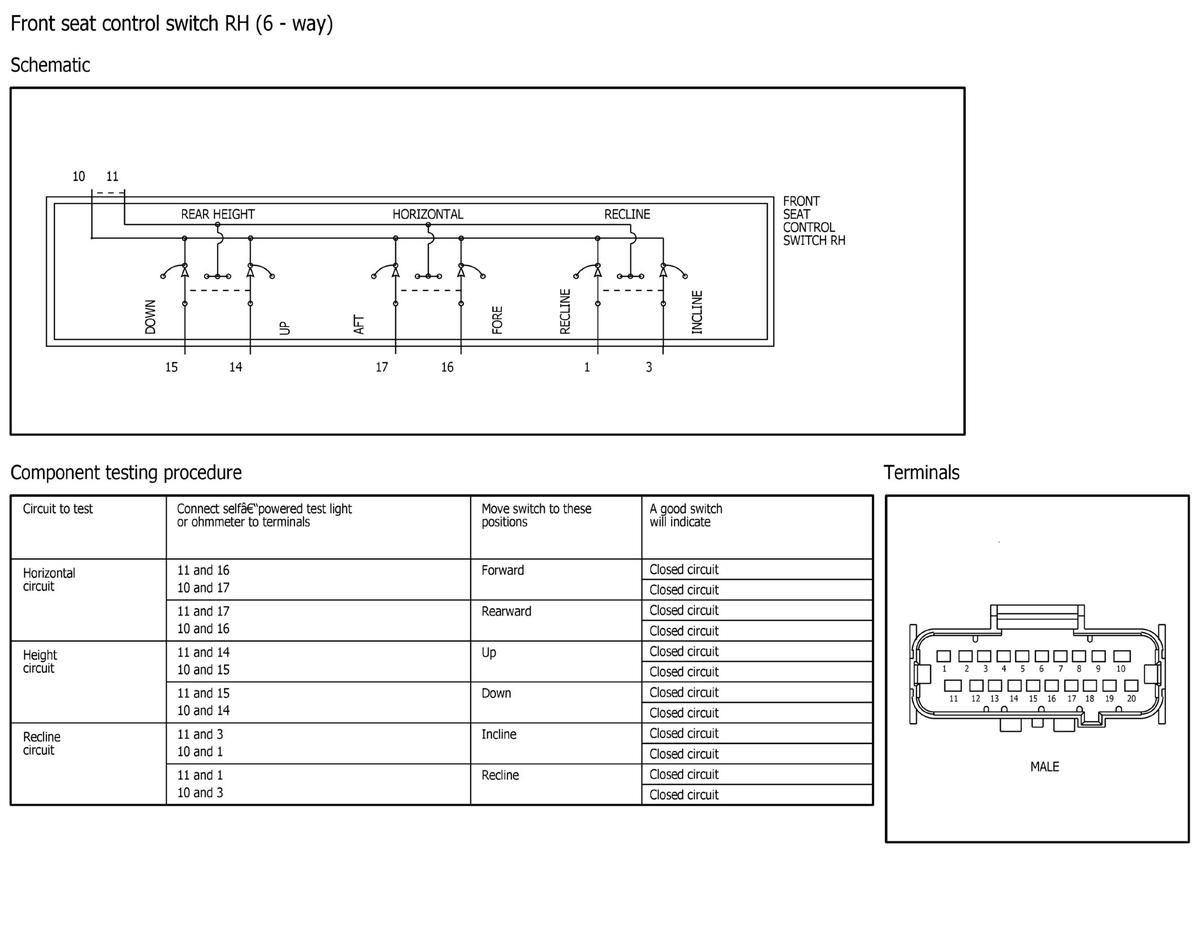

Fig 3: Front Seat Control Switch RH (6-Way) Component Testing
GFDWR163906Courtesy of FORD MOTOR COMPANY

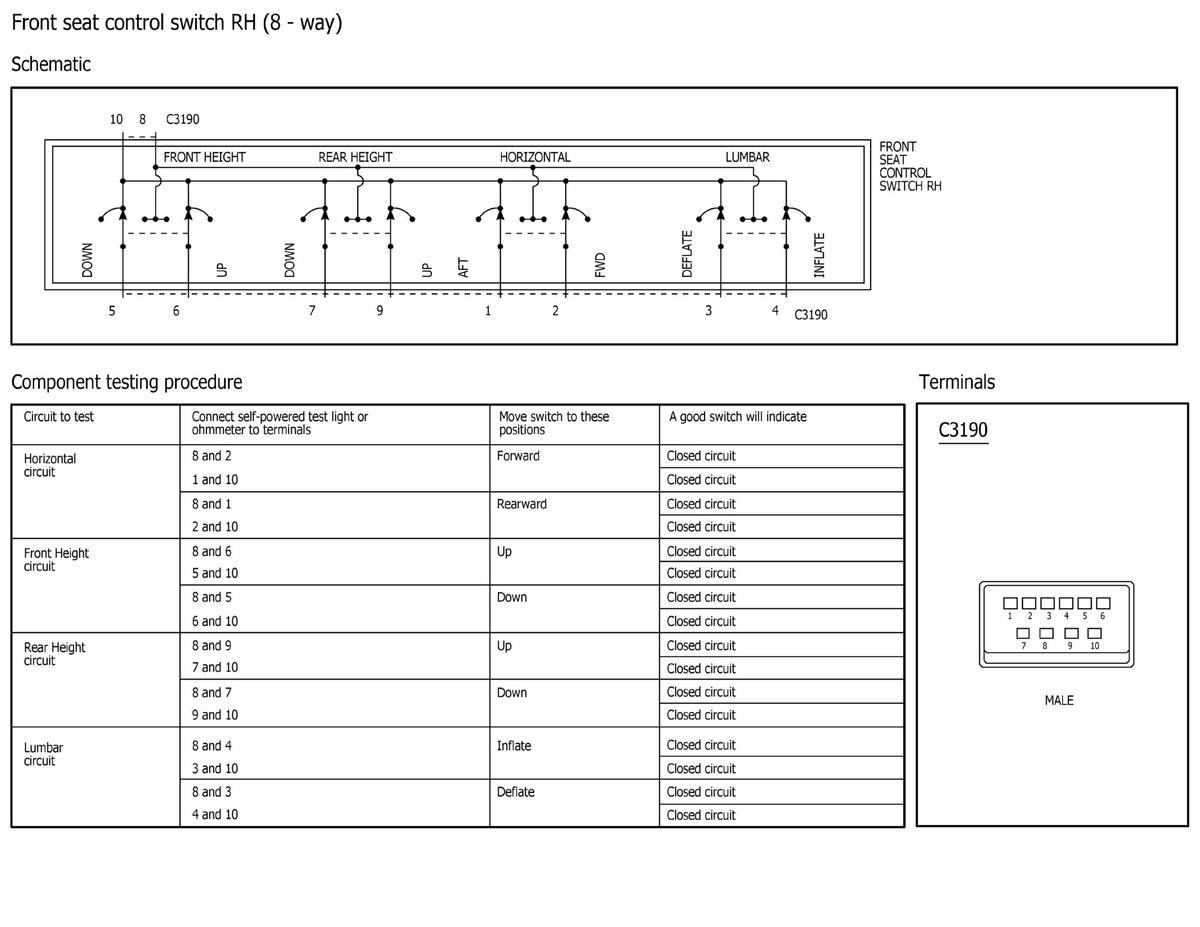

Fig 4: Front Seat Control Switch RH (8-Way) Component Testing
GFDWR163907Courtesy of FORD MOTOR COMPANY

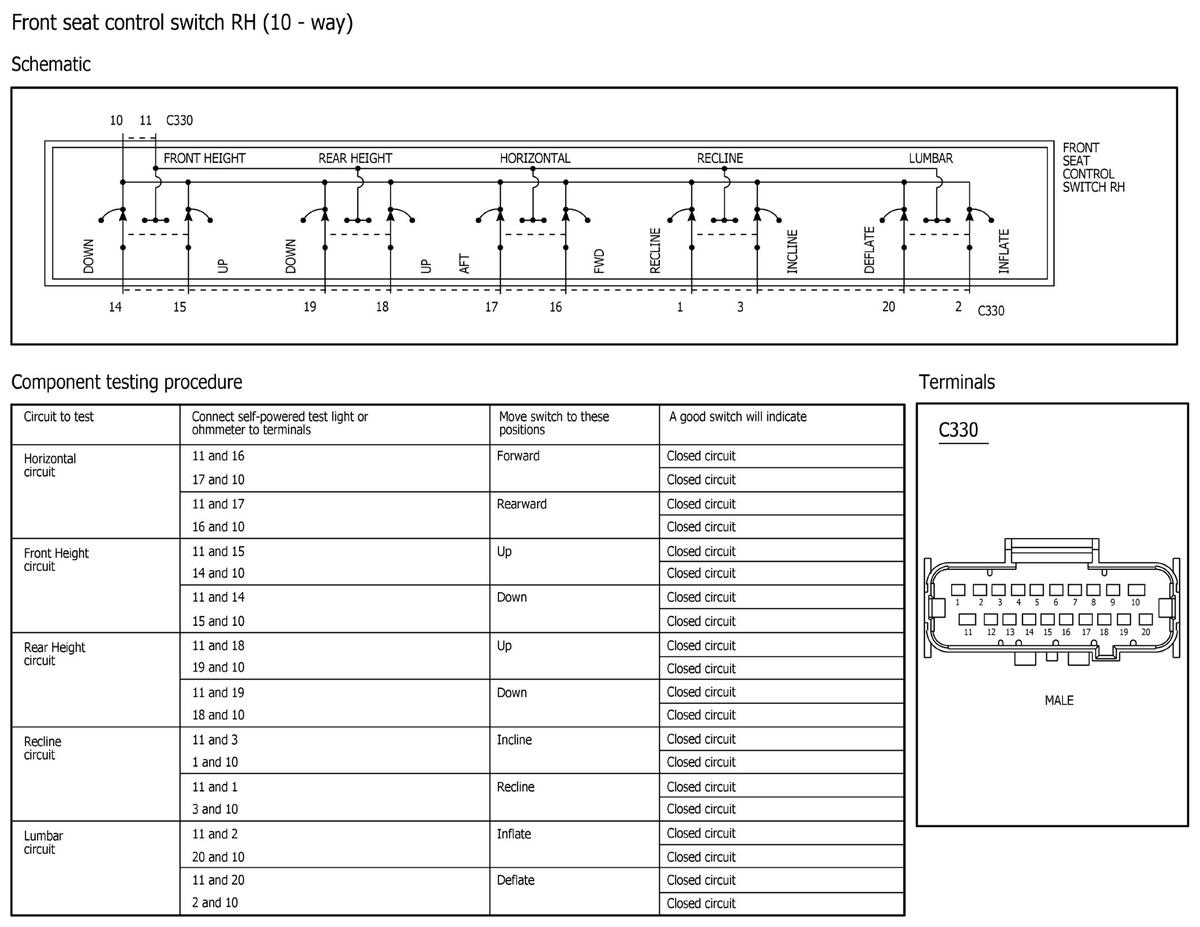

Fig 5: Front Seat Control Switch RH (10-Way) Component Testing
GFDWR163908Courtesy of FORD MOTOR COMPANY

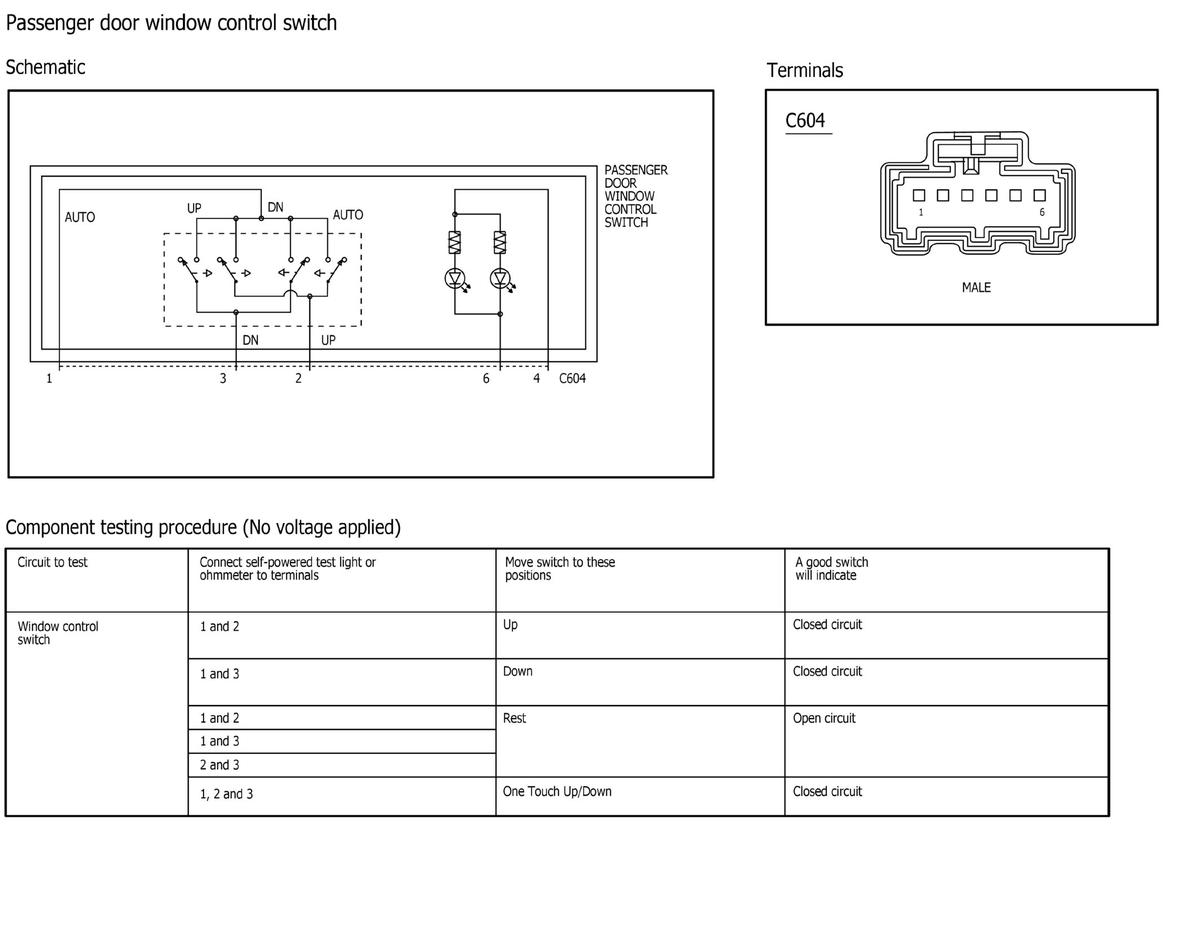

Fig 6: Passenger Door Window Control Switch Component Testing
GFDWR163909Courtesy of FORD MOTOR COMPANY

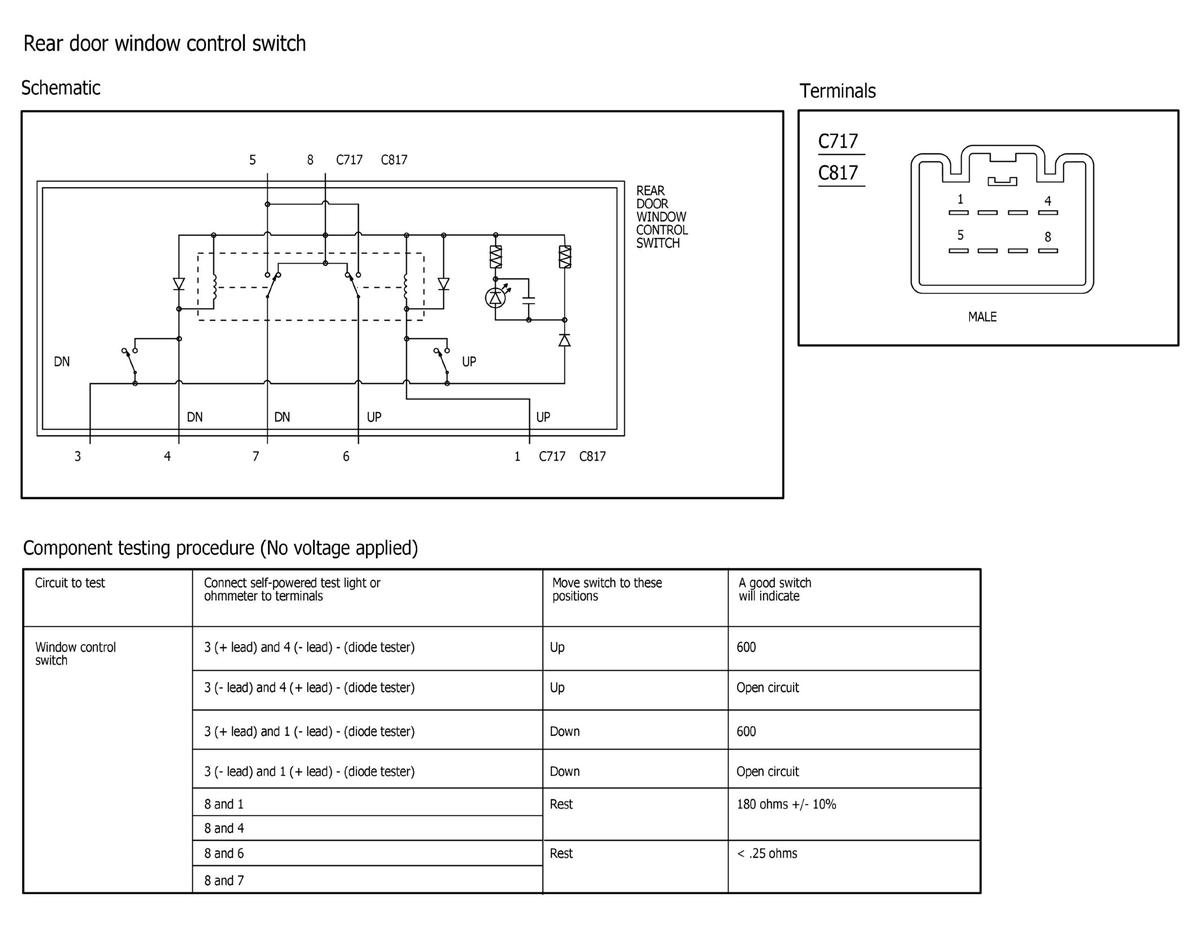

Fig 7: Rear Door Window Cotnrol Switch Component Testing
GFDWR163910Courtesy of FORD MOTOR COMPANY

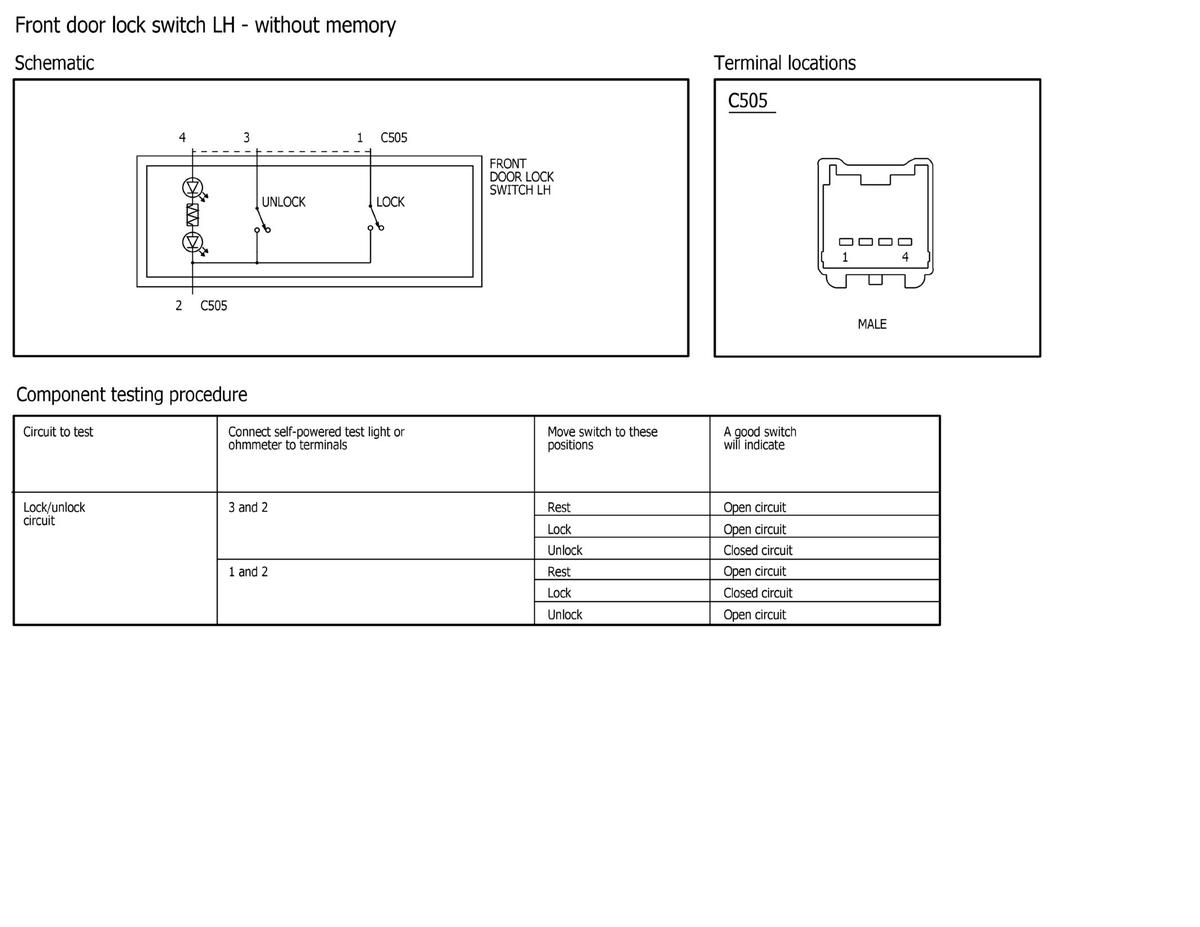

Fig 8: Front Door Lock Switch LH - Without Memory Component Testing
GFDWR163911Courtesy of FORD MOTOR COMPANY

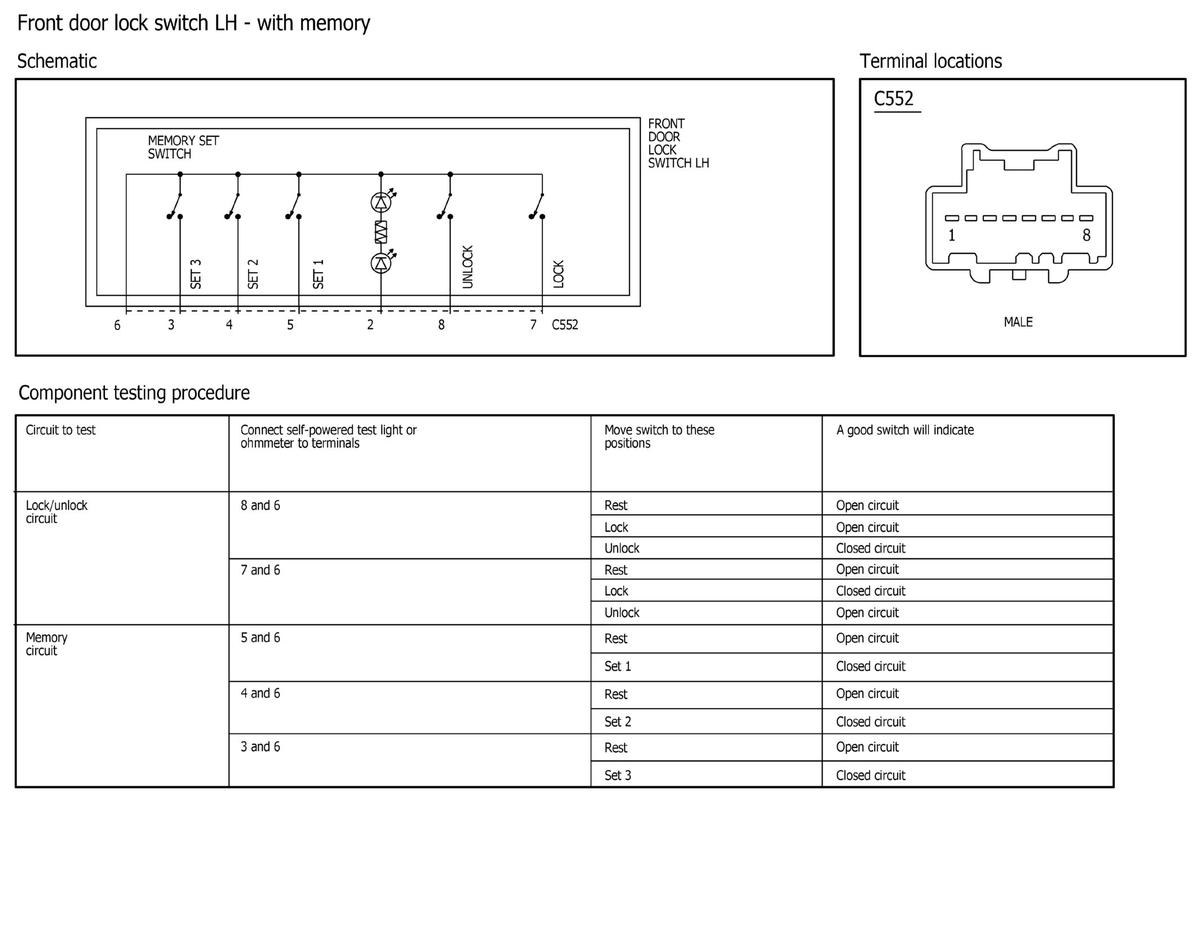

Fig 9: Front Door Lock Switch LH - With Memory Component Testing
GFDWR163912Courtesy of FORD MOTOR COMPANY

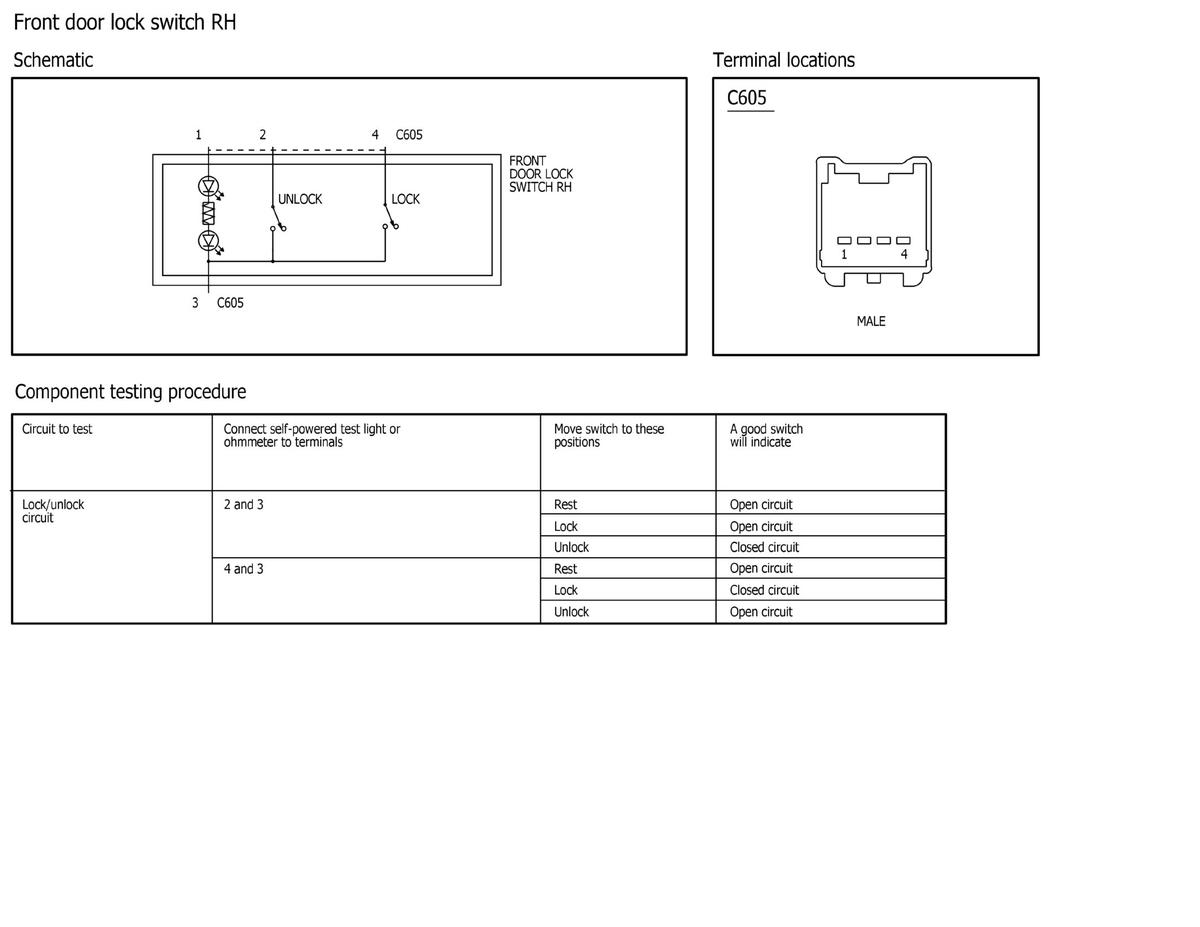

Fig 10: Front Door Lock Switch RH Component Testing
GFDWR163900Courtesy of FORD MOTOR COMPANY

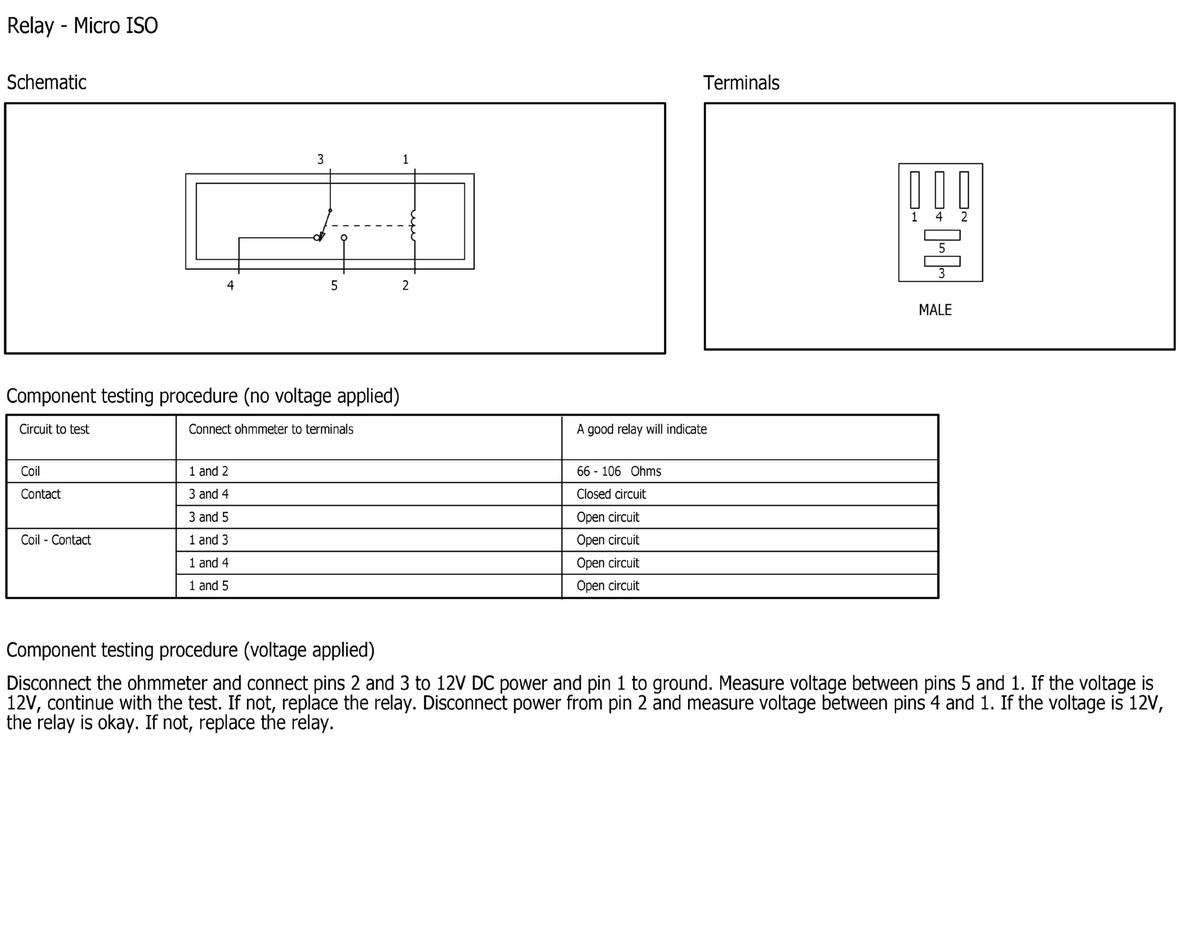

Fig 11: Relay - Micro ISO Component Testing
GFDWR163901Courtesy of FORD MOTOR COMPANY

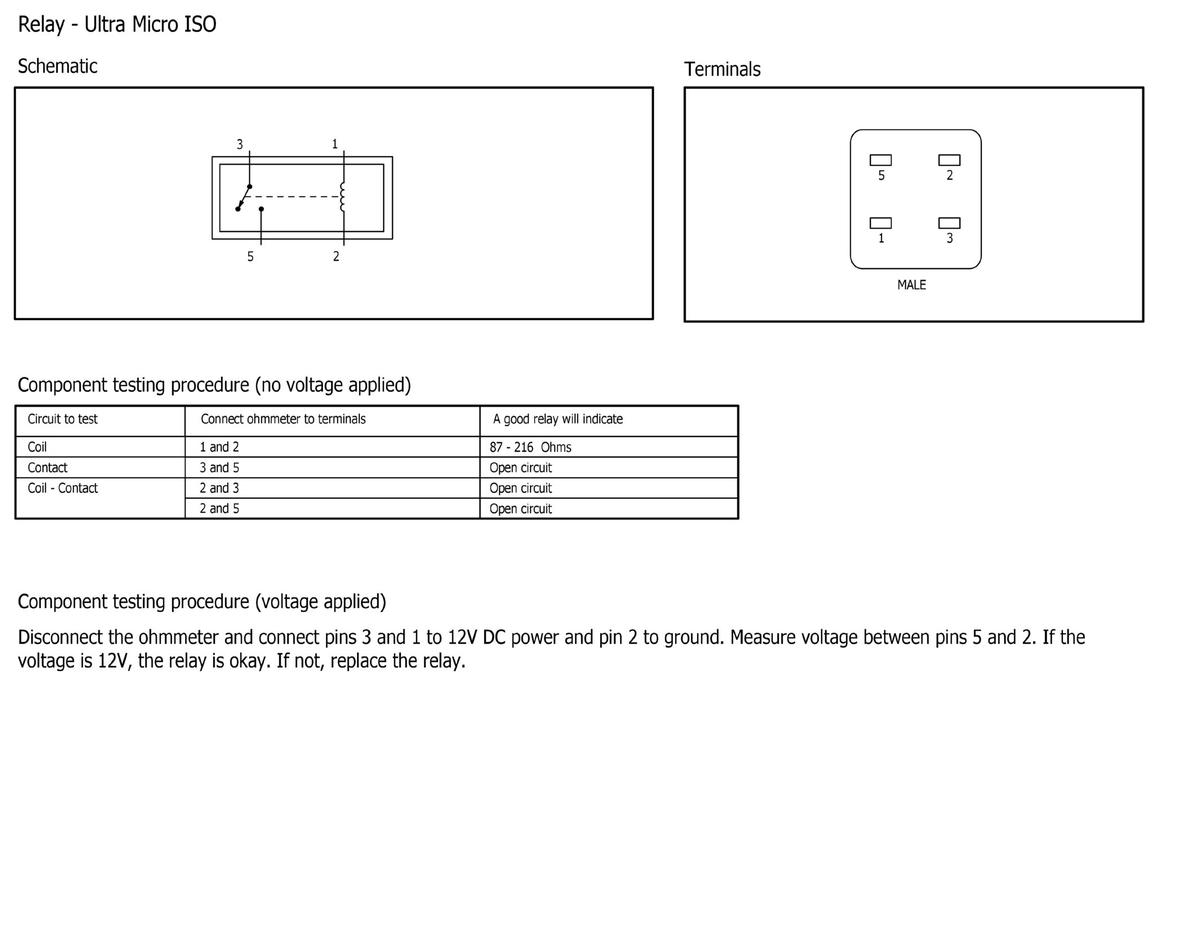

Fig 12: Relay - Ultra Micro ISO Component Testing
GFDWR163902Courtesy of FORD MOTOR COMPANY

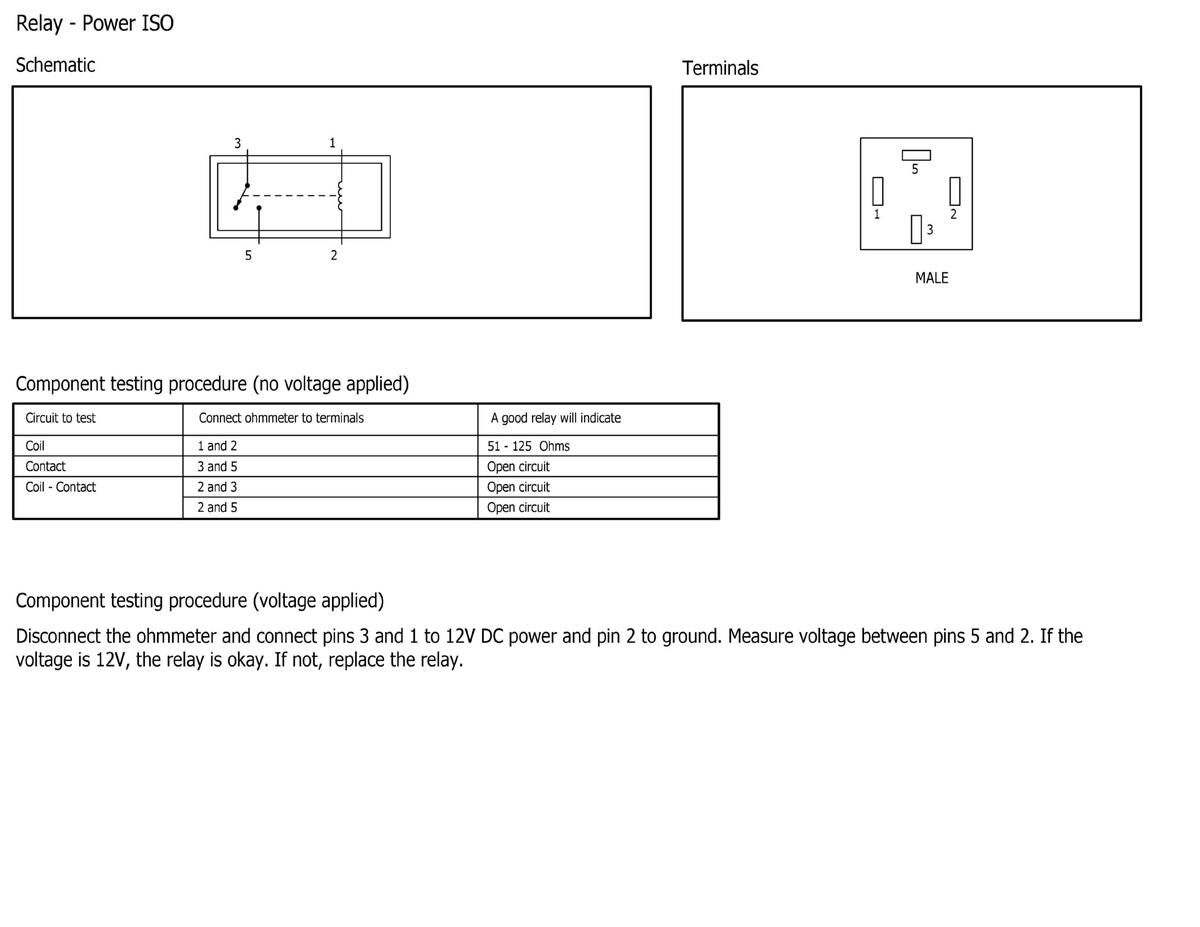

Fig 13: Relay - Power ISO Component Testing
GFDWR163903Courtesy of FORD MOTOR COMPANY

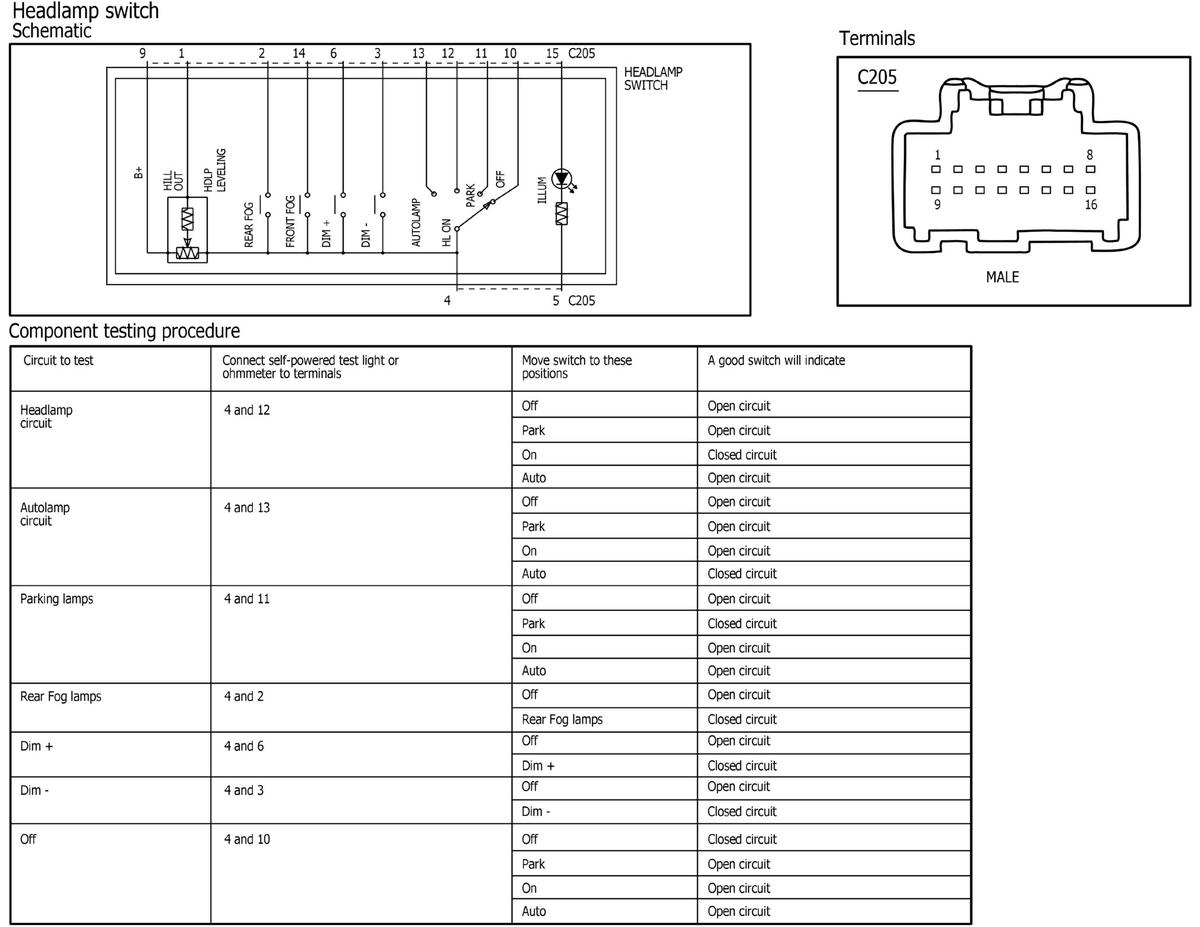

Fig 14: Headlamp Swtich Component Testing
GFDWR163904Courtesy of FORD MOTOR COMPANY
