Differential Fluid Level Check

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations Refer to: OEM Color Coding

Materials

Name	Specification
Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant XY-75W140-QL	WSL-M2C192-A

Check

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the engine undershield.
1. Remove the pin-type retainer.
2. Remove the bolts and the radiator air deflector.
3. Remove the bolts.
4. Remove the retainers and the engine undershield.
Courtesy of FORD MOTOR COMPANY

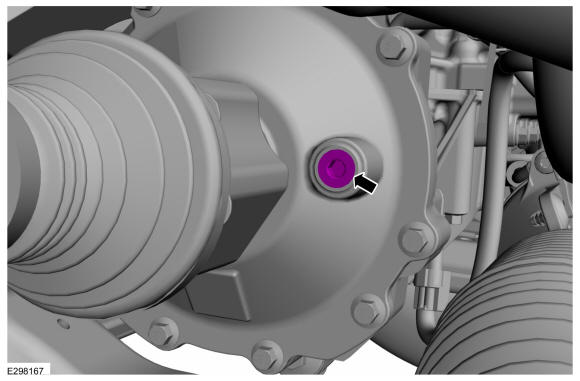

Remove the front differential fill plug.

Courtesy of FORD MOTOR COMPANY

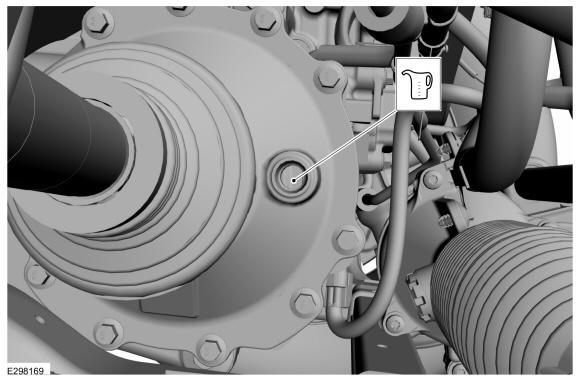

Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be to the bottom of the filler hole.
Material: Motorcraft® SAE 75W-140 Synthetic Rear Axle Lubricant / XY-75W140-QL (WSL-M2C192-A)

Courtesy of FORD MOTOR COMPANY

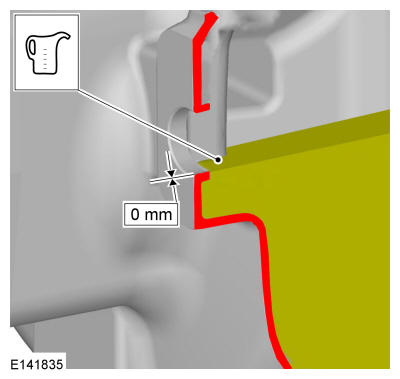

Ensure the front differential gear lubricant is filled to the bottom of the filler plug hole.

Courtesy of FORD MOTOR COMPANY
Install the front differential fill plug.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Install the engine undershield
1. Position the engine undershield and install the pin-type retainer.
2. Install the bolts.
3. Install the radiator air deflector and the bolts.
4. Install the radiator air deflector retainers.
