OEM Ground Distribution: Grounds

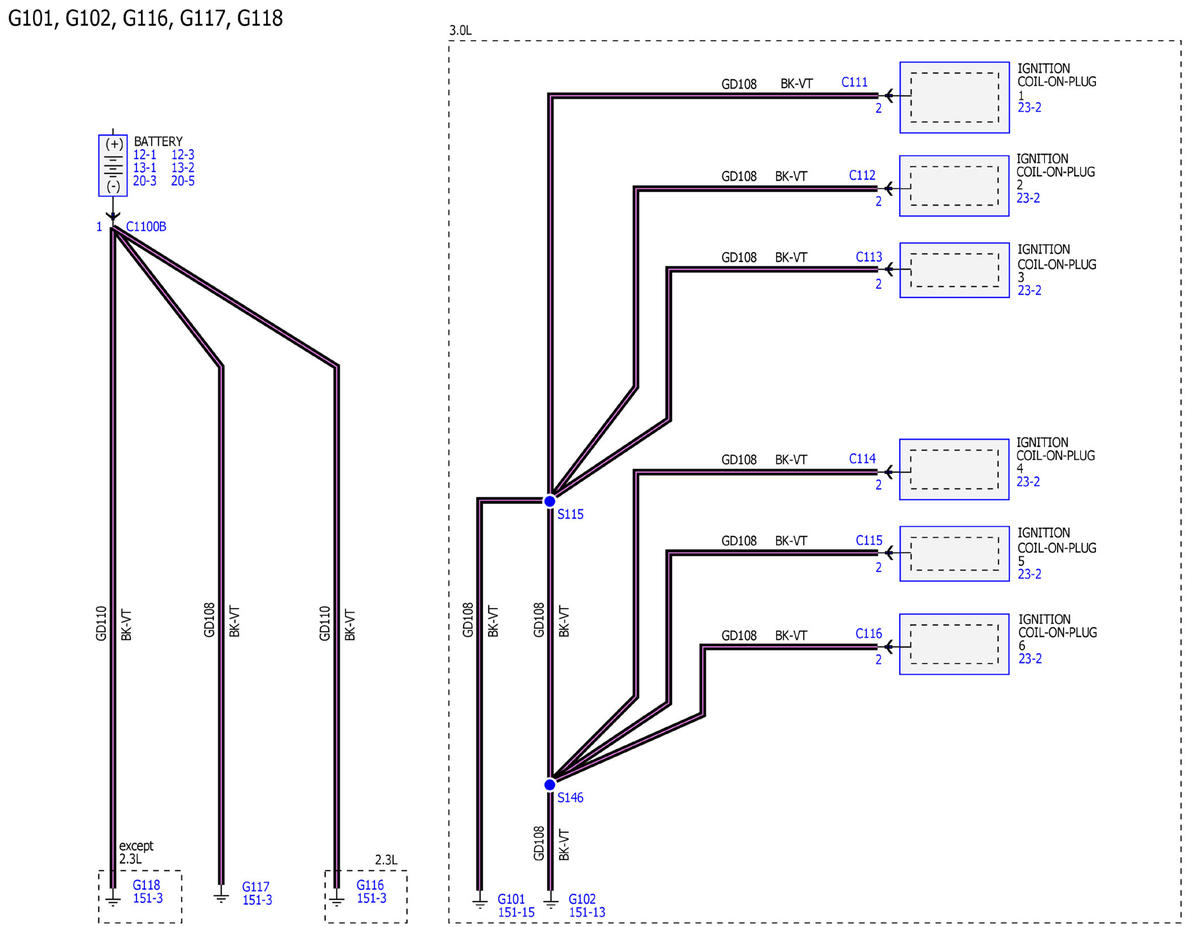

GFDWR168629Courtesy of FORD MOTOR COMPANY

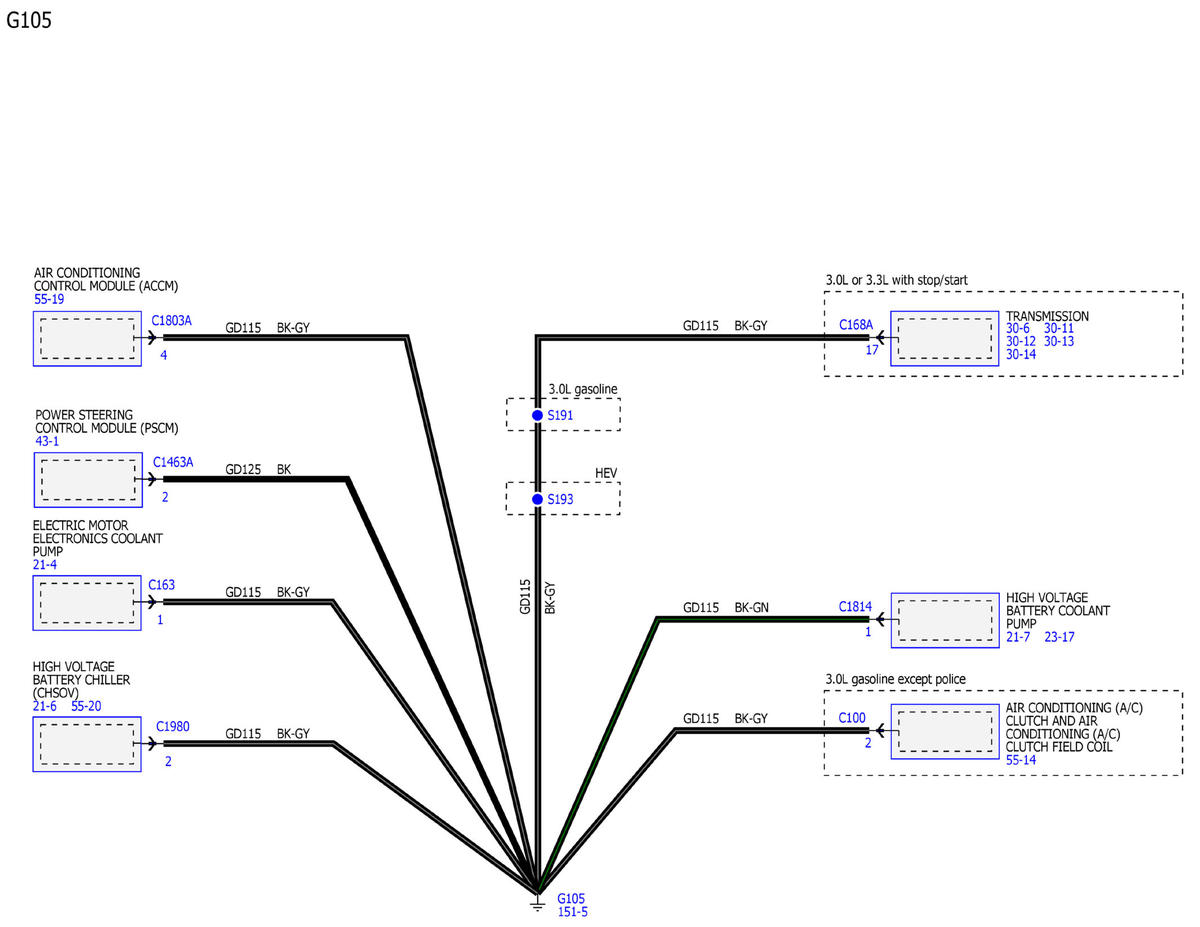

GFDWR168640Courtesy of FORD MOTOR COMPANY

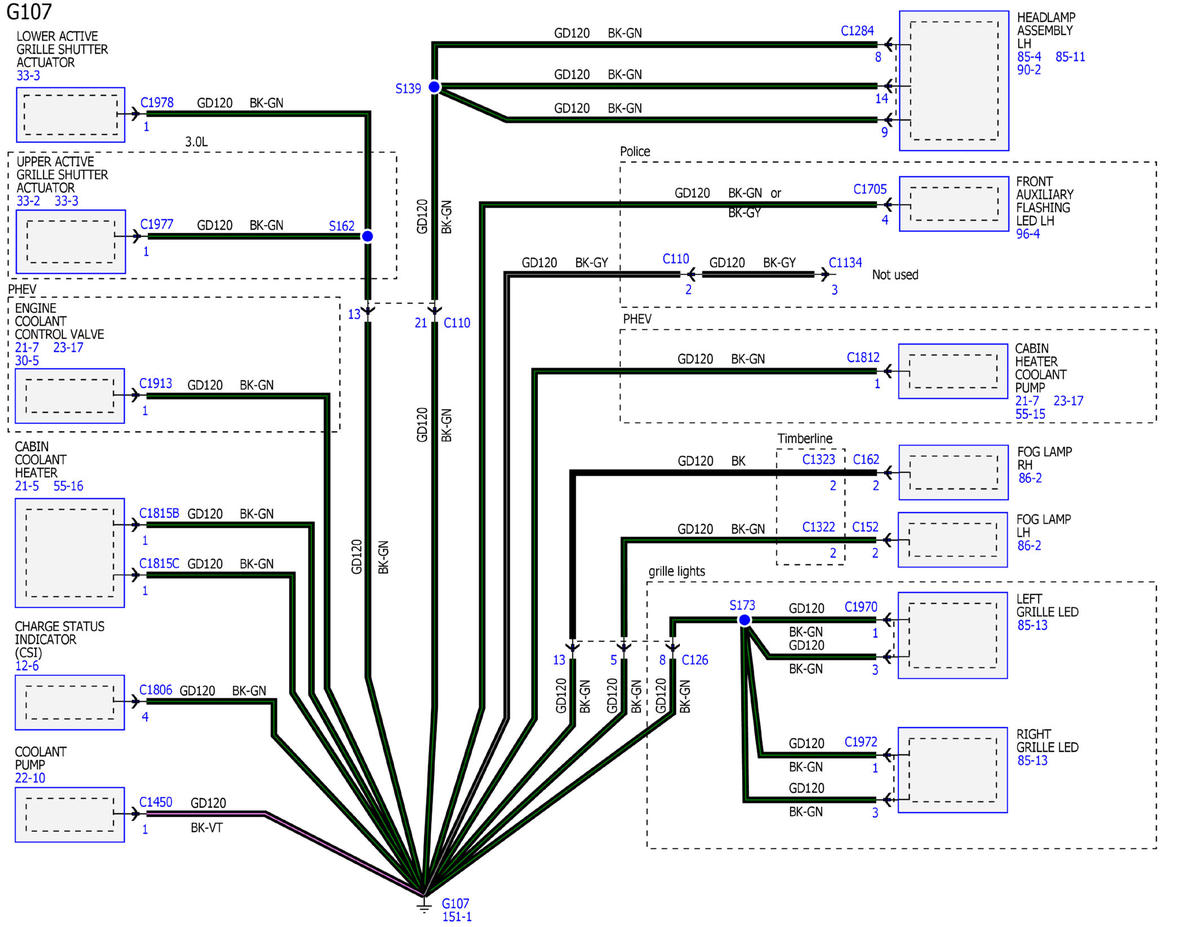

GFDWR168648Courtesy of FORD MOTOR COMPANY

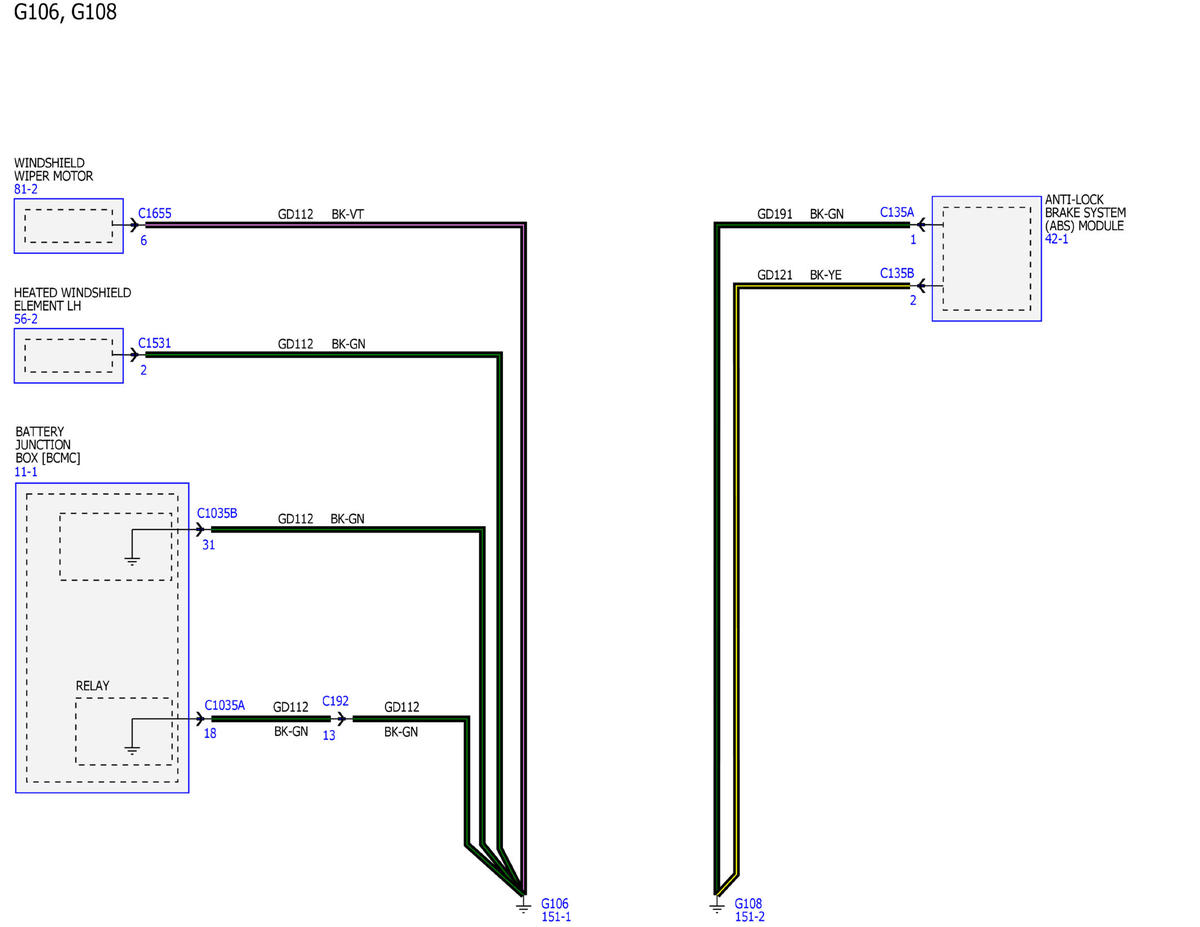

GFDWR168649Courtesy of FORD MOTOR COMPANY

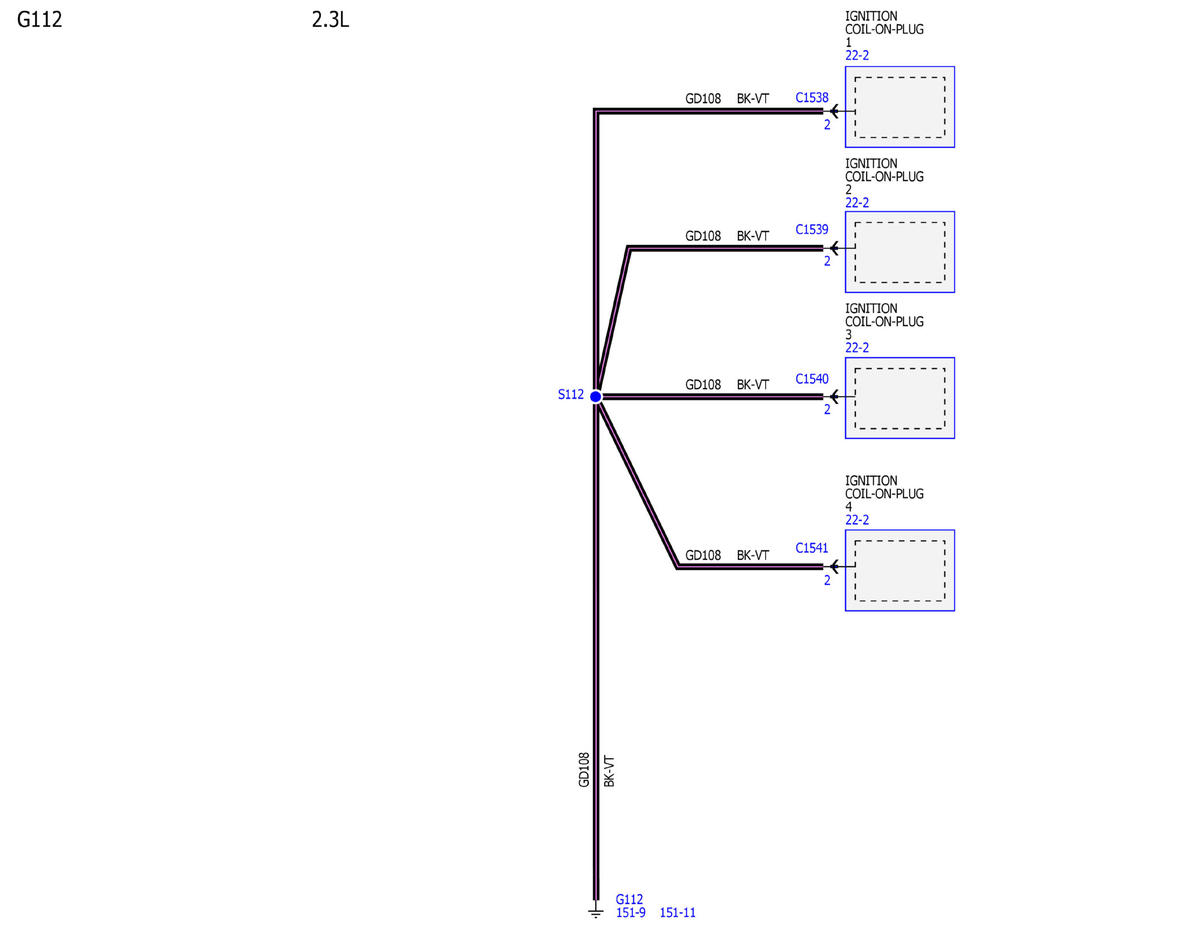

GFDWR168650Courtesy of FORD MOTOR COMPANY

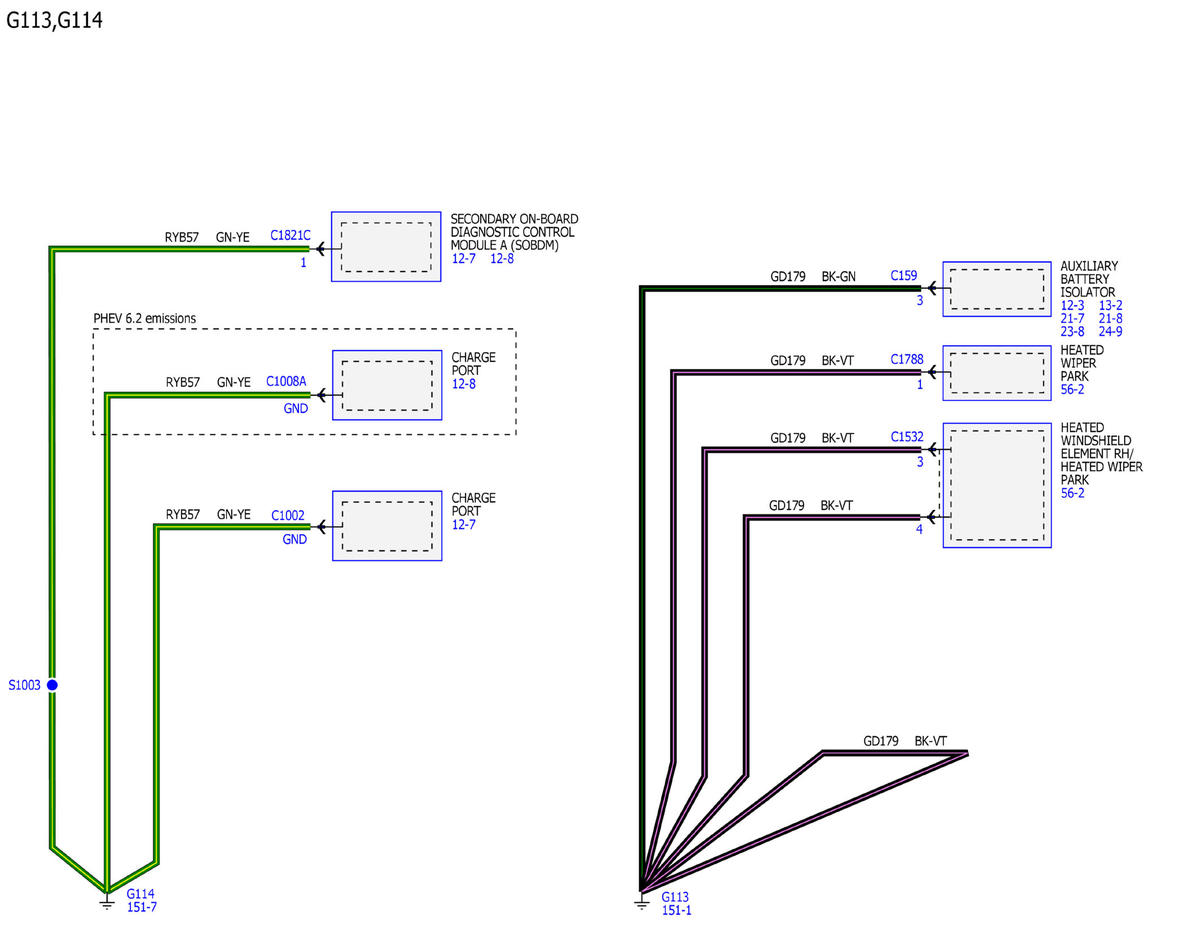

GFDWR168651Courtesy of FORD MOTOR COMPANY

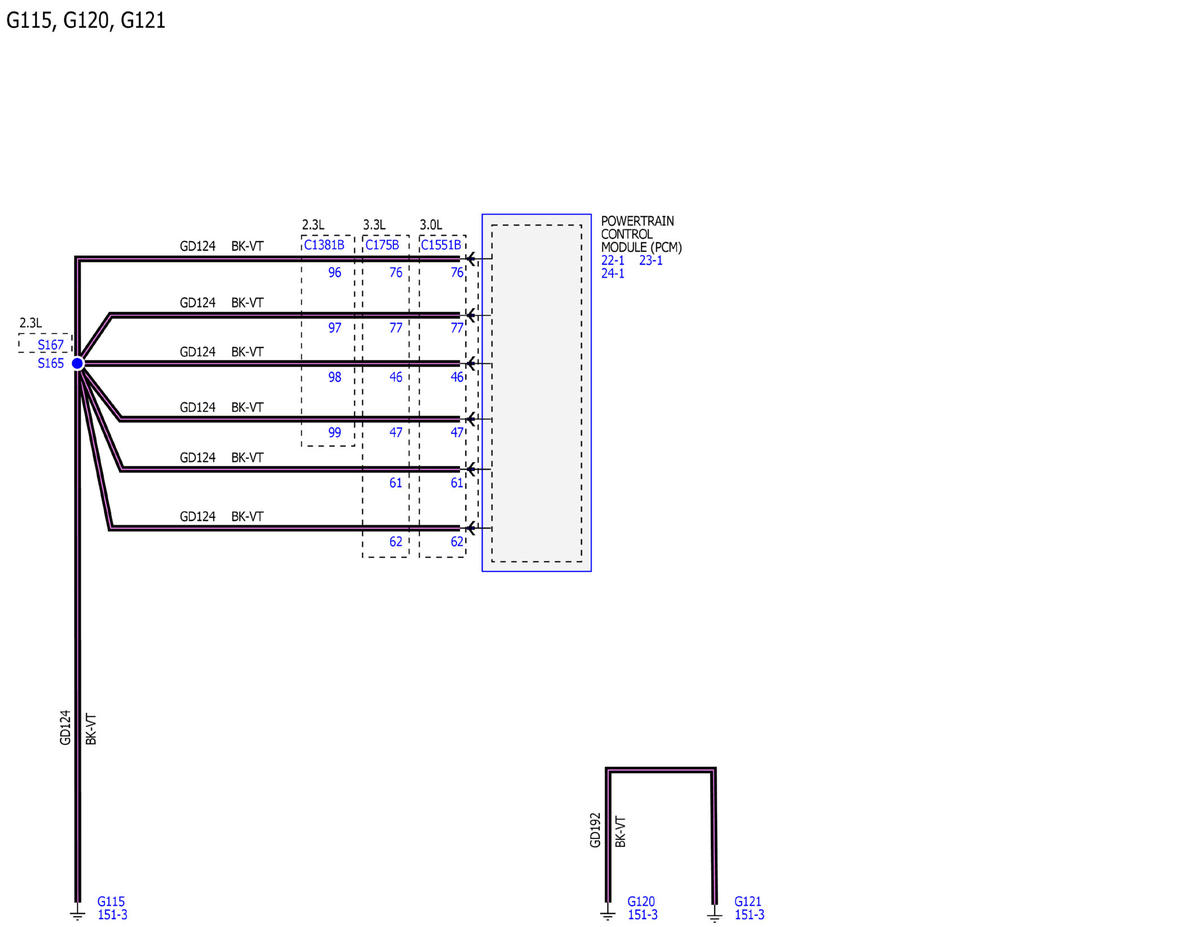

GFDWR168652Courtesy of FORD MOTOR COMPANY

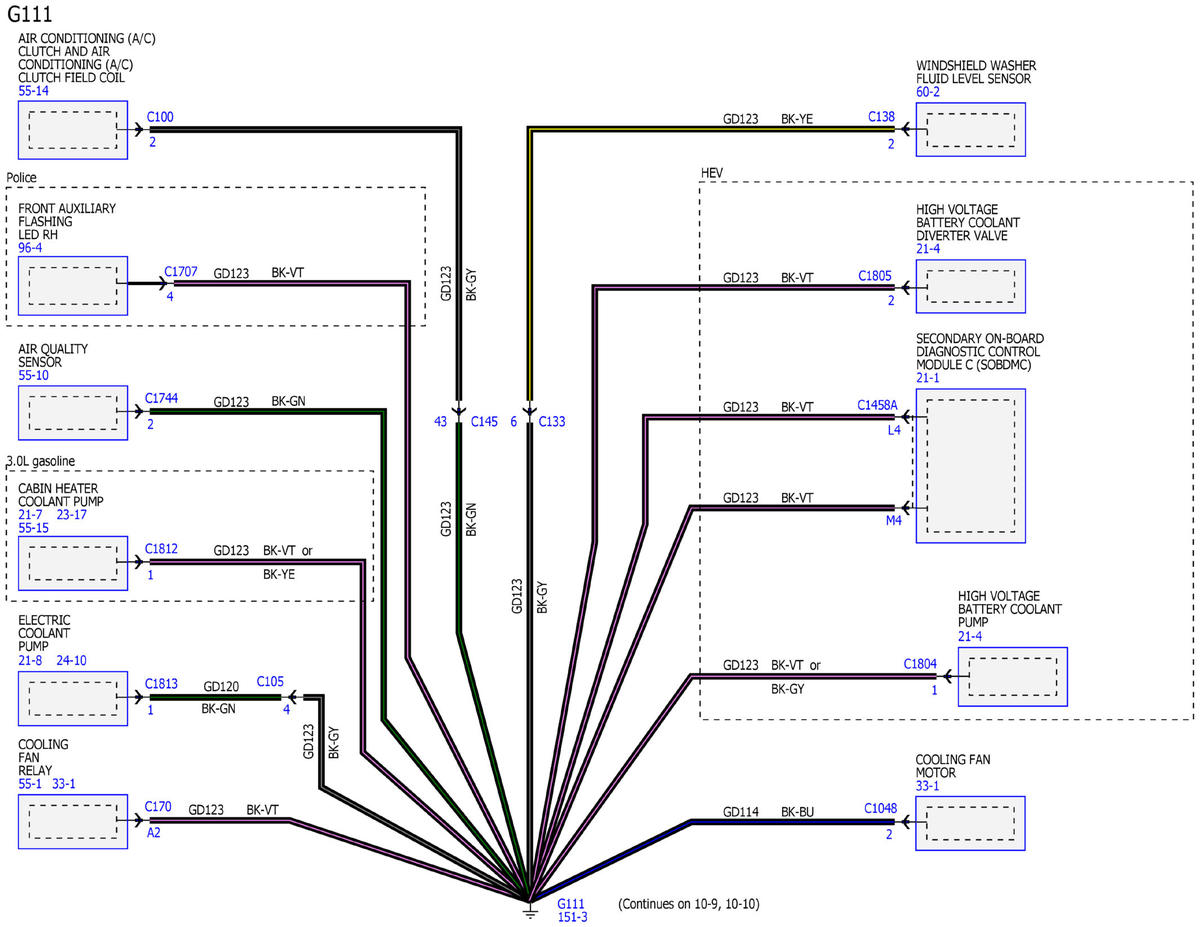

GFDWR168653Courtesy of FORD MOTOR COMPANY

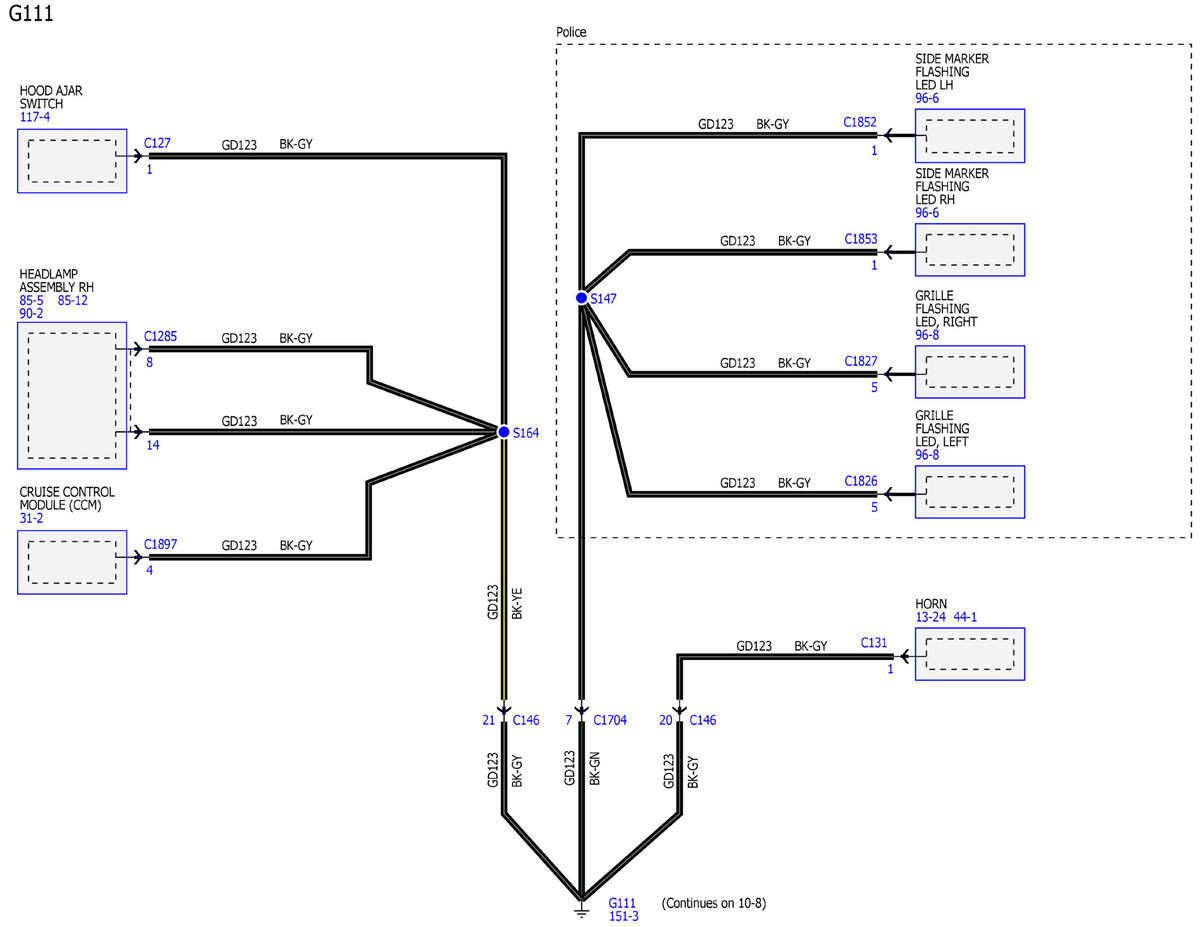

GFDWR168654Courtesy of FORD MOTOR COMPANY

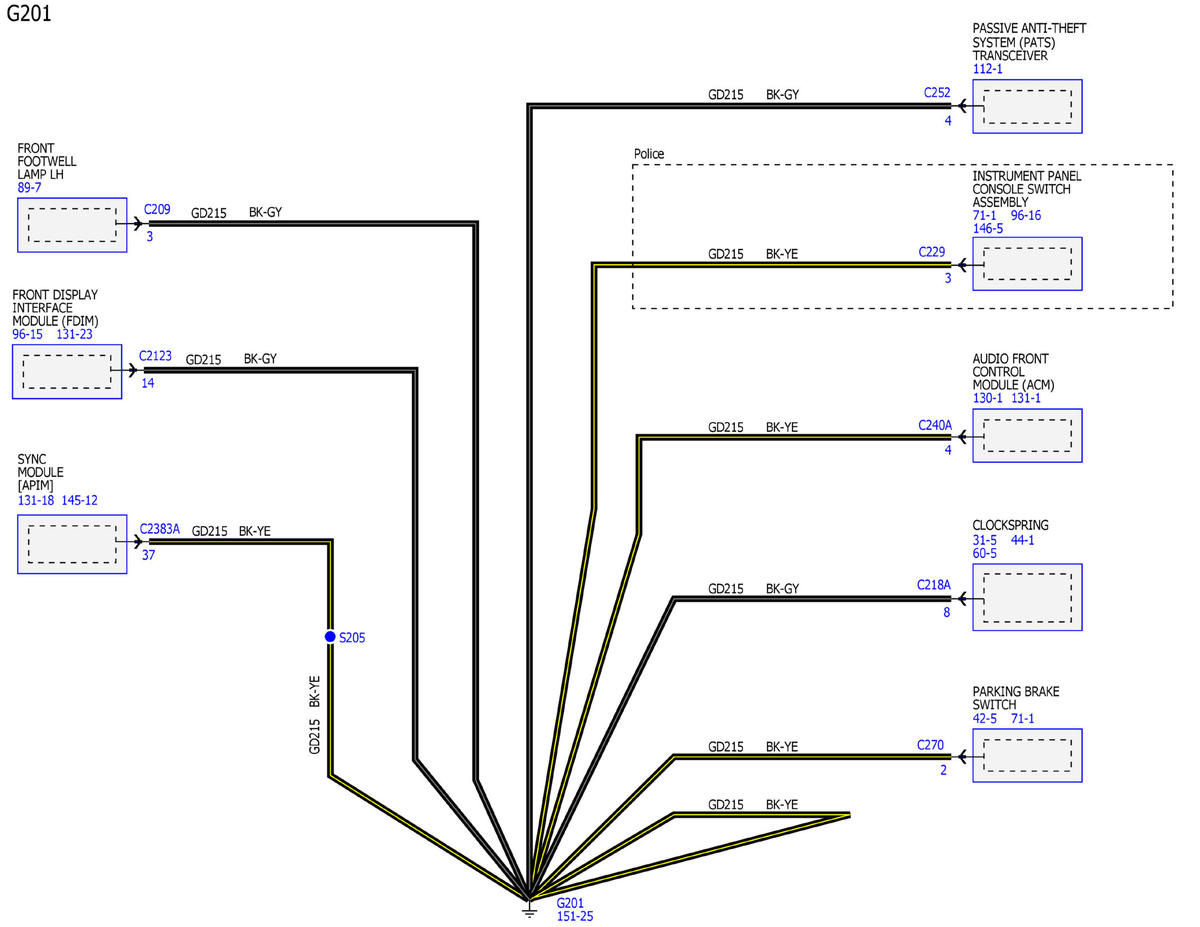

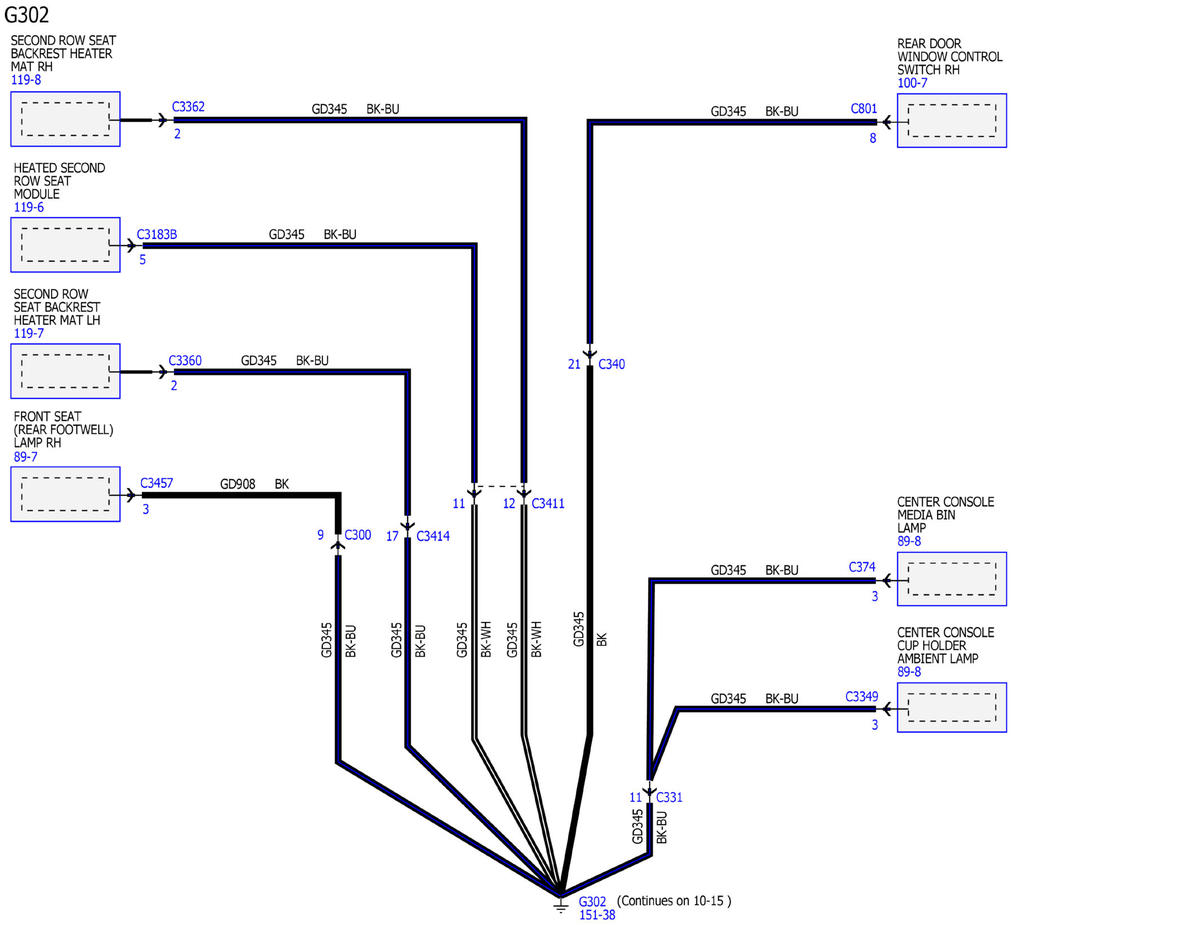

GFDWR168630Courtesy of FORD MOTOR COMPANY

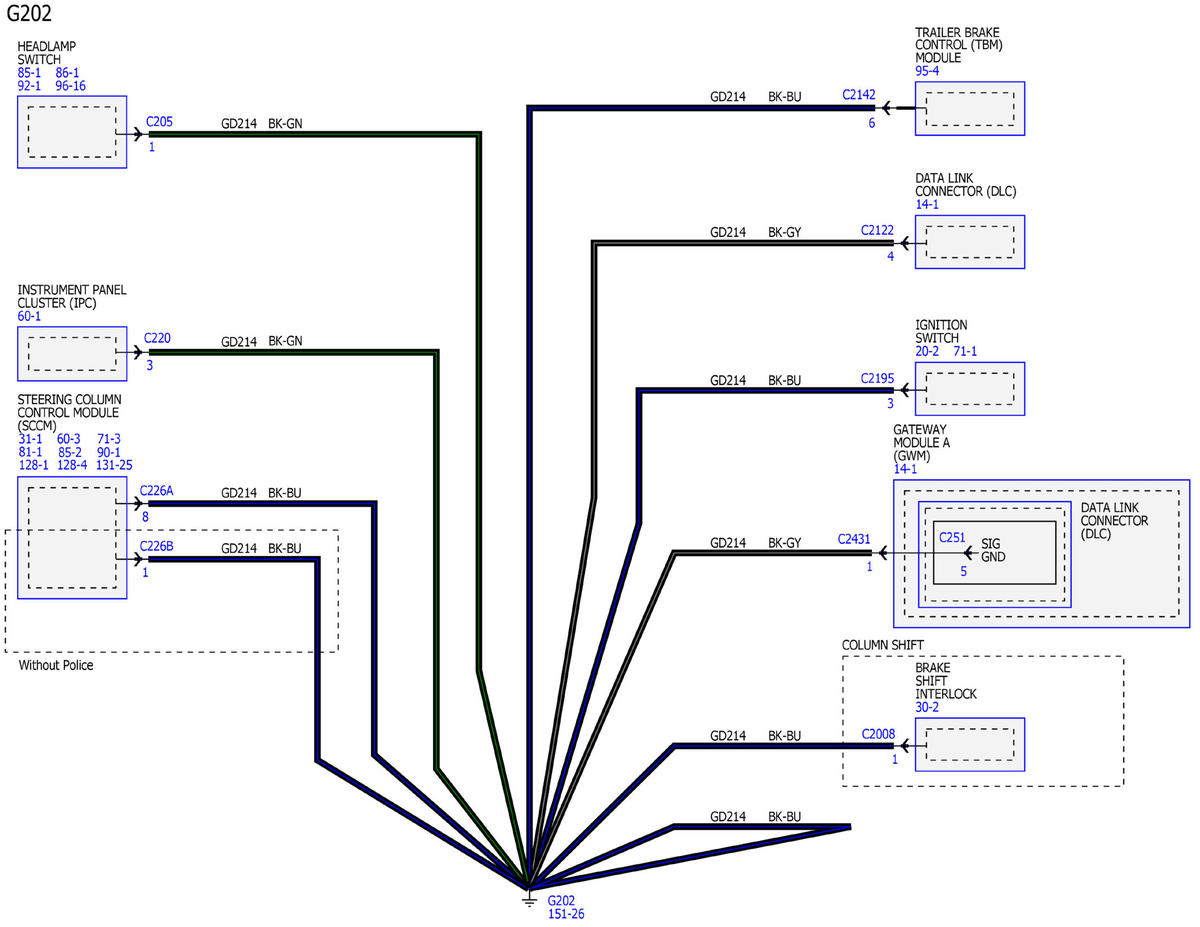

GFDWR168631Courtesy of FORD MOTOR COMPANY

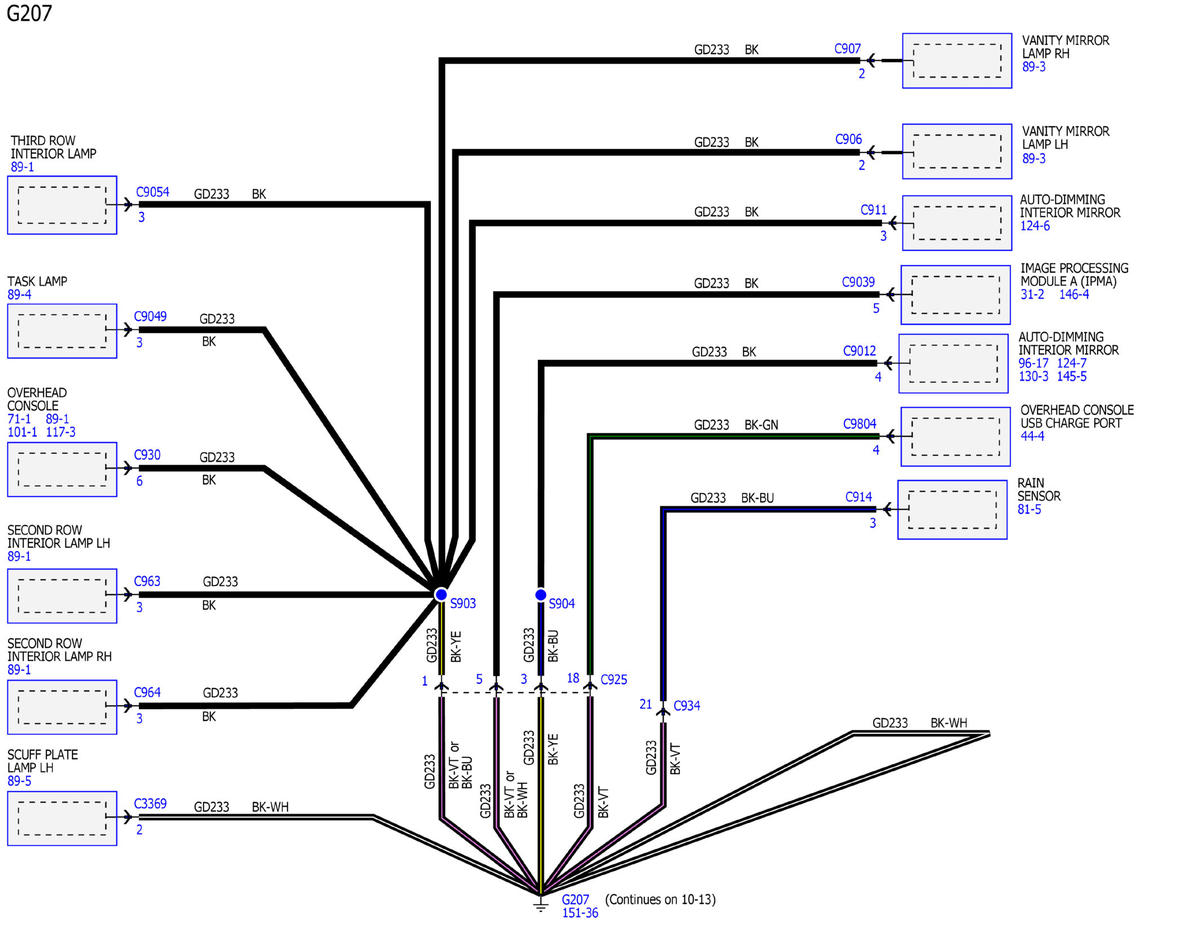

GFDWR168632Courtesy of FORD MOTOR COMPANY

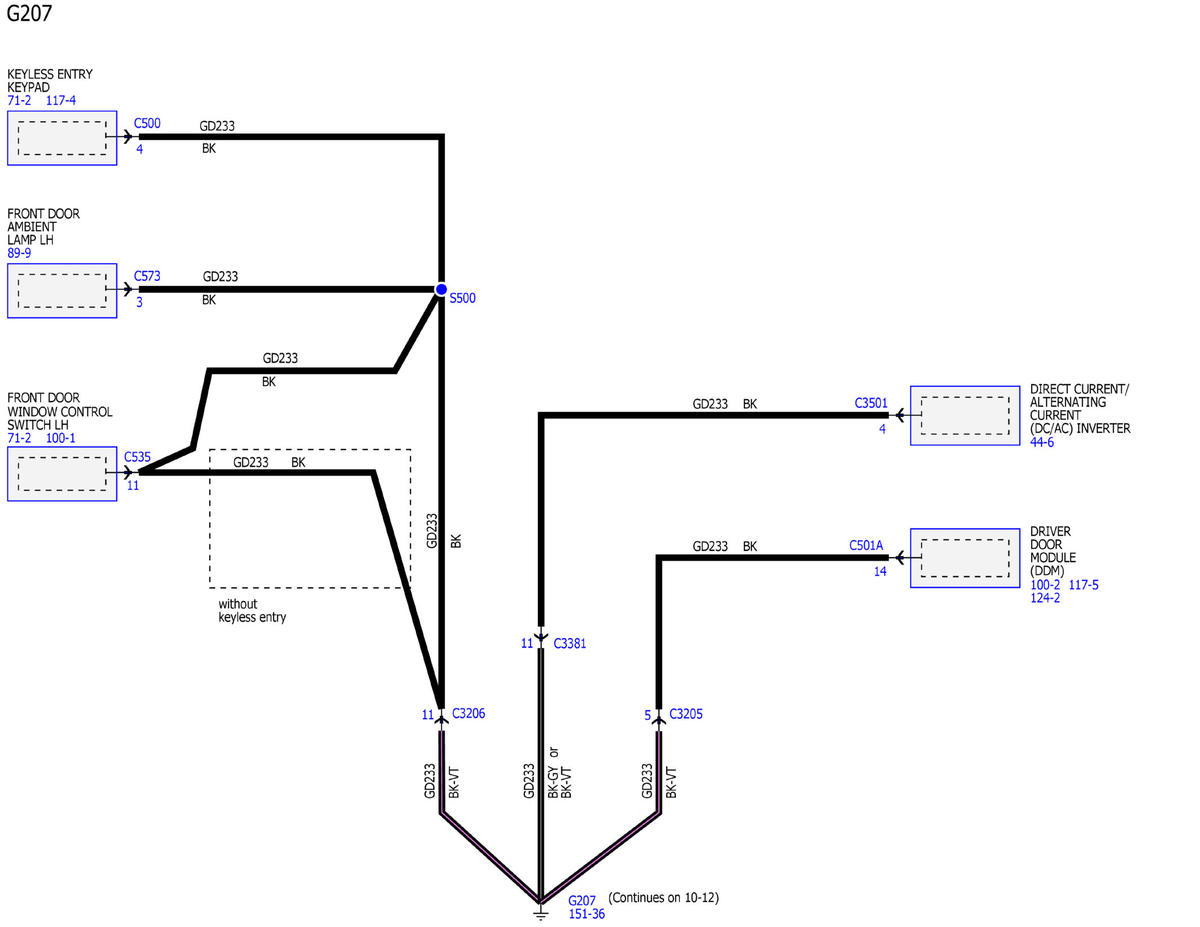

GFDWR168633Courtesy of FORD MOTOR COMPANY

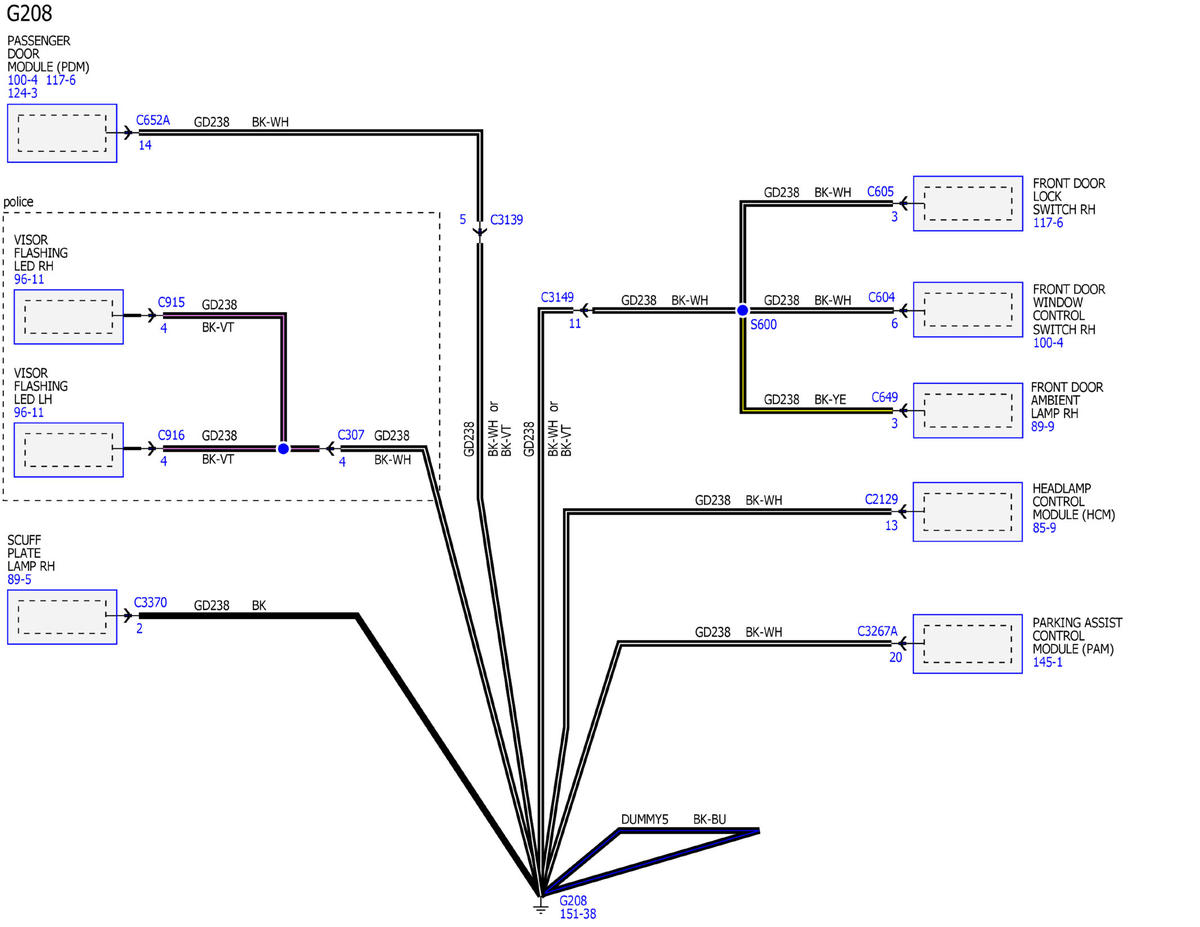

GFDWR168634Courtesy of FORD MOTOR COMPANY

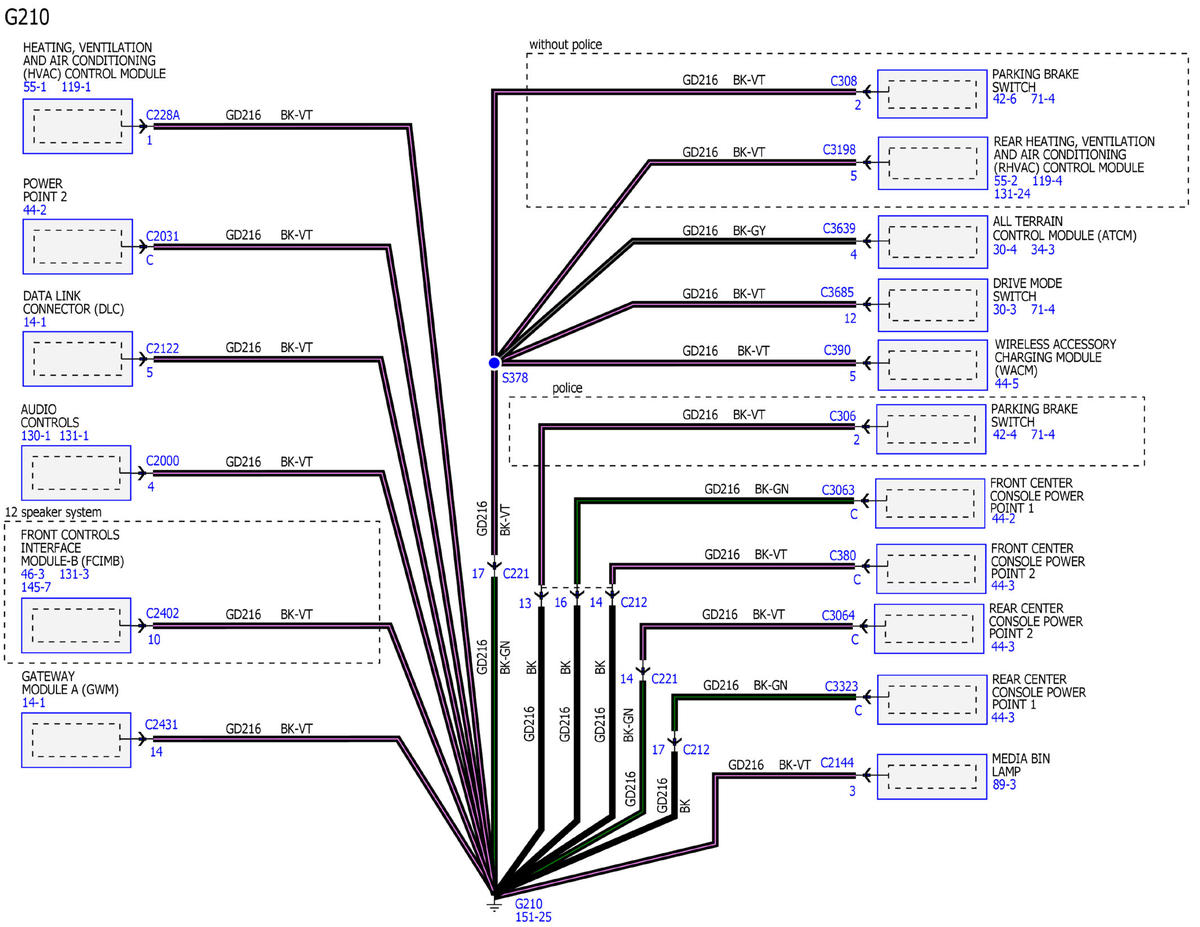

GFDWR168635Courtesy of FORD MOTOR COMPANY

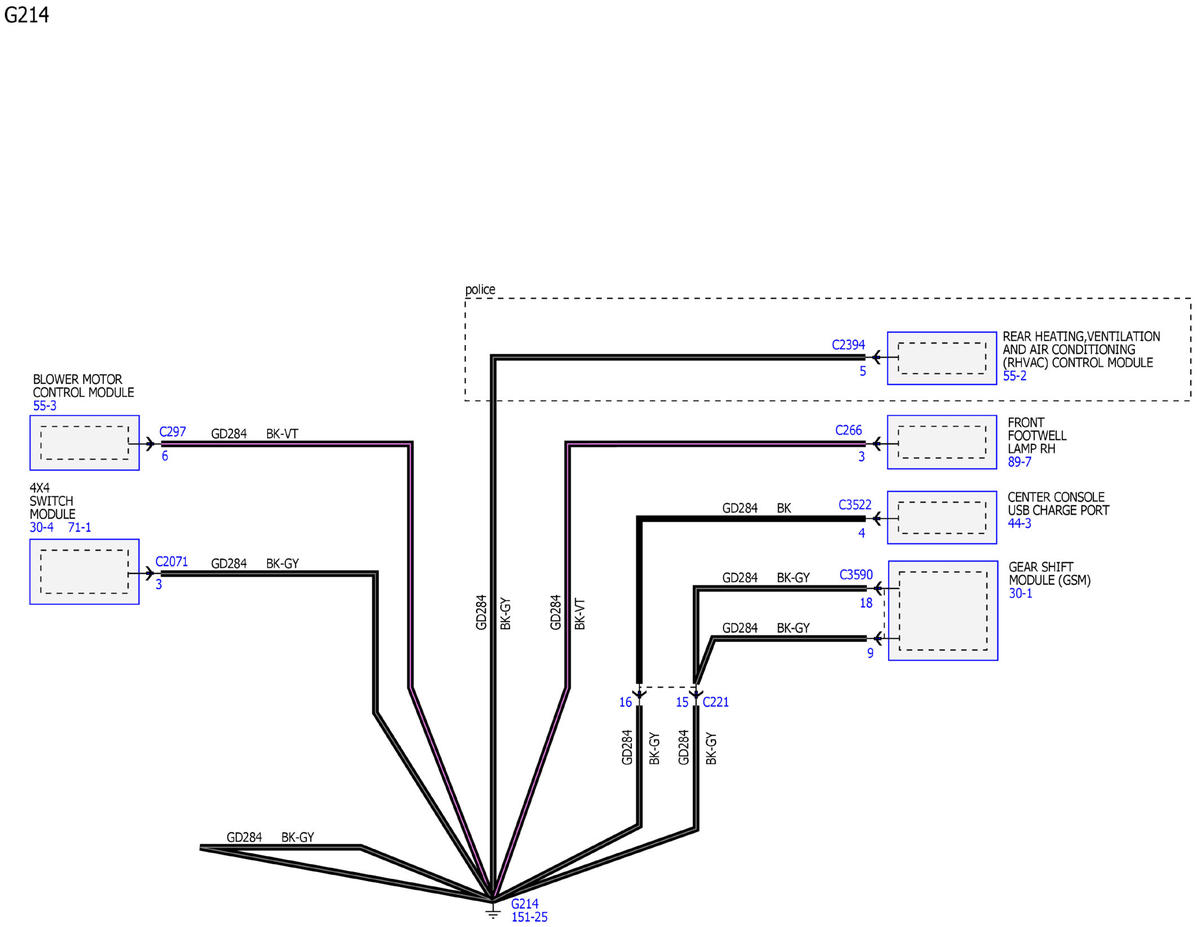

GFDWR168636Courtesy of FORD MOTOR COMPANY

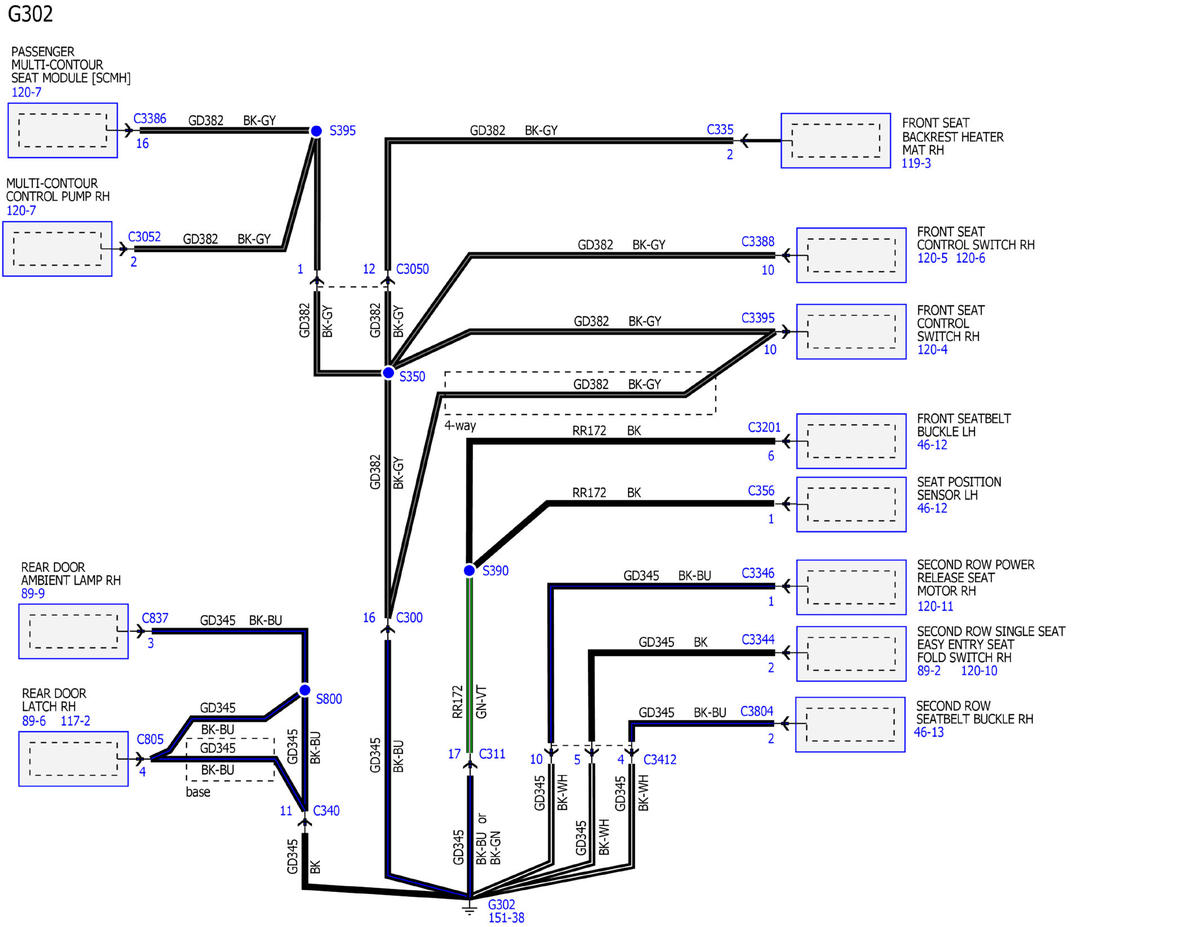

GFDWR168637Courtesy of FORD MOTOR COMPANY
GFDWR168638Courtesy of FORD MOTOR COMPANY

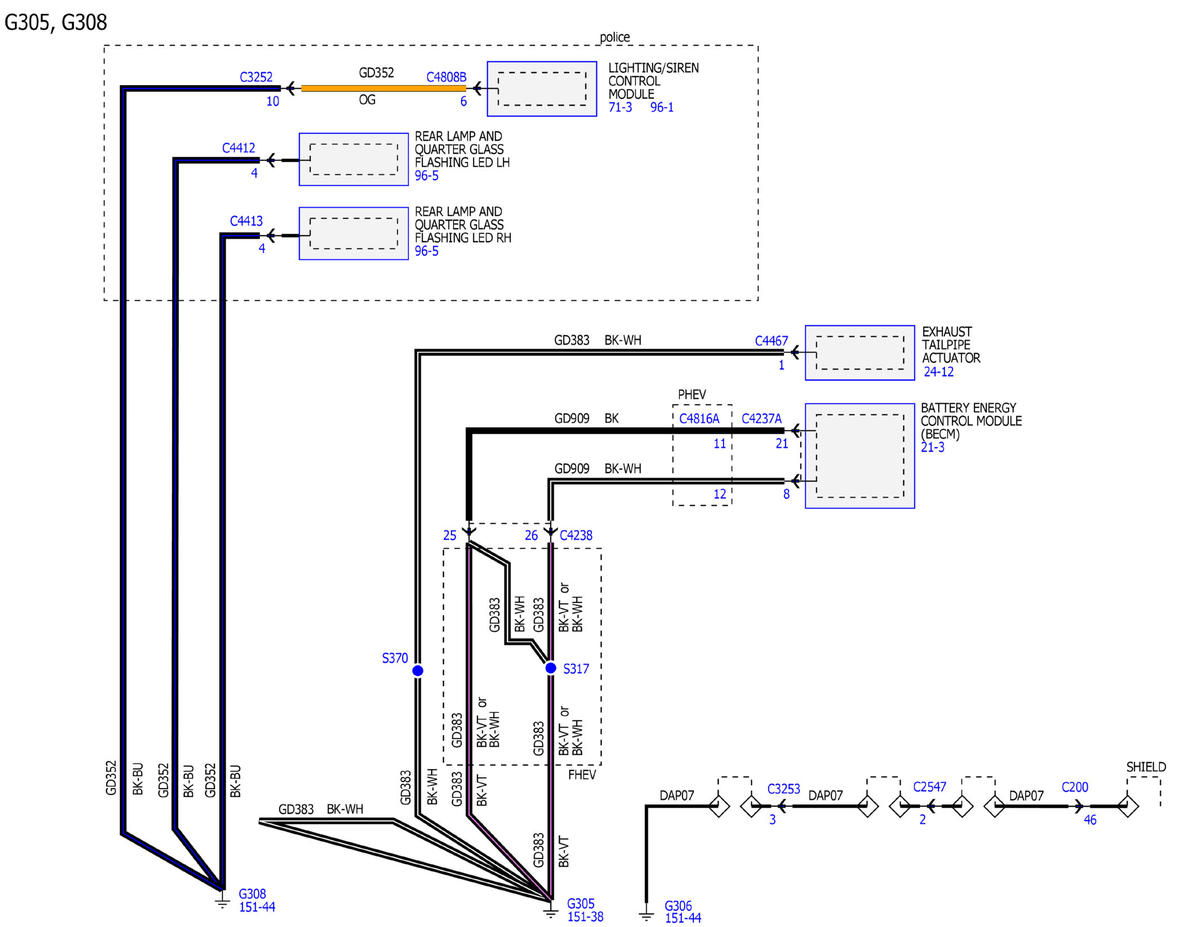

GFDWR168639Courtesy of FORD MOTOR COMPANY

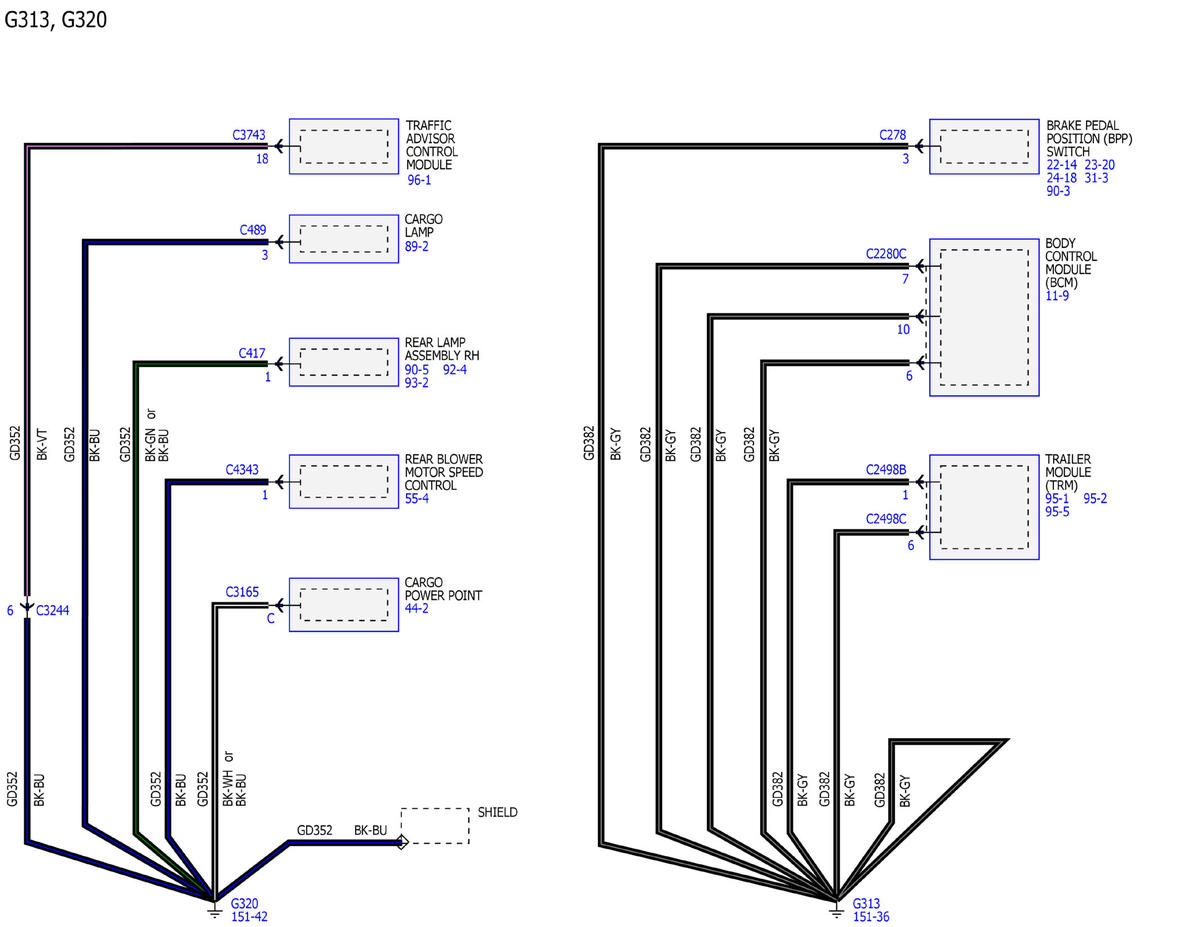

GFDWR168641Courtesy of FORD MOTOR COMPANY

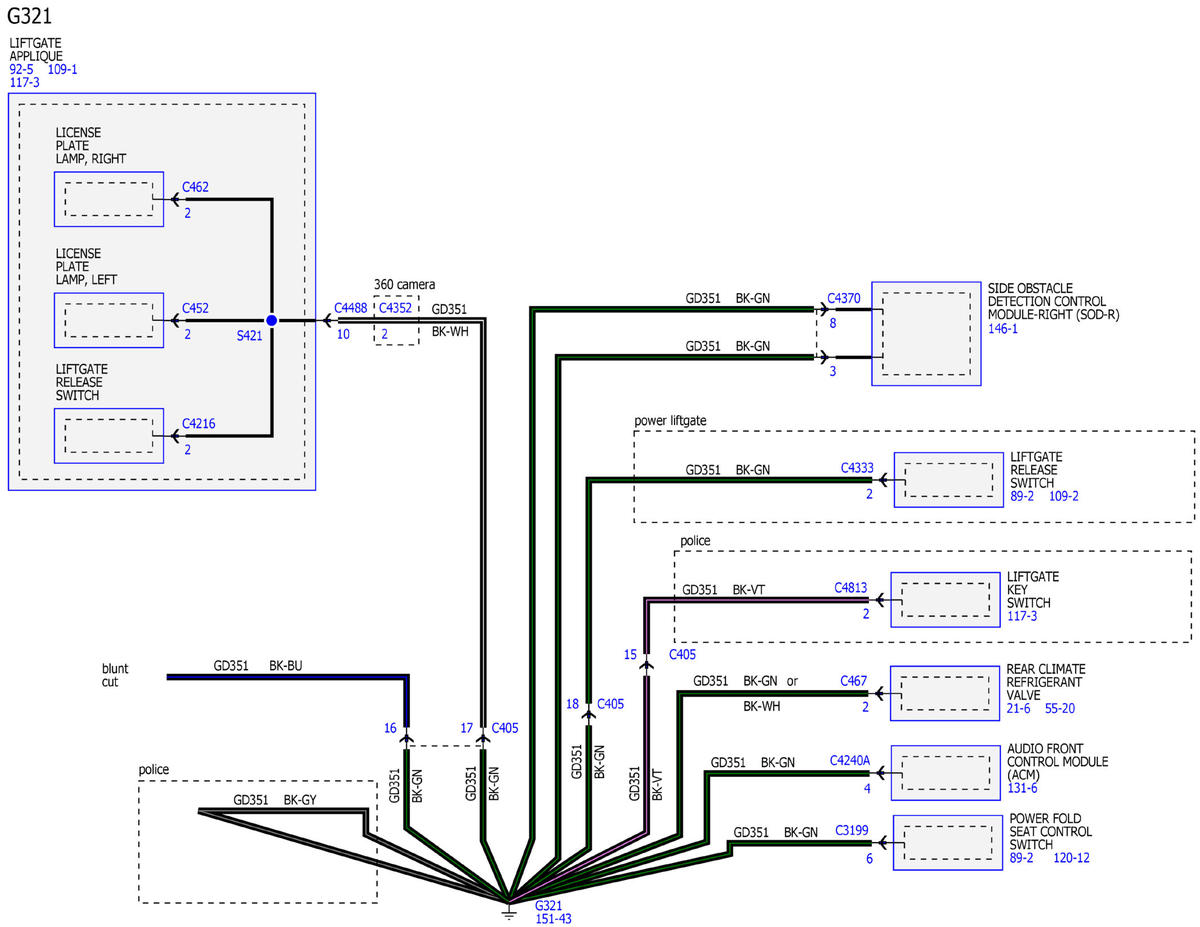

GFDWR168642Courtesy of FORD MOTOR COMPANY

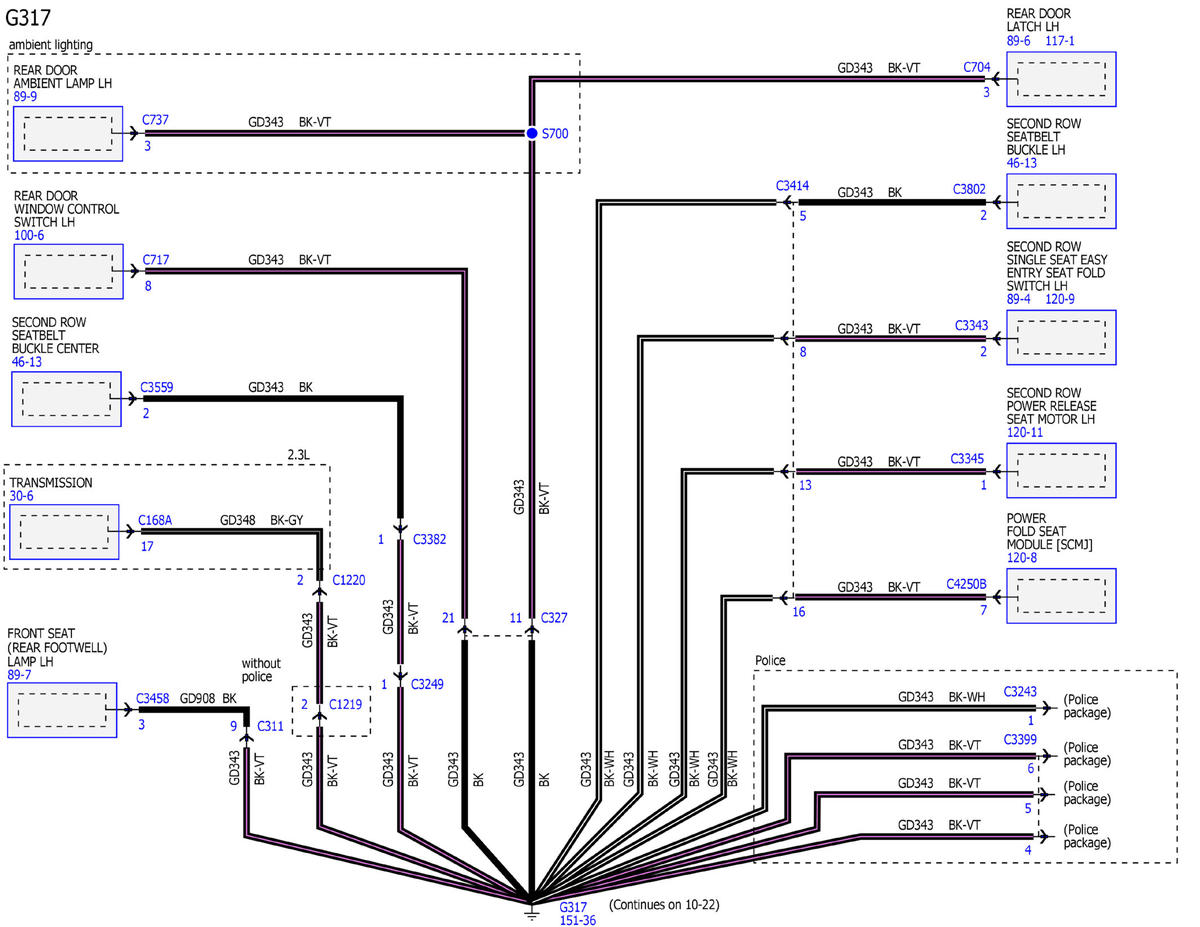

GFDWR168643Courtesy of FORD MOTOR COMPANY

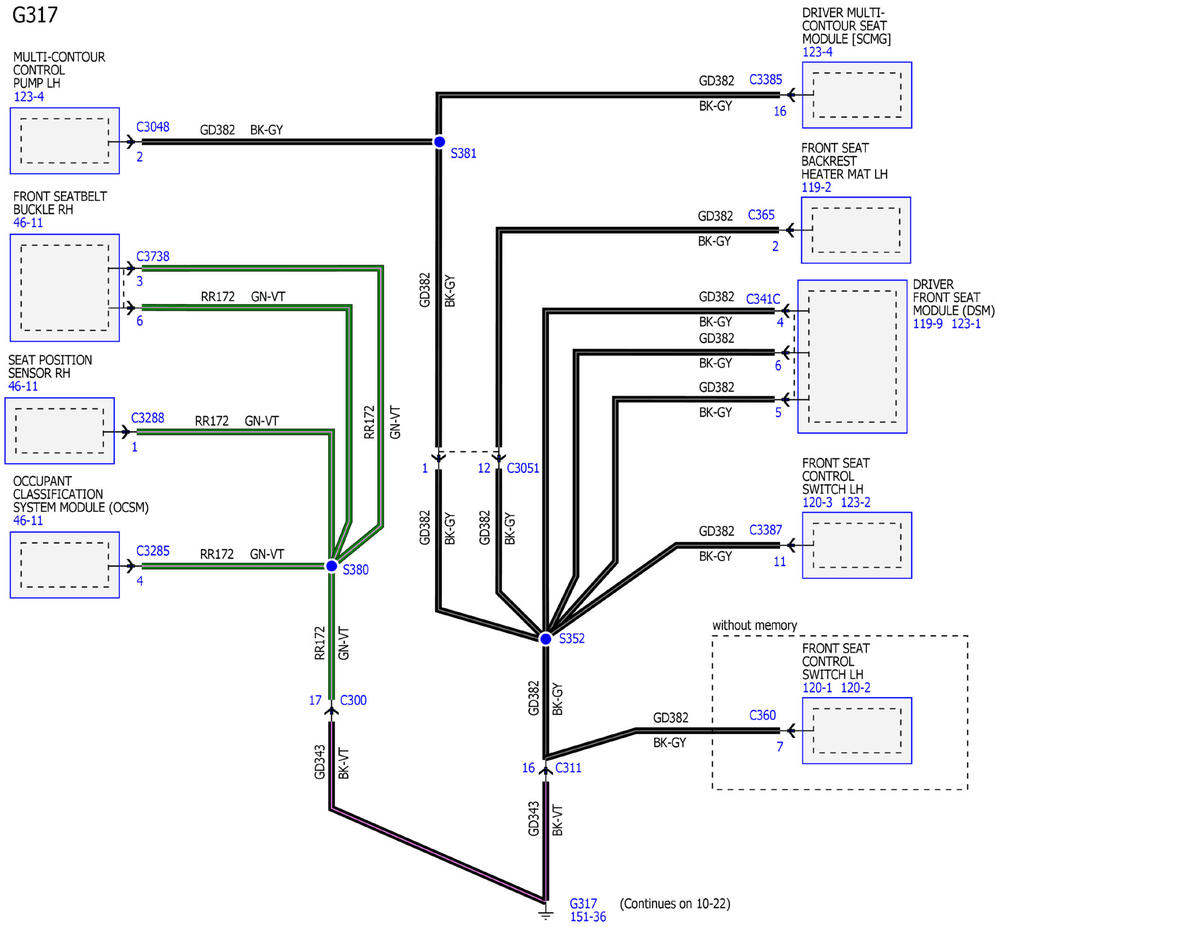

GFDWR168644Courtesy of FORD MOTOR COMPANY

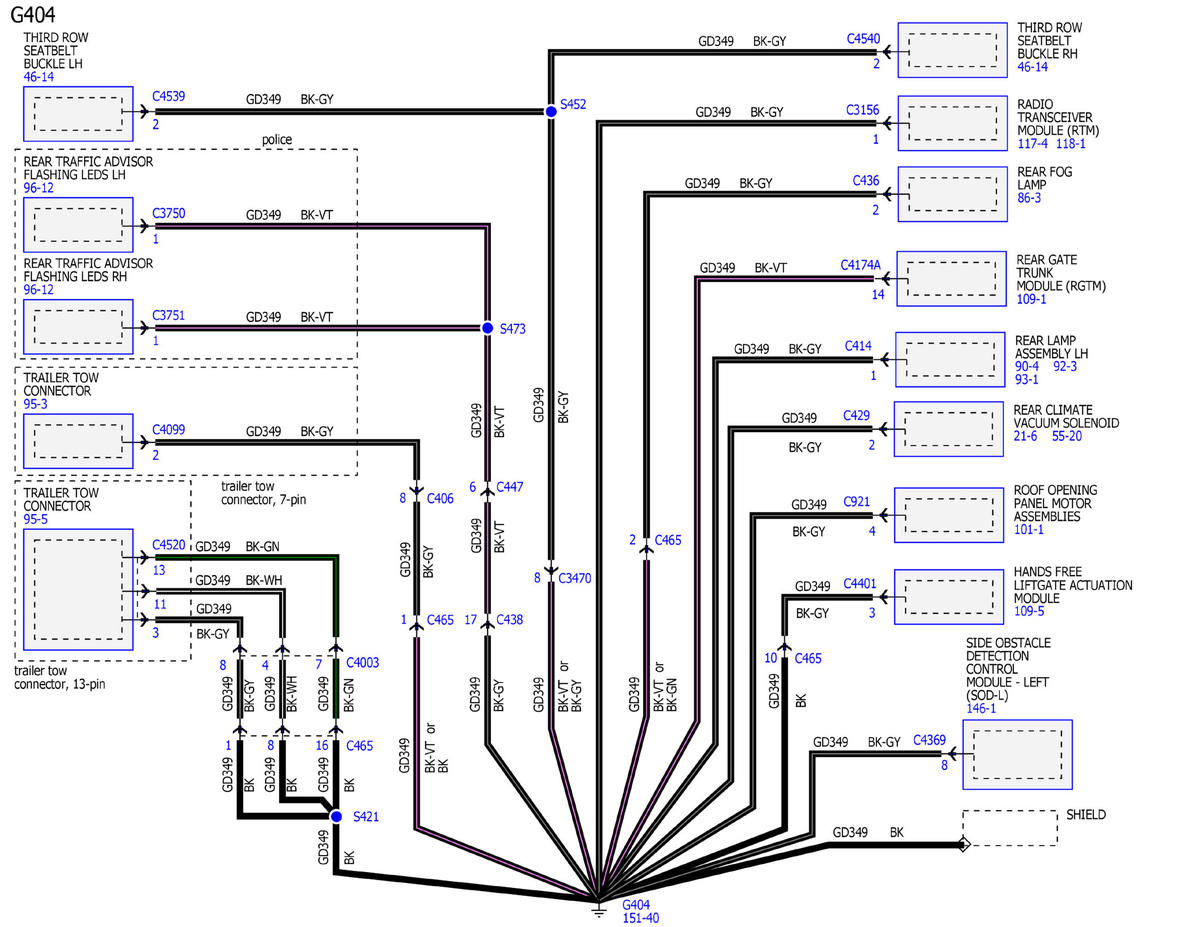

GFDWR168645Courtesy of FORD MOTOR COMPANY

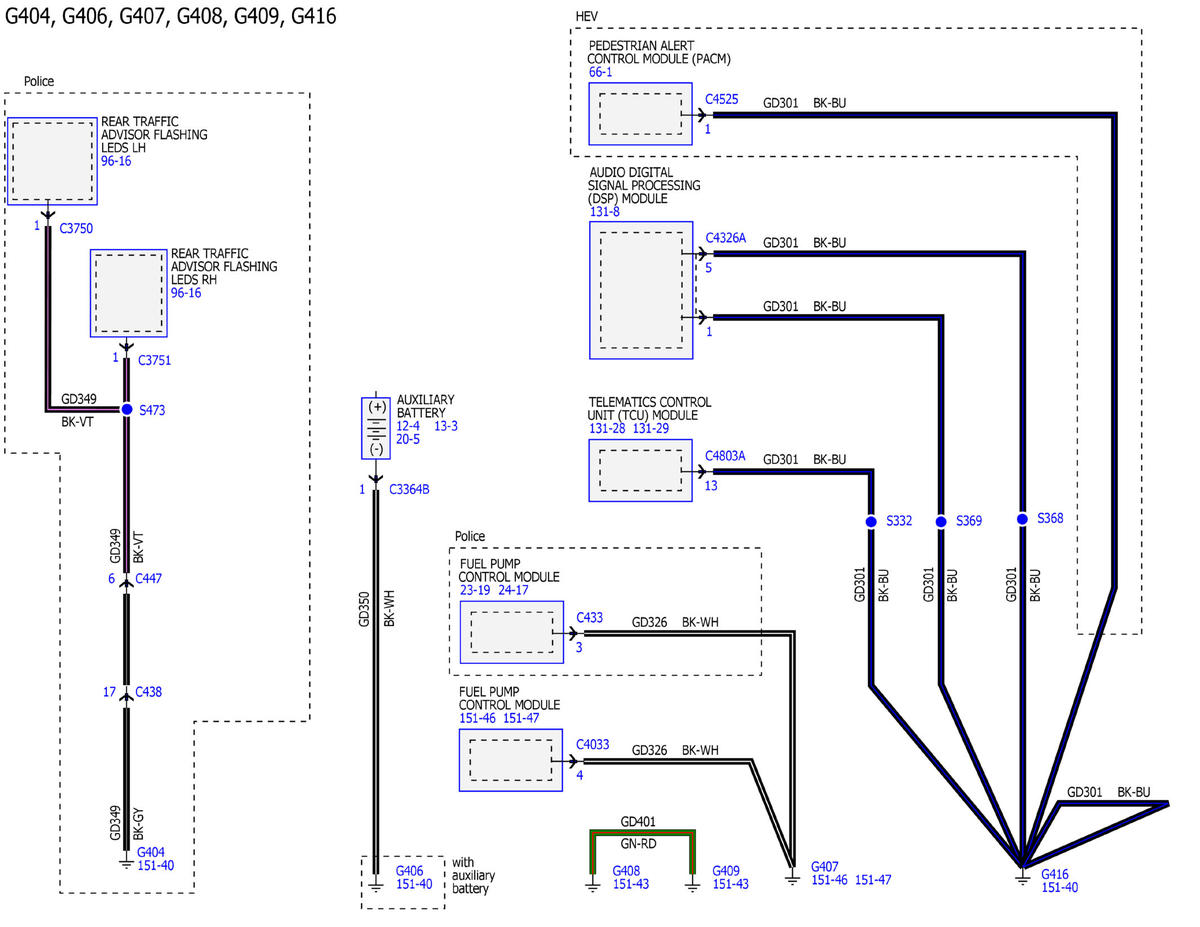

GFDWR168646Courtesy of FORD MOTOR COMPANY

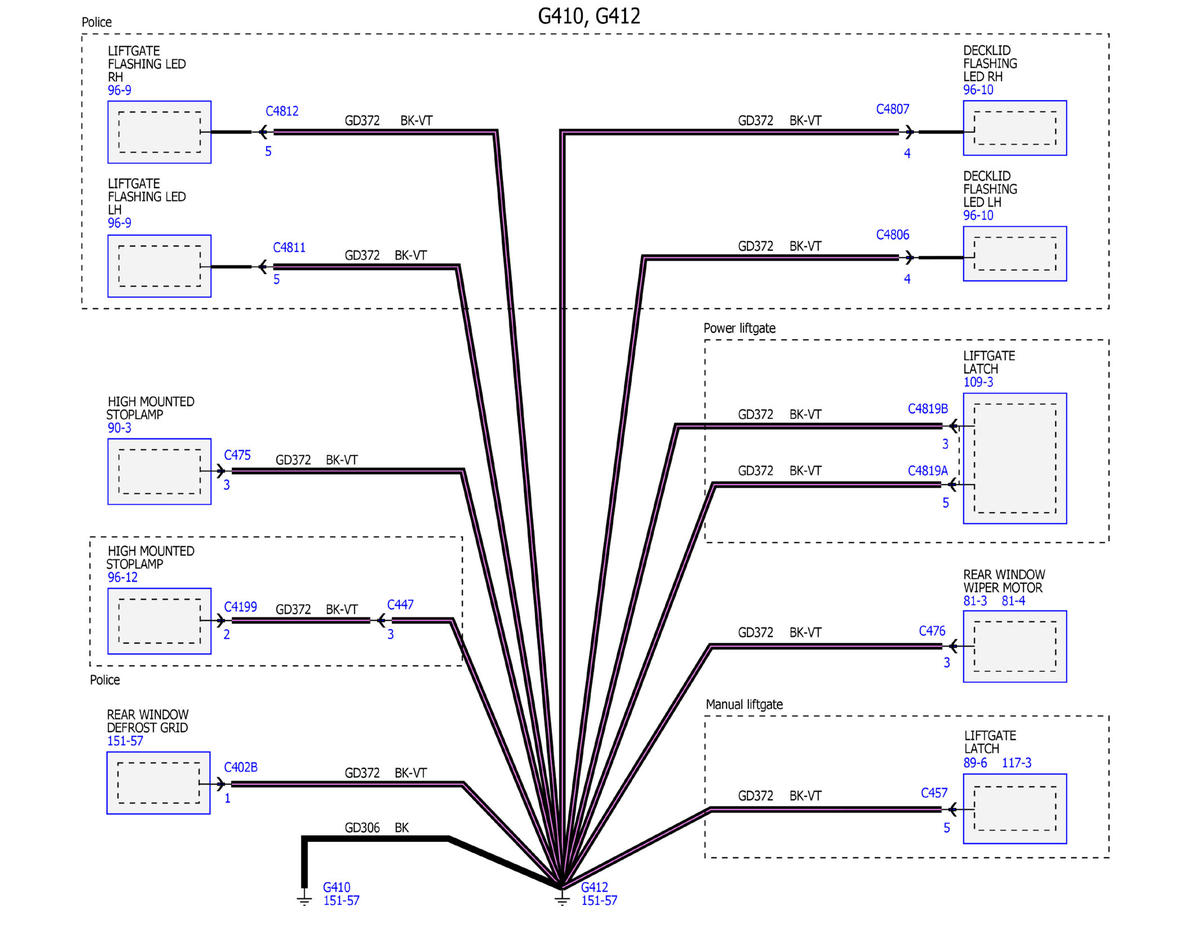

GFDWR168647Courtesy of FORD MOTOR COMPANY
