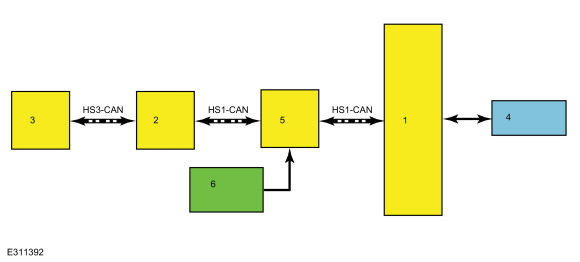

Network Message Chart
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
PCM (powertrain control module) |
| 2 |
GWM (gateway module A) |
| 3 |
IPC (instrument panel cluster) |
| 4 |
Generator |
| 5 |
BCM (body control module) |
| 6 |
Battery Current Sensor |
Module Network Input Messages -- Body Control Module (BCM)
| Broadcast Message |
Originating Module |
Message Purpose |
| Alternator fault |
PCM |
The PCM has detected a fault in the generator or generator circuits. |
Module Network Input Messages -- Instrument Panel Cluster (IPC)
| Broadcast Message |
Originating Module |
Message Purpose |
| Power system status |
BCM |
Reports any generator/charging system faults. Used for charging system fault indicator. |
| Load Shed Request |
BCM |
Used to indicate what level of load shed is commanded. |
Module Network Input Messages -- Powertrain Control Module (PCM)
| Broadcast Message |
Originating Module |
Message Purpose |
| Load Shed Request |
BCM |
Used to indicate what level of load shed is commanded. |
