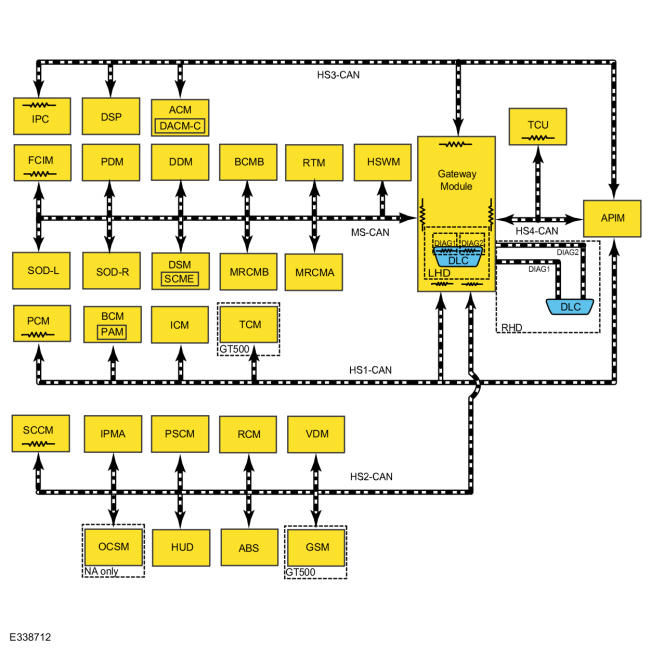

System Diagram
NOTE:
For vehicles equipped with adaptive cruise control and pre-collision assist, the CCM does not communicate directly on the HS-CAN2. The CCM communicates with the IPMA on a private CAN, and the IPMA communicates on the HS-CAN2. For description and diagnostic information, refer to the Adaptive Cruise Control article
.
