7th Gear

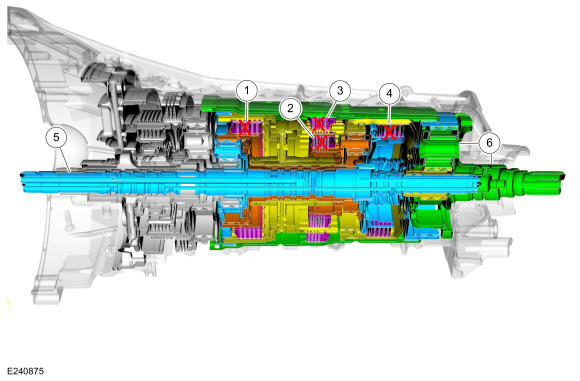

| Item | Description |
|---|---|
| 1 | C clutch |
| 2 | D clutch |
| 3 | F clutch |
| 4 | E clutch |
| 5 | Input shaft |
| 6 | Output shaft and planetary carrier No. 4 |
The C clutch, D clutch, F clutch and the E clutch are applied to provide multiple inputs at the same speed to all four planetary gears sets. These inputs effectively lock all four planetary gears sets causing the output shaft and planetary carrier No. 4 to rotate at a 1:1 ratio with the input shaft.
