All Terrain Control Module (ATCM): Removal

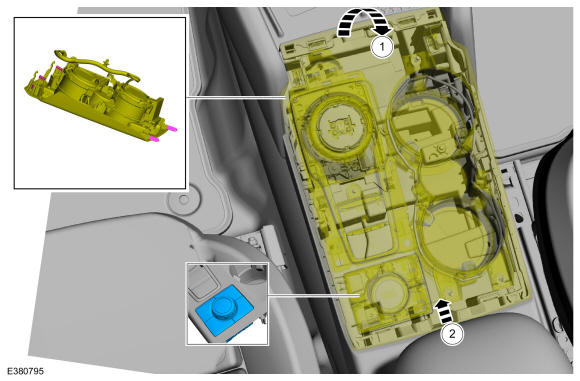

- Release the clips and position aside the floor console upper trim panel.
- Lift the front of the upper trim panel to release the clips.
- Slide the upper trim panel forward to release the rear retaining tabs. Use the General Equipment: Interior Trim Remover

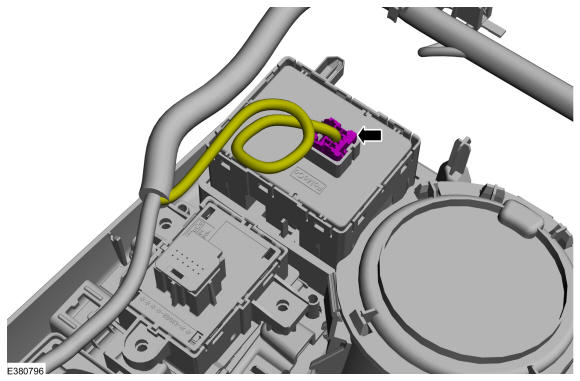

- Disconnect the ATCM.

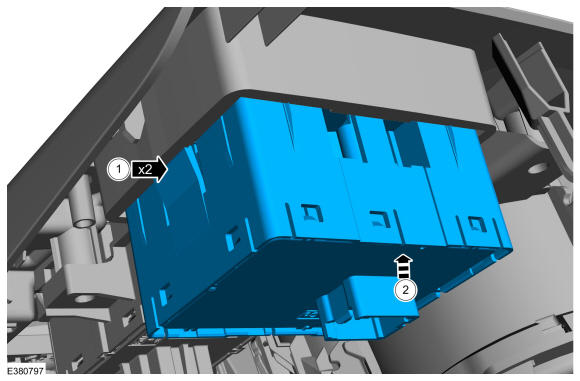

- Release the retainer both side and gently push upwards to remove the ATCM.
