All-Wheel Drive (AWD) Module: Installation

  1. To install, reverse the removal procedure.
    NOTE: Carry out the remaining steps only if installing a new AWD module.

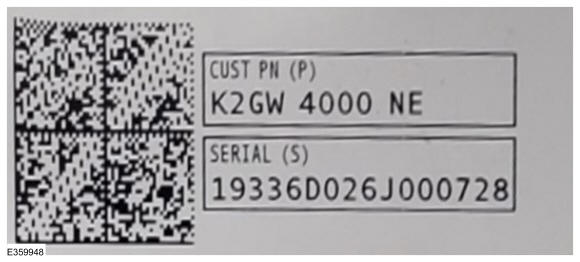

  2. Using the diagnostic scan tool, carry out the AWD - Active Torque Coupling Configuration routine. The RDU 16-digit alpha numeric bar code is located on the label attached to the RDU.
    GFD746329Courtesy of FORD MOTOR COMPANY
  3. Using a diagnostic scan tool, complete the PMI process for the AWD module following the on-screen instructions.
