Module Controlled Functions - Component Location

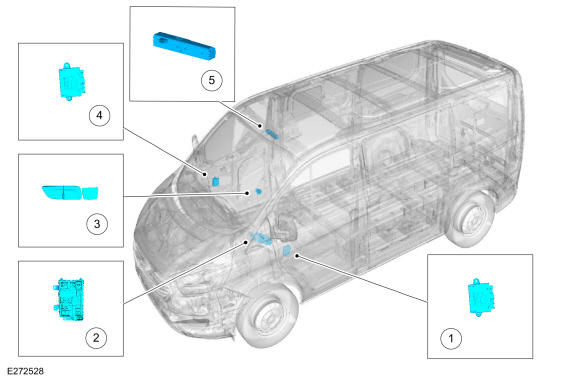

GFD787806Courtesy of FORD MOTOR COMPANY
Item Description
1 RHD - PDM, LHD - DDM
2 BCM
3 Auxiliary Switches
4 RHD - DDM, LHD - PDM
5 RTM
