Anti-Lock Brake System (ABS) Module: Installation

  1. To install, reverse the removal procedure.

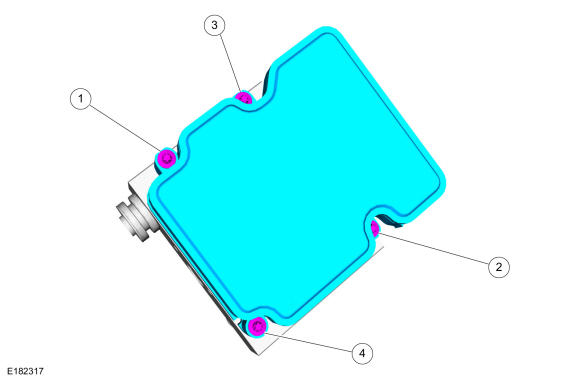

  2. Torque the module screws in stages.

    Torque

    : Stage 1: 18 lb.in (2 Nm) Stage 2: 27 lb.in (3 Nm)

GFD783722Courtesy of FORD MOTOR COMPANY
