Front Wheel Speed Sensor: Installation

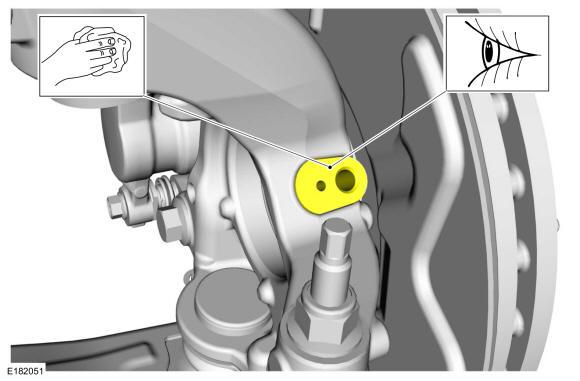

  1. NOTE: Make sure that the sensor housing is clean and free of foreign material.

    Clean and inspect the sensor housing cavity.

    Material

    : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD783725Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
